2BMEO-232333 in 1 wireless charger

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Declaration on model difference We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; The difference lies in the model name. FCCID: 2BMEO-23233 Production name Trade name Model no. 3 in 1 wireless charger N/A 23233,3 in 1 wireless charger Signature: Date: 2026/06/15 Name: Michelle Lu Title: Manager Company: JR Technik Co.,Ltd

U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTENTION:FCCCertification–Section2.911(d)(7)Information DesignatedU.S.Agent CompanyName:BaihetianInnovativeSolutions FRN:0033401605 ContactName:KennethYoung StreetAddress:6837ChaseRd City/Province/Zip:Dearborn,Ml48126 TelephoneNo:313-395-3113 Email:[email protected] Thisletteristoconfirmthatwe(“theDesignatedU.S.Agent”)haveacceptedtheresponsibilitytoactasthe DesignatedU.S.AgentforServiceofProcessasrequiredbysection47CFR2.911(d)(7)onbehalfofthe Applicantnotedbelow. U.S. AgentSignature: Date: Signedby(PrintedName/Title): TheApplicantacknowledgesthattheymustmaintainanagentfornolessthanoneyearafterterminatingall marketingandimportationORtheconclusionofanyCommission-relatedproceedinginvolvingthe equipment.TheapplicantfurtheracknowledgestheirresponsibilitytoinformtheFCCwheneverthe DesignatedU.S.Agentinformationabovechanges. Applicant Companyname:JRTechnikCo.,Ltd GranteeCode:2B MEO FCCID:2BMEO-23233 ContactName:MichelleLu StreetAddress:JinxingIndustrialPark,Jinmei,ChangpingTown,Dongguan,Guangdong,China TelephoneNo:+8618682040468 Email:[email protected] FRN:0036328128 ApplicantSignature: Date:2026/06/15 Signedby(PrintedName/Title):MichelleLu June 18, 2026 Kenneth Young/Manager Jun 2026

JRTechnikCo.,Ltd 2026/06/15 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestforFCCID:2BMEO-23233 [JRTechnikCo.,Ltd](“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, Name:MichelleLu JRTechnikCo.,Ltd 2026/06/15 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestforFCCID:2BMEO-23233 [ JRTechnikCo.,Ltd ](“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Sincerely, Name:MichelleLu

JRTechnikCo.,Ltd 2026/06/15 EurofinsElectricalandElectronicTestingNA,Inc. 914W.PatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR ProductName:3in1wirelesscharger FCCID:2BMEO-23233 Model(s):23233 ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe -BlockDiagram -Schematics -OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsmaybeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Client’ssignature: Client’sname/title:MichelleLu/Manager Contactinformation/address:JRTechnikCo.,Ltd/JinxingIndustrialPark,Jinmei, ChangpingTown,Dongguan,Guangdong,China

JRTechnikCo.,Ltd 2026/06/15 EurofinsElectricalandElectronicTestingNA,Inc. 914W.PatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ProductName:3in1wirelesscharger FCCID:2BMEO-23233 Model(s):23233 ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenSTSTestServicesCo.,Ltd.toactonourbehalf inallmattersrelatingtoapplicationforequipmentauthorization,includingthesigningofall documentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Client’ssignature: Client’sname/title:MichelleLu/Manager Contactinformation/address:JRTechnikCo.,Ltd/JinxingIndustrialPark,Jinmei, ChangpingTown,Dongguan,Guangdong,China

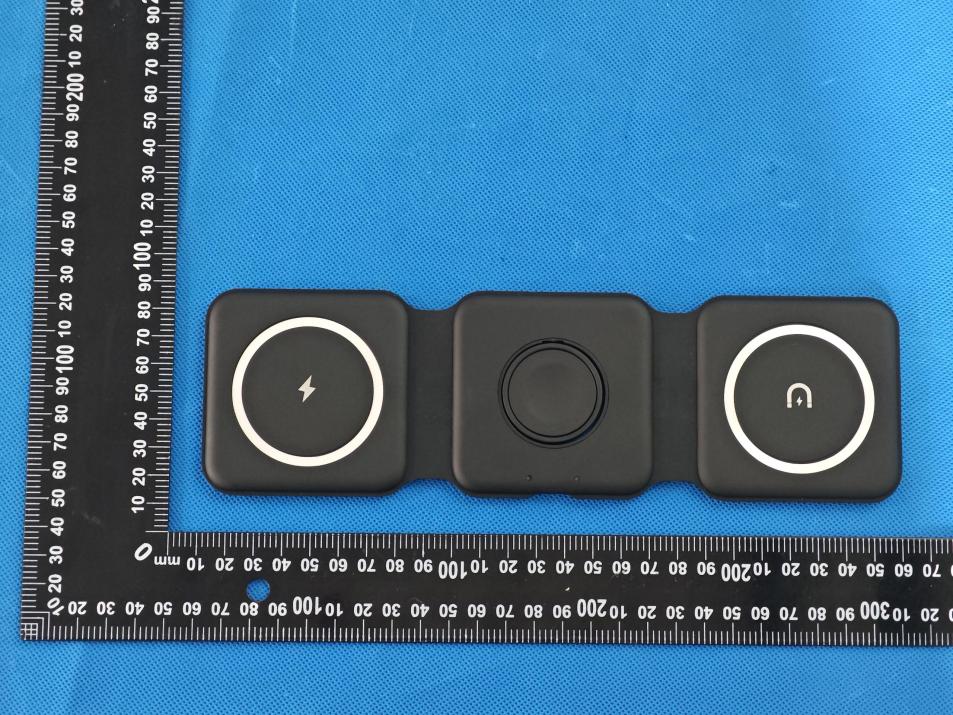

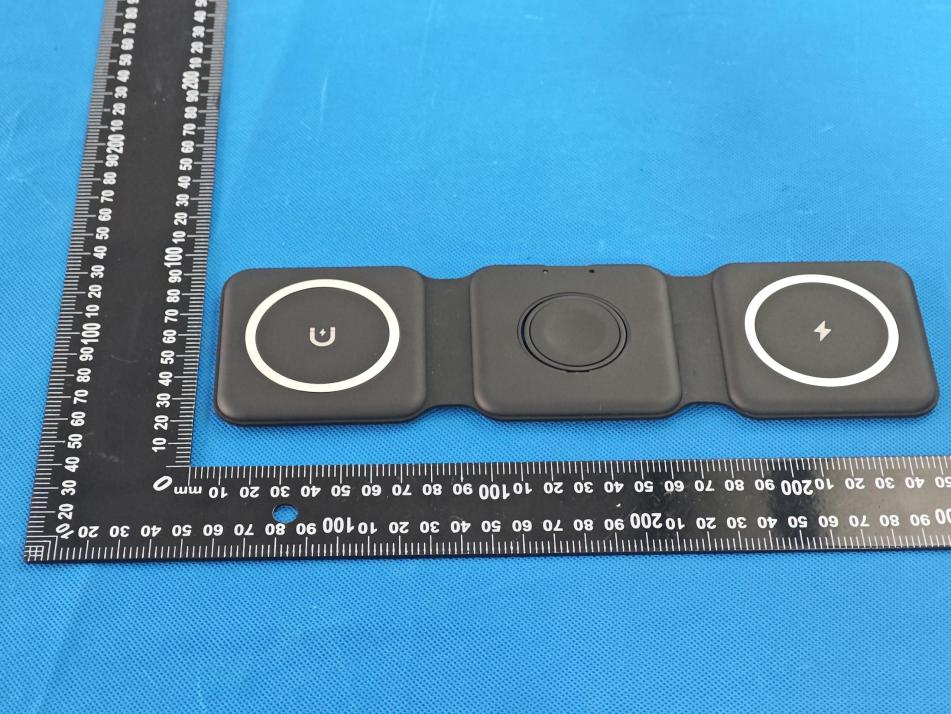

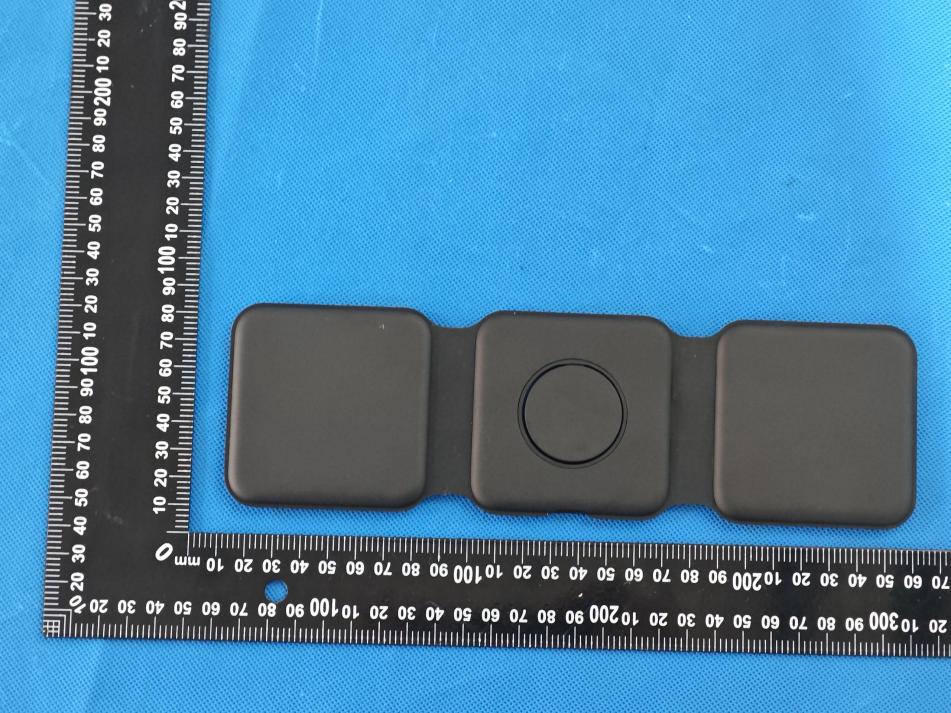

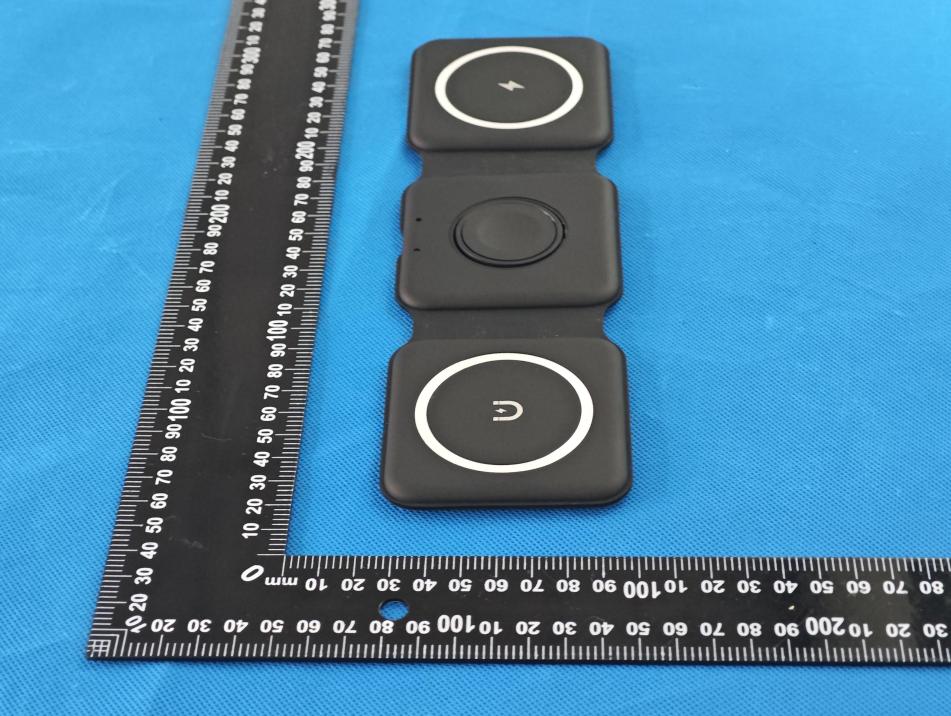

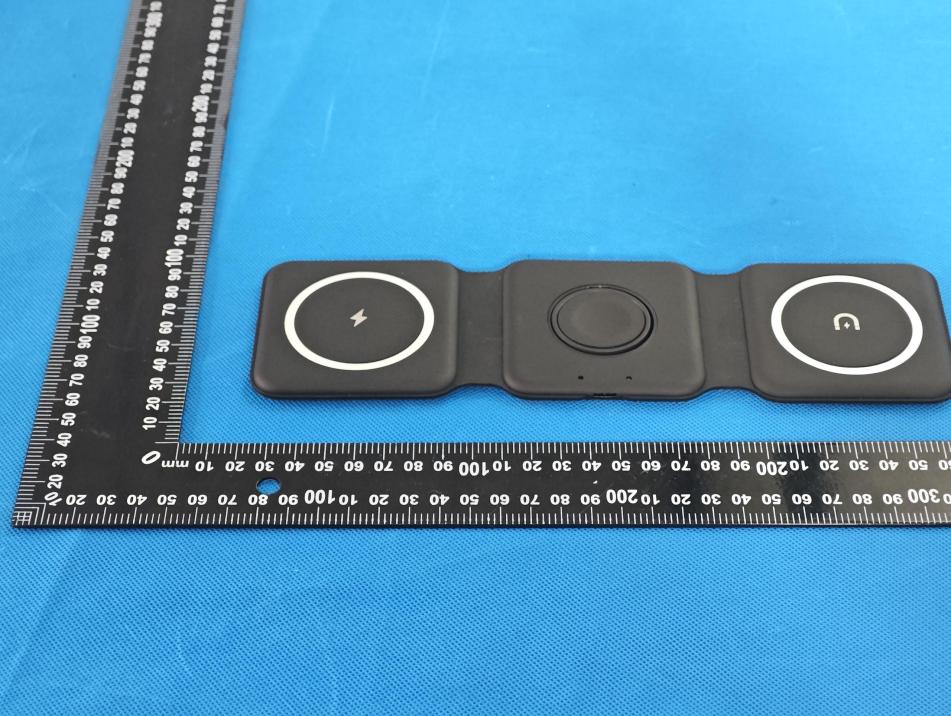

External Photos

Size:20mm*10mm Laser screen printing FCC ID: 2BMEO-23233 Label location

Internal Photos Antenna3 Antenna 1 Antenna2

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. MPE Test Report Report No.: STS2605334H01 Issued for JR Technik Co.,Ltd Jinxing Industrial Park, Jinmei, Changping Town,Dongguan,Guangdong,China Product Name: 3 in 1 wireless charger Brand Name: N/A Model Name: 23233 Series Model(s): 3 in 1 wireless charger FCC ID: 2BMEO-23233 Test Standard: FCC CFR 47 part 1, 1.1310 Page 2 of 16 Report No.: STS2605334H01 TEST RESULT CERTIFICATION Applicant’s Name ................... : JR Technik Co.,Ltd Address ................................. : Jinxing Industrial Park, Jinmei, Changping Town,Dongguan,Guangdong,China Manufacturer's Name ............. : JR Technik Co.,Ltd Address ................................. : Jinxing Industrial Park, Jinmei, Changping Town,Dongguan,Guangdong,China Product Description Product Name ........................ : 3 in 1 wireless charger Brand Name ........................... : N/A Model Name ......................... : 23233 Series Model(s) ...................... : 3 in 1 wireless charger Standards .............................. : FCC CFR 47 part 1, 1.1310 Test Procedure ..................... : KDB 680106 D01 Wireless Power Transfer v04 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ............................ : Date of receipt of test item ..... : 2026.05.09 Date of performance of tests .. : 2026.05.09 to 2026.06.08 Date of Issue .......................... : 2026.06.08 Test Result ............................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 16 Report No.: STS2605334H01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 1.3 GENERAL DESCRIPTION OF THE EUT 6 1.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 7 1.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 7 2. COIL SPECIFICATIONS 8 2.1 COIL SIZE 8 2.2 LOCATION(S) – COIL TO THE OUTER SURFACE OF THE ENCLOSURE(S) 9 3. MAXIMUM PERMISSIBLE EXPOSURE 10 3.1MEASURING STANDARD 10 3.2 REQUIREMENTS 10 3.3TEST PROCEDURE 12 3.4 TEST SETUP 12 3.5 TEST RESULTS 13 3.6 MAXIMUM PERMISSIBLE EXPOSURE 15 Page 4 of 16 Report No.: STS2605334H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 2026.06.08 STS2605334H01 ALL Initial Issue Page 5 of 16 Report No.: STS2605334H01 1. SUMMARY OF TEST RESULTS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainly 1 H-filed ±0.83dB 2 E-filed ±0.91dB Page 6 of 16 Report No.: STS2605334H01 1.3 GENERAL DESCRIPTION OF THE EUT Product Name 3 in 1 wireless charger Brand N/A Model Number 23233 Series Model(s) 3 in 1 wireless charger Model Difference Only different in model name. Equipemnt Category Non-ISM frequency Antenna Type loop coil antenna Operating frequency 112-205KHz Modulation Type ASK Power Rating Input: DC 5V/3A,9V/3A Wireless Output(Phone): 5W,7.5W,10W,15W Wireless Output(Earphone): 5W Wireless Output(Watch): 2.5W Adapter N/A Battery N/A Wireless charging power 15W+5W+2.5W Max Hardware version number N/A Software version number N/A Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector NOTE 1 N/A N/A Coil N/A Antenna The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. Page 7 of 16 Report No.: STS2605334H01 1.4 DESCRIPTION OF THE TEST MODES Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT Antenna1 + Load(5W) Record Mode 2 AC Adapter + EUT Antenna1 + Load(7.5W) Record Mode 3 AC Adapter + EUT Antenna1+ Load(10W) Record Mode 5 AC Adapter + EUT Antenna1 + Load(15W) Record Mode 6 AC Adapter + EUT Antenna2+ Load(5W) Record Mode 7 AC Adapter + EUT Antenna3+ Load(2.5W) Record Mode 8* AC Adapter + EUT + Load(15W)+ Load(5W)+ Load(2.5W) Record Mode 9 Test the EUT in idle mode. Pre-tested Note*: All test modes were pre-tested, but we only recorded the worst case in this report. 1.5 EQUIPMENTS LIST FOR ALL TEST ITEMS Kind of Equipment Manufacturer Type No. Serial No. Last calibration Calibrated until Electric and Magnetic field Probe - Analyzer Narda EHP 200A 180ZX10220 2026.02.04 2027.02.03 1.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS Item Equipment Mfr/Brand Model/Type No. Note E-1 Adapter ZTC NB-A515A Auxiliary E-2 Load N/A N/A Auxiliary E-3 Load N/A N/A Auxiliary E-4 Load N/A N/A Auxiliary Item Shielded Type Ferrite Core Length Note C-1 N/A N/A 1.0m Auxiliary Note: (1) For detachable type I/O cable should be specified the length in cm in『Length』column. (2) “YES” is means “with core”; “NO” is means “without core”. Page 8 of 16 Report No.: STS2605334H01 2. COIL SPECIFICATIONS Antenna1&2 ltem Parameter Input inductance: L1: 6.8uH±10% Material of enclosure(s): Silk w…

Text truncated - open the document above for the full version.

北流恒达电子科技有限公司 BeiliuHengdaElectronicTechnologyCo.,LTD 第1页共4页 客户/Client 名称/TYPE1:1/43.5磁片出线15MM 产品型号 ModelNOHJ-1:1-43.5-6.8UH 产品编号1:1-43.5-45-010 Partnunberingsystey 客户料号 Clientp/NO 工程编号 EnginrerNO TQE1100530004 日期 /Date 2024-5-29 本公司工程部/ForEnginerDepartnerOnly 修改内容/RrvisedContent认可日期/APProvedDate 编制/Prepared审核/Checked认可/Approved 邱凤炎肖芳胜杨城 客户认可回签/AuthorixedSignaturureCompanyChop 工程/Enginrer认可/QCAPProved认可日期/APProved 北流恒达电子科技有限公司 BeiliuHengdaElectronicTechnologyCo.,LTD 第2页共4页 一、线圈工艺/WindingProcese: NO绕组线规匝数绕线方向备注 1Coil1漆包线0.08*24-2P10TSCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance）：6.8uH±10% 1.2Q值=45MIN 1.3直流电阻（DCR）：81mΩ 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：U2832PrecisionLCRMeter 3.材料清单 N O 项目材料 1WIRE￠ 0.08*24-2p 漆包线 -1mm 2FERRITE43.5*5.1*0.65L 型槽铁氧体硬磁 3GLUE 树脂胶 4SOLDER 无铅锡条 5Adhesive普通环保背胶 6 High temperature adhesive 5mm高温胶带 7 other / 北流恒达电子科技有限公司 BeiliuHengdaElectronicTechnologyCo.,LTD 第3页共4页 三．电路图/CIRCUITDIAGRAM 四．外形图 /OUTSIDEDIAGRA 单位： MM 标准ABCDEFGH STD 20.5±0.1 38.5±0.143.5±0.110±2 1-2 1.25± 0.05 0.65± 0.05 北流恒达电子科技有限公司 BeiliuHengdaElectronicTechnologyCo.,LTD 第4页共4页 五．包装/PACKAGE 5.2包装数量及规格PackingQuantity 项目 Item 数量 Quantity 材料规格 Material 盒 Box 375pcs 盒 370 ＊ 275 ＊ 55mm 箱BigCarton 1500pcs 箱380＊285＊240mm 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit.

深圳华聚芯通科技有限公司 ShenzhenhuajuCoreTehnologyCo.，Ltd 第1页共4页 客户/Client 名称/TYPE无线充手表通用硬磁线圈 产品型号 ModelNOHJ-24.7-6.9UH 产品编号SD-24.7-015 Partnunberingsystey 客户料号 Clientp/NO 工程编号 EnginrerNO TQE1100530035 日期/Date2025-7-7 本公司工程部/ForEnginerDepartnerOnly 修改内容 /RrvisedContent 认可日期 /APProvedDate 编制 /Prepared 审核 /Checked 认可 /Approved 邱凤炎肖芳胜杨城 客户认可回签/AuthorixedSignaturureCompanyChop 工程 /Enginrer 认可 /QCAPProved 认可日期 /APProved 深圳华聚芯通科技有限公司 ShenzhenhuajuCoreTehnologyCo.，Ltd 第2页共4页 一、线圈工艺/WindingProcese: NO 绕组线规匝数绕线方向备注 1Coil1漆包线0.08*24-2P10TSCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance）：6.9uH±5% 1.2Q值=45MIN 1.3直流电阻（DCR）：81mΩ 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：U2832PrecisionLCRMeter 3.材料清单 N O 项目材料 1WIRE￠ 0.08*24-2P 漆包线 -1mm 2FERRITE24.7*2.3 铁氧体硬磁 3GLUE 树脂胶 4SOLDER 无铅锡条 5Adhesive3m环保背胶 6 High temperature adhesive 钕铁硼N40镀锌 7 other / 深圳华聚芯通科技有限公司 ShenzhenhuajuCoreTehnologyCo.，Ltd 第3页共4页 三．电路图/CIRCUITDIAGRAM 四．外形图/OUTSIDEDIAGRA 标准ABCDEFH STD 7.4 24.7±0.130±11-2 2.4±0.2 单位： MM 深圳华聚芯通科技有限公司 ShenzhenhuajuCoreTehnologyCo.，Ltd 第4页共4页 五．包装/PACKAGE 5.2 包装数量及规格 PackingQuantity 项目 Item 数量 Quantity 材料规格 Material 盒Box 375pcs 盒370＊275＊55mm 箱BigCarton 1500pcs 箱380＊285＊240mm 5.3 包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2605334W01 Issued for JR Technik Co.,Ltd Jinxing Industrial Park, Jinmei, Changping Town,Dongguan,Guangdong,China Product Name: 3 in 1 wireless charger Brand Name: N/A Model Name: 23233 Series Model(s): 3 in 1 wireless charger FCC ID: 2BMEO-23233 Test Standards: FCC Part 15 Subpart C Page 2 of 22 Report No.: STS2605334W01 TEST REPORT Applicant’s Name ................... : JR Technik Co.,Ltd Address ................................. : Jinxing Industrial Park, Jinmei, Changping Town,Dongguan,Guangdong,China Manufacturer's Name ............. : JR Technik Co.,Ltd Address ................................. : Jinxing Industrial Park, Jinmei, Changping Town,Dongguan,Guangdong,China Product Description Product Name ........................ : 3 in 1 wireless charger Brand ..................................... : N/A Model Number ....................... : 23233 Series Model(s)...................... : 3 in 1 wireless charger Test Standards ..................... : FCC Part 15 Subpart C Test Procedure ...................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ...............................: Date of receipt of test item ..........: 2026.05.09 Date (s) of performance of tests .: 2026.05.09 to 2026.06.08 Date of Issue ............................. : 2026.06.08 Test Result ..................................: Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 22 Report No.: STS2605334W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF THE EUT 6 2.2 DESCRIPTION OF THE TEST MODES 7 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3. CONDUCTED EMISSION TEST RESULT (SECTION 15.207) 11 3.1 POWER LINE CONDUCTED EMISSION LIMITS 11 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 12 3.4 EUT OPERATING CONDITIONS 12 3.5 TEST RESULTS 13 4. RADIATED& FIELD EMISSION TEST RESULT (SECTIOU 15.209) 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 15 4.3 TEST SETUP 16 4.4 TEST RESULTS 17 4.4.1 SPURIOUS RADIATED EMISSION BELOW 30 MHZ 17 5. 20 DB BANDWIDTH TEST 20 5.1 LIMIT 20 5.2 TEST SETUP 20 5.3 TEST RESULTS 20 APPENDIX-PHOTOS OF TEST SETUP 22 Page 4 of 22 Report No.: STS2605334W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 2026.06.08 STS2605334W01 ALL Initial Issue Page 5 of 22 Report No.: STS2605334W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.209(a) Radiated emission, Spurious Emission PASS 2.1049 20 dB Bandwidth PASS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidth ±3.5% 10 Power Spectral Density, conducted ±1.245dB 11 Duty Cycle ±3.2% Page 6 of 22 Report No.: STS2605334W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name 3 in 1 wireless charger Brand N/A Model Number 23233 Series Model(s) 3 in 1 wireless charger Model Difference Only different in model name. Equipemnt Category Non-ISM frequency Antenna Type loop coil antenna Operating frequency Wireless charging Output (Phone/ Earphone): 112kHz-205kHz, Wireless charging Output (Watch): 300-350kHz Modulation Type ASK Power Rating Input: DC 5V/3A,9V/3A Wireless Output(Phone): 5W,7.5W,10W,15W Wireless Output(Earphone): 5W Wireless Output(Watch): 2.5W Adapter N/A Battery N/A Wireless charging power 15W+5W+2.5W Max Hardware version number N/A Software version number N/A Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector NOTE 1 N/A N/A Coil N/A Antenna Page 7 of 22 Report No.: STS2605334W01 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 Wireless charger 5W (Phone) Mode 2 Wireless charger 7.5W (Phone) Mode 3 Wireless charger 10W (Phone) Mode 4 Wireless charger 15W (Ph…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BMEO-23233 Setup photo AC Conduction RE (Below 30MHz) Page 2 of 2 FCC ID: 2BMEO-23233 RE (Above 30MHz) MPE（20CM）
