2BMFS-M22Acer Bluetooth Silent mouse

M22 Instruction: 1.Slide the mouse toggle switch to the left to turn it ON 2.Press and hold the top DPI button for at least 3 seconds to enter Bluetooth pairing mode. The red indicator light on the top flashes, indicating the mouse is in pairable status. Please complete the pairing operation within 120 seconds. 3.Turn on the Bluetooth of your device for searching. After successful connection, the indicator light stays on for 2 seconds and then turns off. LED Status： 1.Supports 3-level of DPI adjustment. 800/ 1200/ 1600. The DPI selection button blinks once for 800 DPI, twice for 1200 DPI and thrice for 1600 DPI. 2.Connection Status Prompt: During mouse pairing, the red light flashes quickly twice per second.During mouse reconnection, the red light flashes slowly once per second. When the mouse is connected successfully, the red light stays steadily on for 2 seconds then turns off. 3.Low Battery Reminder: When the battery level is lower than 20%, the red light flashes slowly. 1 Quick start guide Overview: 65.37 102.16 Left button Middle button/ scroll wheel Right button DPI ON/OFF switch ONOFF 2 at least 3 seconds 60 100 FCC Requirement Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

BoenIntelligentTechnologyCo.,LTD No.23,ShiyangStreet,Wentang,DongchengStreet,DongguanCity,Guangdong Province,China FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Date：June3,2026 U.S.AgentDesignation {BoenIntelligentTechnologyCo.,LTD}acknowledgestheirconsentforthefollowingcontactlocatedinthe UnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCC ID:2BMFS-M22): NameandcompanyofU.S.agent:BridgeportAdvisoryLLC PhysicalU.S.addressofagent:3330W38THPL,CHICAGO,IL60632,UnitedStates FRNofU.S.agent:0037566148 EmailaddressofU.S.agent:[email protected] ContactNO.:(708)680-6688 BridgeportAdvisoryLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfof{Boen IntelligentTechnologyCo.,LTD}. {BoenIntelligentTechnologyCo.,LTD}withtheFRN[0036332468]acceptsitsobligationtomaintainanagent forserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusionofany Commission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature LICHUNJIANG Manager BoenIntelligentTechnologyCo.,LTD Signature MrYongLiu ManagingMember BridgeportAdvisoryLLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BMFS-M22 M22 We, Applicant Company Name: Boen Intelligent Technology Co., LTD Address: No. 23, Shiyang Street, Wentang, Dongcheng Street, Dongguan City, Guangdong Province, China Phone: +86-18676682602 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-06-03 Signature Date Name / Title: LICHUN JIANG / Manager Company: Boen Intelligent Technology Co., LTD Address: No. 23, Shiyang Street, Wentang, Dongcheng Street, Dongguan City, Guangdong Province, China Phone: +86-18676682602 Fax: N/A E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BMFS-M22 M22 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Huaxia Testing Technology Co., Ltd Contact Name: Yoyo Zhou Address: 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Phone: +86-755-26648642 Email: [email protected] Signature: Date: 2026-06-05

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BMFS-M22 M22 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-06-03 Signature Date Name / Title: LICHUN JIANG / Manager Company: Boen Intelligent Technology Co., LTD Address: No. 23, Shiyang Street, Wentang, Dongcheng Street, Dongguan City, Guangdong Province, China Phone: +86-18676682602 Fax: N/A E-Mail: [email protected]

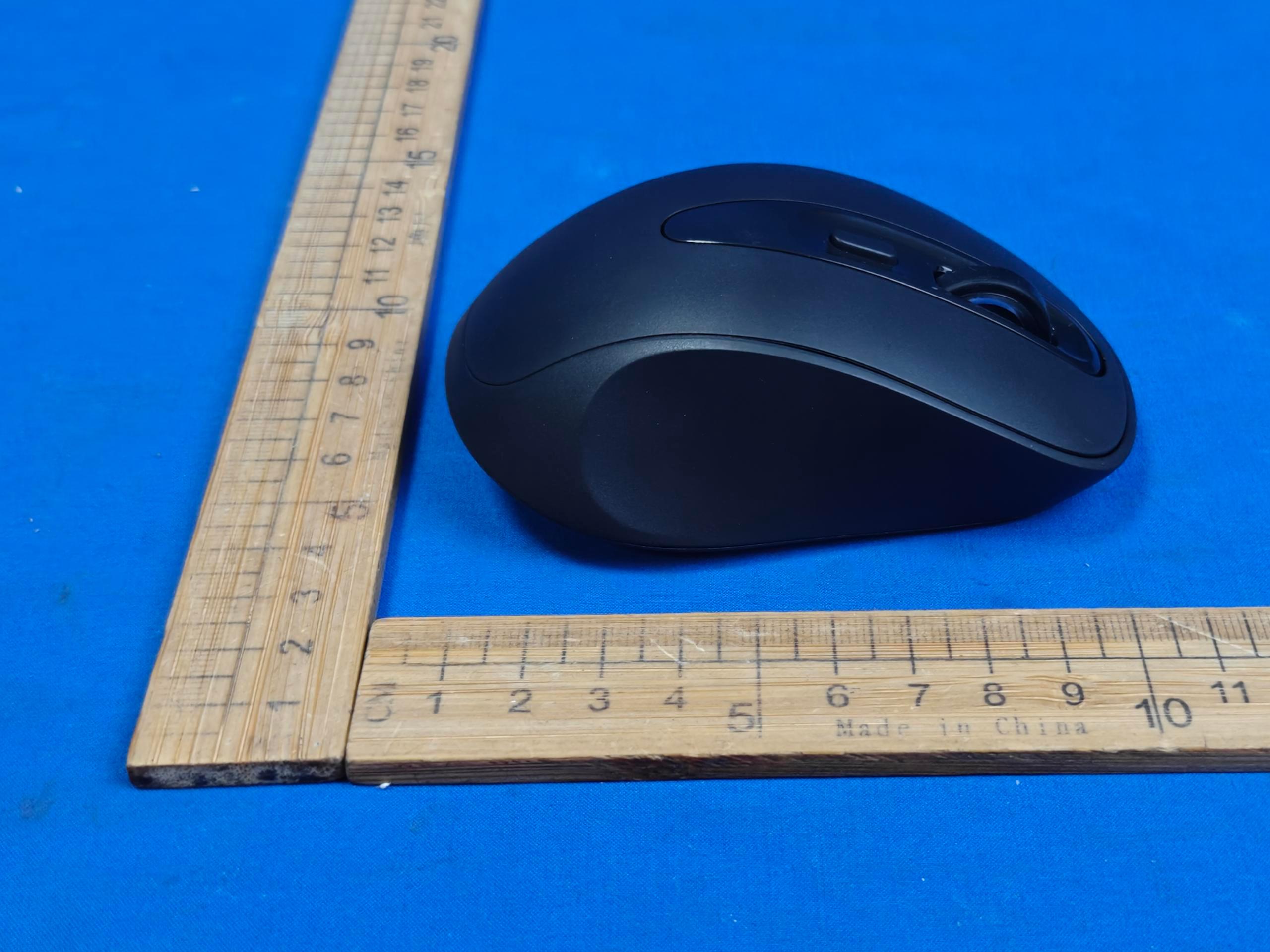

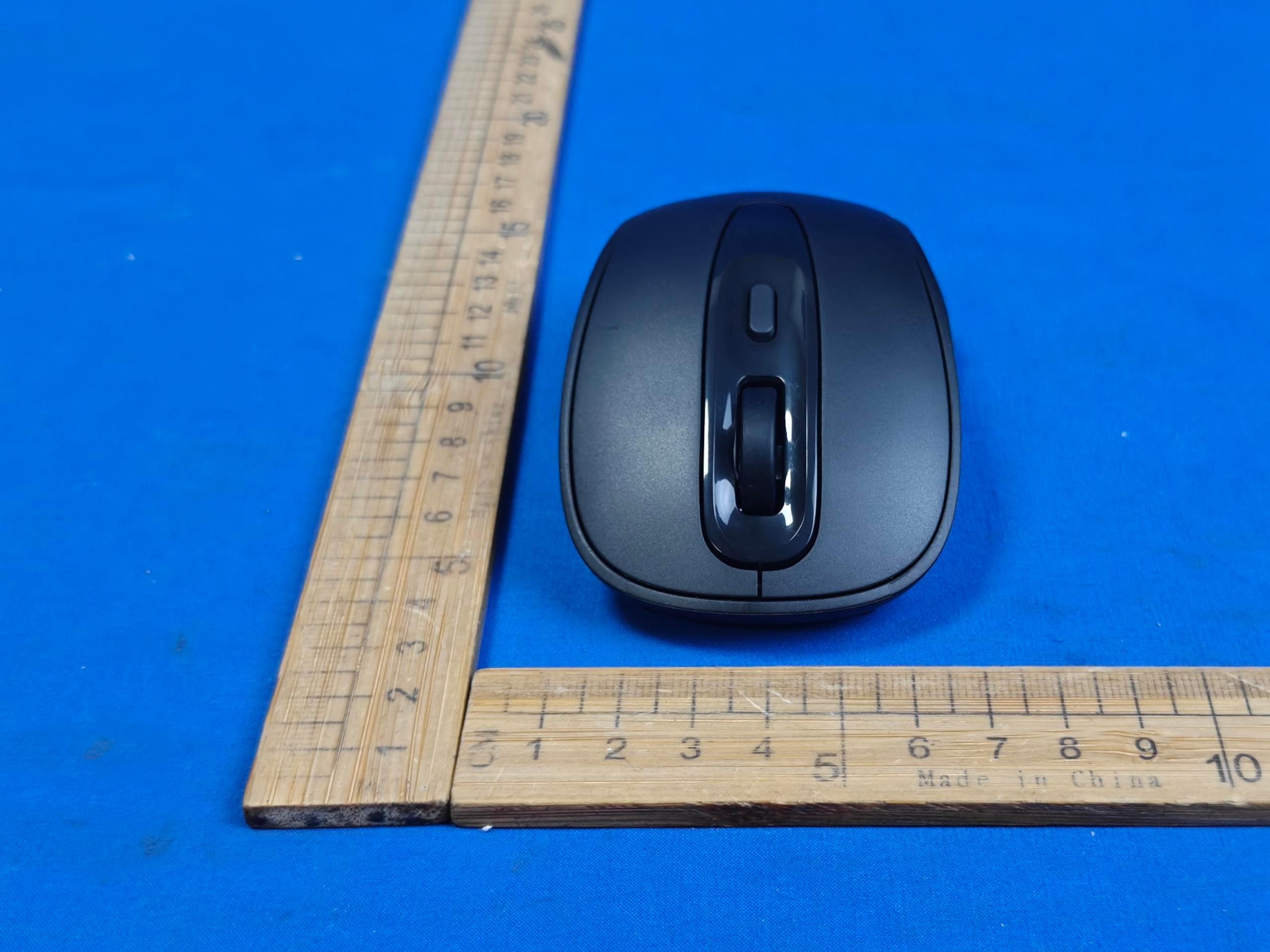

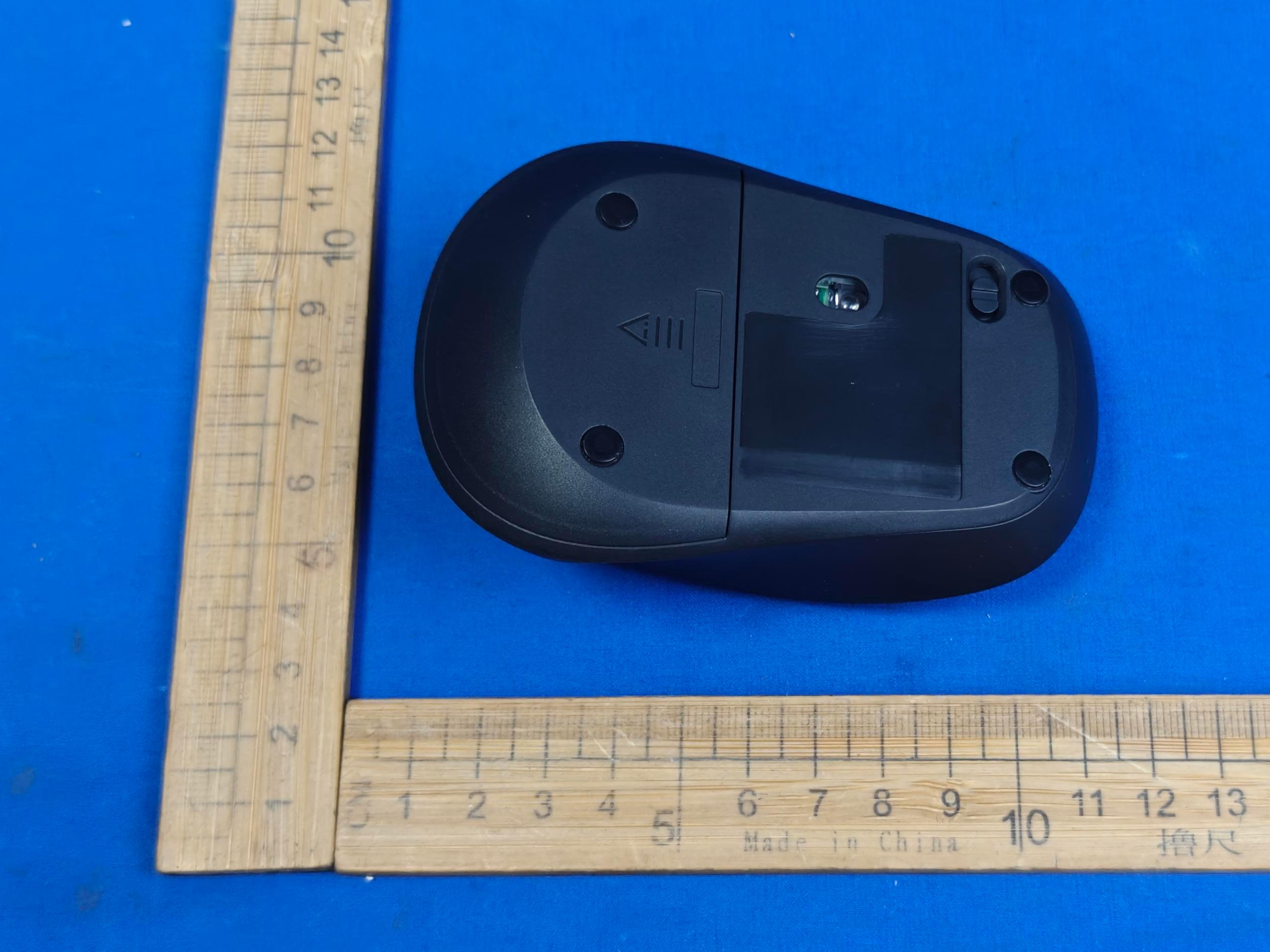

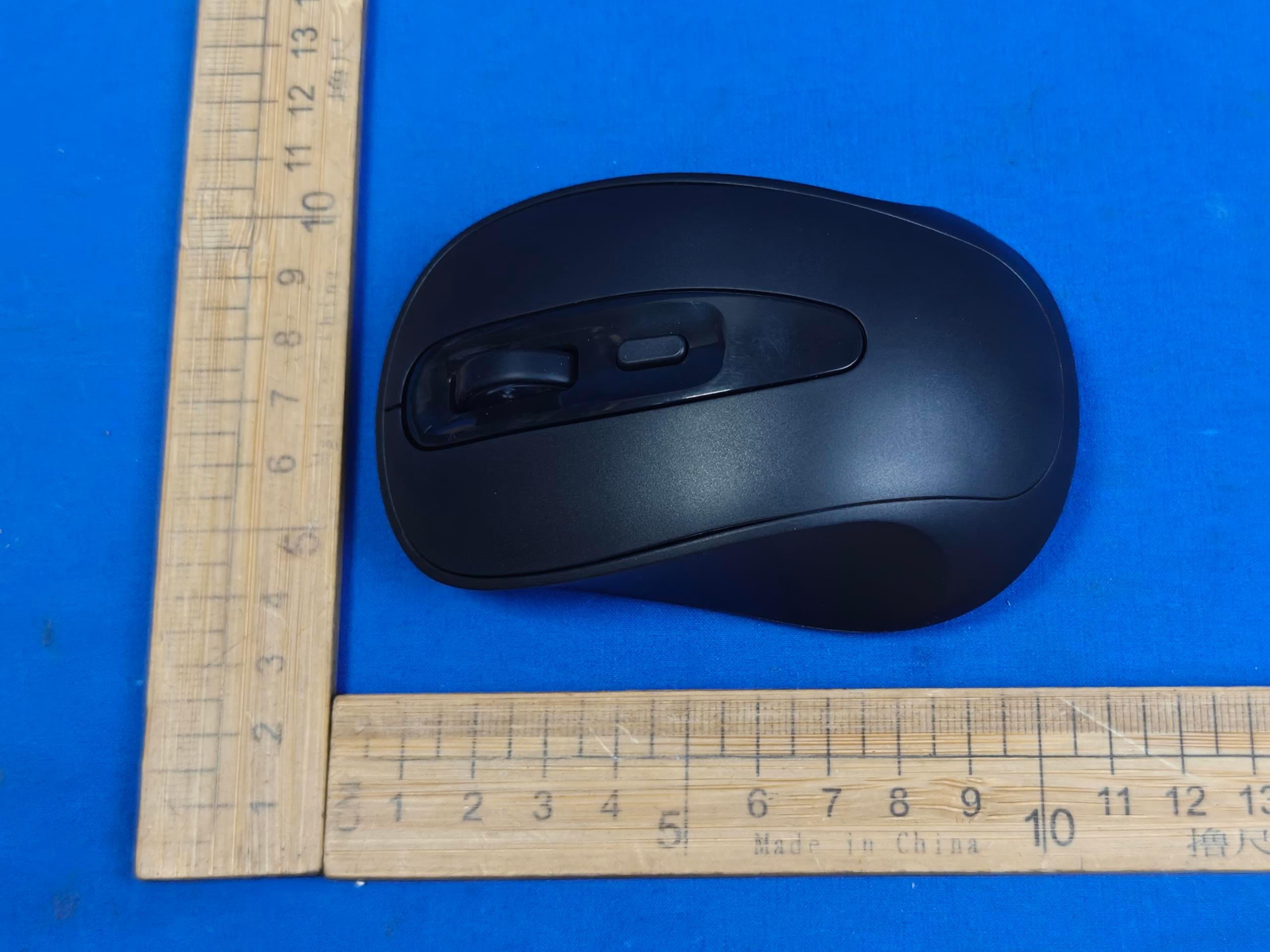

Externalphotos FCC ID: 2BMFS-M22

ONOFF S/N: ZCA01SG04M619000010501 MADE IN CHINA Model: M22 Battery: AA P/N: ZC.A01SG.04M (Black) FCC ID: 2BMFS-M22 Voltage: 1.5V Current: 7.5mA Acer Bluetooth Silent mouse size:41 * 32mm

Internalphotos FCC ID: 2BMFS-M22 Antenna

SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD 102A,102B,Building2,ShanghenglangNewIndustrialZone,ShanghenglangCommunity, DalangStreet,LonghuaDistrict,Shenzhen,Guangdong,People’sRepublicofChina,518000 Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V06 ReportTemplateRevisionDate:2026-01-30 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20260501013E-03 Applicant: BoenIntelligentTechnologyCo.,LTD AddressofApplicant: No.23,ShiyangStreet,Wentang,DongchengStreet,DongguanCity, GuangdongProvince,China EquipmentUnderTest(EUT): EUTName:AcerBluetoothSilentmouse ModelNo.:M22 TestModelNo.:M22 BrandName:Acer FCCID:2BMFS-M22 Standards: 47CFRPart1.1307 47CFRPart2.1093 KDB447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2026-5-19 DateofTest:2026-5-19to2026-5-29 DateofIssue:2026-6-5 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD. ReportNo.:CQASZ20260501013E-03 Page:2of8 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20260501013E-03Rev.01 Initialreport 2026-6-5 SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD. ReportNo.:CQASZ20260501013E-03 Page:3of8 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBLE...................................................................................................................................4 3.4GENERALDESCRIPTIONOFBT......................................................................................................................................4 4RFEXPOSUREEVALUATION.......................................................................................................................................5 4.1SAREVALUATIONFORPORTABLECONDITION...........................................................................................................5 4.1.1StandardRequirement......................................................................................................................................5 4.1.2Limits....................................................................................................................................................................5 4.1.3SARExclusionEvaluationResult...................................................................................................................7 SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD. ReportNo.:CQASZ20260501013E-03 Page:4of8 3GeneralInformation 3.1ClientInformation Applicant: BoenIntelligentTechnologyCo.,LTD AddressofApplicant: No.23,ShiyangStreet,Wentang,DongchengStreet,DongguanCity, GuangdongProvince,China Manufacturer: BoenIntelligentTechnologyCo.,LTD AddressofManufacturer: No.23,ShiyangStreet,Wentang,DongchengStreet,DongguanCity, GuangdongProvince,China Factory: BoenIntelligentTechnologyCo.,LTD AddressofFactory: No.23,ShiyangStreet,Wentang,DongchengStreet,DongguanCity, GuangdongProvince,China 3.2GeneralDescriptionofEUT ProductName: AcerBluetoothSilentmouse ModelNo.: M22 TestModelNo.: M22 TradeMark: Acer SoftwareVersion: V1.0 HardwareVersion: V1.1 PowerSupply: DC1.5V7.5mA SimultaneousTransmissionSimultaneousTXissupportedandevaluatedinthisreport. SimultaneousTXisnotsupported. 3.3GeneralDescriptionofBLE OperationFrequency:2402MHz~2480MHz ModulationType:GFSK TransferRate:1Mbps NumberofChannel:40 ProductType:MobilePortableFixLocation AntennaType: PCBantenna AntennaGain: 2.34dBi 3.4GeneralDescriptionofBT OperationFrequency:2402MHz~2480MHz ModulationType:GFSK,π/4DQPSK,8DPSK TransferRate:1Mbps/2Mbps/3Mbps NumberofChannel:79 ProductType:MobilePortableFixLocation AntennaType: PCBantenna AntennaGain: 2.34dBi SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD. ReportNo.:CQASZ20260501013E-03 Page:5of8 4RFExposureEvaluation 4.1 SAREvaluationforPortablecondition 4.1.1StandardRequirement 447498D04InterimGeneralRFExposureGuidancev01 3.2.SARTestReductionGuidance SARtestreductionprocedures[Glossary]allowusingaparticularsetoftestdataasrepresentative ofother,similar,testconditions.Thismaybeappliedfordatawithindifferenttestpositions(e.g.body, head,extremity),wirelessmodes(e.g.Wi-Fi,cellular),andfrequencybands.Thistestreductionprocess providesfortheuseoftestdataforonespecificchannel,whilereferencingtothosedatafordemonstrating complianceinotherrequiredchannelsforeachtestpositionofanexposurecondition,withintheoperating modeofafrequencyband.Thisislimitedspecificallytowhenthereported1-gor10-gSARforthemid- bandorhighestoutputpowerchannelmeetsanyofthefollowingconditions. 4.1.2Limits SAR-basedthresholdsarederivedbasedonfrequency,power,andseparationdistanceoftheRF source.Theformuladefinesthethresholdsingeneralforeitheravailablemaximumtimeaveragedpoweror maximumtime-averagedERP,whicheverisgreater. IftheERPofadevi…

Text truncated - open the document above for the full version.

ITEM SPEC. Antenna Model Center Frequency 2.34 dBi 2.07dBi 2402 MHz 2441 MHz 2480 MHz1.45 dBi MAX. GAIN 2.34 dBi Polarization Horizontal Azimuth Beam PatternOmni-directional Impedance 50 Ω Antenna Length 3.1cm Antenna Specification Specifications Summary PCB Monopole Antenna Antenna Photo & Length (mm) Test Address 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan Test Date 2009-04-14 Test Instrument vector network analyzer - R&S ZVB20 Manufacturer Information: Name: Shenzhen Yongjiasheng Technology Co., Ltd. Address: 1501-1503, Building 8, Zhongxi Xiangbinshan Garden, Fenghuanggang Community, Xixiang Subdistrict, Bao'an District, Shenzhen, Guangdong Province, P.R.China Average Gain(dBi) : -2.48 Mini mum Gain(dBi): -55.18 1. Main antenna : 2402 MHz 1.1 Horizontal Frequency(MHZ): 2402 Antenna Polarity: Horizontal Maximum Value(dBi): 2. 34 Average Gain(dBi) : -8.98 Mini mum Gain(dBi): -62.3 1.2 Vertical Frequency(MHZ): 2402 Antenna Polarity: Vertical Maximum Value(dBi): -4.51 Average Gain(dBi) : -2.54 Mini mum Gain(dBi): -66.98 2. Main antenna : 2441 MHz 2.1 Horizontal Frequency(MHZ): 2441 Antenna Polarity: Horizontal Maximum Value(dBi): 2.07 Average Gain(dBi) : -8.81 Mini mum Gain(dBi): -51.4 2.2 Vertical Frequency(MHZ): 2441 Antenna Polarity: Vertical Maximum Value(dBi): -4.29 Average Gain(dBi) : -3.34 Mini mum Gain(dBi): -53.4 2. Main antenna : 2480 MHz 2.1 Horizontal Frequency(MHZ): 2480 Antenna Polarity: Horizontal Maximum Value(dBi): 1.45 2.2 Vertical Frequency(MHZ): 2480 Antenna Polarity: Vertical Maximum Value(dBi): -4.95 Average Gain(dBi) : -9.06 Minimum Gain(dBi): -60.00

SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD 102A,102B,Building2,ShanghenglangNewIndustrialZone,ShanghenglangCommunity, DalangStreet,LonghuaDistrict,Shenzhen,Guangdong,People’sRepublicofChina,518000 Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V06 ReportTemplateRevisionDate:2026-01-30 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonly tothesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20260501013E-02 Applicant: BoenIntelligentTechnologyCo.,LTD AddressofApplicant: No.23,ShiyangStreet,Wentang,DongchengStreet,DongguanCity, GuangdongProvince,China EquipmentUnderTest(EUT): Product:AcerBluetoothSilentmouse ModelNo.:M22 TestModelNo.:M22 BrandName:Acer FCCID:2BMFS-M22 Standards:47CFRPart15,SubpartC KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10:2020 DateofReceipt:2026-5-19 DateofTest:2026-5-19to2026-5-29 DateofIssue:2026-6-5 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260501013E-02 Page: 2 of 40 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20260501013E-02Rev.01Initialreport2026-6-5 SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260501013E-02 Page: 3 of 40 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS ACPowerLine Conducted Emission 47CFRPart15,SubpartCSection 15.207 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(3) ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS 6dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.247(a)(2) ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS PowerSpectralDensity 47CFRPart15,SubpartCSection 15.247(e) ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS RadiatedSpurious Emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSI C63.10- 2020+Cor.1- 2023+C63.10a-2024+ ErratatoC63.10a-2024 PASS SHENZHENHUAXIATESTINGTECHNOLOGYCO.,LTD ReportNo.:CQASZ20260501013E-02 Page: 4 of 40 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6TESTCONFIGURATION................................................................................................................................................8 4.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.8TESTLOCATION........................................................................................................................................................10 4.9TESTFACILITY..........................................................................................................................................................10 4.10DEVIATIONFROMSTANDARDS................................................................................................................................10 4.11OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.12EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDPEAKOUTPUTPOWER..........................................................................................................................13 5.36DBOCCUPYBANDWIDTH...........................................................................…

Text truncated - open the document above for the full version.

Setupphotos 1Photographs-EUTTestSetup 1.1RadiatedEmission 9KHz~30MHz: 30MHz~1GHz: FCC ID: 2BMFS-M22 Above1GHz: 1.2RFConductedmeasurement
