2BMGHYR-WB2-32SWifi-BT Module

Ai-WB2-32S Specification V1.0.1 Copyright © 2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved Page 1 of 20 Ai-WB2-32S Specification Version V1.0.1 Copyright ©2022 Ai-WB2-32S Specification V1.0.1 Copyright © 2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved Page 2 of 20 Document resume Version Date Develop/revise content Edition Approve V1.0.0 2022.6.20 First Edition NanNan Yuan NingGuan V1.0.1 2022.7.21 Update Rendering Figure NanNan Yuan NingGuan Ai-WB2-32S Specification V1.0.1 Copyright © 2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved Page 3 of 20 Content 1. Product Overview .................................................................................................................. 4 1.1. Characteristic .............................................................................................................. 5 2. Main parameters .................................................................................................................... 6 2.1. Static electricity requirement ...................................................................................... 6 2.2. Electrical characteristics ............................................................................................. 7 2.3. Wi-Fi RF Performance ................................................................................................ 7 2.4. BLERF Performance .................................................................................................. 8 2.5. Power .......................................................................................................................... 8 3. Appearance Dimensions ........................................................................................................ 9 4. Pin Definition ...................................................................................................................... 10 5. Design Guidance ................................................................................................................. 12 5.1. Module application circuit ........................................................................................ 12 5.2. Recommend PCB footprint size ............................................................................... 13 5.3. Antenna layout requirements .................................................................................... 13 5.4. Power supply ............................................................................................................ 14 5.5. GPIO ......................................................................................................................... 15 6. Storage conditions ............................................................................................................... 16 7. Reflow welding curve diagram ........................................................................................... 16 8. Product Packaging Information ........................................................................................... 17 9. Contact us ............................................................................................................................ 17 Disclaimer and copyright notice ................................................................................................ 18 Notice ......................................................................................................................................... 18 Ai-WB2-32S Specification V1.0.1 Copyright © 2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved Page 4 of 20 1. Product Overview Ai-WB2-32S is a Wi-Fi& BT module developed by Shenzhen Ai-Thinker Technology Co., LTD. The module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO. It can be widely used in Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other fields. Ai-WB2-32S Specification V1.0.1 Copyright © 2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved Page 5 of 20 1.1. Characteristic ◼ The package is SMD-38 ◼ Support IEEE 802.11 b/g/n protocol ◼ Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 ◼ Support 20MHz bandwidth and Max rate is 72.2 Mbps ◼ Bluetooth BLE 5.0,Bluetooth Mesh ◼ Support Station + BLE、Station + SoftAP + BLE ◼ Support 32-bit RISC CPU，276KB RAM ◼ Secure startup, supports mirroring with ECC-256 signature ◼ Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR ◼ Support AES 128/192/256-bit encryption engine ◼ Support SHA-1/224/256 ◼ Support true Random number generator (TRNG) ◼ Public key Accelerator (PKA), support large number basic operations, software provides signature, verification and other application program interface ◼ Support SDIO，SPI，UART，I2C，IR remote，PWM，ADC，DAC，PIR，GPIO etc ◼ Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT ◼ Support a variety of sleep modes, deep sleep current 12μA ◼ Universal AT instruction for quick start ◼ Support secondary development, integrated Windows, Linux development environment Ai-WB2-32S Specification V1.0.1 Copyright © 2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved Page 6 of 20 2. Main parameters Table 1 Description of the main parameters Model Ai-WB2-32S Package SMD-38 Size 25.5*18.0*3.1(±0.2)mm Antenna on-board PCB antenna、IPEX connector Antenna Gain on-board PCB antenna: 2.08dBi IPEX connector: FPC Antenna 3.44dBi Frequency 2400 ~ 2483.5MHz Operating temperature -40°C ~ 85°C Storage temperature -40°C ~ 125°C, < 90%RH Power supply Support voltage 2.7V ~ 3.6V, supply current ≥500mA Interface UART/GPIO/ADC/PWM/I2C/SPI IO 15 UART rate Default 115200 bps Security WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 Flash Default 4MByte，MAX support 16MByte 2.1. S…

Text truncated - open the document above for the full version.

Modular Approval Declaration Letter (SHENZHEN YU RUI YUN SHANG TECHNOLOGY CO., LTD) 12/02/2024 (Wifi-BT Module ) FCC ID: 2BMGHYR-WB2-32S , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; 3 The module must contain power supply regulation on the module; 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); 5 The module must demonstrate compliance in a stand-alone configuration; 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; 8 The module must comply with RF exposure requirements Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature Qing Chen / Product Director Shenzhen ENZHEN YU RUI YUN SHANG TECHNOLOGY CO.,LTD Room 3902, West Tower, Galaxy Twin Towers, No.8 Yabao Road, Nankeng Community, Bantian Sub-district,Longgang District, Shenzhen city, Guangdong province, China

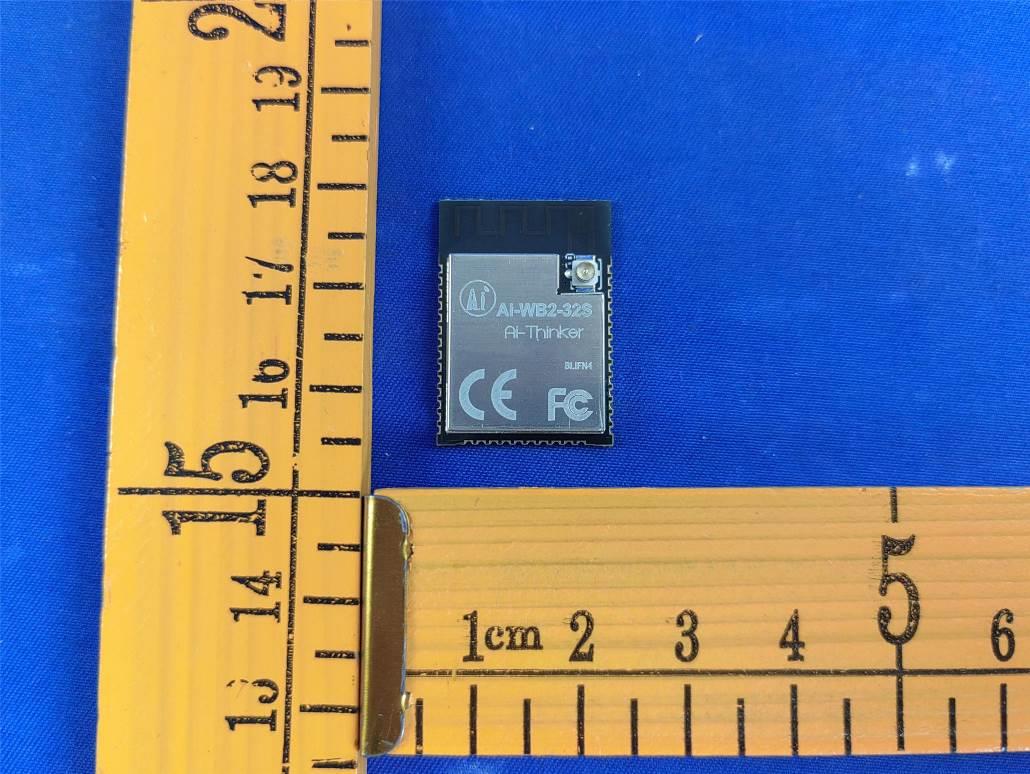

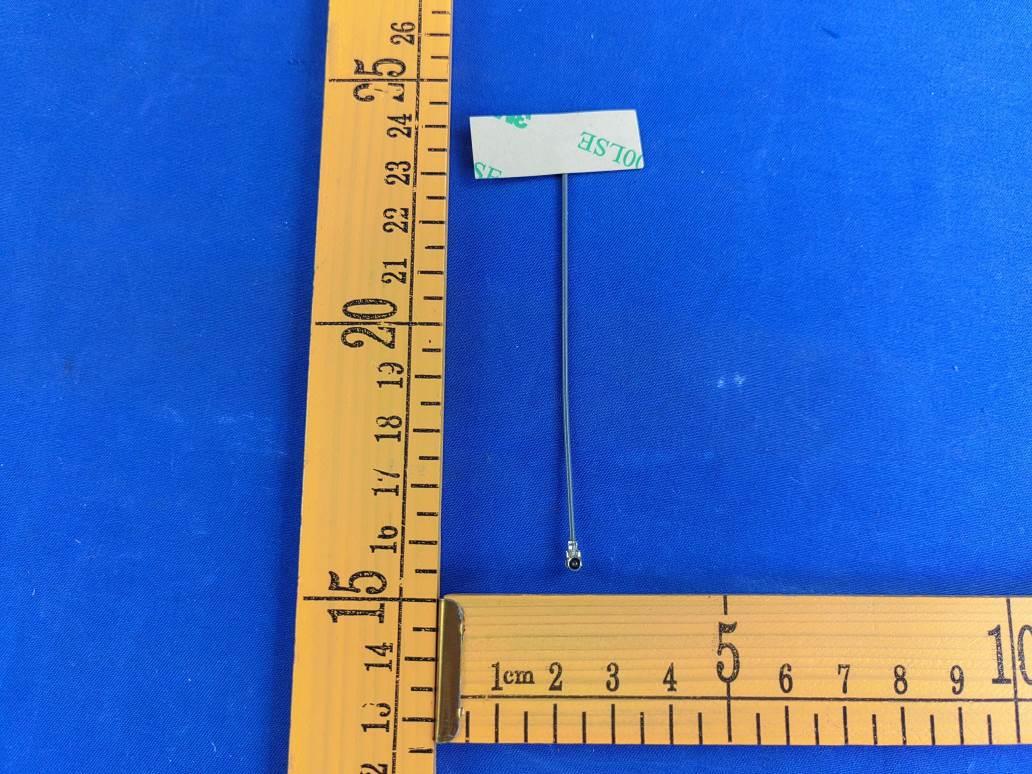

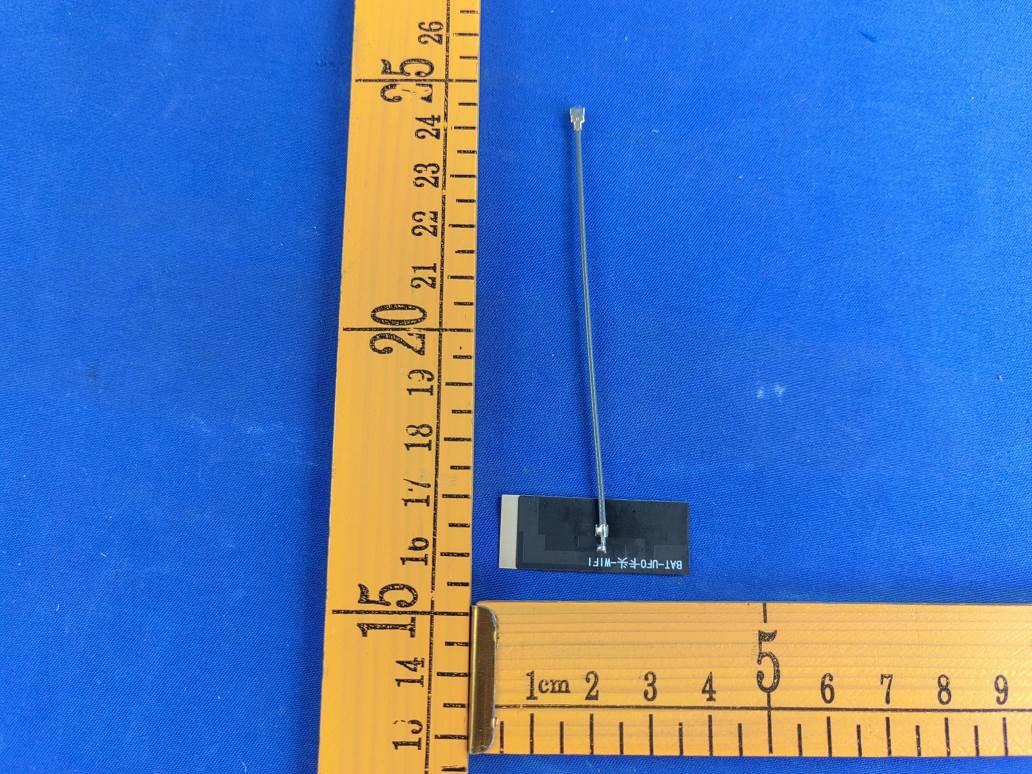

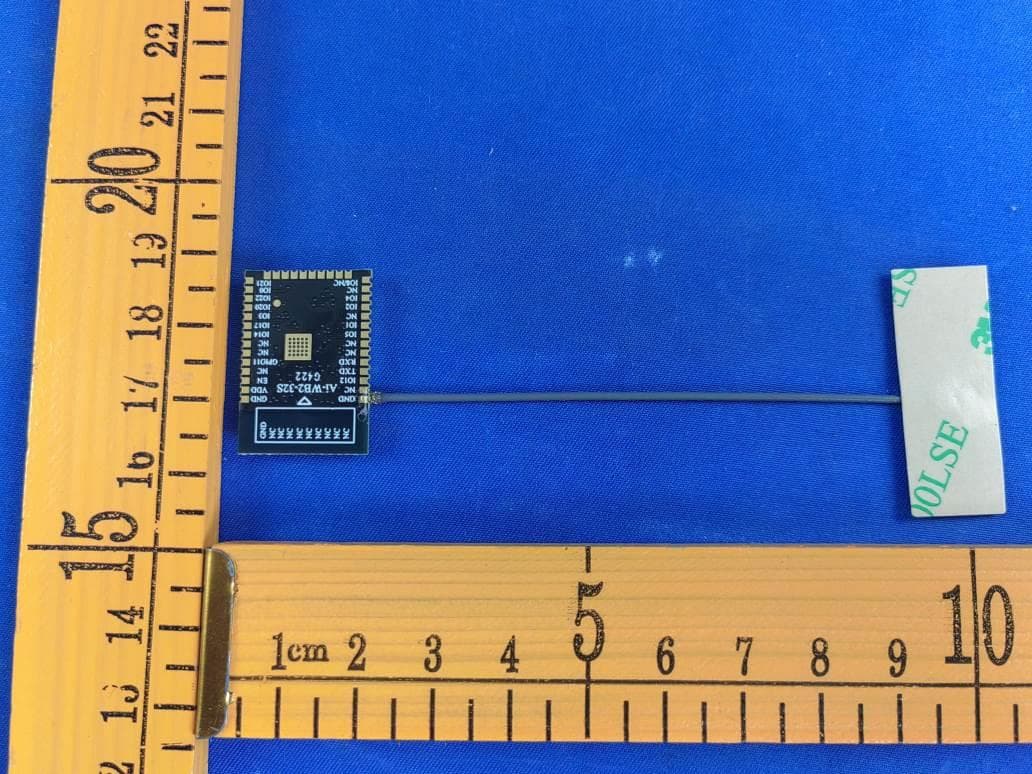

Appendix-YR-WB2-32S-Photos FCC ID: 2BMGHYR-WB2-32S Page 4 of 7 2. Photographs –Constructional Details 2.1. EUT – External View Model YR-WB2-32S FPC Ant. Appendix-YR-WB2-32S-Photos FCC ID: 2BMGHYR-WB2-32S Page 5 of 7 Appendix-YR-WB2-32S-Photos FCC ID: 2BMGHYR-WB2-32S Page 6 of 7 PCB Ant.

Label Location

Appendix-YR-WB2-32S-Photos FCC ID: 2BMGHYR-WB2-32S Page 7 of 7 2.2. EUT – Internal View Model YR-WB2-32S ======End======

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 8 TEST REPORT Reference No. .................... : WTD24D11268113W003 FCC ID ................................ : 2BMGHYR-WB2-32S Applicant ............................ : SHENZHEN YU RUI YUN SHANG TECHNOLOGY CO., LTD Address .............................. : Room 3902, West Tower, Galaxy Twin Towers, No.8 Yabao Road, Nankeng Community, Bantian Sub-district, Longgang District, Shenzhen city, Guangdong province, China Product ............................... : Wifi-BT Module Model(s). ............................ : YR-WB2-32S Standards........................... : FCC 47CFR Part 2 Subpart J Section 2.1091 Date of Receipt sample .... : 2024-11-19 Date of Test ....................... : 2024-11-19 to 2024-12-02 Date of Issue ...................... : 2024-12-02 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD24D11268113W003 Page 2 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2. Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2. CONTENTS ............................................................................................................................................... 2 3. REVISION HISTORY ................................................................................................................................. 3 4. GENERAL INFORMATION ....................................................................................................................... 4 4.1. GENERAL DESCRIPTION OF E.U.T.................................................................................................... 4 4.2. DETAILS OF E.U.T. ......................................................................................................................... 4 4.3. TEST FACILITY ................................................................................................................................ 5 4.4. SUBCONTRACTED ........................................................................................................................... 5 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 5 5. TEST SUMMARY ...................................................................................................................................... 6 6. RF EXPOSURE ......................................................................................................................................... 7 6.1. REQUIREMENTS .............................................................................................................................. 7 6.2. THE PROCEDURES / LIMIT ................................................................................................................ 7 6.3. MPE CALCULATION METHOD........................................................................................................... 8 6.4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ................................................................... 8 Reference No.: WTD24D11268113W003 Page 3 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3. Revision History Test Report No. Date of Receipt Sample Date of Test Date of Issue Purpose Comment Approved WTD24D11268113W003 2024-11-19 2024-11-19 to 2024-12-02 2024-12-02Original - Valid Reference No.: WTD24D11268113W003 Page 4 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4. General Information 4.1. General Description of E.U.T. Product: Wifi-BT Module Model(s): YR-WB2-32S Model Description: N/A Test Sample No.: 1-1/1 BT Version: V5.0 Wi-Fi Specification: 2.4G-802.11b/g/n HT20 Hardware Version: V1.1 Software Version: V1.00 4.2. Details of E.U.T. Operation Frequency: BLE: 2402-2480MHz, 40 Channels in total Wi-Fi: 802.11b/g/n HT20: 2412~2462MHz Max. RF output power: BLE: 11.98dBm Wi-Fi: 19.51dBm Modulation Technology: BLE: GFSK Wi-Fi: DSSS, OFDM Antenna installation: PCB Antenna FPC Antenna Antenna Gain: PCB Ant.: 2.08dBi FPC Ant.: 3.44dBi Note: #: The antenna gain is provided by the applicant, and the applicant should be responsible for its authenticity, WALTEK lab has not verified the authenticity of its information. Ratings: DC 2.7-3.6V, 500mA Reference No.: WTD24D11268113W003 Page 5 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4.3. Test Facility The test facility has a test site registered with the following organizations: ISED CAB identifier: CN0013. Test Firm Registration No.: 7760A. Waltek Testing Group Co., Ltd. Has been registered and fully described in a report filed with the Industry Canada. The acceptance letter from the Industry Canada is maintained in our files. Registration number 7760A, October 15, 2016. FCC Designation No.: CN1201. Test Firm Registration No.: 523476. Waltek Testing Group Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration number 523476, September 10, 2019. 4.4. Subcontracted Whether parts of tests for the product have been subcontracted to other labs: Yes No If Yes, list the related test items and lab information: Test Lab: N/A Lab address: N/A Test items: N/A 4.5. Abnormalities from Standard Conditions…

Text truncated - open the document above for the full version.

深圳市安信可科技有限公司 第 1 页 共 4 页 Specifications Electrical Frequency Range 2400-2500MHz Input Impedance 50 Ω VSWRRefer to page 3 Maximum Gain 3.44dBi Power Capacity <10w PolarizationLiner Radiation PatternOmni-directional ConnectorIPEX Mechanical Characteristics Length 85 ± 3mm Strength 1kg Coxial Gray 1.13 Salt Spray Test 24H Enviromental Parameter Operating Tem. -30°C~65°C 深圳市安信可科技有限公司 第 2 页 共 4 页 深圳市安信可科技有限公司 第 3 页 共 4 页 S11 Parameter VSWR Gain and Efficiency Freq/GHz2.42.452.5 VSWR1.751.271.31 Frequency /MHz 24002410242024302440245024602470248024902500 Gain/dBi 2.102.152.272.332.443.103.443.192.682.832.46 Efficiency / % 51.0652.9551.7657.6161.1259.5061.4556 .5254.6052.9350.81 深圳市安信可科技有限公司 第 4 页 共 4 页 Radiated Pattern 2400M 3D-E1-E2-H 2450M3D-E1-E2-H 2500M3D-E1-E2-H

SHENZHENB&TTECHNOLOGYCo.,Ltd ZHONGSHANB&TTECHNOLOGYCo.,Ltd -1- SPECIFICATIONFORAPPROVAL CUST OMER：Shenzhen Ai-Thinker Technology Co., Ltd CUS PART NO:Ai-WB2-32S PART NAME:2.4G WLAN Antenna Edition：1.0 EditorYuan Nannan2022/07/05 VerifierGuan Ning2022/07/05 ApproverXu Fuqiang2022/07/05 SHENZHENB&TTECHNOLOGYCo.,Ltd ZHONGSHANB&TTECHNOLOGYCo.,Ltd Address: 3-4/F, Building A, Dongfang Industrial Park, Nanlang Town, Zhongshan City, Guangdong Province, China SHENZHENB&TTECHNOLOGYCo.,Ltd ZHONGSHANB&TTECHNOLOGYCo.,Ltd -2- Directory 1、Performance parameter .................................................................3 2、 VSWR ...................................................................................4 3 、 Passive test data ....................................................................4 4、 Radiation pattern .....................................................................5 SHENZHENB&TTECHNOLOGYCo.,Ltd ZHONGSHANB&TTECHNOLOGYCo.,Ltd -3- Productspecification 1、 Performance parameter Name2.4G WLAN Antenna Model TypePCB Print Antenna ELECTRICAL SPECTFICATIONS Frenquency Range2400-2500MHz Band Width100MHz Impedance50Ω VSWR< 2.0 Max Gain2.08dBi PolarizationVertical/Horizontal RadiationOmnidirectional Power50 W MECHANICAL SPECTFICATIONS ConnectorWelding type Working Temperature-40°C - + 85°C Limit Temperature-40°C - + 125°C SHENZHENB&TTECHNOLOGYCo.,Ltd ZHONGSHANB&TTECHNOLOGYCo.,Ltd -4- 2、VSWR 3、Passive test data: Frequency (MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Gain (dBi)1.231.221.361.511.781.912.002.082.031.891.85 Efficiency (%)63.8064.4466.0168.5071.4473.2873.6173.5972.4568.3067.66 SHENZHENB&TTECHNOLOGYCo.,Ltd ZHONGSHANB&TTECHNOLOGYCo.,Ltd -5- 4、Radiation pattern 2400MHz 2450MHz 2500MHz

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 33 TEST REPORT Referen ce No. .................... : WTD24D11268113W001 FCC ID ................................ : 2BMGHYR-WB2-32S Applicant ............................ : SHENZHEN YU RUI YUN SHANG TECHNOLOGY CO., LTD Address .............................. : Room 3902, West Tower, Galaxy Twin Towers, No.8 Yabao Road, Nankeng Community, Bantian Sub-district,Longgang District, Shenzhen city, Guangdong province, China Product ............................... : Wifi-BT Module Model(s). ............................ : YR-WB2-32S Standards........................... : FCC 47CFR Part 15.247 Date of Receipt sample .... : 2024-11-19 Date of Test ....................... : 2024-11-19 to 2024-12-02 Date of Issue ...................... : 2024-12-02 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD24D11268113W001 Page 2 of 33 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 3 4 GENERAL INFORMATION ....................................................................................................................... 4 4.1 General Description of E.U.T. ....................................................................................................... 4 4.2 Details of E.U.T. ............................................................................................................................ 4 4.3 Channel List .................................................................................................................................. 4 4.4 Test Facility ................................................................................................................................... 5 4.5 Subcontracted ............................................................................................................................... 5 4.6 Abnormalities from Standard Conditions ...................................................................................... 5 4.7 Test Mode ..................................................................................................................................... 5 5 TEST SUMMARY ...................................................................................................................................... 6 6 EQUIPMENT USED DURING TEST ......................................................................................................... 7 6.1 Equipments List ............................................................................................................................ 7 6.2 Description of Support Units ......................................................................................................... 8 6.3 Measurement Uncertainty ............................................................................................................ 8 6.4 Test Equipment Calibration .......................................................................................................... 8 7 DUTY CYCLE ............................................................................................................................................ 9 8 RADIATED EMISSIONS ......................................................................................................................... 11 8.1 EUT Operation ............................................................................................................................ 11 8.2 Test Setup .................................................................................................................................. 12 8.3 Spectrum Analyzer Setup ........................................................................................................... 13 8.4 Test Procedure ........................................................................................................................... 14 8.5 Corrected Amplitude & Margin Calculation ................................................................................ 14 8.6 Summary of Test Results ........................................................................................................... 15 9 CONDUCTED SPURIOUS EMISSIONS ................................................................................................. 21 9.1 Test Procedure ........................................................................................................................... 21 9.2 Test Result .................................................................................................................................. 22 10 BAND EDGE MEASUREMENT .............................................................................................................. 25 10.1 Test Produce .............................................................................................................................. 25 10.2 Test Result .........................................................................................…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 61 TEST REPORT Referen ce No. .................... : WTD24D11268113W002 FCC ID ................................ : 2BMGHYR-WB2-32S Applicant ............................ : SHENZHEN YU RUI YUN SHANG TECHNOLOGY CO., LTD Address .............................. : Room 3902, West Tower, Galaxy Twin Towers, No.8 Yabao Road, Nankeng Community, Bantian Sub-district, Longgang District, Shenzhen city, Guangdong province, China Product ............................... : Wifi-BT Module Model(s). ............................ : YR-WB2-32S Standards........................... : FCC 47CFR Part 15.247 Date of Receipt sample .... : 2024-11-19 Date of Test ....................... : 2024-11-19 to 2024-12-02 Date of Issue ...................... : 2024-12-02 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD24D11268113W002 Page 2 of 61 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 3 4 GENERAL INFORMATION ....................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................... 4 4.2 DETAILS OF E.U.T. .............................................................................................................................. 4 4.3 CHANNEL LIST ..................................................................................................................................... 4 4.4 TEST FACILITY .................................................................................................................................... 5 4.5 SUBCONTRACTED ................................................................................................................................ 5 4.6 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 5 4.7 TEST MODE ........................................................................................................................................ 6 5 TEST SUMMARY ...................................................................................................................................... 7 6 EQUIPMENT USED DURING TEST ......................................................................................................... 8 6.1 EQUIPMENTS LIST ............................................................................................................................... 8 6.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 9 6.3 MEASUREMENT UNCERTAINTY ............................................................................................................. 9 6.4 TEST EQUIPMENT CALIBRATION ........................................................................................................... 9 7 DUTY CYCLE .......................................................................................................................................... 10 8 RADIATED EMISSIONS ......................................................................................................................... 12 8.1 EUT OPERATION ............................................................................................................................... 12 8.2 TEST SETUP ..................................................................................................................................... 13 8.3 SPECTRUM ANALYZER SETUP ............................................................................................................ 14 8.4 TEST PROCEDURE ............................................................................................................................. 15 8.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .............................................................................. 15 8.6 SUMMARY OF TEST RESULTS ............................................................................................................. 16 9 CONDUCTED SPURIOUS EMISSIONS ................................................................................................. 34 9.1 TEST PRO…

Text truncated - open the document above for the full version.
