2BMMFCTS8310Smart Phone

Smartphone S8310 Quick Start Guide Register your product and get support at www.philips.com/support 1 Trademark Declaration Note: This guide is protected under copyright law, reproduction in whole or in part without permission is prohibited. Philips Congratulations on your purchase and welcome to Philips! To get the most of your product and enjoy all Philips has to offer, register your product at: www.philips.com/support Tips: Note: Please read the safety instructions in the “Safety & Precaution” section before use. Philips continuously strives to improve its products. Due to software upgrading, some contents in this user guide may be different from your product. Philips reserves the rights to revise this user guide or withdraw it at any time without prior notice. Please take your product as standard. PHILIPS and PHILIPS’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. manufactured by TPV Audio and Visual Technology (Shenzhen) Co., Ltd. Under license from Koninklijke Philips N.V. Your Phone 2 Touch screen Side volume key Flashlight key Custom Function Key Power key /Lock key Charger/Type-C port connector 3 Installation and Charging You can use the phone while it is charging. Keeping the charger plugged to the mobile phone when the battery is fully charged will not damage the battery. If you do not intend to use your phone for several days, we recommend that you remove the battery. If a fully charged battery left unused, it will lost its charge over time. If a battery is being used for the �rst time or the battery has not been used for a prolonged period, it may take longer time to recharge. SIM card holder extraction method Find the position of the SIM card holder on the phone �rstly, then gently pull the SIM card holder with your hand, and it will immediately pop out. Charge the battery Figure of SIM card installed on holder Tips: 1.Find the position of the SIM card holder on the phone �rstly(indicated by the arrow). 2.Gently pull the SIM card holder with your hand (indicated by the arrow), it will pop out. 3.Insert or remove the SIM card holder as the direction indicated by the arrow. SIM+TF SIM1+SIM2 S IM 1 SIM 2 SIM1 insert Pull out SIM 4 Using your phone Turn your phone on and off 1 Press and hold power key to turn on your phone. 2 To turn off your phone, press and hold power key and then select Power off. Keys Learn about the main keys. Key De�nitionFunction Home key Option key Back key Power keyPress and hold to power on/off. Press to turn on/off the screen display. Hold to access the Phone options, choose Emergency, Power off, or Restart. Return to the home screen. Hold to open the ‘Gemini’ function. Open the options list for recent applications. Return to the previous screen or exit. Volume key Adjust the volume in standby mode or during a call. when answering a call, press any volume key to mute the ringtone. Flashlight keyLong press to turn on/off the �ashlight function on any interface. Custom Function key Long press to enter camera by default, or users can customize other optional functions. 5 From the Home screen, you can view your device’s status and access applications. The Home screen has multiple panels. Scroll left or right to view the panels on the Home screen. When you get a new noti�cation, you can open the Noti�cations panel to see what event noti�cation or new information you have received. Home screen Noti�cations panel Access applications Manage applications To open the Noti�cations panel,press and hold the sta-tus bar, then slide one �nger downward. If you have several noti�cations, you can scroll down the screen to see them all. To hide the panel, drag the bottom of the panel upwards. In idle screen, tap Settings Tap Running, you can view all the running apps, tap this app to enter it, you can tap Stop to choose stop running. Tap Downloaded, you can view all the downloaded apps, tap app to enter it, you can check the detailed information of this app, tap Uninstall to unloading it. Scroll left or right to another screen, select an application. Press to return to the previous screen, press to return to the Home screen. Make a call 1.In the application list, tap > Apps 6 2 Dial the number directly or choose one number from the �ltered list that have matching digits. 3 Make a voice call. 4 Tap to end the call. Send a message 1 In the application list, tap . 2 Tap New message . 3 Enter the number or tap to select the number from phonebook. 4 Select the text �eld and enter your message text. 5 Press to add a subject for the message or attach a �le (Pictures, Videos, Audio or Slideshow). 6 Tap to send the message. Copyright protected pictures and sound cannot be sent by MMS. Note: 7 Safety & Precaution Precaution Keep your phone away from small children Radio Waves Switch off your phone Your mobile phone and your car Handle your phone carefully and sensibly Keep your phone and all accessories out of the reach of small children. Small parts may cause choking or serious injury if swallowed. Your phone operates with the following frequency bands and maximum radio-frequency power limitation: GSMWCDMA/TDD-LTE/FDD-LTE Check with the vehicle manufacturer that electronic equipment used in your vehicle will not be affected by radio energy. Turn off the phone when in an aircraft. The use of mobile phones in an aircraft may be dangerous for the operation of the aircraft, disrupt the mobile phones network and may be illegal. Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands free accessories to increase your safety when possible. Ensure that your phone and car kit do not block any air bags or other security devices �tted in your car. For the optimal and satisfactory operation of the phone you are recommended to use the phone in the normal operating position. Do not expose your phone to extreme temperatures. Do not immerse the phone in any liquid; if your phone is damp, switch it off, r…

Text truncated - open the document above for the full version.

          !"#$%&'() *&%)*+")#+#'((+,-%*!,.'",()*##*%,*!/-*!011123451 6'77*") +)$10801 9:#*+)$+,$#%,,,)&$";%7#'#$%,<(+#',()*#-#*(=+7"$+*"%)# +)$*!(+# ',()*#*!+*>,;,%,($*%=,"-*!+**!;,%$'&*&%(;7"#>"*!*!%, ()*"%)$#*+ )$+,$# ?  @   ABCDEBFGHBIJBKL M="& -;5N5<3ONPQ1R11S1M0T5U1 N+)'+&*',,VWX N%$7<0M3O <,"+7S'(/,<SO982YM0T9Z3O[OO T,%$'&*%)$"*"%)\)>8'#$]^#$ -+,7-&+7"/ ,+*"%)")*,=+7"#,&%(()$$ _      O2Z1S1U0SR5N 05S `abcdef`fghiajklmjnlopqlroksdjtsuvlknlpjwwotmjpwsnonxsyzzz{|}~451 6'77*") +)$10801 9:#*+)$+,$# !;,%$'&*"#$#")$%,'#>"*!*!5N5<*#*/)&! %)7- €‚ƒ„…†‡ˆ‰Š†Š‹Œ‡Ž‘Ž’“”•–“— ˜™š›œžŸŸ ¡¢£¤¥¦§ ̈›©ª£¡™««©¥ª¬›­›®­¥¤§¦›¤ ̄›°¦›®ª¢©±§ ««¥­¢©®™­ª ̄²¢ª¡¥§ªª¡›²­¢ªª›©™®®­¥³™«¥± ́μ¶· ̧¹º»¼½¾¿ÀÁ»¾¼Ã¾¼ÂÁ»¼ºÄ¹º¿º»¼»Å¾ƺÇÅºÄ ¾¼Èɽ¾¿Â¹ºÊǿʾź½¾¿Ë¹»Ã¹»Â»ÅÅÇÆÀ»ÂºÄÁ¼Ä»Å¼¾Â¾ƺ¿ºÈºÁźĻ¼Ë¹¾Èº¾¿ÊÁ¿Â˻¹¾ÇÂË¿»Âº¼ÁÊÊ¿¾ÌÁȾ½ÍÎÏÐ ÑÒÓÔÕÖ×ÒØÙÚÛÜÝÝÝÜÞÜßßÜàáâãÜäååæçØÚèàèåÙÛÝéÔêÕÒëì í î        ! "#$%%%&'()%"*+,,-./0/1%$2$%345-0/106157689.16:+.6;/-586 6 6/<1.78,5+51865=5-;90,.10-.8/;05+6;/-5"#8,,8>./?;05+6;/-5>6 7686;1-89 6.=-#0--#7681+<-<8;7,.5>.-#-#86;/-.8/15-0/10615 @&%"ABC)DD%EA$%F%B"D "#1.78,+5186D5=5-;90,.10-.8/;05+6;/-50/1<#<G5;+5-#0906-+6/,8558H3 1*86I--6 "#6-+6/,855;05+6;/-5#0,,I7686;10?0./5-0,.:+.1.,,1,0-7#0/-8;( >.-#-#7#0/- 8;<8/5-+<-1058+-,./1./-#86;/-.8/15-0/10615 @F%JB$C%EA$%F%B"D "#$%%%D-1&'0/1%$2$%345-0/1061557<.=-#;<#0/.<0,<8;78//-50/1 1.;/5.8/58 -#90,.10-.8/1.78,5(>.-#-#1.;/5.8/56:+/<=0/17#0/-8;5#,,-#.<G/55 17/1/-" #)F)D-5-I/<#;7,8=50;;7#0/-8;5#,,-#.<G/55-#686-# 1.78,558,1 86+5>.-#-#)F)D-5-I/<#<8;7,=>.-#-#6:+.6;/-55-86-#860 ;;7#0/-8; 5#,,-#.<G/55 K    L ,,+/<6-0./-.5,.5-1I,8>6765/-0/M70/11+/<6-0./-=M765510-07768M.;0-,=-#4N <8/.1/<,9 ,+5./?0<8960?0<-868GO(-60<0I,-8-#$/-6/0-.8/0,,=<<7-1P+.15-8 F05+6;/- A/<6-0./-= &%"ABC)DD "#8,,8>./?+/<6-0./-.5077,=-8-#6-+6/,855;05+6;/- QRSTRUVWXYUZ[\YUZRZ UVRQ]Y^U]W_UR]TQU _`` @33H333FJa3&1* b$F%BD$)BF%DA%F%B" "#8,,8>./?+/<6-0./-.5077,=-8-#1.;/5.8/;05+6;/-5 RUc]deffg[\YUZRZ UVRQ]Y^U]W_U RUc]d hHh3333;; hi C$b"$)BF%DA%F%B" "#?+.1,./58+-,./1./-#$%%%&'()%"*+,,-./(%B%C%%B3h&0/1%$2$% 345-0/10 615>68,,8>1-8?/60--#;05+6;/-+/<6-0./-=8690,.10-.8/ ;05+6;/-5  VYUj_kTfR[\YUZRZ UVRQ]Y^U]W &?3hN &3?3&N lmnopqrss tuvwxyz{|o}~wum}y~€oo‚yx{zoxƒo„zo‚~v}…{ yv}‚m~ƒ†v~uy{~~uo†v~~o}m‚‚y‡my…ˆ‰Š‹ŒŽ‘’“”•–’—’–•Ž˜Ž“Ž™–’šŽ›™Ž˜ ’œ‘’“–Žž›“ž’™Ž‘’“Ÿ—–™™›š”––Ž˜•˜™’––’šŽ“ŽœŽ•™Ž˜Ÿ’œŽ’“ž•“–Ÿ–’›–Ÿ“––Ž•žž“’ •œ’‘¡¢£¤ ¥¦§ ̈©ª«¦¬­® ̄°±±±°²°³³° ́μ¶·° ̧¹¹º»¬®¼ ́¼¹­ ̄±½ ̈¾©¦¿À Á             !"#$%&'((%)*+,")%"*%-")&*.$*) /012034567890:2/3 ;<<6=9012>/0?03:6=9 ?@0=A340 BCDB!EDF !GHICJH "#$%&'((%)*+,")%"*%K')L&*.$*) /012034567890:2/3 ;<<6=9012>/0?03:6=9 ?@0=A340 BCDCBMDF NOPHICJH C+"-%*&)*+"%(*'%( QRSTUSVWXYZ[\]]^]]_]] RSTU`RS_aSbcURS_RSTU`RS_aSbcURS_RSTU`RS_aSbcURS_ defgdhifjgkigffifjgki hilejgki mleghgifjgkinoppmqimjgki nopp lihjgki nopp rstuvwxyy z{|}~€‚uƒ„}{s……ƒ„†u‡uˆ‡~€u~‰uŠ€uˆ„|ƒ‹ ……‡|ƒˆs‡„‰Œ|„{„„{uŒ‡|„„uƒsˆˆ‡s…‹Ž‘’“”•–—˜™š›œ•˜–˜–œ›•–”ž“”™”•–•Ÿœ˜ ”¡Ÿ”ž ˜–¢£—˜™œ“”¤¡™¤˜Ÿ”—˜™¥“•“•œ•ŸŸ¡ š•œœ”ž›–ž•Ÿ–˜œœ˜ ”™”¢”›Ÿ”ž•–¥“˜¢”˜™¤›™œ¥•œ“˜¡œ¥™•œœ”–›¤¤™˜¦›¢˜—§ ̈©ª «¬­® ̄°±¬²³ ́μ¶···¶ ̧¶¹¹¶º»¼½¶¾¿¿ÀÁ² ́º¿³μ·Ã®Ä ̄¬ÅÆ Ç È        !"# $"%&"&# $" &"'# $" !(%" # $"( ")# $" &"'# $" (%"(# $"("# $" &"'# $" '!)"# $"!(")# $" &"'# $" )()("*# $"!*"# $" &"'# $" %)*"# $"! ")# $" &"'# $" '%"# $"&"(# $" &"'# $" (''"&# $"&%"(# $" &"'# $" *'!"(# $"&)"(# $" &"'# $" * ' "# $"&(")# $" &"'# $" *&(("(# $"&*"'# $" &"'# $" *!(( "(# $"&"!# $" &"'# $" *'!%"(# $"*%"%# $" &"'# $" &! "(# $"*("# $" &"'# $" &(&)"# $"*'"!# $" &"'# $" &)&!")# $"*'"!# $" &"'# $" +,  -.- /0122234567892/:;<<4=>?>521@12ABC4?>5?D5CC4?440?440CEC4F G?<=5?4=H>F ?C;DF>4CF;C4IJDHDF5;C=>K?DD>L5=JH<F4=>K40HDF>4=H>5 D4;D><HCC?>5 FL0?>=L?<5=F>C=H>DM;=DF>4C/0G?<=5?4=H>F?C;DF>4F;C4IJDHDF5 ?K?=>C4?<=M;= 5=<<5<?4J0?>4H…

Text truncated - open the document above for the full version.

SAR Setup photos for FCC ID: 2BMMFCTS8310 Right Touch Right Tilt Left Touch Left Tilt Body Front side(separation distance is 10mm) Body Back side(separation distance is 10mm) Body Left side(separation distance is 10mm) Body Right side(separation distance is 10mm) Body Bottom side(separation distance is 10mm) Body Top side(separation distance is 10mm)

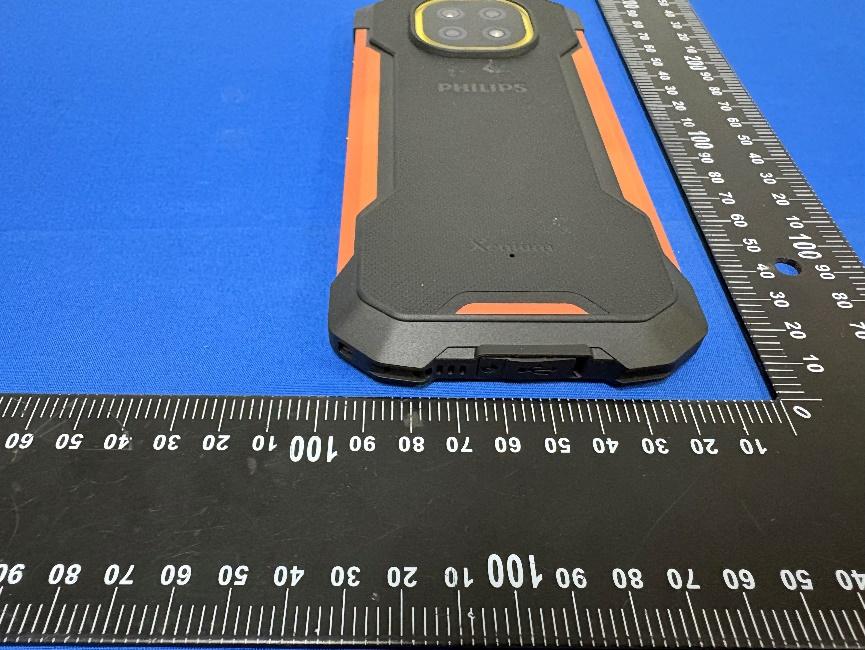

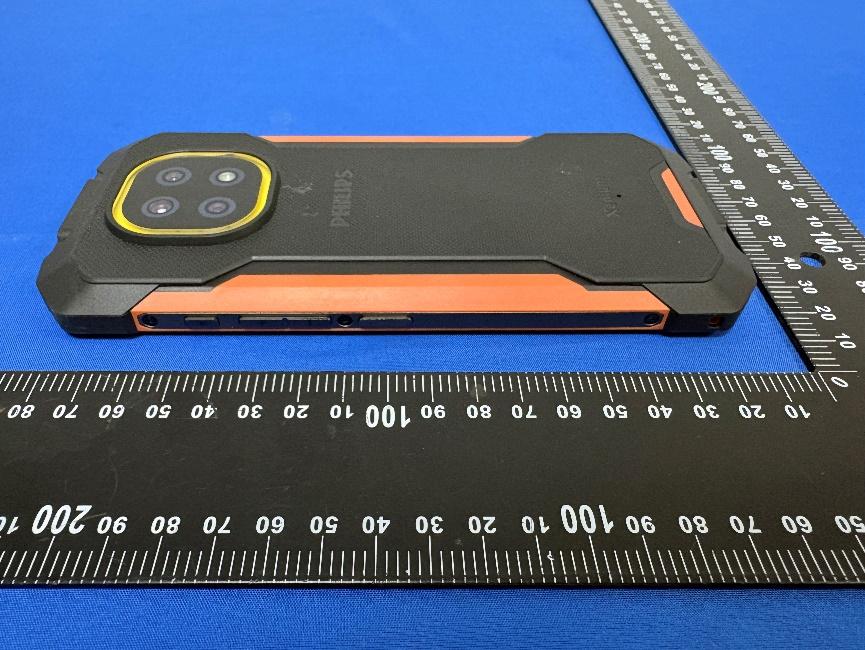

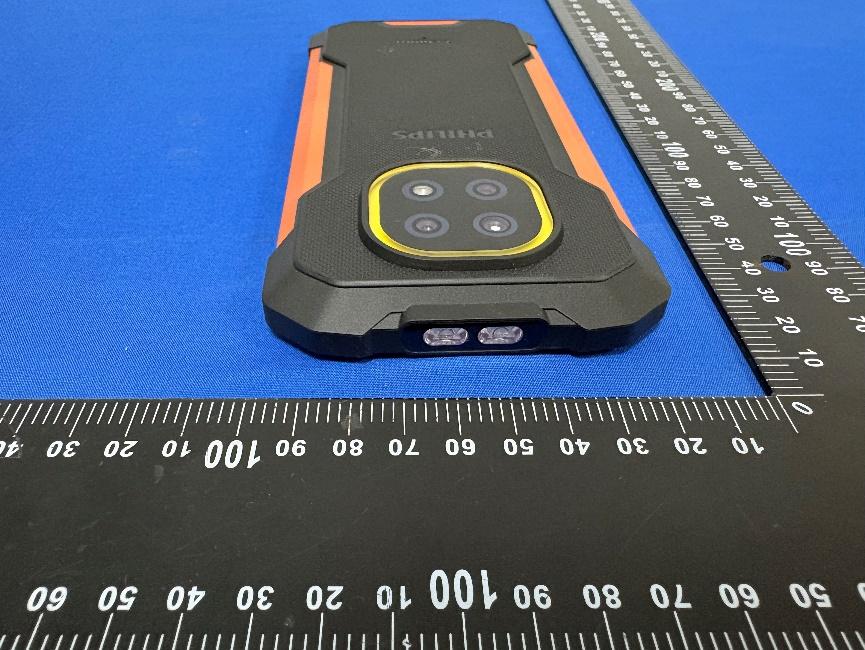

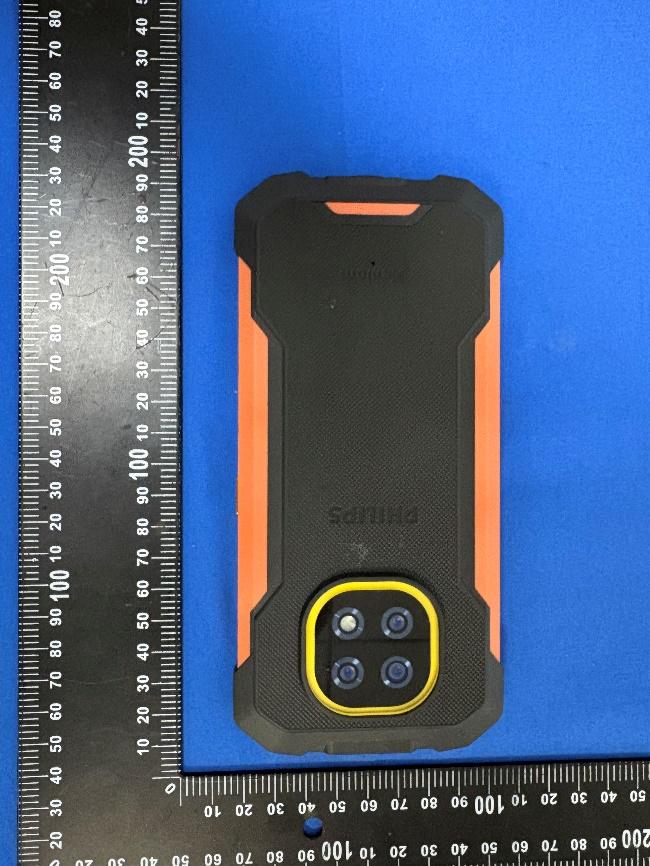

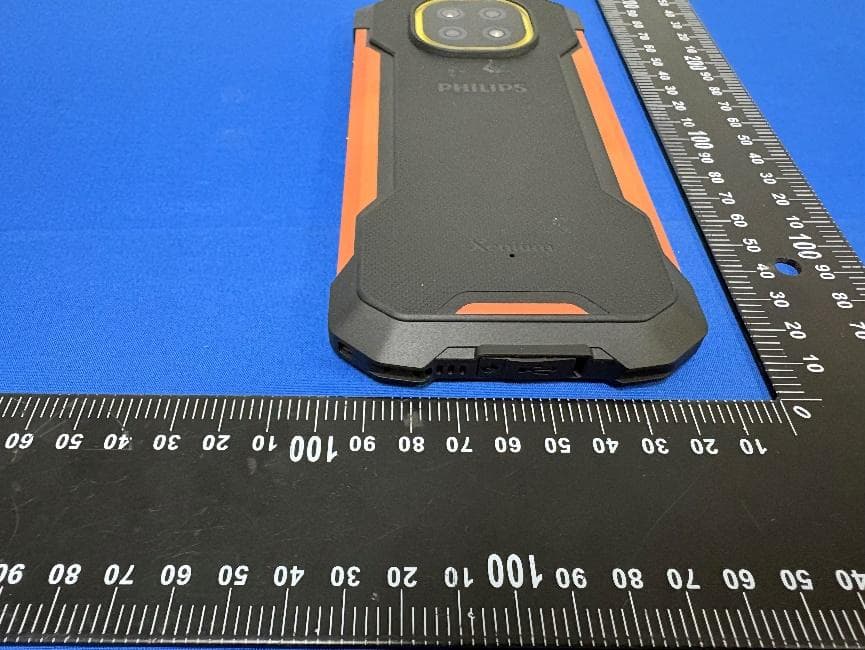

FCC ID:2BMMFCTS8310 Test Setup Photos of the EUT FCC ID:2BMMFCTS8310

OTATestReport Shenzhen3GoodWirelessCommunicationCo.,Ltd Page 1 OTATESTREPORT(Passive) ApplicantShenzhenGeneralTestSystemCo.,Ltd ProductRayZone1800 IssueDateNovember24,2026.4.22 Shenzhen3GoodWirelessCommunicationCo.,Ltd. TestedtheaboveequipmentinaccordancewiththerequirementsinANTI/IEEEStd149-2008.Thetest resultsshowthattheequipmenttestediscapableofdemonstratingcompliancewiththeRequirementsas documentedinthisreport. Preparedby:SonglinLi Approvedby:PuXu Shenzhen3GoodWirelessCommunicationCo.,Ltd Room501-508,jinfulaiBuilding,No.49-1,DabaoRoad,Baoan District,Shenzhen OTATestReport Shenzhen3GoodWirelessCommunicationCo.,Ltd Page 2 1.TestLaboratory 1.1NotesoftheTestreport Thisreportshallnotbereproducedinfullorpartial.Theresultsdocumentedinthisreportapply onlytothetestedsample,undertheconditionsandmodesofoperationasdescribedherein. MeasurementUncertaintieswerenottakenintoaccountandarepublishedforinformational purposesonly.Thisreportiswrittentosupportregulatorycomplianceofapplicablestandards statedabove. 1.2Testfacility GTS1800MicrowaveAnechoicChamber：testingfrequencyrangesfrom600MHzto 6GHz. 1.3TestingLocation Company:Shenzhen3GoodWirelessCommunicationCo.,Ltd Address:Room501-508,jinfulaiBuilding,No.49-1,DabaoRoad,BaoanDistrict, Shenzhen Contact:SonglinLi Telephone:13686856980 E-mail:[email protected] 1.4LaboratoryEnvironment Temperature Min.=19°C,Max.=25°C RelativehumidityMin.=40%，Max.=72% Shieldeffect0.6-7GHz>100dB Groundresistance<0.5Ω OTATestReport Shenzhen3GoodWirelessCommunicationCo.,Ltd Page 3 2.GeneralDescriptionofEquipmentunderTest 2.1ApplicantandManufacturerinformation ApplicantName ShenzhenGeneralTestSystemCo.,Ltd Applicantaddress BuildingC-A7Suite805,2190LiuxianAvenue,NanshanDistrict, Shenzhen,P.R.China ManufacturerName ShenzhenGeneralTestSystemCo.,Ltd 2.2Generalinformation EUTDescription ProductName RayZone1800 Model GTS-ANTD-H HWVersion RayZone1800V1.0 SWVersion MaxSign100 AntennaType FPCAntenna AntennaManufacturer Shenzhen3GoodWirelessCommunicationCo.,Ltd TestFrequency 800MHz-2500MHz 2.3AppliedStandards Accordingtothespecificationsofthemanufacturer,itmustcomplywiththerequirementsofthe followingstandards: TestMethod:ANSI/IEEEStd149-2008 3.TestConditions 3.1TestConfiguration Themethodisusedtomeasuretheantenna3DGAINofEUTinOTAqualifiedanechoic chamber.EquipmentUnderTest(EUT)geometrycentreverticalprojectionatthecentre ofplatform,thedistancefromEUTtomeasurementantennais1m. 3.2TestMeasurement Sphericalcoordinatesystem OTATestReport Shenzhen3GoodWirelessCommunicationCo.,Ltd Page 4 Figure1Testcoordinatesystem Note:Thetaisfrom0-180degree.PhiisfromEUTandrecordtheDate,thestepofrotationis15 degree. TestSetup OTATestReport Shenzhen3GoodWirelessCommunicationCo.,Ltd Page 5 4.TestResults 4.1AntennaEffi.&Max.PeakGain OTATestReport Shenzhen3GoodWirelessCommunicationCo.,Ltd Page 6 B/W/G 4.2 Antenna radiationpatter GPSL1WIFI2.4GBT2.4 WIFI5G OTATestReport Shenzhen3GoodWirelessCommunicationCo.,Ltd Page 7 5.EquipmentList TypeofEquipmentManufactureModelNumber NetworkAnalyzerAgilentTechnologiesE5071B SwitchcontrolSystemGTS RayZone1800 SoftwareGTSMaxSign100Patten Measurementsoftware ANNEXB:TheEUTAppearanceandTestConfiguration B.1EUTAppearance

Page 1 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 FCC Appendix RF Test Data for 5.8GWIFI Product Name: Smart Phone Test Model: Philips S8310 Environmental Conditions Temperature: 23.6 C Relative Humidity: 54.3% ATM Pressure: 100.0 kPa Test Engineer: Zoey Cao Supervised by: Eric Wang Page 2 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.09058347 0.5 Pass NVNT a 5785 Ant1 16.32951623 0.5 Pass NVNT a 5825 Ant1 16.34520027 0.5 Pass NVNT n20 5745 Ant1 16.87647998 0.5 Pass NVNT n20 5785 Ant1 17.11192607 0.5 Pass NVNT n20 5825 Ant1 17.54961346 0.5 Pass NVNT n40 5755 Ant1 35.91104281 0.5 Pass NVNT n40 5795 Ant1 35.62859114 0.5 Pass NVNT ac20 5745 Ant1 17.24886616 0.5 Pass NVNT ac20 5785 Ant1 17.25611185 0.5 Pass NVNT ac20 5825 Ant1 17.2049343 0.5 Pass NVNT ac40 5755 Ant1 35.74750343 0.5 Pass NVNT ac40 5795 Ant1 35.87955842 0.5 Pass NVNT ac80 5775 Ant1 75.67102088 0.5 Pass Page 3 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Page 4 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Page 5 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Page 6 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Page 7 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Page 8 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Page 9 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -6dB Bandwidth NVNT ac40 5795MHz Ant1 -6dB Bandwidth NVNT ac80 5775MHz Ant1 Page 10 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 2 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Limit Conducted(dBm) Verdict NVNT a 5745 Ant1 12.46 0.44 12.9 30.00 Pass NVNT a 5785 Ant1 11.92 0.45 12.37 30.00 Pass NVNT a 5825 Ant1 11.75 0.41 12.16 30.00 Pass NVNT n20 5745 Ant1 12.14 0.62 12.76 30.00 Pass NVNT n20 5785 Ant1 11.42 0.58 12 30.00 Pass NVNT n20 5825 Ant1 11.33 0.52 11.85 30.00 Pass NVNT n40 5755 Ant1 11.97 0.98 12.95 30.00 Pass NVNT n40 5795 Ant1 11.49 1.12 12.61 30.00 Pass NVNT ac20 5745 Ant1 12.26 0.52 12.78 30.00 Pass NVNT ac20 5785 Ant1 11.55 0.52 12.07 30.00 Pass NVNT ac20 5825 Ant1 11.38 0.55 11.93 30.00 Pass NVNT ac40 5755 Ant1 12.19 0.98 13.17 30.00 Pass NVNT ac40 5795 Ant1 11.7 0.98 12.68 30.00 Pass NVNT ac80 5775 Ant1 11.27 1.81 13.08 30.00 Pass Page 11 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/500kHz) Duty Factor (dB) Total Conducted PSD (dBm/500kHz) Limit Conducted (dBm/500kHz) Verdict NVNT a 5745 Ant1 -1.45 0.44 -1.01 30.0 Pass NVNT a 5785 Ant1 -2.02 0.45 -1.57 30.0 Pass NVNT a 5825 Ant1 -2.17 0.41 -1.76 30.0 Pass NVNT n20 5745 Ant1 -1.89 0.62 -1.27 30.0 Pass NVNT n20 5785 Ant1 -2.41 0.58 -1.83 30.0 Pass NVNT n20 5825 Ant1 -3.12 0.52 -2.6 30.0 Pass NVNT n40 5755 Ant1 -5.32 0.98 -4.34 30.0 Pass NVNT n40 5795 Ant1 -5.48 1.12 -4.36 30.0 Pass NVNT ac20 5745 Ant1 -1.68 0.52 -1.16 30.0 Pass NVNT ac20 5785 Ant1 -2.64 0.52 -2.12 30.0 Pass NVNT ac20 5825 Ant1 -2.94 0.55 -2.39 30.0 Pass NVNT ac40 5755 Ant1 -5.05 0.98 -4.07 30.0 Pass NVNT ac40 5795 Ant1 -5.77 0.98 -4.79 30.0 Pass NVNT ac80 5775 Ant1 -8.56 1.81 -6.75 30.0 Pass Page 12 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT a 5745MHz Ant1 PSD NVNT a 5785MHz Ant1 Page 13 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT a 5825MHz Ant1 PSD NVNT n20 5745MHz Ant1 Page 14 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 Page 15 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5795MHz Ant1 Page 16 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT ac20 5745MHz Ant1 PSD NVNT ac20 5785MHz Ant1 Page 17 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT ac20 5825MHz Ant1 PSD NVNT ac40 5755MHz Ant1 Page 18 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT ac40 5795MHz Ant1 PSD NVNT ac80 5775MHz Ant1 Page 19 of 49 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 4 Restrict Band Condition Mode Frequency (MHz) Antenna Spur Freq (MHz) Power (dBm) Gain (dBi) E (dBuV/m) Detector Limit (dBuV/m) Verdict NVNT a 5745 Ant1 5650 -49.08 2.0 -47.08 Peak -27 Pass NVNT a 5745 Ant1 5650 -55.33 2.0 -53.33 Average -27 Pass NVNT a 5745 Ant1 5700 -45.42 2.0 -43.42 Peak 10 Pass NVNT a 5745 Ant1 5700 -52.24 2.0 -50.24 Average 10 Pass NVNT a 5745 Ant1 5720 -28.21 2.0 -26.21 Peak 15.6 Pass NVNT a 5745 Ant1 5720 -39.56 2.0 -37.56 Average 15.6 Pass NVNT a 5745 Ant1 5725 -14.66 2.0 -12.66 Peak 27 Pass NVNT a 5745 Ant1 5725 -27.4 2.0 -25.4 Average 27 Pass NVNT a 5825 Ant1 5850 -34.69 2.0 -32.69 Peak 27 Pass NVNT a 5825 Ant1 5850 -47.05 2.0 -45.05 Average 27 Pass NVNT a 5825 Ant1 5855 -43.09 2.0 -41.09 Peak 15.6 Pass NVNT a 5825 Ant1 5855 -49.47 2.0 -47.47 Average 15.6 Pass NVNT a 5825 Ant1 5875 -45.7 2.0 -43.7 Peak 10 Pass NVNT a 5825 Ant1 5875 -53.42 2.0 -51.42 Average 10 Pass NVNT a 5825 Ant1 5925 -47.89 2.0 -45.89 Peak -27 Pass NVNT a 5825 Ant1 5925 -54.88 2.0 -52.88 Average -27 Pass NVNT n20 5745 Ant1 5650 -48.41 2.0 -46.41 Peak -27 Pass NVNT n20 5745 Ant1 5650 -55.09 2.0 -53.09 Average -27 Pass NVNT n20 5745 Ant1 5700 -43.95 2.0 -41.95 Peak 10 Pass NVNT n20 5745 Ant1 5700 -52.24 2.0 -50.24 Average 10 Pass NVNT n20 5745 Ant1 5720 -26.92 2.0 -24.92 Peak 15.6 Pass NVNT n20 5745 Ant1 5720 -37.7 2.0 -35.7 Average 15.6 Pass NVNT n20 5745 Ant1 5725 -…

Text truncated - open the document above for the full version.

Page 1 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 FCC Appendix RF Test Data for 5.2GWIFI Product Name: Smart Phone Test Model: Philips S8310 Environmental Conditions Temperature: 23.6 C Relative Humidity: 54.3% ATM Pressure: 100.0 kPa Test Engineer: Zoey Cao Supervised by: Eric Wang Page 2 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 1 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) NVNT a 5180 Ant1 29.98975228 NVNT a 5200 Ant1 28.65815699 NVNT a 5240 Ant1 27.86968184 NVNT n20 5180 Ant1 29.27970619 NVNT n20 5200 Ant1 29.92436541 NVNT n20 5240 Ant1 29.0600829 NVNT n40 5190 Ant1 55.32512212 NVNT n40 5230 Ant1 53.46101692 NVNT ac20 5180 Ant1 27.82929267 NVNT ac20 5200 Ant1 29.74129262 NVNT ac20 5240 Ant1 29.42578708 NVNT ac40 5190 Ant1 52.8284913 NVNT ac40 5230 Ant1 55.4320335 NVNT ac80 5210 Ant1 89.83613193 Page 3 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Page 4 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Page 5 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Page 6 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Page 7 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -26dB Bandwidth NVNT ac20 5180MHz Ant1 -26dB Bandwidth NVNT ac20 5200MHz Ant1 Page 8 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -26dB Bandwidth NVNT ac20 5240MHz Ant1 -26dB Bandwidth NVNT ac40 5190MHz Ant1 Page 9 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 -26dB Bandwidth NVNT ac40 5230MHz Ant1 -26dB Bandwidth NVNT ac80 5210MHz Ant1 Page 10 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 2 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Limit Conducted(dBm) Verdict NVNT a 5180 Ant1 10.85 0.36 11.21 24 Pass NVNT a 5200 Ant1 10.01 0.36 10.37 24 Pass NVNT a 5240 Ant1 11.99 0.36 12.35 24 Pass NVNT n20 5180 Ant1 10.8 0.42 11.22 24 Pass NVNT n20 5200 Ant1 10.95 0.42 11.37 24 Pass NVNT n20 5240 Ant1 10.79 0.42 11.21 24 Pass NVNT n40 5190 Ant1 9.2 0.92 10.12 24 Pass NVNT n40 5230 Ant1 9.95 0.86 10.81 24 Pass NVNT ac20 5180 Ant1 10.74 0.44 11.18 24 Pass NVNT ac20 5200 Ant1 10.88 0.42 11.3 24 Pass NVNT ac20 5240 Ant1 11.84 0.44 12.28 24 Pass NVNT ac40 5190 Ant1 10.28 0.82 11.1 24 Pass NVNT ac40 5230 Ant1 10.22 0.82 11.04 24 Pass NVNT ac80 5210 Ant1 6.69 1.57 8.26 24 Pass Page 11 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/MHz) Duty Factor (dB) Total Conducted PSD (dBm/MHz) Limit Conducted (dBm/MHz) Verdict NVNT a 5180 Ant1 -0.58 0.36 -0.22 11 Pass NVNT a 5200 Ant1 -0.6 0.36 -0.24 11 Pass NVNT a 5240 Ant1 0.46 0.36 0.82 11 Pass NVNT n20 5180 Ant1 -0.41 0.42 0.01 11 Pass NVNT n20 5200 Ant1 -0.37 0.42 0.05 11 Pass NVNT n20 5240 Ant1 -0.52 0.42 -0.1 11 Pass NVNT n40 5190 Ant1 -4.19 0.92 -3.27 11 Pass NVNT n40 5230 Ant1 -3.91 0.86 -3.05 11 Pass NVNT ac20 5180 Ant1 -0.53 0.44 -0.09 11 Pass NVNT ac20 5200 Ant1 -0.45 0.42 -0.03 11 Pass NVNT ac20 5240 Ant1 0.37 0.44 0.81 11 Pass NVNT ac40 5190 Ant1 -3.3 0.82 -2.48 11 Pass NVNT ac40 5230 Ant1 -3.96 0.82 -3.14 11 Pass NVNT ac80 5210 Ant1 -10.43 1.57 -8.86 11 Pass Page 12 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Page 13 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT a 5240MHz Ant1 PSD NVNT n20 5180MHz Ant1 Page 14 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Page 15 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Page 16 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT ac20 5180MHz Ant1 PSD NVNT ac20 5200MHz Ant1 Page 17 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT ac20 5240MHz Ant1 PSD NVNT ac40 5190MHz Ant1 Page 18 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 PSD NVNT ac40 5230MHz Ant1 PSD NVNT ac80 5210MHz Ant1 Page 19 of 48 FCC ID: 2BMMFCTS8310 Report No.: CTA26040302317 4 Restrict Band Condition Mode Frequency (MHz) Antenna Spur Freq (MHz) Power (dBm) Gain (dBi) E (dBuV/m) Detector Limit (dBuV/m) Verdict NVNT a 5180 Ant1 4500 -59.91 2 37.32 Peak 68.2 Pass NVNT a 5180 Ant1 4500 -66.31 2 30.92 Average 54 Pass NVNT a 5180 Ant1 5148.9 -43.29 2 53.94 Peak 68.2 Pass NVNT a 5180 Ant1 5149.6 -47.1 2 50.13 Average 54 Pass NVNT a 5180 Ant1 5150 -44.73 2 52.5 Peak 68.2 Pass NVNT a 5180 Ant1 5150 -46.74 2 50.49 Average 54 Pass NVNT a 5240 Ant1 5350 -48.39 2 48.84 Peak 68.2 Pass NVNT a 5240 Ant1 5350 -55.06 2 42.17 Average 54 Pass NVNT a 5240 Ant1 5364.72 -45.65 2 51.58 Peak 68.2 Pass NVNT a 5240 Ant1 5350.08 -55.06 2 42.17 Average 54 Pass NVNT a 5240 Ant1 5460 -47.89 2 49.34 Peak 68.2 Pass NVNT a 5240 Ant1 5460 -55.71 2 41.52 Average 54 Pass NVNT n20 5180 Ant1 4500 -48.24 2 48.99 Peak 68.2 Pass NVNT n20 5180 Ant1 4500 -56.68 2 40.55 Average 54 Pass NVNT n20 5180 Ant1 5147.5 -38.6 2 58.63 Peak 68.2 Pass NVNT n20 5180 Ant1 5149.6 -46.19 2 51.04 Average 54 Pass NVNT n20 5180 Ant1 5150 -39.65 2 57.58 Peak 68.2 Pass NVNT n20 5180 Ant1 5150 -45.7 2 51.53 Average 54 Pass NVNT n20 5240 Ant1 5350 -45.67 2 51.56 Peak 68.2 Pass NVNT n20 5240 Ant1 5350 -55.16 2 42.07 Average 54 Pass NVNT n20 5240 Ant1 5459.52 -45.16 2 52.07 Peak 68.2 Pass NVNT n20 5240 Ant1 5350.32 -55 2 42.23 Average 54 Pass NVNT n20 5240 Ant1 5460 -49.4 2 47.83 Peak 68.2 Pass NVNT n20 5240 Ant1 5460 -55.75 2 41.48 Average 54 Pass NVNT n40 5190 Ant1 4500 -60.48 2 36.75 Peak 68.2 Pass NVNT n40 5190 Ant1 4500 -66.3 2 30.93 Average 54 Pass NVNT n40 5190 Ant1 5149.7 -37.45 2 59.78 Peak 68.2 Pass NVNT n40 5190 Ant1 5149.7…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ........................................... : CTA26040302317 2BMMFCTS8310 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : May 14, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................. : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : TPV Audio and Visual Technology (Shenzhen) Co., Ltd. Address ............................................. : 4201, Block A, Building 2,Shenzhen Bay Innovation and Technology Park,Nanshan District, Shenzhen Guangdong 518100 China Test specification .......................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Smart Phone Trade Mark ....................................... : PHILIPS Manufacturer .................................. : TPV Audio and Visual Technology (Shenzhen) Co., Ltd. Model/Type reference ....................... : Philips S8310 Listed Models..............…

Text truncated - open the document above for the full version.
