2BMMUZM00228mm Li-ion Bi-Directional Motor 2.0Nm

INSTRUCTIONS ZM001-25-1.1 ZM002-28-2.0 Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately. -3- -1--2- 1. Max power input for recharging: 5V 2A. During operation if the battery voltage is too low, motor will stop running and need to be charged. 2. Before first use please charge motor for 6 hours. Using 5V charger (most phones charger is 5V ) . 3. 4. During operation,when the motor starts,if the buzzer beeps 10 times,indicats a low-voltage alarm and needs to be charged. Blinking red Low battery alert Blinking green, Charging is processing Solid green fully charged Charging Instructions Button Instructions 1 Set up Preferred Position User mode Specifications 2.0 Nm 1.1 Nm WARNING: Important safety instructions to be read prior to operating shades Rated Torque (Nm)1.1/2.0 28-24-20 5V type-cRated Power(W) Degree of Protection (IP) Maximum Limit Turn (turn) Max.Single Running Time(min) Working Temperature (C) Radio Frequency (MHz) Li-ion Battery (mAh) Charging Voltage (v) Speed(rpm) 433.92 2600 10/15 IP20 6 -10 ~ 60 Caution 1. Do not expose motor to humid or extreme temperature conditions. 2. Do not drill into motor. 3. Do not cut the antenna and keep it clear from metal objects. 4. Ensure correct crown and drive adaptor are used. 5. Ensure power cable and aerial is clear and protected from moving parts. 6. Motor is to be mounted in horizontal position only. 7. Before installation, remove unnecessary cords and disable equipment not needed for poweredoperation. 8. Installation and programming to be performed by a qualified professional, use or modification outside the scope of this instruction may void warranty. Incorrect installation can lead to severe injury Notice Before Setting USB-C charging port P1 button Power switch (0-OFF 1-ON) P1 Back 5/15 Single-channel Remote control UP LCD display STOP DOWN Channel selection“-” (CH-) Channel selection“+” (CH+) P2 Functions of P1 button 1. Cycle OperationPress P1 button once and every press the motor will run upward → stop → downward circulary. 2. Pairing or Pair Additional remote control Press P1 button for 2, motor jog once, release button and make a long beep, motor is ready for pairing or pair additional remote control. 3. Sleep Mode: Press and hold P1 button for 6s, the motor will jog twice, release button and beep twice, the motor enters sleep mode, the motor won't receive any signal; press P1 button can awake motor. 4. Switch Direction: Press and hold P1 button for 10s, the motor will jog 3 times, release button and beep 3 times, the running direction of the motor has been changed. 5. Reset to Factory Mode: Press and hold P1 button for 14s, the motor will jog 4 times, release button and beep 4 times, the motor has been reset to factory mode.At this point the motor will go into deep sleep. After entering deep sleep, the motor can't be controlled. At this time, you need to press P1 button for 2s and then the motor turns to prompt to exit deep sleep. Essential Settings The steps in factory mode must be completed to ensure proper operation. * If within 10S, the motor doesn't receive STOP signal from any control, it will exit the pairing mode automatically. Re-power on after power off, if the motor already has a paired remote control, there won’t be any rotation prompt, and the pairing mode is not entered. 1 Pairing Factory mode Press P1 button for 2s (1 jog ), release button and the motor will make a long beep, Or turn the DIP switch to “0” and then to “1” (1 jog and make a long beep), repower the motor, within 10s, press STOP for 2s (2 jogs and 3 beeps ), the motor and remote control have been paired successfully. STOPP1 → 2 Check Rotating Direction Press UP, if the motor runs downward, try below to switch direction + UP DOWN Press and hold UP and DOWN buttons simultaneously for 2s, motor jog once, the direction has been switched successfully. * The operation is only valid when there is no limits. If the motor has already set the upper and lower limit, then you can only switch direction by press P1 button for 10s.(refer to Function of P1 button #4, above) 3 Upper and Lower Limits Setting 2 Set lower limit → DOWNDOWNSTOP + 1 Set upper limit →+ UPUPSTOP * If exit the limits setting status before you finish the limit setting, then the motor will take the previous limits if has; After the limits have been set successfully, the motor enters the User mode. Press UP for 2s, operate the motor to desired upper limit position, press and hold UP and STOP buttons simultaneously for 2s (2 jogs and 3 beeps), upper limit is set. Press DOWN for 2s, operate the motor to desired lower limit position, press and hold DOWN and STOP buttons simultaneously for 2s (2 jogs and 3 beeps), lower limit is set. * Press STOP for 2s,the shade runs to preferred position automatically. 2 Remove preferred position Press P2 (1 jog and 1 beep), press STOP (1 jog and 1 beep), STOP again(1 jog and make a long noise), the preferred position is deleted. 1 Set preferred position P2 →→ STOPSTOPP2 →→ STOPSTOP Check and confirm both upper and lower limits are set. Bring the shade to desired preferred position. Press P2 (1 jog and 1beep),press STOP(1 jog and 1 beep), STOP again(2 jogs and 3 beep),the preferred position is a set. 2 Jog Mode & Running Mode Switch * When in jog mode, press UP or DOWN once, the motor will be jog running, if press more than 2s, the motor will be continously running. → DOWNSTOPUP + Press and hold UP and DOWN buttons simultaneously for 5s (1 jog), press STOP (1 jog and make a long beep), switch to jog mode, If motor jog twice and beep 3 times, switch to running mode. 3 Adjust Limits 1 Adjusting the upper limit →→ DOWNUP or →+ UPSTOP + UPSTOP The new upper limit position Press and hold UP and STOP buttons for 5s (1 jog and make a long beep), operate the shade to desired new lower limit position, press and hold DOWN and STOP buttons for 2s(2 jogs and 3 beeps), the new upper limit is set successfully. * When ent…

Text truncated - open the document above for the full version.

Z.M.C.MetalCoatingInc. (2025.11.12) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2BMMUZM002) [Z.M.C.MetalCoatingInc.](“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, (Applicantsignature) (Applicantprintedname)Lynne Z.M.C.MetalCoatingInc. (2025.11.12) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2BMMUZM002) [Z.M.C.MetalCoatingInc.](“theapplicant”)certifiesthat,asofthedateofthefilingof theapplication,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname)Lynne

Z.M.C.MetalCoatingInc. AgentAuthorizationLetter 2025.11.12 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenMostTechnologyServiceCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuse Actof1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Name: Lynne Position: manager CompanyName:Z.M.C.MetalCoatingInc. Address:40GaudaurRoad,Woodbridge,OntarioL4L4S6,Canada Tel/Fax001-9058563838/1-9058563388 E-Mail:[email protected]

Z.M.C.MetalCoatingInc. LongTermConfidentialityRequestLetter 2025-11-12 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR(FCCID:2BMMUZM002) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459of CFR47.Wehaverequestedthatthe -e.g.Blockdiagram -e.g.SCH -e.g.OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetinto thepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Name: Lynne Position: manager CompanyName:Z.M.C.MetalCoatingInc. Address:40GaudaurRoad,Woodbridge,OntarioL4L4S6,Canada Tel/Fax001-9058563838/1-9058563388 E-Mail:[email protected]

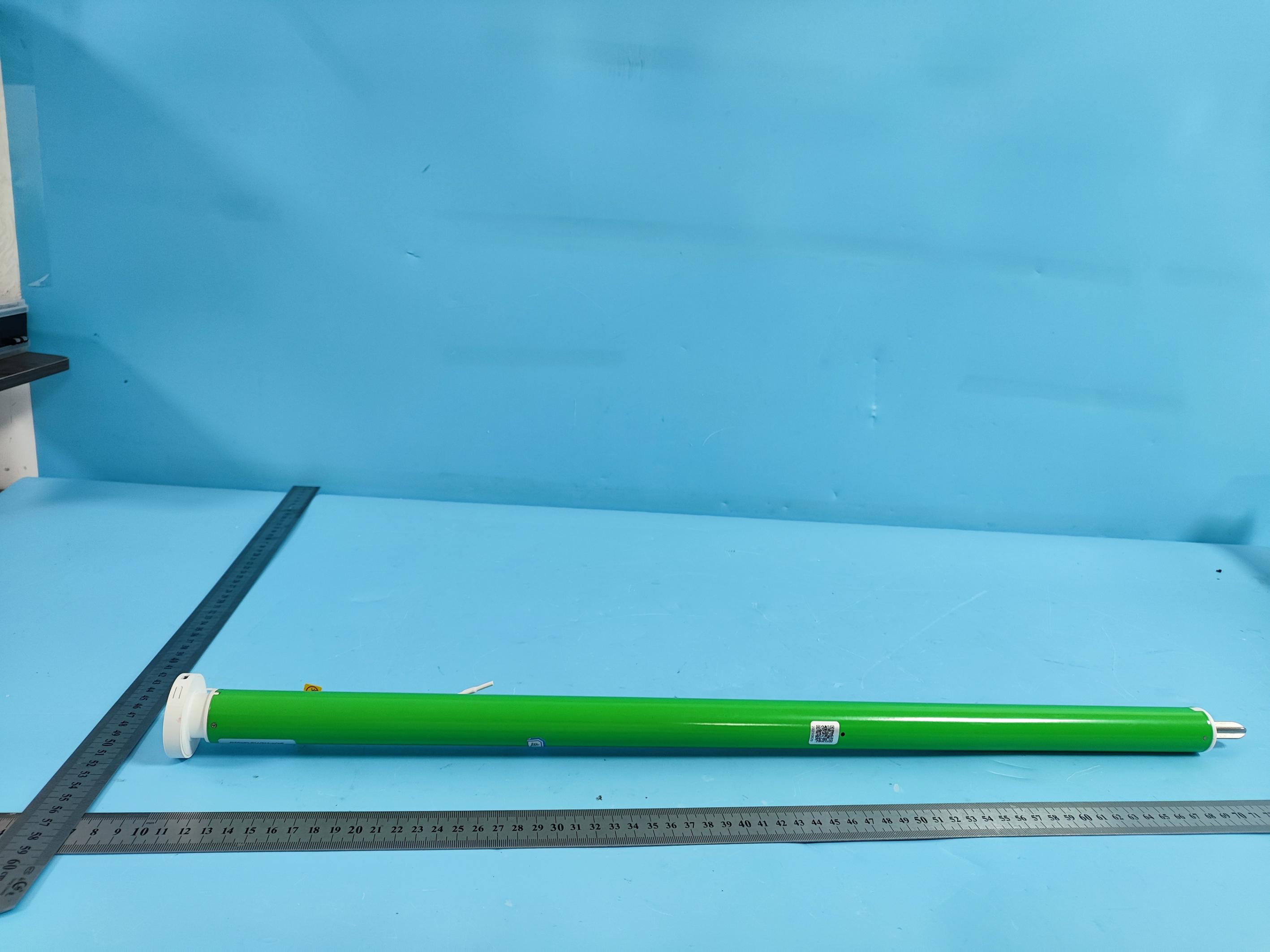

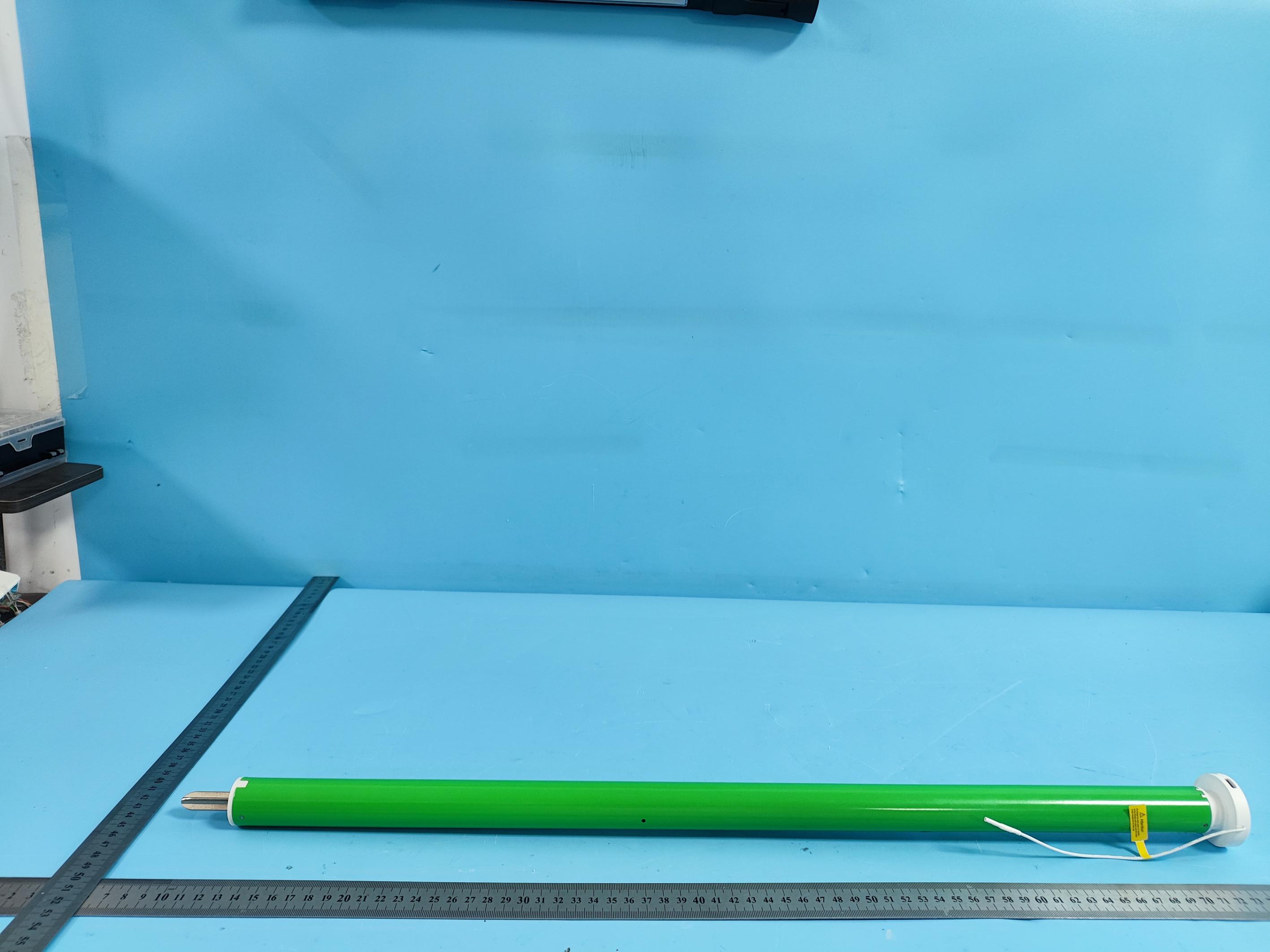

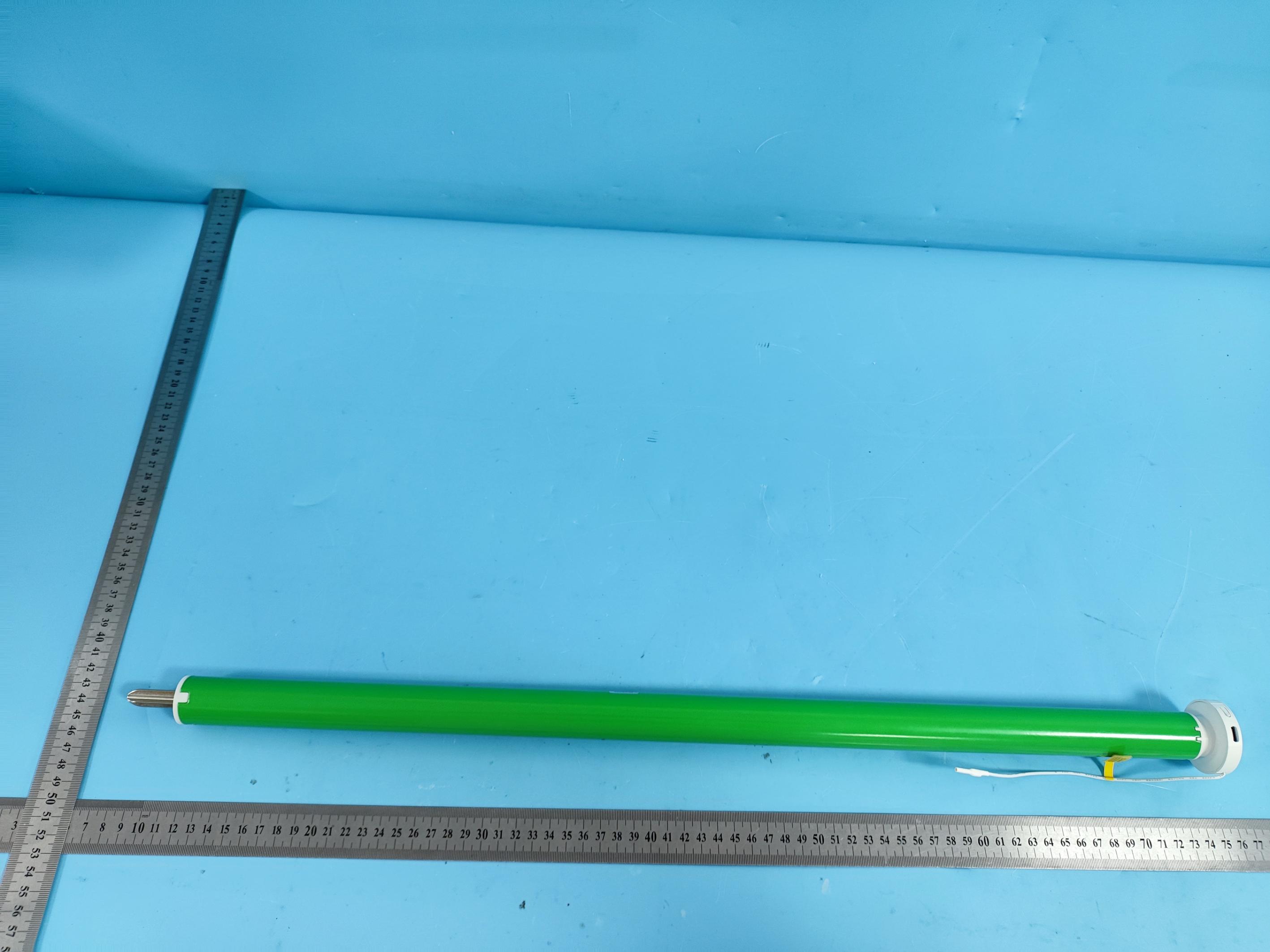

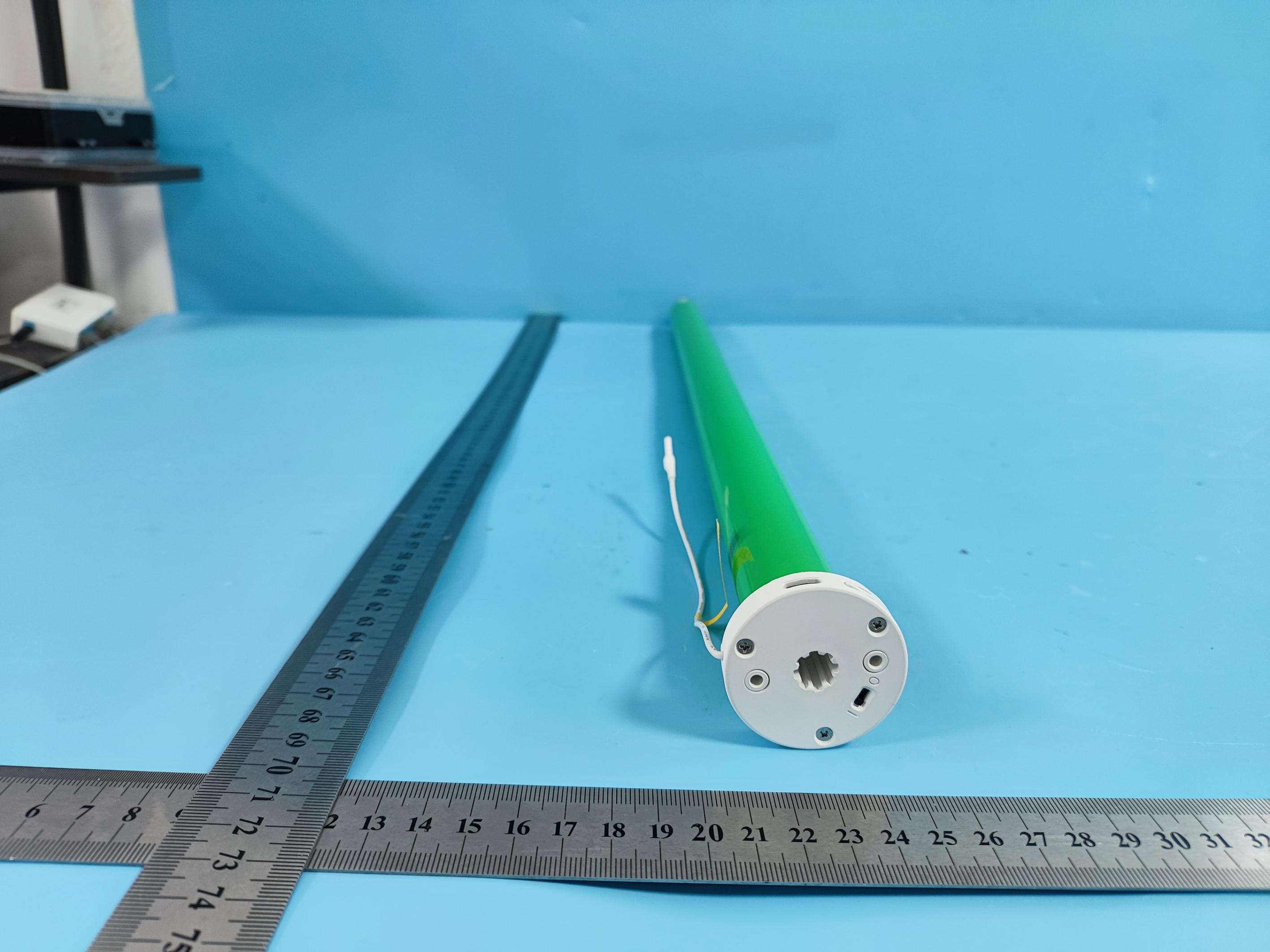

ModelNo.:ZM002-28-2.0 FRONTVIEWOFSAMPLE BACKVIEWOFSAMPLE ModelNo.:ZM002-28-2.0 LEFTVIEWOFSAMPLE RIGHTVIEWOFSAMPLE ModelNo.:ZM002-28-2.0 TOPVIEWOFSAMPLE BOTTOMVIEWOFSAMPLE
