2BMOI-Q8MVMT 2PK WIRELESS LAVALIER MICS WITH RECEIVER

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. MVMT 2PK WIRELESS LAVALIER MICS WITH RECEIVER

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:JME&CO.NYC.LLC FRN:0036352722 ContactName:ZaraZhou Address:4697THAVE14THFLOORNewYork,NewYorkUnitedStates10018 TelephoneNo.:2127042006 Email:[email protected] Applicant: Companyname:JME&CO.NYC.LLC ProductDescription:MVMT2PKWIRELESSLAVALIERMICSWITHRECEIVER Granteecode:2BMOI FRN:0036352722 FCCID:2BMOI-Q8 ContactName:ZaraZhou Address:4697THAVE14THFLOORNewYork,NewYorkUnitedStates10018 TelephoneNo.:2127042006 Email:[email protected] [JME&CO.NYC.LLC]certifiesthat,asofthedateofthisfilingofthe applicationwiththeTCB,[JME&CO.NYC.LLC]isourdesignatedUSagentfor serviceofprocessfortheabovereferencedFCCID.[JME&CO.NYC.LLC] acceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanycommission relatedproceedinginvolvingequipment.[JME&CO.NYC.LLC]accepts,asof thedateofthefilingoftheapplication,theobligationofthedesignatedUS agentforserviceofprocessfortheabovereferenceFCCID. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. Date:2026.5.9 Applicant’sName:ZaraZhouApplicant’sName:ZaraZhou Title:ManagerTitle:Manager SignatureSignature

AttestationStatement. OldCode:C526609124NewCode:00015544Ed.3 Changereason:FRNisaddedtotheApplicantinformationsection. 1/1 TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Compan yname:JME&CO.NYC.LLC Granteecode:2BMOI FRN:0036352722 FCCID:2BMOI-Q8 ContactName:ZaraZhou Address:4697THAVE14THFLOORNewYork,NewYorkUnitedStates10018 TelephoneNo.:2127042006 Email:[email protected] i.JME&CO.NYC.LLC(“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuanttosection2.903oftheFCCrules.The applicantmustsignthiscertification. ii. JME&CO.NYC.LLC (“theapplicant”)certifiesthat,asofthedateofthefiling oftheapplication,theapplicant[isnot](asaspecificallynamedentityorany ofitssubsidiariesoraffiliates)identifiedontheCoveredListasanentity producing“covered”equipment.Theapplicantmustsignthiscertification. [JME&CO.NYC.LLC](“theapplicant”)certifiesthat,asofthedateofthefilingof the application,theapplicant[isnot]identifiedontheCoveredList asanentityproducing“covered” equipment. Date:2026.5.9 Applicant’sName:ZaraZhou Title:Manager Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

JME&CO.NYC.LLC Code00018768Ed.2 Item1.Thedeviceisabletoinstallsoftware/programinstallation? ☐ Yes,gotoItem2. ☒ No.Inthiscase,therestoftheitemsdonotapply.ThedevicecannotsupportinstallationofKaspersky cybersecurityoranti-virussoftware. Item2.TechnicalRequirementsforKasperskyCybersecuritySoftware: #GeneralRequirements(ForallDevices)Yes/NoorN/AComments 1Internetconnectionforactivationandupdates(ForallOperating Systems) N/A #GeneralRequirements(ForWindowsDevices)Yes/NoorN/AComments Device Companyname Granteecode FCCID FRN Contactname Address Telephonenumber E-mail Chipset/moduleinformation OperatingSystem(ifapplicable) StorageCapacity(harddriveorother permanentmemorystorage,ifapplicable) MVMT 2PK WIRELESS LAVALIER MICS WITH RECEIVER JME & CO. NYC.LLC 2BMOI 2BMOI-Q8 0036352722 Zara Zhou 469 7TH AVE 14TH FLOOR New York, New York United States 10018 2127042006 [email protected] AW323A2 N/A N/A 2 1Storage:1500MBfreespaceontheharddriveN/A 2OperatingSystem: MicrosoftWindows8,8.1,10&11Home/Pro/Enterprise Microsoft Windows7Starter/HomeBasic&Premium/Professional/ UltimateSP1orhigher N/A 3Processor:1GHzorhigher(x86orx64)N/A 4Memory(RAM)1GB(32-bit)or2GB(64-bit)N/A 5ScreenResolution:Minimumresolutionof1024x768N/A #GeneralRequirements(FormacOSdevices)Yes/NoorN/AComments 1OperatingSystemmacOS®13–14N/A 2Memory(RAM)4GBN/A 3Storage:3455MBfreespaceontheharddriveN/A #GeneralRequirements(ForAndroidDevices)Yes/NoorN/AComments 1Storage:150MBfreespaceN/A 2OperatingSystem:Android™10–14N/A 3ScreenResolution:Minimumresolutionof320x480N/A #GeneralRequirements(foriOSdevices)Yes/NoorN/AComments 1Storage:150MBfreespaceN/A 2OperatingSystem:iOS®17N/A #GeneralRequirements(ForLinuxsystem)Yes/NoorN/AComments 1Harddrive:1GBoffreespaceN/A 3 2CPU:IntelPentium1GHzorhigherN/A 3RAM:1GBN/A 4Minimumsoftwarerequirements: AlmaLinuxOS8orlater; AlterOS7.5orlater; AstraLinuxCommonEdition2.12orlater; CentOS6.7orlater; DebianGNU/Linux10.0orlater; EulerOS2.0orlater; OracleLinux7.3orlater; RedHatEnterpriseLinux6.7orlater; RockyLinux8.5orlater; SUSELinuxEnterpriseServer12.5orlater; Ubuntu12.04orlater; UncomOSHome/Business/Education/Enterprise2.2orlater; ALTLinuxWorkstaton/WorkstationK/Server/Education8or later; ROSALinuxWorkstation/Server12orlater; REDOS7.3andlater; N/A Afterreviewedthetechnicalrequirements,isthedevicecapableofsupportingtheinstallationof Kasperskysoftware? ☐Yes,gotoItem3. ☒ No.Inthiscase,therestoftheitemsdonotapply.ThedevicecannotsupportinstallationofKaspersky software Item3.ConnectivityCapabilities: 4 #PhysicalInterfacePurposeJustification 1 1 #WirelessInterfacePurposeJustification 1 1 Afterthereviewofthisitems,thedevice: ☒Cannotsupportinstallationofanycybersecurityoranti-virussoftwareonthecoveredlist. ☐ Potentiallycanoperatewithanycybersecurityoranti-virussoftwareonthecoveredlist–additionalthird- partyproofisprovidedtodemonstratecompliancewithrequirementsasof2.911(d)5(i),(ii)–“Proofof CompliancewithCoveredListSoftwareRequirements”ofthisdocumentapplies Signature:Name:ZaraZhou Date:2026.5.9 Oncethedocumentisfilledin,pleaseproceedtoprintaPDFofthisWord 1 Thejustificationfieldisusedtojustifywhythesoftwarecannotbereceivedthroughthatinterface.Checktheannexformore indications.

TCBCALLpágina1 FileFCCID:2BMOI-Q8 TheapplicantisanAmericancompanythathaschosentoactasitsownagent PleaseuploadanexhibitthatexplainshowdoestheTCBverifythenewagentinformation: 1-IstheaddressoftheagentavalidphysicalUSmailingaddress(notaUSpostofficebox,notavirtualmailbox,notP.O.Boxes,notavacantlot,notapublicbuilding, etc.) ○Wehavecheckediftheaddressexistsinarealandpotentialbuilding(Googlemaps)+officialUSregister,afterthisverificationandtheevidencebelowwecan guaranteethefollowing: notaUSpostofficebox notavirtualmailbox notP.O.Boxes notavacantlot notapublicbuilding(note) ►CONCLUSIONbyTCB:TheASOPdefinedandprovidedbygranteeisVALIDandconfirmed.Thereforetheexhibit"C5266091_X23_Ed1_US_Agent_Letter" includedinthefileisok. 2-IstheagentphysicallylocatedatthatvalidUSaddresssuchthattheagentcanbelegallyservedatthataddress? Yes,checkabove 3-Hasthelistedagentclearlyagreedinwritingtoserveastheagentforthegranteeatthataddress? Yes,itisincludedintheexhibit"C5266091_X23_Ed1_US_Agent_Letter" TCBCALLpágina2

C5266091_X10_Ed.2 1/1 JME&CO.NYC.LLC OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2026.5.9 Subject:RequestforConfidentiality FCCID:2BMOI-Q8 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:ZaraZhou Title: Manager

C5266091_X8_Ed.1 1/1 LetterofAuthorization JME&CO.NYC.LLC Company:JME&CO.NYC.LLC Address:4697THAVE14THFLOORNewYork,NewYorkUnitedStates 10018 ProductName:MVMT2PKWIRELESSLAVALIERMICSWITHRECEIVER ModelNumber:MA031-BKA FCCIdentifier:2BMOI-Q8 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:ZaraZhouDate:2026.5.9 Title:Manager Signatureofapplicant:

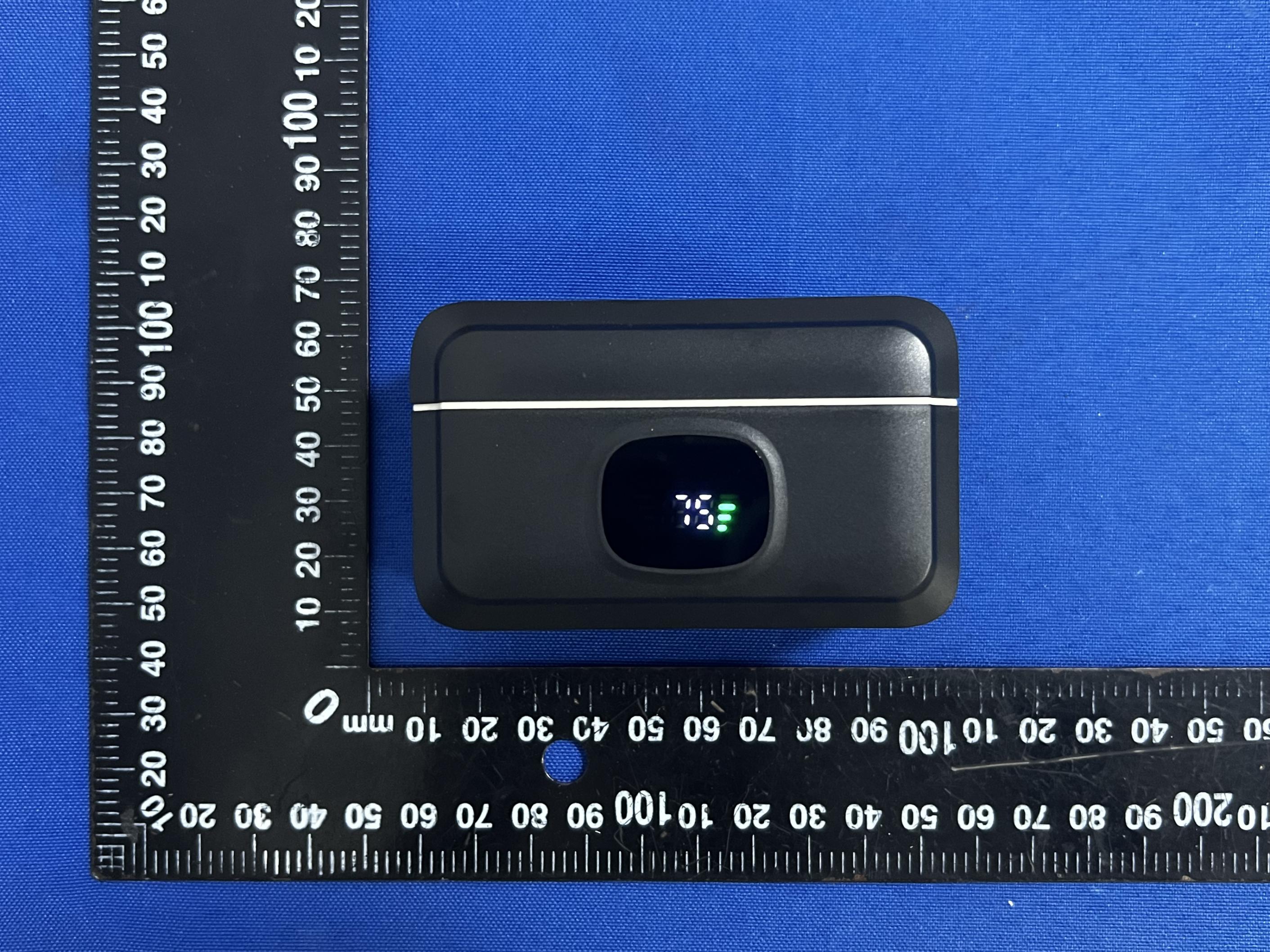

EUTPHOTO(ExternalPhotos) TestModel:MA031-BKA ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation FCCIDLABEL: High:0.5cm Wide:1cm LabelLocation: Model:MA031-BKA FCCID:2BMOI-Q8

EUTPHOTO(InternalPhotos) TestModel:MA031-BKA ※※※※※ENDOFREPORT※※※※※ BLEANT

FCCID:2BMOI-Q8 RFEXPOSUREEVALUATION AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093, UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]*[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBLE Mode Frequency Output power Tune-up power Maxtune-up power Maxtune-up power Min. Distance Calc. thresholds limit (MHz)(dBm)(dBm)(dBm)(mW)(mm) GFSK2480-7.121 -8±1 -70.2050.062843.0 Conclusion: 1.[(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]*[√f(GHz)]<3.0. 2.SARTestExclusionThresholdsis3.0forseparationdistance5mm.Therefore,SAR testisnotrequired.

ReportNO.:ZKT-2604150921E Page 1 of 42 FCCTESTREPORT FCCID:2BMOI-Q8 ReportNumber. .................................. :ZKT-2604150921E DateofTest...........................................:Apr.16,2026toApr.23,2026 Dateofissue.........................................:Apr.23,2026 Totalnumberofpages........................:42 TestResult..........................................: PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: JME&CO.NYC,LLC. Address ............................................... : 4697thAve14thfloorNewYork,NY10018 Manufacturer'sname ...................... : SHENZHENWINWENDELECTRONICSCO.,LTD. Address ............................................... : Builing#1,NO.366XinhuRoadNiuhuCommunityGuanlan Sub-distictLonghuaDistrict,Shenzhen,China Testspecification: Standard ................................................ : FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10-2020+Cor1-2023 Testprocedure ..................................... : / Non-standardtestmethod................:N/A TestReportFormNo........................: TRF-EL-111_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF ........................................ : Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................: MVMT2PKWIRELESSLAVALIERMICSWITHRECEIVER Trademark...........................................: N/A Model/Typereference ......................... : MA031-BKA Ratings .................................................. : Input:5V1A Battery:DC3.7V,50mAh,0.185Wh ReportNO.:ZKT-2604150921E Page 2 of 42 Testingprocedureandtestinglocation: TestingLaboratory..........................................:ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature).......................: JacksonFang Reviewer(name+signature) ....................... : LakeXie Approved(name+signature).......................: ReportNO.:ZKT-2604150921E Page 3 of 42 TableofContentsPage 1.VERSION...........................................................................................................................................5 2.SUMMARYOFTESTRESULTS......................................................................................................6 2.1TESTFACILITY...............................................................................................................................7 2.2MEASUREMENTUNCERTAINTY..................................................................................................7 3.GENERALINFORMATION...............................................................................................................8 3.1GENERALDESCRIPTIONOFEUT...............................................................................................8 3.2DESCRIPTIONOFTESTMODES..................................................................................................9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED...........................10 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)....................................................10 3.5EQUIPMENTSLISTFORALLTESTITEMS................................................................................11 4.EMCEMISSIONTEST....................................................................................................................13 4.1CONDUCTEDEMISSIONMEASUREMENT................................................................................13 4.1.1POWERLINECONDUCTEDEMISSIONLIMITS...............................................................13 4.1.2TESTPROCEDURE.............................................................................................................13 4.1.3DEVIATIONFROMTESTSTANDARD................................................................................13 4.1.4TESTSETUP........................................................................................................................14 4.1.5EUTOPERATINGCONDITIONS.........................................................................................14 4.1.6TESTRESULT......................................................................................................................15 4.2RADIATEDEMISSIONMEASUREMENT.....................................................................................17 4.2.1RADIATEDEMISSIONLIMITS............................................................................................17 4.2.2TESTPROCEDURE.............................................................................................................18 4.2.3DEVIATIONFROMTESTSTANDARD................................................................................18 4.2.4TESTSETUP........................................................................................................................18 4.2.5EUTOPERATINGCONDITIONS.........................................................................................19 4.2.6TESTRESULTS...................................................................................................................19 5.RADIATEDBANDEMISSIONMEASUREMENT..........................................................................24 5.1TESTREQUIREMENT..................................................................................................................24 5.2TESTPROCEDURE..…

Text truncated - open the document above for the full version.

2.4GHz 3216 Chip Antenna: 3216F245D05 第 1 页共 10 页 電話:13530576606 TEL:1353057660 咏成國際科技有限公司 RAIN International Technology Co., Ltd. Room707,BuildingF,TonganZhichuangyuan,xixiangstreet, BaoanDistrict,Shenzhen. 6 3216Chipantenna ForBluetooth/WLANApplicationsd P/N:RANT3216F245D05 Dimension(mm) L3.20±0.20 W1.60±0.20 T0.45± 0.20 2.4GHz 3216 Chip Antenna: 3216F245D05 第 2 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 PartNumberInformation RANT3216F245D05 ABCDEF A ProductSeriesAntenna BDimensionLxW3.2X1.6mm(+-0.2mm) CMaterialHighKmaterial D WorkingFrequency2.4~2.5GHz E FeedingmodeMonopole&SingleFeeding F AntennatypeType=5 1.ElectricalSpecification Specification PartNumber CentralFrequenc RANT3216F245D03 yMH2450z Bandwidth100(Min.)MHz ReturnLoss-6.5(Max)dB PeakGaindB3.5i Impedance50Ohm OperatingTemperature -40～+85°C MaximumPower4W ResistancetoSolderingHeats 10(@260 °C ) sec. PolarizationLinear AzimuthBeamwidthOmni-directional TerminationCu/Sn(Leadless) Remark:Bandwidth&PeakGainwasmeasuredunderevaluationboardofnextpage 2.4GHz 3216 Chip Antenna: 3216F245D05 第 3 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.RecommendedPCBPattern EvaluationBoardDimension Unit:mm SuggestedMatchingCircuit 2.4GHz 3216 Chip Antenna: 3216F245D05 第 4 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 LayoutDimensionsinClearancearea ( Size=5.2*5.0mm ) 50ohmtransmissionLine MatchingCircuit FootPrint(Unit:mm) 2.4GHz 3216 Chip Antenna: 3216F245D05 第 5 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 3.MeasurementResults ReturnLoss 第 6 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.4GHz 3216 Chip Antenna: 3216F245D05 Radiation Pattern Y X Z 2.4GHz 3216 Chip Antenna: 3216F245D05 第 7 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 4.ReliabilityandTestCondictions ITEMREQUIREMENTSTESTCONDITION Solderability1.Wettingshallexceed90%coverage 2.Novisiblemechanicaldamage TEMP(°C) 230°C 4±1sec. 150 °C 60sec Pre-heatingtemperature:150°C/60sec. Soldertemperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Fluxforleadfree:rosin Solderheat Resistance 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% TEMP(°C) 260°C 10±0.5sec. 150°C 60sec Pre-heatingtemperature:150°C/60sec. Soldertemperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Fluxforleadfree:rosin Component Adhesion (Pushtest) 1.Novisiblemechanicaldamage Thedeviceshouldbereflow soldered(230±5°Cfor10sec.)toatinned coppersubstrateAdynometerforce gaugeshouldbeappliedthesideofthe component.Thedevicemustwith-ST-F 0.5Kgwithoutfailureofthetermination attachedtocomponent. Component Adhesion (Pulltest) 1.Novisiblemechanicaldamage Insert10cmwireintotheremainingopen eyebend,theendsofevenwirelengths upwardandwindtogether. Terminalshallnotberemarkably damaged. 2.4GHz 3216 Chip Antenna: 3216F245D05 第 8 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 Thermalshock 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% Phase Temperature( °C ) Time(min) 1 +85±5°C 30±3 2 RoomWithin Temperature3sec 3 -40±2 °C 30±3 4 RoomWithin Temperature3sec +85 °C =>30±3min -40 °C =>30±3min Testcycle:10cycles Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Resistanceto High Temperature 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:85±5 °C Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Resistanceto Low Temperature 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:-40±5 °C Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Humidity 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:40±2°C Humidity:90%to95%RH Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. 5.SolderingandMounting Mildlyactivatedrosinfluxesarepreferred.Theminimumamountofsoldercan leadtodamagefromthestressescausedbythedifferenceincoefficientsof expansionbetweensolder,chipandsubstrate.Theterminationsaresuitable forallwaveandre-flowsolderingsystems.Ifhandsolderingcannotbe avoided,thepreferredtechniqueistheutilizationofhotairsolderingtools. ReflowSoldering PRE-HEATING 250~260 230 180 150 SOLDERING 10smax. NATURAL COOLING IronSoldering PRE-HEATINGSOLDERINGNATURAL COOLING 60~120s30~60s TIME(sec.) TIME(sec.) Recommendedtemperatureprofilesforre-flowsolderinginFigure1. Productsattachmentwithasolderingironisdiscouragedduetotheinherent processcontrollimitations.Intheeventthatasolderingironmustbe employedthefollowingprecautionsarerecommended. within3s 350 150 Over60s Gradualcooling 300 T E M P E R A T U R E ( ° C ) T E M P E R A T U R E ( ° C ) 2.4GHz 3216 Chip Antenna: 3216F245D05 第 9 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 1.593.511.80 ‧Preheatcircuitandproductsto150°C ‧Nevercontacttheceramicwiththeirontip ‧Usea20wattsolderingironwithtipdiameterof1.0mm ‧280°Ctiptemperature(max) ‧1.0mmtipdiameter(max) ‧Limitsolderingtimeto3sec. 6.PackagingInformation TapeSpecification: ReelSpecification:(7’’,Φ180mm) 2.4GHz 3216 Chip Antenna: 3216F245D05 第 10 页共 10 页 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 TapeWidth(mm)A(mm)B(mm)C(mm)D(mm)Chip/Reel(pcs) 89.0±0.560±213.5±0.5178±24000 7.StorageandTransportationInformation StorageConditions Tomaintainthesolderabilityofterminalelectrodes: 1.Temperatureandhumidityconditions:-10~40°Cand30~70%RH. 2.Recommendedproductsshouldbeusedwithin6monthsfromthetimeof delivery. 3.Thepackagingmaterialshouldbekeptwherenochlorineorsulfurexists intheair. TransportationConditions 1.Productsshouldbehandledwithcaretoavoiddamageorcontamination fromperspirationandskinoils. 2.Theuseoftweezersorvacuumpick…

Text truncated - open the document above for the full version.

EUTTESTPHOTO TestModel:MA031-BKA Remark:RFlineimpedanceis50Ohm
