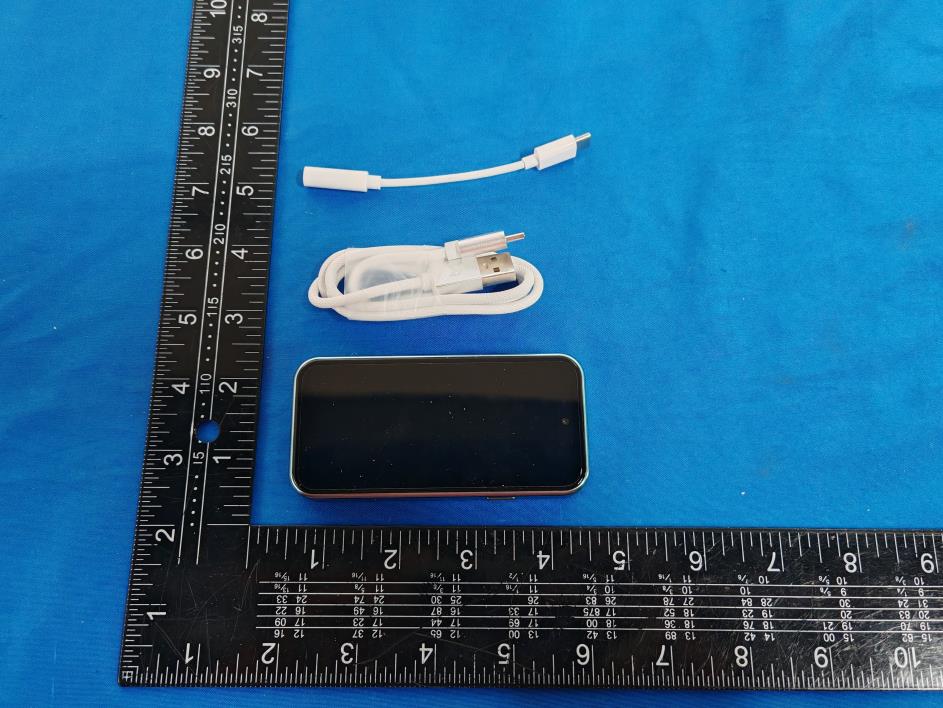

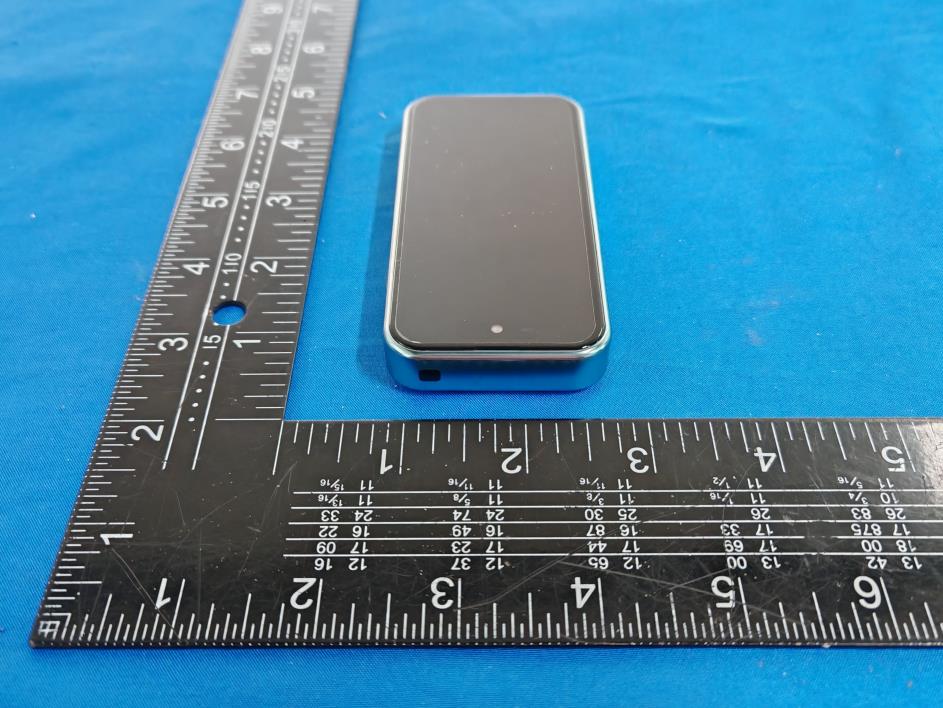

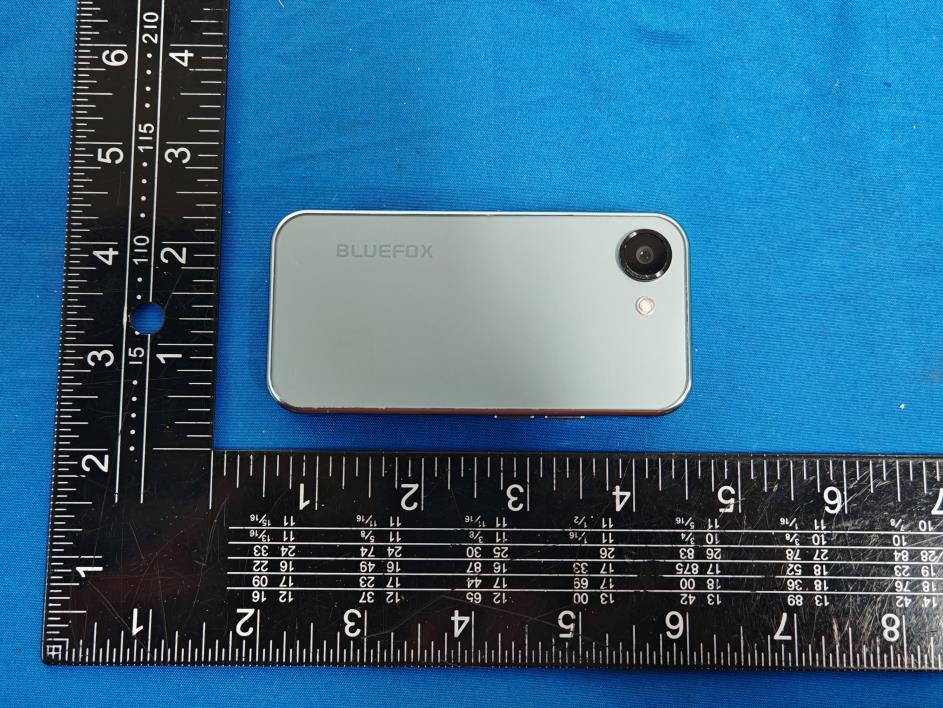

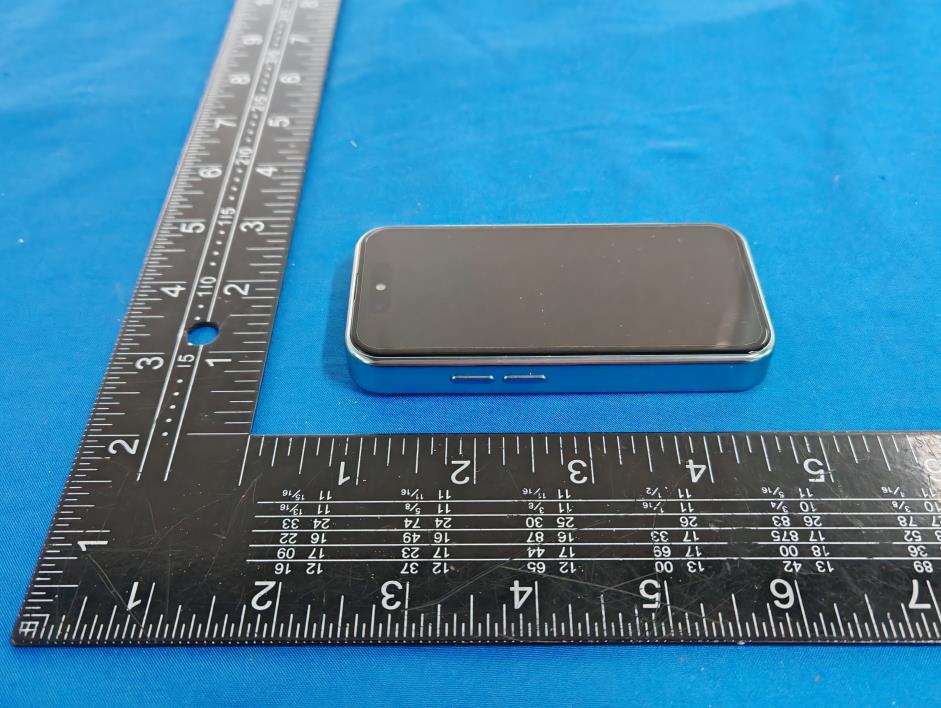

2BMP7-NX1TD-LTE digital mobile phone

1 Thank you for choosing this smartphone! This mobile phone is a smart phone based on Android operating system. The operation interface is simple and easy to use, so that you can fully enjoy the comfortable experience.In order to use this phone safely and effectively, please read the instruction manual carefully before use.  Safety Precautions Do not use your mobile phone when it is forbidden to use your mobile phone or if it may cause interference or danger.  Traffic safety first Do not use your mobile phone while driving, so as not to interfere with safe driving.  Shut down in restricted areas. Please comply with the relevant restrictions or regulations.Shut down on airplanes or near flammable materials, chemicals or medical equipment.  Interference Mobile communications can be subject to radio interference, which can affect performance.  Waterproof This phone is not waterproof, please keep it dry.  Specialized service Do not disassemble the phone and accessories. Only authorized organizations can repair the phone.  Install SIM or USIM card 1. On the left side of the phone, find the card slot of the SIM card. 2. There is a corresponding SIM card and memory card card insertion method on the card slot, please insert the card according to the pattern shown. 3. If you do not have a SIM or USIM card inserted, you can only use your phone's non-network services and some of the menus. 4. Do not insert the memory card into the SIM card slot.  Charging the battery  The mobile phone can be charged directly with their own charging heads and data lines, or connected to a computer for charging.  When the battery is low, the phone will sound a warning tone and display a low battery message. If the battery is too low, the phone will automatically shut down.  You can use your phone while charging, but this will extend the battery charging time；  The phone will heat up when charging, this phenomenon is normal and will not affect the life or performance of the phone. WCDMA digital mobile phone XS 15 2  Format TF card storage In the main menu, select Settings→Storage→Store Information→Format TF Storage. Before formatting the TF card storage, remember to back up all the important data stored on your phone. The manufacturer warranty service does not include data loss due to user actions.  Power On and Off On: Long press the switch key. Off: Long press the switch key, and then choose to shut down. Flight mode: Pull down the main interface, and then select the upper right icon flight mode.  Touch screen Notes for Touch Screen:  To avoid scratching the touch screen, do not use sharp tools.  Do not allow the touch screen to touch other electronic devices. Electrostatic discharge may cause the touch screen to malfunction.  Do not let the touch screen touch the water. The touch screen may malfunction in a humid environment or when exposed to water.  In order to achieve the best results, please remove the touch screen protective film before using the phone.  For the best performance, tap the touch screen with your fingertips. Thefollowing operations can be performed to control the touch screen：  Click: Click once with your finger to select or launch a menu, option, or application.  Click and hold: hold down the item for more than 2 seconds to pop up a list of options.  Scroll: Click and drag your finger up, down, left or right to move to the items in the list.  Drag and drop: Click and hold an item with your finger, then drag your finger to move the item.  Double-click: When viewing a photo, tap twice with your finger to zoom in or out.  The backlight time can also be adjusted.In standby mode,then select Settings→Display→Sleep→Sleep time.  Lock or unlock the touch screen and buttons The touch screen and buttons can be locked to prevent any accidental phone operation. To lock,press [Switch button].To unlock, press [Power On/Off] and follow the on-screen prompts to manually unlock.  Select wallpaper source You can set the wallpaper to customize the standby screen or lock 3 screen interface (the wallpaper can customize the pictures in the album).  Lock screen wallpaper:set lock screen interface image.  Desktop wallpaper: set desktop wallpaper.  Live Wallpaper: You can set live wallpaper.  Move items on the idle screen Click and hold the item you want to move.Drag the project to the desired location after the project vibrates.  Remove item from standby screen Click and hold on the item to be removed, then drag the item to the trash can above the screen after vibration.  Use the shortcut panel When in standby mode or while using the app, touch the indicator icon area at the top of the screen and drag your finger down,Open the shortcuts panel. You can activate or deactivate other features such as wireless connections and access a list of notifications, such as messages, calls, events, or processing status. To hide the list, drag the bottom border of the list up. Swipe the shortcut icon left and right in the shortcuts panel to use the following options：  WLAN：Turn WLAN connection on or off. Long click this icon to enter the WLAN settings interface.  Data connection: start or close the data connection.  Bluetooth: Turns Bluetooth wireless connection on or off.  Airplane mode: Activate or deactivate flight mode.  Scene mode: standard, mute, switch between conference and outdoor mode.  One-click cleanup: Click to end the background application and release some memory.  Brightness: Adjust the brightness of the screen.  Battery: Shows device power usage.  Dormancy:Adjust the delay time for the screen to automatically turn off.  One-button lock screen: After clicking, the device is off screen and locked.  More: You can set the shortcut function and sequence display in the shortcut panel.  Access application Open phone lock,Scroll left or right to other application screens,Select the launcher,Press the middle button to return to the main standby screen. The phone has a built-in moti…

Text truncated - open the document above for the full version.

3 09/14/2023 3

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※

2BMP7-NX1_SAR Setup photos Right Touch Right Tilt Left Touch Left Tilt Body Front side(separation distance is 10mm) Body Back side(separation distance is 10mm) Body Left side(separation distance is 10mm) Body Right side(separation distance is 10mm) Body Bottom side(separation distance is 10mm) Body Top side(separation distance is 10mm)

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251015108R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 48 FCC Part 15C Test Report FCC ID: 2BMP7-NX1 Applicant: Shenzhen Tailefeng Communications Co., Ltd Address: 518, Building 420, Bagua Ling Industrial Zone, Yuanling Street, Futian District, Shenzhen, Guangdong Province, China Manufacturer: Shenzhen Tailefeng Communications Co., Ltd Address: 518, Building 420, Bagua Ling Industrial Zone, Yuanling Street, Futian District, Shenzhen, Guangdong Province, China Product Name: TD-LTE digital mobile phone Trade Mark: BLUEFOX Model Number: NX1 Date of Receipt: Oct. 15, 2025 Test Date: Oct. 15, 2025 - Dec. 08, 2025 Date of Report: Dec. 08, 2025 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10-2020+Cor.1-2023 Test Result: Pass Report Number: DLE-251015108R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251015108R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 48 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251015108R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 48 Table of Contents Page 3.4.4 TEST SETUP 29 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4 . AVERAGE OUTPUT POWER 34 4.1 APPLIED PROCEDURES / LIMIT 34 4.1.1 TEST PROCEDURE 34 4.1.2 DEVIATION FROM STANDARD 34 4.1.3 TEST SETUP 34 4.1.4 EUT OPERATION CONDITIONS 34 4.1.5 TEST RESULTS 35 5 . POWER SPECTRAL DENSITY TEST 38 5.1 APPLIED PROCEDURES / LIMIT 38 5.1.1 TEST PROCEDURE 38 5.1.2 DEVIATION FROM STANDARD 38 5.1.3 TEST SETUP 38 5.1.4 EUT OPERATION CONDITIONS 38 5.1.5 TEST RESULTS 39 6 . 6DB BANDWIDTH TEST 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.1.1 TEST PROCEDURE 42 6.1.2 DEVIATION FROM STANDARD 42 6.1.3 TEST SETUP 42 6.1.4 EUT OPERATION CONDITIONS 42 6.1.5 TEST RESULTS 43 7 . ANTENNA REQUIREMENT 48 7.1 STANDARD REQUIREMENT 48 7.2 EUT ANTENNA 48 8 . TEST SEUUP PHOTO 48 9 . EUT PHOTO 48 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251015108R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 48 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.209, 15.205 Band Edge Emission PASS 15.247(d) Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2% 9 Power Spectral Density ±2.45dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251015108R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 48 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: TD-LTE digital mobile phone Trade Mark: BLUEFOX Model Number: NX1 Model Difference N/A Operation Frequency: 2412~2462 MHz for 802.11b/g/nHT20 2422~2452 MHz for 802.11nHT40 Channel numbers: 11 Channels for 802.11b/g/n(HT20) 7 channels for 802.11nHT40 Channel separation: 5MHz Modulation technology: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n(20/40): OFDM(QPSK, BPSK, 16-QAM, 64-QAM) Rate of Transmitter …

Text truncated - open the document above for the full version.

Saiwei-Sai to far, Wei to eternity! Customer name: Tailuofeng Project name: S39-4G Report time: 20251015 Saiwei-Sai to far, Wei to eternity! Saiwei-Sai to the future, Wei to eternity! typeCar Box Layout/Platfor m motherboard Antenna Overview mai n ante nna Antenna BandAntenn a status Antenn a tuning mode Antenna Design Area Matc h chan ges 2G850/900/1800/1900 FPCnot have 3G1/2/5/8 4G1/2/3/4/5/7/8/12/1 7/18/19/20/25/26/ 28/66/38/40/41 Othe r ante nnas WIFI2.4G/5G GPS1.575G diversity Prototype status Environmental Treatment There are editiondateContent Overview V120251015data report Saiwei-Sai to far, Wei to eternity! Saiwei-Sai to far, Wei to eternity! Saiwei-Sai to far, Wei to eternity! Switching logic RF1: Use 0 ohms to control other frequency bands RF2: 4.3 kΩ, 2G: B5, 3G: B5, 4G: B5/B18/B19/B20/B26 RF3: Control B12/B17/B28A/B28B via 12NH Main feed pin circuit matching: M126 uses 12NH. Other parameters remain unchanged. 2G/3G-3D darkroom data Saiwei-Sai to far, Wei to eternity! 3GChannel TRP ( dBm ) TIS ( dBm ) W1 L16.2 W16.3 H16.4- 101.5 W2 L15.2 W15.3 H15.4- 103.5 W8 L15.7 W16.5 H16.7- 102.5 W5 L14.3 W15.5 H15.4- 102.3 2GChannel TRP ( dBm ) TIS ( dBm ) 850 L24.1 W24.3 H24.9- 100.8 900 L26.4 W25.3 H25.2- 100.5 1800 L23.2 W23.7 H24.1- 101.6 1900 L24.5 W23.6 H22.2- 100.2 4G-3D darkroom data Saiwei-Sai to far, Wei to eternity! 4GChannel TRP ( dBm ) TIS ( dBm ) B1 L16.1 W16.2 H16.2- 90.2 B2 L15.8 W15.6 H15.7- 90.3 B3 L14.5 W15.6 H16.1-88.7 B4 L15.3 W15.4 H15.6- 90.2 4GChannel TRP ( dBm ) TIS ( dBm ) B5 L16.7 W16.2 H16.2- 88.1 B7 L16.1 W16.5 H16.3- 91.2 B8 L16.4 W16.5 H17.2- 88.8 B12 L12.1 W12.2 H12.4-90.1 4G-3D darkroom data Saiwei-Sai to far, Wei to eternity! 4GChannel TRP ( dBm ) TIS ( dBm ) B17 L12.3 W12.4 H12.6- 88.6 B18 L16.2 W15.7 H15.9- 88.4 B19 L15.8 W15.9 H15.7- 88.7 B20 L16.2 W16.3 H16.5- 89.4 4GChannel TRP ( dBm ) TIS ( dBm ) B25 L15.6 W15.5 H15.7- 89.8 B26 L15.2 W16.1 H16.3- 88.8 B28 L12.3 W12.8 H13.5-89.1 B66 L15.4 W15.3 H15.7-88.4 4G-3D darkroom data Saiwei-Sai to far, Wei to eternity! 4GChannel TRP ( dBm ) TIS ( dBm ) B38 L16.2 W16.4 H16.1- 90.5 B40 L15.6 W15.7 H16.1- 91.5 B41 L16.2 W16.4 H16.5- 91.1 StandardBand Gain(dbi) LTEB1 0.18 LTEB2 -0.19 LTEB3 -0.09 LTEB4 -0.12 LTEB5 0.23 LTEB7 0.08 LTEB8 0.19 LTEB12 -0.24 LTEB17 -0.26 LTEB18 -0.13 LTEB19 -0.08 Saiwei - Sai is far away, and Wei is eternal! StandardBand Gain(dbi) LTEB20 -0.15 LTEB25 -0.22 LTEB26 -0.18 LTEB28 0.35 LTEB66 0.15 LTEB38 0.18 LTEB40 0.26 LTEB41 -0.08 StandardBand Gain(dbi) GSM850 0.23 GSM900 0.18 GSM1800 -0.08 GSM1900 -0.18 WCDMAW1 0.52 WCDMAW2 -0.19 WCDMAW5 0.23 WCDMAW8 0.18 WIFI2.4G 0.78 WIFI5.8G 0.86 BT2.4G 0.78 GPS1.575G 0.3 Saiwei - Sai is far away, and Wei is eternal! Saiwei - Sai is far away, and Wei is eternal! 700M 800M 900M 1700M 1800M 2100M 2300M 2600M WIFI test data Test environment: Office Test item: WIFI Test result: WIFI signal at 10 meters, Bluetooth search and connection normal Saiwei-Sai to far, Wei to eternity! GPS measured data Saiwei-Sai to far, Wei to eternity! Test environment: Roof Test item: GPS Please carefully verify whether the matching circuit mentioned in the report has been modified and whether the environmental processing has been imported, which will directly affect the antenna performance. Note: The parameters provided in this report are solely for our companys prototype debugging and do not represent the final production status of your companys project. If your company has a prototype with the latest trial production or updated version (such as material replacement, software update, or environmental processing change), please submit it to us for verification as soon as possible to confirm whether the antenna performance is affected. If your company needs to send the antenna to a third party for retest or to the customer for test, please submit the machine to be tested to our company for test confirmation, because the consistency of the motherboard, the consistency of the assembly, and the difference in the antenna assembly may lead to the deviation of the antenna parameters. Saiwei-Sai to far, Wei to eternity! Saiwei-Sai to far, Wei to eternity!

Page 67 of 129 Report No.: STS2511134H01 System Performance Check Data (835MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm, dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 2025-12-01 Experimental conditions Phantom Validation plane Device Position Dipole Band 835MHz Channels Middle Signal CW Frequency (MHz) 835MHz Relative permittivity 41.30 Conductivity (S/m) 0.92 Probe SN 08/21 EPGO352 ConvF 1.49 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=5.00, Y=5.00 ; SAR Peak: 1.51 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.661 SAR 1g (W/Kg) 1.025 Horizontal validation criteria: minimum distance (mm) 11.210114 Vertical validation criteria: SAR ratio M2/M1 (%) 67.938621 Page 68 of 129 Report No.: STS2511134H01 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.512 1.101 0.748 0.512 0.359 0.248 0.171 F. 3D Image 3D screen shot Hot spot position Page 69 of 129 Report No.: STS2511134H01 System Performance Check Data(1800MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm, dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 2025-12-02 Experimental conditions. Phantom Validation plane Device Position Dipole Band 1800MHz Channels Middle Signal CW Frequency (MHz) 1800MHz Relative permittivity 40.04 Conductivity (S/m) 1.42 Probe SN 08/21 EPGO352 ConvF 1.54 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-1.00 ; SAR Peak: 6.80 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 1.994 SAR 1g (W/Kg) 3.794 Horizontal validation criteria: minimum distance (mm) 16.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 56.745586 Page 70 of 129 Report No.: STS2511134H01 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 6.852 4.388 2.490 1.466 0.888 0.524 0.310 F. 3D Image 3D screen shot Hot spot position Page 71 of 129 Report No.: STS2511134H01 System Performance Check Data (1900MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm, dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 2025-12-03 Experimental conditions. Phantom Validation plane Device Position Dipole Band 1900MHz Channels Middle Signal CW Frequency (MHz) 1900MHz Relative permittivity 40.29 Conductivity (S/m) 1.42 Probe SN 08/21 EPGO352 ConvF 1.73 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-1.00 ; SAR Peak: 6.29 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 1.996 SAR 1g (W/Kg) 3.947 Horizontal validation criteria: minimum distance (mm) 16.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 56.851180 Page 72 of 129 Report No.: STS2511134H01 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 6.346 4.071 2.315 1.367 0.827 0.489 0.289 F. 3D Image 3D screen shot Hot spot position Page 73 of 129 Report No.: STS2511134H01 System Performance Check Data (2450MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm, dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 2025-12-04 Experimental conditions. Phantom Validation plane Device Position Dipole Band 2450MHz Channels Middle Signal CW Frequency (MHz) 2450 Relative permittivity 39.68 Conductivity (S/m) 1.75 Probe SN 08/21 EPGO352 ConvF 1.82 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=6.00, Y=-2.00 ; SAR Peak: 9.21 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 2.403 SAR 1g (W/Kg) 5.533 Horizontal validation criteria: minimum distance (mm) 16.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 51.309962 Page 74 of 129 Report No.: STS2511134H01 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 9.300 5.657 2.903 1.529 0.795 0.423 0.226 F. 3D Image 3D screen shot Hot spot position Page 75 of 129 Report No.: STS2511134H01 System Performance Check Data(2600MHz) Type: Phone measurement (Complete) Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 2025-12-04 Experimental conditions. Phantom Validation plane Device Position Dipole Band 2600MHz Channels Middle Signal CW Frequency (MHz) 2600 Relative permittivity 38.57 Conductivity (S/m) 1.98 Probe SN 08/21 EPGO352 ConvF 1.70 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-1.00 ; SAR Peak: 9.07 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 2.364 SAR 1g (W/Kg) 5.683 Horizontal validation criteria: minimum distance (mm) 16.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 51.273156 Page 76 of 129 Report No.: STS2511134H01 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 9.159 5.549 2.845 1.534 0.810 0.428 0.226 F. 3D Image 3D screen shot Hot spot position Page 77 of 129 Report No.: STS2511134H01 Appendix B. SAR Test Plots Plot 1: DUT: TD-LTE digital mobile phone; EUT Model: NX1 Test Date 2025-12-01 ConvF 1.49 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Right Cheek Device Position Cheek Band GPRS 850 Signal Duty Cycle: 2.00 (Crest factor: 2.0) Frequency (MHz) 848.8 Relative permittivity (real part) 41.70 Conductivity (S/m) 0.92 SURFACE SAR VOLUME SAR Maximum location: X=-55.00, Y=-32.00 ; SAR Peak: 0.27 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.136 SAR 1g (W/Kg) 0.199 Horizontal validation criteria: minimum distance (mm) 22.627417 Vertical validation criteria: SAR ratio M2/M1 (%) 73.698985 Page 78 of 129 Report No.: STS2511134H01 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.264 0.208 0.153 0.116 0.085 0.063 0.046 F. 3D Image 3D screen shot Hot spot position Page 79 of 129 Report No.: STS2511134H01 Plot 2: DUT: TD-LTE digital mobile phone; EUT Model: NX1 Test Date 2025-12-01 ConvF 1.49 Probe SN 08/21 EPGO352 Area Scan dx=8mm, dy=8mm, h= 5.00 mm Zoom Scan 5x5x7, dx=8mm, dy=8mm, dz=5mm Phantom Validation plane Device Position Back Side Band GPRS 850 Signal Duty Cycle: 2.00 (Crest factor: 2.0) Frequency (MHz) 848.8 Relative permittivity (real part) 41.70 Conductivity (S/m) 0.92 SURFACE SAR VOLUME SAR Maximum lo…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. SAR Test Report Report No.: STS2511134H01 Issued for Shenzhen Tailefeng Communications Co., Ltd 518, Building 420, Bagua Ling Industrial Zone, No. 16, Bagua 5th Street, Hualin Community, Yuanling Street, Futian District, Shenzhen, Guangdong Province, China Product Name: TD-LTE digital mobile phone Brand Name: BLUEFOX Model Name: NX1 Series Model(s): N/A FCC ID: 2BMP7-NX1 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 (2.1093) IEEE Std. 1528-2013 Max. Report SAR (1g) Head: 0.564 W/kg Body: 1.214 W/kg Page 2 of 129 Report No.: STS2511134H01 TEST REPORT CERTIFICATION Applicant’s name ................. : Shenzhen Tailefeng Communications Co., Ltd Address ................................. : 518, Building 420, Bagua Ling Industrial Zone, No. 16, Bagua 5th Street, Hualin Community, Yuanling Street, Futian District, Shenzhen, Guangdong Province, China Manufacturer's Name .......... : Shenzhen Tailefeng Communications Co., Ltd Address ................................. : 518, Building 420, Bagua Ling Industrial Zone, No. 16, Bagua 5th Street, Hualin Community, Yuanling Street, Futian District, Shenzhen, Guangdong Province, China Product description Product name ........................ : TD-LTE digital mobile phone Brand name ......................... : BLUEFOX Model name ......................... : NX1 Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 (2.1093) IEEE Std. 1528-2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 01 Dec. 2025 ~ 04 Dec. 2025 Date of Issue .......................................... : 09 Dec. 2025 Test Result.............................................. : Pass Testing Engineer : (Xin.Liu) Technical Manager : (Shifan. Long) Authorized Signatory : (Bovey Yang) Page 3 of 129 Report No.: STS2511134H01 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 16 5.1 Validation System 16 5.2 Validation Result 17 6. SAR Evaluation Procedures 18 7. EUT Antenna Location Sketch 19 7.1 SAR test exclusion consider table 20 8. EUT Test Position 23 8.1 Define Two Imaginary Lines on the Handset 23 8.2 Hotspot mode exposure position condition 24 9. Uncertainty 25 9.1 Measurement Uncertainty 25 10. Conducted Power Measurement 28 10.1 Test Result 28 11. EUT and Test Setup Photo 48 11.1 EUT Photo 48 11.2 Setup Photo 51 12. SAR Result Summary 57 12.1 Head SAR 57 12.2 Body-worn and Hotspot SAR 59 12.3 Repeated SAR 61 12.4 Repeated SAR measurement 61 12.5 Simultaneous Multi-band Transmission Evaluation 62 13. Equipment List 64 Appendix A. System Validation Plots 65 Appendix B. SAR Test Plots 77 Page 4 of 129 Report No.: STS2511134H01 Appendix C. Probe Calibration and Dipole Calibration Report 129 Revision History Rev. Issue Date Report No. Effect Page Contents 00 09 Dec. 2025 STS2511134H01 ALL Initial Issue Page 5 of 129 Report No.: STS2511134H01 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name TD-LTE digital mobile phone Brand Name BLUEFOX Model Name NX1 Series Model N/A Model Difference N/A Sample number 251113017-1 Battery Rated Voltage: 3.85V Charge Limit Voltage: 4.4V Capacity: 3000mAh Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version HV1.0 Software Version SV1.0 Frequency Range GSM 850: 824 MHz ~ 849 MHz PCS1900: 1850 MHz ~ 1910 MHz WCDMA Band 2: 1850 MHz ~ 1910 MHz WCDMA Band 5: 824 MHz ~ 849 MHz LTE Band 2: 1850 MHz ~ 1910 MHz LTE Band 4: 1710 MHz ~ 1755 MHz LTE Band 5: 824 MHz ~ 849 MHz LTE Band 7:2500 MHz ~ 2570 MHz LTE Band 12: 699 MHz ~ 716 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 41: 2535 MHz ~ 2655 MHz LTE Band 66: 1710 MHz ~ 1780 MHz WLAN802.11b/g/n20: 2412 MHz ~ 2462 MHz WLAN 802.11n40: 2422 MHz ~ 2452 MHz Bluetooth: 2402 MHz to 2480 MHz Page 6 of 129 Report No.: STS2511134H01 Max. Reported SAR(1g): (Limit:1.6W/kg) Test distance: Head:0mm Body:10mm Band Mode Head (W/kg) Body Worn (W/kg) PCE GSM 850 0.221 0.791 PCE GSM 1900 0.210 0.999 PCE WCDMA Band 2 0.290 0.745 PCE WCDMA Band 5 0.477 0.635 PCE LTE Band 2 0.503 0.891 PCE LTE Band 4 0.496 0.780 PCE LTE Band 5 0.191 0.502 PCE LTE Band 7 0.564 1.214 PCE LTE Band 12 0.181 0.217 PCE LTE Band 17 0.205 0.261 PCE LTE Band 66 0.471 0.789 DTS 2.4G WLAN 0.179 0.185 DSS BT 0.015 0.024 1-g Sum SAR 0.743 1.399 FCC Equipment Class Licensed Portable Transmitter Held to Ear (PCE) Part 15 Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Operating Mode: GSM: GSM Voice; GPRS/EGPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 LTE: QPSK, 16QAM 2.4G WLAN : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Bluetooth: GFSK +π/4DQPSK+8DPSK Antenna Specification: GSM/WCDMA/LTE: PIFA Antenna Bluetooth: PIFA Antenna WLAN…

Text truncated - open the document above for the full version.

3 07/04/2023 Accreditations #2-6789 and #2-6814 Scope available on www.cofrac.fr This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG using the COMOSAR test bench. All calibration results are traceable to national metrology institutions. 1 3 4 3 4 3 4 3 4 3 1 3 Device Under Test 1 3 1 3 Frequency MHz L mm h mm d mm required measured required measured required measured 750 176.0 ±1 %. 100.0 ±1 %. 6.35 ±1 %. 835 161.0 ±1 %. 89.8 ±1 %. 3.6 ±1 %. 1 3 900 149.0 ±1 %. 83.3 ±1 %. 3.6 ±1 %. 1450 89.1 ±1 %. 51.7 ±1 %. 3.6 ±1 %. 1500 80.5 ±1 %. 50.0 ±1 %. 3.6 ±1 %. 1640 79.0 ±1 %. 45.7 ±1 %. 3.6 ±1 %. 1750 75.2 ±1 %. 42.9 ±1 %. 3.6 ±1 %. 1800 72.0 ±1 %. 41.7 ±1 %. 3.6 ±1 %. 1900 68.0 ±1 %. 39.5 ±1 %. 3.6 ±1 %. 1950 66.3 ±1 %. 38.5 ±1 %. 3.6 ±1 %. 2000 64.5 ±1 %. 37.5 ±1 %. 3.6 ±1 %. 2100 61.0 ±1 %. 35.7 ±1 %. 3.6 ±1 %. 2300 55.5 ±1 %. 32.6 ±1 %. 3.6 ±1 %. 2450 51.5 ±1 %. PASS 30.4 ±1 %. PASS 3.6 ±1 %. PASS 2600 48.5 ±1 %. 28.8 ±1 %. 3.6 ±1 %. 3000 41.5 ±1 %. 25.0 ±1 %. 3.6 ±1 %. 3500 37.0±1 %. 26.4 ±1 %. 3.6 ±1 %. 3700 34.7±1 %. 26.4 ±1 %. 3.6 ±1 %. Frequency MHz Relative permittivity ( r Conductivity () S/m required measured required measured 750 41.9 ±5 % 0.89 ±5 % 835 41.5 ±5 % 0.90 ±5 % 900 41.5 ±5 % 0.97 ±5 % 1450 40.5 ±5 % 1.20 ±5 % 1500 40.4 ±5 % 1.23 ±5…

Text truncated - open the document above for the full version.
