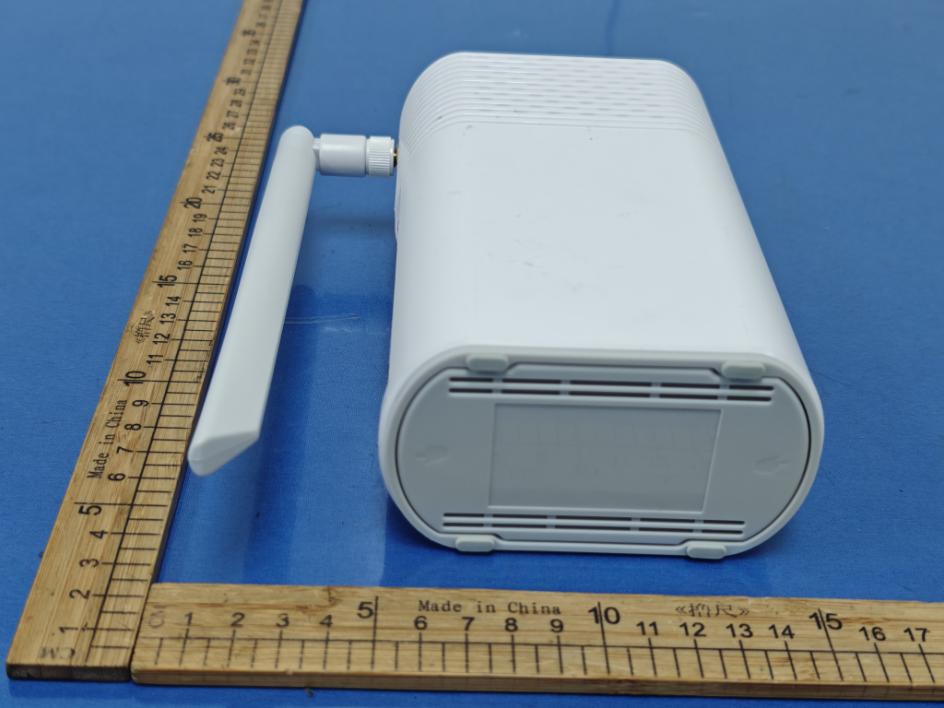

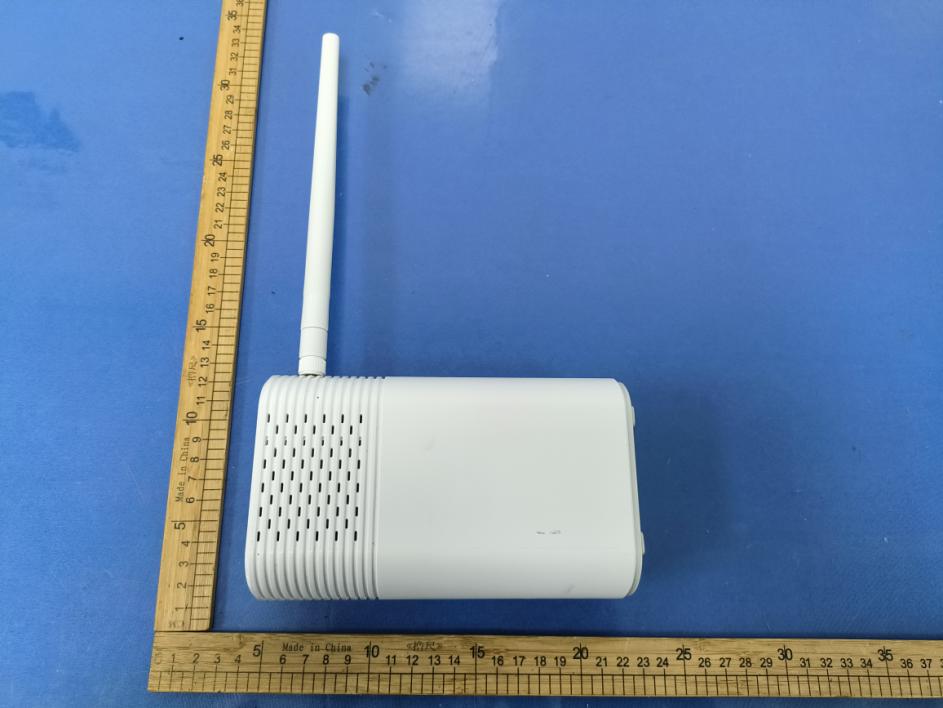

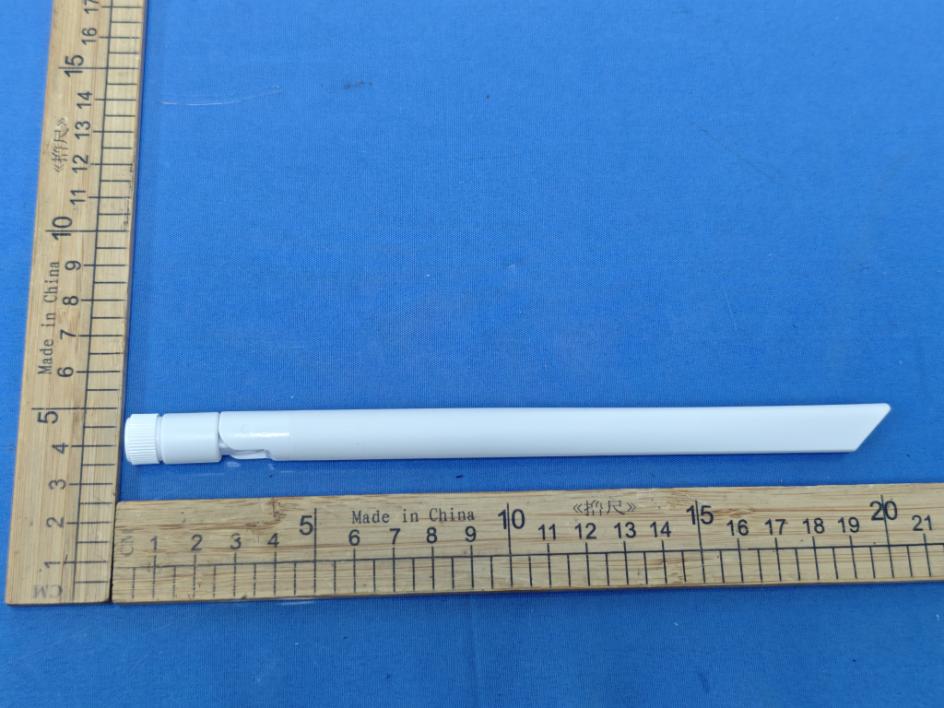

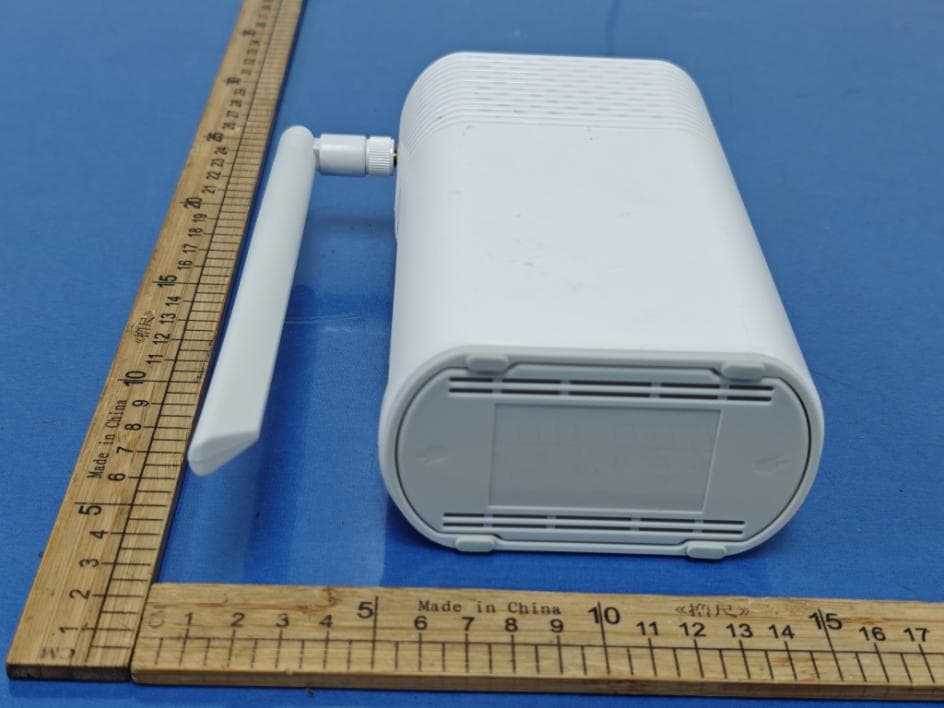

2BMPT-N18Wi-Fi Halow Video Recorder

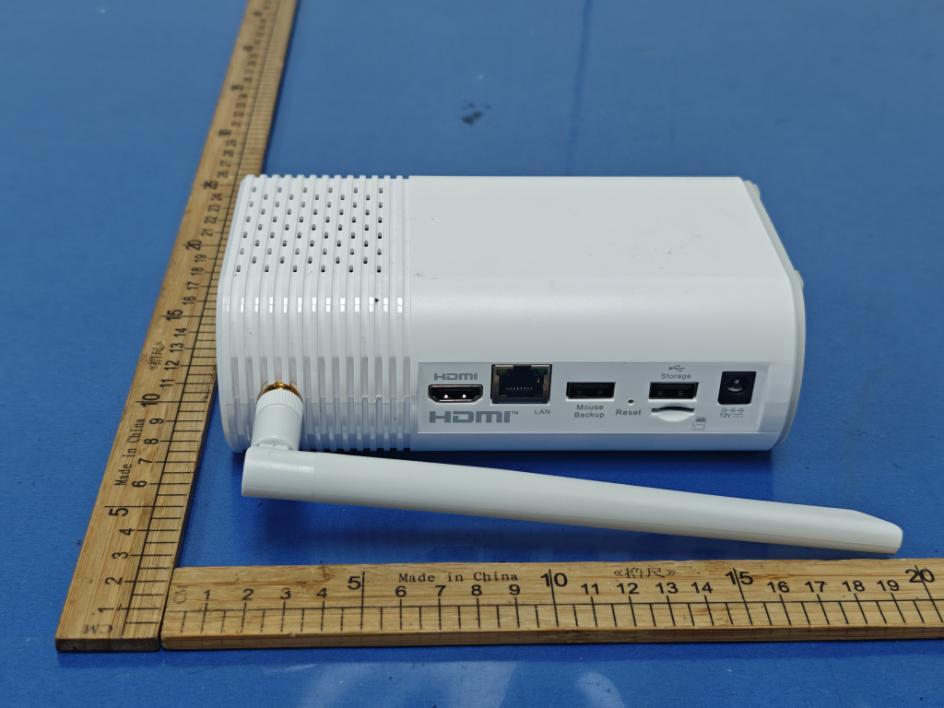

Quick Start Guide 02 01 What’s in the BoxIntroduce the NVR Introduce the Camera Expanding Storage(Optional) Quick Start Guide Wireless NVR Battery Camera 3.9ft（1.2m）USB- C Extension Cord USB MouseHDMI Cable NVR Power Adapter Pack of Screws Quick Start Guide Reset Needle Pin The NVR supports SD cards (maximum capacity of 512G) or 2.5-inch hard drives for saving video recordings. Indicator Light Status Description Red light is solid on Off Purple lightis solid on Blue lightis flashing Blue lightis solid on IR lightis flashing Remote preview Sleep Mode / Fully charged Camera is booting Waiting for pairing camera is charging Camera is upgrading Size2.5 inch Unlimited Capacity Recommended Type Western Digital, Seagate, SAMSUNG, Toshiba, Kingston, PNY, Crucial, SanDisk Hard disk drive (HDD) or solid state drive (SSD) that uses the SATA interface Blue light is solid onCamera is charging Fully chargedOFF Indicator Light StatusDescription Charging the Camera 03 Note: Quantity of devices and accessories vary by different models that you purchase. We recommend fully charge the cameras before first use. 3.3ft (1m) Network Cable Prepare Your Hard Drive Your hard drive must meet the following requirements: Install Your Hard Drive A new hard drive must be formatted. You may need to transfer all the data from your hard drive to a secure location if necessary. NVR must be powered off when you install or remove a hard drive. Push down the bottom lid to remove it. Loosen the screw, then pull out the hard drive bracket. Fix your hard drive to the bracket with the provided screws. Insert and screw the bracket back to NVR, then put the bottom lid back into place. 1. 2. 3. 4. 6 7 8 9 10 11 12 13 14 15 1 4 5 2 3 Indicator Light Red and Green Light Spot Light Infrared LED Photosensitive Sensor Camera Lens Microphone PIR Sensor Solar Panel Antenna Speaker Pair Button USB-C Charging Port Power Switch Seal Plug H ARD DRIVE 3 1 2 4 5 6 7 10 9 8 11 15 14 13 12 Screw Positioning StickersAntenna Antenna Network Status LED HDMI Port Ethernet Port Reset Hole USB Port Power Port USB Port MicroSD Card Slot Storage Status LED Power Status LED 1 4 5 6 7 8 9 10 11 2 3 4 5 6 7 8 9 10 11 3 1 2 Install the antenna IPC：B301 NVR：N18 Wireless Camera System Declares that this device is in compliance with the essential requirements and other relevant provision of Directive EN300328,EN301489-1,EN31489-17,EN IEC 62311、EN IEC 62368. Simplified EU Declaration of Conformity This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment safe recycling. Correct Disposal of This Product Compliance Statement The transmitter/receiver exempt from licensing contained in this device complies with Innovation, Science and Economic Development Canada's (ISED) regulations applicable to license-exempt radio apparatus. Operation is subject to the following two conditions: (1) This device must not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with the radiation exposure limits set forth for uncontrolled environments in Canada. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Mounting the Camera It is recommended to choose an installation location without eaves and sunlight is not obstruc, to ensure the normal operation of the solar panel. Pairing the Camera 07 Download and install the free app from the App Store (iOS devices) or Google Play (Android devices). Or Download the APP by scanning below QR code. Run the app, sign up for a APP account. Then login with your account ID, tap “+ Add Device” and scan the setup QR code on the Device Bottom (remove the bottom lid). Or scan the setup QR code in the NVR menu, and then follow the in-app instructions to add the NVR to the device list. 5. Pair your add-on camera or re-add existing camera to your NVR: Option 1: Using the app, from the Live view, tap the "..." button, and then tap "Pairing" to start the pairing process. You will have a 60-second timer to pair with your Camera. 6. Please recycle this product responsibly to promote the sustainable reuse of material resources and avoid potential harm to the environment. Correct Disposal of This Product 5. 6. Configuration->System->Information Tighten the locking screw on the mount bracket, and then adjust to the angel you need. 1 2 Install the camera onto its mounting bracket by turning it clockwise until it clicks into place. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to…

Text truncated - open the document above for the full version.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 7 TR-4-E-R052 TEST REPORT Applicant Name : Zhuhai Glory Technology Co., Ltd Address : 8F, Bldg 7, No. 178 Dingxing Road, Tangjiawan Town, Zhuhai,Guangdong, 519000 China Report Number : 2604P16309E-RF FCC ID: 2BMPT-N18 Test Standard (s) 47 CFR §2.1091 Sample Description Product Type: Wi-Fi Halow Video Recorder Model No.: N1, GLH-1908AY, H3 Trade Mark: N/A Date Received: 2026-01-26 Report Date: 2026-04-14 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Jason Fan Bob.Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2604P16309E-RF Rev:A/4.0(2024/11/01) Page 2 of 7 TR-4-E-R052 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 3 GENERAL INFORMATION ............................................................................................................................ 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 4 OBJECTIVE ................................................................................................................................................... 4 TEST FACILITY .............................................................................................................................................. 4 RF EXPOSURE .............................................................................................................................................. 5 APPLICABLE STANDARD ................................................................................................................................. 5 RESULT ........................................................................................................................................................ 5 EXHIBIT A-EUT PHOTOGRAPHS ................................................................................................................ 7 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604P16309E-RF Rev:A/4.0(2024/11/01) Page 3 of 7 TR-4-E-R052 DOCUMENT REVISION HISTORY Revision Number Report Number Description of Revision Date of Revision Rev.00 2604P16309E-RF Original Report 2026-04-14 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604P16309E-RF Rev:A/4.0(2024/11/01) Page 4 of 7 TR-4-E-R052 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product Wi-Fi Halow Video Recorder Tested Model N1 Multiple Model GLH-1908AY, H3 Model Difference # Only the model names are different.Please refer to DOS letter for details. The applicant provided model “N1” for testing. Frequency Range 2.4G Wi-Fi: 802.11b/g/n20/ax20: 2412-2462MHz 802.11n40/ax40: 2422-2452MHz 5G Wi-Fi: 5150-5250MHz; 5250-5350MHz 5470-5725MHz; 5725-5850MHz WIFI Halow 1M: 903.5-926.5MHz WIFI Halow 2M: 905-925MHz WIFI Halow 4M: 906-926MHz WIFI Halow 8M: 908-924MHz Maximum Conducted Output Power 2.4G Wi-Fi: 23.6 dBm 5G Wi-Fi: 5150-5250MHz:15.05dBm 5250-5350MHz:13.94dBm 5470-5725MHz:10.89dBm 5725-5850MHz:14.09dBm WIFI Halow : 24.87 dBm Antenna Specification # Internal Antenna: 2.4G Wi-Fi: 2.01 dBi 5G Wi-Fi: 4.9 dBi External Antenna: WIFI Halow : 2.45 dBi (It is provided by the manufacturer.) Voltage Range # DC 12V from power port Sample Serial Number 3GNR-2 (RF Conducted Test) (Assigned by ATC, Shenzhen) Sample/EUT Status Good condition Objective This test report is in accordance with Part 2-Subpart J, Part 15-Subparts C and Part 2-Subpart J, Radiofrequency Radiation Exposure of the Federal Communication Commission rules. The tests were performed in order to determine compliance with FCC §2.1091 rules. Test Facility The test site used by Shenzhen Accurate Technology Co., Ltd. to collect test data is located on the Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Accredited by American Association for Laboratory Accreditation (A2LA).The Certificate Number is 4297.01. Shenzhen Accurate Technology Co., Ltd. Report No.: 2604P16309E-RF Rev:A/4.0(2024/11/01) Page 5 of 7 TR-4-E-R052 RF EXPOSURE Applicable Standard According to subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in …

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00A Test Photos Test Photos Page 1 / 3 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00A Test Photos Test Photos Page 2 / 3 Radiated Spurious Emissions Test View (9kHz-30MHz) Radiated Spurious Emissions Test View (30MHz- 1GHz) Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00A Test Photos Test Photos Page 3 / 3 Radiated Spurious Emissions Test View (1GHz-18 GHz) Radiated Spurious Emissions Test View (Above 18GHz) ***** END *****

Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00C Test Photos Test Photos Page 1 / 1

The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 28 TR-4-E-R051 TEST REPORT Applicant Name : Zhuhai Glory Technology Co., Ltd Address : 8F, Bldg 7, No. 178 Dingxing Road, Tangjiawan Town, Zhuhai,Guangdong, 519000 China Report Number : 2604P16309E-RF-00C FCC ID: 2BMPT-N18 Test Standard (s) FCC PART 15.407 Sample Description Product Type: Wi-Fi Halow Video Recorder Model No.: N1, GLH-1908AY, H3 Trade Mark: N/A Date Received: 2026-01-26 Report Date: 2026-03-18 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Jason Fan Bob.Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2604P16309E-RF-00C Rev:A/4.0(2024/11/01) Page 2 of 28 TR-4-E-R051 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 3 GENERAL INFORMATION ............................................................................................................................ 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 4 OBJECTIVE ................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................... 4 TEST FACILITY .............................................................................................................................................. 4 SYSTEM TEST CONFIGURATION ............................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ......................................................................................................... 5 EUT EXERCISE SOFTWARE # ......................................................................................................................... 5 EQUIPMENT MODIFICATIONS .......................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS ....................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................... 5 SUMMARY OF TEST RESULTS ................................................................................................................... 6 TEST EQUIPMENT LIST ............................................................................................................................... 7 APPLICABLE STANDARDS........................................................................................................................... 8 DFS REQUIREMENT ...................................................................................................................................... 8 DFS MEASUREMENT SYSTEM ...................................................................................................................... 12 SYSTEM BLOCK DIAGRAM ............................................................................................................................ 12 CONDUCTED METHOD ................................................................................................................................. 13 RADIATED METHOD ..................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................... 14 TEST RESULTS ........................................................................................................................................... 15 DESCRIPTION OF EUT ................................................................................................................................. 15 TEST DATA ................................................................................................................................................. 15 CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME ........................................... 16 TEST PROCEDURE ...................................................................................................................................... 16 TEST DATA ................................................................................................................................................. 16 NON-OCCUPANCY PERIOD ...................................................................................................................... 17 TEST PROCEDURE ...................................................................................................................................... 17 TEST DATA ................................................................................................................................................. 17 APPENDIX (TEST RESULTS) .......…

Text truncated - open the document above for the full version.

DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 3 /11 承认书 APPROVALSHEET 客户名称 CUSTOMERNAME: 产品名称 PRODUCTNAME: 客户料号 CUSTOME 2.4/5.8G FPCInternal Antenna L=155mm+terminal RP/N: 优比电子料号 YoubiP/N:UB01C155F2D4502AREV:A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKEDBY: Eddy APPROVEDBY:Changxing.Liu DATE:2024/3/14 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 4 /11 ModificationHistory VersionContentRevisionIssuedbyDate AOriginalversionEddy2024-3-14 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 5 /11 Content ltemDescription 1.--------------------------------------------------------------------ElectricalSpecification 2.---------------------------------------------------------------TestItemsandEquipment 3.---------------------------------------------------------------------------------SParameter 4.------------------------------------------------------------------------EfficiencyandGain 5.---------------------------------------------------------------------------RadiationPattern 6.-----------------------------------------------------------------------------Activetestdata 7.------------------------------------------------------------Antennainstallationdiagram 8.-----------------------------------------------------------------MechanicalSpecification 9.------------------------------------------------------------------------------------Packaging DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 6 /11 1.ElectricalSpecification 2.TestItemsandEquipment CharacteristicsSpecificationsUnit OutlineDimensions28.3x26.1,L155mm Frequency 2400-2500/5150-5850 MHz Impedance50Ω VSWR<2 PolarizationLinearPolarization Gain 2.0±[email protected] 4.5±[email protected] dBi Efficiency>50 % ConnectorTypeRF1 Operatingtemperature-20°C~+85°C StorageTemp-20°C~+85°C TestitemsTestequipment SParameter 1.ReturnLoss 2.VSWR Networkanalyzer (AgilentE5071B) Thewholemachineof Passiveparameters 1.Frequency 2.Gain 3.RadiationPattern 1.3Dmicrowavedarkroom (5m*5m*5m) 2.Networkanalyzer (AgilentE5071B) Thewholemachineof Activeparameters 1.TRP 2.TIS 1.3Dmicrowavedarkroom (5m*5m*5m) 2.Comprehensivetestinstrument (CMW500) DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 7 /11 3.SParameter *VoltageStandingWaveRatio(VSWR) ReturnLoss(RL) RL=20*log10[(VSWR+1)/(VSWR-1) 4.EfficiencyandGain Frequency (MHz) Return Loss(dB) VSWR 2400-15.491.41 2450-21.311.18 2500-19.181.24 5150-19.971.23 5500-14.971.43 5850-27.391.08 Frequency (MHz) 240024502500515055005850 Efficiency (%) 57.3560.9462.4457.9758.7354.75 Gain (dBi) 1.671.992.014.454.904.26 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 8 /11 5.RadiationPattern 2450.0MHzH+VBackView E1-PlaneE2-PlaneH-Plane 6.Activetestdata DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 9 /11 7.Antennainstallationdiagram 2.4G/5.8G DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 10 /11 8.MechanicalSpecification

Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 29 of 50 B.2: Conducted Transmitter Output Power 5150-5250MHz Mode Test Frequency (MHz) Average Output Power(dBm) Limit (dBm) Verdict 802.11a 5180 14.13 24 Pass 5200 14.1 24 Pass 5240 14.08 24 Pass 802.11ac20 5180 14.69 24 Pass 5200 14.7 24 Pass 5240 15.05 24 Pass 802.11ac40 5190 14.04 24 Pass 5230 14.07 24 Pass 802.11ax20_RU_Full 5180 14.52 24 Pass 5200 14.55 24 Pass 5240 14.35 24 Pass 802.11ax40_RU_FULL 5190 11.93 24 Pass 5230 11.97 24 Pass 5250-5350MHz Mode Test Frequency (MHz) Average Output Power(dBm) Limit (dBm) Verdict 802.11a 5260 13.94 24 Pass 5300 13.75 24 Pass 5320 13.6 24 Pass 802.11ac20 5260 13.84 24 Pass 5300 13.41 24 Pass 5320 13.22 24 Pass 802.11ac40 5270 12.0 24 Pass 5310 11.83 24 Pass 802.11ax20_RU_FULL 5260 11.93 24 Pass 5300 11.7 24 Pass 5320 11.67 24 Pass 802.11ax40_RU_FULL 5270 10.68 24 Pass 5310 10.1 24 Pass Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 30 of 50 5470-5725MHz Mode Test Frequency (MHz) Average Output Power(dBm) Limit (dBm) Verdict 802.11a 5500 10.89 24 Pass 5580 10.88 24 Pass 5700 9.84 24 Pass 5720 9.07 24 Pass 802.11ac20 5500 9.88 24 Pass 5580 9.9 24 Pass 5700 8.72 24 Pass 5720 7.93 24 Pass 802.11ac40 5510 10.74 24 Pass 5550 10.13 24 Pass 5670 9.61 24 Pass 5710 9.39 24 Pass 802.11ax20_RU_Full 5500 9.98 24 Pass 5580 9.86 24 Pass 5700 8.74 24 Pass 5720 7.72 24 Pass 802.11ax40_RU_Full 5510 9.61 24 Pass 5550 9.15 24 Pass 5670 8.75 24 Pass 5710 8.31 24 Pass 5725-5850MHz Mode Test Frequency (MHz) Average Output Power(dBm) Limit (dBm) Verdict 802.11a 5745 12.9 30 Pass 5785 13.13 30 Pass 5825 12.67 30 Pass 802.11ac20 5745 12.97 30 Pass 5785 13.24 30 Pass 5825 12.59 30 Pass 802.11ac40 5755 12.99 30 Pass 5795 13.17 30 Pass 802.11ax20_RU_Full 5745 13.77 30 Pass 5785 14.09 30 Pass 5825 13.57 30 Pass Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 31 of 50 Mode Test Frequency (MHz) Average Output Power(dBm) Limit (dBm) Verdict 802.11ax40_RU_FULL 5755 10.99 30 Pass 5795 11.16 30 Pass Note: Average Output Power = Reading + Duty Factor Duty Factor refer to the Duty Cycle. Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 32 of 50 B.3:Power Spectral Density 5150-5250MHz Mode Test Frequency (MHz) Reading (dBm/MHz) Duty Cycle Factor(dB) Result (dBm/MHz) Limit (dBm/MHz) Verdict 802.11a 5180 3.05 0.33 3.38 11 Pass 5200 3.11 0.33 3.44 11 Pass 5240 3.10 0.33 3.43 11 Pass 802.11ac20 5180 3.62 0.12 3.74 11 Pass 5200 3.44 0.12 3.56 11 Pass 5240 4.18 0.12 4.30 11 Pass 802.11ac40 5190 -0.22 0.11 -0.11 11 Pass 5230 0.05 0.11 0.16 11 Pass 802.11ax20_RU_Full 5180 3.41 0.11 3.52 11 Pass 5200 3.30 0.11 3.41 11 Pass 5240 3.18 0.11 3.29 11 Pass 802.11ax40_RU_FULL 5190 -1.73 0 -1.73 11 Pass 5230 -2.10 0 -2.10 11 Pass 5250-5350MHz Mode Test Frequency (MHz) Reading (dBm/MHz) Duty Cycle Factor(dB) Result (dBm/MHz) Limit (dBm/MHz) Verdict 802.11a 5260 2.81 0.57 3.38 11 Pass 5300 2.51 0.57 3.08 11 Pass 5320 2.55 0.57 3.12 11 Pass 802.11ac20 5260 2.79 0.11 2.90 11 Pass 5300 2.44 0.11 2.55 11 Pass 5320 2.28 0.11 2.39 11 Pass 802.11ac40 5270 -2.53 0.33 -2.20 11 Pass 5310 -2.48 0.33 -2.15 11 Pass 802.11ax20_RU_FULL 5260 0.50 0.42 0.92 11 Pass 5300 0.17 0.42 0.59 11 Pass 5320 0.22 0.42 0.64 11 Pass 802.11ax40_RU_FULL 5270 -3.11 0 -3.11 11 Pass 5310 -3.63 0 -3.63 11 Pass Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 33 of 50 5470-5725MHz Mode Test Frequency (MHz) Reading (dBm/MHz) Duty Cycle Factor(dB) Result (dBm/MHz) Limit (dBm/MHz) Verdict 802.11a 5500 -0.67 0.41 -0.26 11 Pass 5580 -0.55 0.41 -0.14 11 Pass 5700 -1.83 0.41 -1.42 11 Pass 5720 -1.53 0.41 -1.12 11 Pass 802.11ac20 5500 -1.63 0.14 -1.49 11 Pass 5580 -1.42 0.14 -1.28 11 Pass 5700 -2.87 0.14 -2.73 11 Pass 5720 -2.65 0.14 -2.51 11 Pass 802.11ac40 5510 -3.82 0.13 -3.69 11 Pass 5550 -4.40 0.13 -4.27 11 Pass 5670 -4.73 0.13 -4.60 11 Pass 5710 -4.50 0.13 -4.37 11 Pass 802.11ax20_RU_Full 5500 -1.88 0.20 -1.68 11 Pass 5580 -1.79 0.20 -1.59 11 Pass 5700 -2.88 0.20 -2.68 11 Pass 5720 -3.04 0.20 -2.84 11 Pass 802.11ax40_RU_Full 5510 -4.86 0.13 -4.73 11 Pass 5550 -5.36 0.13 -5.23 11 Pass 5670 -5.86 0.13 -5.73 11 Pass 5710 -5.60 0.13 -5.47 11 Pass 5725-5850MHz Mode Test Frequency (MHz) Reading (dBm/500kHz) Duty Cycle Factor(dB) Result (dBm/500kHz) Limit (dBm/500kHz) Verdict 802.11a 5745 -1.26 0.39 -0.87 30 Pass 5785 -1.02 0.39 -0.63 30 Pass 5825 -1.62 0.39 -1.23 30 Pass 802.11ac20 5745 -1.45 0.16 -1.29 30 Pass 5785 -1.09 0.16 -0.93 30 Pass 5825 -1.63 0.16 -1.47 30 Pass 802.11ac40 5755 -4.55 0.13 -4.42 30 Pass 5795 -4.50 0.13 -4.37 30 Pass Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 34 of 50 Mode Test Frequency (MHz) Reading (dBm/500kHz) Duty Cycle Factor(dB) Result (dBm/500kHz) Limit (dBm/500kHz) Verdict 802.11ax20_RU_Full 5745 -0.89 0.15 -0.74 30 Pass 5785 -0.47 0.15 -0.32 30 Pass 5825 -0.64 0.15 -0.49 30 Pass 802.11ax40_RU_FULL 5755 -6.58 0.09 -6.49 30 Pass 5795 -6.26 0.09 -6.17 30 Pass Result = Reading + Duty Cycle Factor Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 35 of 50 5150-5250MHz 802.11a_5180MHz 802.11a_5200MHz 802.11a_5240MHz 802.11ac20_5180MHz 802.11ac20_5200MHz 802.11ac20_5240MHz Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 36 of 50 802.11ac40_5190MHz 802.11ac40_5230MHz 802.11ax20_5180MHz_RU_Full 802.11ax20_5200MHz_RU_Full 802.11ax20_5240MHz_RU_Full 802.11ax40_5190MHz_RU_FULL Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 37 of 50 5250-5350MHz 802.11ax40_5230MHz_RU_FULL 802.11a_5260MHz 802.11a_5300MHz 802.11a_5320MHz 802.11ac20_5260MHz 802.11ac20_5300MHz Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 38 of 50 802.11ac20_5320MHz 802.11ac40_5270MHz 802.11ac40_5310MHz 802.11ax20_5260MHz_RU_FULL 802.11ax20_5300MHz_RU_FULL 802.11ax20_5320MHz_RU_FULL Shenzhen Accurate Tech…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. No.: 2604P16309E-RF-00B Appendix B Page 1 of 50 Appendix B(5G WIFI-RF Conducted Test Result) Test Information: Sample No.: 3GNR-2 Test Date…
