2BMR4-JP500Bluetooth Dartboard

�. The product uses an automatic connection method through the app to seamlessly connect to the dartboard. There is no need to manually adjust any settings. Simply open the app, and it will automatically connect to the dartboard. �. After downloading and installing the app, please ensure that all settings are enabled by default for proper functionality. Once you open the app, it will automatically connect with the product. When the wireless connection is not established, the blue LED in the middle of the red button will flash. Once the wireless connection is successful, the blue LED will stay on. JP��� Wireless Dartboard User Manual Express setup 1.73m 2.44m Throwing line Mark the position of the bull's eye ���� Accessories List Tip x ��Barrel x� Shaft x� Flight x� peg x�Screw x� Product Introduction Flashing red light: device waiting for connectionBlue light constantly on: APP Wireless connection established Red light is constantly on: establish a connection with the expansion device Wireless/power indicator light Front side Single area Double area Triple area Single area Outer Bullseye Inner Bullseye Back button OK button left BACK SIDE TYPE C Can use a 5V/2A power adapter to power JP500Can be used as a connection hole for JP500 expansion devices, requiring the use of the provided transmission line Accessory hole Accessory hole Lock wall hole Wall hanging hole Foot pad position Power switch JP500 parameters Product Name JP��� Product Size ���*���*��mm Power Input �V�A Wire Frequency �.�G Product Weight �.� kg Rated Power ��W Instructions for use Insert the power cord and connect it for power supply Download and start the client.Please scan the following QRCodeto download SDBplay �.� Turn on the power switch The blue light stays on and establishes a connection � Function Description Power supply �V/�A power supply (power supply below �A will not start properly), TYPEC interface. Key function Replacement button (red): In the APP game, press to switch directly to the next player. Back button: In the APP game, pressing once can return to the previous dart. MISS sensing function When the dart fails to hit the target area, it will automatically be judged as MISS score. Target block LED luminous function １. After powering on and turning on the power switch, all the LED lights behind the target blocks of the product will light up, with a default light of �� game background color.Note: If the LED of the product cannot be controlled after power failure, please restart the app and connect it to restore normal LED changes. ２. LED brightness adjustment function ��������� Introduction to Basic Games There are seven built-in modes in the application software, including �� games, cricket, bonus points, Hearts Hunter, league, practice, and party games. Contains the most basic and common games, and every novice player should try them out 01Game Cricket game or name 'Mickey Mouse' Bonus game Red Heart Hunter League mode party game Practice mode Whether beginners or experts in darting without false attacks, they will challenge a mode where the basic score is deducted in reverse, and the player who deducts zero points first wins Popular options second only to �� games. ��. ��, ��, ��, ��, �� and Hearts are effective areas, and hitting other numbers will not be counted. Precision oriented Psychological warfare is more exciting with different modes of multi player play 24 darts in 8 rounds, calculate the total score. A game that beginners must learn to effectively record whether they continuously create high scores Only by hitting the red heart will the score be calculated The player with the highest total score wins, with a red heart score of �� and a black heart score of �� Multiple practice projects that focus not only on Hearts, but also on practicing the accuracy of various parties in a diverse way Through practice mode training, one can become more proficient in formal competitions There is no difference between beginners and experts. Family gatherings and parties are the most popular ways to stir up the atmosphere. Don't worry if you will lose due to technical differences. Different pleasures are waiting for you to discover Quickly establish multiple mixed competitions of different types, most suitable for competing with friends How to get a dart How to stand Oblique dart target Forward dart target Side to side dart target There are many ways to hold a dart, try to find the most suitable way to hold it. The key is not to let the dart lose its balance, and do not use excessive force with your fingers when holding it Placing the dart on the index finger can maintain the balance of the dart When throwing a dart, be sure to stand steadily and support your body to step on the throwing line, but do not exceed the line This is the most standard standing method, which is not only easy to aim, but also easy to adjust the position of both feet and center of gravity. However, the angle can easily change with the dart thrown. Please always pay attention to whether there is any deviation between the standing posture and the angle This standing posture is easy to maintain the same angle, but due to the inability to lean forward, the actual throwing distance is relatively long. It is a relatively rare standing method This standing posture is to stand with the foot against the throwing line. The bidding line for the PDC Professional Championship is a raised platform, which can be easily maintained at the same angle. However, please note that if the center of gravity is too placed on the front foot, the rear foot may easily l eave the ground and cause instability in the standing posture Gently press the thumb and flip upwards to provide slight support from other fingers Oblique pairForwardLateral pair lag line Manufacturer: Dongguan Jiaxu Electronic Products Co., Ltd Service Phone: 400-960-8196 Address: No. ���, Zhen'an West Road, Chang'an Town, Dongguan City, Guangdong Province E-mail: [email protected] Requ…

Text truncated - open the document above for the full version.

DongguanDayinPlasticProductsCo.,LTD 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:DongguanDayinPlasticProductsCo.,LTD Address:No.220,Zhen‘anWestRoad,ChanganTownShangJiaoDistrict,DongguanCity,China ProductName:BluetoothDartboard FCCID:2BMR4-JP500 Model(s):JP500 2.911(d)(5)(i)EquipmentType We,[DongguanDayinPlasticProductsCo.,LTD]certifythattheequipmentforwhichauthorizationis soughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:longshengWangDate:2024-12-19 TitleandCompanyname:RDSectionsupervisor/DongguanDayinPlasticProductsCo.,LTD NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

DongguanDayinPlasticProductsCo.,LTD 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:DongguanDayinPlasticProductsCo.,LTD Address:No.220,Zhen‘anWestRoad,ChanganTownShangJiaoDistrict,DongguanCity,China ProductName:BluetoothDartboard FCCID:2BMR4-JP500 Model(s):JP500 2.911(d)(5)(ii)Applicantfiling We,[DongguanDayinPlasticProductsCo.,LTD]certifythat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedonthe“CoveredList”,establishedpursuantto§1.50002 ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely , Name:longshengWangDate:2024-12-19 TitleandCompanyname:RDSectionsupervisor/DongguanDayinPlasticProductsCo.,LTD “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

DongguanDayinPlasticProductsCo.,LTD AgentAuthorization Company:DongguanDayinPlasticProductsCo.,LTD Address:No.220,Zhen‘anWestRoad,ChanganTownShangJiaoDistrict, DongguanCity,China ProductName:BluetoothDartboard ModelNumber(s):JP500 ProductDescription:BluetoothDartboard WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024-12-19 Name:longshengWang Title:RDSectionsupervisor Company:DongguanDayinPlasticProductsCo.,LTD

DongguanDayinPlasticProductsCo.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024-12-19 Subject;RequestforConfidentiality FCCID:2BMR4-JP500 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription SWSECURITYDESCRIPTION PartsList Tuneup Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:longshengWang Title:RDSectionsupervisor

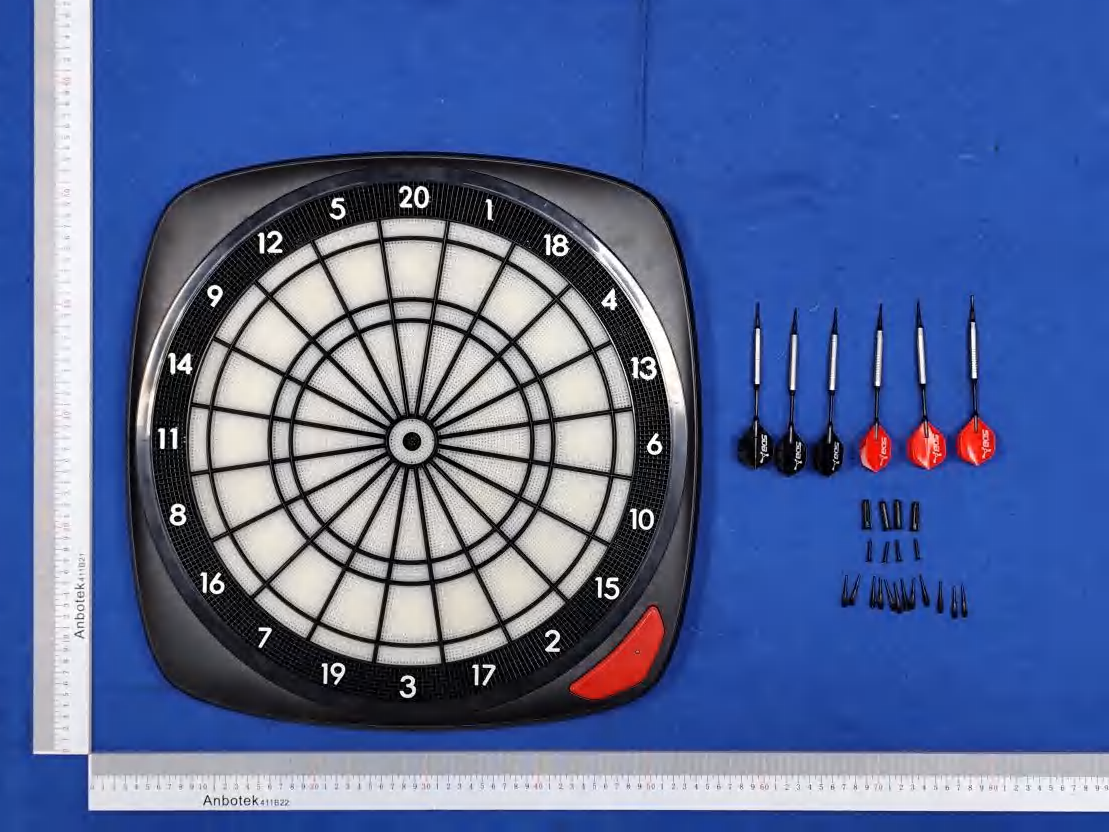

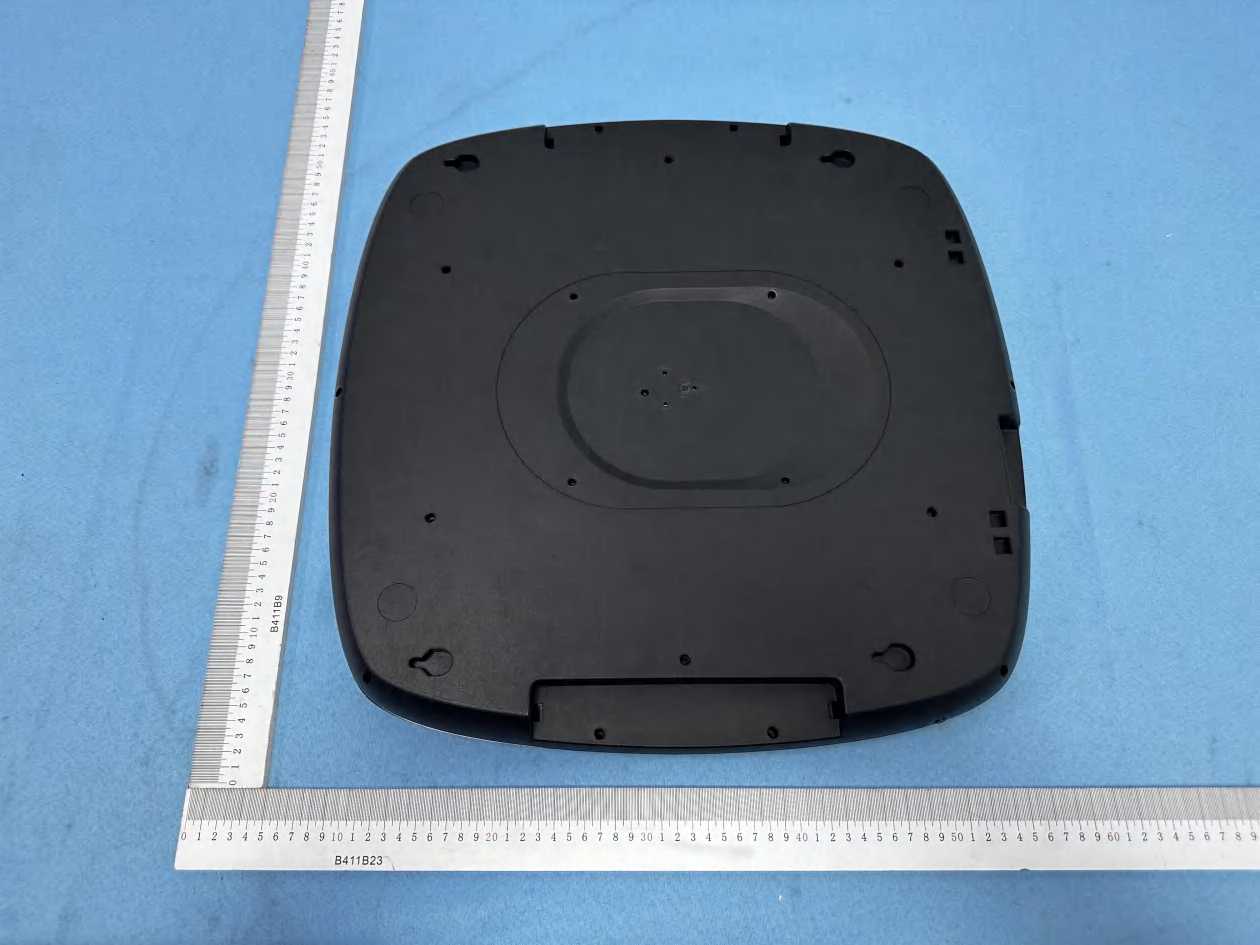

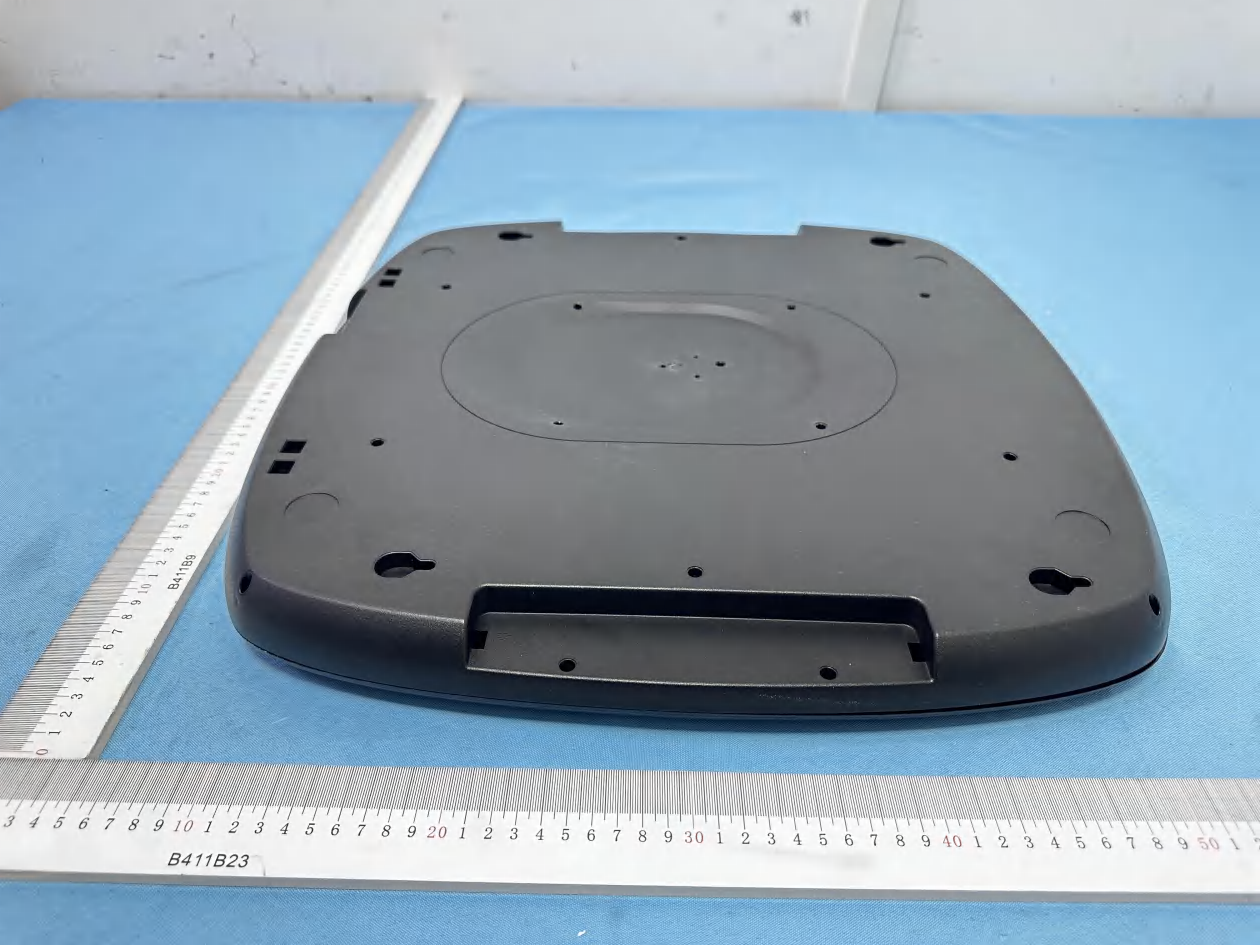

ProjectNo.:1812C401702125Page1of4 AppendixII--ExternalPhotograph ProjectNo.:1812C401702125Page2of4 ProjectNo.:1812C401702125Page3of4 ProjectNo.:1812C401702125Page4of4

LabelLocation Labelsize: （ L:15cm*W:8cm ）

ProjectNo.:1812C401702125Page1of6 AppendixIII--InternalPhotograph ProjectNo.:1812C401702125Page2of6 ProjectNo.:1812C401702125Page3of6 ProjectNo.:1812C401702125Page4of6 ProjectNo.:1812C401702125Page5of6 ANT ProjectNo.:1812C401702125Page6of6

RFEXPOSUREEVALUATION KDB447498D01MobileandPortableDevicesRFExposureProceduresand EquipmentAuthorizationPoliciesv06. AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b) EUTSpecification FCCID 2BMR4-JP500 EUT BluetoothDartboard Frequencyband(Operating)BT:2.402GHz~2.480GHz WLAN:2.412GHz~2.462GHz RLAN:5.180GHz~5.240GHz RLAN:5.260GHz~5.320GHz RLAN: 5.500 GHz~ 5.700 GHz RLAN:5.745GHz~5.825GHz Others: DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ ExposureclassificationOccupational/Controlledexposure(S=5mW/cm2) GeneralPopulation/Uncontrolledexposure(S=1mW/cm2) AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Antennagain(Max)3.5dBi EvaluationappliedMPEEvaluation SAREvaluation LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R2) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainMw G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantenna andtotalpowerinputtotheantenna,throughthecalculation,wewillknowthe distancewheretheMPElimitisreached. MaxMeasurementResult OperatingMode Measured Power Tuneup tolerance Max.Tune upPower Antenna Gain Power densityat 20cm Power densityLimits (mW/cm2) (dBm)(dBm)(dBm)(dBi)(mW/cm2) BLE-3.03-3.03 ±1 -2.033.5 0.0003 1 Result:NoStandaloneSARtestisrequired.

Page 1 of 15 AppendixTestData ReportNo.:1812C40170212501TestSampleNo.:1-2-2 StartTestDate:2024.12.09FinishTestDate:2024.12.10 TestEngineer:Auditor: Temperature:24.3°CRelativeHumidity:48% Pressure:101kPa AppendixA:-6dBBandwidth ConditionAntennaRateFrequency(MHz)-6dBBW(kHz)limit(kHz)Result NVNTANT11Mbps2402.00689.06500Pass NVNTANT11Mbps2440.00690.07500Pass NVNTANT11Mbps2480.00690.25500Pass -6dB_Bandwidth_NVNT_ANT1_1Mbps_2402 -6dB_Bandwidth_NVNT_ANT1_1Mbps_2440 Page 2 of 15 -6dB_Bandwidth_NVNT_ANT1_1Mbps_2480 Page 3 of 15 AppendixB:99%OccupiedBandwidth ConditionAntennaRateFrequency(MHz)99%BW(MHz) NVNTANT11Mbps2402.001.042 NVNTANT11Mbps2440.001.043 NVNTANT11Mbps2480.001.045 99%_Occupied_Bandwidth_NVNT_ANT1_1Mbps_2402 99%_Occupied_Bandwidth_NVNT_ANT1_1Mbps_2440 Page 4 of 15 99%_Occupied_Bandwidth_NVNT_ANT1_1Mbps_2480 Page 5 of 15 AppendixC:DutyCycle ConditionAntennaRateFrequency(MHz)Dutycycle(%)Duty_factor NVNTANT11Mbps2402.0019.357.13 NVNTANT11Mbps2440.0018.757.27 NVNTANT11Mbps2480.0016.137.92 Duty_Cycle_NVNT_ANT1_1Mbps_2402 Duty_Cycle_NVNT_ANT1_1Mbps_2440 Page 6 of 15 Duty_Cycle_NVNT_ANT1_1Mbps_2480 Page 7 of 15 AppendixD:PeakOutputPower ConditionAntennaRate Frequency (MHz) Max.Conducted Power(dBm) Max.Conducted Power(mW) Limit(mW)Result NVNTANT11Mbps2402.00-3.030.501000Pass NVNTANT11Mbps2440.00-4.230.381000Pass NVNTANT11Mbps2480.00-4.060.391000Pass Peak_Output_Power_NVNT_ANT1_1Mbps_2402 Peak_Output_Power_NVNT_ANT1_1Mbps_2440 Page 8 of 15 Peak_Output_Power_NVNT_ANT1_1Mbps_2480 Page 9 of 15 AppendixE:PowerSpectralDensity ConditionAntennaRate Frequency (MHz) PowerSpectral Density(dBm/3kHz) Limit(dBm/3kHz)Result NVNTANT11Mbps2402.00-20.648Pass NVNTANT11Mbps2440.00-21.758Pass NVNTANT11Mbps2480.00-21.728Pass Power_Spectral_Density_NVNT_ANT1_1Mbps_2402 Power_Spectral_Density_NVNT_ANT1_1Mbps_2440 Page 10 of 15 Power_Spectral_Density_NVNT_ANT1_1Mbps_2480 Page 11 of 15 AppendixF:Bandedge ConditionAntennaModulation TX_Frequency (MHz) Max. Mark_freq (MHz) Ref_level(dBm) Spurious level(dBm) limit(dBm)Result NVNTANT11Mbps2402.002399.965-3.072-48.822-23.072Pass NVNTANT11Mbps2480.002483.525-4.118-55.696-24.118Pass 1_Reference_Level_NVNT_ANT1_1Mbps_2402 2_Bandedge_NVNT_ANT1_1Mbps_2402 Page 12 of 15 1_Reference_Level_NVNT_ANT1_1Mbps_2480 2_Bandedge_NVNT_ANT1_1Mbps_2480 Page 13 of 15 AppendixG:SpuriousEmission ConditionAntennaModulation TX_Frequency (MHz) Ref_level(dBm) Spurious level(dBm) limit(dBm)Result NVNTANT11Mbps2402.00-3.072-40.598-23.072Pass NVNTANT11Mbps2440.00-4.279-41.421-24.279Pass NVNTANT11Mbps2480.00-4.118-42.957-24.118Pass 1_Reference_Level_NVNT_ANT1_1Mbps_2402 2_Spurious_Emission_NVNT_ANT1_1Mbps_2402 Page 14 of 15 1_Reference_Level_NVNT_ANT1_1Mbps_2440 2_Spurious_Emission_NVNT_ANT1_1Mbps_2440 1_Reference_Level_NVNT_ANT1_1Mbps_2480 Page 15 of 15 2_Spurious_Emission_NVNT_ANT1_1Mbps_2480 ---END---

Page 1 of 30 FCC Test Report Report No.:1812C40170212501 Applicant:Dongguan Dayin Plastic Products Co., LTD Address: No. 220, Zhen 'an West Road, Changan Town ShangJiao District, Dongguan City, China Product Name:Bluetooth Dartboard Report Date:Dec. 19, 2024 Shenzhen Anbotek Compliance Laboratory Limited #检测章# #资质章# Report No.:1812C40170212501Page 2 of 30 FCC ID: 2BMR4-JP500 Contents 1. General Information ...............................................................................................................................6 1.1. Client Information ........................................................................................................................6 1.2. Description of Device (EUT) ........................................................................................................6 1.3. Auxiliary Equipment Used During Test........................................................................................7 1.4. Operation channel list..................................................................................................................7 1.5. Description of Test Modes...........................................................................................................7 1.6. Measurement Uncertainty ...........................................................................................................8 1.7. Test Summary .............................................................................................................................8 1.8. Description of Test Facility ..........................................................................................................9 1.9. Disclaimer....................................................................................................................................9 1.10. Test Equipment List.................................................................................................................10 2. Antenna requirement ...........................................................................................................................12 2.1. Conclusion.................................................................................................................................12 3. Conducted Emission at AC power line ................................................................................................13 3.1. EUT Operation ..........................................................................................................................13 3.2. Test Setup .................................................................................................................................13 3.3. Test Data ...................................................................................................................................14 4. 6dB Bandwidth ....................................................................................................................................16 4.1. EUT Operation ..........................................................................................................................16 4.2. Test Setup .................................................................................................................................16 4.3. Test Data ...................................................................................................................................16 5. Maximum Conducted Output Power....................................................................................................17 5.1. EUT Operation ..........................................................................................................................17 5.2. Test Setup .................................................................................................................................17 5.3. Test Data ...................................................................................................................................17 6. Power Spectral Density .......................................................................................................................18 6.1. EUT Operation ..........................................................................................................................18 6.2. Test Setup .................................................................................................................................18 6.3. Test Data ...................................................................................................................................18 7. Emissions in non-restricted frequency bands ......................................................................................19 7.1. EUT Operation ..........................................................................................................................19 7.2. Test Setup .................................................................................................................................19 7.3. Test Data ...................................................................................................................................19 8. Band edge emissions (Radiated) ........................................................................................................20 8.1. EUT Operation ..........................................................................................................................20 8.2. Test Setup .................................................................................................................................20 8.3. Test Data ...................................................................................................................................21 9. Emissions in frequency bands (below 1GHz) ......................................................................................22 9.1. EUT Operation ......................................................................................................…

Text truncated - open the document above for the full version.

Antenna performance test specification Shenzhen Xinchida Electronics Co., Ltd Room 502, Block A, Building 12, Shenzhen Bay Science and Technology Ecological Park, Nanshan District, Shenzhen, Guangdong 一、Dimensions · In mm Photo L1 3.94 mm L2 2.70mm L3 5.0mm L4 2.64mm L5 2.00mm L6 4.90mm W1 0.90mm W2 0.50mm D1 0.50mm D2 0.30mm D3 0.30mm D4 0.50mm D5 1.40mm D6 1.70mm 二、General Specifications Part Number RF-BM-ND04_PCB_ANTENNA Frequency Range 2400 - 2500 Mhz Band Width 100MHz Peak Gain 3.5 dBi Return Loss -10dB min. VSWR ≤2.0 Antenna type FR4_ PCB _Antenna Antenna size 15.2 x 5.7 mm 三、TEST ANTENNA INFORMATION • Antenna Type: PCB antenna • Antenna Radiation Pattern • Figure 1：The Antenna to the Radiation Patterns Antenna Radiation Gain • Radiation Pattern Plane Frequency [MHz] Max Value [dB] XY 2400 3.5 dBi 2450 2.5 dBi 2500 3.1 dBi XZ 2400 1.5 dBi 2450 1.0 dBi 2500 -0.2 dBi ZY 2400 3.5 dBi 2450 2.5 dBi 2500 3.0 dBi Return loss Frequency [MHz] Return loss [dB] 2400 -11 dB 2450 -16 dB 2500 -10 dB

ProjectNo.:1812C401702125Page1of2 AppendixI--TestSetupPhotograph_RF ConductedEmissionatACpowerline Emissionsinfrequencybands(below1GHz) ProjectNo.:1812C401702125Page2of2 Emissionsinfrequencybands(above1GHz)
