2BMRF-HY-1017audio glasses

Please scan the QR code above to īØŔ¼ąģøřƑāãňřŌ¼ùãùřąßãěąģãŌ ̊ SMART GLASSES …ŅãÙąƍÙ¼ŔąīģŌ īģŔňīě ̃ŒīřÙāÙīģŔňīě˫řŔŔīģÙīģŔňīě ¼ŔŔãƔ ̃ɫɢġā͜ɤ ā¼ňùąģùġãŔāīß ̃\¼ùģãŔąÙÙā¼ňùąģù ~ě¼ŸØ¼ÙėŔąġã ̃DŔÙ¼ģØãřŌãßøīňɨ̂ɪ āīřňŌīģ¼øřěěÙā¼ňùã VãģŌġ¼Ŕãňą¼ě ̃…řģùě¼ŌŌěãģŌãŌ˺~˻ ;ň¼ġãġ¼Ŕãňą¼ě ̃~˫Œɫɢ …Ņã¼ėãň ̃ɣɢġġ~‘͚V~ÙīġŅīŌąŔã ġãġØň¼ģãāīňģ )\DV…‘~~dŒ ŌřŅŅīƑΞīŌ¼Ų¼ěě¼ ̊Ùīġ ãŌŅīģŌãŲąŔāąģɤɦāīřňŌ ‘Ōãň\¼ģř¼ě 780mm 93mm 60mm FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures - Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Rev 1/26/2023 Dongguan Huahai Future Electronic Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-04-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BMRF-HY-1017 [Dongguan Huahai Future Electronic Technology Co., Ltd.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Dongguan Huahai Future Electronic Technology Co., Ltd.] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24- 886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Jianlong Guo Rev 1/26/2023 Dongguan Huahai Future Electronic Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-04-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BMRF-HY-1017 [Dongguan Huahai Future Electronic Technology Co., Ltd.] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jianlong Guo

Dongguan Huahai Future Electronic Technology Co., Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: June 4, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BMRF-HY-1017 Dongguan Huahai Future Electronic Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Dongguan Huahai Future Electronic Technology Co., Ltd. FRN: 0036404614 Address: Room 601, Building 1, No. 27, Gangjian Road, Tutang Village, Changping Town, Dongguan City, Guangdong Province, China Signature: Contact Person Jianlong Guo Tel: +86 13712627373 Email: [email protected]

Dongguan Huahai Future Electronic Technology Co., Ltd. Date: June 4, 2026 Product Model Number: HY-1017 FCC ID: 2BMRF-HY-1017 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Jianlong Guo Contact Listed on FCC Wesbite Title: Sales Manager Tel.: +86 13712627373 Email: [email protected] On behalf of: Dongguan Huahai Future Electronic Technology Co., Ltd.

Dongguan Huahai Future Electronic Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 8, 2026 Subject; Request for Confidentiality FCC ID: 2BMRF-HY-1017 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jianlong Guo Title: Sales Manager

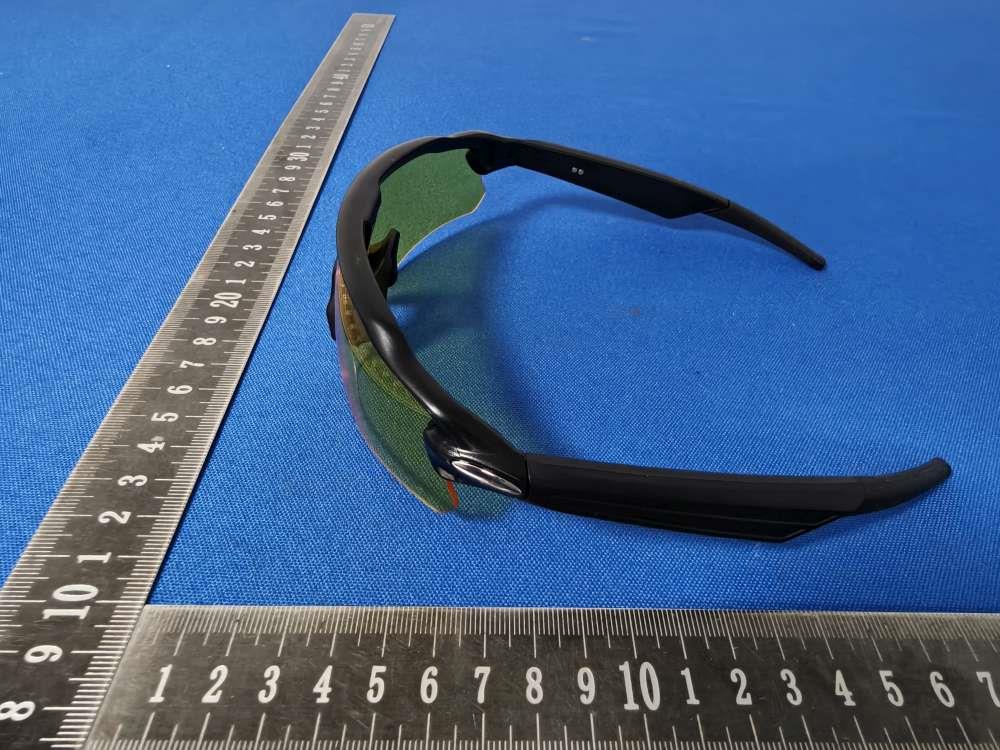

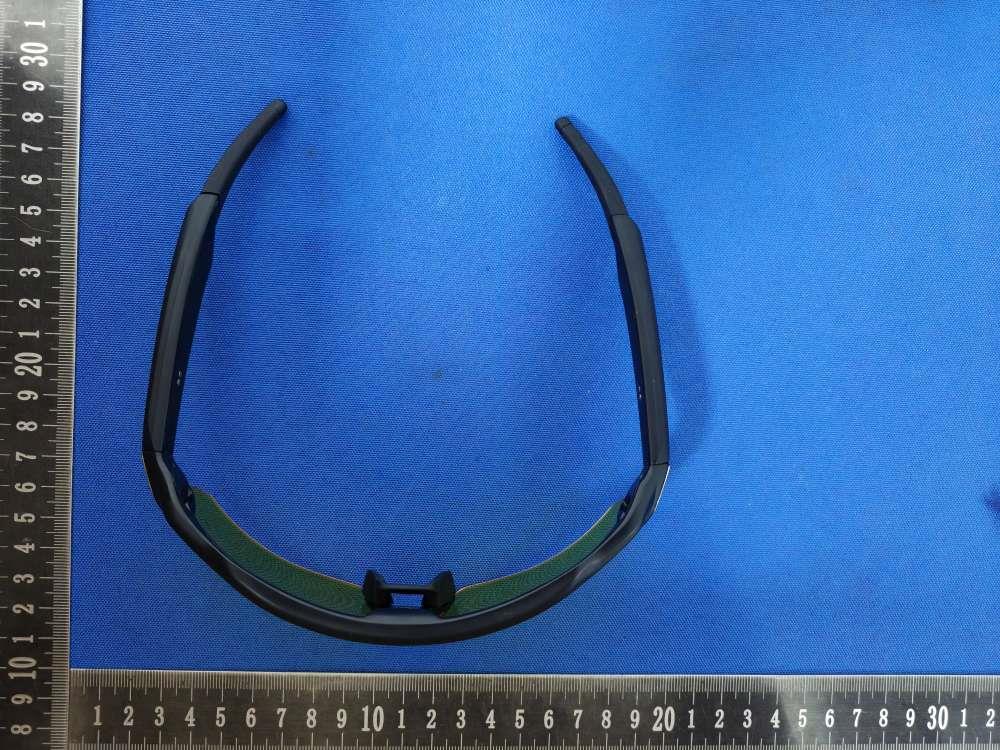

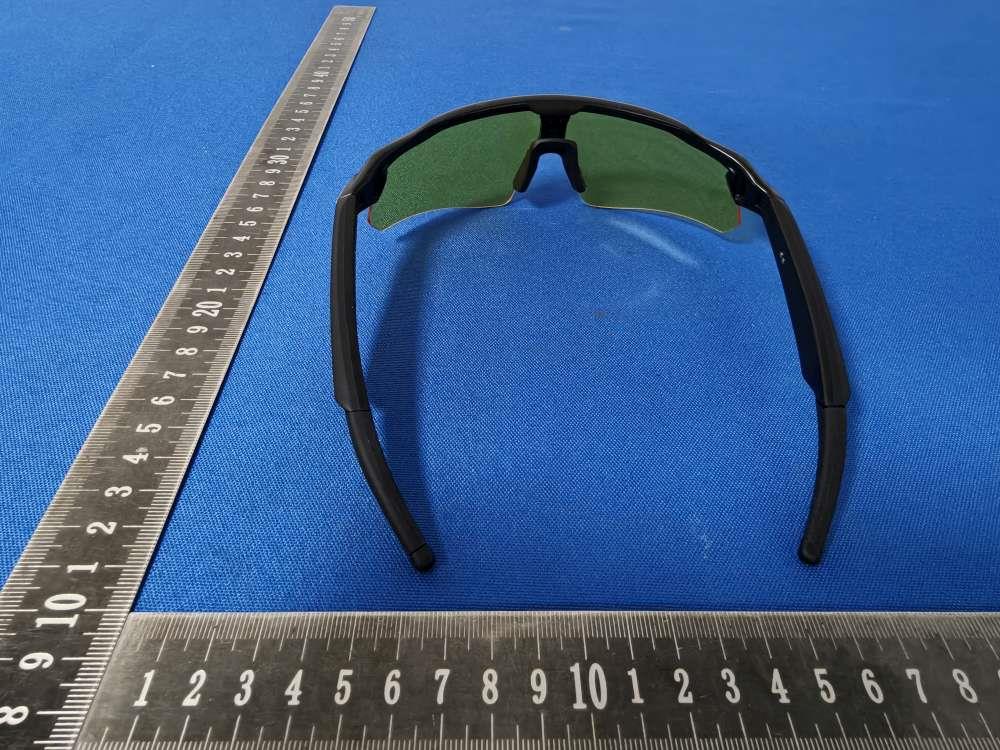

Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report Annex A. EUT External Photos Model : HY-1017 EUT View 1 EUT View 2 Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report EUT View 3 EUT View 4 Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report EUT View 5 EUT View 6 Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report EUT View 7 EUT View 8 Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report EUT View 9

Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample Label Size: 20mm*1mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report Annex B. EUT Internal Photos EUT Internal View 1 EUT Internal View 2 SMD ANT SMD ANT Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report EUT Internal View 3 EUT Internal View 4

FCC ID: 2BMRF-HY-1017 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 2.48 2(±1) 3 2 2402 5 0.6199 3.0 So a SAR test is not required

Report No: DSP26050659-1E FCC Test Report Page 1 of 70 FCC TEST REPORT FCC ID: 2BMRF-HY-1017 Report No. : DSP26050659-1E Applicant : Dongguan Huahai Future Electronic Technology Co., Ltd. Product Name : audio glasses Model Name : HY-1017 Test Standard : FCC Part 15.247 Date of Issue : 2026-06-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: DSP26050659-1E FCC Test Report Page 2 of 70 Test Report Basic Information Applicant..................................: Dongguan Huahai Future Electronic Technology Co., Ltd. Address of Applicant...............: Room 601, Building 1, No. 27, Gangjian Road, Tutang Village, Changping Town, Dongguan City, Guangdong Province, China Manufacturer..........................: Dongguan Huahai Future Electronic Technology Co., Ltd. Address of Manufacturer........: Room 601, Building 1, No. 27, Gangjian Road, Tutang Village, Changping Town, Dongguan City, Guangdong Province, China Product Name.........................: audio glasses Brand Name.............................: - Main Model..............................: HY-1017 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C͸͵.ͳͲ-2020 Date of Test .............................: 2026-05-18 to 2026-05-23 Test Result...............................: PASS Tested By ................................: (Tate Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: DSP26050659-1E FCC Test Report Page 3 of 70 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4. 2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ............................................................................................…

Text truncated - open the document above for the full version.

Report No: DSP26050659-1E FCC Test Report Page 57 of 70 No-Hopping Pi/4 DQPSK Highest Reference Power Band-edge Emission No-Hopping 8DPSK Lowest Reference Power Band-edge Emission No-Hopping 8DPSK Highest Reference Power Band-edge Emission Report No: DSP26050659-1E FCC Test Report Page 58 of 70 Hopping GFSK Lowest Reference Power Band-edge Emission Hopping GFSK Highest Reference Power Band-edge Emission Hopping Pi/4 DQPSK Lowest Reference Power Band-edge Emission Report No: DSP26050659-1E FCC Test Report Page 59 of 70 Hopping Pi/4 DQPSK Highest Reference Power Band-edge Emission Hopping 8DPSK Lowest Reference Power Band-edge Emission Hopping 8DPSK Highest Reference Power Band-edge Emission Report No: DSP26050659-1E FCC Test Report Page 60 of 70 Right: No-Hopping GFSK Lowest Reference Power Band-edge Emission No-Hopping GFSK Highest Reference Power Band-edge Emission No-Hopping Pi/4 DQPSK Lowest Reference Power Band-edge Emission Report No: DSP26050659-1E FCC Test Report Page 61 of 70 No-Hopping Pi/4 DQPSK Highest Reference Power Band-edge Emission No-Hopping 8DPSK Lowest Reference Power Band-edge Emission No-Hopping 8DPSK Highest Reference Power Band-edge Emission Report No: DSP26050659-1E FCC Test Report Page 62 of 70 Hopping GFSK Lowest Reference Power Band-edge Emission Hopping GFSK Highest Reference Power Band-edge Emission Hopping Pi/4 DQPSK Lowest Reference Power Band-edge Emission Report No: DSP26050659-1E FCC Test Report Page 63 of 70 Hopping Pi/4 DQPSK Highest Reference Power Band-edge Emission Hopping 8DPSK Lowest Reference Power Band-edge Emission Hopping 8DPSK Highest Reference Power Band-edge Emission Report No: DSP26050659-1E FCC Test Report Page 64 of 70 14. Conducted RF Spurious Emissions 14.1 Standard and Limit According to §15.247(d), In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that conta ins the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in § 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a) (see § 15.205(c)). 14.2 Test Procedure Test is conducting under the description of ANSI C63. 10 - 2020 section 6.7. 1) Remove the antenna from the EUT and connect to the spectrum analyzer via a low loss RF cable. 2) Set the spectrum analyzer to any one measured frequency within its operating range. 3) Set RBW = 100kHz, VBW = 300kHz, Sweep = Auto, Detector = Peak. 4) Measure the highest amplitude appearing on spectral display and set it as a reference level. 5) Measure the spurious emissions with frequency range from 9kHz to 26.5GHz. 6) Repeat above procedures until all measured frequencies were complete. Test Setup Block Diagram 14.3 Test Data and Results Note: The measurement frequency range is from 9kHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions measurement data. Report No: DSP26050659-1E FCC Test Report Page 65 of 70 Left: GFSK Lowest Reference Power Spurious Emissions GFSK Middle Reference Power Spurious Emissions GFSK Highest Reference Power Spurious Emissions Report No: DSP26050659-1E FCC Test Report Page 66 of 70 Pi/4 DQPSK Lowest Reference Power Spurious Emissions Pi/4 DQPSK Middle Reference Power Spurious Emissions Pi/4 DQPSK Highest Reference Power Spurious Emissions Report No: DSP26050659-1E FCC Test Report Page 67 of 70 8DPSK Lowest Reference Power Spurious Emissions 8DPSK Middle Reference Power Spurious Emissions 8DPSK Highest Reference Power Spurious Emissions Report No: DSP26050659-1E FCC Test Report Page 68 of 70 Right: GFSK Lowest Reference Power Spurious Emissions GFSK Middle Reference Power Spurious Emissions GFSK Highest Reference Power Spurious Emissions Report No: DSP26050659-1E FCC Test Report Page 69 of 70 Pi/4 DQPSK Lowest Reference Power Spurious Emissions Pi/4 DQPSK Middle Reference Power Spurious Emissions Pi/4 DQPSK Highest Reference Power Spurious Emissions Report No: DSP26050659-1E FCC Test Report Page 70 of 70 8DPSK Lowest Reference Power Spurious Emissions 8DPSK Middle Reference Power Spurious Emissions 8DPSK Highest Reference Power Spurious Emissions ***** END OF REPORT *****

2.4GHz2012ChipAntenna:RANT2012F245C07 Dimension(mm) L2.05+-0.10 W1.20+-0.10 T0.65+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245C07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain1.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd. 2.4GHz2012ChipAntenna:RANT2012F245C07 EvaluationBoardReference PCBDimensionAntennaLayoutReferenceUnit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% 2.4GHz2012ChipAntenna:RANT2012F245C07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 2.4GHz2012ChipAntenna:RANT2012F245C07 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 2012 Ch ip Antenna: RA NT2012F245C0 7 2.4GHz 2012 Ch ip Antenna: RA NT2012F245C07 _ Board Flex (SMD) 1. Mounting method: IR-Reflow. PCB Size (L:100 × W:40 × T:1.6mm) 2. Apply the load in direction of the arrow until bending reaches 2 mm. No Visible Damage.AEC-Q200 005 AdhesionForce of 1.8Kg for 60 seconds. No Visible Damage Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body terminals and body/terminal junction. AEC-Q200 006 Physical Dimension Any applicable method using x10 magnification, micrometers, calipers, gauges, contour projectors, or other measuring equipment, capable of determining the actual specimen dimensions. In accordance with specification. JESD22 JB100 Revision Histo ry Revisi onDateContent 12020/10/15New Datash eet Address: Room 709, Building F, Yuxing Technology Industrial Park, Nanchang Third Industrial Zone, Nanchang Community, Xixiang Subdistrict, Bao'an District, Shenzhen, China

Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Right Report No: DSP26050659-1E FCC ID: 2BMRF-HY-1017 Annex of Test Report Radiated Emission Test View Below 1GHz Radiated Emission Test View Above 1GHz
