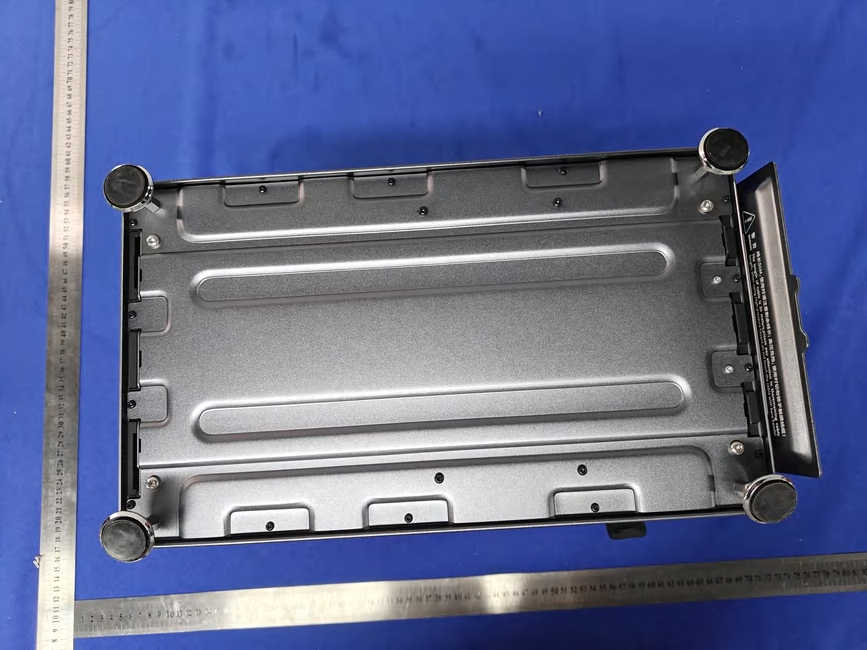

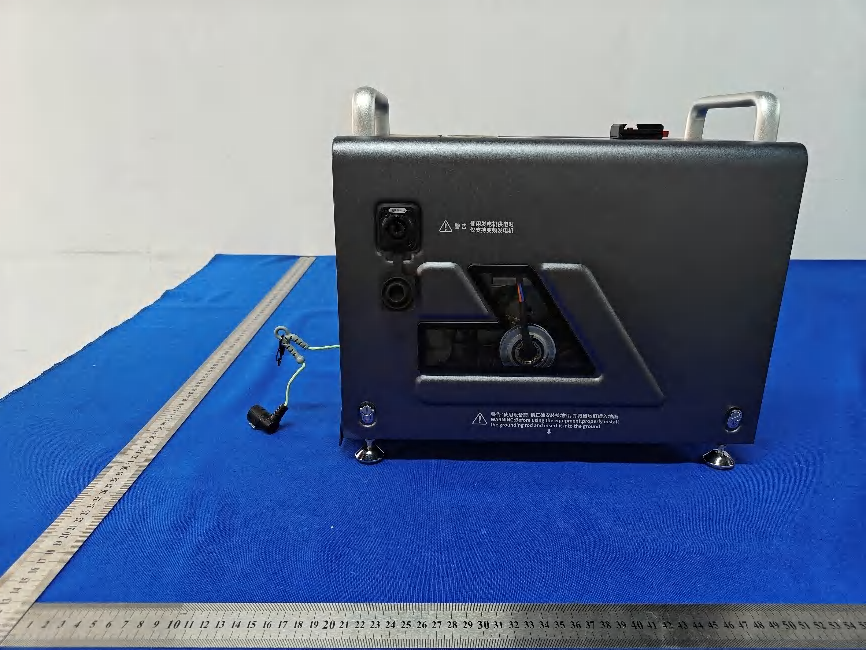

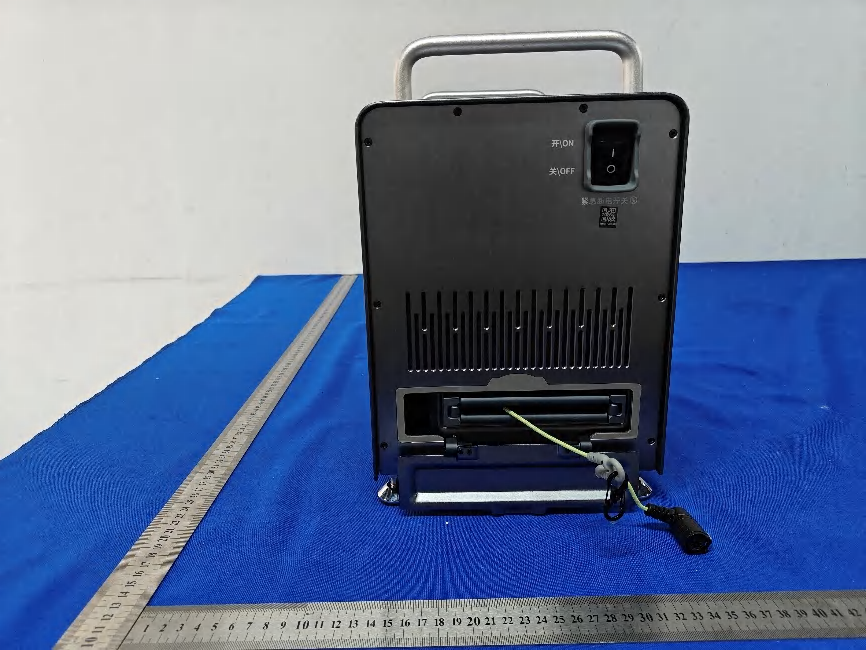

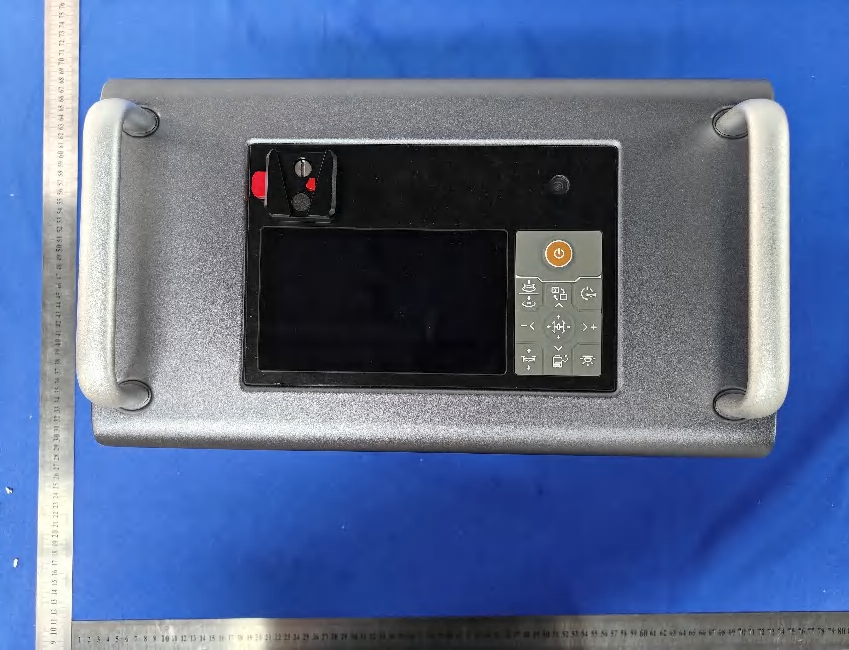

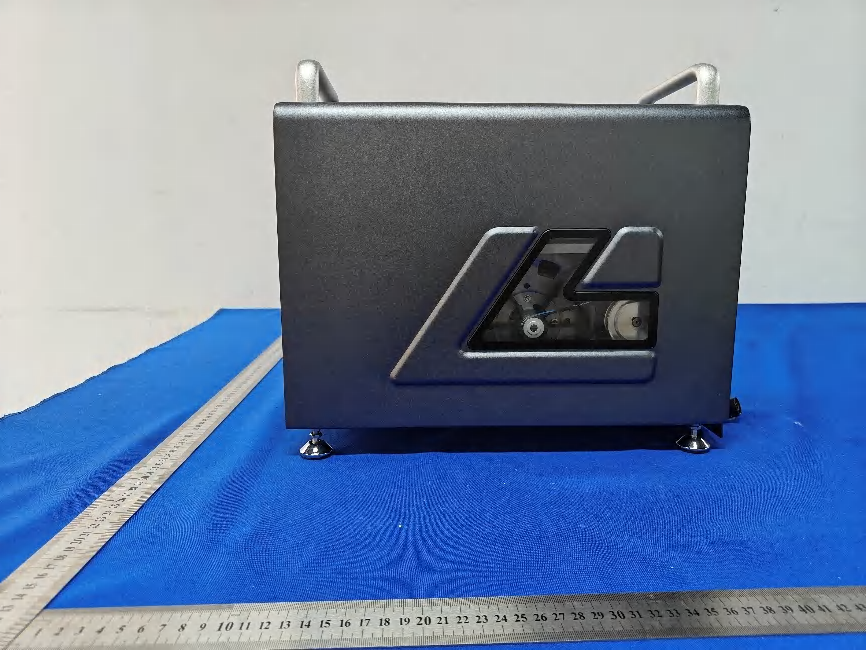

2BMTS-CZ100SCZ100 Tethered Lighting System-Ground Station

CZ100 照明系统 - 供电端 2026.05.08 V0.9 用户手册 User Manual Lighting Sytem-Ground Station 1 一、应急处置 紧急关机类问题 通过“急停按键”紧急关机 通过“ 供电端电源按键”紧急关机 APP类问题 如何重启APP 注意:如遇到app无法控制设备的情况，可尝试终止app进程，再重新启动app，有一定概率可 以恢复控制。 操作流程： 在屏幕下方边缘上滑一下，出现系统导航栏，选择右下方【任务管理】按钮，进入任务管理页面。 1、 应急处理仅仅适用于设备的电力紧急切断的状况。正常使用请避免紧急操作。 紧急断电开关: 开关打到“ ”进行紧急停机断电操作。 按键断电: 长按此电源键3秒，进行紧急停机断电操作。 找到运行中的czi GC程序任务，拖动上滑，关掉程序。 2、 在系统桌面找到czi GC程序，重新点开即可。（如果桌面中未找到，可以上滑进入系统桌面抽屉 页面找） 3、 网络链接类问题 如何处置安卓手机 & 安卓平板电脑无法通过 WIFI 连接供电端问题 如出现手机连接设备长时间搜索不到设备的情况，请点击重新搜索设备，由于手机权限限制， 无法快速获取到 WiFi 列表，有时候需要一定的时间才能搜索到 WiFi 设备。 如何处置 供电端无法通过 WIFI 连接安卓手机 & 安卓平板热点问题 请确保手机开启 WIFI 热点时，设置为 2.4G 模式， 供电端只能搜索到 2.4GWIFI 并连接。 使用本产品之前，请仔细阅读本文档。本声明对安全使用本产品以及您的合法权益有着 重要影响。一旦使用本产品，即视为您已经充分阅读、了解、理解、认可和接受本文档全部 条款和内容。 二、免责声明 本产品并非玩具，使用此产品具有一定的安全风险，本产品不适合未满18岁的人士或法 律规定的限制民事行为能力人/无民事行为能力人或行动能力障碍人士使用，亦不适合未 取得成至智能机器科技有限公司（以下简称成至）认可（或现行法律法规、政策规定认可） 的CZ100设备操作培训的人士使用。请勿让儿童接触本产品，在有儿童出现的场景 操作 时请务必特别小心注意。 操作者承诺仅出于正当目的并在法律允许范围内使用本产品，并且同意本条款及成至可 能制定的任何相关政策或者准则。使用者了解并接受本产品在使用过程中将自动上传并 保存相关使用记录和数据至 供电端。若因为使用者的原因导致使用记录和数据无法 上 传保存，导致无法对使用记录和数据进行分析时，成至将不承担责任。 在法律允许的最大范围内，在任何情况下成至不对本产品提供任何明示或暗示的保证， 包括但不限于可销性，特定用途的适合性或不侵权的暗示保证。 在法律允许的最大程度下，成至不承担因用户未按照本文《使用说明》使用产品所引发的 一切损失。并不对任何间接性、后果性、惩罚性、偶然性、特殊性或刑罚性的损害，包括因 您购买、使用或不能使用本产品而遭受的损失承担责任（即使该等损失的可能性已被告 知亦然）。 在法律允许的最大程度下，在任何情况下，成至因所有损害、损失及引致诉讼而对您所负 的法律责任或金额均不会超过您因购买产品而向成至支付的金额。 在任何情况下，购买者或使用者均应遵守产品使用地国家及区域的相关法律法规，成至 不承担因购买者或使用者违反相关法律法规而产生的任何责任。 某些国家的法律可能会禁止免除责任类条款，因此您在不同国家的相关权利可能会有所 不同，但这并不意味着本声明中的内容必然无效。 在法律允许范围内，成至享有对以上条款的最终解释权和修改权。成至有权在不再事先 通知的情况下，通过成至官方网站、《使用说明》、线上App等途径对本条款进行更新、改版 或终止。 2 3 三、产品概述 四、规格参数 ≤13kg 2300mAh 5.5 ′′ 1920*1080 1000 尼特 供电端重量 供电端尺寸 供电端输入电压 供电端电池容量 屏幕尺寸 屏幕分辨率 屏幕亮度 供电端输出接口 385*337*224mm 176-264VAC HDMI、网口 防护等级 工作温度 储存温度 IP44 -20°C~+50°C -40°C~70°C ≤13kg 成至CZ100是一种高效、可靠的轻型应急照明解决方案，采用外部供电方式，为夜间的应 急救援任务提供了强有力的支持。 4 五、主要部件与结构介绍 5.1 供电端 2 4 5 1 3 6 7 8 9 11 10 12 ⑦ 导线盖⑧ 外部设备连接口 ⑨ 电池盖⑩ 接地钉 ① 显示屏② 摄像头 ③ 按键面板 ④ 电源输入口⑤ 电源线 ⑥ 紧急断电开关 ⑪ RTK⑫ RTK座 5 外部设备各连接口的作用： HDMI 口：支持 1080P 高清视频实时回传 TYPE-C 口：可为任务设备 ( 如执法记录仪 ) 进行快速供电，可输出 65W 快充供电，支持 PD3.0 USB-A 口：提供 USB 主机功能，支持 USB 通讯 /RTK 线连接口 TF-SD 口：数据传输与备份：可以将设备中的数据转移到 TF 卡上 进行备份 LAN 口：连接外部电脑设备，通过局域网上传视频源至本地设备 WAN 口：连接外部网络，通过网络可更新系统 或上传视频源 6 6.3 供电端电源连接：打开电源座面盖，图示1处的凸块与图示2的槽对准后，将电源线插入， 顺时针旋转，直到听到“咔”声，表示已完成。 1 2 六、CZ100照明系統-供电端的安装及操作流程 展开背包、取出供电端 CZ100- 供电端的安装： 6.1 接地针安装：从附件包取出接地钉，将接地钉手拧螺丝松开，拧紧接地线，将插入地下20CM 左右。 6.2 RTK安装：取出RTK模块，将RTK装入RTK座，USB插入前盖USB口。 接地线安装孔 RTK线插口:USB-A 接地钉插入指示图 地底 6.4 220V电源连接：将电源插头与市电或者变频发电机插座连接。 6.5 打开 供电端开关：开启供电端，开关打到“I”。 7 注意:每次使用完必须关闭 供电端紧急断电开关：关闭 供电端，开关打到“ ”。 七、产品使用介绍 首次使用设备之前，请将设备所有固件更新到最新版本 按键说明 选取灯具 降低灯光功率 切换视频画面 调整收线力度 关闭高压 选取灯光 选择按键 增加灯光功率 调整灯具高度 8 选中U盘目录，点击复制。 运行日志的导出方式为：插入U盘，打开文件管理器，点击设备名称，这是内部存储路径， ESD-USB是U盘存储路径，不同的U盘可能存在不同的命名。 把内部存储目录下CZI/LOG目录下的文件全部复制到U盘即可，长按选中需要拷贝的文件 （文件夹或压缩包都可以），然后点击右上角“复制到...”。 7.1 日志导出方法 9 八、使用后拆卸及回收 CZ100- 供电端的拆卸：（ 供电端拆卸之前确保关闭高压） 8.1 长按供电端的“ ”按键,听到“关闭高压”的声音，即关闭高压输出。发出“哒哒哒”声响， “ ”按键亮蓝灯熄灯。 8.2 取下 插头：解开挂钩，将“ 插头”从设备接口取下，通过 供电端收回 线缆，插头收回至箭 头1所示方向，挂钩收回至箭头2所示方向，关闭导线盖。 2 1 8.3 供电端关机：：长按【 】按键，设备关机。 8.5 供电端电源断开：电源线按钮往箭头 1 所示方向滑动，同时逆时针方向旋转，将电源线 接头从插座上拔下，把线收回并盖上电源盖。 8.4 供电端紧急断电开关：关闭 供电端，开关打到“ ”。 10 1 8.8 收纳：供电端放进背包里。 8.6 220V电源断开：将电源插头从市电（或者发电机）插座拔出。 8.7 接地针回收：将接地针拔出，拧开接地线手拧螺丝，将接地线、RTK模块收回接地附件包。 11 2. Locate the running czi GC app and swipe it upward to close the process. 3. Return to the system desktop, find the czi GC app icon and tap to restart. (If the icon is not on the desktop, swipe up to access the app drawer to locate it.) Note : If the app fails to control the device, try closing the app process and restarting the app. This may restore control in certain cases. Operating Steps: Application Issues How to restart the app 1. Swipe up from the bottom edge of the screen to display the system navigation bar, then select the rightmost Task Manager button to enter the task management page. 1. Emergency Procedures Emergency procedures are only applicable for emergency power cut-off situations of the equipment. Avoid performing emergency operations during normal use. Emergency Shutdown Issues By Main Power Switch By Ground Station Power Button Main Power Switch: Turn the switch to " " to perform an emergency shutdown and power cut-off. Power Button Shutdown: Long press the power button for 3 seconds to perform an emergency shutdown and power cut-off. Network Connection Issues How to Resolve Android Phones & Tablets Unable to Connect to Ground Station via Wi-Fi IIf your phone is unable to detect the device for an extended period, tap "Rescan Device." Due to Android system permission restrictions, the Wi-Fi list may not be retrieved instantly, and it may take some time to discover available Wi-Fi devices. How to Resolve Connection Failures Between the Ground Station and an Android Phone/Tablet Hotspot Ensure your phone is set to 2.4GHz mode when enabling the Wi-Fi hotspot. The ground station can only detect and connect to 2.4GHz Wi-Fi networks. 12 13 2. Disclaimer Please read this document carefully before using the product. This disclaimer has a significant impact on the safe use of the product and your legal rights. By using this product, you are deemed to have read, understood, and accepted all the terms and conditions herein. This product is not a toy and carries certain operational risks. It is not suitable for individuals under 18 years old, those with limited or no legal capacity, or those with mobility impairments. It must not be used by untrained individuals without czi’s official certification. Keep out of reach of children and exercise caution when operating near minors. Operators agree to use this product solely for lawful purposes and within the scope permitted by applicable laws, and they accept these terms along with any related policies or guidelines established by czi. Users acknowledge and consent that the product will automatically upload and store relevant usage records and data to the ground station during operation. czi shall not be held liable for any failure to upload, store, or analyze usage data caused by user-related issues. To the maximum exten…

Text truncated - open the document above for the full version.

Page 1 of 40 Report No.: AiTSZ-251128071FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : CZ100 Tethered Lighting System-Ground Station Brand Name : CZI Model : CZ100 Series Model : N/A FCC ID : 2BMTS-CZ100S Applicant : Guangzhou Chengzhi Intelligent Machine Technology Co., Ltd. Address : Room 101, Building 2, No. 5, Longlin Middle Street, Tianhe District, Guangzhou Manufacturer : Guangzhou Chengzhi Intelligent Machine Technology Co., Ltd. Address : Room 101, Building 2, No. 5, Longlin Middle Street, Tianhe District, Guangzhou Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Nov. 28, 2025 Date of Test : Nov. 28, 2025~ Dec. 22, 2025 Issued Date : Dec. 22, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 40 Report No.: AiTSZ-251128071FW1 Report Revise Record Report Version Issued Date Notes M0 Dec. 22, 2025 Initial Release Page 3 of 40 Report No.: AiTSZ-251128071FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 23 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 24 3.5 6DB BANDWIDTH ....................................................................................................................................................... 25 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 26 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 28 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 29 5 PHOTOS OF EUT ..................................................................................................................................................... 30 Page 4 of 40 Report No.: AiTSZ-251128071FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmissi…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BMTS-CZ100S Conducted Emission Page 2 of 2 FCC ID: 2BMTS-CZ100S RF WIFI BT

Page 61 of 78 Report No.: AiTSZ-251128071FW1 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant2 (SISO)_NTNV Page 62 of 78 Report No.: AiTSZ-251128071FW1 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV Page 63 of 78 Report No.: AiTSZ-251128071FW1 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV Page 64 of 78 Report No.: AiTSZ-251128071FW1 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 65 of 78 Report No.: AiTSZ-251128071FW1 802.11g_LCH_2412MHz_Ant2 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant2 (SISO)_NTNV Page 66 of 78 Report No.: AiTSZ-251128071FW1 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant2 (SISO)_NTNV Page 67 of 78 Report No.: AiTSZ-251128071FW1 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 68 of 78 Report No.: AiTSZ-251128071FW1 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV Page 69 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV Page 70 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_LCH_2412MHz_Ant2 (MIMO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant2 (MIMO)_NTNV Page 71 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant2 (MIMO)_NTNV Page 72 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV Page 73 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_HCH_2462MHz_Ant2 (MIMO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant2 (MIMO)_NTNV Page 74 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV Page 75 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_LCH_2422MHz_Ant2 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant2 (MIMO)_NTNV Page 76 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant2 (MIMO)_NTNV Page 77 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV Page 78 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_HCH_2452MHz_Ant2 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant2 (MIMO)_NTNV ********************** End of Report **********************

Page 1 of 78 Report No.: AiTSZ-251128071FW1 Appendix RF test data for WIFI2.4G Page 2 of 78 Report No.: AiTSZ-251128071FW1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 8.354 8.404 99.41 0.03 0.04 2437 8.350 8.400 99.40 0.03 0.04 2462 8.353 8.400 99.44 0.02 0.00 802.11g SISO 2412 0.149 0.198 75.25 1.23 0.95 2437 0.148 0.196 75.51 1.22 0.45 2462 0.149 0.197 75.63 1.21 0.45 802.11n (HT20) MIMO 2412 0.312 0.361 86.43 0.63 0.55 2437 0.313 0.361 86.70 0.62 0.58 2462 0.313 0.361 86.70 0.62 0.68 802.11n (HT40) MIMO 2422 0.320 0.368 86.96 0.61 0.44 2437 0.320 0.369 86.72 0.62 0.38 2452 0.320 0.368 86.96 0.61 0.47 1.1.2 Ant2 Ant2 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 8.353 8.403 99.40 0.03 0.04 2437 8.353 8.400 99.44 0.02 0.00 2462 8.353 8.403 99.40 0.03 0.08 802.11g SISO 2412 0.149 0.197 75.63 1.21 0.57 2437 0.148 0.196 75.51 1.22 0.42 2462 0.149 0.197 75.63 1.21 1.09 802.11n (HT20) MIMO 2412 0.313 0.361 86.70 0.62 0.49 2437 0.313 0.362 86.46 0.63 0.64 2462 0.313 0.361 86.70 0.62 0.39 802.11n (HT40) MIMO 2422 0.321 0.369 86.99 0.61 0.47 2437 0.321 0.369 86.99 0.61 0.41 2452 0.321 0.369 86.99 0.61 0.32 Page 3 of 78 Report No.: AiTSZ-251128071FW1 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 4 of 78 Report No.: AiTSZ-251128071FW1 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 5 of 78 Report No.: AiTSZ-251128071FW1 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 6 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV Page 7 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV Page 8 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV Page 9 of 78 Report No.: AiTSZ-251128071FW1 1.2.2 Ant2 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant2 (SISO)_NTNV Page 10 of 78 Report No.: AiTSZ-251128071FW1 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant2 (SISO)_NTNV Page 11 of 78 Report No.: AiTSZ-251128071FW1 802.11g_MCH_2437MHz_Ant2 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV Page 12 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_LCH_2412MHz_Ant2 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant2 (MIMO)_NTNV Page 13 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_HCH_2462MHz_Ant2 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant2 (MIMO)_NTNV Page 14 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_MCH_2437MHz_Ant2 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant2 (MIMO)_NTNV Page 15 of 78 Report No.: AiTSZ-251128071FW1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 13.430 / Pass 2437 1 13.437 / Pass 2462 1 13.504 / Pass 802.11g SISO 2412 1 17.429 / Pass 2437 1 17.487 / Pass 2462 1 17.542 / Pass 802.11n (HT20) MIMO 2412 1 18.396 / Pass 2437 1 18.474 / Pass 2462 1 18.428 / Pass 802.11n (HT40) MIMO 2422 1 36.488 / Pass 2437 1 36.445 / Pass 2452 1 36.447 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 9.205 >=0.5 Pass 2437 1 9.192 >=0.5 Pass 2462 1 9.211 >=0.5 Pass 802.11g SISO 2412 1 16.212 >=0.5 Pass 2437 1 16.245 >=0.5 Pass 2462 1 16.129 >=0.5 Pass 802.11n (HT20) MIMO 2412 1 17.358 >=0.5 Pass 2437 1 17.435 >=0.5 Pass 2462 1 17.325 >=0.5 Pass 802.11n (HT40) MIMO 2422 1 35.949 >=0.5 Pass 2437 1 35.955 >=0.5 Pass 2452 1 35.979 >=0.5 Pass Page 16 of 78 Report No.: AiTSZ-251128071FW1 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 17 of 78 Report No.: AiTSZ-251128071FW1 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 18 of 78 Report No.: AiTSZ-251128071FW1 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 19 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV Page 20 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV Page 21 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV Page 22 of 78 Report No.: AiTSZ-251128071FW1 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 23 of 78 Report No.: AiTSZ-251128071FW1 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 24 of 78 Report No.: AiTSZ-251128071FW1 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 25 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV Page 26 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV Page 27 of 78 Report No.: AiTSZ-251128071FW1 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV Page 28 of 78 Report No.: AiTSZ-251128071FW1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 ANT2 MIMO Limit 802.11b SISO 2412 11.48 9.60 / <=30 Pass 2437 10.61 9.07 / <=30 Pass 2462 10.52 9.42 / <=30 Pass 802.11g SISO 2412 11.32 9.16 / <=30 Pass 2437 10.50 8.90 / <=30 Pass 2462 10.44 9.15 / <=30 Pass 802.11n (HT20) MIMO 2412 11.20 9.06 13.27 <=30 Pass 2437 10.51 8.85 12.77 <=30 Pass 2462 10.34 9.12 12.78 <=30 Pass 802.11n (HT40) MIMO 2422 11.31 9.27 13.42 <=30 Pass 2437 10.95 9.12 13.14 <=30 Pass 2452 10.85 9.05 13.05 <=30 Pass Note1: Ante…

Text truncated - open the document above for the full version.

Page 1 of 29 Report No.: AiTSZ-251128071FW3 Appendix RF test data for BLE Page 2 of 29 Report No.: AiTSZ-251128071FW3 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.142 2.500 85.68 0.67 0.03 2440 2.142 2.500 85.68 0.67 0.03 2480 2.143 2.501 85.69 0.67 0.03 2M SISO 2402 1.090 1.875 58.13 2.36 0.03 2440 1.089 1.874 58.11 2.36 1.89 2480 1.089 1.875 58.08 2.36 0.03 Page 3 of 29 Report No.: AiTSZ-251128071FW3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 29 Report No.: AiTSZ-251128071FW3 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 29 Report No.: AiTSZ-251128071FW3 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 29 Report No.: AiTSZ-251128071FW3 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.039 / Pass 2440 1 1.038 / Pass 2480 1 1.038 / Pass 2M SISO 2402 1 2.074 / Pass 2440 1 2.079 / Pass 2480 1 2.076 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.664 >=0.5 Pass 2440 1 0.667 >=0.5 Pass 2480 1 0.670 >=0.5 Pass 2M SISO 2402 1 1.161 >=0.5 Pass 2440 1 1.164 >=0.5 Pass 2480 1 1.163 >=0.5 Pass Page 7 of 29 Report No.: AiTSZ-251128071FW3 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 29 Report No.: AiTSZ-251128071FW3 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 29 Report No.: AiTSZ-251128071FW3 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 29 Report No.: AiTSZ-251128071FW3 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 29 Report No.: AiTSZ-251128071FW3 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 29 Report No.: AiTSZ-251128071FW3 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 29 Report No.: AiTSZ-251128071FW3 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -2.70 <=30 Pass 2440 -2.50 <=30 Pass 2480 -2.22 <=30 Pass 2M SISO 2402 -2.65 <=30 Pass 2440 -2.45 <=30 Pass 2480 -2.18 <=30 Pass Note1: Antenna Gain: Ant1: 3.13dBi; Page 14 of 29 Report No.: AiTSZ-251128071FW3 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 29 Report No.: AiTSZ-251128071FW3 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 29 Report No.: AiTSZ-251128071FW3 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 29 Report No.: AiTSZ-251128071FW3 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 -2.80 <=8 Pass 2440 -2.63 <=8 Pass 2480 -2.35 <=8 Pass 2M SISO 2402 -3.28 <=8 Pass 2440 -3.07 <=8 Pass 2480 -2.66 <=8 Pass Note1: Antenna Gain: Ant1: 3.13dBi; Page 18 of 29 Report No.: AiTSZ-251128071FW3 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 29 Report No.: AiTSZ-251128071FW3 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 29 Report No.: AiTSZ-251128071FW3 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 29 Report No.: AiTSZ-251128071FW3 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -2.80 2440 1 -2.60 2480 1 -2.32 2M SISO 2402 1 -3.25 2440 1 -3.08 2480 1 -2.75 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -2.80 -22.80 Pass 2440 1 -2.60 -22.60 Pass 2480 1 -2.32 -22.32 Pass 2M SISO 2402 1 -3.25 -23.25 Pass 2440 1 -3.08 -23.08 Pass 2480 1 -2.75 -22.75 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 22 of 29 Report No.: AiTSZ-251128071FW3 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 29 Report No.: AiTSZ-251128071FW3 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 29 Report No.: AiTSZ-251128071FW3 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 29 Report No.: AiTSZ-251128071FW3 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 29 Report No.: AiTSZ-251128071FW3 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 29 Report No.: AiTSZ-251128071FW3 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of 29 Report No.: AiTSZ-251128071FW3 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page 29 of 29 Report No.: AiTSZ-251128071FW3 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV ********************** End of Report **********************

® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD MT-22-008 REV1.0 客 户 名 称： 产 品 名 称： 2.4~5.8GHz 双频PCB Antenna L=150mm 产 品 料 号 ： HLK-PCB-D 客 户 料 号： 送 样 日 期： 2018-7-12 工程确认： 核准 工程 制作 签章 Approval Quality Engineer 客户确认： 核准 研发 品质 签章 确认结果： □合格□不合格□其它 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD Building E, Phase 2 of Star River WORLD, No. 1705-1706-1709A, Minle Community, Minzhi Subdistrict, Longhua District, Shenzhen City ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD MT-22-008 REV1.0 承认书项目表 Item Description 1.............................................承认书封面 2.............................................承认书项目表 3.............................................工程图面 4.............................................电性测试报告 ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD MT-22-008 REV1.0 RF Antenna Cable Assembly Specification 1. Electrical Properties 1.1 Frequency Range........................2.4GHz-5.8GHz 1.2 Impedance.................................50Ω Nominal 1.3 VSWR..........................................1.92:1MAX 1.4 Return Loss.................................-10dB Max 1.5 Gain(peak).................................3. 13dBi 1.6 Cable loss....................................0.3dBi Max 1.7 Polarization.................................Linear Vertical 1.8 Admitted Power..............................2W 1.9 Cable..........................................O.D.1.13mm(Black) 1.10 Conn.......................................... MHF 2. Physical Properties: 2.1 Antenna Material.................................Cu 2.4 Operating Temp..............................-20°C- +65°C 2.5 Storage Temp.................................-30°C- +75°C ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD MT-22-008 REV1.0 RF Antenna Assembly SPEC:2.4~5.8GHz ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD M T-22-008 REV1.0 ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD M T-22-008 REV1.0 ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRONIC CO, LTD MT-22-008 REV1.0 ~END~

DATA SHEET WIRELESS COMPONENTS Ceramic Chip Antenna ANT3216LL00R2400A 2.4 - 2.5 GHZ 3216 Serie s Product Specification – March 27, 2013 V.0 Guangzho u Chengzhi Intelligent Machine Technology Co., Ltd. Room 101, Building 2, No. 5, Longlin Middle Street, Tianhe District, Guangzhou www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 2 6 Product specification Ceramic Chip Antenna FEATURES z Compact size z Omni-directional radiation z Tape & reel automatic mounting z Reflow process compatible z RoHS compliant APPLICATIONS z 2.4 GHz WiFi device z Bluetooth gadget z Zigbee device z ISM band equipment ORDERING INFORMATION All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. PART NUMBER ANT 3216 L L00 R 2400A (1) (2) (3) (4) (5) (6) ( 1 ) PRODUCT ANT = Antenna ( 2 ) SIZE 3216 = 3.2 × 1.6 mm ( 3 ) ANTENNA TYPE L,F,A = Chip Antenna ( 4 ) SERIAL NO. L00 ( 5 ) PACKING TYPE R = Tape and Reel ( 6 ) WORKING FREQUENCY 2400 = 2.4GHz PHYCOMP CTC CAN4311712002453K 12NC 431171200245 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 3 6 Product specification Ceramic Chip Antenna SPECIFICATION DESCRIPTION VALUE Working Frequency 2.4 - 2.5 GHz Bandwidth 160 MHz Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 5.05 dBi (Typ.) Impedance 50Ω Operating Temperature -40 ~105°C Maximum Power 1W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260°C , 10sec. NOTE 1. The specification is defined on Yageo evaluation board Ta b l e 1 O O U U T T L L I I N N E E S S YNH0010 Side ViewTop View Bot t om View T W L C S1S2 Fig. 1 Antenna outlines DIMENSIONS DIMENSION L (mm) 3.20 ±0.15 W (mm) 1.60 ±0.15 T (mm) 1.20 ±0.15 C (mm) 0.40 ±0.20 Table 2 Machinical Dimension TERMINAL NAME FUNCTION S1 Feeding Point S2 Soldering Point Table 3 Termination configuration www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 4 6 Product specification Ceramic Chip Antenna YNH0011 Bottom Layer Top Layer 2.5 2.0 3.5 0.4 Matching Circuit 1.8 Unit : mm Unit : mm 1030 18 Fig. 2 Outlook and dimension of evaluation board REFERENCE DESIGN OF EVALUATION BOARD Fig. 3 Details of soldering Pad www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 5 6 Product specification Ceramic Chip Antenna 2.0 2.13.0 f (GHz) Return loss (dB) −50 −30 −10 10 30 50 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 YNH0012 1 2 3 Fig. 4 Return loss ELECTRICAL PERFORMANCES YNH0013 Y X Z Z axle X axleY axle Gain (dBi) 5.00 − 0.00 − − 5.00 − − 10.00 − − 15.00 − − 20.00 − − 25.00 − − 30.00 − − 35.00 − Fig. 5 Radiation pattern Max gain = 5.05 dBi, at (180, 60) MEG (mean effective ga…

Text truncated - open the document above for the full version.
