2BN3C-E3Electric Scooter

Electric Scooter E3 User Manual Please keep properly for future reference: Please read carefully. 1 Table of Contents Product Overview Accessories List Product Specifications Assembly Charging Your Scooter How to Ride Folding Unfolding Safety Precautions Cleaning and Storage Battery Maintenance Environmental Protection After-Sales Service Non-Warranty Items Warranty Coverage User Information Manufacturer Information Fault Codes APP User Guide 2 4 4 5 6 6 7 7 8 11 11 12 12 12 12 13 14 15 19 2 Control Panel & Power Button Riding Mode Headlight Bluetooth Speedometer Temperature Warning Error Notification Battery Level Winglight Indicator Lock Power Button Product Overview Accelerator Handlebar Headlight Scooter Bell Brake Lever Stem Quick Release Lever Front Fork Front Wheel Mechanical Brake Quick Release Lever Lock Deck Hook Taillight Rear Mudguard Wheel Motor Battery Compartment Kickstand Buckle Winglight Control Panel & Power Button 3 Dashboard Interface Function Description Gear Modes: ( )The pedestrian mode gear is walking mode, with a maximum speed of about 4 mph (6 km/h); the M gear is standard mode, with a maximum speed of about 9 mph (15 km/h); the H gear is sport mode, with a maximum speed of about 20 mph (32 km/h). Speedometer: When powered on, all icons are fully displayed for 1 second, then the current speed is shown. Battery Indicator: Displays remaining battery; when the battery is at 10%, the red light flashes. Power On Operation: From the off/sleep state, short press the power button to turn on, and the screen lights up. Power Off Operation: Prerequisite: The user’s app has not enabled the auto-lock power-off feature. - In standby mode, long press the power button for 3 seconds to turn off the device; the screen will go dark. The device cannot be powered off if the speed is ≥2 mph. - In standby mode, if the scooter speed is 0 mph and the scooter is not operated for ≥X minutes (X is the auto power-off time set in the app, selectable as 2, 5, or 10 minutes, default is 10 minutes), the scooter powers off automatically and the screen goes dark. Cruise Control Function - Activation: Off by default, can be turned on/off in the app settings. - Trigger Conditions: During riding, if the vehicle speed remains at X mph (km/h) for 5 seconds, cruise control is activated. - Exiting Cruise: Squeeze the brake, press the thumb switch, or change gear to exit cruise control; single click of the headlight on/off does not exit cruise control. 4 Product Specifications Product Name: ELECTRIC SCOOTER Model:E3 Unfolded Dimensions: 127.4 x 59.5 x 129.2 cm / 50.15 x 23.42 x 50.86 inches Folded Dimensions:127.4 x 59.5 x 61.9 cm / 50.15 x 23.42 x 24.37 inches Package Dimensions:131 x 19 x 66 cm / 51.57 x 7.48 x 25.98 inches Package Weight:31.85 kg / 70.22 lb Max Load Capacity:≤120 kg / 265 lb Recommended Age: 12-50 years Recommended Height:140-200 cm Max Speed: 20 mph / 32 km/h Nominal Range: 28 miles / 45 km Max Climbing Grade:Approx. 18% Suitable Surfaces: Cement/asphalt pavement with grooves <1 cm (0.4 in) or cracks <3 cm (1.2 in) Operating Temperature:-10°C to 40°C IP Rating:IPX5 Charging Time:Approx. 8 hours Battery Model:DT3610CT-LQ-06 Accessories List User Manual / Service Card Power AdapterT-handle Allen key Screws 5 Rated Voltage (VDC):36V Max Charging Voltage (VDC): 42V Rated Energy (Wh):360Wh Rated Capacity (Ah): 10Ah Normal Charging Temperature Range: 0°C to 40°C Smart BMS Protections: Overcharge/Over-voltage/Undervoltage/Short Circuit/Overcurrent/Overheat, etc. Motor Power:650W MAX Charger Model:GC72-410150-D Output Power (W):61.5W Input Voltage (VAC):100V-240V Max Output Voltage (VDC): 42V Rated Output (VDC; A):41.0V; 1.5A Tires:12-inch Vacuum tire Braking System: Front drum brake & rear e-brake 1. Pull the folding handle upward until you hear a clear 'click' sound. Then, pull the folding handle again to confirm the lock is in place. 2. Secure the handlebar using the 6 included screws. Then, use the T-handle Allen key to further tighten the screws. Assembly 6 Charging Your Scooter 1. When the charger is connected to a power source, the indicator light should turn green. 2. When the charger is connected to the scooter, the indicator light should change from green to red. 3. Once the scooter is fully charged, the indicator light should turn green again. Charging Steps 1. Open the rubber cover 2. Insert the power adapter into the charging port 3. Secure the rubber cover after charging Important Notes: Use only the original power adapter when charging. Keep away from children and pets during charging, and ensure it is not near flammable materials. Do not charge or use the scooter if the battery emits unusual odors, overheats, or leaks. Do not open the battery pack or insert any objects into the charging port, as the battery contains hazardous materials. If the scooter will not be used for an extended period, fully charge it, store it in a cool, dry environment, and recharge it fully every 30 days. How to Ride 1. Power On Press the power button to start the electric scooter. Check the battery level on the display. If the level is low, charge the scooter before riding. 2. Start Riding Place one foot on the deck and use the other foot to push off the ground. The motor will engage automatically when the scooter reaches a speed of about 3 mph (5 km/h). 3. Accelerate Place your other foot on the deck while riding and gently press the throttle to engage the motor. 123 7 4. Steering and Braking To turn or slow down, release the throttle and use the brake lever for smooth and safe stopping. Folding 1. Turn Off the Scooter Press the power button to turn off the scooter. 2. Unlock and Fold Pull up the safety lock on the side of the scooter, then pull the handlebar away from the scooter base to release it. Fold the stem down, align the hook on the stem with the fixed slot at the rear of the scooter, and connect them. 3. Secure the Folded Position Slightly lift the stem to ensure it is securely fastened a…

Text truncated - open the document above for the full version.

Rev 1/26/2023 (SINO MEGWELL TECH INC) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01-17-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BN3C-E3 SINO MEGWELL TECH INC certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. SINO MEGWELL TECH INC certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, John Liu X Rev 1/26/2023 (APPLICANT’S COMPANY LETTERHEAD) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01-17-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BN3C-E3 SINO MEGWELL TECH INC certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, John Liu

SINOMEGWELLTECHINC 20153PASEODELPRADOWALNUT,CA91789,UnitedStatesofAmerica FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 1/15/26 U.S.AgentDesignation SINOMEGWELLTECHINCacknowledgestheirconsentforthefollowingcontactlocatedinthe UnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationis sought(FCCID:2BN3C-E3): NameandcompanyofU.S.agent:SINOMEGWELLTECHINC PhysicalU.S.addressofagent:20153PASEODELPRADOWALNUT,CA91789,UnitedStatesof America FRNofU.S.agent:0036755650 EmailaddressofU.S.agent:[email protected] ContactName:JohnLiu Tel:+1(657)252-7626 SINOMEGWELLTECHINCacknowledgestheirobligationtoacceptserviceofprocessonbehalfof SINOMEGWELLTECHINC SINOMEGWELLTECHINCwiththeFRN0036755650acceptsitsobligationtomaintainanagentfor serviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,or theconclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRas wellaskDB986446D01. Anexpirationdateforthisletterdoesnotexist.incasetheUs.agentchangesthearanteeisoblicated tonotiftheFCCwithin30daysviathegrantingTCB. Sincerely, Signature Name:JohnLiu Title:Manager Company:SINOMEGWELLTECHINC Signature NameofU.S.agent:JohnLiu TitleofU.S.agent:Manager CompanyofU.S.agent:SINOMEGWELLTECH INC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

Antenna spec Antenna Description: ModelBT-ANT Antenna typeMicrotrip Antenna Frequency range 2400MHz~2500MHz Center Frequency HorizontalVertical 2400M Hz 2450M Hz 2500M Hz 2400M Hz 2450M Hz 2500M Hz 1.532.182.600.871.241.75 MAX. Gain2.6 dBi Connect typeDirect Connect ManufacturerChipsea Technologies(Shenzhen)Corp Address Room 201, Building A, No.1 Qianwan 1st Road, Qianhai Shenzhen-Hong Kong Cooperation Zone, Shenzhen Antenna Photo (mm): FCC ID2BN3C-E3 3：Antenne radiation pattern

SINO MEGWELL TECH INC Date：01-17-2026 Product Model Number: FCC ID：2BN3C-E3 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +1 (657) 252-7626 On behalf of: SINO MEGWELL TECH INC

SINO MEGWELL TECH INC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: January 17, 2026 Subject; Request for Confidentiality FCC ID: 2BN3C-E3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: John Liu Title: Manager X X X

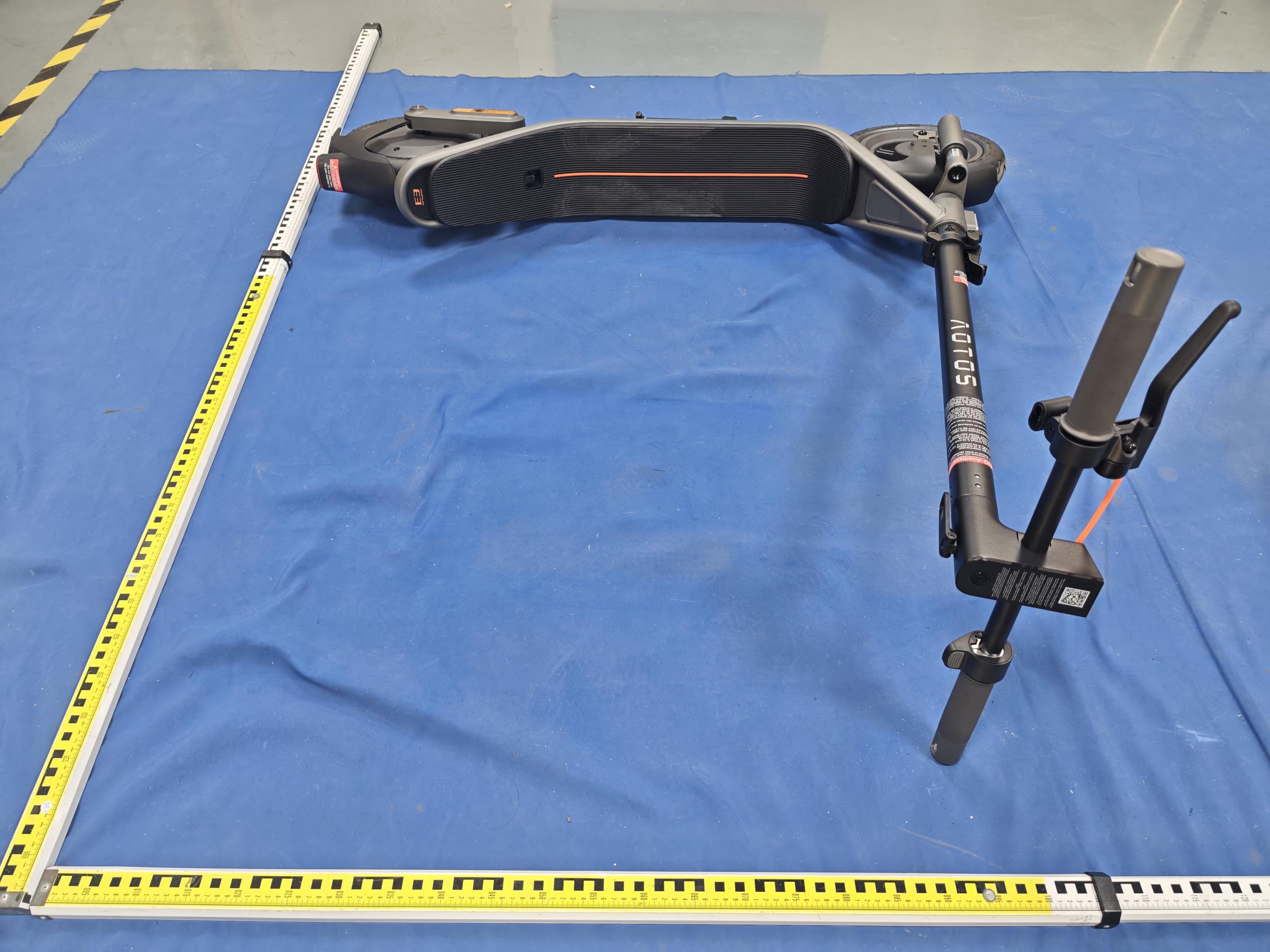

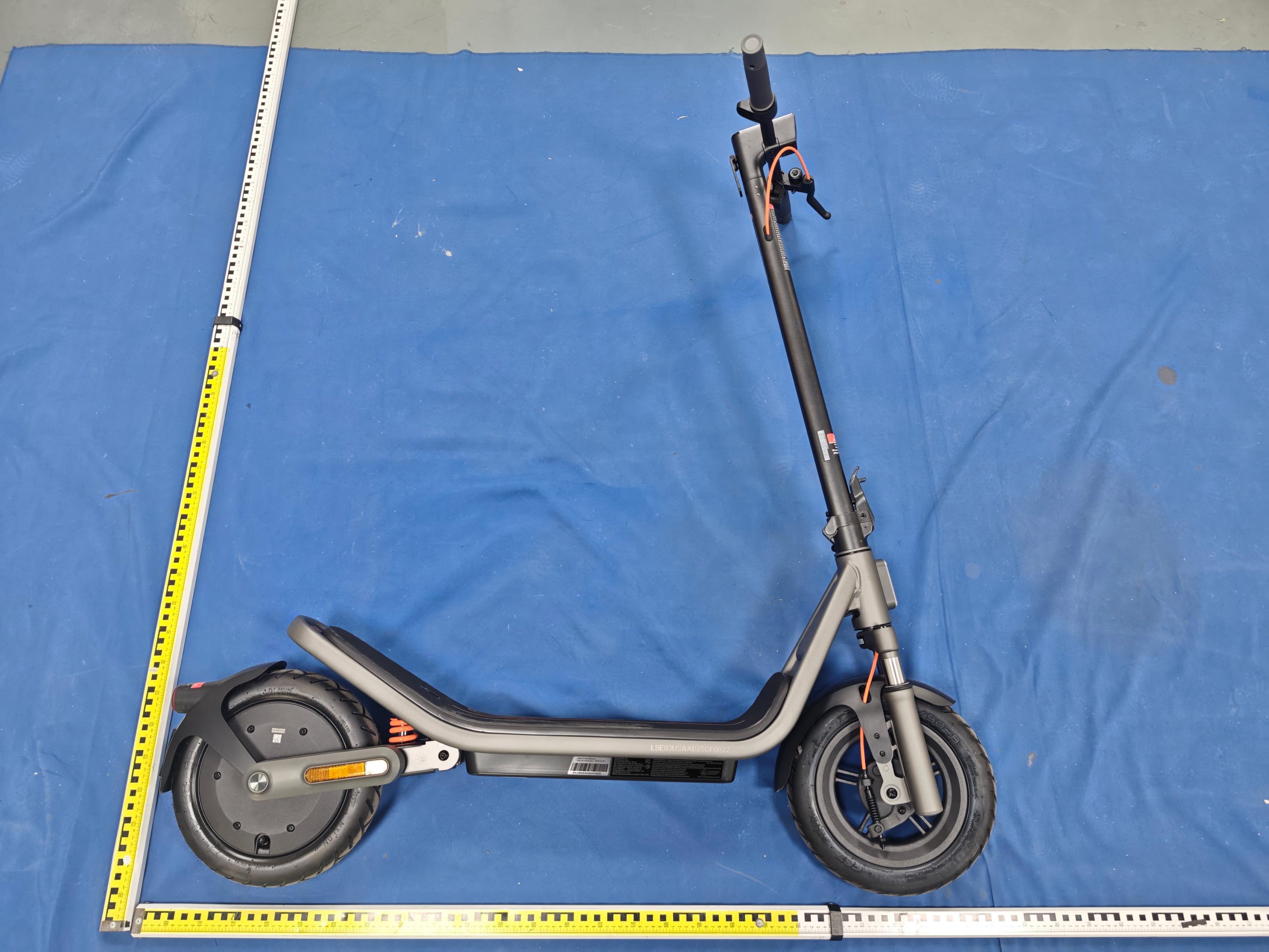

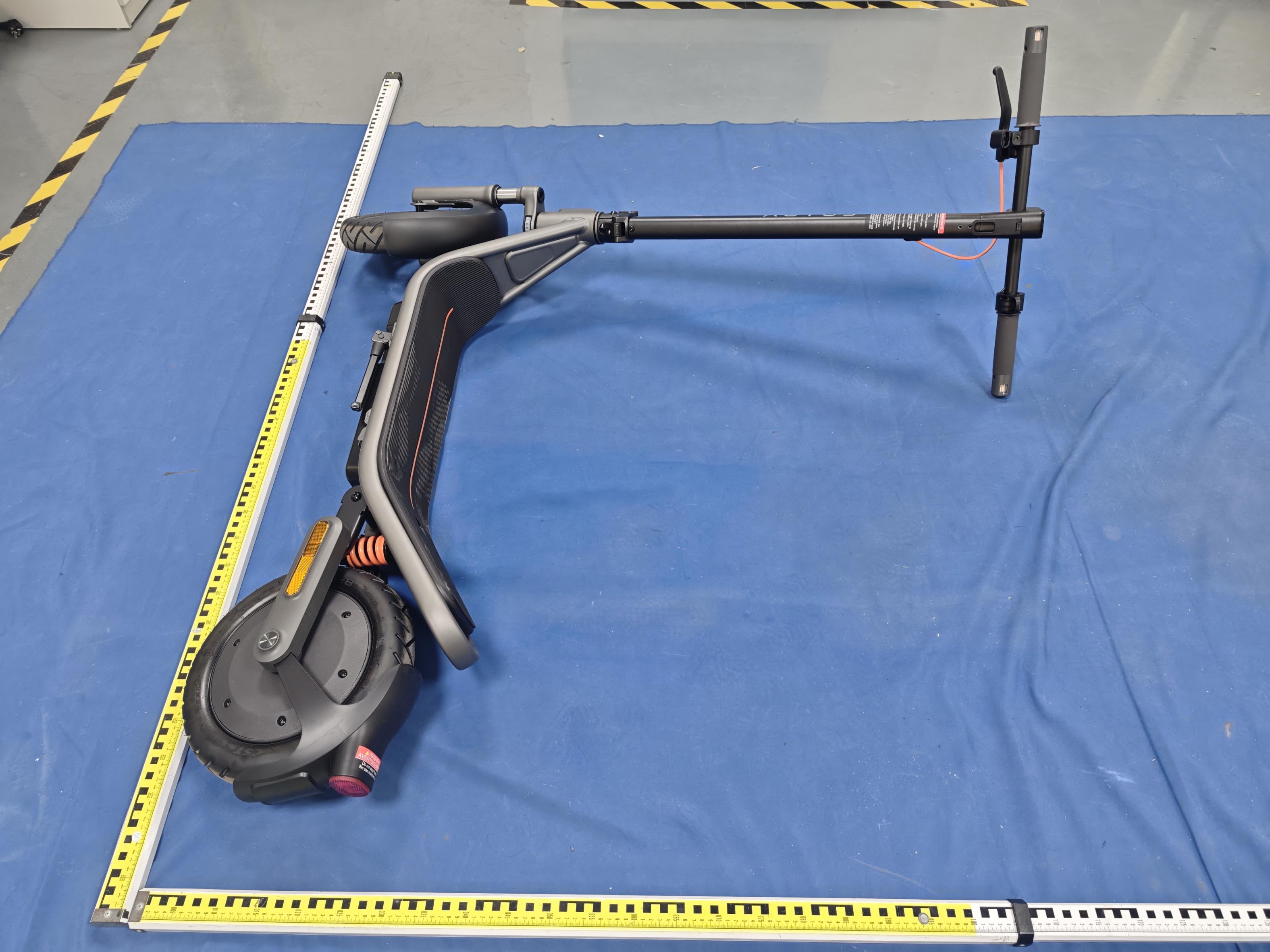

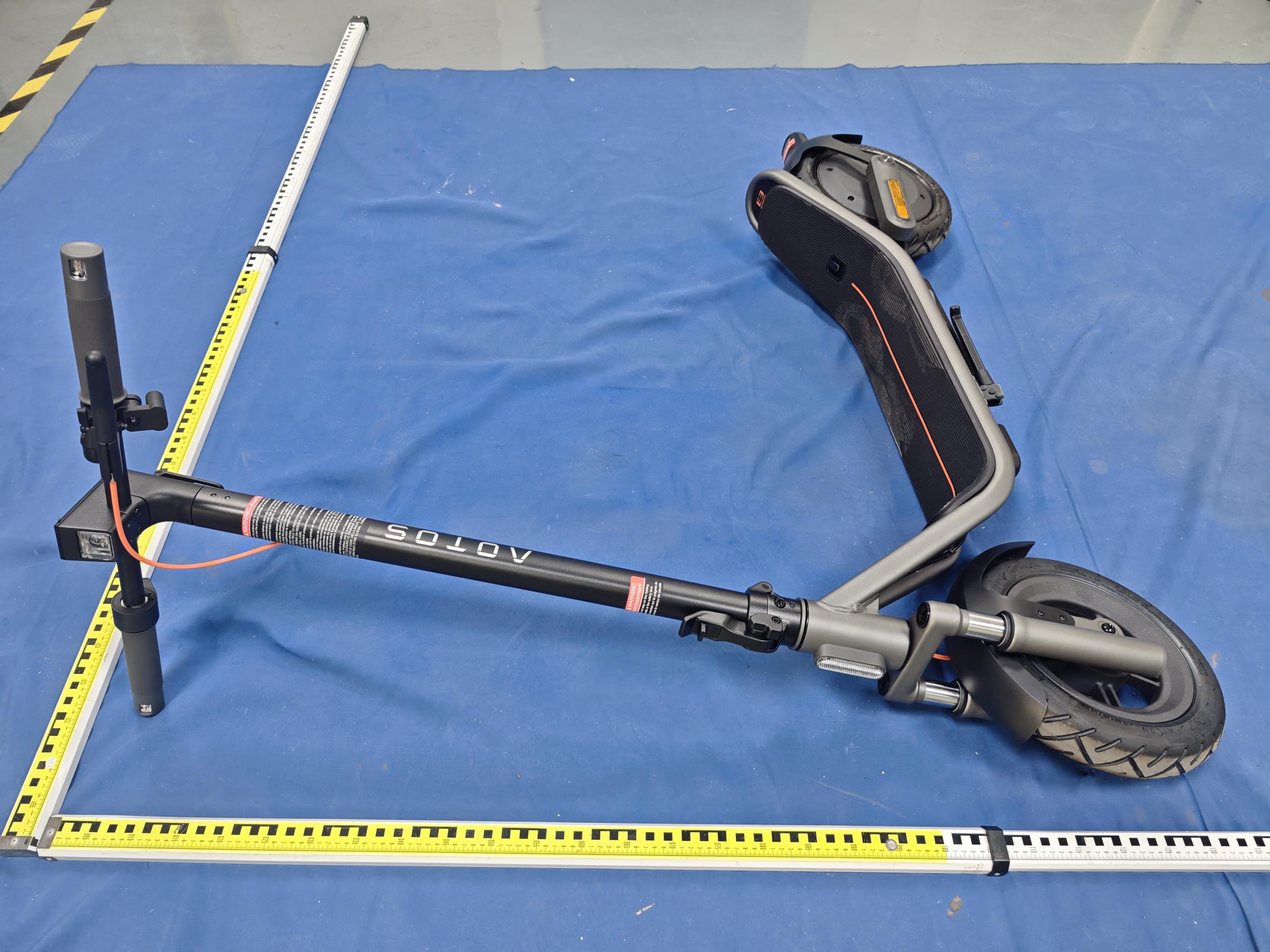

FCCID:2BN3C-E3 ExternalPhotosoftheEUT Fig.1 Fig.2 FCCID:2BN3C-E3 Fig.3 Fig.4 FCCID:2BN3C-E3 Fig.5 Fig.6 FCCID:2BN3C-E3 Fig.7 Fig.8

FCCID:2BN3C-E3 labelandlocation Size:L:45mm*W:30mm Fig.1 FCCID:2BN3C-E3 ElectricScooter Model:E3 Input:DC41.0V/1.5A SINOMEGWELLTECHINC

FCCID:2BN3C-E3 InternalPhotosoftheEUT Fig.1 Fig.2 Bluetooth Antenna FCCID:2BN3C-E3 Fig.3 Fig.4 FCCID:2BN3C-E3 Fig.5 Fig.6 FCCID:2BN3C-E3 Fig.7 Fig.8

Page 1 of 2 RFExposureevaluation FCCID:2BN3C-E3 1.1.ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498D01GeneralRFExposureGuidancev06:RFEXPOSUREPROCEDURESANDEOUIPMENT AUTHORIZATIONPOLICIESFORMORILEANDPORTARLEDEVICES 1.2.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22Theminimum testseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresor outersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements, toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbytheoperating configurationsandexposureconditionsofthetransmitterandapplicablehostplatformrequirements,typically intheSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRFexposureKDB procedures.WhennootherRFexposuretestingorreportingisrequired,astatementofjustificationand compliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,toqualifyfortheSARtest exclusion.Whenrequired,thedevicespecificconditionsdescribedintheotherpublishedRFexposureKDB proceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTT two-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)] · [√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison • 3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto5)insection4.1isappliedtodetermineSARtestexclusion. 1.3.Manufacturingtolerance BLE(Peak) GFSK ChannelChannel00Channel19Channel39 Target(dBm)1.01.01.0 Tolerance±(dB)1.01.01.0 2.EvaluationResult EvaluationResults Band/Modef(GHz) Antenna Distance (mm) RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW BLE2.48052.01.58490.4992<3.0Yes Page 2 of 2 3.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06. .....................EndofReport.........................

ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: GRCTR251203072-01 2BN3C-E3 Compiledby (position+printedname+signature) .. : TestingEngineerJimmyWang Supervisedby (position+printedname+signature)..: ProjectEngineerKelleyZhang Approvedby (position+printedname+signature)..: ManagerSamWang Dateofissue.........................................:Jan.08,2026 TestingLaboratoryName................: ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address ................................................. : 101#,BuildingK&BuildingT,TheSecondIndustrialZone,Jiazitang Community,FenghuangStreet,GuangmingDistrict,Shenzhen, China Applicant’sname...............................: SINOMEGWELLTECHINC Address.................................................: 20153PASEODELPRADOWALNUT,CA91789,UnitedStatesof America Testspecification..............................: Standard................................................:FCCPart15.247 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerand sourceofthematerial.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesno responsibilityforandwillnotassumeliabilityfordamagesresultingfromthereader'sinterpretationofthe reproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ : ElectricScooter TradeMark ............................................ : / Manufacturer ......................................... : SINOMEGWELLTECHINC Model/Typereference.........................: E3 ListedModels......................................: / FirmwareVersion.................................:V1.0 HardwareVersion ................................ :V1.0 Modulation ........................................... : GFSK Frequency.............................................. From2402MHzto2480MHz Ratings ................................................... :41.0V1.5A(chargedbyPowerAdapter)or 36.0V10Ah(ByLi-ionrechargeablebattery) Result.....................................................: PASS ReportNo.:GRCTR251203072-01Page 2 of 36 TESTREPORT EquipmentunderTest:ElectricScooter Model/Type:E3 ListedModels:/ Applicant : SINOMEGWELLTECHINC Address: 20153PASEODELPRADOWALNUT,CA91789,UnitedStates ofAmerica Manufacturer : SINOMEGWELLTECHINC Address: 20153PASEODELPRADOWALNUT,CA91789,UnitedStates ofAmerica TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR251203072-01Page 3 of 36 Contents 1TESTSTANDARDS..............................................................................................................................4 2SUMMARY.................................................................................................................................................5 2.1GeneralRemarks..........................................................................................................................................5 2.2ProductDescription.....................................................................................................................................5 2.3EquipmentUnderTest.................................................................................................................................5 2.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................5 2.5EUTconfiguration.........................................................................................................................................5 2.6EUToperationmode.....................................................................................................................................6 2.7BlockDiagramofTestSetup.......................................................................................................................6 2.8RelatedSubmittal(s)/Grant(s)...................................................................................................................6 2.9Modifications.................................................................................................................................................6 3TESTENVIRONMENT........................................................................................................................7 3.1Addressofthetestlaboratory....................................................................................................................7 3.2TestFacility...................................................................................................................................................7 3.3Environmentalconditions............................................................................................................................7 3.4Summaryofmeasurementresults..............................................................................................................8 3.5Statementofthemeasurementuncertainty..............................................................................................8 3.6EquipmentsUsedduringtheTest..............................................................................................................9 4TESTCONDITIONSANDRESULTS.......................................................................................10 4.1ACPowerConductedEmission................................................................................................................10 4.2RadiatedEmissionsandBandEdge........................................................................................................13 4.3Maximu…

Text truncated - open the document above for the full version.

FCCID:2BN3C-E3 TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 FCCID:2BN3C-E3 TestSetupPhotoofLineConductedEmissionsMeasurement Fig.3 TestSetupPhoto(s)ofRFMeasurement Fig.4
