AI Smart Glasses User Manual Thank you for choosing our company's AI smart glasses. You can comprehensively understand the usage of the device by reading this manual. This device mainly connects to your phone through Bluetooth for adaptation and provides various practical functions and services to facilitate your operation of the phone. Our company reserves the right to modify the content of this manual without prior notice. This product does not support IP67 waterproof rating, and cannot be worn in rain, hand washing, swimming, hot showers or saunas to prevent water vapor. If the smart glasses are damaged due to water ingress caused by improper use, our company does not provide free warranty. Connection between watch and mobile phone: First, the mobile phone must download the APP "RDGlass" to the mobile phone and install it in two ways。 1、IOS/Android phone user： Scan the QR code below through the mobile browser, or scan it with WeChat. When the interface is opened, click the Android/iOS download option and choose to open the download with the mobile browser. The QR code in the figure below is the RDGlass APP download Android/iOS 2、For Android phones, search for "RDGlass" and download in App Store, Google Play, and various mobile app stores, and for Apple phones, search for "RDGlass" and download on the App Store. After the download is complete, there will be various permission reminders during the installation process, click to agree to all, and the glass and the mobile phone must be connected to two Bluetooth 3.0 and 4.0 to realize all functions. Bluetooth BLE connection method: After the installation is complete, open "RDGlass" and turn on the Bluetooth of the mobile phone.RDGlass will show a prompt for enabling permissions, click OK. Click More in the lower right corner, enter Scan Device, search for Bluetooth address and click Connect. Some Android phones need to turn on the GPS of the phone to search for the Bluetooth name of the glass. Bluetooth BT connection method: Turn on the bluetooth of the mobile phone,click the bluetooth name of the glass you want to connect-connect the bluetooth device according to the prompt, and the mobile phone displays "Connected" Simple handling methods for common problems: Since the Bluetooth protocol of each mobile phone brand is not uniform, sometimes the Bluetooth connection between the mobile phone and the glass may be unstable. You can turn off the Bluetooth of the mobile phone and reconnect it again, or reset the glass to factory settings. Operating Instructions Button Instructions 1、Right front button: Long press 2S, power on; Long press 5S, power off; Long press 10S, factory reset Powered on: Single click to take photo Powered on: Double click to start recording; During recording, single click to stop During incoming call: Single click to answer, long press 3S to reject; During call, single click to hang up 2、Right rear button: Powered on with Bluetooth connected: Single click to activate AI voice assistant AI quick image recognition: Double click Recording: Long press to start; During recording, single click to stop 3、Right Touch Control Area: Play/Pause Music: Double-tap the touch control area. Adjust Volume: Swipe forward to increase volume, swipe backward to decrease volume. Skip to Next Track: Long-press the touch control area. Skip to Previous Track: Triple-tap the touch control area. 眼镜按键和触控附图 Touch and Swipe Function Button Instructions: 1. Play/Pause Music (Double-tap touch area) Function/Operation: Quickly double-tap the touch area to play or pause current audio.Key Points: - Two taps must be rapid (<0.5 sec apart) and in roughly the same spot. - Double-tap to pause during playback, double-tap again to resume. 2. Volume Adjustment (Swipe control)Operation: - Volume Up: Swipe forward (toward lenses) on the touch area. - Volume Down: Swipe backward (toward ear) on the touch area.Key Points: - Swipe must be clear and continuous (approx. 1 cm travel). - Each swipe adjusts volume by one step; continuous swipes allow rapid adjustment. 3. Skip to Next Track (Long-press touch area) Function/Operation: Press and hold the touch area for about 1 second , then release to skip to next track.Key Points: - Must maintain pressure until feedback is received; brief presses won’t trigger. - This action will skip the currently playing item. 4. Skip to Previous Track (Triple-tap touch area) Function/Operation: Extremely rapid triple-tap the touch area to return to previous track (or restart current track if just started).Key Points: - Three taps must be faster than double-tap speed. - Position should be consistent for reliable detection. - If executed during first few seconds of playback, restarts current track; otherwise skips to previous. Main function introduction: AI: Wake-up phrase in English: "Hello Glasses". After activation, ask questions like"(What's in front of me?)". The glasses will automatically take a photo (within ~5seconds) and analyze object information Take photos and record videos:Press the front right button once to take a photo, double-click the front right button to start recording, and press the front right button once to stop recording. View photos/Video in the APP album. To save to phone, click "Turn on the auto-save button" in the APP – photos will auto-save to your phone album. Recording：Long press (~2 second) until prompt tone starts recording. Access recordings in APP album's "Audio" section. Click "Turn on the auto-save button" to auto-save to phone. Charging instructions: Use magnetic charging. Place the glasses on the magnetic charger.Compatible with standard 5V USB power sources (e.g., computer USB or phone charger). Full charge takes approximately 120 minutes. Note: Low battery warning: When below 16%, you cannot take photos, record videos, or record audio, and there will be a warning sound until the device shuts down. Warranty Description: 1. If there are any quality problems caused by manufacturing, materials, design,…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .................... : FCC ID. ........................................... : CTA25120400403 2BN53-AIMB-G5 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 11, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Huaxinchen Technology Co., Ltd Address ........................................... : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Standard .......................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : AI Smart Glasses With Wi Fi Camera Trade Mark .......................................: N/A Manufacturer .....................................: Shenzhen Huaxinchen Technology Co., Ltd Model/Type reference .......................: AiMB-G5 Listed Models ....................................: Refer to page 2 Rating................................................: DC 3.8V From battery and DC 5.0V From external circuit Result ................................................: PASS Report No.: CTA25120400403 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : AI Smart Glasses With Wi Fi Camera Model /Type : AiMB-G5 Listed Models : AiMB-G10, AiMB-G11, AiMB-G12, AiMB-G13, AiMB-G15, AiMB-G16, AiMB-G17, AiMB-G18, AiMB-G19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Huaxinchen Technology Co., Ltd Address : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Huaxinchen Technology Co., Ltd Address : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120400403 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................…

Text truncated - open the document above for the full version.

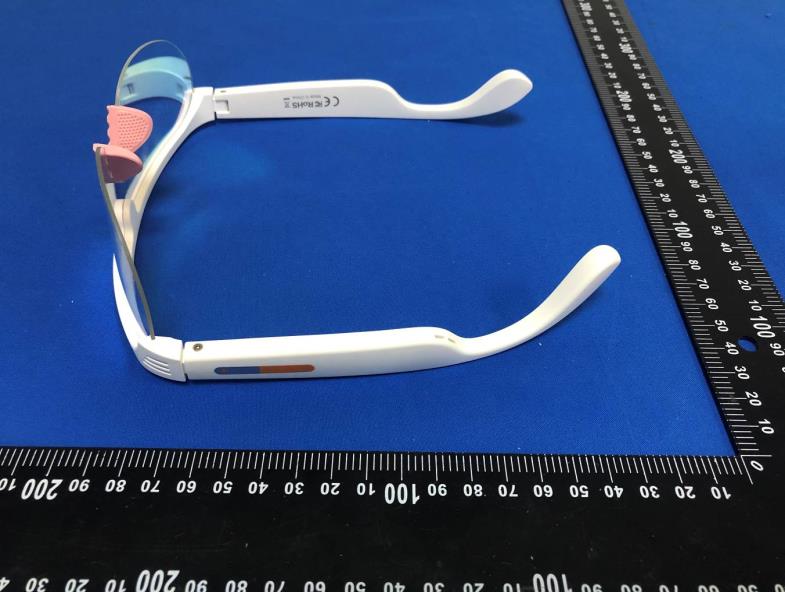

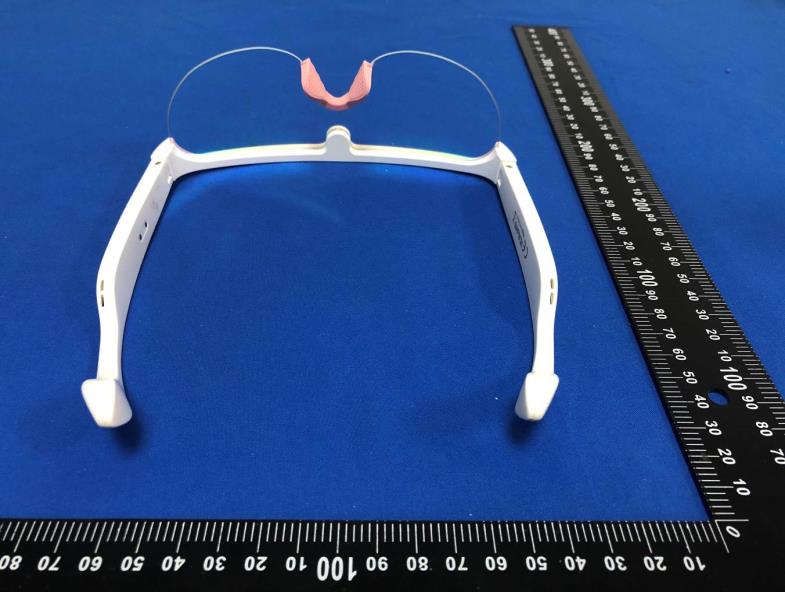

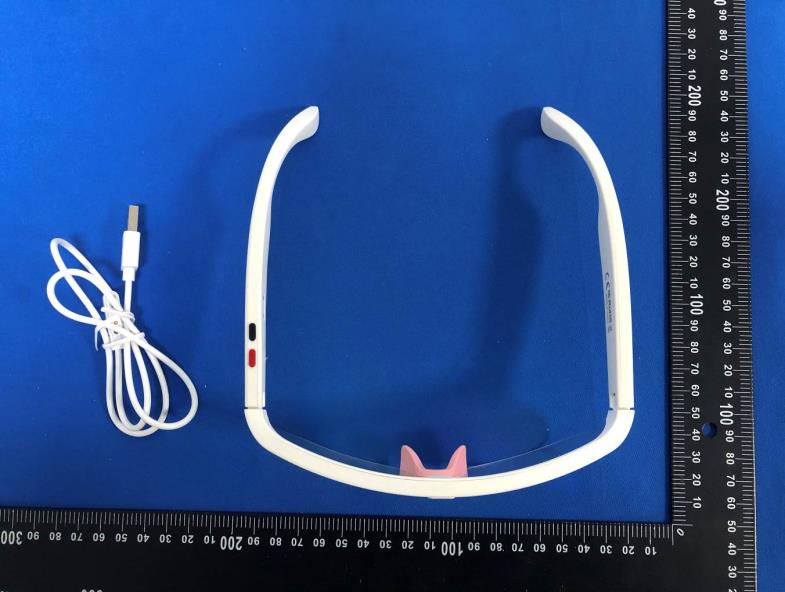

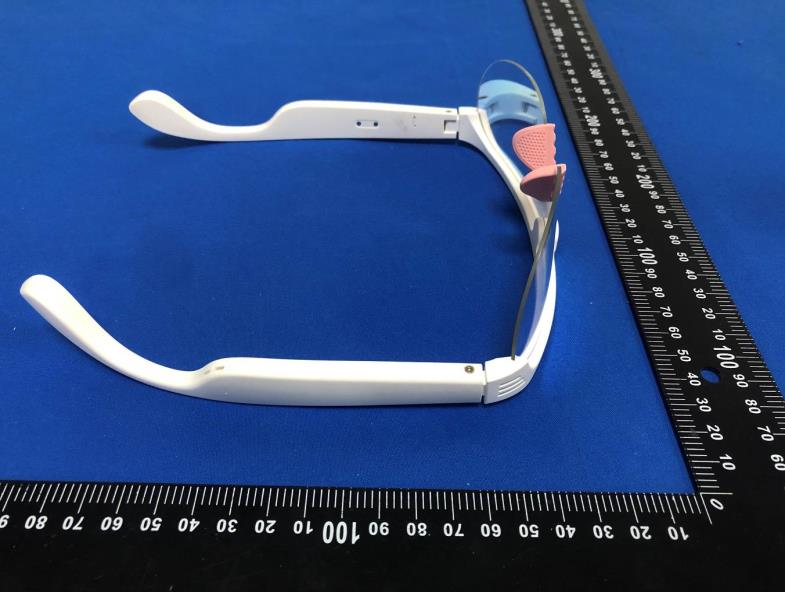

FCC ID:2BN53-AIMB-G5 Test Setup Photos of the EUT FCC ID:2BN53-AIMB-G5

1 FCC Appendix RF Test Data for BLE FCC ID : 2BN53-AIMB-G5 Company : Shenzhen Huaxinchen Technology Co., Ltd EUT : AI Smart Glasses With Wi Fi Camera Model Number : AiMB-G5 Report No. : CTA25120400401 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.652 2401.688 2402.340 0.5 PASS 2440 0.644 2439.700 2440.344 0.5 PASS 2480 0.644 2479.692 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0010 2401.5197 2402.5207 --- --- 2440 1.0072 2439.5165 2440.5237 --- --- 2480 1.0076 2479.5167 2480.5243 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 0.14 ≤30 PASS 2440 -0.27 ≤30 PASS 2480 -0.30 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.59 ≤8.00 PASS 2440 -16.42 ≤8.00 PASS 2480 -15.83 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.16 -54.11 ≤-20.16 PASS High 2480 -0.21 -51.42 ≤-20.21 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.87 -0.87 --- PASS 30~1000 -0.87 -67.86 ≤-20.87 PASS 1000~26500 -0.87 -44.44 ≤-20.87 PASS 2440 Reference -1.65 -1.65 --- PASS 30~1000 -1.65 -67.89 ≤-21.65 PASS 1000~26500 -1.65 -43.3 ≤-21.65 PASS 2480 Reference -1.88 -1.88 --- PASS 30~1000 -1.88 -68.41 ≤-21.88 PASS 1000~26500 -1.88 -45.53 ≤-21.88 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BN53-AIMB-G5 Company : Shenzhen Huaxinchen Technology Co., Ltd EUT : AI Smart Glasses With Wi Fi Camera Model Number : AiMB-G5 Report No. : CTA25120400402 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.600 2408.040 2416.640 0.5 PASS 2437 8.480 2433.040 2441.520 0.5 PASS 2462 9.160 2457.440 2466.600 0.5 PASS 11G Ant1 2412 16.280 2403.960 2420.240 0.5 PASS 2437 16.360 2428.880 2445.240 0.5 PASS 2462 16.320 2453.880 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.360 2403.400 2420.760 0.5 PASS 2437 17.240 2428.400 2445.640 0.5 PASS 2462 17.280 2453.400 2470.680 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.969 2405.5814 2418.5504 --- --- 2437 12.966 2430.5635 2443.5295 --- --- 2462 13.006 2455.5128 2468.5188 --- --- 11G Ant1 2412 16.557 2403.7752 2420.3322 --- --- 2437 16.575 2428.7398 2445.3148 --- --- 2462 16.545 2453.7524 2470.2974 --- --- 11N20SISO Ant1 2412 17.454 2403.3347 2420.7887 --- --- 2437 17.466 2428.3094 2445.7754 --- --- 2462 17.449 2453.3195 2470.7685 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 3.31 ≤30.00 PASS 2437 3.91 ≤30.00 PASS 2462 4.06 ≤30.00 PASS 11G Ant1 2412 4.25 ≤30.00 PASS 2437 5.05 ≤30.00 PASS 2462 4.98 ≤30.00 PASS 11N20SISO Ant1 2412 4.46 ≤30.00 PASS 2437 5.17 ≤30.00 PASS 2462 5.22 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -25.52 ≤8.00 PASS 2437 -24.75 ≤8.00 PASS 2462 -25.48 ≤8.00 PASS 11G Ant1 2412 -30.14 ≤8.00 PASS 2437 -29.33 ≤8.00 PASS 2462 -29.52 ≤8.00 PASS 11N20SISO Ant1 2412 -30.03 ≤8.00 PASS 2437 -29.03 ≤8.00 PASS 2462 -29.46 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -10.75 -58.21 ≤-30.75 PASS High 2462 -9.76 -57.22 ≤-29.76 PASS 11G Ant1 Low 2412 -16.29 -52.83 ≤-36.29 PASS High 2462 -15.54 -57.55 ≤-35.54 PASS 11N20SIS O Ant1 Low 2412 -16.54 -53.48 ≤-36.54 PASS High 2462 -15.76 -57.43 ≤-35.76 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -12.63 -12.63 --- PASS 30~1000 -12.63 -60.84 ≤-32.63 PASS 1000~26500 -12.63 -45.16 ≤-32.63 PASS 2437 Reference -11.93 -11.93 --- PASS 30~1000 -11.93 -61.72 ≤-31.93 PASS 1000~26500 -11.93 -45.64 ≤-31.93 PASS 2462 Reference -10.82 -10.82 --- PASS 30~1000 -10.82 -60.98 ≤-30.82 PASS 1000~26500 -10.82 -46.21 ≤-30.82 PASS 11G Ant1 2412 Reference -16.91 -16.91 --- PASS 30~1000 -16.91 -65.13 ≤-36.91 PASS 1000~26500 -16.91 -44.48 ≤-36.91 PASS 2437 Reference -15.60 -15.60 --- PASS 30~1000 -15.60 -65.35 ≤-35.6 PASS 1000~26500 -15.60 -45.04 ≤-35.6 PASS 2462 Reference -16.04 -16.04 --- PASS 30~1000 -16.04 -64.89 ≤-36.04 PASS 1000~26500 -16.04 -45.59 ≤-36.04 PASS 11N20SISO Ant1 2412 Reference -16.70 -16.70 --- PASS 30~1000 -16.70 -65.02 ≤-36.7 PASS 1000~26500 -16.70 -44.63 ≤-36.7 PASS 2437 Reference -15.86 -15.86 --- PASS 30~1000 -15.86 -64.26 ≤-35.86 PASS 1000~26500 -15.86 -45.02 ≤-35.86 PASS 2462 Reference -16.69 -16.69 --- PASS 30~1000 -16.69 -65.32 ≤-36.69 PASS 1000~26500 -16.69 -45.77 ≤-36.69 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25120400402 2BN53-AIMB-G5 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 11, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Huaxinchen Technology Co., Ltd Address ............................................ : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : AI Smart Glasses With Wi Fi Camera Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Huaxinchen Technology Co., Ltd Model/Type reference ...................... : AiMB-G5 Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 3.8V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25120400402 Page 2 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : AI Smart Glasses With Wi Fi Camera Model /Type : AiMB-G5 Listed Models : AiMB-G10, AiMB-G11, AiMB-G12, AiMB-G13, AiMB-G15, AiMB-G16, AiMB-G17, AiMB-G18, AiMB-G19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Huaxinchen Technology Co., Ltd Address : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Huaxinchen Technology Co., Ltd Address : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120400402 Page 3 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory .............…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25120400401 2BN53-AIMB-G5 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Dec. 11, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Huaxinchen Technology Co., Ltd Address ...........................................: 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : AI Smart Glasses With Wi Fi Camera Trade Mark ......................................: N/A Manufacturer ...................................: Shenzhen Huaxinchen Technology Co., Ltd Model/Type reference .....................: AiMB-G5 Listed Models ..................................: Refer to page 2 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 3.8V From battery and DC 5.0V From external circuit Result ..............................................: PASS Report No.: CTA25120400401 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : AI Smart Glasses With Wi Fi Camera Model /Type : AiMB-G5 Listed Models : AiMB-G10, AiMB-G11, AiMB-G12, AiMB-G13, AiMB-G15, AiMB-G16, AiMB-G17, AiMB-G18, AiMB-G19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Huaxinchen Technology Co., Ltd Address : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Huaxinchen Technology Co., Ltd Address : 3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result wi…
