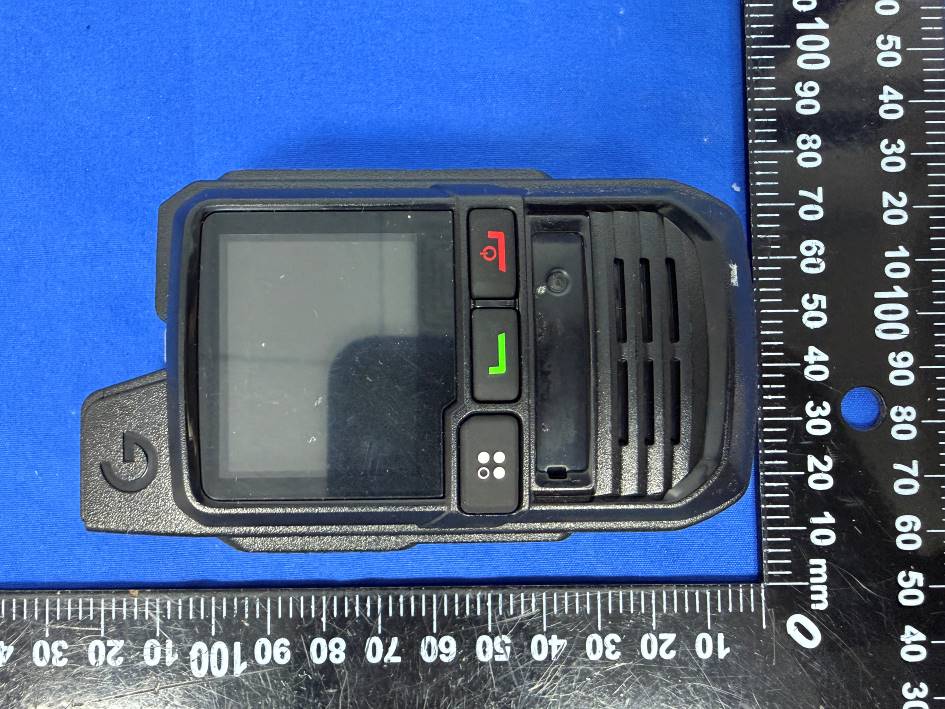

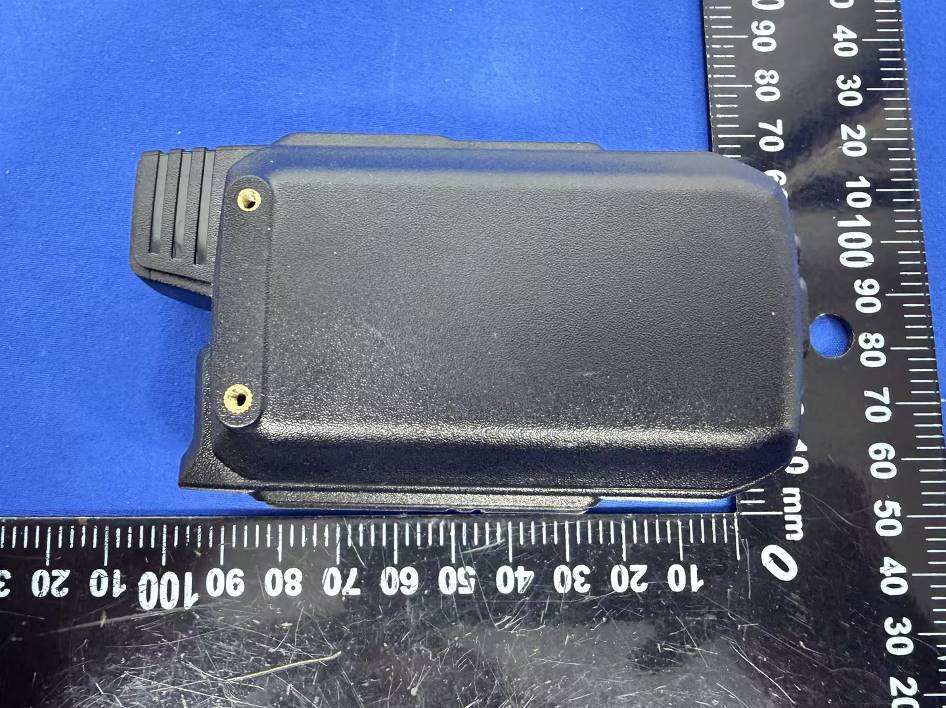

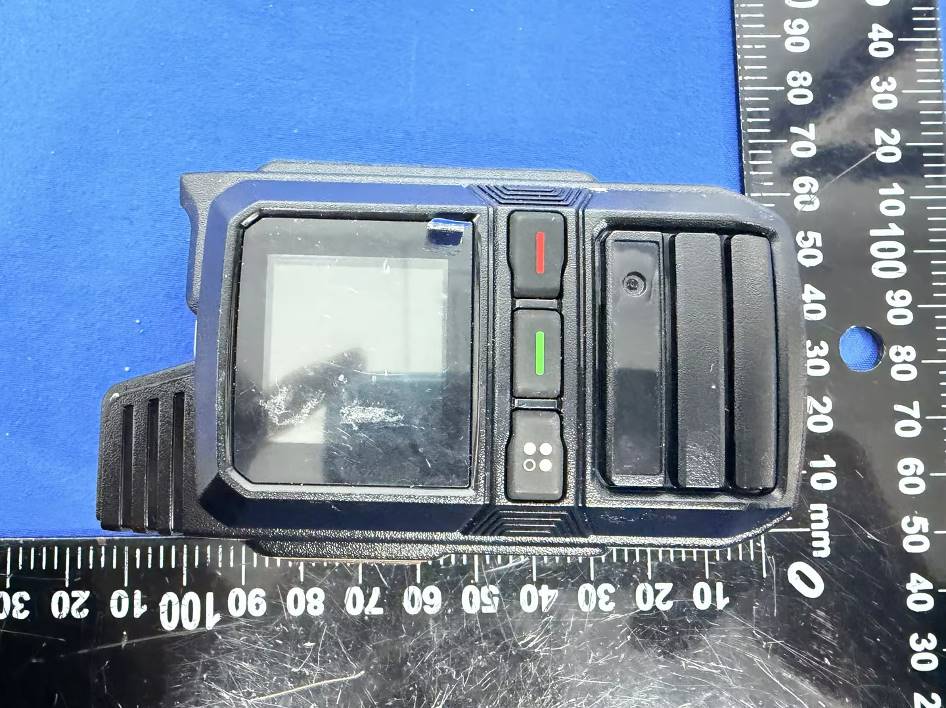

2BNA5-R2804G LTE POC RADIO

User Manual Introduction National call, colorful display screen, large-sized PTT key, time zone, priority speaker, monitor. Including private call, group call, friend group, remote update. A group can accommodate up to 10,000 users! With ultra-low call latency, high-definitionvoice, and strong signal transmission and reception capabilities, we are committed to helping company, security, property, municipal, logistics, shops, home use and other users achieve more effective work communication. Content of the packaging • 1 Radio • 1 Li-Ion Battery • 1 Adapter • 1 Type-C Cable • 1 Belt Clip • 1 lanyard • 1 Owner’s Manual If any item is missing, please verify with your dealer. Product Features 1. Power On/Off key • Press and hold the Power key for 3 seconds to turn on the radio. • Press and hold the Power key for 3 seconds to turn off the radio. 2. PTT key • Press and hold the PTT key to initiate a call, and the red indicator light will remain on. • Release the PTT key to return to receiving state, and the green indicator light will remain on during the receiving process. 3. Vol + key • Short press Vol+ key to increase the volume. 4. Vol - key • Short press Vol- key to decrease and decrease the volume. 5. Menu keys 5.1 short press menu key to enter menu list，long press menu key to Activate/Close the keyboard lock. 5.2 Group select: Select a group to initiate group calls. 5.3 Member select: Select a member to initiate a private call. Note: If there is no operation within 30 seconds, the Single Call status will be automatically exited. Or either party can manually exit the Single Call by press the BACK button and return to the original group call status. 6. Radio settings: 1. Card management: When two SIM cards are installed, you can choose to use the specified SIM card. 2. Power save mode: Normal mode, Power save mode, Super power save mode (default). Note: When in a weak signal environment and with poor call quality, you can choose power save mode or normal mode. The call quality will be improved, but the machine also consumes more power. 3. Automatic screen shutdown: If there is no button operation within the set time, the radio will automatically shut down the screen. 4. Transmit prompt sound: After enabling this function, press and releas the PTT key will emit a "beep" prompt sound, which will improve the call experience. When this function is turned off, press the PTT key will result in no prompt sound. 5. Keypad sound: When this function is enabled, there will be a "beep" prompt sound when the button is pressed. When this function is turned off, there is no prompt sound when the button is pressed. 6. Keypad lock: When select menu to key lock, lock the keypad by long press the MENU key for 2 seconds, and the lock symbol will be displayed above the screen. When select automatic, the button will be automatically locked when the screen rest time is up (Note: The keypad lock function can only be used when the PTT key is available). 7. Single call exit time: refers to the maximum call time when enter the private call state. 7. Status Indications The top LED will help you to identify the current radio status. Status LED Indication Time Search Network Green light flashing fast Awaiting Green light flashing slowly 0.5S on, 3.5S off Transmitting Constant Red Receiving Constant Green Using earpiece（K type） Open the protective cover, insert the compatible earpiece, press the PTT key on the earpiece, and initiate a call. Release the PTT key to enter the receiving state. Battery charge To charge batteries in radio: 1. Insert the original adapter into the AC socket, and then insert the adapter cable into the C-shaped socket at the bottom of the radio. 2. The indicator light at the bottom of the radio turns red and will turn green when it completes charging. Installing SIM card Before using thisradio, insert a valid SIM cardinto the radio. Basic Operation On/off radio When the radio is turned off, press and hold the Power key for 3 seconds to turn on theradio. After successfully logging into the network, there will be a voice prompt with a slow green light flashing. • To turn off the 4G LTE POC RADIO, press and hold the Power key for 3 seconds. Adjust volume: When the radio is turned on, press the Vol+ key briefly to gradually increase the volume; Short press the Vol- key to gradually decrease the volume and adjust it to the appropriate level. Select a group (Group call) Short press menu key to enter the group list, press the key to browse the group: • Press the exit key to exit the group selection status, • Press the confirm key to confirm entry into the group. If you press the PTT key, you can initiate a call to the group (with a red light on), accompanied by a prompt sound and screen display. Select members (single call) Short press menu key to enter the member list, and press the key to browse members: • If you press the exit key, you can exit the member selection status • Press the confirm key to confirm the selection of the member. Now you can press the PTT key, a private call can be made to the member (with a red light on) accompanied by a prompt sound and screen display. Appendix A. – Solving guidance for problems Phenomena Solving guidance Equipment unresponsive • Low battery level: The battery may have been depleted, please replace the battery or charge it • SIM card malfunction: Check or renew/replace the SIM card • Poor battery contact: Reinstall the battery or clean the battery contact points Insufficient standby time • Battery performance degradation: replace the battery or buy one more battery for later use Charging fault • Battery performance degradation: replace the battery • Poor connection: Check the connect condition or replace the charging cable • Low battery voltage: Charge for about half an hour, then unplug and recharge again • Battery malfunction: replace the battery • Charger malfunction: replace the charger Unable to connect to the network • Signal too weak: Move to open area …

Text truncated - open the document above for the full version.

Report No.: 2507S27397E-RF-01 Page 94 of 264 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 95 of 264 20MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 96 of 264 Band 66, Normal 1.4MHz_Low_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_Low_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_Middle_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 97 of 264 1.4MHz_Middle_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_High_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_High_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 98 of 264 3MHz_Low_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_Low_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_Middle_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 99 of 264 3MHz_Middle_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 100 of 264 5MHz_Low_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Middle_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 101 of 264 5MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 102 of 264 10MHz_Low_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Middle_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 103 of 264 10MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 104 of 264 15MHz_Low_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Middle_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 105 of 264 15MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 106 of 264 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 107 of 264 20MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 108 of 264 B41_2, Normal 5MHz_Low_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Middle_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507S27397E-RF-TSP Page 1 / 5 EUT SETUP PHOTOS R280 Radiation Emission - Front View (Below 1GHz) Radiation Emission - Back View (Below 1GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507S27397E-RF-TSP Page 2 / 5 Radiation Emission - Front View (1GHz - 18GHz) Radiation Emission - Back View (1GHz - 18GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507S27397E-RF-TSP Page 3 / 5 Radiation Emission - Front View (Above 18GHz) Radiation Emission - Back View (Above 18GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507S27397E-RF-TSP Page 4 / 5 R291 Radiation Emission - Front View (Below 1GHz) Radiation Emission - Back View (Below 1GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507S27397E-RF-TSP Page 5 / 5 R300 Radiation Emission - Front View (Below 1GHz) Radiation Emission - Back View (Below 1GHz)

Report No.: 2507S27397E-RF-01 Page 64 of 264 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 65 of 264 20MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 66 of 264 Band 7, Normal 5MHz_Low_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Middle_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 67 of 264 5MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 68 of 264 10MHz_Low_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Middle_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 69 of 264 10MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 70 of 264 15MHz_Low_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Middle_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 71 of 264 15MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 72 of 264 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 73 of 264 20MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 74 of 264 Band 12, Normal 1.4MHz_Low_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_Low_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_Middle_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 75 of 264 1.4MHz_Middle_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_High_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_High_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 76 of 264 3MHz_Low_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_Low_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_Middle_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 77 of 264 3MHz_Middle_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 78 of 264 5MHz_Low_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Middle_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth

Report No.: 2507S27397E-RF-01 Page 42 of 264 10MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 43 of 264 15MHz_Low_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Middle_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 44 of 264 15MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 45 of 264 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 46 of 264 20MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2507S27397E-RF-01 Page 47 of 264 FCC Part 27 Band 4, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 1.4MHz_Low_QPSK_6@0 1.089 1.247 1.4MHz_Low_16QAM_6@0 1.081 1.256 1.4MHz_Middle_QPSK_6@0 1.078 1.216 1.4MHz_Middle_16QAM_6@0 1.081 1.267 1.4MHz_High_QPSK_6@0 1.078 1.239 1.4MHz_High_16QAM_6@0 1.084 1.261 3MHz_Low_QPSK_15@0 2.688 2.895 3MHz_Low_16QAM_15@0 2.688 2.907 3MHz_Middle_QPSK_15@0 2.682 2.895 3MHz_Middle_16QAM_15@0 2.682 2.913 3MHz_High_QPSK_15@0 2.682 2.901 3MHz_High_16QAM_15@0 2.688 2.877 5MHz_Low_QPSK_25@0 4.470 4.825 5MHz_Low_16QAM_25@0 4.460 4.815 5MHz_Middle_QPSK_25@0 4.470 4.855 5MHz_Middle_16QAM_25@0 4.480 4.875 5MHz_High_QPSK_25@0 4.480 4.835 5MHz_High_16QAM_25@0 4.470 4.875 10MHz_Low_QPSK_50@0 8.920 9.550 10MHz_Low_16QAM_25@0 4.520 5.125 10MHz_Middle_QPSK_50@0 8.920 9.630 10MHz_Middle_16QAM_25@0 4.540 5.045 10MHz_High_QPSK_50@0 8.920 9.610 10MHz_High_16QAM_25@0 4.520 5.085 15MHz_Low_QPSK_75@0 13.410 14.324 15MHz_Low_16QAM_25@0 4.650 5.315 15MHz_Middle_QPSK_75@0 13.440 14.294 15MHz_Middle_16QAM_25@0 4.590 5.375 15MHz_High_QPSK_75@0 13.410 14.324 15MHz_High_16QAM_25@0 4.650 5.315 Report No.: 2507S27397E-RF-01 Page 48 of 264 Mode 99% OBW (MHz) 26dB BW (MHz) 20MHz_Low_QPSK_100@0 17.840 18.779 20MHz_Low_16QAM_25@0 4.600 5.325 20MHz_Middle_QPSK_100@0 17.920 18.699 20MHz_Middle_16QAM_25@0 4.600 5.325 20MHz_High_QPSK_100@0 17.840 18.859 20MHz_High_16QAM_25@0 4.600 5.365 Band 7, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 5MHz_Low_QPSK_25@0 4.470 4.865 5MHz_Low_16QAM_25@0 4.470 4.815 5MHz_Middle_QPSK_25@0 4.480 4.885 5MHz_Middle_16QAM_25@0 4.480 4.875 5MHz_High_QPSK_25@0 4.480 4.855 5MHz_High_16QAM_25@0 4.470 4.875 10MHz_Low_QPSK_50@0 8.940 9.530 10MHz_Low_16QAM_25@0 4.540 5.085 10MHz_Middle_QPSK_50@0 8.920 9.510 10MHz_Middle_16QAM_25@0 4.520 5.065 10MHz_High_QPSK_50@0 8.920 9.590 10MHz_High_16QAM_25@0 4.560 5.105 15MHz_Low_QPSK_75@0 13.440 14.294 15MHz_Low_16QAM_25@0 4.650 5.345 15MHz_Middle_QPSK_75@0 13.440 14.324 15MHz_Middle_16QAM_25@0 4.590 5.315 15MHz_High_QPSK_75@0 13.350 14.324 15MHz_High_16QAM_25@0 4.620 5.285 20MHz_Low_QPSK_100@0 17.880 18.859 20MHz_Low_16QAM_25@0 4.640 5.205 20MHz_Middle_QPSK_100@0 17.840 18.819 20MHz_Middle_16QAM_25@0 4.600 5.365 20MHz_High_QPSK_100@0 17.800 18.699 20MHz_High_16QAM_25@0 4.640 5.325 Report No.: 2507S27397E-RF-01 Page 49 of 264 Band 12, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 1.4MHz_Low_QPSK_6@0 1.075 1.216 1.4MHz_Low_16QAM_6@0 1.084 1.247 1.4MHz_Middle_QPSK_6@0 1.084 1.242 1.4MHz_Middle_16QAM_6@0 1.084 1.230 1.4MHz_High_QPSK_6@0 1.086 1.259 1.4MHz_High_16QAM_6@0 1.084 1.261 3MHz_Low_QPSK_15@0 2.682 2.907 3MHz_Low_16QAM_15@0 2.682 2.901 3MHz_Middle_QPSK_15@0 2.682 2.907 3MHz_Middle_16QAM_15@0 2.682 2.907 3MHz_High_QPSK_15@0 2.670 2.913 3MHz_High_16QAM_15@0 2.682 2.889 5MHz_Low_QPSK_25@0 4.480 4.865 5MHz_Low_16QAM_25@0 4.470 4.865 5MHz_Middle_QPSK_25@0 4.460 4.855 5MHz_Middle_16QAM_25@0 4.460 4.865 5MHz_High_QPSK_25@0 4.470 4.865 5MHz_High_16QAM_25@0 4.490 4.875 10MHz_Low_QPSK_50@0 8.940 9.470 10MHz_Low_16QAM_25@0 4.520 5.045 10MHz_Middle_QPSK_50@0 8.880 9.470 10MHz_Middle_16QAM_25@0 4.500 5.065 10MHz_High_QPSK_50@0 8.940 9.590 10MHz_High_16QAM_25@0 4.500 5.045 Band 13, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 5MHz_Low_QPSK_25@0 4.460 4.785 5MHz_Low_16QAM_25@0 4.450 4.805 5MHz_High_QPSK_25@0 4.480 4.875 5MHz_High_16QAM_25@0 4.460 4.905 10MHz_Middle_QPSK_50@0 8.920 9.449 10MHz_Middle_16QAM_25@0 4.500 5.025 Report No.: 2507S27397E-RF-01 Page 50 of 264 Band 17, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 5MHz_Low_QPSK_25@0 4.480 4.825 5MHz_Low_16QAM_25@0 4.460 4.865 5MHz_Middle_QPSK_25@0 4.470 4.875 5MHz_Middle_16QAM_25@0 4.470 4.755 5MHz_High_QPSK_25@0 4.480 4.885 5MHz_High_16QAM_25@0 4.470 4.925 10MHz_Low_QPSK_50@0 8.900 9.429 10MHz_Low_16QAM_25@0 4.500 5.085 10MHz_Middle_QPSK_50@0 8.880 9.510 10MHz_Middle_16QAM_25@0 4.500 5.085 10MHz_High_QPSK_50@0 8.940 9.490 10MHz_High_16QAM_25@0 4.520 5.045 Band 38, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 5MHz_Low_QPSK_25@0 4.450 4.815 5MHz_Low_16QAM_25@0 4.470 4.795 5MHz_Middle_QPSK_25@0 4.460 4.845 5MHz_Middle_16QAM_25@0 4.470 4.795 5MHz_High_QPSK_25@0 4.460 4.875 5MHz_High_16QAM_25@0 4.460 4.825 10MHz_Low_QPSK_50@0 8.920 9.530 10MHz_Low_16QAM_25@0 4.520 5.085 10MHz_Middle_QPSK_50@0 8.920 9.570 10MHz_Middle_16QAM_25@0 4.500 4.985 10MHz_High_QPSK_50@0 8.900 9.409 10MHz_High_16QAM_25@0 4.540 5.085 15MHz_Low_QPSK_75@0 13.380 14.114 15MHz_Low_16QAM_25@0 4.590 5.345 15MHz_Middle_QPSK_75@0 13.380 14.144 15MHz_Middle_16QAM_25@0 4.620 5.375 15MHz_High_QPSK_75@0 13.410 14.174 15MHz_High_16QAM_25@0 4.620 5.315 Report No.: 2507S27397E-RF-01 Page 51 of 264 Mode 99% OBW (MHz) 26dB BW (MHz) 20MHz_Low_QPSK_100@0 17.880 18.779 20MHz_Low_16QAM_25@0 4.600 5.325 20MHz_Middle_QPSK_100@0 17.840 18.739 20MHz_Middle_16QAM_25@0 4.560 5.526 20MHz_High_QPSK_100@0 17.840 18.739 20MHz_High_16QAM_25@0 4.640 5.285 Band 66, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 1.4MHz_Low_QPSK_6@0 1.089 1…

Text truncated - open the document above for the full version.

Report No.: 2507S27397E-RF-01 Page 1 of 264 Appendix A Test Information: Sample No.: 3B2S-2 Te s t D a t e : 2025/10/15~2025/10/17 Te s t S i t e : RF Te s t M o d e : Transmitting Tester: Braylon Ma Test Result: Pass Environmental Conditions: Temperature: (°C) 23.7-25.2 Relative Humidity: (%) 56~61 ATM Pressure: (kPa) 100.1~100.5 Report No.: 2507S27397E-RF-01 Page 2 of 264 Frequency stability vs. temperature &Frequency stability vs. voltage Compliance FCC Part 22H Band 5, TN/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -17.3 -0.021 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -14.8 -0.018 ±2.5 Pass Band 5, T1/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -0.6 -0.001 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 9.6 0.011 ±2.5 Pass Band 5, T2/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -15.3 -0.018 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -25.2 -0.030 ±2.5 Pass Band 5, T3/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -17.5 -0.021 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -4.0 -0.005 ±2.5 Pass Band 5, T4/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -15.1 -0.018 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -20.0 -0.024 ±2.5 Pass Band 5, T5/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -18.5 -0.022 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -19.3 -0.023 ±2.5 Pass Report No.: 2507S27397E-RF-01 Page 3 of 264 Band 5, T6/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -18.8 -0.022 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -11.7 -0.014 ±2.5 Pass Band 5, T7/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -18.1 -0.022 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -22.8 -0.027 ±2.5 Pass Band 5, T8/VN Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -16.8 -0.020 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -11.1 -0.013 ±2.5 Pass Band 5, TN/VH Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -17.4 -0.021 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -16.9 -0.020 ±2.5 Pass Band 5, TN/VL Mode Test Channel (MHz) Frequency Error Limit (ppm) Verdict (Hz) (ppm) 10MHz_Middle_QPSK_50@0 836.5 -17.0 -0.020 ±2.5 Pass 10MHz_Middle_16QAM_25@0 836.5 -12.8 -0.015 ±2.5 Pass Note: Frequency Error (ppm)=Frequency Error (MHz)/Test Channel(MHz)*10 6 TN: 20°C; T1: -30°C; T2: -20°C; T3: -10°C; T4: 0°C; T5: 10°C; T6: 30°C; T7: 40°C; T8: 50°C. VN: Normal Voltage; VL: Low Voltage; VH: High Voltage. Report No.: 2507S27397E-RF-01 Page 4 of 264 FCC Part 24E Band 2, TN/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.129 1868.991 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1851.009 1855.624 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.129 1908.991 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.436 1909.111 1850 ~ 1910 Pass Band 2, T1/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.889 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.069 1908.931 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.436 1909.051 1850 ~ 1910 Pass Band 2, T2/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.069 1908.871 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.436 1909.051 1850 ~ 1910 Pass Band 2, T3/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.069 1908.931 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.436 1909.051 1850 ~ 1910 Pass Band 2, T4/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.069 1908.931 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.376 1909.051 1850 ~ 1910 Pass Report No.: 2507S27397E-RF-01 Page 5 of 264 Band 2, T5/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.991 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.069 1908.931 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.436 1909.051 1850 ~ 1910 Pass Band 2, T6/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.009 1908.871 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.376 1909.051 1850 ~ 1910 Pass Band 2, T7/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.991 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.069 1908.931 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.436 1909.051 1850 ~ 1910 Pass Band 2, T8/VN Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.069 1908.931 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.376 1909.051 1850 ~ 1910 Pass Band 2, TN/VH Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz_High_QPSK_100@0 1891.009 1908.931 1850 ~ 1910 Pass 20MHz_High_16QAM_25@75 1904.376 1909.051 1850 ~ 1910 Pass Report No.: 2507S27397E-RF-01 Page 6 of 264 Band 2, TN/VL Mode F_L (MHz) F_H (MHz) Limit (MHz) Verdict 20MHz_Low_QPSK_100@0 1851.069 1868.931 1850 ~ 1910 Pass 20MHz_Low_16QAM_25@0 1850.949 1855.564 1850 ~ 1910 Pass 20MHz…

Text truncated - open the document above for the full version.

泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 5th Floor, Building 7, Fujian Branch of National University Science and Technology Park, Shanmei Wenshan Village, Xiamei Town, Nan 'an City, Quanzhou City, Fujian Province Model:R280-2.0 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd Quan zhou Gen tong communication Technology Co.,Ltd Test ConditionFree Space bandChannelTRP (dBm)MAX(dBm)TIS (dBm)MIN(dBm) LTE B1 18050 23.43 18300 22.37 18550 21.98-93.65 LTE B2 18650 23.14 18950 21.59 19150 21.07 -96.75 LTE B3 19250 20.48 19575 20.23 19900 23.75-95.14 LTE B4 20000 19.77 20175 19.81 20350 21.74-96.18 Quan zhou Gen tong communication Technology Co.,Ltd Test ConditionFree Space bandChannelTRP (dBm)MAX(dBm)TIS (dBm)MIN(dBm) LTE B5 20450 17.05 20525 18.01 20600 16.83-92.68 LTE B7 20800 20.02 21100 18.82 21400 20.72-94.19 LTE B8 21450 18.72 21100 18.61 21449 18.19-96.99 LTE B12 23060 10.43 23095 11.95 23130 14.3-82.83 Quan zhou Gen tong communication Technology Co.,Ltd Test ConditionFree Space bandChannelTRP (dBm)MAX(dBm)TIS (dBm)MIN(dBm) LTE B13 23180 23230 17.77-88.04 23279 LTE B17 23780 13.66 23790 10.25 23800 14.43-85.11 LTE B66 66486 25.61 66786 24.1 67086 27.5 96.89 LTE B38 37850 25.61 38000 24.1 38150 27.5-96.89 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd Test ConditionFree Space bandChannelTRP (dBm)MAX(dBm)TIS (dBm)MIN(dBm) LTE B40 38750 17.18 39150 16.81 39550 17.83-96.71 LTE B41 40600 28.49 40620 29.08 40640 24.48-96.09 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd 3D Pattern 泉州市根通通信技术有限公司 quanzhou Gen tong communication Technology Co.,Ltd

FCC Part 27, Part 22H, Part 24E Page 1 of 57 FCC PART 27 FCC PART 22H, PART 24E TEST REPORT For Rongyin (Fujian) Electronics Co., Ltd. No.102, Block 21, Liandong U Valley, Optoelectronic Information Industrial Park, Xiamei Town, Nan'an, Quanzhou, Fujian, China FCC ID: 2BNA5-R280 Report Type: Original Report Product Name: 4G LTE POC RADIO Report Number: 2507S27397E-RF-01 Report Date: 2025-11-14 Reviewed By: Ash Lin Approved By: Miles Chen Prepared By: Bay Area Compliance Laboratories Corp. (Xiamen) Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen Tel: +86-592-3200111 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507S27397E-RF-01 FCC Part 27, Part 22H, Part 24E Page 2 of 57 TABLE OF CONTENTS REPORT REVISION HISTORY ................................................................................................................................ 3 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 ★OPERATION VOLTAGE (VDC): ............................................................................................................................ 4 1.3 ★ANTENNA INFORMATION .................................................................................................................................... 5 1.4 OBJECTIVE ............................................................................................................................................................. 5 1.5 MEASUREMENT UNCERTAINTY .............................................................................................................................. 5 1.6 TEST FACILITY .......................................…
