2BNAL-L65V6INTERACTIVE FLAT PANEL

1 / 10 PRODUCT INSTRUCTIONS Intelligent Flat Panel Product Type：L65V6 Document version：V2024.1 Customer need to send back this document after sign&stamp Manufacturer’s Signatures Editor Auditor Final Reviewer Approver Customer please fill this table Customer’s advice Signaure Stamp 2 / 10 Directory 1. Product instrutions ------------------------------------------3 2. Product Appearance ------------------------------------------3 3. Technical Parameters ----------------------------------------4 4. Product Six Views ---------------------------------------------7 5. Precautions -----------------------------------------------------7 Revision History （Date） （Version） （Description） （Author） 2024.4.25 V2024.1 Created Zengfanxin 3 / 10 1. Product instructions 1.1 Real 4K resolution display with high color gamut, which made of zero-fitting process. 1.2 Built-in intelligent CPU and operation system. 1.3 Optional OPS PC module. 1.4 With touch screen technology. 1.4.1 Anti-light interference（working smooth under sun light）； 1.4.2 High-precision touch screen with rapid responses, smooth in writing and presentation； 1.5 Display, touch screen, intelligent CPU 3 in 1. 1.5.1 HD image GPU engine, 1.5.2 With intelligent display chips and Android system, 1.5.3 Writable and annotable at any interface. 1.6 Input HDMI signals will wake up the device on standby mode 1.7 Wireless screen share is supported 1.8 WIFI 6 bluetooch 5.0 is supported 1.9 HDMI 4K 60Hz is supported 1.10 The system will boot from your last settings, and all input channels are nameable. 1.11 Built-in AI HD camera and microphone array(total 8 microphone units), 1.12 Android 14 system, 4K UI display，4K Whiteboard, 1.13 The front is with switchable USB/Type C interfaces. 1.14 Smart light sensor will adjust the display brightness automatically. 1.15 Picture-in-picture function: Under Android system, it supports picture/vedio opening, or other operations when a vedio is already in full-screen playing. So that you can quickly shift to other channels. 2. Product Appearance 4 / 10 3.Product Parameters Parameters Size 65 inch Response time 8ms Aspect ratio 16:9 Active area 1429（H）×804（V）mm Resolution 3840（H）×2160（V） Pixel unit size 0.372×0.372mm Scanning frequency 60Hz Display color 1.07B (10bit) Color gamut (NTSC)，Typ 85% Contrast ratio 1200:1 Viewing Angle 178°(H/V) Backlight type DLED Brightness，Typ 350cd/m 2 Service lifetime ≥50000 hours Loud speaker parameters Speaker channel type 2.0 speaker power 2×15W Optional 2.1 chanel：2×15W+1×20W，or 2.2 chanel：2×15W+2×10W Camera parameters Camera 48MP（8000*6000）images 4K 8MP（3840*2160）video Qty 1 location center of the top Viewing angle 120°（MAX） Microphone parameters Max pickup sound range 8m Microphone qty 8 AI Fuctions Speaker face tracking，Speaker voice tracking Supports 4K 8Mega pixels video（3840*2160） Touch screen 5 / 10 touch screen type IR touch Operation system supported Windows11/Windows10/Windows8/Windows7/Windows XP/ Android/Linux/Mac OS X/Chrome touch point qty 20 Min diameter of stylus tip 2mm Input method Fingers, stylus, other opaque objects Respons speed ＜10ms touch screen accuracy ±1mm （90%） Maxium distance between stylus and touch screen when writing，Typ 2.5mm Communication method with motherboard USB Tempered glass hardness 7H Coordinate points 32767(W) ×32767(D) Operation System System version Android 14 CPU Quad-Core A73*4+A53*4 2.2GHz GPU Mali G52MP8 RAM 8GB ROM 128GB Wireless module Wi-Fi Version IEEE 802.11 ac/b/g/n/a Working frequency 2.4GHz/5GHz Working distance 12 m Input/ Output Interfaces Side ports TOUCH OUT 3.0 1 HDMI IN 2 HDMI OUT 1 TYPE C 1 RJ45 OUT 1 RJ45 IN 1 USB 3.0 2 Bottom ports LINE_OUT & HEADPHONE_OUT 1 VGA IN 1 6 / 10 AUDIO IN 1 DP IN 1 USB 2.0 1 TOUCH OUT 3.0 1 RS232 1 OPTICAL OUT 1 Front ports HDMI 1 USB 2 TOUCH （USB2.0） 1 Type-C (data file transfer, USB terminal function） 1 Optional port NFC 1 Power supply parameters Power input type 100-240V~50/60Hz Maxium power 320W Standby power ≤0.5W Windows computer system（Optional） PC Type Plugable computers module with Intel Cores Hardware I5/I7/I9（Optional） PC interface standard 80pin OPS-C Dimensions/Weight Device dimensions（L×W×H） 1483.6×921.7×89.6mm Carton dimensions（L×W×H） 1695×227×1070（Tolerance±10mm） Flat panel+Wall mount total thickness(Please refer to the actual product) 132.0±3mm VESA Holes range（L×W） 600×400mm Screw type of wall mount M8×25mm Net Weight（ without OPS） 39.5±1kg Gross weight 52.5±2kg（The total weight may different due to different accessories, please refer to actual product. Accessories in pack（please refer to actual products due to different options） Power cable ×1 Wall mount ×1 Stylus ×1 7 / 10 Pointer ×1 Quality certificate ×1 Warranty card ×1 Environmental requirements Temperature condition 0°C~40°C Humidity condition ≤ 80%RH Storage temperature -10°C~60°C Storage humidity 10%~80%RH Working altitude <5000m 4.Product Six Views 5.Precautions 5.1 Please read this precautions carefully before your first operation. 5.2 Please note and follow the warning signs on product/instructions. 5.3 If press the”standby” button on the front, the device will enter standby mode, it will not shut down. There is a rocker switch on the rear side, it’s power switch of this device. The“I”indicates power on, “O”indicates power off. Please don’t place anything near to the power switch, to make sure that you can shut down this device conveniently. 5.4 Please shut down the device and unplug the power cable if you won’t use it for a long time. Please shut down and unplug the power cable in lightning weather. 5.5 This product need a threehole socket nearby, and it’s ground wire shall 8 / 10 connect to the ground. Please don’t step on the power cable and don’t place anything on it. 5.6 Please use the right power supply which shows on name plate. If you are not sure about your power supplier type, please confirm with your supplier first. 5.7 Please shut down this device if there are unusal sounds or burning smells from it. …

Text truncated - open the document above for the full version.

Indeed Superior Display Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Indeed Superior Display Co., Ltd. Address: 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Product Name: INTERACTIVE FLAT PANEL FCC ID: 2BNAL-L65V6 Model(s): L55A6,L65V6,L65A8,L75A8,L86A8,L98A6,L110V6,L110TV,L115V6, L115TV 2.911(d)(5)(i) Equipment Type We, [Indeed Superior Display Co., Ltd.] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Fanxin Zeng Date: Jan.14, 2025 Title and Company name: manager / Indeed Superior Display Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Indeed Superior Display Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List) Company name: Indeed Superior Display Co., Ltd. Address: 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Product Name: INTERACTIVE FLAT PANEL FCC ID: 2BNAL-L65V6 Model(s): L55A6,L65V6,L65A8,L75A8,L86A8,L98A6,L110V6,L110TV,L115V6, L115TV 2.911(d)(5)(ii) Applicant filing We, [Indeed Superior Display Co., Ltd.] certify that, as of the date of the filing of the application, the applicant is not identified on the “Covered List” NOTE 1 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Fanxin Zeng Date: Jan.14, 2025 Title and Company name: manager / Indeed Superior Display Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Indeed Superior Display Co., Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 1-14-2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BNAL-L65V6 Indeed Superior Display Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: Indeed Superior Display Co., Ltd. Address: 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Signature: Contact Person: Fanxin Zeng Tel: 13662787705 Email: [email protected]

Indeed Superior Display Co., Ltd. Agent Authorization Company: Indeed Superior Display Co., Ltd. Address: 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Product Name: INTERACTIVE FLAT PANEL Model Number(s): L55A6,L65V6,L65A8,L75A8,L86A8,L98A6,L110V6,L110TV,L115V6, L115TV Product Description: INTERACTIVE FLAT PANEL We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan.14, 2025 Name: Fanxin Zeng Title: Manger Company: Indeed Superior Display Co., Ltd.

Indeed Superior Display Co., Ltd. Family models declaration letter. Date: January 15, 2025 We Indeed Superior Display Co., Ltd. Of 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Product: INTERACTIVE FLAT PANEL Model Name: L65V6 Serial Model: L55A6,L65A8,L75A8,L86A8,L98A6,L110V6,L110TV,L115V6, L115TV Difference description of series models: All the model are the same circuit and RF module, except the Model name, memory size, sales area, and color Thanks Sincerely Signature Name: Fanxin Zeng Date: Jan.14, 2025 Title: Manger

Indeed Superior Display Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: January 15, 2025 Subject; Request for Confidentiality FCC ID: 2BNAL-L65V6 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Fanxin Zeng Title: Manger

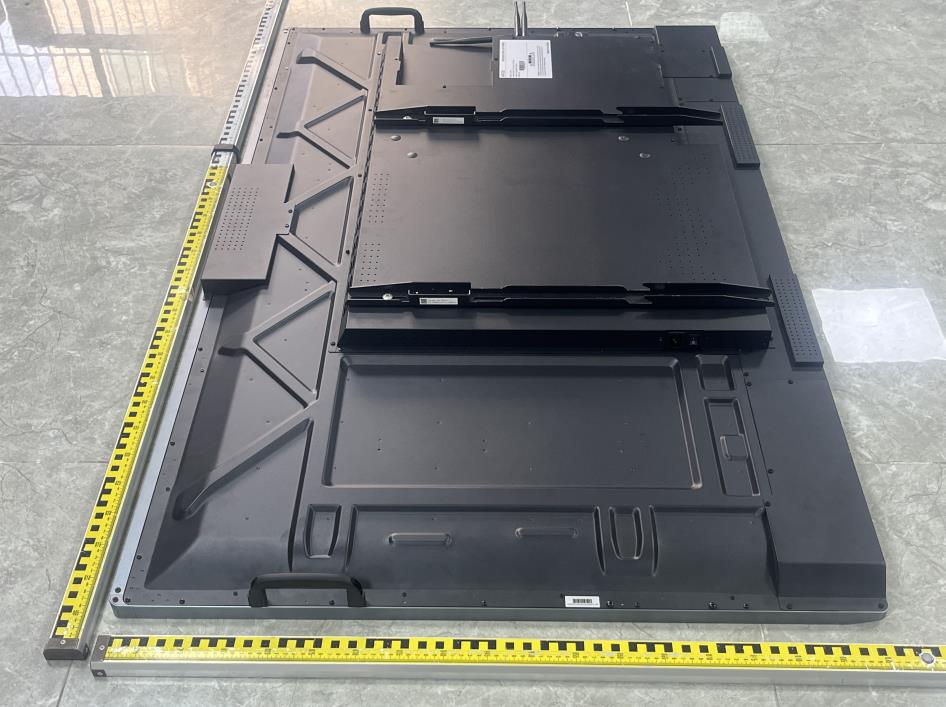

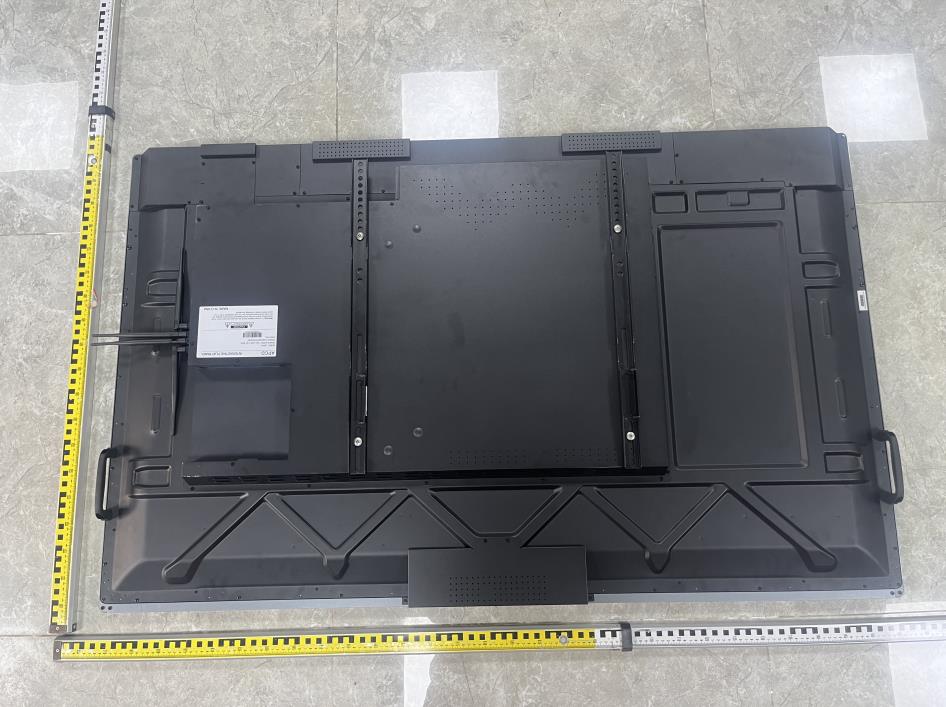

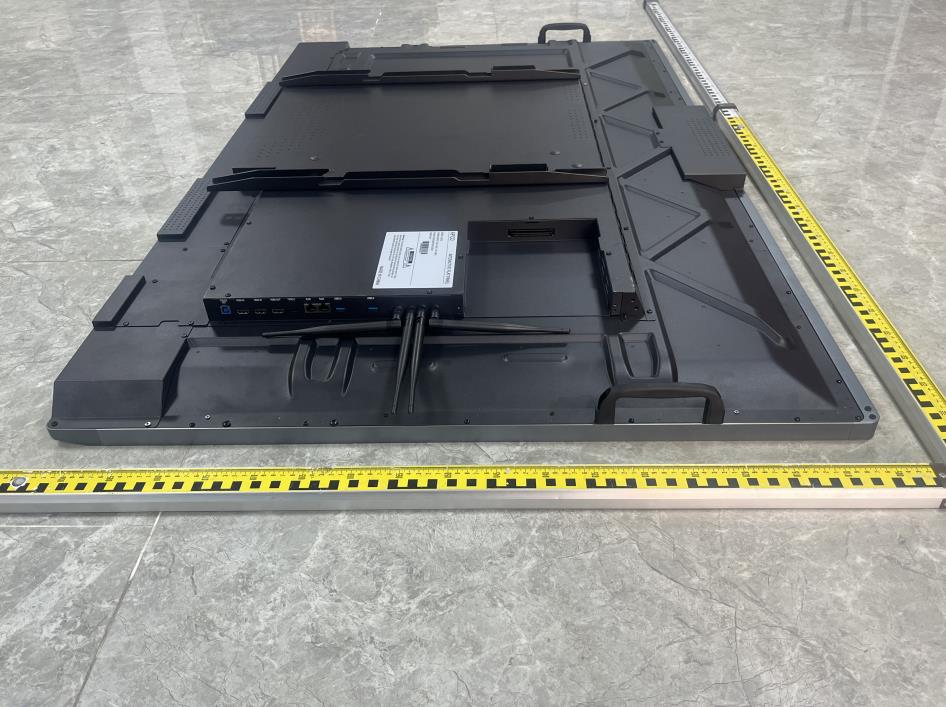

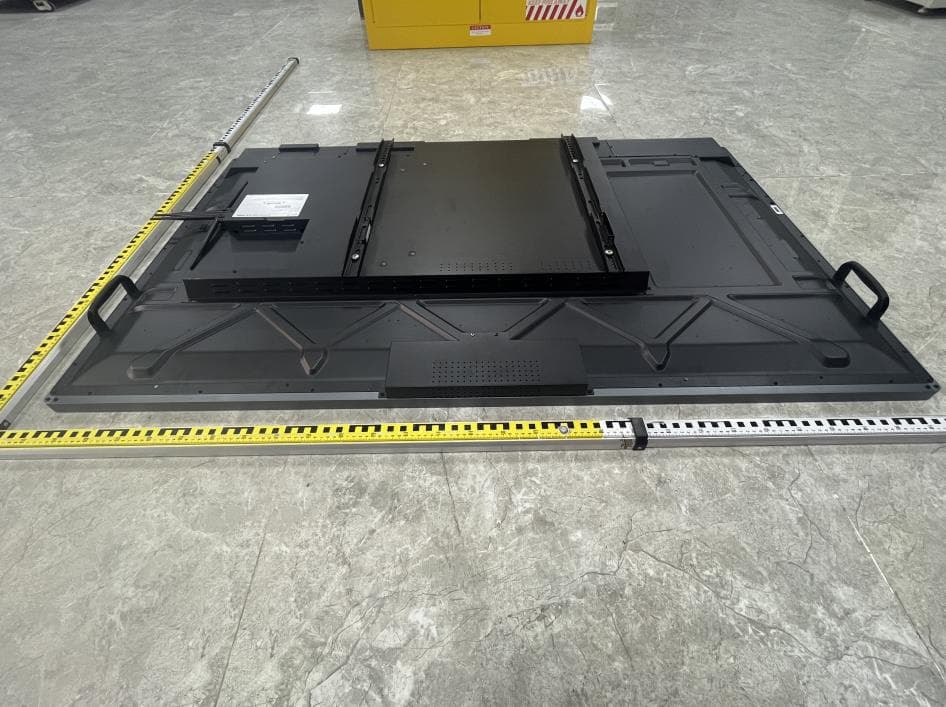

- Page 1 of 5 - ET-24122200 Product Name: INTERACTIVE FLAT PANEL Test Model No.: L65V6 Ext Photos - Page 2 of 5 - ET-24122200 - Page 3 of 5 - ET-24122200 - Page 4 of 5 - ET-24122200 - Page 5 of 5 - ET-24122200 -----END-----

1 / 1 90mm * 50mm Lable

- Page 1 of 9 - ET-24122200 Product Name: INTERACTIVE FLAT PANEL Test Model No.: L65V6 Internal photos - Page 2 of 9 - ET-24122200 - Page 3 of 9 - ET-24122200 - Page 4 of 9 - ET-24122200 - Page 5 of 9 - ET-24122200 - Page 6 of 9 - ET-24122200 - Page 7 of 9 - ET-24122200 FCC ID:2AR82-SKIW8663U11 - Page 8 of 9 - ET-24122200 - Page 9 of 9 - ET-24122200 ------END----- BT ANT1 2.4G/5G/5.8G WIFI ANT2 2.4G WIFI ANT3 5G/5.8G WIFI ANT4

FCC ID: 2BNAL-L65V6 RF Exposure Evaluation Limits According to 447498 D01 General RF Exposure Guidance v06 The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2BNAL-L65V6 Test Result of RF Exposure Evaluation The source of the evaluation data results is based on the test report ET-24122200E01/02/03 2.4G WIFI Antenna gain=5.42dBi BT Antenna gain=5.42dBi 5G WIFI Antenna gain=5.71dBi FOR BLE Mode Output power (dBm) Tune-up power (dBm) Max Tune-up (dBm) Max Tune-up (mW) Numeric antenna gain Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result GFSK 3.89 4±1 5 3.16 3.48 0.0022 1.0 PASS FOR 2.4GWIFI IC:SKI.WB663U.1 ANT3 Mode Output power (dBm) Tune-up power (dBm) Max Tune-up (dBm) Max Tune-up (mW) Numeric antenna gain Power Density at R=20cm (mW/cm2) Limit (mW/cm 2 ) Result 802.11b 14.63 15±1 16 39.81 3.48 0.0276 1.0 PASS 802.11g 14.67 15±1 16 39.81 3.48 0.0276 1.0 PASS 802.11n20 14.90 15±1 16 39.81 3.48 0.0276 1.0 PASS 802.11n40 14.53 15±1 16 39.81 3.48 0.0276 1.0 PASS IC:SKI.WB800D.3 ANT2 Mode Output power (dBm) Tune-up power (dBm) Max Tune-up (dBm) Max Tune-up (mW) Numeric antenna gain Power Density at R=20cm (mW/cm2) Limit (mW/cm 2 ) Result 802.11b 14.79 15±1 16 39.81 3.48 0.0276 1.0 PASS 802.11g 14.63 15±1 16 39.81 3.48 0.0276 1.0 PASS 802.11n20 14.52 15±1 16 39.81 3.48 0.0276 1.0 PASS 802.11n40 13.28 14±1 15 31.62 3.48 0.0219 1.0 PASS FCC ID: 2BNAL-L65V6 FOR 5GWIFI IC:SKI.WB663U.1 ANT4 Mode Output power (dBm) Tune-up power (dBm) Max Tune-up (dBm) Max Tune-up (mW) Numeric antenna gain Power Density at R=20cm (mW/cm2) Limit (mW/cm 2 ) Result 802.11a 13.90 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11n20 15.06 15±1 16 39.81 3.72 0.0295 1.0 PASS 802.11ac20 14.35 15±1 16 39.81 3.72 0.0295 1.0 PASS 802.11n40 14.28 15±1 16 39.81 3.72 0.0295 1.0 PASS 802.11ac40 13.79 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11ac80 12.99 13±1 14 25.12 3.72 0.0186 1.0 PASS IC: SKI.WB800D.3 ANT2 Mode Output power (dBm) Tune-up power (dBm) Max Tune-up (dBm) Max Tune-up (mW) Numeric antenna gain Power Density at R=20cm (mW/cm2) Limit (mW/cm 2 ) Result 802.11a 13.69 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11n20 14.07 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11ac20 14.42 15±1 16 39.81 3.72 0.0295 1.0 PASS 802.11n40 13.30 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11ac40 13.45 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11ac80 12.45 13±1 14 25.12 3.72 0.0234 1.0 PASS FOR 5.8GWIFI IC:SKI.WB663U.1 ANT4 Mode Output power (dBm) Tune-up power (dBm) Max Tune-up (dBm) Max Tune-up (mW) Numeric antenna gain Power Density at R=20cm (mW/cm2) Limit (mW/cm 2 ) Result 802.11a 14.02 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11n20 14.19 15±1 16 39.81 3.72 0.0295 1.0 PASS 802.11ac20 13.88 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11n40 12.97 13±1 14 25.12 3.72 0.0186 1.0 PASS 802.11ac40 13.33 14±1 15 31.62 3.72 0.0234 1.0 PASS 802.11ac80 12.65 13±1 14 25.12 3.72 0.0186 1.0 PASS FCC ID: 2BNAL-L65V6 IC: SKI.WB800D.3 ANT2 Mode Output power (dBm) Tune-up power (dBm) Max Tune-up (dBm) Max Tune-up (mW) Numeric antenna gain Power Density at R=20cm (mW/cm2) Limit (mW/cm 2 ) Result 802.11a 14.14 15±1 16 39.81 3.72 0.0156 1.0 PASS 802.11n20 13.85 15±1 16 39.81 3.72 0.0155 1.0 PASS 802.11ac20 15.40 14±1 15 31.62 3.72 0.0123 1.0 PASS 802.11n40 13.22 14±1 15 31.62 3.72 0.0123 1.0 PASS 802.11ac40 12.96 13±1 14 25.12 3.72 0.0097 1.0 PASS 802.11ac80 12.17 14±1 15 31.62 3.72 0.0123 1.0 PASS If ANT1,ANT2,ANT3 and ANT4 work simultaneously BLE+2.4GWIFI+2.4GWIFI+5GWIFI, the total power density is 0.0022/1+0.0276/1+0.0276/1+0.0295/1=0.0869<1. BLE+2.4GWIFI+2.4GWIFI+5.8GWIFI, the total power density is 0.0022/1+0.0276/1+0.0276/1+0.0156/1=0.0730<1. BLE+5GWIFI+2.4GWIFI+5GWIFI, the total power density is 0.0022/1+0.0295/1+0.0276/1+0.0295/1=0.0888<1. BLE+5GWIFI+2.4GWIFI+5.8GWIFI, the total power density is 0.0022/1+0.0295/1+0.0276/1+0.0156/1=0.0749<1. BLE+5.8GWIFI+2.4GWIFI+5GWIFI, the total power density is 0.0022/1+0.0156/1+0.0276/1+0.0295/1=0.0888<1. BLE+5.8GWIFI+2.4GWIFI+5.8GWIFI, the total power density is 0.0022/1+0.0156/1+0.0276/1+0.0295/1=0.0749<1. Maximum power density=0.0888 <1.Then SAR evaluation is not require .

Report No.: ET-24122200E01 This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen ETR Standard Technology Co., Ltd. TEST REPORT Applicant: Indeed Superior Display Co., Ltd. Address of Applicant: 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Manufacturer/Factory: Indeed Superior Display Co., Ltd. Address of Manufacturer 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Product Name: INTERACTIVE FLAT PANEL Model No.: L55A6,L65V6,L65A8,L75A8,L86A8,L98A6,L110V6,L110T V,L115V6, L115TV Trade Mark: APCD FCC ID: 2BNAL-L65V6 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Test: Dec.25, 2024-Jan.10, 2025 Date of report issued: Jan.11, 2025 Remark: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 34 - Report No.: ET-24122200E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Report Revision History Report No. Description Issue Date ET-24122200E01 Original Jan.11, 2025 - Page 3 of 34 - Report No.: ET-24122200E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1. TEST SUMMARY ......................................................................................................................................4 2. GENERAL INFORMATION .......................................................................................................................5 2.1 GENERAL DESCRIPTION OF EUT .................................................................................................................5 2.2 TEST MODE ................................................................................................................................................7 2.3 DESCRIPTION OF SUPPORT UNITS ...............................................................................................................7 2.4 DEVIATION FROM STANDARDS .....................................................................................................................7 2.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 2.6 TEST FACILITY ............................................................................................................................................7 2.7 TEST LOCATION ..........................................................................................................................................7 2.8 ADDITIONAL INSTRUCTIONS .........................................................................................................................7 3. TEST INSTRUMENTS LIST ......................................................................................................................8 4. TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 4.1 ANTENNA REQUIREMENT .............................................................................................................................9 4.2 CONDUCTED EMISSIONS ...........................................................................................................................10 4.3 DUTY CYCLE .............................................................................................................................................13 4.4 CONDUCTED PEAK OUTPUT POWER ..........................................................................................................15 4.5 6DB BANDWIDTH ......................................................................................................................................16 4.6 POWER SPECTRAL DENSITY ......................................................................................................................18 4.7 BAND EDGES ............................................................................................................................................20 Conducted Emission Method ...................................................................................................................20 Radiated Emission Method ......................................................................................................................22 4.8 SPURIOUS EMISSION .................................................................................................................................24 Conducted Emission Method ...................................................................................................................24 Radiated Emission Method ......................................................................................................................26 5. TEST SETUP PHOTO .............................................................................................................................34 6. EUT CONSTRUCTIONAL DETAILS .......................................................................................................34 - Page 4 of 34 - Report No.: ET-24122200E01 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fu…

Text truncated - open the document above for the full version.

Report No.: ET-24122200E02 Tel: +86 755 85259392 Email: [email protected] No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China TEST REPORT Applicant: Indeed Superior Display Co., Ltd. Address of Applicant: 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Manufacturer/Factory: Indeed Superior Display Co., Ltd. Address of Manufacturer 3rd Floor, No.1-2, Huangbao 3 Road, Xintang Town, Zengcheng District, Guangzhou, China Product Name: INTERACTIVE FLAT PANEL Model No.: L55A6,L65V6,L65A8,L75A8,L86A8,L98A6,L110V6,L110TV,L11 5V6, L115TV Trade Mark: APCD FCC ID: 2BNAL-L65V6 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Test: Dec.25, 2024-Jan.10, 2025 Date of report issued: Jan.11, 2025 Remark: The results shown in this test report refer only to the sample(s) tested , this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 63 - Report No.: ET-24122200E02 Report Revision History Report No. Description Issue Date ET-24122200E02 Original Jan.11, 2025 - Page 3 of 63 - Report No.: ET-24122200E02 Tel: +86 755 85259392 Email: [email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1. TEST SUMMARY ......................................................................................................................................4 2. GENERAL INFORMATION .......................................................................................................................5 2.1 GENERAL DESCRIPTION OF EUT .................................................................................................................5 2.2 TEST MODE ................................................................................................................................................7 2.3 DESCRIPTION OF SUPPORT UNITS ...............................................................................................................7 2.4 DEVIATION FROM STANDARDS .....................................................................................................................7 2.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 2.6 TEST FACILITY ............................................................................................................................................7 2.7 TEST LOCATION ..........................................................................................................................................7 2.8 ADDITIONAL INSTRUCTIONS .........................................................................................................................7 3. TEST INSTRUMENTS LIST ......................................................................................................................8 4. TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 4.1 ANTENNA REQUIREMENT .............................................................................................................................9 4.2 CONDUCTED EMISSIONS ...........................................................................................................................10 4.3 CONDUCTED PEAK OUTPUT POWER ..........................................................................................................16 4.4 6DB BANDWIDTH ......................................................................................................................................17 4.5 POWER SPECTRAL DENSITY .................................................................................................…

Text truncated - open the document above for the full version.
