2BNHF-ZCY24000M-JDZCY-24000M-JD

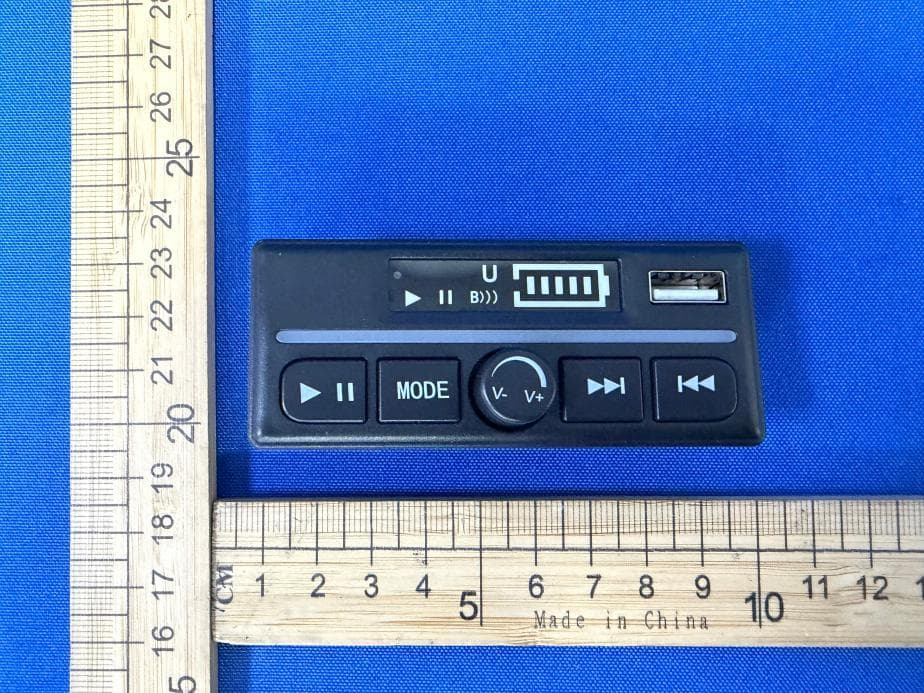

Model ZCY-24000M-JD Power Supply-DC DC24V Application scope Bluetooth music sound effect version for children's ride-on toys Button function description Button1：Short press to pause/play, long press to enter FM auto - tuning mode Button2：Mode cycle button, Bluetooth→FM→USB Knob 3：Volume control knob, turn left to decrease volume, turn right to increase volume Button4： Next track/Next FM Button5： Previous track/Previous FM Button function description Button6：USB socket Display 7： Function and battery level display FCC ID2BNHF-ZCY24000M-JD FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

NANYANGZHICHUANGYUANTechnologyCo.,LTD CoveredEquipmentCertificationAttestationLetter 8/7/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2BNHF-ZCY24000M-JD NANYANGZHICHUANGYUANTechnologyCo.,LTD(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. NANYANGZHICHUANGYUANTechnologyCo.,LTD(“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList asanentityproducing“covered”equipment. NANYANGZHICHUANGYUANTechnologyCo.,LTD(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtdoesnotincludecybersecurityoranti-virus softwareproducedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsand assignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886 andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:lixinChen Title:Manager CompanyName:NANYANGZHICHUANGYUANTechnologyCo.,LTD Date:8/7/2026

NANYANGZHICHUANGYUANTechnologyCo.,LTD 8/7/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 REQUESTFORCONFIDENTIALITY-FCC FCCID:2BNHF-ZCY24000M-JD PursuanttoSections0.457(d)(1)(ii)and0.459oftheCommission’sRulesandFCCGuidance document726920,weherebyrequestconfidentialtreatmentofinformationaccompanyingthis applicationasoutlinedbelow: PERMANENTLONG-TERMCONFIDENTIALITY: Schematics BlockDiagrams TheoryofOperation Theaboveinformationcontainstradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthisinformationmightbeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors.TheApplicantunderstandsthatpursuanttoRule0.457(d)(1)(ii), disclosureofthisApplicationandallaccompanyingmaterialswillnotbemadebeforethedateofthe GrantforthisApplication. Sincerely, Signed: Printedname:lixinChen Title:Manager

FCCID:2BNHF-ZCY24000M-JD FCCID:2BNHF-ZCY24000M-JD FCCID:2BNHF-ZCY24000M-JD

LabelandLabelLocation FCCID:2BNHF-ZCY24000M-JD

FCCID:2BNHF-ZCY24000M-JD FCCID:2BNHF-ZCY24000M-JD

Page1of2 RFEXPOSUREEVALUATION FCCID:2BNHF-ZCY24000M-JD ProductName:ZCY-24000M-JD ModelName:ZCY-24000M-JD Specification: BTBDR+EDR BLE OperationFrequency:2402-2480MHz NumberofChannel: 79channelsforBDR+EDR 40channelsforBLE TypeofModulation: GFSK,Π/4-DQPSK,8DPSKForDSS GFSKForBT Antennainstallation:PCBantenna AntennaGain:2.338dBi RatedPowerSupply:DC:12-24V1A HardwareVersion:N/A SoftwareVersion:N/A Page2of2 StandardRequirement Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01 GeneralRFExposureGuidancev06,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]*[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gSARextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison. Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤ 50mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurements orcomputersimulation.WhenroutineSARevaluationisnotrequired,portabletransmitters withoutputpowergreaterthantheapplicablelowthresholdrequireSARevaluationtoquality forTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTune UpPower (mW) Distance (mm) Calculation results Limit Operating Mode 2480-2.96 -2.96±1 0.63679650.20056533DH5 2480-3.89-3.89±10.51404450.1619033BLE AccordingtoKDB447498,ThedeviceonlysupportBTfunction,andnosimultaneousSAR measurementisrequired. Signature SimonPu Manager Date:2026-07-03

2.4G-2.48G频段板载PIFA天线测试报告 2.4G-2.48GInvertedFAntennaSpecification SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.338 AverageGain（dBi）＞-5.5 VSWR＜3.2 Impedance（Ω）50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear ManufactureZHUHAIJIELITECHNOLOGYCO.,LTD Address: No.333KexingRoad,NanpingSciencePark,XiangzhouDistrict, Zhuhai TestequipmentHWA-TECH AntennaPhoto&Length(mm) 天线无源S参数： AntennapassiveS-parameters: 驻波比（ VSWR ）、回波损耗（ ReturnLoss ）及史密斯圆图（ Smith ） 天线效率及增益： Antennaefficiencyandgain ： Frequency（MHz）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24002.33859.39%-2.915-2.263 24101.60349.11%-3.883-3.088 24201.29546.04%-4.014-3.369 24300.38836.89%-4.91-4.331 24400.18734.00%-5.276-4.685 24500.0231.71%-5.431-4.988 24600.50734.88%-5.02-4.575 24700.29131.89%-5.323-4.963 24800.42932.89%-5.195-4.83 Average0.7839.64%-4.66-4.12 Peak2.33859.39%-2.915-2.263 天线2400MHz2D-ThetaPattern 天线2400MHz2D-PhiPattern 2400MHz3D-TotalPattern

Page1of60 FCCTESTREPORT FCCID:2BNHF-ZCY24000M-JD Product: ZCY-24000M-JD ModelName: ZCY-24000M-JD Brand: N/A ReportNo.:PTC26052721401E-FC02 Preparedfor NanyangZhichuangyuanTechnologyCo.,Ltd. Building1,StandardizedFactory,IntersectionofPanguAvenueandIndustryRoad,Nanyang, Henan,China Preparedby PreciseTesting&CertificationCo.,Ltd Building1,No.6,TongxinRoad,DongchengStreet,Dongguan,Guangdong,China ReportNo.:PTC26052721401E-FC02 Page2of60 1TESTRESULTCERTIFICATION Applicant’sname:NanyangZhichuangyuanTechnologyCo.,Ltd. Address:Building1,StandardizedFactory,IntersectionofPanguAvenue andIndustryRoad,Nanyang,Henan,China Manufacture'sname:NanyangZhichuangyuanTechnologyCo.,Ltd. Address:Building1,StandardizedFactory,IntersectionofPanguAvenue andIndustryRoad,Nanyang,Henan,China Productname: ZCY-24000M-JD Modelname: ZCY-24000M-JD Standards:FCCCFR47Part15Section15.247 Testprocedure:ANSIC63.10-2020 TestDate: June03,2026toJuly03,2026 DateofIssue: July03,2026 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyPTC,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlyto thetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofPTC,thisdocument maybealteredorrevisedbyPTC,personalonly,andshallbenotedintherevisionofthedocument. TestEngineer: Jackzhou/Engineer TechnicalManager: SimonPu/Manager ReportNo.:PTC26052721401E-FC02 Page3of60 Contents Page 1TESTRESULTCERTIFICATION...............................................................................................................................2 2TESTSUMMARY..........................................................................................................................................................5 2.1TESTSITE............................................................................................................................................................6 3GENERALINFORMATION.......................................................................................................................................7 3.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................7 3.2CHANNELLIST.....................................................................................................................................................8 4EQUIPMENTDURINGTEST....................................................................................................................................9 4.1EQUIPMENTSLIST.............................................................................................................................................9 4.2MEASUREMENTUNCERTAINTY.........................................................................................................................11 4.3DESCRIPTIONOFSUPPORTUNITS...................................................................................................................12 5CONDUCTEDEMISSION..........................................................................................................................................13 5.1E.U.T.OPERATION............................................................................................................................................13 5.2EUTSETUP.......................................................................................................................................................13 5.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION).................................................................................14 5.4MEASUREMENTPROCEDURE............................................................................................................................14 5.5CONDUCTEDEMISSIONLIMIT...........................................................................................................................14 5.6MEASUREMENTRECEIVERPARAMETERS:.......................................................................................................15 5.7CONDUCTEDEMISSIONTESTRESULT.............................................................................................................15 6RADIATEDSPURIOUSEMISSIONS......................................................................................................................16 6.1EUTOPERATION...............................................................................................................................................16 6.2TESTSETUP......................................................................................................................................................17 6.3SPECTRUMANALYZERSETUP..........................................................................................................................18 6.4TESTPROCEDURE.............................................................................................................................................19 6.5SUMMARYOFTESTRESULTS...........................................................................................................................21 7CONDUCTBANDEDGEANDSPURIOUSEMISSIONSMEASUREMENT....................................................28 7.1TESTPROCEDURE.............................................................................................................................................28 7.2TESTSETUP......................................................................................................................................................28 ReportNo.:PTC26052721401E-FC02 Page4of60 7.3TESTRESULT....................................................................................................................................................29 86DBBANDWIDTHMEASUREMENT......................................................................................................................42 TESTPROCEDURE...............................................................…

Text truncated - open the document above for the full version.

FCCID:2BNHF-ZCY24000M-JD RadiatedSpuriousEmissions From30MHz-1000MHz TestfrequencyfromAbove1GHz
