2BNIH-BC01Multi-Function Electric Swing / BABY SWING

Multi-Function Electric Swing IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Product introduction-------------------------------------------2 Product Specification----------------------------------------2 Product Features----------------------------------------------2 Parts instruction-------------------------------------------------3 Instruction--------------------------------------------------------4 For Base Bracket-----------------------------------------------4 For Pillow and Seat Cover------------------------------------4 Safety Belt Instruction----------------------------------------5 Assemble Instructions----------------------------------------6 User instruction--------------------------------------------------7 Button Description--------------------------------------------7 Motion Lock----------------------------------------------------7 Remote Control------------------------------------------------7 Power supply---------------------------------------------------8 Button instruction--------------------------------------------8 CAUTION-----------------------------------------------------8 WARNING--------------------------------------------------9-12 Clean & Maintenance------------------------------------------13 Clean-----------------------------------------------------------13 Maintenance-------------------------------------------------13 Troubleshooting------------------------------------------------13 ASTM F2088, ASTM F3084 Multi-Function Electric Swing DD721 13 Parts
Instruction Make
sure
that
all
of
the
following
parts
listed
are
included
in
the
box.
If
any part
is
missing,
please
contact
us
before
operating.
No
tools
are
required

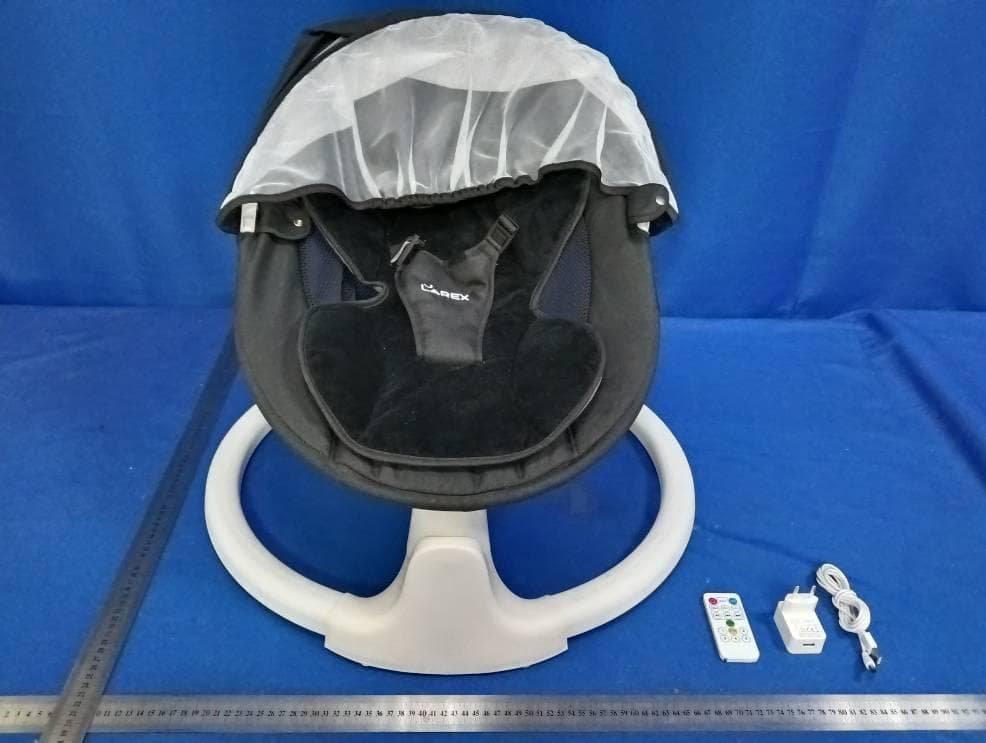

for assembly. 1)
Plush
toy*2 2)
Pillow&Body
Pad*1 3)
Mosquito
net
with
canopy*1 4)
Seat
cover 5)
Remote
controller 6)
Adaptor*],
2
meters
of
USB
cable*1 7)
Seat
frame*1 8)
Base
bracket*1 12 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. WARNING: Guardian should take good care of your child,prohibit to play accessories and avoid to get hurt or swallow！ Assemble Instructions 1.Press the steel clips,insert the upper seat frame into the hole of the down frame,ensure the clips bounce up,a clear "click" will be heard when correctly inserted. 2.Insert left and right tube into main engine,ensure that the foot tube is aligned with the screw hole of the main engine in the bottom. 3.Fix 4 screws into the foot tube. ·FALL and STRANGULATION HAZARDS: Infants have suffered head injuries Falling from swings and have strangled in straps ALWAYS use restraints. Adjust to fit snugly.· STOP · using product when baby starts trying to sit up or has reached 20 lb, whichever comes first. ·Stay near and watch baby during use. This product is not safe for sleep or unsupervised use. if baby falls asleep, remove baby as soon as possible and place baby on a firm, flat sleep surface such as a crib or bassinet. Power On/Off Key: Touch this button and the indicator light is on. Touch it again to turn the swing off. Swing Gear Setting:Touch the button to adjust swing settings.There are five gears of the swing. the swinging angle is:0x-0°,1x-18°,2x-21°,3x-23°,4x-25°,5x-31°,the swing angle will be smaller after loading Note:1.When gear 0 under no timer setting,the gear indicator light and timer light are both on; 2.Automaticlly back to Gear 0 when inspected unusual swinging or strike by something. Timer Setting:Touch the button 1-3 times to choose the swing time. 8/15/30minutes. Music Play:Touch the button to play the built-in music.Touch it again to turn the sound off. Volume Up/Down: Touch the button in 1 second to adjust the volume, Touch the button in 2-3 second to play next song Button Description Power On/Off Key Music Play/Pause Key Music Switch & Volume Up/Down Key Five Swing gears Timer setting,3 preset option - The supply terminals are not to be short-circuited. - Not connected more than recommended number of power supplied . - The product should only be used with a transformer for product. - The product shall be used with the transformer supplied. - The transformer is not a product. - Product liable to be cleaned with liquid are to be disconnected from the transformer before cleaning. Transformers used with the product are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event o…
