2BNLQ-Q330Projector

User Manual (英语) Settings - Projector Settings, enter settings for projection mode, keystone correction, and scaling. This manual is for reference only. They are subject to change without prior notice. FCC Warning This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure Statement To maintain compliance with FCC'S RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm between the radiator and your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Android phone screen sharing QuickShareQuickShare Screen mirroring for Apple phones Operating telephone devices Model: Q330

Dongguan AIMEISEN Intelligent Technology Co., Ltd. Covered Equipment Certification Attestation Letter 12/17/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BNLQ-Q330 Dongguan AIMEISEN Intelligent Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Dongguan AIMEISEN Intelligent Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Dongguan AIMEISEN Intelligent Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Shen Qin Title: Manager Company Name: Dongguan AIMEISEN Intelligent Technology Co., Ltd. Date: 12/17/2025

Dongguan AIMEISEN Intelligent Technology Co., Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: December 17, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BNLQ-Q330 Dongguan AIMEISEN Intelligent Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Dongguan AIMEISEN Intelligent Technology Co., Ltd. FRN: 0036559987 Address: Room 602, Building 2, No. 248, Daxing Road, Yangwu, Dalingshan Town, Dongguan City, Guangdong Province Signature: Contact Person: Shen Qin Tel: 13724338130 Email: [email protected]

DATE: December 17, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BNLQ-Q330 Product Name: Projector Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Shen Qin Title: Manager Company: Dongguan AIMEISEN Intelligent Technology Co., Ltd.

Date: December 17, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Shen Qin Title: Manager Company: Dongguan AIMEISEN Intelligent Technology Co., Ltd.

DATE: December 17, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Dongguan AIMEISEN Intelligent Technology Co., Ltd. (Room 602, Building 2, No. 248, Daxing Road, Yangwu, Dalingshan Town, Dongguan City, Guangdong Province, China). <Signature> Name: Shen Qin Title: Manager Company: Dongguan AIMEISEN Intelligent Technology Co., Ltd.

Dongguan AIMEISEN Intelligent Technology Co., Ltd. Model Difference Statement DATE: December 17, 2025 FCC ID: 2BNLQ-Q330 Dear Sir/Madam, Added models Q330P, Q330A, Q330T, Q330PRO, HY300, HY320, HY300MINI, Z330 basis of the original product Q330. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Shen Qin Title: Manager Company name: Dongguan AIMEISEN Intelligent Technology Co., Ltd. Address: Room 602, Building 2, No. 248, Daxing Road, Yangwu, Dalingshan Town, Dongguan City, Guangdong Province, China

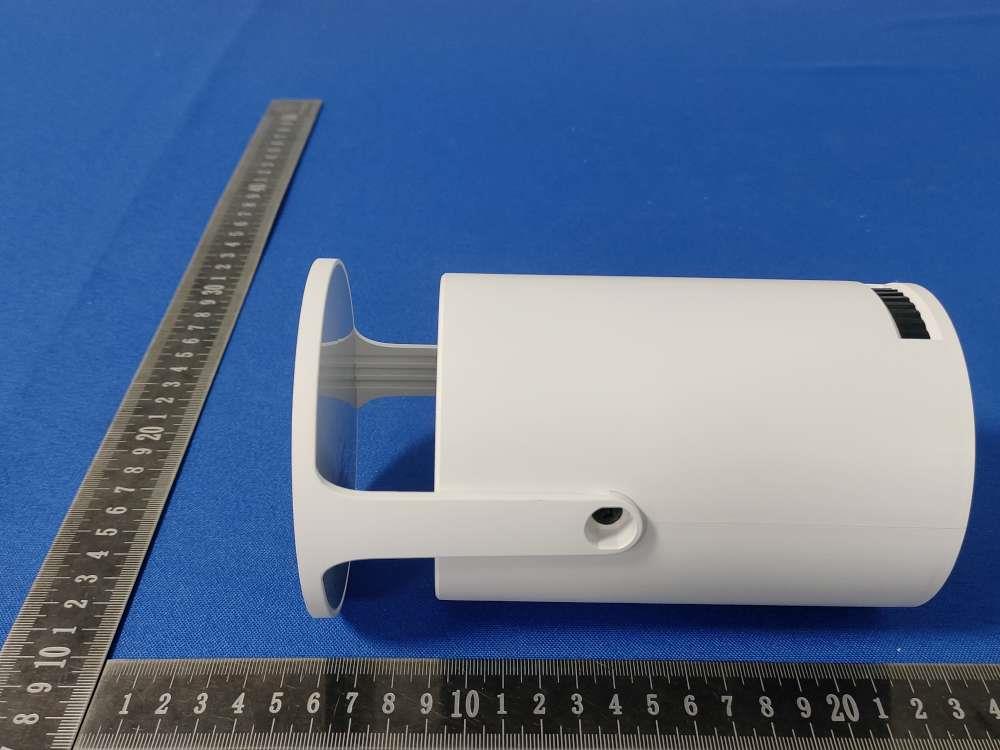

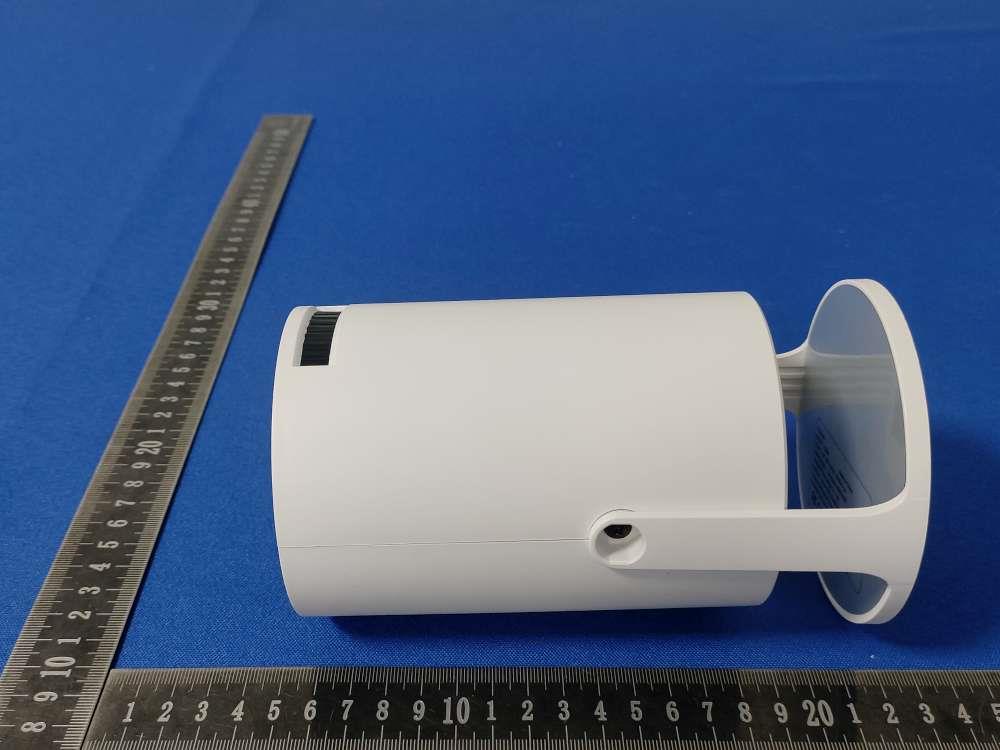

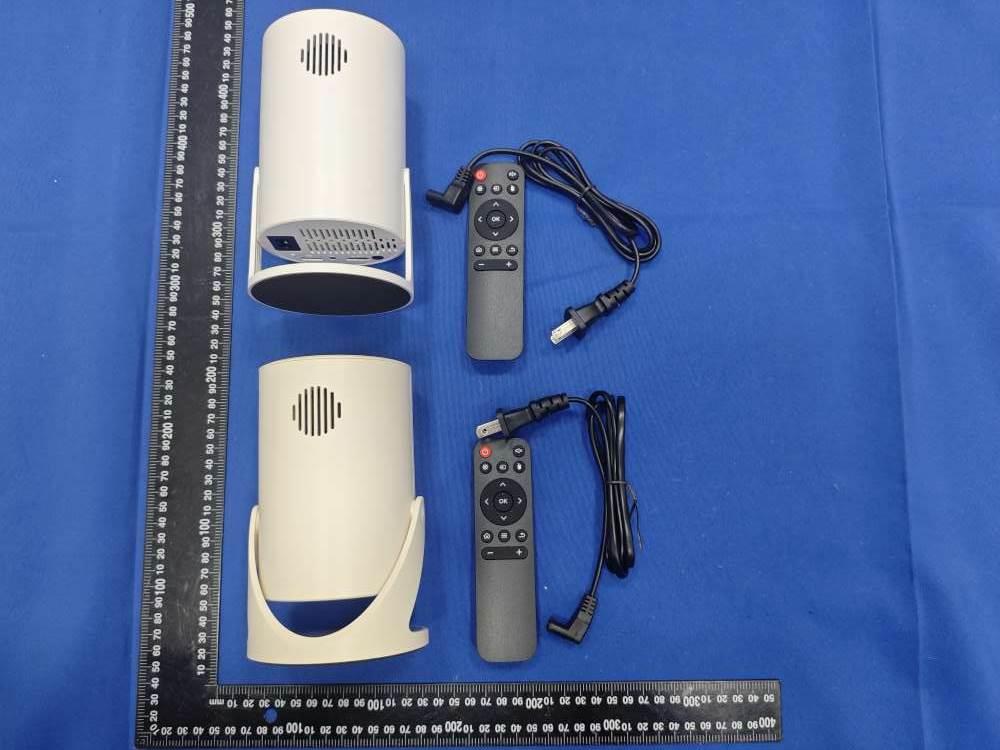

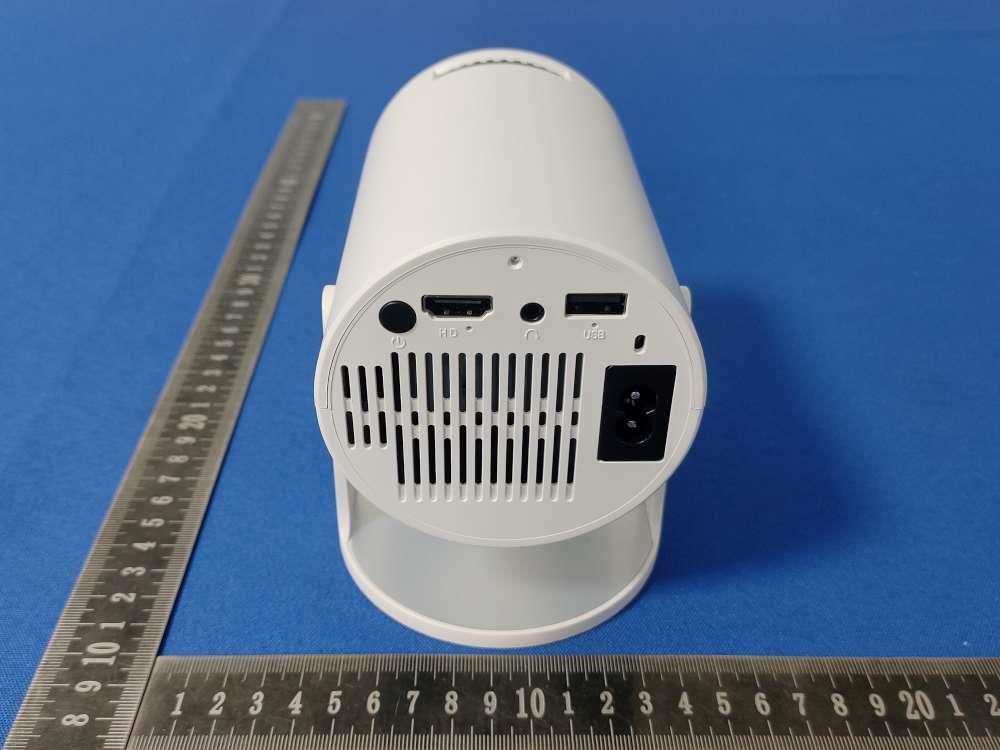

Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report Annex B. EUT Internal Photos EUT Internal View 1 EUT Internal View 2 Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report EUT Internal View 3 EUT Internal View 4 SMD ANT Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report EUT Internal View 5 EUT Internal View 6

FCC ID: 2BNLQ-Q330 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 5.8G WI-FI Mode Output power to antenna (dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11n20 11.24 11(±1) 12 15.85 0.0032 1.0 PASS Remark: antenna gain= 0dBi

Antenna describe 1. Antenna describe: Antenna plate SMDANTENNA Make name/model name Q310、Q330 Antenna gain 0dBi Frequency range 5745MHZ-5825MHZ Connector type direct Manufacturer Name: DONGGUANG XIAOKE INDUSTRLES.CO.,LTD Manufacture Address: NO. 227, DONGCHENG SECTION, GUANDONG ROAD, DONGCHENG STREET, DONGGUAN CITY,CHINA 2.External view drawing: Picture of antenna Antenna Dimensions L1 2.15 mm L2 1.20 mm L3 1.95 mm W1 0.35 mm W2 0.35 mm D1 1.25 mm D2 1.65 mm D3 0.50 mm 3.Antenna Radiation Pattern Antenna View (12mm*2.6mm) 5745MHz 5785MHz 5825MHz

Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Test Data Appendix of Test Report 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5745 Ant1 57.01 2.44 4.1 NVNT a 5785 Ant1 69.32 1.59 4.1 NVNT a 5825 Ant1 57.01 2.44 4.1 NVNT n20 5745 Ant1 48.48 3.14 4.46 NVNT n20 5785 Ant1 66.96 1.74 4.44 NVNT n20 5825 Ant1 49.45 3.06 4.46 NVNT n40 5755 Ant1 39.09 4.08 7.75 NVNT n40 5795 Ant1 42.9 3.68 7.69 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Duty Cycle NVNT a 5825MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 7.91 2.44 10.35 30 Pass NVNT a 5785 Ant1 7.68 1.59 9.27 30 Pass NVNT a 5825 Ant1 6.86 2.44 9.3 30 Pass NVNT n20 5745 Ant1 8.1 3.14 11.24 30 Pass NVNT n20 5785 Ant1 7.37 1.74 9.11 30 Pass NVNT n20 5825 Ant1 7.07 3.06 10.13 30 Pass NVNT n40 5755 Ant1 6.79 4.08 10.87 30 Pass NVNT n40 5795 Ant1 6.36 3.68 10.04 30 Pass Note1: Total power=Conducted power + Duty factor Note 2: Antenna Gain: 0dBi Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Power NVNT a 5745MHz Ant1 Power NVNT a 5785MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Power NVNT a 5825MHz Ant1 Power NVNT n20 5745MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Power NVNT n20 5785MHz Ant1 Power NVNT n20 5825MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Power NVNT n40 5755MHz Ant1 Power NVNT n40 5795MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.499 Pass NVNT a 5785 Ant1 16.501 Pass NVNT a 5825 Ant1 16.554 Pass NVNT n20 5745 Ant1 17.798 Pass NVNT n20 5785 Ant1 17.737 Pass NVNT n20 5825 Ant1 17.703 Pass NVNT n40 5755 Ant1 36.485 Pass NVNT n40 5795 Ant1 36.441 Pass Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 4. Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.577 NVNT a 5785 Ant1 16.589 NVNT a 5825 Ant1 16.615 NVNT n20 5745 Ant1 17.845 NVNT n20 5785 Ant1 17.815 NVNT n20 5825 Ant1 17.833 NVNT n40 5755 Ant1 36.516 NVNT n40 5795 Ant1 36.442 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 OBW NVNT a 5745MHz Ant1 OBW NVNT a 5785MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 OBW NVNT a 5825MHz Ant1 OBW NVNT n20 5745MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 5. Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) 10log (510/500) Total PSD (dBm/500KHz) Limit (dBm/500KHz) Verdict NVNT a 5745 Ant1 -6.54 2.44 0.086 -4.014 30 Pass NVNT a 5785 Ant1 -5.74 1.59 0.086 -4.064 30 Pass NVNT a 5825 Ant1 -5.7 2.44 0.086 -3.174 30 Pass NVNT n20 5745 Ant1 -5.06 3.14 0.086 -1.834 30 Pass NVNT n20 5785 Ant1 -6.12 1.74 0.086 -4.294 30 Pass NVNT n20 5825 Ant1 -6.02 3.06 0.086 -2.874 30 Pass NVNT n40 5755 Ant1 -9.6 4.08 0.086 -5.434 30 Pass NVNT n40 5795 Ant1 -10.39 3.68 0.086 -6.624 30 Pass Note 1: Total PSD=Conducted PSD + Duty factor+(10log(Test RBW / Limit RBW) Note 2: Antenna Gain: 0dBi Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 PSD NVNT a 5745MHz Ant1 PSD NVNT a 5785MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 PSD NVNT a 5825MHz Ant1 PSD NVNT n20 5745MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5795MHz Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 6. Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Verdict NVNT a 5745 Ant1 -24.96 Pass NVNT a 5825 Ant1 -29.95 Pass NVNT n20 5745 Ant1 -26.77 Pass NVNT n20 5825 Ant1 -31.19 Pass NVNT n40 5755 Ant1 -24.63 Pass NVNT n40 5795 Ant1 -33.22 Pass Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Band Edge NVNT a 5745MHz Low Ant1 Band Edge NVNT a 5825MHz High Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Band Edge NVNT n20 5745MHz Low Ant1 Band Edge NVNT n20 5825MHz High Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Band Edge NVNT n40 5755MHz Low Ant1 Band Edge NVNT n40 5795MHz High Ant1 Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 7. Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5745 Ant1 -31.92 -27 Pass NVNT a 5785 Ant1 -31.74 -27 Pass NVNT a 5825 Ant1 -31.91 -27 Pass NVNT n20 5745 Ant1 -31.66 -27 Pass NVNT n20 5785 Ant1 -32.22 -27 Pass NVNT n20 5825 Ant1 -32.09 -27 Pass NVNT n40 5755 Ant1 -31.74 -27 Pass NVNT n40 5795 Ant1 -31.81 -27 Pass Note: Testing is carried out with frequency rang 30MHz to the 40GHz, above 27GHz not recorded for no spurious point have a margin of less than 6 dB with respect to the limits. Report No.: SSP25110590-1E FCC ID: 2BNLQ-Q330 Tx. Spurious NVNT a 5745MHz Ant1 Emission Tx. Spurious NVNT a 5785MHz Ant1 Emission Report No.: SSP25110590-1…

Text truncated - open the document above for the full version.

Report No: SSP25110590-1E FCC Test Report Page 1 of 31 FCC TEST REPORT FCC ID: 2BNLQ-Q330 Report No. : SSP25110590-1E Applicant : Dongguan AIMEISEN Intelligent Technology Co., Ltd. Product Name : Projector Model Name : Q330 Test Standard : FCC Part 15 Subpart E Date of Issue : 2025-12-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25110590-1E FCC Test Report Page 2 of 31 Test Report Basic Information Applicant..................................: Dongguan AIMEISEN Intelligent Technology Co., Ltd. Address of Applicant...............: Room 602, Building 2, No. 248, Daxing Road, Yangwu, Dalingshan Town, Dongguan City, Guangdong Province Manufacturer..........................: Dongguan AIMEISEN Intelligent Technology Co., Ltd. Address of Manufacturer........: Room 602, Building 2, No. 248, Daxing Road, Yangwu, Dalingshan Town, Dongguan City, Guangdong Province Product Name.........................: Projector Brand Name.............................: - Main Model..............................: Q330 Series Models..........................: Q330P, Q330A, Q330T, Q330PRO, HY300, HY320, HY300MINI, Z330 Test Standard..........................: FCC Part 15 Subpart E KDB 789033 D02 v02r01 ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2025-11-20 to 2025-11-29 Test Result...............................: Passed Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25110590-1E FCC Test Report Page 3 of 31 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................7 1.3 Compliance Standards ...........................................................................................................................................8 1.4 Test Facilities ........................................................................................................................................................8 1.5 List of Measurement Instruments ..........................................................................................................................9 1.6 Measurement Uncertainty ................................................................................................................................... 10 2. Summary of Test Results ........................................................................................................................................... 11 3. Antenna Requirement ............................................................................................................................................... 12 3.1 Standard and Limit.............................................................................................................................................. 12 3.2 Test Result .......................................................................................................................................................... 12 4. Conducted Emissions ................................................................................................................................................ 13 4.1 Standard and Limit.............................................................................................................................................. 13 4.2 Test Procedure.................................................................................................................................................... 13 4.3 Test Data and Results .......................................................................................................................................... 14 5. Radiated Emissions(Below 1GHz)............................................................................................................................. 17 5.1 Standard and Limit.............................................................................................................................................. 17 5.2 Test Procedure.................................................................................................................................................... 17 5.3 Test Data and Results .......................................................................................................................................... 18 6. Spurious Emissions(Above 1GHz) ............................................................................................................................. 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure.................................................................................................................................................... 21 6.3 Test Data and Results ............................................................................…

Text truncated - open the document above for the full version.

Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP25110590-1E FCC ID: 2BNLQ-Q330 Annex of Test Report Radiated Emission Test View Above 1GHz
