2BNQ8-UD6684G USB DONGLE
AOZORA WIRELESS INC.
Click to zoom
Application Details
- Equipment Class
- PCB - PCS Licensed Transmitter
- Date of Grant
- May 22, 2026
- Application Purpose
- Original Equipment
- Equipment Note

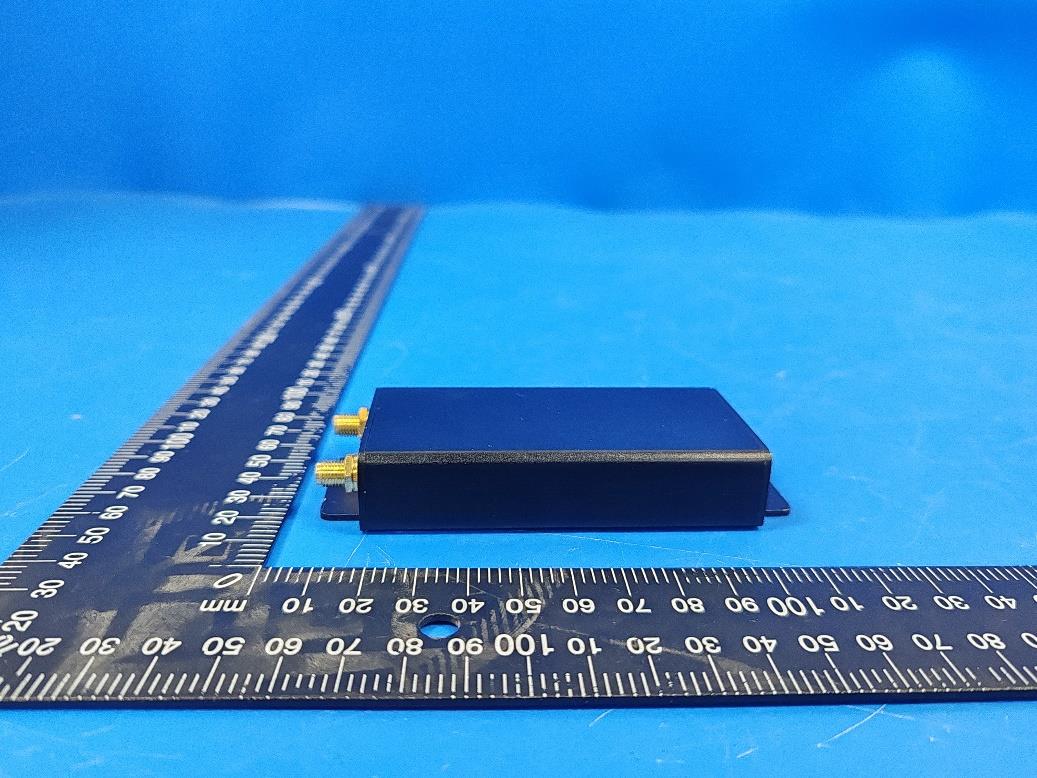

- 4G USB DONGLE
- Frequency Range
- 670.50000000 - 690.50000000
- Company
- AOZORA WIRELESS INC.
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual

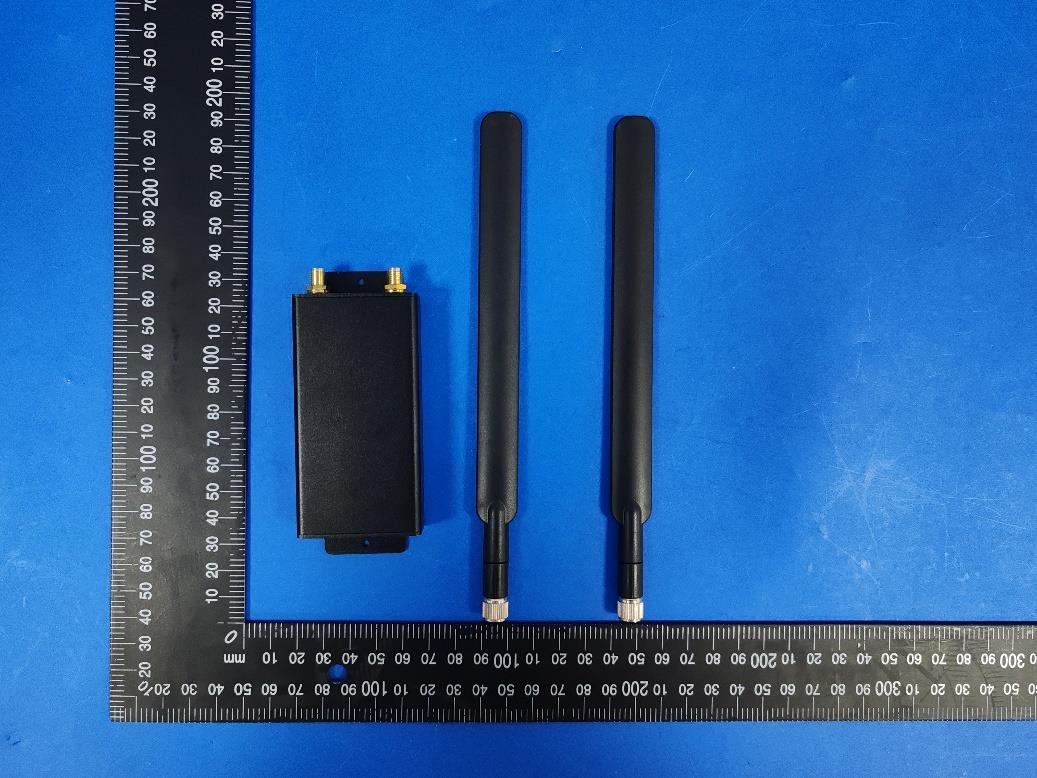

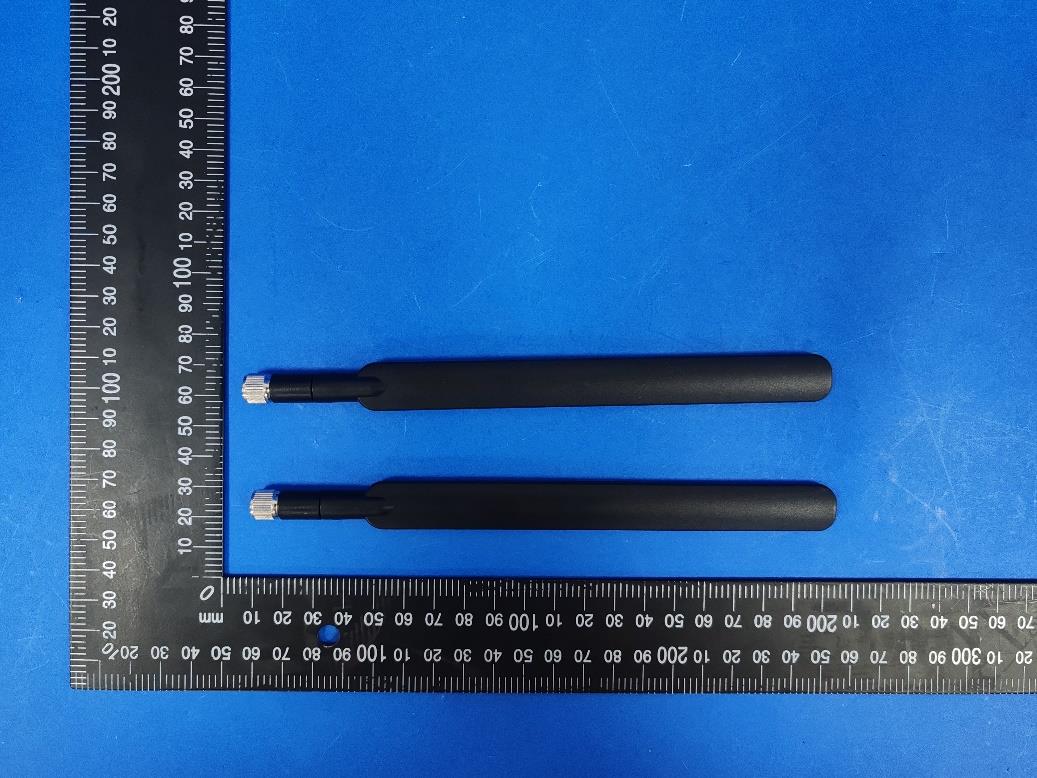

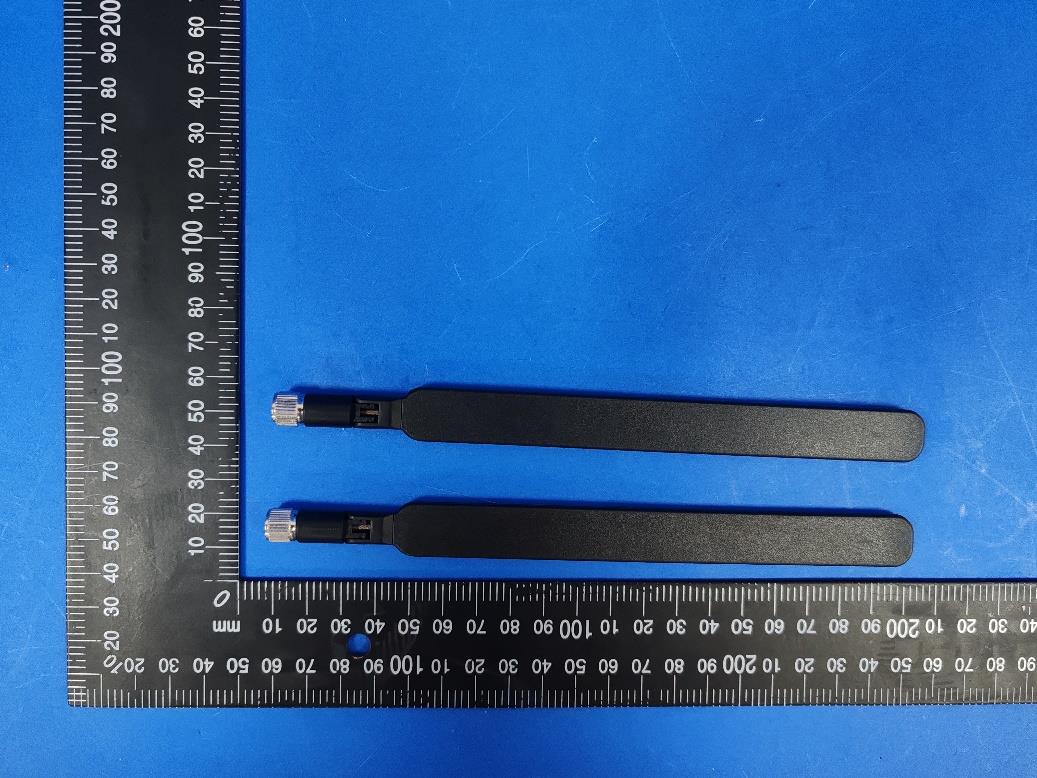

UD668 High-Speed 4G LTE Dongle 1. PRODUCT OVERVIEW The UD668 is a high-performance 4G LTE USB dongle designed to provide reliable, high-speed internet connectivity for Windows and Chrome OS devices. Powered by the Qualcomm MDM9X07 chipset, it supports major North American carriers including Verizon, AT&T, and T-Mobile. 2. TECHNICAL SPECIFICATIONS ChipsetQualcomm MDM9X07 Cellular Network4G LTE Supported CarriersVerizon / AT&T / T-Mobile LTE BandsB2, B4, B5, B12, B13, B66, B71 Data RatesDownlink: 150Mbps (Cat4) / Uplink: 50Mbps (Cat4) InterfaceUSB / Type-C SIM Card Slot1* Nano SIM slot (Note: Not Hot-plug) Antennas2* Detachable External LTE Antennas Max Transmitting PowerLTE: 22.5dBm Power Supply5V DC Operating SystemWindows 10/11 & Chrome OS 3. SETUP GUIDE SIM Card Installation: Insert a valid Nano SIM card into the slot. IMPORTANT: This device does NOT support hot-plugging. Ensure the device is unplugged before inserting or removing the SIM card. Antenna Attachment: Screw the two detachable LTE antennas onto the gold-plated connectors on the side of the dongle. Connection: Plug the device into a USB or Type-C port on your laptop or computer. Initialization: Wait for the LED indicators (POWER and WAN) to stabilize, indicating a successful network connection. 4. LED INDICATOR STATUS POWER: Indicates the device is receiving 5V power. WAN: Indicates cellular network connectivity and data activity. 5. ENVIRONMENTAL SPECIFICATIONS Normal Operating Temp.-10°C to 55°C Extended Operating Temp.-30°C to 70°C Storage Temperature-40°C to 85°C 1. 2. 3. 4. • • Federal Communication Commission Interference Statement FCC ID: 2BNQ8-UD668 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Radiation Exposure Statement: This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions (5mm) accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.
Test Report
Report Page 310 of 546 Band5 16QAM BW=1.4MHz Channel=20643 RB Size=6 Position=#0 Extended Band5 QPSK BW=3MHz Channel=20415 RB Size=1 Position=#0 Normal Band5 QPSK BW=3MHz Channel=20415 RB Size=1 Position=#0 Extended Report Page 311 of 546 Band5 QPSK BW=3MHz Channel=20415 RB Size=1 Position=#Max Normal Band5 QPSK BW=3MHz Channel=20415 RB Size=1 Position=#Max Extended Band5 QPSK BW=3MHz Channel=20415 RB Size=15 Position=#0 Normal Report Page 312 of 546 Band5 QPSK BW=3MHz Channel=20415 RB Size=15 Position=#0 Extended Band5 16QAM BW=3MHz Channel=20415 RB Size=1 Position=#0 Normal Band5 16QAM BW=3MHz Channel=20415 RB Size=1 Position=#0 Extended Report Page 313 of 546 Band5 16QAM BW=3MHz Channel=20415 RB Size=1 Position=#Max Normal Band5 16QAM BW=3MHz Channel=20415 RB Size=1 Position=#Max Extended Band5 16QAM BW=3MHz Channel=20415 RB Size=15 Position=#0 Normal Report Page 314 of 546 Band5 16QAM BW=3MHz Channel=20415 RB Size=15 Position=#0 Extended Band5 QPSK BW=3MHz Channel=20635 RB Size=1 Position=#0 Normal Band5 QPSK BW=3MHz Channel=20635 RB Size=1 Position=#0 Extended Report Page 315 of 546 Band5 QPSK BW=3MHz Channel=20635 RB Size=1 Position=#Max Normal Band5 QPSK BW=3MHz Channel=20635 RB Size=1 Position=#Max Extended Band5 QPSK BW=3MHz Channel=20635 RB Size=15 Position=#0 Normal Report Page 316 of 546 Band5 QPSK BW=3MHz Channel=20635 RB Size=15 Position=#0 Extended Band5 16QAM BW=3MHz Channel=20635 RB Size=1 Position=#0 Normal Band5 16QAM BW=3MHz Channel=20635 RB Size=1 Position=#0 Extended Report Page 317 of 546 Band5 16QAM BW=3MHz Channel=20635 RB Size=1 Position=#Max Normal Band5 16QAM BW=3MHz Channel=20635 RB Size=1 Position=#Max Extended Band5 16QAM BW=3MHz Channel=20635 RB Size=15 Position=#0 Normal Report Page 318 of 546 Band5 16QAM BW=3MHz Channel=20635 RB Size=15 Position=#0 Extended Band5 QPSK BW=5MHz Channel=20425 RB Size=1 Position=#0 Normal Band5 QPSK BW=5MHz Channel=20425 RB Size=1 Position=#0 Extended Report Page 319 of 546 Band5 QPSK BW=5MHz Channel=20425 RB Size=1 Position=#Max Normal Band5 QPSK BW=5MHz Channel=20425 RB Size=1 Position=#Max Extended Band5 QPSK BW=5MHz Channel=20425 RB Size=25 Position=#0 Normal Report Page 320 of 546 Band5 QPSK BW=5MHz Channel=20425 RB Size=25 Position=#0 Extended Band5 16QAM BW=5MHz Channel=20425 RB Size=1 Position=#0 Normal Band5 16QAM BW=5MHz Channel=20425 RB Size=1 Position=#0 Extended Report Page 321 of 546 Band5 16QAM BW=5MHz Channel=20425 RB Size=1 Position=#Max Normal Band5 16QAM BW=5MHz Channel=20425 RB Size=1 Position=#Max Extended Band5 16QAM BW=5MHz Channel=20425 RB Size=25 Position=#0 Normal Report Page 322 of 546 Band5 16QAM BW=5MHz Channel=20425 RB Size=25 Position=#0 Extended Band5 QPSK BW=5MHz Channel=20625 RB Size=1 Position=#0 Normal Band5 QPSK BW=5MHz Channel=20625 RB Size=1 Position=#0 Extended Report Page 323 of 546 Band5 QPSK BW=5MHz Channel=20625 RB Size=1 Position=#Max Normal Band5 QPSK BW=5MHz Channel=20625 RB Size=1 Position=#Max Extended Band5 QPSK BW=5MHz Channel=20625 RB Size=25 Position=#0 Normal Report Page 324 of 546 Band5 QPSK BW=5MHz Channel=20625 RB Size=25 Position=#0 Extended Band5 16QAM BW=5MHz Channel=20625 RB Size=1 Position=#0 Normal Band5 16QAM BW=5MHz Channel=20625 RB Size=1 Position=#0 Extended Report Page 325 of 546 Band5 16QAM BW=5MHz Channel=20625 RB Size=1 Position=#Max Normal Band5 16QAM BW=5MHz Channel=20625 RB Size=1 Position=#Max Extended Band5 16QAM BW=5MHz Channel=20625 RB Size=25 Position=#0 Normal Report Page 326 of 546 Band5 16QAM BW=5MHz Channel=20625 RB Size=25 Position=#0 Extended Band5 QPSK BW=10MHz Channel=20450 RB Size=1 Position=#0 Normal Band5 QPSK BW=10MHz Channel=20450 RB Size=1 Position=#0 Extended Report Page 327 of 546 Band5 QPSK BW=10MHz Channel=20450 RB Size=1 Position=#Max Normal Band5 QPSK BW=10MHz Channel=20450 RB Size=1 Position=#Max Extended Band5 QPSK BW=10MHz Channel=20450 RB Size=50 Position=#0 Normal Report Page 328 of 546 Band5 QPSK BW=10MHz Channel=20450 RB Size=50 Position=#0 Extended Band5 16QAM BW=10MHz Channel=20450 RB Size=1 Position=#0 Normal Band5 16QAM BW=10MHz Channel=20450 RB Size=1 Position=#0 Extended Report Page 329 of 546 Band5 16QAM BW=10MHz Channel=20450 RB Size=1 Position=#Max Normal Band5 16QAM BW=10MHz Channel=20450 RB Size=1 Position=#Max Extended Band5 16QAM BW=10MHz Channel=20450 RB Size=50 Position=#0 Normal Report Page 330 of 546 Band5 16QAM BW=10MHz Channel=20450 RB Size=50 Position=#0 Extended Band5 QPSK BW=10MHz Channel=20600 RB Size=1 Position=#0 Normal Band5 QPSK BW=10MHz Channel=20600 RB Size=1 Position=#0 Extended Report Page 331 of 546 Band5 QPSK BW=10MHz Channel=20600 RB Size=1 Position=#Max Normal Band5 QPSK BW=10MHz Channel=20600 RB Size=1 Position=#Max Extended Band5 QPSK BW=10MHz Channel=20600 RB Size=50 Position=#0 Normal Report Page 332 of 546 Band5 QPSK BW=10MHz Channel=20600 RB Size=50 Position=#0 Extended Band5 16QAM BW=10MHz Channel=20600 RB Size=1 Position=#0 Normal Band5 16QAM BW=10MHz Channel=20600 RB Size=1 Position=#0 Extended Report Page 333 of 546 Band5 16QAM BW=10MHz Channel=20600 RB Size=1 Position=#Max Normal Band5 16QAM BW=10MHz Channel=20600 RB Size=1 Position=#Max Extended Band5 16QAM BW=10MHz Channel=20600 RB Size=50 Position=#0 Normal Report Page 334 of 546 Band5 16QAM BW=10MHz Channel=20600 RB Size=50 Position=#0 Extended Band12 QPSK BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Normal Band12 QPSK BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Extended Report Page 335 of 546 Band12 QPSK BW=1.4MHz Channel=23017 RB Size=1 Position=#Max Normal Band12 QPSK BW=1.4MHz Channel=23017 RB Size=1 Position=#Max Extended Band12 QPSK BW=1.4MHz Channel=23017 RB Size=6 Position=#0 Normal Report Page 336 of 546 Band12 QPSK BW=1.4MHz Channel=23017 RB Size=6 Position=#0 Extended Band12 16QAM BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Normal Band12 16QAM BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Extended Report Page 337 of 546 Band12 16QAM BW=1.4MHz Channel=23017 RB Size=1 Position=#Max Normal Band12 16QAM BW=1.4…
Text truncated - open the document above for the full version.
Test Setup Photos
FCC ID_SAR Setup photos Body Front side Antenna Horizontal (separation distance is 5mm) Body Front side Antenna Vertical (separation distance is 5mm) Body Back side Antenna Horizontal (separation distance is 5mm) Body Back side Antenna Vertical (separation distance is 5mm) Body Left side Antenna Horizontal (separation distance is 5mm) Body Left side Antenna Vertical (separation distance is 5mm) Body Right side Antenna Horizontal (separation distance is 5mm) Body Right side Antenna Vertical (separation distance is 5mm) Body Top side Antenna Horizontal (separation distance is 5mm) Body Right side Antenna Vertical (separation distance is 5mm)
Test Setup Photos
Page 1 of 1 Report No.: LGT26D053 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz
Test Report
Report Page 111 of 546 Band71 16QAM BW=10MHz Channel=133422 RB Size=1 Position=#0 Band71 QPSK BW=15MHz Channel=133197 RB Size=1 Position=#0 Band71 16QAM BW=15MHz Channel=133197 RB Size=1 Position=#0 Report Page 112 of 546 Band71 QPSK BW=15MHz Channel=133297 RB Size=1 Position=#0 Band71 16QAM BW=15MHz Channel=133297 RB Size=1 Position=#0 Band71 QPSK BW=15MHz Channel=133397 RB Size=1 Position=#0 Report Page 113 of 546 Band71 16QAM BW=15MHz Channel=133397 RB Size=1 Position=#0 Band71 QPSK BW=20MHz Channel=133222 RB Size=1 Position=#0 Band71 16QAM BW=20MHz Channel=133222 RB Size=1 Position=#0 Report Page 114 of 546 Band71 QPSK BW=20MHz Channel=133297 RB Size=1 Position=#0 Band71 16QAM BW=20MHz Channel=133297 RB Size=1 Position=#0 Band71 QPSK BW=20MHz Channel=133372 RB Size=1 Position=#0 Report Page 115 of 546 Band71 16QAM BW=20MHz Channel=133372 RB Size=1 Position=#0 Report Page 116 of 546 Occupied bandwidth Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation 99% OBW (MHz) -26dB EBW (MHz) Verdict Band2 1.4 18607 6 #0 QPSK 1.095 1.264 PASS Band2 1.4 18607 6 #0 16QAM 1.098 1.304 PASS Band2 1.4 18900 6 #0 QPSK 1.096 1.276 PASS Band2 1.4 18900 6 #0 16QAM 1.098 1.279 PASS Band2 1.4 19193 6 #0 QPSK 1.097 1.312 PASS Band2 1.4 19193 6 #0 16QAM 1.096 1.272 PASS Band2 3 18615 15 #0 QPSK 2.700 2.981 PASS Band2 3 18615 15 #0 16QAM 2.705 2.952 PASS Band2 3 18900 15 #0 QPSK 2.705 2.981 PASS Band2 3 18900 15 #0 16QAM 2.698 2.990 PASS Band2 3 19185 15 #0 QPSK 2.709 2.984 PASS Band2 3 19185 15 #0 16QAM 2.702 2.984 PASS Band2 5 18625 25 #0 QPSK 4.500 4.958 PASS Band2 5 18625 25 #0 16QAM 4.496 4.889 PASS Band2 5 18900 25 #0 QPSK 4.507 4.970 PASS Band2 5 18900 25 #0 16QAM 4.541 4.990 PASS Band2 5 19175 25 #0 QPSK 4.515 4.974 PASS Band2 5 19175 25 #0 16QAM 4.516 4.973 PASS Band2 10 18650 50 #0 QPSK 8.965 9.805 PASS Band2 10 18650 50 #0 16QAM 8.940 9.732 PASS Band2 10 18900 50 #0 QPSK 8.997 9.779 PASS Band2 10 18900 50 #0 16QAM 8.997 9.615 PASS Band2 10 19150 50 #0 QPSK 8.975 9.771 PASS Band2 10 19150 50 #0 16QAM 8.984 9.794 PASS Band2 15 18675 75 #0 QPSK 13.441 14.638 PASS Band2 15 18675 75 #0 16QAM 13.450 14.467 PASS Band2 15 18900 75 #0 QPSK 13.473 14.663 PASS Band2 15 18900 75 #0 16QAM 13.499 14.673 PASS Band2 15 19125 75 #0 QPSK 13.460 14.639 PASS Band2 15 19125 75 #0 16QAM 13.425 14.570 PASS Band2 20 18700 100 #0 QPSK 17.945 19.364 PASS Band2 20 18700 100 #0 16QAM 17.957 19.351 PASS Band2 20 18900 100 #0 QPSK 17.936 19.367 PASS Band2 20 18900 100 #0 16QAM 17.974 19.460 PASS Band2 20 19100 100 #0 QPSK 17.929 19.448 PASS Band2 20 19100 100 #0 16QAM 17.970 19.331 PASS Band4 1.4 19957 6 #0 QPSK 1.100 1.289 PASS Band4 1.4 19957 6 #0 16QAM 1.089 1.265 PASS Band4 1.4 20175 6 #0 QPSK 1.103 1.289 PASS Band4 1.4 20175 6 #0 16QAM 1.093 1.282 PASS Band4 1.4 20393 6 #0 QPSK 1.095 1.292 PASS Band4 1.4 20393 6 #0 16QAM 1.099 1.297 PASS Report Page 117 of 546 Band4 3 19965 15 #0 QPSK 2.698 2.937 PASS Band4 3 19965 15 #0 16QAM 2.700 2.907 PASS Band4 3 20175 15 #0 QPSK 2.690 2.932 PASS Band4 3 20175 15 #0 16QAM 2.688 2.939 PASS Band4 3 20385 15 #0 QPSK 2.688 2.917 PASS Band4 3 20385 15 #0 16QAM 2.687 2.919 PASS Band4 5 19975 25 #0 QPSK 4.495 4.925 PASS Band4 5 19975 25 #0 16QAM 4.512 4.911 PASS Band4 5 20175 25 #0 QPSK 4.532 4.895 PASS Band4 5 20175 25 #0 16QAM 4.504 4.880 PASS Band4 5 20375 25 #0 QPSK 4.515 4.896 PASS Band4 5 20375 25 #0 16QAM 4.520 4.908 PASS Band4 10 20000 50 #0 QPSK 9.003 9.757 PASS Band4 10 20000 50 #0 16QAM 8.978 9.707 PASS Band4 10 20175 50 #0 QPSK 9.012 9.703 PASS Band4 10 20175 50 #0 16QAM 8.998 9.793 PASS Band4 10 20350 50 #0 QPSK 8.974 9.665 PASS Band4 10 20350 50 #0 16QAM 8.978 9.733 PASS Band4 15 20025 75 #0 QPSK 13.472 14.706 PASS Band4 15 20025 75 #0 16QAM 13.517 14.491 PASS Band4 15 20175 75 #0 QPSK 13.461 14.539 PASS Band4 15 20175 75 #0 16QAM 13.479 14.615 PASS Band4 15 20325 75 #0 QPSK 13.426 14.442 PASS Band4 15 20325 75 #0 16QAM 13.451 14.423 PASS Band4 20 20050 100 #0 QPSK 17.979 19.244 PASS Band4 20 20050 100 #0 16QAM 17.957 19.263 PASS Band4 20 20175 100 #0 QPSK 18.007 19.580 PASS Band4 20 20175 100 #0 16QAM 17.986 19.416 PASS Band4 20 20300 100 #0 QPSK 17.976 19.219 PASS Band4 20 20300 100 #0 16QAM 17.906 19.262 PASS Band5 1.4 20407 6 #0 QPSK 1.098 1.269 PASS Band5 1.4 20407 6 #0 16QAM 1.100 1.290 PASS Band5 1.4 20525 6 #0 QPSK 1.090 1.309 PASS Band5 1.4 20525 6 #0 16QAM 1.089 1.282 PASS Band5 1.4 20643 6 #0 QPSK 1.094 1.279 PASS Band5 1.4 20643 6 #0 16QAM 1.091 1.272 PASS Band5 3 20415 15 #0 QPSK 2.694 2.901 PASS Band5 3 20415 15 #0 16QAM 2.679 2.945 PASS Band5 3 20525 15 #0 QPSK 2.692 2.914 PASS Band5 3 20525 15 #0 16QAM 2.686 2.914 PASS Band5 3 20635 15 #0 QPSK 2.692 2.927 PASS Band5 3 20635 15 #0 16QAM 2.680 2.921 PASS Band5 5 20425 25 #0 QPSK 4.516 4.869 PASS Band5 5 20425 25 #0 16QAM 4.506 4.889 PASS Report Page 118 of 546 Band5 5 20525 25 #0 QPSK 4.514 4.891 PASS Band5 5 20525 25 #0 16QAM 4.515 4.864 PASS Band5 5 20625 25 #0 QPSK 4.511 4.894 PASS Band5 5 20625 25 #0 16QAM 4.526 4.928 PASS Band5 10 20450 50 #0 QPSK 8.970 9.646 PASS Band5 10 20450 50 #0 16QAM 8.960 9.622 PASS Band5 10 20525 50 #0 QPSK 9.013 10.039 PASS Band5 10 20525 50 #0 16QAM 8.995 9.667 PASS Band5 10 20600 50 #0 QPSK 8.991 9.784 PASS Band5 10 20600 50 #0 16QAM 8.987 9.669 PASS Band12 1.4 23017 6 #0 QPSK 1.092 1.286 PASS Band12 1.4 23017 6 #0 16QAM 1.103 1.313 PASS Band12 1.4 23095 6 #0 QPSK 1.098 1.295 PASS Band12 1.4 23095 6 #0 16QAM 1.091 1.275 PASS Band12 1.4 23173 6 #0 QPSK 1.091 1.274 PASS Band12 1.4 23173 6 #0 16QAM 1.092 1.300 PASS Band12 3 23025 15 #0 QPSK 2.700 2.922 PASS Band12 3 23025 15 #0 16QAM 2.686 2.933 PASS Band12 3 23095 15 #0 QPSK 2.685 2.940 PASS Band12 3 23095 15 #0 16QAM 2.685 2.913 PASS Band12 3 23165 15 #0 QPSK 2.697 2.900 PASS Band12 3 23165 15 #0 16QAM 2.685 2.905 PASS Band12 5 23035 25 #0 QPSK 4.517 5.143 PASS Band12 5 23035 25 #0 16QAM 4.527 5.231 PASS Band12 5 23095 25 #0 QPSK 4.539 5.222 PASS Band12 5 23095 25 #0 16QAM 4.509 5.104 PASS Band12 5 23155 25 #0 QPSK 4.526 …
Text truncated - open the document above for the full version.
Test Report
Report Page 86 of 546 Band12 QPSK BW=5MHz Channel=23155 RB Size=1 Position=#0 Band12 16QAM BW=5MHz Channel=23155 RB Size=1 Position=#0 Band12 QPSK BW=10MHz Channel=23060 RB Size=1 Position=#0 Report Page 87 of 546 Band12 16QAM BW=10MHz Channel=23060 RB Size=1 Position=#0 Band12 QPSK BW=10MHz Channel=23095 RB Size=1 Position=#0 Band12 16QAM BW=10MHz Channel=23095 RB Size=1 Position=#0 Report Page 88 of 546 Band12 QPSK BW=10MHz Channel=23130 RB Size=1 Position=#0 Band12 16QAM BW=10MHz Channel=23130 RB Size=1 Position=#0 Band13 QPSK BW=5MHz Channel=23205 RB Size=1 Position=#0 Report Page 89 of 546 Band13 16QAM BW=5MHz Channel=23205 RB Size=1 Position=#0 Band13 QPSK BW=5MHz Channel=23230 RB Size=1 Position=#0 Band13 16QAM BW=5MHz Channel=23230 RB Size=1 Position=#0 Report Page 90 of 546 Band13 QPSK BW=5MHz Channel=23255 RB Size=1 Position=#0 Band13 16QAM BW=5MHz Channel=23255 RB Size=1 Position=#0 Band13 QPSK BW=10MHz Channel=23230 RB Size=1 Position=#0 Report Page 91 of 546 Band13 16QAM BW=10MHz Channel=23230 RB Size=1 Position=#0 Band17 QPSK BW=5MHz Channel=23755 RB Size=1 Position=#0 Band17 16QAM BW=5MHz Channel=23755 RB Size=1 Position=#0 Report Page 92 of 546 Band17 QPSK BW=5MHz Channel=23790 RB Size=1 Position=#0 Band17 16QAM BW=5MHz Channel=23790 RB Size=1 Position=#0 Band17 QPSK BW=5MHz Channel=23825 RB Size=1 Position=#0 Report Page 93 of 546 Band17 16QAM BW=5MHz Channel=23825 RB Size=1 Position=#0 Band17 QPSK BW=10MHz Channel=23780 RB Size=1 Position=#0 Band17 16QAM BW=10MHz Channel=23780 RB Size=1 Position=#0 Report Page 94 of 546 Band17 QPSK BW=10MHz Channel=23790 RB Size=1 Position=#0 Band17 16QAM BW=10MHz Channel=23790 RB Size=1 Position=#0 Band17 QPSK BW=10MHz Channel=23800 RB Size=1 Position=#0 Report Page 95 of 546 Band17 16QAM BW=10MHz Channel=23800 RB Size=1 Position=#0 Band66 QPSK BW=1.4MHz Channel=131979 RB Size=1 Position=#0 Band66 16QAM BW=1.4MHz Channel=131979 RB Size=1 Position=#0 Report Page 96 of 546 Band66 QPSK BW=1.4MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=1.4MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=1.4MHz Channel=132665 RB Size=1 Position=#0 Report Page 97 of 546 Band66 16QAM BW=1.4MHz Channel=132665 RB Size=1 Position=#0 Band66 QPSK BW=3MHz Channel=131987 RB Size=1 Position=#0 Band66 16QAM BW=3MHz Channel=131987 RB Size=1 Position=#0 Report Page 98 of 546 Band66 QPSK BW=3MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=3MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=3MHz Channel=132657 RB Size=1 Position=#0 Report Page 99 of 546 Band66 16QAM BW=3MHz Channel=132657 RB Size=1 Position=#0 Band66 QPSK BW=5MHz Channel=131997 RB Size=1 Position=#0 Band66 16QAM BW=5MHz Channel=131997 RB Size=1 Position=#0 Report Page 100 of 546 Band66 QPSK BW=5MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=5MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=5MHz Channel=132647 RB Size=1 Position=#0 Report Page 101 of 546 Band66 16QAM BW=5MHz Channel=132647 RB Size=1 Position=#0 Band66 QPSK BW=10MHz Channel=132022 RB Size=1 Position=#0 Band66 16QAM BW=10MHz Channel=132022 RB Size=1 Position=#0 Report Page 102 of 546 Band66 QPSK BW=10MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=10MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=10MHz Channel=132622 RB Size=1 Position=#0 Report Page 103 of 546 Band66 16QAM BW=10MHz Channel=132622 RB Size=1 Position=#0 Band66 QPSK BW=15MHz Channel=132047 RB Size=1 Position=#0 Band66 16QAM BW=15MHz Channel=132047 RB Size=1 Position=#0 Report Page 104 of 546 Band66 QPSK BW=15MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=15MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=15MHz Channel=132597 RB Size=1 Position=#0 Report Page 105 of 546 Band66 16QAM BW=15MHz Channel=132597 RB Size=1 Position=#0 Band66 QPSK BW=20MHz Channel=132072 RB Size=1 Position=#0 Band66 16QAM BW=20MHz Channel=132072 RB Size=1 Position=#0 Report Page 106 of 546 Band66 QPSK BW=20MHz Channel=132322 RB Size=1 Position=#0 Band66 16QAM BW=20MHz Channel=132322 RB Size=1 Position=#0 Band66 QPSK BW=20MHz Channel=132572 RB Size=1 Position=#0 Report Page 107 of 546 Band66 16QAM BW=20MHz Channel=132572 RB Size=1 Position=#0 Band71 QPSK BW=5MHz Channel=133147 RB Size=1 Position=#0 Band71 16QAM BW=5MHz Channel=133147 RB Size=1 Position=#0 Report Page 108 of 546 Band71 QPSK BW=5MHz Channel=133297 RB Size=1 Position=#0 Band71 16QAM BW=5MHz Channel=133297 RB Size=1 Position=#0 Band71 QPSK BW=5MHz Channel=133447 RB Size=1 Position=#0 Report Page 109 of 546 Band71 16QAM BW=5MHz Channel=133447 RB Size=1 Position=#0 Band71 QPSK BW=10MHz Channel=133172 RB Size=1 Position=#0 Band71 16QAM BW=10MHz Channel=133172 RB Size=1 Position=#0 Report Page 110 of 546 Band71 QPSK BW=10MHz Channel=133297 RB Size=1 Position=#0 Band71 16QAM BW=10MHz Channel=133297 RB Size=1 Position=#0 Band71 QPSK BW=10MHz Channel=133422 RB Size=1 Position=#0
Test Report
Report Page 60 of 546 Band2 QPSK BW=20MHz Channel=19100 RB Size=1 Position=#0 Band2 16QAM BW=20MHz Channel=19100 RB Size=1 Position=#0 Band4 QPSK BW=1.4MHz Channel=19957 RB Size=1 Position=#0 Report Page 61 of 546 Band4 16QAM BW=1.4MHz Channel=19957 RB Size=1 Position=#0 Band4 QPSK BW=1.4MHz Channel=20175 RB Size=1 Position=#0 Band4 16QAM BW=1.4MHz Channel=20175 RB Size=1 Position=#0 Report Page 62 of 546 Band4 QPSK BW=1.4MHz Channel=20393 RB Size=1 Position=#0 Band4 16QAM BW=1.4MHz Channel=20393 RB Size=1 Position=#0 Band4 QPSK BW=3MHz Channel=19965 RB Size=1 Position=#0 Report Page 63 of 546 Band4 16QAM BW=3MHz Channel=19965 RB Size=1 Position=#0 Band4 QPSK BW=3MHz Channel=20175 RB Size=1 Position=#0 Band4 16QAM BW=3MHz Channel=20175 RB Size=1 Position=#0 Report Page 64 of 546 Band4 QPSK BW=3MHz Channel=20385 RB Size=1 Position=#0 Band4 16QAM BW=3MHz Channel=20385 RB Size=1 Position=#0 Band4 QPSK BW=5MHz Channel=19975 RB Size=1 Position=#0 Report Page 65 of 546 Band4 16QAM BW=5MHz Channel=19975 RB Size=1 Position=#0 Band4 QPSK BW=5MHz Channel=20175 RB Size=1 Position=#0 Band4 16QAM BW=5MHz Channel=20175 RB Size=1 Position=#0 Report Page 66 of 546 Band4 QPSK BW=5MHz Channel=20375 RB Size=1 Position=#0 Band4 16QAM BW=5MHz Channel=20375 RB Size=1 Position=#0 Band4 QPSK BW=10MHz Channel=20000 RB Size=1 Position=#0 Report Page 67 of 546 Band4 16QAM BW=10MHz Channel=20000 RB Size=1 Position=#0 Band4 QPSK BW=10MHz Channel=20175 RB Size=1 Position=#0 Band4 16QAM BW=10MHz Channel=20175 RB Size=1 Position=#0 Report Page 68 of 546 Band4 QPSK BW=10MHz Channel=20350 RB Size=1 Position=#0 Band4 16QAM BW=10MHz Channel=20350 RB Size=1 Position=#0 Band4 QPSK BW=15MHz Channel=20025 RB Size=1 Position=#0 Report Page 69 of 546 Band4 16QAM BW=15MHz Channel=20025 RB Size=1 Position=#0 Band4 QPSK BW=15MHz Channel=20175 RB Size=1 Position=#0 Band4 16QAM BW=15MHz Channel=20175 RB Size=1 Position=#0 Report Page 70 of 546 Band4 QPSK BW=15MHz Channel=20325 RB Size=1 Position=#0 Band4 16QAM BW=15MHz Channel=20325 RB Size=1 Position=#0 Band4 QPSK BW=20MHz Channel=20050 RB Size=1 Position=#0 Report Page 71 of 546 Band4 16QAM BW=20MHz Channel=20050 RB Size=1 Position=#0 Band4 QPSK BW=20MHz Channel=20175 RB Size=1 Position=#0 Band4 16QAM BW=20MHz Channel=20175 RB Size=1 Position=#0 Report Page 72 of 546 Band4 QPSK BW=20MHz Channel=20300 RB Size=1 Position=#0 Band4 16QAM BW=20MHz Channel=20300 RB Size=1 Position=#0 Band5 QPSK BW=1.4MHz Channel=20407 RB Size=1 Position=#0 Report Page 73 of 546 Band5 16QAM BW=1.4MHz Channel=20407 RB Size=1 Position=#0 Band5 QPSK BW=1.4MHz Channel=20525 RB Size=1 Position=#0 Band5 16QAM BW=1.4MHz Channel=20525 RB Size=1 Position=#0 Report Page 74 of 546 Band5 QPSK BW=1.4MHz Channel=20643 RB Size=1 Position=#0 Band5 16QAM BW=1.4MHz Channel=20643 RB Size=1 Position=#0 Band5 QPSK BW=3MHz Channel=20415 RB Size=1 Position=#0 Report Page 75 of 546 Band5 16QAM BW=3MHz Channel=20415 RB Size=1 Position=#0 Band5 QPSK BW=3MHz Channel=20525 RB Size=1 Position=#0 Band5 16QAM BW=3MHz Channel=20525 RB Size=1 Position=#0 Report Page 76 of 546 Band5 QPSK BW=3MHz Channel=20635 RB Size=1 Position=#0 Band5 16QAM BW=3MHz Channel=20635 RB Size=1 Position=#0 Band5 QPSK BW=5MHz Channel=20425 RB Size=1 Position=#0 Report Page 77 of 546 Band5 16QAM BW=5MHz Channel=20425 RB Size=1 Position=#0 Band5 QPSK BW=5MHz Channel=20525 RB Size=1 Position=#0 Band5 16QAM BW=5MHz Channel=20525 RB Size=1 Position=#0 Report Page 78 of 546 Band5 QPSK BW=5MHz Channel=20625 RB Size=1 Position=#0 Band5 16QAM BW=5MHz Channel=20625 RB Size=1 Position=#0 Band5 QPSK BW=10MHz Channel=20450 RB Size=1 Position=#0 Report Page 79 of 546 Band5 16QAM BW=10MHz Channel=20450 RB Size=1 Position=#0 Band5 QPSK BW=10MHz Channel=20525 RB Size=1 Position=#0 Band5 16QAM BW=10MHz Channel=20525 RB Size=1 Position=#0 Report Page 80 of 546 Band5 QPSK BW=10MHz Channel=20600 RB Size=1 Position=#0 Band5 16QAM BW=10MHz Channel=20600 RB Size=1 Position=#0 Band12 QPSK BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Report Page 81 of 546 Band12 16QAM BW=1.4MHz Channel=23017 RB Size=1 Position=#0 Band12 QPSK BW=1.4MHz Channel=23095 RB Size=1 Position=#0 Band12 16QAM BW=1.4MHz Channel=23095 RB Size=1 Position=#0 Report Page 82 of 546 Band12 QPSK BW=1.4MHz Channel=23173 RB Size=1 Position=#0 Band12 16QAM BW=1.4MHz Channel=23173 RB Size=1 Position=#0 Band12 QPSK BW=3MHz Channel=23025 RB Size=1 Position=#0 Report Page 83 of 546 Band12 16QAM BW=3MHz Channel=23025 RB Size=1 Position=#0 Band12 QPSK BW=3MHz Channel=23095 RB Size=1 Position=#0 Band12 16QAM BW=3MHz Channel=23095 RB Size=1 Position=#0 Report Page 84 of 546 Band12 QPSK BW=3MHz Channel=23165 RB Size=1 Position=#0 Band12 16QAM BW=3MHz Channel=23165 RB Size=1 Position=#0 Band12 QPSK BW=5MHz Channel=23035 RB Size=1 Position=#0 Report Page 85 of 546 Band12 16QAM BW=5MHz Channel=23035 RB Size=1 Position=#0 Band12 QPSK BW=5MHz Channel=23095 RB Size=1 Position=#0 Band12 16QAM BW=5MHz Channel=23095 RB Size=1 Position=#0
Test Report
Report Page 26 of 546 Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Gain (dB) EIRP (dBm) EIRP Limit (dBm) Verdict Band66 1.4 131979 1 #0 QPSK 23.19 0 23.19 30 PASS Band66 1.4 131979 1 #Mid QPSK 23.13 0 23.13 30 PASS Band66 1.4 131979 1 #Max QPSK 23.14 0 23.14 30 PASS Band66 1.4 131979 3 #0 QPSK 23.11 0 23.11 30 PASS Band66 1.4 131979 3 #Mid QPSK 23.09 0 23.09 30 PASS Band66 1.4 131979 3 #Max QPSK 23.14 0 23.14 30 PASS Band66 1.4 131979 6 #0 QPSK 21.87 0 21.87 30 PASS Band66 1.4 131979 1 #0 16QAM 22.26 0 22.26 30 PASS Band66 1.4 131979 1 #Mid 16QAM 22.30 0 22.30 30 PASS Band66 1.4 131979 1 #Max 16QAM 22.35 0 22.35 30 PASS Band66 1.4 131979 3 #0 16QAM 22.37 0 22.37 30 PASS Band66 1.4 131979 3 #Mid 16QAM 22.35 0 22.35 30 PASS Band66 1.4 131979 3 #Max 16QAM 22.34 0 22.34 30 PASS Band66 1.4 131979 6 #0 16QAM 21.37 0 21.37 30 PASS Band66 1.4 132322 1 #0 QPSK 23.18 0 23.18 30 PASS Band66 1.4 132322 1 #Mid QPSK 23.20 0 23.20 30 PASS Band66 1.4 132322 1 #Max QPSK 23.18 0 23.18 30 PASS Band66 1.4 132322 3 #0 QPSK 23.17 0 23.17 30 PASS Band66 1.4 132322 3 #Mid QPSK 23.15 0 23.15 30 PASS Band66 1.4 132322 3 #Max QPSK 23.14 0 23.14 30 PASS Band66 1.4 132322 6 #0 QPSK 22.19 0 22.19 30 PASS Band66 1.4 132322 1 #0 16QAM 22.44 0 22.44 30 PASS Band66 1.4 132322 1 #Mid 16QAM 22.39 0 22.39 30 PASS Band66 1.4 132322 1 #Max 16QAM 22.45 0 22.45 30 PASS Band66 1.4 132322 3 #0 16QAM 22.41 0 22.41 30 PASS Band66 1.4 132322 3 #Mid 16QAM 22.41 0 22.41 30 PASS Band66 1.4 132322 3 #Max 16QAM 22.39 0 22.39 30 PASS Band66 1.4 132322 6 #0 16QAM 21.39 0 21.39 30 PASS Band66 1.4 132665 1 #0 QPSK 23.20 0 23.20 30 PASS Band66 1.4 132665 1 #Mid QPSK 23.17 0 23.17 30 PASS Band66 1.4 132665 1 #Max QPSK 23.19 0 23.19 30 PASS Band66 1.4 132665 3 #0 QPSK 23.21 0 23.21 30 PASS Band66 1.4 132665 3 #Mid QPSK 23.22 0 23.22 30 PASS Band66 1.4 132665 3 #Max QPSK 23.22 0 23.22 30 PASS Band66 1.4 132665 6 #0 QPSK 22.20 0 22.20 30 PASS Band66 1.4 132665 1 #0 16QAM 22.13 0 22.13 30 PASS Band66 1.4 132665 1 #Mid 16QAM 22.15 0 22.15 30 PASS Band66 1.4 132665 1 #Max 16QAM 22.10 0 22.10 30 PASS Band66 1.4 132665 3 #0 16QAM 22.32 0 22.32 30 PASS Band66 1.4 132665 3 #Mid 16QAM 22.32 0 22.32 30 PASS Band66 1.4 132665 3 #Max 16QAM 22.33 0 22.33 30 PASS Band66 1.4 132665 6 #0 16QAM 21.36 0 21.36 30 PASS Report Page 27 of 546 Band66 3 131987 1 #0 QPSK 23.21 0 23.21 30 PASS Band66 3 131987 1 #Mid QPSK 23.12 0 23.12 30 PASS Band66 3 131987 1 #Max QPSK 23.14 0 23.14 30 PASS Band66 3 131987 8 #0 QPSK 22.11 0 22.11 30 PASS Band66 3 131987 8 #Mid QPSK 22.10 0 22.10 30 PASS Band66 3 131987 8 #Max QPSK 22.10 0 22.10 30 PASS Band66 3 131987 15 #0 QPSK 22.14 0 22.14 30 PASS Band66 3 131987 1 #0 16QAM 22.57 0 22.57 30 PASS Band66 3 131987 1 #Mid 16QAM 22.49 0 22.49 30 PASS Band66 3 131987 1 #Max 16QAM 22.56 0 22.56 30 PASS Band66 3 131987 8 #0 16QAM 21.08 0 21.08 30 PASS Band66 3 131987 8 #Mid 16QAM 21.14 0 21.14 30 PASS Band66 3 131987 8 #Max 16QAM 21.15 0 21.15 30 PASS Band66 3 131987 15 #0 16QAM 21.17 0 21.17 30 PASS Band66 3 132322 1 #0 QPSK 23.20 0 23.20 30 PASS Band66 3 132322 1 #Mid QPSK 23.21 0 23.21 30 PASS Band66 3 132322 1 #Max QPSK 23.19 0 23.19 30 PASS Band66 3 132322 8 #0 QPSK 22.22 0 22.22 30 PASS Band66 3 132322 8 #Mid QPSK 22.20 0 22.20 30 PASS Band66 3 132322 8 #Max QPSK 22.21 0 22.21 30 PASS Band66 3 132322 15 #0 QPSK 22.24 0 22.24 30 PASS Band66 3 132322 1 #0 16QAM 22.46 0 22.46 30 PASS Band66 3 132322 1 #Mid 16QAM 22.48 0 22.48 30 PASS Band66 3 132322 1 #Max 16QAM 22.39 0 22.39 30 PASS Band6…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Suki Guo(General Manager)
[email protected]Fax: +1 213 822 9901
Technical Contact
Test Firm
Shenzhen LGT Test Service Co., Ltd.Wen Wen
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 24E | 1.86 GHz - 1.90 GHz | 98.20 mW | 17M9G7D | 2.5ppm |
| 2 | 24E | 1.86 GHz - 1.90 GHz | 82.20 mW | 18M0W7D | 2.5ppm |
| 3 | 24E | 1.86 GHz - 1.90 GHz | 84.90 mW | 13M5W7D | 2.5ppm |
| 4 | 27 | 1.72 GHz - 1.75 GHz | 215.80 mW | 18M0G7D | 2.5ppm |
| 5 | 27 | 1.71 GHz - 1.75 GHz | 218.30 mW | 5M53G7D | 2.5ppm |
| 6 | 27 | 1.72 GHz - 1.75 GHz | 188.80 mW | 18M0W7D | 2.5ppm |
| 7 | 22H | 829 MHz - 844 MHz | 133.00 mW | 9M01G7D | 2.5ppm |
| 8 | 22H | 826.5 MHz - 846.5 MHz | 134.90 mW | 4M52G7D | 2.5ppm |
| 9 | 22H | 829 MHz - 844 MHz | 115.30 mW | 9M00W7D | 2.5ppm |
| 1 | 22H | 826.5 MHz - 846.5 MHz | 116.70 mW | 4M53W7D | 2.5ppm |
| 11 | 27 | 704 MHz - 711 MHz | 134.00 mW | 9M01G7D | 2.5ppm |
| 12 | 27 | 701.5 MHz - 713.5 MHz | 137.10 mW | 4M54G7D | 2.5ppm |
| 13 | 27 | 704 MHz - 711 MHz | 116.70 mW | 8M99W7D | 2.5ppm |
| 14 | 27 | 701.5 MHz - 713.5 MHz | 119.40 mW | 4M53W7D | 2.5ppm |
| 15 | 27 | 782 MHz - 782 MHz | 133.40 mW | 8M98G7D | 2.5ppm |
| 16 | 27 | 779.5 MHz - 784.5 MHz | 135.50 mW | 4M54G7D | 2.5ppm |
| 17 | 27 | 782 MHz - 782 MHz | 110.40 mW | 9M00W7D | 2.5ppm |
| 18 | 27 | 779.5 MHz - 784.5 MHz | 120.80 mW | 4M53W7D | 2.5ppm |
| 19 | 27 | 709 MHz - 711 MHz | 133.00 mW | 9M03G7D | 2.5ppm |
| 2 | 27 | 706.5 MHz - 713.5 MHz | 133.70 mW | 4M53G7D | 2.5ppm |
| 21 | 27 | 709 MHz - 711 MHz | 114.60 mW | 9M02W7D | 2.5ppm |
| 22 | 27 | 706.5 MHz - 713.5 MHz | 117.80 mW | 4M52W7D | 2.5ppm |
| 23 | 27 | 1.72 GHz - 1.77 GHz | 217.30 mW | 18M0G7D | 2.5ppm |
| 24 | 27 | 1.71 GHz - 1.78 GHz | 220.80 mW | 4M53G7D | 2.5ppm |
| 25 | 27 | 1.72 GHz - 1.77 GHz | 187.90 mW | 18M0W7D | 2.5ppm |
| 26 | 27 | 1.71 GHz - 1.78 GHz | 188.40 mW | 4M53W7D | 2.5ppm |
| 27 | 27 | 673 MHz - 688 MHz | 85.30 mW | 18M0G7D | 2.5ppm |
| 28 | 27 | 670.5 MHz - 690.5 MHz | 101.20 mW | 13M5G7D | 2.5ppm |
| 29 | 27 | 673 MHz - 688 MHz | 71.10 mW | 18M0W7D | 2.5ppm |
| 3 | 27 | 670.5 MHz - 690.5 MHz | 83.60 mW | 13M5W7D | 2.5ppm |
