2BNRG-TWCL6010Compact Body Worn Camera

COMPAC T BODY WORN CAMERA User Manual TWC-L6010 Copyright ©2025 Hanwha Vision Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization. Disclaimer Hanwha Vision makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Hanwha Vision reserves the right to change the contents of this document without prior notice. ※ Design and specifications are subject to change without prior notice. ※ The initial administrator ID is “admin” and the password should be set when logging in for the first time. Please change your password every three months to safely protect personal information and to prevent the damage of the information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password. Network Camera User Manual English _3 ! OVERVIEW IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.) 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/ accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lighting storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This product is intended to be supplied by a UL Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2” and rated from the Docking station 5 V, 1.3 A. 16. This product is intended to be supplied by isolation power. 17. If you use excessive force when installing the product, the camera may be damaged and malfunction. If you forcibly install the product using non-compliant tools, the product may be damaged. 18. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table. This may cause damage to the product. 19. Be careful not to get any chemicals on the product surface. Some chemical solvents such as cleaner or adhesives may cause serious damage to the product’s surface. 20. If you install/disassemble the product in a manner that has not been recommended, the production functions/ performance may not be guaranteed. Install the product by referring to “Installation & connection” in the user manual. 21. If the product is used in water, it may cause serious malfunction of the product. 22. Although a rapid change in temperature could cause frost inside the lens, there will be no problem with the video. 23. The operating temperature for the TWC-L6010 product is -20°C to +50°C(-4°F to +122°F). WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance with the installation instructions. CAUTION CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. overview overview 4_ overview Class construction An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protect…

Text truncated - open the document above for the full version.

Hanwha Vision Co., Ltd. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel: +82-10-2539-8090 Date: August 20, 2025 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 Regarding FCC & IC Application FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 We, Hanwha Vision Co., Ltd., declare that the device does not support channel 12 ~ 13 in 2.4 GHz band. The firmware setting is not accessible by end users and/or unauthorized 3rd parties. Signature: Minyoung Choi/ manager Hanwha Vision Co., Ltd.

Rev 1/26/2023 Hanwha Vision Co., Ltd. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel: +82-10-2539-8090 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 20, 2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID : 2BNRG-TWCL6010 [Hanwha Vision Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Hanwha Vision Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant toDA-24-886andKDB 986446 D01 Covered Equipment Guidancesection B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, Minyoung Choi/ manager Hanwha Vision Co., Ltd. Rev 1/26/2023 Hanwha Vision Co., Ltd. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel: +82-10-2539-8090 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 20, 2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID : 2BNRG-TWCL6010 [Hanwha Vision Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicantis notidentified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Minyoung Choi/ manager Hanwha Vision Co., Ltd.

Hanwha Vision Co., Ltd. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel: +82-10-2539-8090 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 20, 2025 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID : 2BNRG-TWCL6010 Applicant FRN : 0036674653 Hanwha Vision Co., Ltd.certifies that, as of the date of the filing of the application, FCC US AGENT, LLC. is our designated U.S. agent for service of process for the above referenced FCC ID. Hanwha Vision Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US AGENT, LLC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Hanwha Vision Co., Ltd. FCC US AGENT, LLC. Manager / Minyoung Choi Tim Payne [U.S. Agent signature] Rev 1/26/2023

Hanwha Vision Co., Ltd. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel: +82-10-2539-8090 Date: August 20, 2025 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 Confidentiality Request regarding application for certification of FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules and IC regulation, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit TypeFile Name Part ListPart List.pdf Schematics Diagram(s)Schematic.pdf Operation descriptionOperation description.pdf Block diagramBlock diagram.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Minyoung Choi/ manager Hanwha Vision Co., Ltd.

Hanwha Vision Co., Ltd. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel: +82-10-2539-8090 Date: August 20, 2025 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 To whom it may concern: I, the undersigned, hereby authorize Young-Jin, Lee of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Young-Jin, Lee of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product Hanwha Vision Co., Ltd. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Tel: +82-10-2539-8090 certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Minyoung Choi/ manager Hanwha Vision Co., Ltd. REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2.Please follow the format and type it on company letterhead and send original to us. 3.Authorized signature must be in agreement with grantee code contact in FCC database.

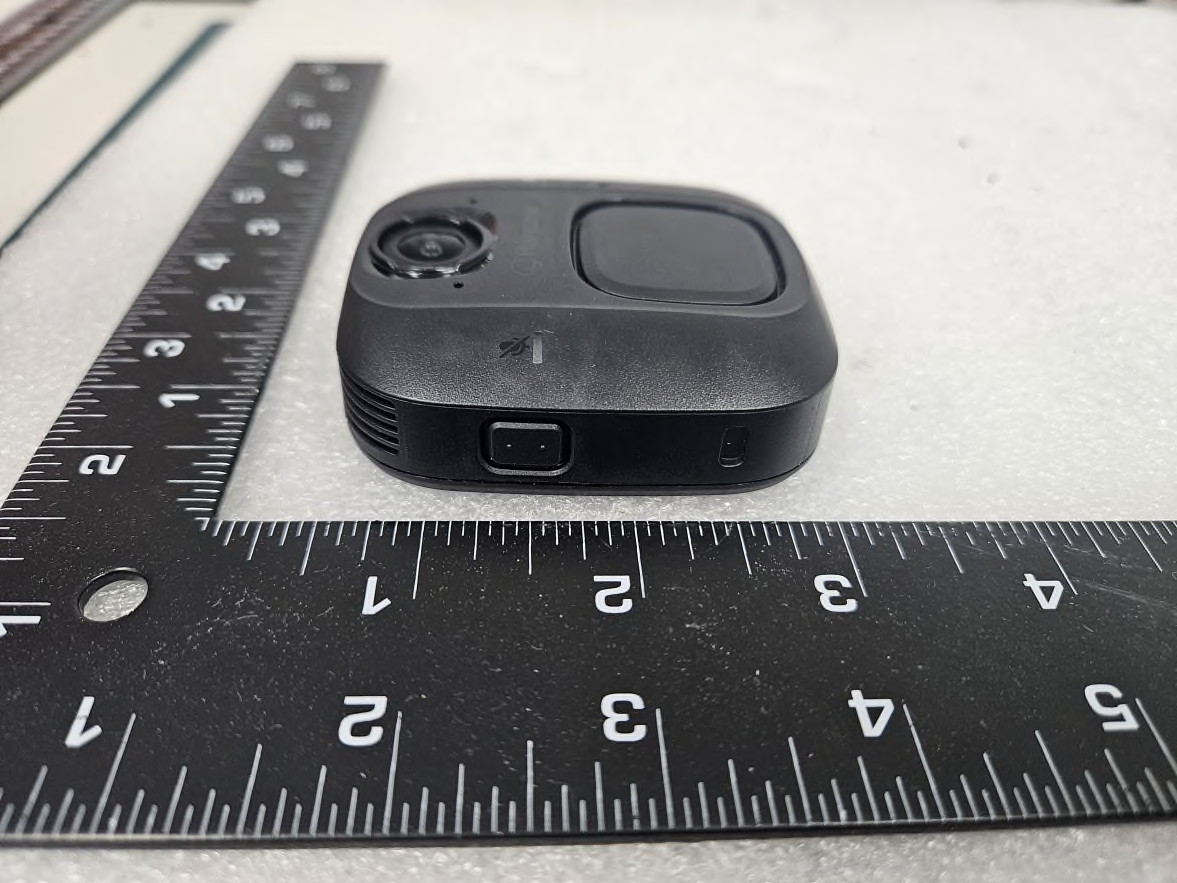

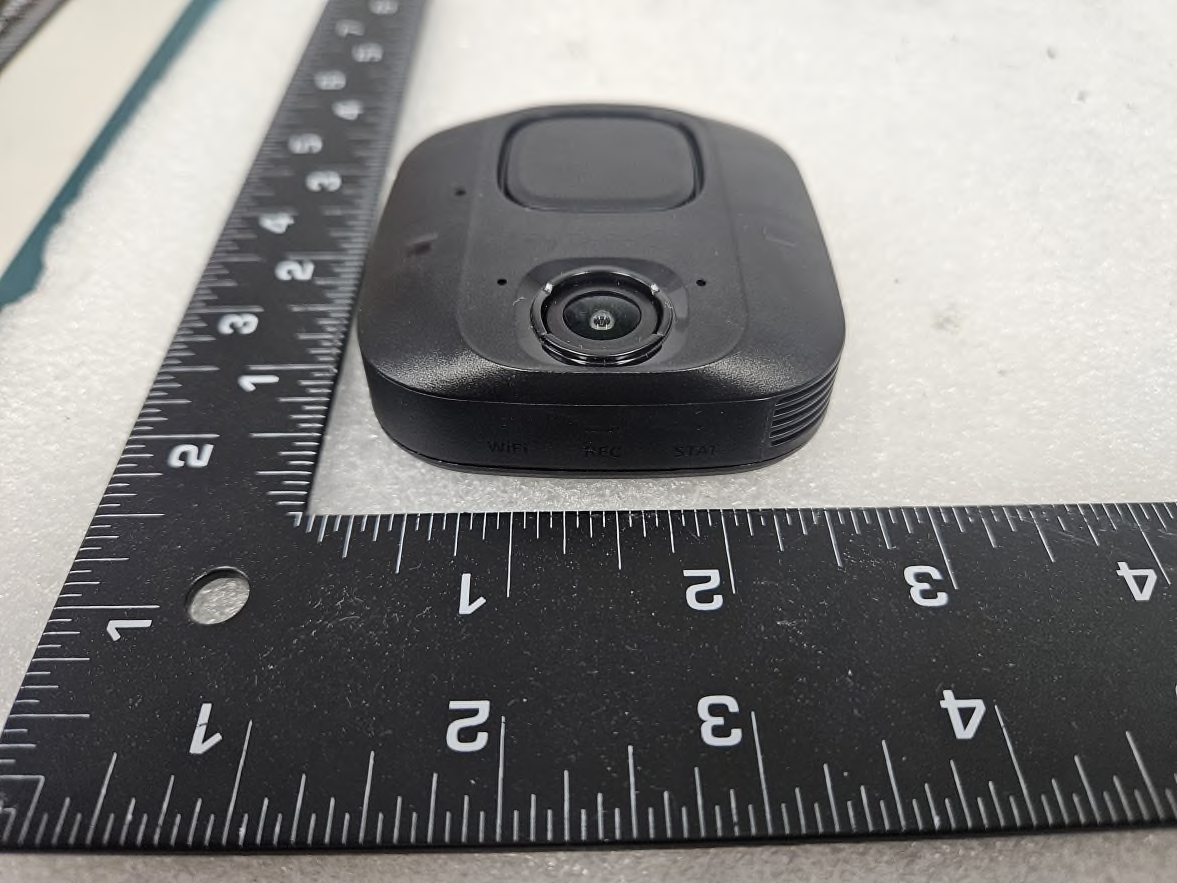

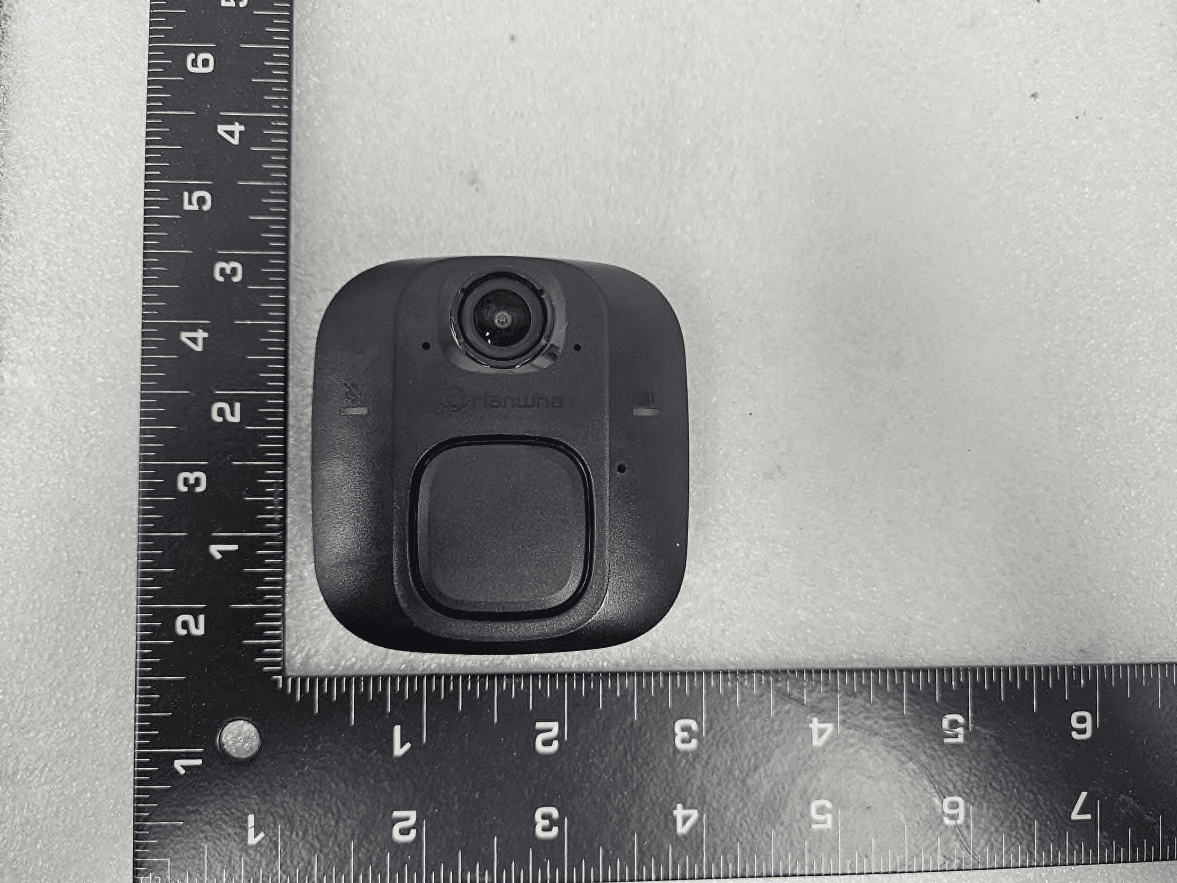

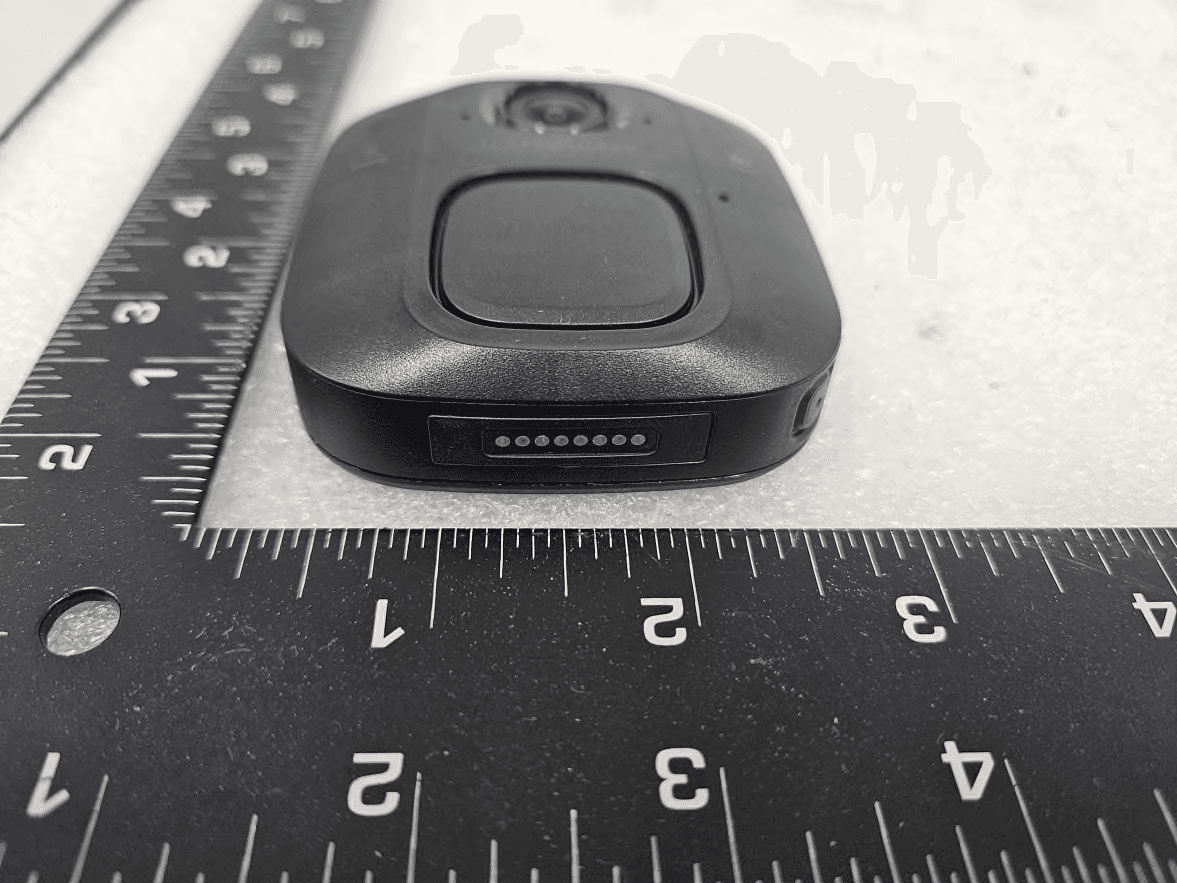

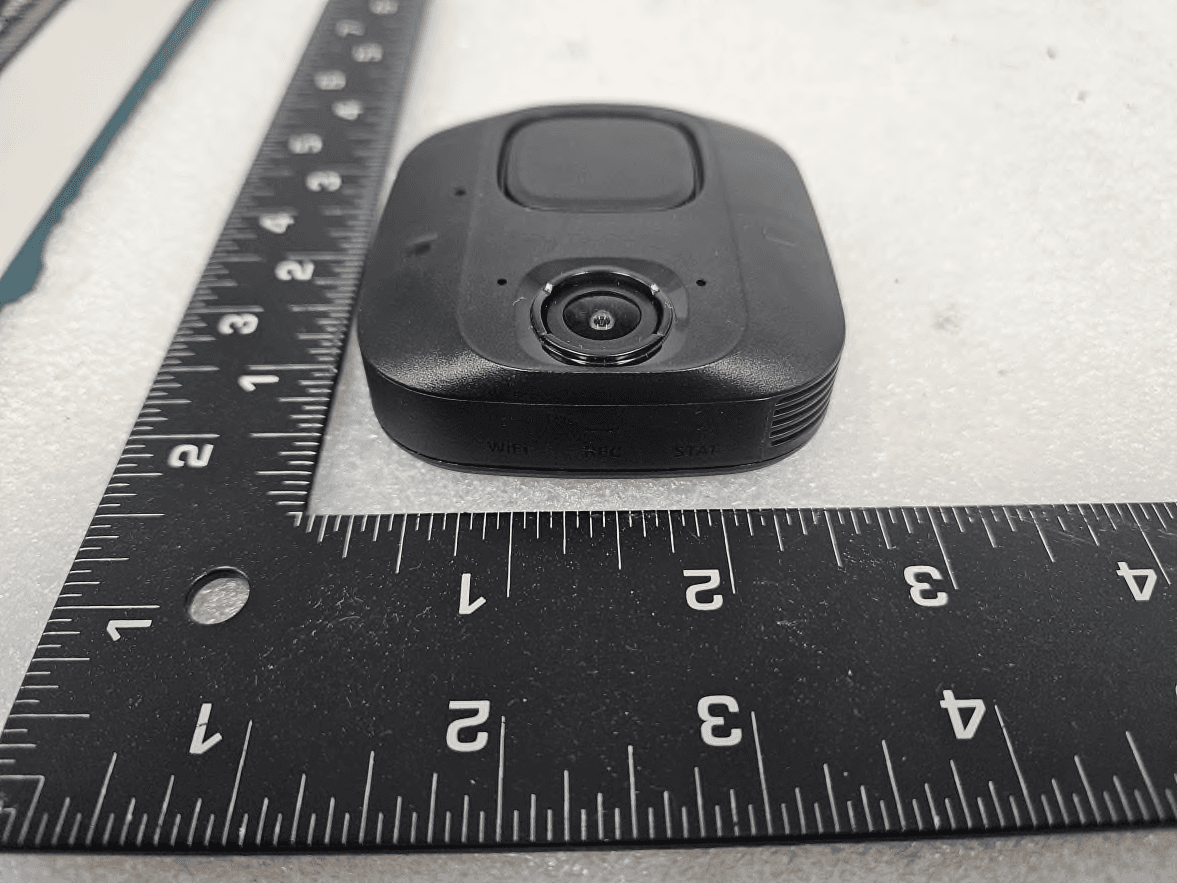

FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 Page 1 of 1 External photos

FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 Page 1 of 1 Label & Label Location The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the User’s Manual.

FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 Page 1 of 3 Internal photos FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 Page 2 of 3 FCC ID : 2BNRG-TWCL6010 IC number : 33572-TWCL6010 Page 3 of 3 Chip Antenna Blank

TEST REPORT Report No. : KES-SR250142 Page 1 / 80 KES Co., Ltd. #3002, #3503, #3701, 40, Simin-daero365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Republic of Korea Tel : +82-31-425-6200, Fax : +82-31-341-3838 KES-QP16-F01(00-23-01-01) KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 1. Client ○ Name : Hanwha Vision Co., Ltd. ○ Address : 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea 2. Sample Description ○ Product item : Compact Body Worn Camera ○ FCC ID : 2BNRG-TWCL6010 ○ Model name : TWC-L6010 ○ Multiple Model Name : N/A ○ Manufacturer etc. : HANWHA VISION VIETNAM COMPANY LIMITED D-TECH CO.,LTD. 3. Date of test : 2025.07.20 ~ 2025.07.22 4. Location of Test :  Permanent Testing Lab  On Site Testing ○ Address : 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 5. Test method used : CFR §2.1093 6. Test result : PASS The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This laboratory is not accredited for the test results marked *. This test report is not related to KOLAS accreditation. Affirmation Tested by Technical Manager Name : Min-sup Kim (Signature) Name : Wi-han, Jeong (Signature) 2025 . 08. 26. KES Co., Ltd. Accredited by KOLAS, Republic of KOREA Report No. : KES-SR250142 Page 2 / 80 KES-QP16-F01(00-23-01-01) KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). REPORT REVISION HISTORY Date Test Report No. Revision History 2025.08.26 KES-SR250142 Initial This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. This document may be altered or revised by KES Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KES Co., Ltd. will constitute fraud and shall nullify the document. Use of uncertainty of measurement for decisions on conformity (decision rule): ■ No decision rule is specified by the standard, when comparing the measurement result with the applicable limit according to the specification in that standard. The decisions on conformity are made without applying the measurement uncertainty(“simple acceptance” decision rule, previously known as “accuracy method”). ☐ Other (to be specified, for example when required by the standard or client) Report No. : KES-SR250142 Page 3 / 80 KES-QP16-F01(00-23-01-01) KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). TABLE OF CONTENTS 1. General Information ....................................................................................................................................... 4 1.1. Highest SAR Summary ........................................................................................................................... 4 1.2. Device Overview ..................................................................................................................................... 5 1.3. Power Reduction for SAR ....................................................................................................................... 5 1.4. Nominal and Maximum Output Power Specifications ............................................................................ 6 1.5. Simultaneous Transmission Capabilities ................................................................................................ 8 1.6. DUT Antenna Locations .......................................................................................................................... 8 1.7. Near Field Communications (NFC) Antenna .......................................................................................... 8 1.8. Guidance Applied .................................................................................................................................... 9 1.9. Device Serial Numbers ........................................................................................................................... 9 2. Introduction ........................................................................................................................................... 10 2.1. SAR definition ....................................................................................................................................... 10 2.2. SAR Measurement Setup ...................................................................................................................... 11 3. Dosimetric Assessment ........................................................................................................................ 12 4. TEST CONFIGURATION POSITIONS ................................................................................................. 13 4.1. Device Holder ....................................................................................................................................... 13 4.2. Positioning for Testing ........................................................................................................................... 13 5. RF Exposure Limits .............................................................................................................................. 14 5.1. Uncontrolled Environment .................................................................................................................... 14 5.2. Controlled Environment ........................................................................................................................ 14 6. FCC Measurement Procedures ............................................................................................................ 15 6.1. Measured and Reported SAR............................................................................................................... 15 6.2. Procedures Used …

Text truncated - open the document above for the full version.

Report No. : KES-RF250562 Page55/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Restricted band // Horizontal // AverageRestricted band // Vertical // Average Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250562 Page56/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Test results (18㎓to 30㎓) – Worst case Mode:LE 1 Mbps Distance of measurement:3 meter Channel:00 (Worst case) HorizontalVertical Note. 1. No spurious emission were detected above 18㎓. Report No. : KES-RF250562 Page57/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Test results (18㎓to 30㎓) – Worst case Mode:802.11g (6 Mbps) (Worst case) Distance of measurement:3 meter Channel:6 (Worst case) HorizontalVertical Note. 1. No spurious emission were detected above 18㎓. Report No. : KES-RF250562 Page58/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 3.6.Conducted spurious emissions & band edge Test setup EUTAttenuator Spectrum analyzer Test procedure Band edge ANSI C63.10-2013 - Section 11.11 1.Start and stop frequency were set such that the band edge would be placed in the center of the plot 2.Span was set large enough so as to capture all out of band emissions near the band edge 3.Set the RBW = 100㎑ 4.Set the VBW = [3 × RBW]. 5.Detector = Peak 6.Sweep time = auto 7.Trace mode = max hold 8.Allow trace to fully stabilize. Out of band emissions ANSI C63.10-2013 - Section 11.11 1.Start frequency was set to 30㎒and stop frequency was set to 25㎓for 2.4㎓frequencies and 40㎓for 5㎓frequencies 2.Set the RBW = 100㎑ 3.Set the VBW = [3 × RBW]. 4.Detector = Peak 5.Sweep time = auto 6.Trace mode = max hold 7.Allow trace to fully stabilize. FCC Limit According to 15.247(d), in any 100㎑bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20㏈below that in the 100㎑bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval , as permitted under paragraph(b)(3) of this section , the attenuation required under this paragraph shall be 30㏈ instead of 20㏈. Attenuation below the general limits specified in section 15.209(a) is not required. In addition, radiated emission which in the restricted band, as define in section 15.205(a), must also comply the radiated emission limits specified in section 15.209(a) (see section 15.205(c)) IC Limit According to § RSS-247 6.6, In any 100㎑bandwidth outside the frequency band in which the spread spectrum device, digitally modulated device, or hybrid system is operating, the RF power that is produced shall be at least 20㏈below that in the 100㎑bandwidth within the band that contains the highest level of the desired power – based on either an RF conducted or a radiated measurement – provided that the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of root-mean-square averaging over a time interval, as permitted under section 6.3.2, the attenuation required shall be 30㏈instead of 20㏈. Attenuation below the general field strength limits specified in RSS-Gen is not required. Report No. : KES-RF250562 Page59/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Test results LE 1 Mbps 2 402㎒2 442㎒ Report No. : KES-RF250562 Page60/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). LE 1 Mbps 2 480㎒ Blank Report No. : KES-RF250562 Page61/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 802.11b (1 Mbps) 2 412㎒2 437㎒ Report No. : KES-RF250562 Page62/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 802.11b (1 Mbps) 2 462㎒ Blank Report No. : KES-RF250562 Page63/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 802.11g (6 Mbps) 2 412㎒2 437㎒ Report No. : KES-RF250562 Page64/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 802.11g (6 Mbps) 2 462㎒ Blank Report No. : KES-RF250562 Page65/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 802.11n_HT20 (MCS0) 2 412㎒2 437㎒ Report No. : KES-RF250562 Page66/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 802.11n_HT20 (MCS0) 2 462㎒ Blank Report No. : KES-RF250562 Page67/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). 3.7.AC conducted emissions FCC Limit Accord…

Text truncated - open the document above for the full version.

Report No. : KES-RF250562 Page31/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Duty cycle Regarding to KDB 558074 D01_v05 r02, 6. Measurements of duty cycle and transmission duration shall be performed using one of the following techniques: a) A diode detector and an oscilloscope that together have sufficiently short response time to permit accurate measurements of the on- and off-times of the transmitted signal. b) The zero-span mode on a spectrum analyzer or EMI receiver if the response time and spacing between bins on the sweep are sufficient to permit accurate measurements of the on- and off-times of the transmitted signal. Mode T on time (㎳) Period (㎳) Duty cycle (Linear) Duty cycle (%) Duty cycle correction factor (㏈) LE 1 Mbps0.3920.6250.6362.722.01 802.11b (1 Mbps) 8.6158.6301.0099.83- 802.11g (6 Mbps) 1.4271.4540.9898.14- 802.11n_HT20 (MCS0) 1.3401.3670.9898.02- Duty cycle (Linear) = T on time/Period DCF(Duty cycle correction factor (㏈)) = 10log(1/duty cycle) LE 1 Mbps802.11b (1 Mbps) 802.11g (6 Mbps)802.11n_HT20 (MCS0) Report No. : KES-RF250562 Page32/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Test results (Below 30㎒) Mode:LE 1 Mbps Distance of measurement:3 meter Channel:00 (Worst case) Parallel Note. 1. No spurious emission were detected under 30㎒. Report No. : KES-RF250562 Page33/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Mode:802.11g (6 Mbps) (Worst case) Distance of measurement:3 meter Channel:6 (Worst case) Parallel Note. 1. No spurious emission were detected under 30㎒. Report No. : KES-RF250562 Page34/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Test results (Below 1 000㎒) Mode:LE 1 Mbps Distance of measurement:3 meter Channel:00 (Worst case) Horizontal // Vertical Report No. : KES-RF250562 Page35/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Mode:802.11g (6 Mbps) (Worst case) Distance of measurement:3 meter Channel:6 (Worst case) Horizontal // Vertical Report No. : KES-RF250562 Page36/72 KES-QP16-F01(00-23-01-01)KES Co., Ltd. The authenticity of this test report can be found on the verification page of our website (www.kes.co.kr). Test results (Above 1 000㎒) Mode:LE 1 Mbps Distance of measurement…

Text truncated - open the document above for the full version.
