2BNXN-S3R6ESP32-S3- Relay-6CH

ProductInformation ProductName:ESP32-S3-Relay-6CH ModelNumber:ESP32-S3-Relay-6CH BrandName:Waveshare IntendedUseClassification Thisproductisintendedforprofessional,industrial,commercial,andengineering environments,includingbutnotlimitedto: IndustrialFactorymachinecontrol IndustrialRemoteequipmentswitching IndustrialIoTmonitoringandcontrol Specifications MicrocontrollerESP32-S3-WROOM-1U Wireless communicatoin 2.4GHz WiFi (802.11 b/g/n) 、 BLE USB ConnectorUSBType-C Powersupply5V FunctionsPowersupply,USBcommunication,firmwaredownloading,etc. ISOLATEDRS485 ConnectorScrewterminal DirectioncontrolHardwareautomaticcontrol ProtectionTVSdiode,surgeprotection&ESDprotection ResistorOnboardreserved120Rmatchingresistor,NCbydefault,enabledviajumper DO Contactrating≤10A30VDC DOchannels6 Contactform1NO1NC IsolationOptocouplerisolation LEDindicators RGBRGBcolorfulLED,supportsprogrammablecontrolfordisplaycolor PWRRedpowerindicator,lightsupwhenthereisUSBconnectionandvoltageisdetected TXDGreenTXindicator,lightsupwhentheRS485portsendsdata RXDBlueRXindicator,lightsupwhenthedeviceportsendsdataback powersupply Screwterminal Voltagerange7~36V Appearance EnclosureRail-mountABSprotectivecase Dimensions145×90×40mm SupportingEvidenceofIndustrialUse 1.IndustrialDINRailEnclosure TheproductisequippedwithastandardDINrailmountenclosuredesignedfor installationinsideindustrialelectricalcabinets,distributionpanels,andautomation controlboxes.DINrailmountingiscommonlyusedinindustrialenvironmentsrather thanresidentialconsumerinstallations. 2.WideVoltageDCPowerInput(7~36V) Thedevicesupportsa7V~36VDCinputrange,whichiscommonlyrequiredin industrialpowersystems,controlcabinets,vehicles,andfieldautomationapplications. Thisdiffersfromtypicalconsumerproductsthatgenerallyusefixedlow-voltage adaptersorUSBpower. 3.RS485InterfaceforModbus/PLCSystems TheproductintegratesanRS485communicationinterfacesuitableforModbusRTU networks,PLCsystems,industrialsensors,andremoteI/Ocontrolsystems.RS485is astandardindustrialcommunicationmethodwidelyusedinautomationsystems. 4.IsolationDesignforIndustrialEnvironments Thedeviceincludeselectricalisolationfeaturessuchasoptocouplerisolation,digital isolation,and/orpowerisolationtoimprovereliabilityinnoisyelectrical environmentsandtoprotectconnectedsystems.Suchprotectioniscommonly requiredforindustrialapplications. 5.ProfessionalTerminalWiringInstallation Theproductusesterminalblockwiringforrelayoutputsandpowerconnections. Installationrequiresproperwiringknowledgeandisintendedtobeperformedby qualifiedpersonnelorprofessionalintegrators,ratherthangeneralconsumers. 6.TypicalIndustrial/CommercialApplications Typicalapplicationsinclude: IndustrialFactorymachinecontrol IndustrialRemoteequipmentswitching IndustrialIoTmonitoringandcontrol SalesChannelStatement ThisproductismainlysuppliedthroughB2B,industrialdistribution,engineering projects,OEM/ODMcustomers,andsystemintegratorchannels.Itisnotpromotedas aplug-and-playresidentialhouseholdconsumerdevice. Warning: Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsible forcompliancecouldvoidtheuser’sauthoritytooperatetheequipment. NOTE: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. FCCStatement: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. — Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. —Consultthedealeroranexperiencedradio/TVtechnicianforhelp. TheequipmentcomplieswithFCCRadiationexposurelimitsetforthforuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithminimum distance20cmbetweentheradiatorandyourbody.

ShenzhenWeixueElectronicsCo.,Ltd. Rev1/26/2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026/5/7 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2BNXN-S3R6 ShenzhenWeixueElectronicsCo.,Ltd.(“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. ShenzhenWeixueElectronicsCo.,Ltd.(“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtdoesnotincludecybersecurityoranti-virussoftwareproducedorprovidedby KasperskyLab,Inc.oranyofitssuccessorsandassignees,includingequipmentwithintegratedKaspersky Lab,Inc.(oranyofitssuccessorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24- 886andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Deviceisinherentlycompliantbasedonhardwarelimitationsorsoftwarecontrols. or ASoftwareBillofMaterials(SBOM)isprovidedtotheTCBforreview,and Theend-userorthirdpartiescannotinstalladditionalsoftwareonthisdevice. Sincerely, (Applicantsignature) ContactName:kalohalin

ShenzhenWeixueElectronicsCo.,Ltd. Rev1/26/2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026/5/7 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2BNXN-S3R6 ShenzhenWeixueElectronicsCo.,Ltd.(“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofits subsidiariesoraffiliates)asanentityproducing“covered” equipment. Sincerely, (Applicantsignature) ContactName:kalohalin

ShenzhenWeixueElectronicsCo.,Ltd. Rev1/26/2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026/5/7 Ref:AttestationStatementsPart2.911(d)(7)Filing FCCIDorGranteeCode:FCCID:2BNXN-S3R6or2BNXN ApplicantFRN:0036721025 ShenzhenWeixueElectronicsCo.,Ltd.( “ theapplicant ” )certifiesthat,asofthedateofthefilingofthe application,LEDVANCELLCisourdesignatedU.S.agentforserviceofprocessfortheabovereferenced FCCID.ShenzhenWeixueElectronicsCo.,Ltd.acceptstomaintainanagentfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionofanyCommission- relatedproceedinginvolvingtheequipment. LEDVANCELLCaccepts,asofthedateofthefilingoftheapplication,theobligationofthedesignatedU.S. agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: Name:LEDVANCELLC S.AgentFRN:0026064162 Address:181BallardvaleStreetSuite203Wilmington,MA1887UnitedStates ContactPerson:AndrewMartin Tel.:(978)753-5024 Email:[email protected] Sincerely, kalohalinAndrewMartin ShenzhenWeixueElectronicsCo.,Ltd.LEDVANCELLC [InsertApplicantsignature][U.S.Agentsignature]

DATE:2026/5/7 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointShenzhenDACETestingTechnologyCo.,Ltd.Address:102, BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity, ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,Chinatoactasouragentin thepreparationofthisapplicationforequipmentcertification.Icertifythatsubmitted documentsproperlydescribethedeviceorsystemforwhichequipmentcertificationis sought.Ialsocertifythateachunitmanufactured,importedormarketed,asdefinedinthe FederalCommunicationsCommission’sregulationswillhaveaffixedtoitalabelidentical tothatsubmittedforapprovalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonour behalf,Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsfor certification,stillresideswithShenzhenWeixueElectronicsCo.,Ltd.,Address:202,2F, WorldTradePlaza,FunanCommunity,FutianSub-district,FutianDistrict,Shenzhen (ApplicantNameandaddress) <Signature> Name:kalohalin Title:Manager Company:ShenzhenWeixueElectronicsCo.,Ltd.

Date:2026/5/25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorizeCompliance Testing, LLCto act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name:kaloha lin Title:Manager Company:Shenzhen Weixue Electronics Co., Ltd.

DATE:2026/5/7 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:FCCID:2BNXN-S3R6 ProductName:ESP32-S3-Relay-6CH RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommission’srules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name:kalohalin Title:Manager Company:ShenzhenWeixueElectronicsCo.,Ltd.

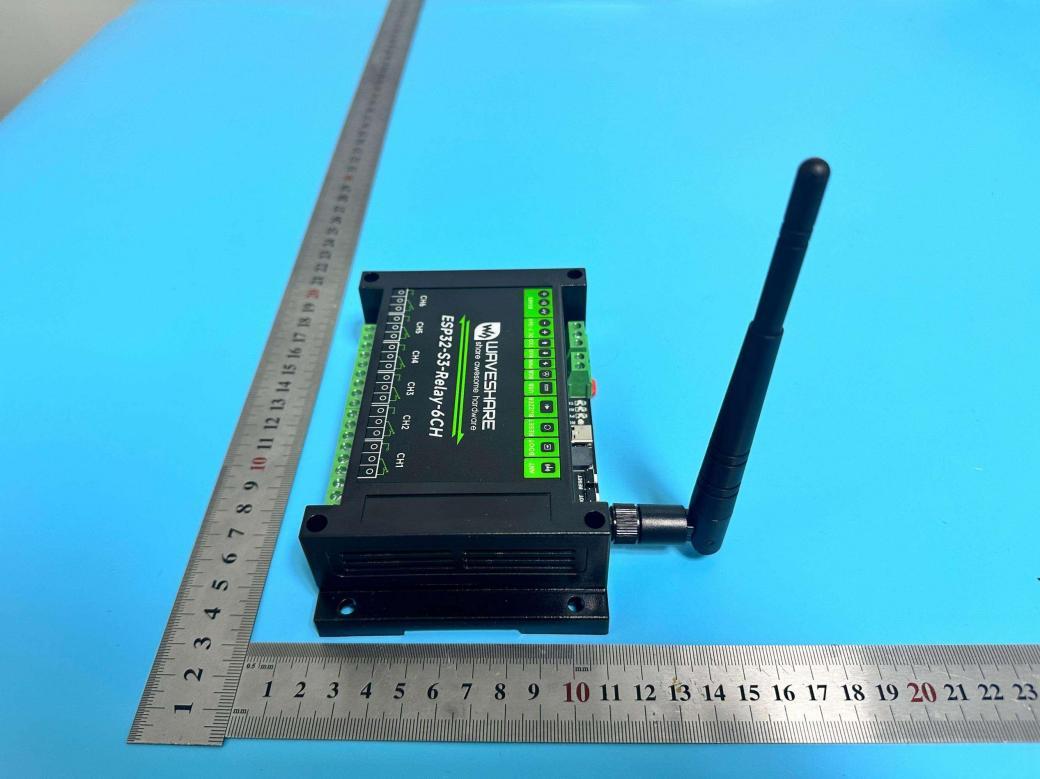

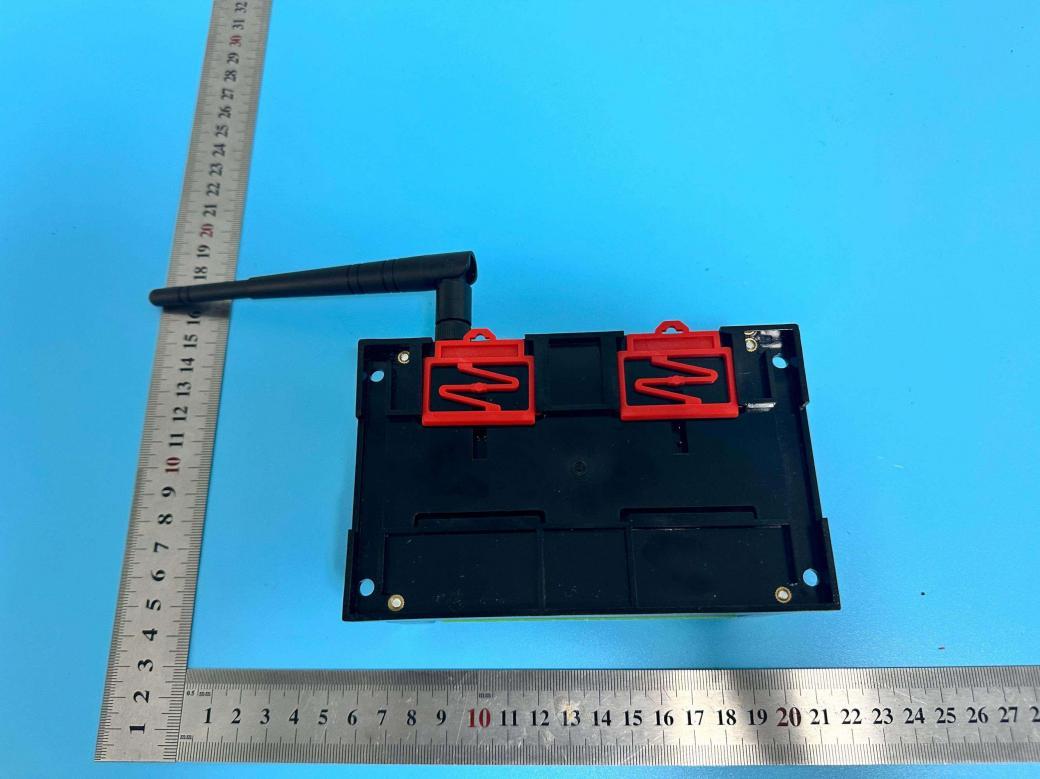

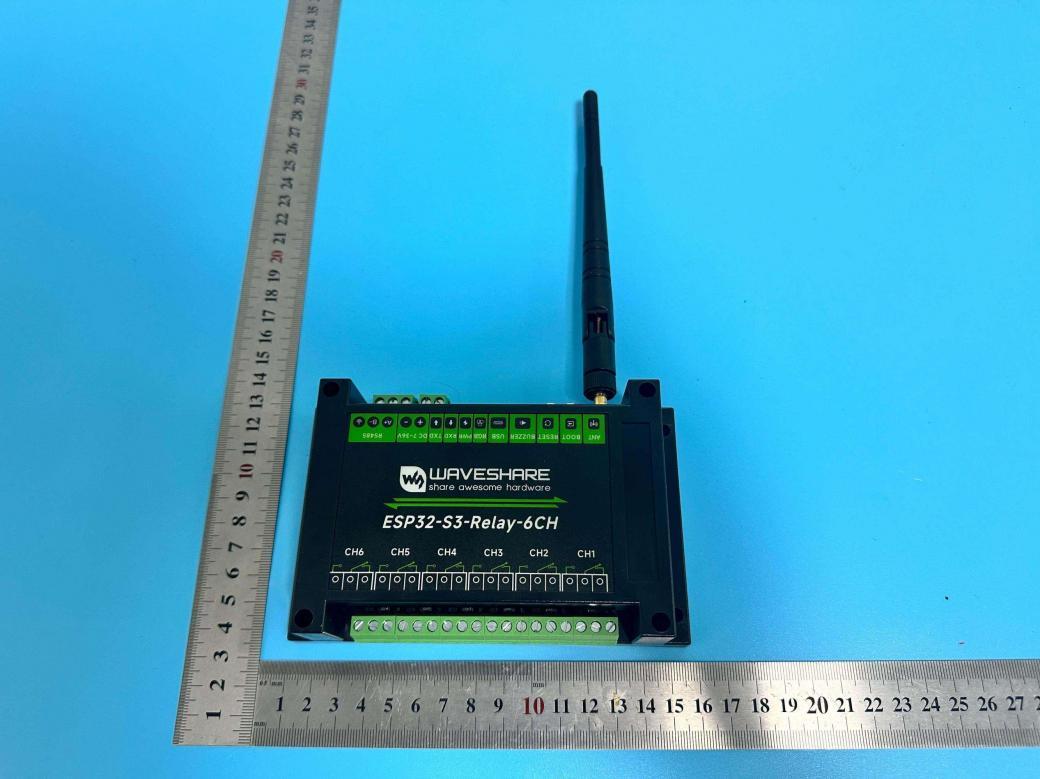

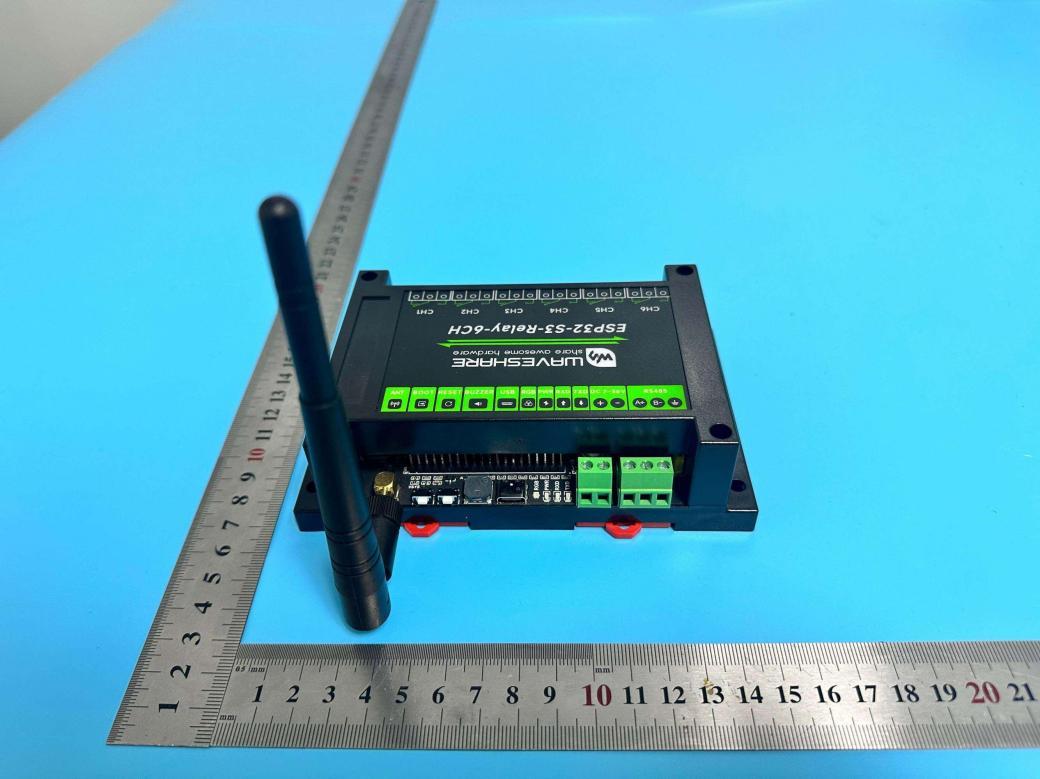

FCCID:2BNXN-S3R6 External FCCID:2BNXN-S3R6 FCCID:2BNXN-S3R6

LabelLocation: Label:50*20mm ESP32-S3-Relay-6CH FCCID:2BNXN-S3R6 Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation.

FCCID:2BNXN-S3R6 Internal FCCID:2BNXN-S3R6 FCCID:2BNXN-S3R6 FCCID:2BNXN-S3R6 FCCID:2BNXN-S3R6

PredictionofMPEatagivendistance ProductName: ESP32-S3-Relay-6CH ModelNo: ESP32-S3-Relay-6CH FCCID:2BNXN-S3R6 1.RFExposureEvaluation FCCKDB447498D01GeneralRFExposureGuidancev06:MobileandPortableDevice, RFExposure,EquipmentAuthorizationProcedures. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. 2.Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) 2.TestProcedure Equationfrompage18ofOETBulletin65,Edition97-01 Where: S=powerdensity P=powerinputtotheantenna G=numericgainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecentreofradiationoftheantenna EUTRFEXPOSURE Frequenc y (MHz) Maximu m Output power (dBm) Tuneup Produc epower Maximu mpeak output power (dBm) Output power to antenn a (mW) Antenn a Gain (dBi) Antenna Gain (numeric ) Distanc e (cm) Result (mW/cm2) Limitsfor General Population/ Uncontrolle d Exposure (mW/cm2) BLE 24804.264±153.1622.831.92200.0012071 2.4GWIFI 246214.3914±11531.6232.831.92200.0120711 Note:Justtheworstcasemodewasshowninreport. EUTRFExposureEvaluationsimultaneoustransmissionoperations Accordingto865664D022.2d)1): ThesumoftheratiosofthespatiallyaveragedresultstotheapplicablefrequencydependentMPElimits: Simultaneoustransmission mode ThesumoftheratiosSUMLimit BLE+2.4GWIFI0.001207+0.0120710.0132781 conclusion:0.013278<1.0,Sothereisnosarrequirement

V1.0ReportNo.:DACE260414015RL002 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 1 of 93 RFTESTREPORT For ShenzhenWeixueElectronicsCo.,Ltd. ProductName:ESP32-S3-Relay-6CH TestModel(s):ESP32-S3-Relay-6CH ReportReferenceNo.:DACE260414015RL002 FCCID:2BNXN-S3R6 Applicant’sName:ShenzhenWeixueElectronicsCo.,Ltd. Address: 202,2F,WorldTradePlaza,FunanCommunity,FutianSub-district,Futian District,Shenzhen TestingLaboratory:ShenzhenDACETestingTechnologyCo.,Ltd. Address: 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark, TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen, Guangdong,China TestSpecificationStandard:47CFRPart15.247 DateofReceipt:April14,2026 DateofTest:April14,2026toApril20,2026 DateofIssue:April20,2026 Result:Pass Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenDACE TestingTechnologyCo.,Ltd.ThisdocumentmaybealteredorrevisedbyShenzhenDACETestingTechnology Co.,Ltd.personnelonly,andshallbenotedintherevisionsectionofthedocument.Thetestresultsinthe reportonlyapplytothetestedsample V1.0ReportNo.:DACE260414015RL002 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 2 of 93 Applyforcompanyinformation Applicant’sName:ShenzhenWeixueElectronicsCo.,Ltd. Address:202,2F,WorldTradePlaza,FunanCommunity,FutianSub-district, FutianDistrict,Shenzhen ProductName:ESP32-S3-Relay-6CH TestModel(s):ESP32-S3-Relay-6CH SeriesModel(s):N/A TestSpecificationStandard(s):47CFRPart15.247 NOTE1: Themanufacturershouldensurethatallproductsinseriesproductionareinconformitywiththeproductsampledetailedin thisreport.Iftheproductinthisreportisusedinanyconfigurationotherthanthatdetailedinthereport,themanufacturer mustensurethenewsystemcomplieswithallrelevantstandards. Compiledby: Supervisedby: Approvedby: LucyMo/TestEngineerBenTang/ProjectEngineerTomChen/Manager April20,2026April20,2026April20,2026 V1.0ReportNo.:DACE260414015RL002 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 3 of 93 RevisionHistoryOfReport VersionDescriptionREPORTNo.IssueDate V1.0OriginalDACE260414015RL002April20,2026 V1.0ReportNo.:DACE260414015RL002 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 4 of 93 CONTENTS 1TESTSUMMARY...................................................................................................................................................6 1.1TESTSTANDARDS........................................................................................................................................6 1.2SUMMARYOFTESTRESULT.........................................................................................................................6 2GENERALINFORMATION....................................................................................................................................7 2.1CLIENTINFORMATION..................................................................................................................................7 2.2DESCRIPTIONOFDEVICE(EUT)..................................................................................................................7 2.3DESCRIPTIONOFTESTMODES....................................................................................................................7 2.4DESCRIPTIONOFSUPPORTUNITS................................................................................................................9 2.5BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED......................................9 2.6EQUIPMENTSUSEDDURINGTHETEST........................................................................................................9 2.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................11 2.8IDENTIFICATIONOFTESTINGLABORATORY.................................................................................................11 2.9ANNOUNCEMENT........................................................................................................................................11 3EVALUATIONRESULTS(EVALUATION)...........................................................................................................12 3.1ANTENNAREQUIREMENT............................................................................................................................12 3.1.1Conclusion:.................................................................................................................................12 4RADIOSPECTRUMMATTERTESTRESULTS(RF).........................................................................................13 4.16DBBANDWIDTH.......................................................................................................................................13 4.1.1E.U.T.Operation:........................................................................................................................13 4.1.2TestSetupDiagram:...................................................................................................................14 4.1.3TestData:...................................................................................................................................14 4.2MAXIMUMCONDUCTEDOUTPUTPOWER....................................................................................................15 4.2.1E.U.T.Operation:...................................................................…

Text truncated - open the document above for the full version.

V1.0ReportNo.:DACE260414015RL001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 1 of 67 RFTESTREPORT For ShenzhenWeixueElectronicsCo.,Ltd. ProductName:ESP32-S3-Relay-6CH TestModel(s):ESP32-S3-Relay-6CH ReportReferenceNo.:DACE260414015RL001 FCCID:2BNXN-S3R6 Applicant’sName:ShenzhenWeixueElectronicsCo.,Ltd. Address: 202,2F,WorldTradePlaza,FunanCommunity,FutianSub-district,Futian District,Shenzhen TestingLaboratory:ShenzhenDACETestingTechnologyCo.,Ltd. Address: 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark, TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen, Guangdong,China TestSpecificationStandard:47CFRPart15.247 DateofReceipt:April14,2026 DateofTest:April14,2026toApril20,2026 DateofIssue:April20,2026 Result:Pass Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenDACE TestingTechnologyCo.,Ltd.ThisdocumentmaybealteredorrevisedbyShenzhenDACETestingTechnology Co.,Ltd.personnelonly,andshallbenotedintherevisionsectionofthedocument.Thetestresultsinthe reportonlyapplytothetestedsample V1.0ReportNo.:DACE260414015RL001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 2 of 67 Applyforcompanyinformation Applicant’sName:ShenzhenWeixueElectronicsCo.,Ltd. Address:202,2F,WorldTradePlaza,FunanCommunity,FutianSub-district, FutianDistrict,Shenzhen ProductName:ESP32-S3-Relay-6CH TestModel(s):ESP32-S3-Relay-6CH SeriesModel(s):N/A TestSpecificationStandard(s):47CFRPart15.247 NOTE1: Themanufacturershouldensurethatallproductsinseriesproductionareinconformitywiththeproductsampledetailedin thisreport.Iftheproductinthisreportisusedinanyconfigurationotherthanthatdetailedinthereport,themanufacturer mustensurethenewsystemcomplieswithallrelevantstandards. Compiledby: Supervisedby: Approvedby: LucyMo/TestEngineerBenTang/ProjectEngineerTomChen/Manager April20,2026April20,2026April20,2026 V1.0ReportNo.:DACE260414015RL001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 3 of 67 RevisionHistoryOfReport VersionDescriptionREPORTNo.IssueDate V1.0OriginalDACE260414015RL001April20,2026 V1.0ReportNo.:DACE260414015RL001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 4 of 67 CONTENTS 1TESTSUMMARY...................................................................................................................................................6 1.1TESTSTANDARDS........................................................................................................................................6 1.2SUMMARYOFTESTRESULT.........................................................................................................................6 2GENERALINFORMATION....................................................................................................................................7 2.1CLIENTINFORMATION..................................................................................................................................7 2.2DESCRIPTIONOFDEVICE(EUT)..................................................................................................................7 2.3DESCRIPTIONOFTESTMODES....................................................................................................................8 2.4DESCRIPTIONOFSUPPORTUNITS................................................................................................................9 2.5BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED......................................9 2.6EQUIPMENTSUSEDDURINGTHETEST........................................................................................................9 2.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................11 2.8IDENTIFICATIONOFTESTINGLABORATORY.................................................................................................11 2.9ANNOUNCEMENT........................................................................................................................................11 3EVALUATIONRESULTS(EVALUATION)...........................................................................................................12 3.1ANTENNAREQUIREMENT............................................................................................................................12 3.1.1Conclusion:.................................................................................................................................12 4RADIOSPECTRUMMATTERTESTRESULTS(RF).........................................................................................13 4.16DBBANDWIDTH.......................................................................................................................................13 4.1.1E.U.T.Operation:........................................................................................................................13 4.1.2TestSetupDiagram:...................................................................................................................14 4.1.3TestData:...................................................................................................................................14 4.2MAXIMUMCONDUCTEDOUTPUTPOWER....................................................................................................15 4.2.1E.U.T.Operation:...................................................................…

Text truncated - open the document above for the full version.

TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] Shenzhen yunding communication electronics co., ltd SHENZHEN 客户 : 品 名 规 格 DESCRIPTION: 料号 PART NO.： 客 户 料 号 CUS PART NO. ： 日期 D A T E： 工 程 ENGINEERING DEPARTMENT 品 保 Q C DEPARTMENT 业 务 SALES DEPARTMENT 吴淑仪刘丽王洪涛 客户承认签章 工 程 ENGINEERING DEPARTMENT 品 保 Q C DEPARTMENT 采 购 PURCHASING DEPARTMENT 联系电话：0755 23073599 15017941162 ж 承认书一式三份，惠蒙贵司承认签章 ж Approval in duplicate, please signed by your company. 承認書 BM805 Integrated antenna-WIFI2.4/5G 2020.4.15 APPRO VAL SHENZHEN AMEDIA TECHNOLOGY CO., LTD TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 1. 测试项目与设备 测试项目设备 1. S11参数 （S-parameter） 1.回波损耗 （Return Loss） 2.电压驻波比（VSWR） 网络分析仪: Agilent E5071B HP 8753D 2.有源测试 （Active） 1.发射功率 （TRP） 2.接收灵敏度（TIS） 1.暗室：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2.综合测试仪: Agilent 8960 E5515B ×2 StarPoint SP6011 3.无源测试 （Passive） 1.天线增益 （Gain）2.天线效 率 （Efficiency） 1.暗室：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2.网络分析仪：Agilent E5071B HP 8753D 2.Matching circuit -WIFI antenna: TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 地址： 深圳市宝安区宝安大道 4315 号文浩商务大厦 A602 3. Antenna structure diagram: TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 深圳市云顶通讯电子有限公司 SHENZHEN 4.Network test chart: SWR TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] SHENZHEN 5. Antenna efficiency and gain TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 地址： 深圳市宝安区宝安大道 4315 号文浩商务大厦 A602 电 性 能 指 标 Electrical Specifications 频率范围 2400~2500MHz Frequency Range 2400~2500MHz 电压驻波比 ≤2.0 VSWR ≤2.0 输入阻抗 50 ΩInput Impedance50 Ω 增益 2.83 DBIGain 2.83DBI 最大输入功率 50WMaximum Input Power50W 机 械 指 标 Mechanical Specifications 工作温度 -40°C~+85°C Working Temperature -40°C~+85°C 工作湿度 20~80%Working Humidity20~80%

FCCID:2BNXN-S3R6 Emissionsinfrequencybands(below1GHz) Emissionsinfrequencybands(above1GHz)
