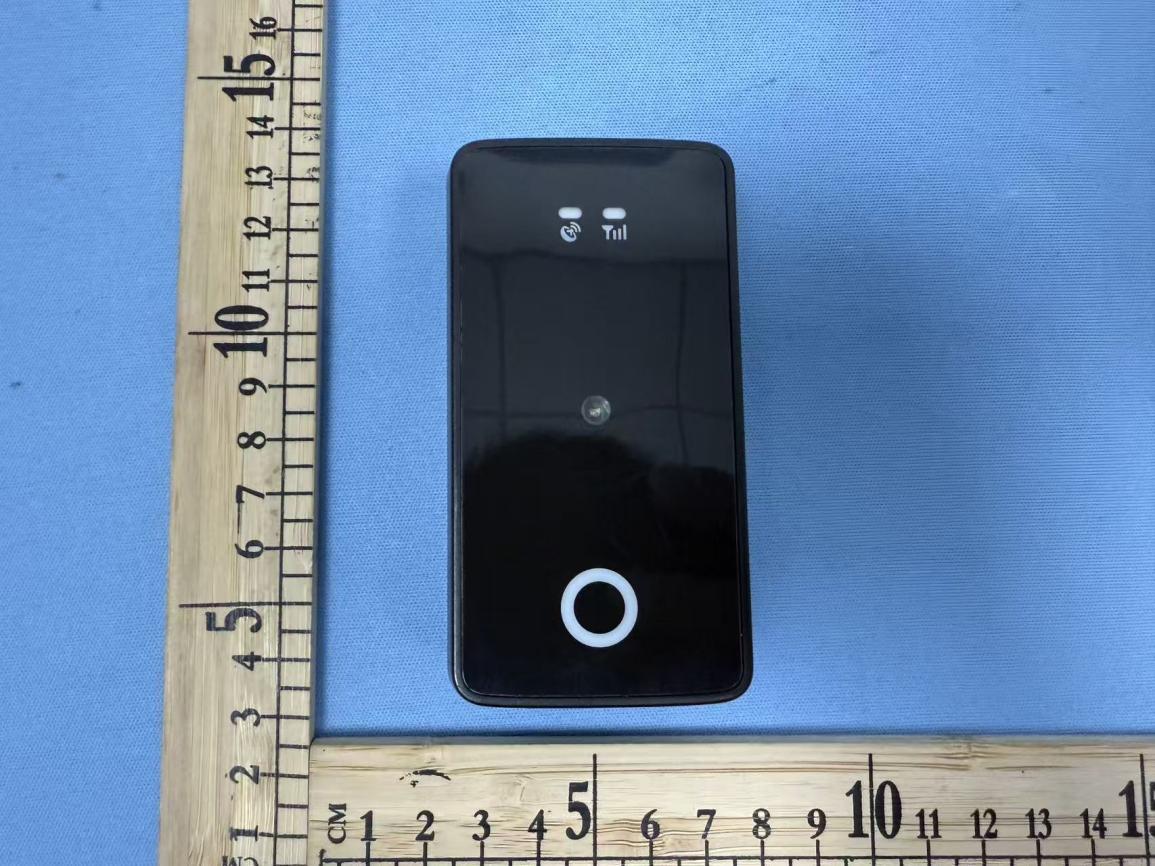

2BO2A-HYB001PTRACKER

1 HYB001P User Manual HYB001P Tracker User Manual Version 1.1 WWW.HUIYE.COM 2 HYB001P User Manual Directory 1. Introduction ....................................................................................................................... 3 2. Product Overview .................................................................................................................. 3 2.1 Appearance...................................................................................................................... 3 2.2 Battery ............................................................................................................................. 4 2.3 Power on/off fluctuation switch ..................................................................................... 4 2.4 Install the SIM card .......................................................................................................... 4 2.5 LED ................................................................................................................................... 5 2.6 Light sensitivity ................................................................................................................ 6 2.7 Button .............................................................................................................................. 6 3. Frequently Asked Questions .................................................................................................. 6 3.1 The LED light is not on ..................................................................................................... 6 3.2 GPS cannot lock the star positioning ............................................................................... 7 3.3 Unable to connect to the background ............................................................................ 7 4. After-sales service ................................................................................................................. 7 4.1 After-sales maintenance ................................................................................................. 7 The title of the document HYB001P User Manual version 1.1 Release date 2025-08-12 state Published 3 HYB001P User Manual 1. Introduction HUIYE HYB001P is a LTE Cat.1/GSM GPS tracker engineered for asset security, cold chain logistics, and stolen vehicle recovery. Combining a 10+ year battery lifespan and multi- system GNSS precision, it delivers unmatched reliability for global tracking applications. With BLE 5.4 sensor integration and real-time accident data analytics, the HYB001P empowers businesses to safeguard assets, reduce risks, and streamline operations— anytime, anywhere. 2. Product Overview 2.1 Appearance 4 HYB001P User Manual 2.2 Battery 4*CR17335AH batteries, 1600mAh*4 2.3 Power on/off fluctuation switch The position of the OFF pointer is off, and the toggle of the switch to the left is to turn it on. After turning on, the LED light will start to work after turning on at the same time. 2.4 Install the SIM card Insert the SIM card according to the graphic direction under the card slot, and hear a "click" sound to indicate that it has been installed in place, if you want to eject the card, you need to press the SIM card again, and the SIM card will pop out when you hear the same "click" sound. 5 HYB001P User Manual 2.5 LED GPS status light  SOS mode, flashes fast (on 100ms off for 200ms).  No GNSS data received or data error,flashes slowly (blinks once every 10 seconds).  GPS in search status, flashes intermittently (on 1000ms off for 1000ms).  The GPS is already connected and is always on Network status light  The LED flashes intermittently (on 1000ms off for 1000ms). When device looking for a network  The device is registered on the network and flashes slowly (on 500 ms and off for 15 seconds).  The LED briefly lights up when the device is powered on and woken up, and returns to normal operating status after the process is completed.  The LED blinks rapidly at the beginning of the shutdown process (on 100ms off for 200ms) until the device is completely off. 6 HYB001P User Manual 2.6 Light sensitivity The front of the device is centered and the top of the back is light-sensitive.  The light sensor on the front is generally used for unpacking inspection  On the back is an anti-tamper alarm. 2.7 Button It is used to wake up when the device is in low-power mode. 3. Frequently Asked Questions 3.1 The LED light is not on A). Check if an external power supply is connected. B). Check if the SIM card is inserted properly. 7 HYB001P User Manual 3.2 GPS cannot lock the star positioning A). Please move the device to an outdoor place with good GPS signal and make sure that there is no obstruction directly above the device. B). Make sure the front side (the side marked TOP SIDE) is facing upwards when the device is running. 3.3 Unable to connect to the background A). Please check the APN and IP settings, please refer to the user manual of Huiye Configuration Tool for detailed settings. 4. After-sales service 4.1 After-sales maintenance The product can be guaranteed for one year after purchase, but the following situations that cause damage to the equipment are not covered by the warranty: A). It is not used in accordance with the user manual of the product. B). Damage caused by vandalism, disassembly and modification of the internal hardware of the product. C). Damage caused by external forces or irresistible factors, such as floods, impacts, electric current shocks. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment …

Text truncated - open the document above for the full version.
