迷你运动相机 使用说明书 使用本产品前，请仔细阅读使用说明书 说明书仅供参考，具体操作以实物为准 一、产品结构 产品说明 1）镜头2）指示灯3）开关机/WiFi/录像键 4）复位键5）TF卡槽6）充电接口 二、按键及接口功能介绍 1.开关机/WiFi/录像键 开关机：长按用于设备开/关机，开机时设备振动一次蓝灯常亮； 录像：蓝灯常亮，设备录像待机中，点按一次，设备振动一次，蓝灯慢闪为 开始录像；再次点按一次，设备振动一次，停止录像并自动保存。 WiFi：开机状态下，点按两次切换到WiFi模式，绿灯快闪待连接。（3分 钟后没有连接机器会自动关机） 4.复位键 当机器出现异常等情况时，用针孔状的东西短戳一下可强制关机。 5.充电及数据接口 1）接口类型：Type-C 2）用于连接外接电源给电池充电或提供工作电源。 3）用于连接PC传输数据和PC摄像； 三、WiFi连接 开启WiFi功能前，请在智能手机上下载并安装‘录风者’应用程序。 注意： Android，请扫设备中提示的二维码，或扫下方二维码；ios:可在Apple Store 中搜索‘录风者’下载 。 1）开启WiFi：开机状态时，点按两次‘开关机/WiFi/录像键’切换到WiFi模 式，设备绿灯快闪待连接； 2）使用WiFi：进入手机WiFi设置连接名称为H88开头的WiFi，并输入密码 12345678； 3）接连WiFi：连接WiFi成功后，设备绿灯常亮，手机点按APP进入相机实际 操作； 四、时间设置 本产品默认时间显示，根据需要按下列方式进行更改； 1、需要去掉设备上的时间显示，先将设备连接电脑后，打开根目录，里面有个 time文档文件，在文档里编辑，格式为:年-月-日 时：分：秒N 3（如2025-09-09 23:00:00 N 3）,并保存此文档退出，去掉时间修改完成，在下次启动摄像机时， 设备无时间显示。 2、需要修改设备上的时间显示，先将设备连接电脑后，打开根目录，里面有个 time文档文件，在文档里编辑，格式为:年-月-日 时：分：秒Y 3（如上面例图）, 并保存此文档退出，时间修改完成，在下次启动摄像机时，设备将显示指定时间。 五、USB模式 1）设备‘不插卡’连接电脑，此时设备为‘PC摄像’选择此模式将作为电脑的 摄像头使用； 2）设备‘插卡’连接电脑，此时设备为‘存储器’选择此模式可进行视频文件/ 照片文件的读取与存取。 注：设备工作中，禁止拔插卡！ 六、产品规格 PCB丝印D100-92-WIFI-V1 主控型号AX3292 前后影像传感器H63P 按键2键 视频格式AVI 图片格式JPG 供电电池3.7V/ USB 5V 待机电流44uA 电源功耗USB 5V/录像≤453mA /≤2.26W/BAT 3.7V/录像≤160mA≤0.59W 注意:本产品保留设计和规格更改权恕不另行通知. 1 2 4 5 63 Mini sports camera Instructions for use Please read the instruction manual carefully before using this product. The instruction manual is for reference only, and the specific operation is subject to the physical object. I.Product structure Description of product 1）Lens2) Indicator light3) Switch/WiFi/video button 4）Reset key5) TF card slot6) Charging interface II. Introduction of key and interface functions 1. Switch/WiFi/vide o button Switch:Long press is used to turn on/off the device. When the device is turned on, the blue light is always on when the device vibrates; Vide o recordi ng:The blue light is always on, and the device is on standby for video recording. Click once, the device vibrates once, and the blue light flashes sl owly to start recording; click again, the device vibrates once, stop recording and save automatically. WiFi:In the power-on state, click twice to switch to WiFi mode, and the green light flashes to be connected. ( If the machine is not connected after 3 minutes, it will automatically shut down) 4. Recall button When the machine is abnormal, you can force the shutdown by poking it briefly with a pinhole-shaped thing. 5. Charging and da ta interface 1）Interface type: Type-C 2） It is used to connect an external power supply to charge the battery or provide working power. 3）Used to connect PC to transmit data and PC video; III. WiFi connection Before turning on the WiFi function, please download and install the 'Wind Recorder' application on your smartphone. Note: Android, please scan the QR code prompted in the device, or scan the QR code below; ios: You can search for 'Wind Recorder' in the Apple Store to download. 1)Turn on WiFi:When the power is on, click twice'Switch/WiFi/vide o button'Switch to WiFi mode, and the green light of the device flashes to be connected; 2)Use WiFi:Enter the mobile phone WiFi settings with the connection name beginning with H88, and enter the password 12345678; 3)Continuous WiFi:After connectingtoWiFi successfully, the device's green light is always on, and the mobile phone clicks the APP to enter the actual operation of the camera; IV. Time setting The default time display of this product can be changed in the following ways as needed; 1、You need to remove the time di splay on the de vice,After connecting the device to the computer, open the root directory. There is a time document file in it. Edit it in the document. The format is: year-month-day hour: minute: second N 3 (such as 2025-09-09 23:00:00 N 3), and save this document to exit, remove the time modification to complete. , the next time the camera is started, the devic e has no time to display. 2、The time di splay on the de vice needs to be modified,After connecting the device to the computer first, open the root directory. There is a time document file in it. Edit it in the document. The format is: year-month-day hour: minute: second Y 3 (as shown in the example figure above), and save it.This document exits, and the time modification is completed. The next time the camera is started, the device will display the specified time. V. USB mode 1）The device is connected to the computer without plugging in the card. At this time, the device selects this mode for 'PC camera' and will be used as the computer's camera; 2）The device 'insert the card' to connect to the computer. At this time, the device selects this mode for 'memory'.Videofiles canbe carried out/Reading of photo filesGiveDeposit or withdraw. Note: It is forbidde n to unplug and insert the card du ring equ ipment operation! VI. Product specifications PCB silk screen printingD100-92-WIFI-V1 Main control modelAX 3,292 Front and rear image sensors H63P Button2 keys Video formatAVI Picture formatJPG Supply electricityBattery 3.7V/ USB 5V Standby current44uA Power consumptionUSB 5V/video≤453mA /≤2.26W/BAT 3.7V/video≤160mA≤0.59W Note: The design and specifications of this product reserve the right to change without prior notice. 1 2 4 5 63 Document Edit Format View Help This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that maycause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC IDModel name 2BO3F-D100D100 We hereby acknowledge as follows: i.both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii.the point of contact provides the physical U.S. address and email as listed below iii.both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv.An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of ContactApplicant/Approval Holder Signature Date: 2026-01-08 Signature Date: 2026-01-08 Company Name:GLOCERTS TECHNOLOGY INCDongguan Zhichuang Video Electronic Co., Ltd FRN:00363397370036976611 Contact Name:Huiying FanKaifeng Zhang Address:19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 7th Floor, Hangcheng Science and Technology Park, Zhentang Road, Jingxiao Tang, Fenggang Town, Dongguan City Phone:(626) 588-803913532981011 Email:[email protected]@qq.com

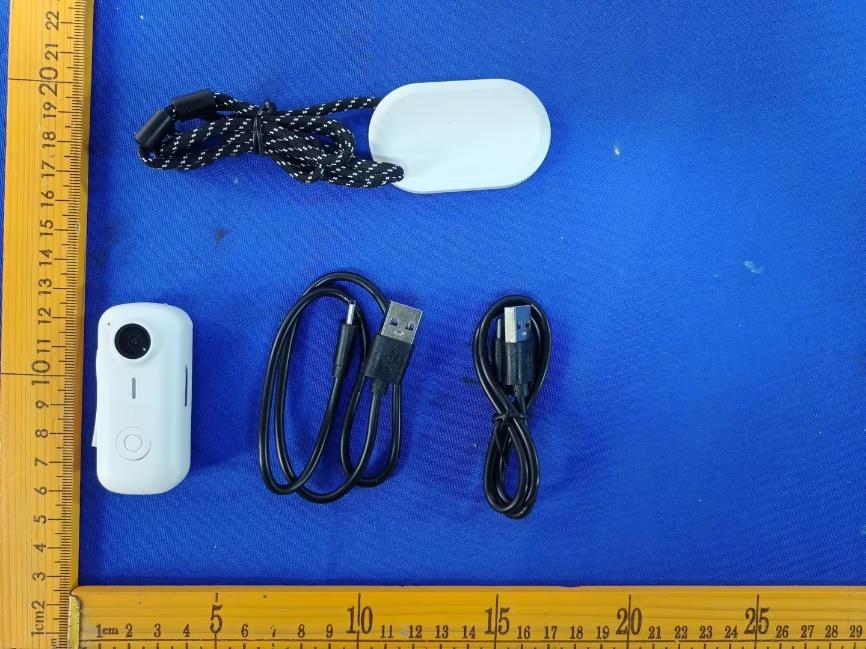

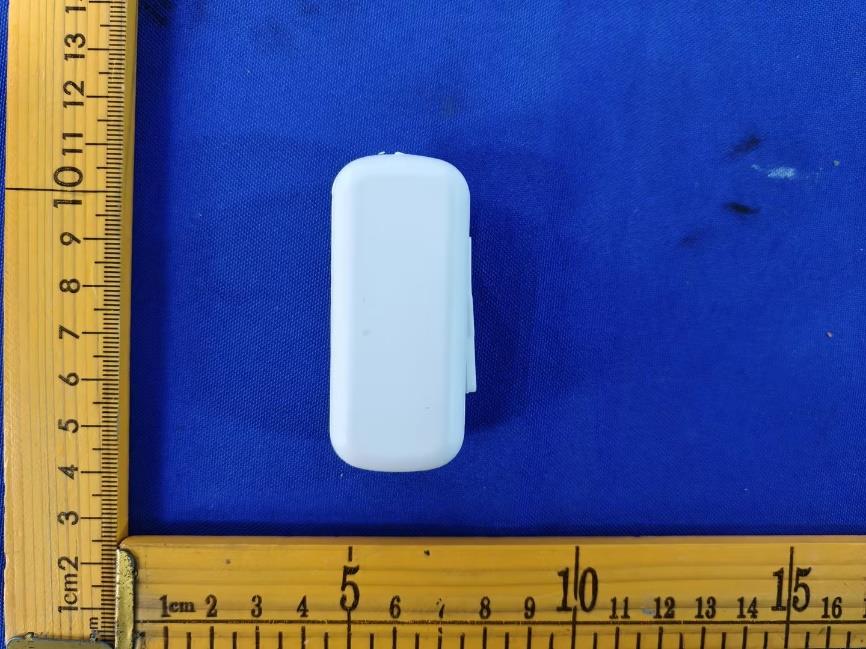

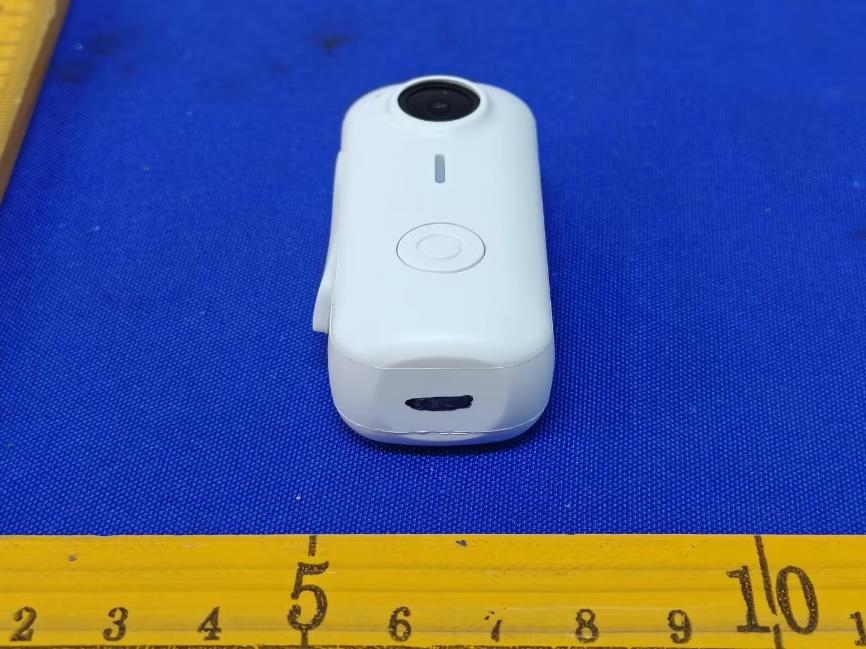

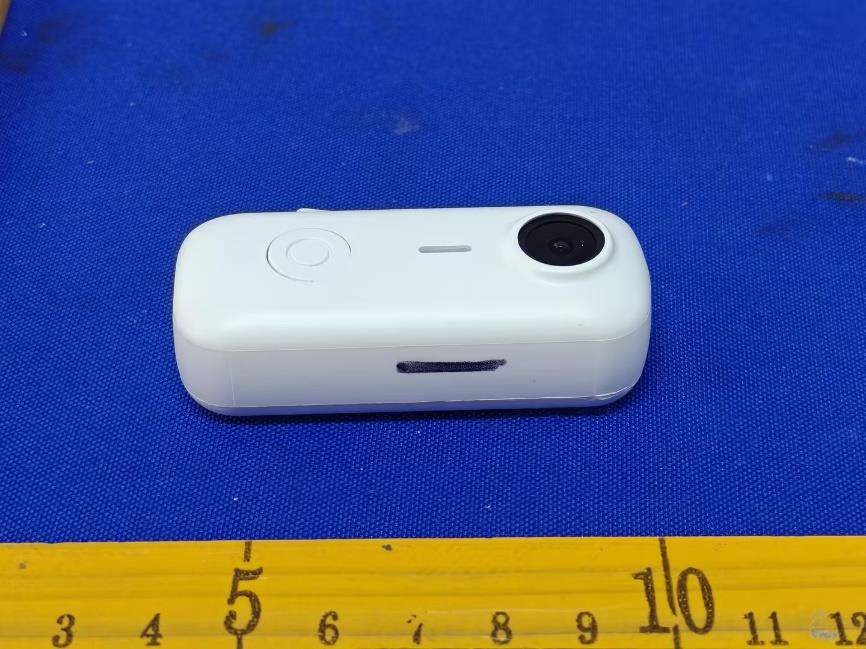

Page 1 of 3 FCC ID: 2BO3F-D100 External Photos Page 2 of 3 FCC ID: 2BO3F-D100 Page 3 of 3 FCC ID: 2BO3F-D100
