2BO4X-MB10W1CSMARTCOBY ULTRA SLIM 3K

2. Bring this product close to the wireless charging point as shown in the above illustration. If the device does not charge, press the wireless charging start button,Make sure your device is properly connected to the wireless charging point. *Be sure to check that the connected device will not fall from this product before using it. If you use it with unstable fixation, there is a risk of damage due to falling. *During wireless charging, the product and device may become hot. This is a normal specification. *This product does not support simultaneous wired and wireless charging. If both are connected, wired charging will take priority and wireless charging will stop. USB-C USB SMARTCOBY ULTRA SLIM 3K Model:CIO-MB10W1C-3K-USWL7 Battery Capacity:3000mAh/3.88V 11.64Wh Rated Capacity:1800mAh(5V 1A) USB-C Input:5V 2A 9V 2.22A During pass-through charging USB-C Output:5V 2A(10W Max) Wireless Output:(7.5W Max) Size Approx. 104 x 70 x 4.98mm Weight Approx. 82g Number of cycles Approx. 500 times Battery storage time Approx. 150 minutes Supported FindMy OS: iOS 14.5 / iPadOS 14.5 or later SMARTCOBY ULTRA SLIM 3KSMARTCOBY ULTRA SLIM 3K CIO-MB10W1C-3K-USWL7 1. 25 RFID UWB( :Ultra Wideband) iOS iPadOS 3 1 CIO (https://connectinternationalone.co.jp/ciopbcollect/) 5. 3. 4. 6. 7. Find My 10W 5V CIO 1. USB-C 2. 7. 5W 3. ( ) 4. 5. 6. Qi iPhone Pro Max Galaxy S Ultra Lightning USB-C iPhone 80 iPhone 80 80 iPhone / 1. 5 FindMy 10 2. > > CIO-MB10W1C-3K-USWL7 AppleAccount 3. : > > 1. 10m 2. 10 9. CIO 1. ( ) 2. 3. https://connectinternationalone.co.jp/contact/customer/ QR [email protected] CIO-MB10W1C-3K-USWL7 1 02 01 CIO LINE QR QR LINE 02 01 CIO YouTube C O U P O N S ALE & QR QR YouTube SMARTCOBY ULTRA SLIM 3K CIO-MB10W1C-3K-USWL7 USER MANUAL CIO Co., Ltd. Founded in 2017 in Osaka, Japan, CIO Co., Ltd. is a manufactur- ing and sales company focused on dealing with the latest gadgets and smartphone accessories. With the concept of "Delivering the latest, most exciting gadgets", the company offers its products through its e-commerce site and physical stores. We always pay attention to the latest technology and continuously strive to develop products that increase the level of convenience for users. We offer high quality products in accordance with Japanese standards, but at the same time, we offer high cost performance as only an overseas manufacturer can. It is our pleasure to provide convenient gadgets to our customers. 1. Introduction 2. Precautions 3. Accessories 4. Specifications 5. Names of Each Part 6. How to Use 6-1. Charge via Cable 6-2. Wireless charging to Qi compatible devices 6-3.Wireless Charging for Small Devices Other than Smartphones 6-4. Charging the Product 6-5. Pass-Through Function 6-6. Magnetic Wireless Charging and Wireless Charging 7. Find My Feature 8. Apple Find My Network and Trademark Information 9. Warranty 3 4 - 5 8 8 9 10 - 16 10 11 12 13 14-15 15-16 17 18 18-19 Thank you for your purchase. Please read the user manual carefully before use and use it correctly. 1.Introduction Contents This is content that could lead to death or serious injury. Warning 2.Precautions There is a possibility of serious injury or damage to property. Caution Warning Stop using this product immediately if it makes any noise, generates unusual heat, has an unusual odor, or contains a foreign object. Do not disassemble or modify this product in any way. It may cause a fire, electric shock or injury. Children should not use this product alone. Do not use this product within the reach of children. Do not immerse the product in water or allow it to get wet. Otherwise, it may cause heat generation, fire, fire, electric shock, or explosion. Please do not use, leave or store the product in a high temperature environment. Do not throw this product into fire. Do not drop this product, place heavy objects on top of it, or give it a shock. Doing so may result in electric shock, malfunction, injuries, or smoke/fire. This product should be used away from devices that generate heat. Do not leave it in high temperature places such as in direct sunlight or in a car. It may cause heat generation and ignition. CautionFCC Warning Statement Do not use this product for any purpose other than its intended use. Do not use this product near flammable oil, chemicals or flammable substances. Do not use or store the product in a place where it is exposed to water or other liquids. This product may become hot while using the wireless charging function, but this is due to the specifications and is not a malfunction. Please note that we are not responsible for any damage, breakage, breakdown or loss of data on devices connected to this product. When using the wireless charging function, do not use a metal protective cover attached. This will activate the object detection function and prevent proper charging. Depending on the thickness of the protective cover, magnetic wireless charging may not work or charging may become slow. In this case, please remove the cover. Also, please note that wireless charging cannot be done while wearing a drop prevention ring. If the ambient temperature is high, the wireless charger will automatically limit its output to reduce heat generation, which may slow down the charging speed. This is a common phenomenon with most wireless chargers. In addition, batteries tend to deteriorate in high-temperature environments, so we recommend charging in environments below 25 degrees Celsius. This product may become hot when using the wireless charging function, but this is not a problem. This product has a built-in magnet. Do not hold credit cards or other items close to or between this product. Doing so may result in damage to the magnetism or RFID chip. This product has a built-in wireless transmitter that generates magnets and electromagnetic waves. These parts may interfere with medical devices such as pacemakers. Please consult with your doctor before use. Due to its characteristics, wire…

Text truncated - open the document above for the full version.

Rev 1/26/2023 CIO Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2025/10/31 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BO4X-MB10W1C Applicant FRN: 0037004751 [CIO Co.,Ltd.] certifies that, as of the date of the filing of the application, [FCC US Agent, LLC] is our designated U.S. agent for service of process for the above referenced FCC ID. [CIO Co.,Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [FCC US Agent, LLC] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely,

(CIO Co.,Ltd.) (2025/10/24) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BO4X-MB10W1C) [CIO Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Shodai Nakahashi (CIO Co.,Ltd.) (2025/10/24) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BO4X-MB10W1C) [CIO Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Shodai Nakahashi

CIO Co.,Ltd. 2025/10/24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Shodai Nakahashi / CEO Contact information / address: 4F, Moriguchi CID Building, 2-5-18 Honmachi, Moriguchi-shi, Osaka 570-0028, Japan

CIO Co.,Ltd. 2025/10/24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: SMARTCOBY ULTRA SLIM 3K Trademark: CIO MODEL: CIO-MB10W1C-3K-USWL7 FCC ID: 2BO4X-MB10W1C To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Shodai Nakahashi / CEO Contact information / address: 4F, Moriguchi CID Building, 2-5-18 Honmachi, Moriguchi-shi, Osaka 570-0028, Japan

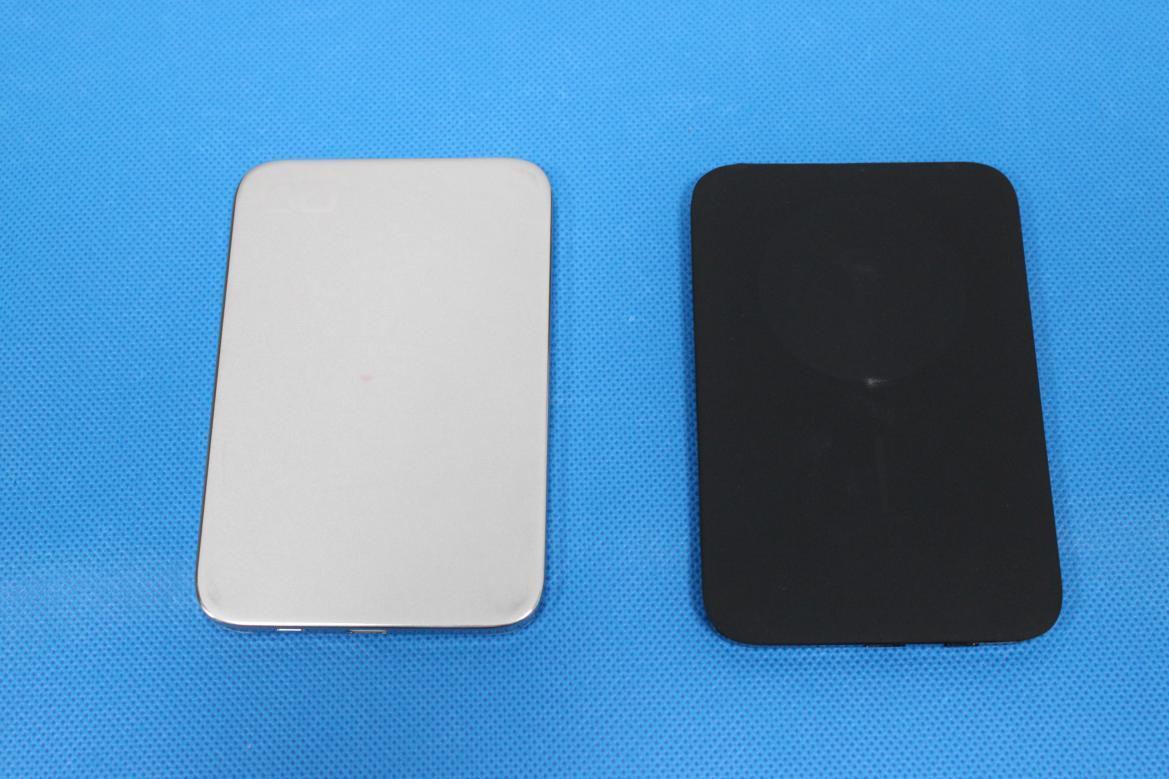

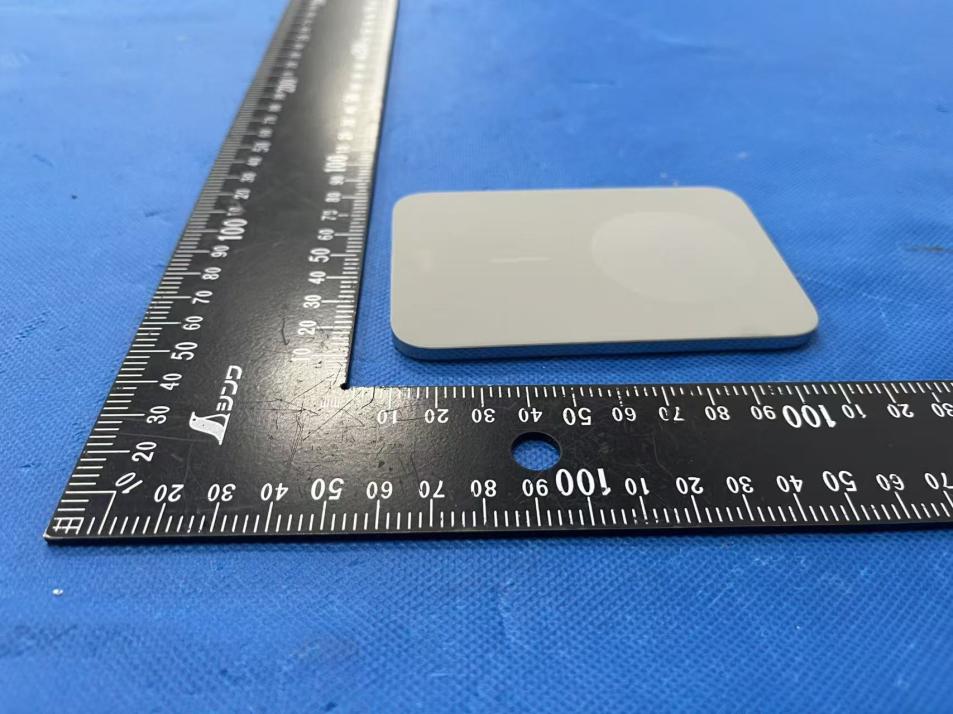

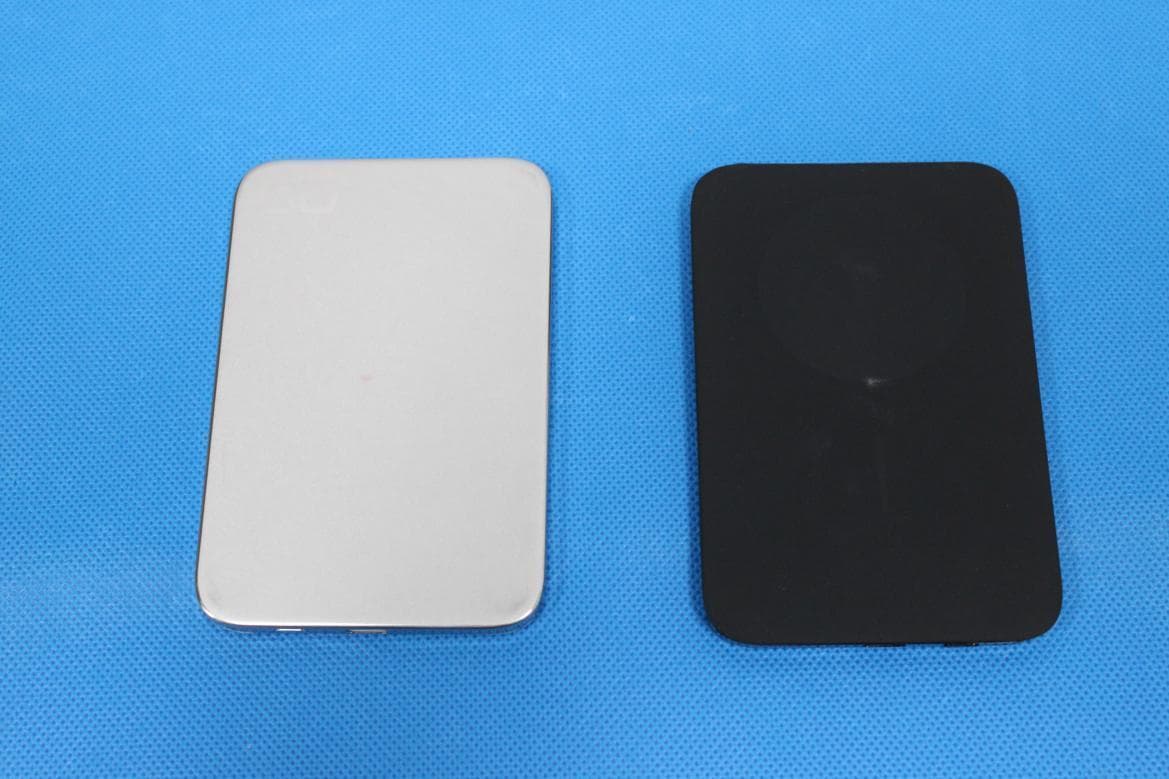

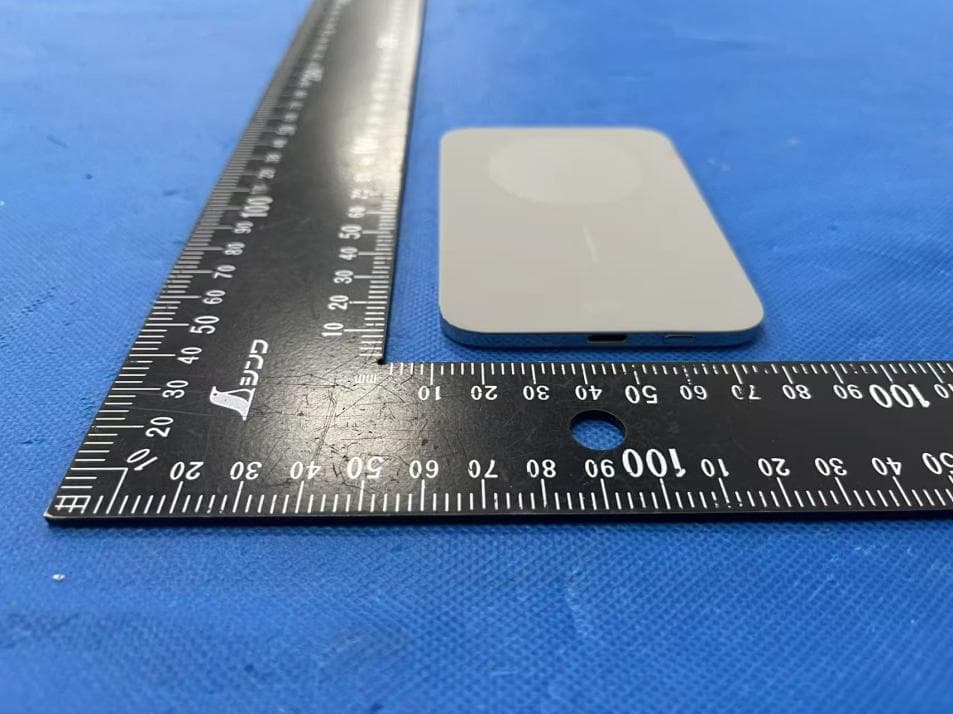

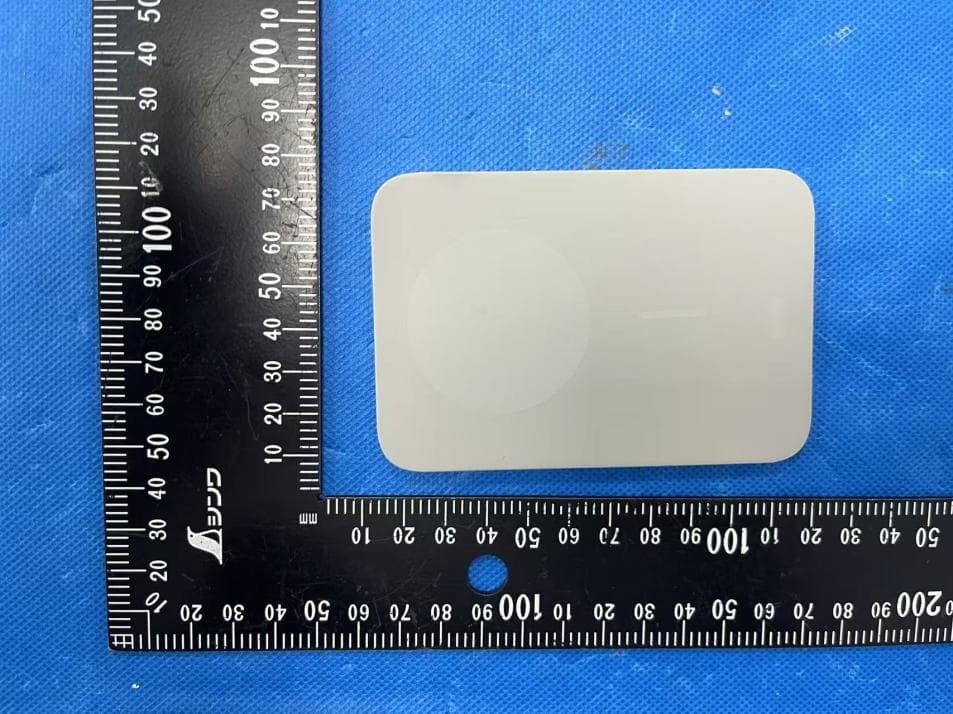

Report No.: BCTC2508642816E External Photos Report No.: BCTC2508642816E Report No.: BCTC2508642816E Report No.: BCTC2508642816E

Report No.: BCTC2508642816E Internal Photos Coil Antenna Report No.: BCTC2508642816E BLE Antenna Report No.: BCTC2508642816E Report No.: BCTC2508642816E

RF EXPOSURE EVALUATION METHOD FCC ID: 2BO4X-MB10W1C Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Mode Frequency(MHz) Maximum Conducted Output Power(PK) (dBm) Conducted Output Power Limit(dBm) GFSK(1Mbps) 2402 0.11 30 2440 -0.32 30 2480 -1.51 30 GFSK(2Mbps) 2402 0.16 30 2440 -0.25 30 2480 -1.47 30 max possible output power (PK, conducted)：0±1dBm 1dBm=1.26mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.402=0.391≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.440=0.394≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.48=0.397≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Approval sheet CA-C03_V01 1 APPROVAL SHEET CrossAir TM SMD Antenna series RoHS Compliance PN: CA-C03 2.4 GHz ISM band antenna Approval sheet CA-C03_V01 2 FEATURES 1.Surface Mounted Devices (SMD) with a small dimension of 5.5 X 2.0 X 1.0 mm 3 meet miniaturization trend. 2.Low power loss and high antenna efficiency. 3.High stability in Temperature and Humidity Change. APPLICATIONS 1.2.4GHz ISM band RF applications 2.Bluetooth,ZigBee, Wireless, HomeRF 3.WIFI（2.4G only） CONSTRUCTION 1、Antenna Feeding 2、Identification Mark 3、Soldering terminal DIMENSIONS Figure Symbol Dimension(mm) L 5.5±0.1 w 2.0±0.1 T 1.0±0.1 a 0.5±0.1 Manufacturer: Guangzhou Hanwuji Electronic Technology Co.,Ltd Approval sheet CA-C03_V01 3 ELECTRICAL CHARACTERISTICS CA-C03 Specification Working Frequency Range 2450±50MHz Fc(GHz) 2.7GHz Band Width >100MHz Impedance 50Ω Gain(dBi) 4.3（peak） VSWR <2 Operation Temperature -40°C~+95°C Power Capacity 3W The working frequency need be adjusted to 2.45GHz with matching circuit. SOLDER LAND PATTERN DESIGN Figure Approval sheet CA-C03_V01 4 Matching component value Series 1 0Ω Shunt 1 3nh Series 2 0Ω Antenna on Test Board (Thickness 1.0mm) Approval sheet CA-C03_V01 5 Antenna S11 on Test Board Antenna VSWR on Test Board Efficiency and RADIATION PATTERN Efficiency，Radiation Pattern and Gain were dependent on measurement board design. The Approval sheet CA-C03_V01 6 specification of CA-C03 antenna was measured based on the PCB size and installation position as shown in the below figure test board. The test results were tested in ETS 3D Chamber. Gain and Efficiency 2.4G-2.5GHz Peak Gain 4.3dBi Average Gain across the band 4.1dBi Gain Range across the band 3.9dBi~4.3dBi Peak Efficiency 81.7% Average Efficiency across the band 80.2% Efficiency Range across the band 78.6%~81.7% Theta @2.45 GHz Phi @2.45 GHz Z Y X Approval sheet CA-C03_V01 7 Total @2.45 GHz SOLDERING CONDITION Typical examples of soldering processes that provide reliable joints without any damage is as follows: Approval sheet CA-C03_V01 8 PACKAGING Plastic Tape specification (unit:mm) Index Ao Bo ΦD T W Dimension (mm) 3.0±0.1 6.0±0.1 1.55±0.05 1.2±0.1 11.8±0.1 Index E F Po P1 P2 Dimension (mm) 1.75±0.1 4.6±0.1 4.0±0.1 4.0±0.1 2.0±0.1 Reel dimensions Index A B C Dimension(mm) 178 60 13.5 Typing Quantity: 3000 pieces per reel. CAUTION OF HANDLING Storage environment condition Products shoud be storage in the warehouse on the following conditions: Approval sheet CA-C03_V01 9 Temperature : -10°C~+40°C Humidity : 30% to 70% relative humidity Don’t keep products in corrosive gases such as sulfur. Chlorine gas or acid or it may cause oxidization of electrode, resulting in poor solderability. Products should be storage on the palette for the prevention of the influence from humidity, dust and so on. Products should be storage in the warehouse without heat shock, vibration, direct sunlight and so on. Products should be storage under the airtight packaged condition.

No.：BCTC/RF-ICT-005 Page: 1 of 53 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2508642816-3E Applicant: CIO Co.,Ltd. Product Name: SMARTCOBY ULTRA SLIM 3K Test Model: CIO-MB10W1C-3K-USWL7 Tested Date: 2025-08-06 to 2025-08-14 Issued Date: 2025-08-14 Report No.: BCTC2508642816-3E No.：BCTC/RF-ICT-005 Page: 2 of 53 Edition：C.0 FCC ID: 2BO4X-MB10W1C The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: SMARTCOBY ULTRA SLIM 3K Trademark: CIO Model/Type Reference: CIO-MB10W1C-3K-USWL7 Prepared For: CIO Co.,Ltd. Address: 4F, Moriguchi CID Building, 2-5-18 Honmachi, Moriguchi-shi, Osaka 570-0028, Japan Manufacturer: CIO Co.,Ltd. Address: 4F, Moriguchi CID Building, 2-5-18 Honmachi, Moriguchi-shi, Osaka 570-0028, Japan Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2025-08-06 Sample Tested Date: 2025-08-06 to 2025-08-14 Issue Date: 2025-08-14 Report No.: BCTC2508642816-3E Test Standards: FCC Part15.247 ANSI C63.10:2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2508642816-3E No.：BCTC/RF-ICT-005 Page: 3 of 53 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT Operating Conditions .................................................................................. 26 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 EUT Operating Conditions .................................................................................. 27 9.5 Test Result ...............…

Text truncated - open the document above for the full version.

Report No.: BCTC2508642816E Conducted emissions Radiated Measurement Photos 9kHz-30MHz Report No.: BCTC2508642816E 30MHz-1GHz Spurious emissions
