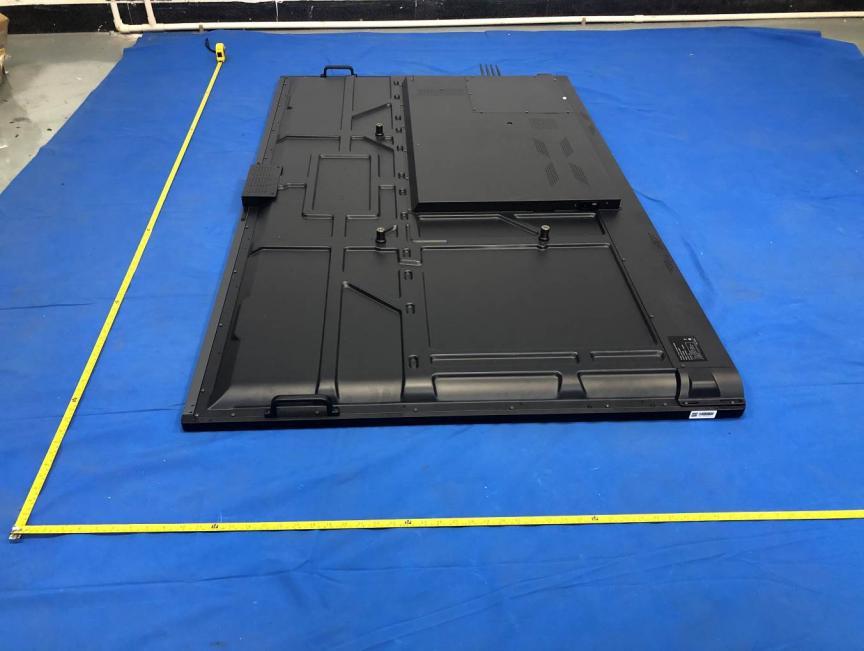

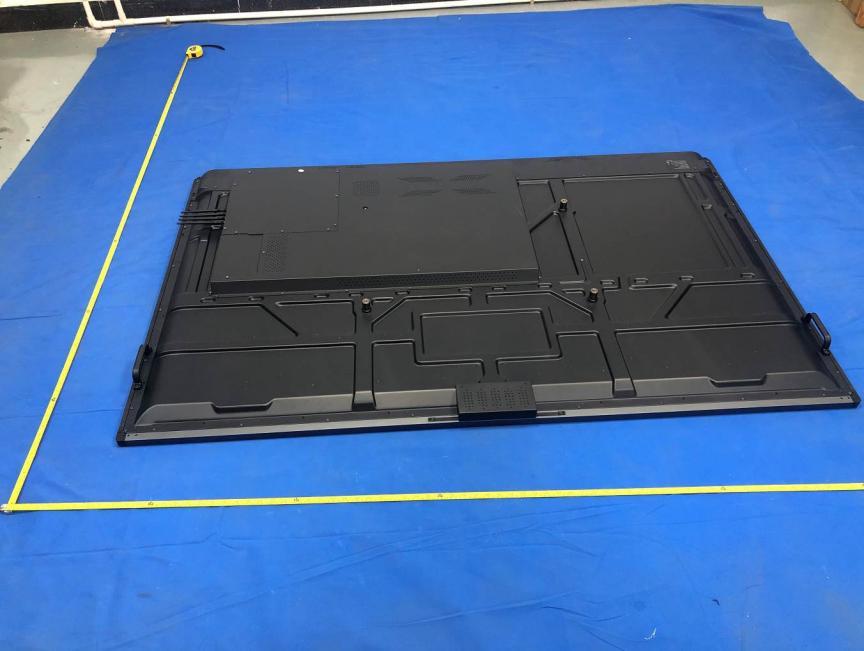

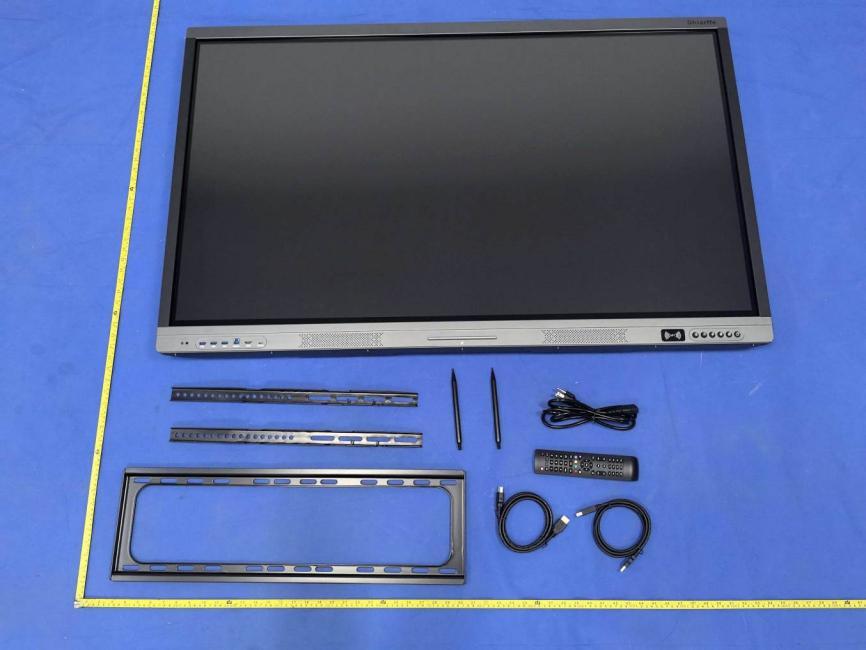

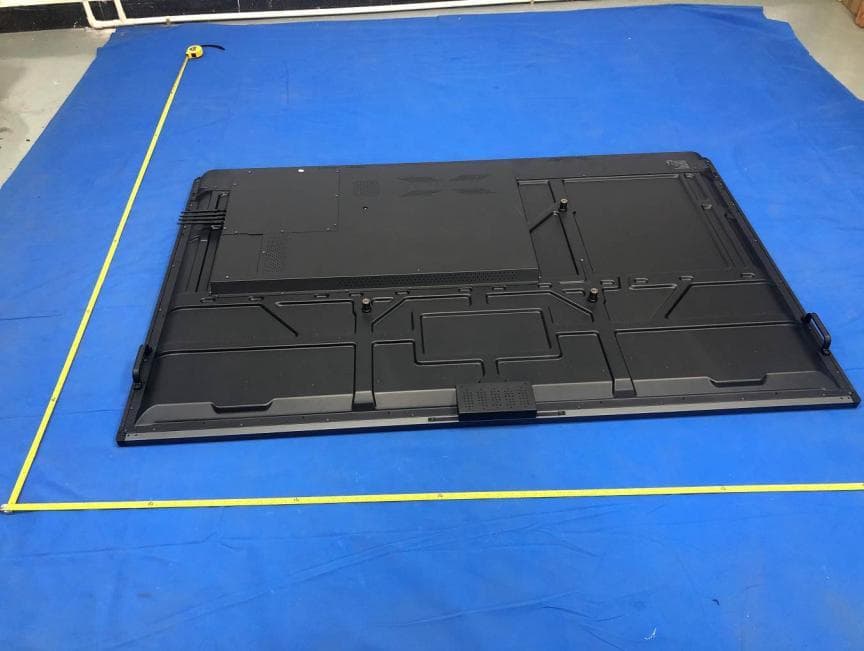

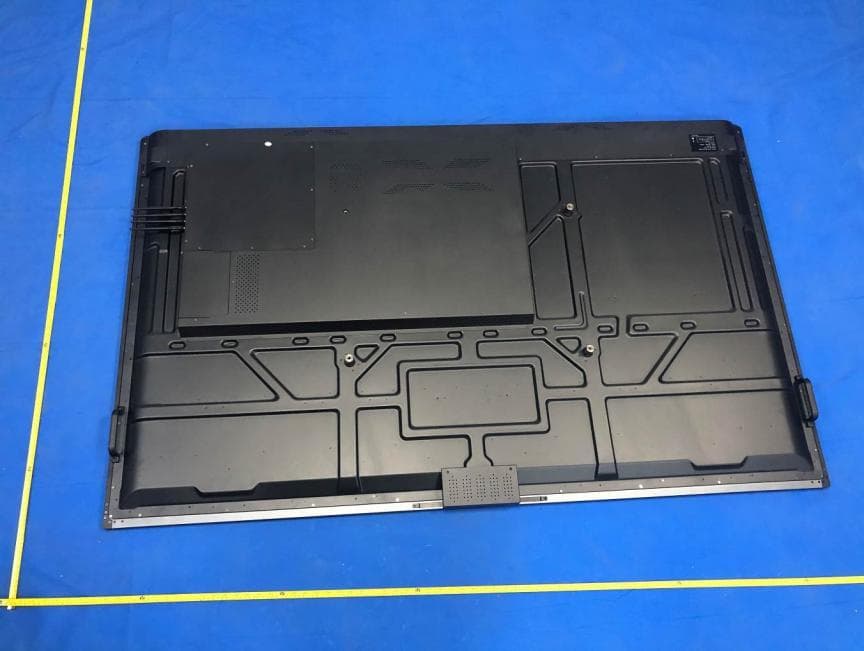

2BO6V-KI-D086LInteractive intelligent panel

SmartBoard U ser M anual catalogue I.Systemdescription .............................................................................................................. 1 1.1Systemhomepage .......................................................................................... 1 1.2,sidebar..............................................................................................................1 1.2.1FunctionIntroduction ................................................................................... 1 1.2.2Quickoperation.............................................................................................2 1.2.3Shortcut .......................................................................................................... 4 1.2.4Annotations ................................................................................................... 6 1.2.6Sidebars ....................................................................................................... 10 1.3,Statusbar.......................................................................................................18 1.4SystemSettings.............................................................................................18 1.4.1,wirelessandnetwork................................................................................18 1.4.2Personalization ........................................................................................... 20 1.4.3,inputandoutput.........................................................................................22 1.4.4System.........................................................................................................23 1.4.6SafetyOptions............................................................................................26 1.4.6About............................................................................................................27 I.Softwaredescription.........................................................................................................27 2.1Writeonthewhiteboard................................................................................27 2.1.1Interfacedisplay .......................................................................................... 27 2.1.2Menu............................................................................................................28 2.1.3Basicoperations ......................................................................................... 34 2.2Filebrowsing..................................................................................................42 2.2.1InterfaceIntroduction ................................................................................. 42 2.2.2Displaymode..............................................................................................42 2.2.3Toolbar.........................................................................................................44 2.2.4Expandthemenu........................................................................................45 2.3TabletManager..............................................................................................46 2.4Wirelessscreentransmission ...................................................................... 50 2.4.1Applicationinstructions..............................................................................50 2.4.2Operationinstructions................................................................................51 2.5Drawingboard................................................................................................52 3.0After-SaleService ......................................................................................... 53 1 I.Systemdescription 1.1Homepageofthesystem Afterthestartupiscompleted,itwillenterthemaininterfacebydefault,asshown inthefigure: （1）Thedesktophasthreecomponents:return,homepage,and multi-window 1.2,sidebar 1.2.1FunctionIntroduction Thesidebarisdividedintoleftandrightsidebars.Clicktheiconthat floatsontheleft/rightsideofthescreen、Youcancallupthe sidebar,anditsexpandedfunctionbuttonsarethegadgetexpansionbar, applicationexpansionbar,wirednetwork,WiFi,Bluetooth,hotspot, volumeandbrightnessprogressbar,menupage,shutdownpage,channelpage inturn. 2 1.2.2Quickoperation 1.menu clickTheiconshowsourmenu,displaysthepagesofaduio,screen, dispaly,andadjust,whichcanbeadjusted. 3 2.shutdown clickIcon,entertheshutdowncomponentinterface.Thefunctionsare shutdown,sleep,andrestartinsequence. 3.channel clickIcon,enterthechannelinterface,clicktoenterthecorresponding channel. 4 1.2.3Shortcut 1.Googlecomponents clickIcon,openandgotoGoogleApps,whichisGooglesall-in-one app 5 clickIcon,opentoenterthefilemanagementapplication. clickIcon,opentoenterthewhiteboardapplication. clickIcon,openandentertheGoogleStoreapp. ClickonthesearchbartogodirectlytoourGooglesearch bar 2.Moreapps Theupbuttonbringsupmoreappinterfaces,includingGooglescomponentapps andcommonappssuchascalculator,Eshareproscreencasting,whiteboard,file management,tabletmanager,Settings, etc. Youcancreateshortcutsbytouchinganddraggingtheappicontothedesktop. Whenyoudragtheappicon,thereisalsoanoptiontocancelthedragatthetop.Drag 6 theicontothetoptoremovetheshortcut. 1.2.4Annotations clickClicktheicontoopentheannotation. 7 toolbardirectionforuse: （1）clickIcon,enterthebrushmode,clickagaintocallupthewriting menuYoucansetthebrushcolorandsize. （ 2 ） clickTheicon,cutbacktotheselectionmode,needstosavethe annotatedcontent,thehoverbarwillnotdisappear. （3）clickIconshighlightthecontent. （ 4 ） clickIcon,clearsallannotationtracesfromtheinterface. （ 5 ） clickIcon,savethecurrentannotationtoaPNGfile. 8 （ 6 ） clickTheiconinvokestheapp bar a.clickTheiconopensthefilebrowserandgoesdirectlytothe annotationfilesavedirectory,asshowninthefigure b.clickTheiconinsertstheentirecurrentannotationintothe whiteboardapplication,asshowninthefigure 9 c.clickTheicongeneratesaQRcode,whichuserscanscanto downloadthecurrentannotatedfileorsharethefi…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25110401601 2BO6V-KI-D086L Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Dec. 02, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: SHENZHEN KINGIMAGE TECHNOLOGY CO.,LTD. Address ...........................................: 1ST FLOOR, BUILDING 12TH, HONGFA INDUSTRIAL PARK, NO.91 TANGTOU RD, SHIYAN STREET, BAOAN, SHENZHEN, GUANGDONG, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Interactive intelligent panel Trade Mark ......................................: N/A Manufacturer ...................................: SHENZHEN KINGIMAGE TECHNOLOGY CO.,LTD. Model/Type reference .....................: KI-D086L Listed Models ..................................: KI-D055L, KI-D065L, KI-D075L Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: AC 120V, 50/60Hz Result ..............................................: PASS Report No.: CTA25110401601 Page 2 of 92 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Interactive intelligent panel Model /Type : KI-D086L Listed Models : KI-D055L, KI-D065L, KI-D075L Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number, appearance, screen size are different for these model. Applicant : SHENZHEN KINGIMAGE TECHNOLOGY CO.,LTD. Address : 1ST FLOOR, BUILDING 12TH, HONGFA INDUSTRIAL PARK, NO.91 TANGTOU RD, SHIYAN STREET, BAOAN, SHENZHEN, GUANGDONG, China Manufacturer : SHENZHEN KINGIMAGE TECHNOLOGY CO.,LTD. Address : 1ST FLOOR, BUILDING 12TH, HONGFA INDUSTRIAL PARK, NO.91 TANGTOU RD, SHIYAN STREET, BAOAN, SHENZHEN, GUANGDONG, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25110401601 Page 3 of 92 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory............................................................................................................ 7 3.2 Test Facility .................................................................................................…

Text truncated - open the document above for the full version.

FCC ID:2BO6V-KI-D086L Test Setup Photos of the EUT FCC ID:2BO6V-KI-D086L

1 FCC Appendix RF Test Data for BLE FCC ID : 2BO6V-KI-D086L Company : SHENZHEN KINGIMAGE TECHNOLOGY CO.,LTD. EUT : Interactive intelligent panel Model Number : KI-D086L Report No. : CTA25110401601 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.628 2401.692 2402.320 0.5 PASS 2440 0.660 2439.680 2440.340 0.5 PASS 2480 0.648 2479.696 2480.344 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0086 2401.5145 2402.5231 --- --- 2440 1.0020 2439.5184 2440.5204 --- --- 2480 1.0050 2479.5179 2480.5229 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 0.12 ≤30 PASS 2440 -0.26 ≤30 PASS 2480 -0.28 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.42 ≤8.00 PASS 2440 -15.71 ≤8.00 PASS 2480 -15.68 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 0.16 -52.62 ≤-19.84 PASS High 2480 -0.73 -54.2 ≤-20.73 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.71 -0.71 --- PASS 30~1000 -0.71 -68.46 ≤-20.71 PASS 1000~26500 -0.71 -42.11 ≤-20.71 PASS 2440 Reference -1.91 -1.91 --- PASS 30~1000 -1.91 -67.27 ≤-21.91 PASS 1000~26500 -1.91 -41.4 ≤-21.91 PASS 2480 Reference -0.72 -0.72 --- PASS 30~1000 -0.72 -67.97 ≤-20.72 PASS 1000~26500 -0.72 -41.72 ≤-20.72 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

119 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 120 11AX20SISO_Ant1_2412_1000~26500 11AX20SISO_Ant1_2437_0~Reference 121 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 11AX20SISO_Ant1_2462_0~Reference 122 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~26500 123 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~26500 124 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 125 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 126 11AX40SISO_Ant1_2452_1000~26500 127 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 11AX20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11AX40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 128 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 129 11G_Ant1_2412 11G_Ant1_2437 130 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 131 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 132 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 133 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 134 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 135

92 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 93 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 94 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 95 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 96 97 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dB m] Verdic t 11B Ant1 Low 2412 0.38 -50.23 ≤-19.62 PASS High 2462 1.05 -57.05 ≤-18.96 PASS 11G Ant1 Low 2412 -7.31 -43.7 ≤-27.31 PASS High 2462 -7.17 -51.19 ≤-27.17 PASS 11N20SISO Ant1 Low 2412 -7.41 -44.75 ≤-27.41 PASS High 2462 -6.76 -52.8 ≤-26.76 PASS 11N40SISO Ant1 Low 2422 -10.13 -49.49 ≤-30.13 PASS High 2452 -9.93 -53.74 ≤-29.93 PASS 11AX20SIS O Ant1 Low 2412 -7.71 -47.06 ≤-27.71 PASS High 2462 -7.29 -52.1 ≤-27.29 PASS 11AX40SIS O Ant1 Low 2422 -10.09 -48.16 ≤-30.09 PASS High 2452 -9.69 -51.18 ≤-29.69 PASS 98 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 99 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 100 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 101 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 102 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 103 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.02 -0.02 --- PASS 30~1000 -0.02 -55.01 ≤-20.02 PASS 1000~26500 -0.02 -44.37 ≤-20.02 PASS 2437 Reference 1.00 1.00 --- PASS 30~1000 1.00 -56.32 ≤-19 PASS 1000~26500 1.00 -44.97 ≤-19 PASS 2462 Reference -0.23 -0.23 --- PASS 30~1000 -0.23 -54.9 ≤-20.23 PASS 1000~26500 -0.23 -45.23 ≤-20.23 PASS 11G Ant1 2412 Reference -7.15 -7.15 --- PASS 30~1000 -7.15 -60.83 ≤-27.15 PASS 1000~26500 -7.15 -43.74 ≤-27.15 PASS 2437 Reference -7.27 -7.27 --- PASS 30~1000 -7.27 -59.81 ≤-27.27 PASS 1000~26500 -7.27 -44.4 ≤-27.27 PASS 2462 Reference -7.37 -7.37 --- PASS 30~1000 -7.37 -59.58 ≤-27.37 PASS 1000~26500 -7.37 -44.82 ≤-27.37 PASS 11N20SISO Ant1 2412 Reference -8.47 -8.47 --- PASS 30~1000 -8.47 -60.54 ≤-28.47 PASS 1000~26500 -8.47 -43.89 ≤-28.47 PASS 2437 Reference -7.21 -7.21 --- PASS 30~1000 -7.21 -59.79 ≤-27.21 PASS 1000~26500 -7.21 -44.23 ≤-27.21 PASS 2462 Reference -7.66 -7.66 --- PASS 30~1000 -7.66 -59.56 ≤-27.66 PASS 1000~26500 -7.66 -44.75 ≤-27.66 PASS 11N40SISO Ant1 2422 Reference -10.96 -10.96 --- PASS 30~1000 -10.96 -61.54 ≤-30.96 PASS 1000~26500 -10.96 -43.96 ≤-30.96 PASS 2437 Reference -10.64 -10.64 --- PASS 30~1000 -10.64 -60.94 ≤-30.64 PASS 1000~26500 -10.64 -44.11 ≤-30.64 PASS 2452 Reference -10.62 -10.62 --- PASS 30~1000 -10.62 -62.34 ≤-30.62 PASS 1000~26500 -10.62 -44.63 ≤-30.62 PASS 11AX20SISO Ant1 2412 Reference -8.26 -8.26 --- PASS 104 30~1000 -8.26 -59.78 ≤-28.26 PASS 1000~26500 -8.26 -43.73 ≤-28.26 PASS 2437 Reference -6.70 -6.70 --- PASS 30~1000 -6.70 -59.96 ≤-26.7 PASS 1000~26500 -6.70 -44.23 ≤-26.7 PASS 2462 Reference -6.64 -6.64 --- PASS 30~1000 -6.64 -59.78 ≤-26.64 PASS 1000~26500 -6.64 -44.88 ≤-26.64 PASS 11AX40SISO Ant1 2422 Reference -10.86 -10.86 --- PASS 30~1000 -10.86 -61.85 ≤-30.86 PASS 1000~26500 -10.86 -44.02 ≤-30.86 PASS 2437 Reference -10.63 -10.63 --- PASS 30~1000 -10.63 -61.75 ≤-30.63 PASS 1000~26500 -10.63 -44.23 ≤-30.63 PASS 2452 Reference -10.28 -10.28 --- PASS 30~1000 -10.28 -61.99 ≤-30.28 PASS 1000~26500 -10.28 -44.5 ≤-30.28 PASS 105 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 106 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 107 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 108 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 109 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 110 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 111 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 112 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 113 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 114 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 115 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 116 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 117 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 118 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000

61 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 62 11G_Ant1_2412 11G_Ant1_2437 63 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 64 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 65 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 66 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 67 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 68 69 FCC Appendix RF Test Data for 2.4GWIFI ANT2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.160 2408.120 2416.280 0.5 PASS 2437 8.720 2432.520 2441.240 0.5 PASS 2462 9.160 2457.440 2466.600 0.5 PASS 11G Ant1 2412 16.280 2403.920 2420.200 0.5 PASS 2437 16.360 2428.880 2445.240 0.5 PASS 2462 16.320 2453.880 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.160 2403.480 2420.640 0.5 PASS 2437 17.320 2428.400 2445.720 0.5 PASS 2462 17.240 2453.360 2470.600 0.5 PASS 11N40SISO Ant1 2422 33.600 2405.520 2439.120 0.5 PASS 2437 34.240 2420.040 2454.280 0.5 PASS 2452 33.840 2435.280 2469.120 0.5 PASS 11AX20SISO Ant1 2412 17.280 2403.360 2420.640 0.5 PASS 2437 17.280 2428.400 2445.680 0.5 PASS 2462 17.280 2453.400 2470.680 0.5 PASS 11AX40SISO Ant1 2422 34.000 2405.200 2439.200 0.5 PASS 2437 33.760 2420.360 2454.120 0.5 PASS 2452 34.320 2434.880 2469.200 0.5 PASS 70 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 71 11G_Ant1_2412 11G_Ant1_2437 72 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 73 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 74 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 75 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 76 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 77 78 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.958 2405.5738 2418.5318 --- --- 2437 12.941 2430.5410 2443.4820 --- --- 2462 12.969 2455.5363 2468.5053 --- --- 11G Ant1 2412 16.555 2403.7600 2420.3150 --- --- 2437 16.567 2428.7445 2445.3115 --- --- 2462 16.594 2453.7342 2470.3282 --- --- 11N20SISO Ant1 2412 17.438 2403.3406 2420.7786 --- --- 2437 17.446 2428.3215 2445.7675 --- --- 2462 17.474 2453.2981 2470.7721 --- --- 11N40SISO Ant1 2422 34.850 2404.7486 2439.5986 --- --- 2437 34.802 2419.7290 2454.5310 --- --- 2452 34.736 2434.7613 2469.4973 --- --- 11AX20SISO Ant1 2412 17.440 2403.3267 2420.7667 --- --- 2437 17.446 2428.3212 2445.7672 --- --- 2462 17.471 2453.2810 2470.7520 --- --- 11AX40SISO Ant1 2422 34.818 2404.7670 2439.5850 --- --- 2437 34.729 2419.7980 2454.5270 --- --- 2452 34.748 2434.7141 2469.4621 --- --- 79 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 80 11G_Ant1_2412 11G_Ant1_2437 81 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 82 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 83 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 84 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 85 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 86 87 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.01 ≤30.00 PASS 2437 14.79 ≤30.00 PASS 2462 14.70 ≤30.00 PASS 11G Ant1 2412 12.95 ≤30.00 PASS 2437 13.71 ≤30.00 PASS 2462 13.70 ≤30.00 PASS 11N20SISO Ant1 2412 13.34 ≤30.00 PASS 2437 14.17 ≤30.00 PASS 2462 14.01 ≤30.00 PASS 11N40SISO Ant1 2422 12.58 ≤30.00 PASS 2437 13.14 ≤30.00 PASS 2452 13.22 ≤30.00 PASS 11AX20SISO Ant1 2412 13.27 ≤30.00 PASS 2437 14.12 ≤30.00 PASS 2462 13.98 ≤30.00 PASS 11AX40SISO Ant1 2422 12.73 ≤30.00 PASS 2437 13.10 ≤30.00 PASS 2452 13.20 ≤30.00 PASS 88 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -14.88 ≤8.00 PASS 2437 -14.05 ≤8.00 PASS 2462 -14.70 ≤8.00 PASS 11G Ant1 2412 -21.38 ≤8.00 PASS 2437 -20.64 ≤8.00 PASS 2462 -20.86 ≤8.00 PASS 11N20SISO Ant1 2412 -21.16 ≤8.00 PASS 2437 -20.51 ≤8.00 PASS 2462 -20.38 ≤8.00 PASS 11N40SISO Ant1 2422 -21.98 ≤8.00 PASS 2437 -22.30 ≤8.00 PASS 2452 -22.30 ≤8.00 PASS 11AX20SISO Ant1 2412 -20.93 ≤8.00 PASS 2437 -20.28 ≤8.00 PASS 2462 -20.47 ≤8.00 PASS 11AX40SISO Ant1 2422 -21.79 ≤8.00 PASS 2437 -21.42 ≤8.00 PASS 2452 -21.65 ≤8.00 PASS 89 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 90 11G_Ant1_2412 11G_Ant1_2437 91 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437

34 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 35 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 36 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -1.43 -1.43 --- PASS 30~1000 -1.43 -55.5 ≤-21.43 PASS 1000~26500 -1.43 -44.01 ≤-21.43 PASS 2437 Reference 0.88 0.88 --- PASS 30~1000 0.88 -55.14 ≤-19.12 PASS 1000~26500 0.88 -44.62 ≤-19.12 PASS 2462 Reference -0.60 -0.60 --- PASS 30~1000 -0.60 -55.2 ≤-20.6 PASS 1000~26500 -0.60 -45.18 ≤-20.6 PASS 11G Ant1 2412 Reference -8.15 -8.15 --- PASS 30~1000 -8.15 -60.07 ≤-28.15 PASS 1000~26500 -8.15 -43.64 ≤-28.15 PASS 2437 Reference -7.37 -7.37 --- PASS 30~1000 -7.37 -59.84 ≤-27.37 PASS 1000~26500 -7.37 -44.24 ≤-27.37 PASS 2462 Reference -7.76 -7.76 --- PASS 30~1000 -7.76 -59.46 ≤-27.76 PASS 1000~26500 -7.76 -44.89 ≤-27.76 PASS 11N20SISO Ant1 2412 Reference -8.78 -8.78 --- PASS 30~1000 -8.78 -59.77 ≤-28.78 PASS 1000~26500 -8.78 -43.88 ≤-28.78 PASS 2437 Reference -8.10 -8.10 --- PASS 30~1000 -8.10 -59.35 ≤-28.1 PASS 1000~26500 -8.10 -44.34 ≤-28.1 PASS 2462 Reference -7.18 -7.18 --- PASS 30~1000 -7.18 -59.83 ≤-27.18 PASS 1000~26500 -7.18 -44.82 ≤-27.18 PASS 11N40SISO Ant1 2422 Reference -11.67 -11.67 --- PASS 30~1000 -11.67 -62.35 ≤-31.67 PASS 1000~26500 -11.67 -43.93 ≤-31.67 PASS 2437 Reference -11.12 -11.12 --- PASS 30~1000 -11.12 -62.34 ≤-31.12 PASS 1000~26500 -11.12 -44.09 ≤-31.12 PASS 2452 Reference -11.27 -11.27 --- PASS 30~1000 -11.27 -61.75 ≤-31.27 PASS 1000~26500 -11.27 -44.66 ≤-31.27 PASS 11AX20SISO Ant1 2412 Reference -9.05 -9.05 --- PASS 37 30~1000 -9.05 -59.78 ≤-29.05 PASS 1000~26500 -9.05 -43.67 ≤-29.05 PASS 2437 Reference -8.06 -8.06 --- PASS 30~1000 -8.06 -60.04 ≤-28.06 PASS 1000~26500 -8.06 -44.42 ≤-28.06 PASS 2462 Reference -8.25 -8.25 --- PASS 30~1000 -8.25 -59.65 ≤-28.25 PASS 1000~26500 -8.25 -44.77 ≤-28.25 PASS 11AX40SISO Ant1 2422 Reference -11.01 -11.01 --- PASS 30~1000 -11.01 -62.51 ≤-31.01 PASS 1000~26500 -11.01 -43.88 ≤-31.01 PASS 2437 Reference -11.00 -11.00 --- PASS 30~1000 -11.00 -62.2 ≤-31 PASS 1000~26500 -11.00 -44.18 ≤-31 PASS 2452 Reference -10.96 -10.96 --- PASS 30~1000 -10.96 -62.42 ≤-30.96 PASS 1000~26500 -10.96 -44.63 ≤-30.96 PASS 38 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 39 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 40 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 41 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 42 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 43 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 44 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 45 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 46 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 47 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 48 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 49 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 50 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 51 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 52 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 53 11AX20SISO_Ant1_2412_1000~26500 11AX20SISO_Ant1_2437_0~Reference 54 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 11AX20SISO_Ant1_2462_0~Reference 55 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~26500 56 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~26500 57 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 58 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 59 11AX40SISO_Ant1_2452_1000~26500 60 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 11AX20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11AX40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BO6V-KI-D086L Company : SHENZHEN KINGIMAGE TECHNOLOGY CO.,LTD. EUT : Interactive intelligent panel Model Number : KI-D086L Report No. : CTA25110401602 Reviewed By : Eric Wang 2 FCC Appendix RF Test Data for 2.4GWIFI ANT1 Appendix A: DTS Bandwidt…
