2BOG3-HEM-9HubiCare Next Level Comfort Eye Massager

FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Fanr Technology Co.,ltd Code 00018768 Ed. 2 Item 1. The device is able to install software/program installation? ☐ Yes, go to Item 2. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky cybersecurity or anti-virus software. Item 2. Technical Requirements for Kaspersky Cybersecurity Software: # General Requirements (For all Devices) Yes / No or N/A Comments 1 Internet connection for activation and updates (For all Operating Systems) N/A # General Requirements (For Windows Devices) Yes / No or N/A Comments 1 Storage: 1500 MB free space on the hard drive N/A Device HubiCare Next Level Comfort Eye Massager Company name Shenzhen Fanr Technology Co.,ltd Grantee code 2BOG3 FCC ID 2BOG3-HEM-9 FRN 0036849222 Contact name Jack Bu Address 1st Floor, Building 8, No. 161 Xingye 1st Road, Phoenix Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong Province, P.R. China Telephone number +86-18906679427 E-mail [email protected] Chipset/module information Bluetooth: AC6966B Operating System (if applicable) / Storage Capacity (hard drive or other permanent memory storage, if applicable) / 2 2 Operating System: Microsoft Windows 8, 8.1, 10 & 11 Home / Pro / Enterprise Microsoft Windows 7 Starter / Home Basic & Premium / Professional / Ultimate SP1 or higher N/A 3 Processor: 1 GHz or higher (x86 or x64) N/A 4 Memory (RAM)1 GB (32-bit) or 2 GB (64-bit) N/A 5 Screen Resolution: Minimum resolution of 1024 x 768 N/A # General Requirements (For macOS devices) Yes / No or N/A Comments 1 Operating System macOS® 13 – 14 N/A 2 Memory (RAM)4 GB N/A 3 Storage: 3455 MB free space on the hard drive N/A # General Requirements (For Android Devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: Android™ 10 – 14 N/A 3 Screen Resolution: Minimum resolution of 320 x 480 N/A # General Requirements (for iOS devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: iOS® 17 N/A After reviewed the technical requirements, is the device capable of supporting the installation of Kaspersky software? ☐ Yes, go to Item 3. 3 ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky software Item 3. Connectivity Capabilities: # Physical Interface Purpose Justification 1 1 # Wireless Interface Purpose Justification 1 1 After the review of this items, the device: ☒ Cannot support installation of any cybersecurity or anti-virus software on the covered list. ☐ Potentially can operate with any cybersecurity or anti-virus software on the covered list – additional third- party proof is provided to demonstrate compliance with requirements as of 2.911(d)5(i),(ii) – “Proof of Compliance with Covered List Software Requirements” of this document applies Signature: Name: Jack Bu Date: 2026/8/24 1 The justification field is used to justify why the software cannot be received through that interface. Check the annex for more indications.

TCBCALLpágina1 FileFCCID:2BOG3-HEM-9 PleaseuploadanexhibitthatexplainshowdoestheTCBverifythenewagentinformation: 1-IstheaddressoftheagentavalidphysicalUSmailingaddress(notaUSpostofficebox,notavirtualmailbox,notP.O.Boxes,notavacantlot,notapublicbuilding, etc.) ○Wehavecheckediftheaddressexistsinarealandpotentialbuilding(Googlemaps)+officialUSregister,afterthisverificationandtheevidencebelowwecan guaranteethefollowing: notaUSpostofficebox notavirtualmailbox notP.O.Boxes notavacantlot notapublicbuilding(note) ►WecheckedtheFCCFRNSearchbasedontheinformationprovidedbythegrantee. Ontheofficialregisterfrom:https://opencorporates.com/companies/us_il/LLC_12842678 Ingoogle: TCBCALLpágina2 Bankinformation TCBCALLpágina3 TCBCALLpágina4 TCBCALLpágina5 TCBCALLpágina6 TCBCALLpágina7 TCBCALLpágina8 TCBCALLpágina9 ►CONCLUSIONbyTCB:TheASOPdefinedandprovidedbygranteeisVALIDandconfirmed.Thereforetheexhibit"SampleAttestationStatements-USagentv2" includedinthefileisok. 2-IstheagentphysicallylocatedatthatvalidUSaddresssuchthattheagentcanbelegallyservedatthataddress? Yes,checkabove 3-Hasthelistedagentclearlyagreedinwritingtoserveastheagentforthegranteeatthataddress? Yes,itisincludedintheexhibit"SampleAttestationStatements-USagentv2" >

C5266091_X10_Ed.2 Shenzhen Fanr Technology Co.,ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: 2BOG3-HEM-9 To Whom It May Concern, Date: 2026/8/14 Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits ID Label/Location Attestation Statement External Photos Block Diagram Schematics Test Reoort Test Setup Photos User's Manual Internal Photos Parts List / Tune Up RF Exoosure Info Operational Description Cover Letter(s) SDR Software / Security Info Long-Term Confidentiality No No No 因 区l No No 口NOTEI D NOTE! No 区 No 仁］ Short-Term Confidentiality NOTE 2 No No 口 口 口 No 口 口 口 □ No 口 No No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALllY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of——_ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. 1/ 1

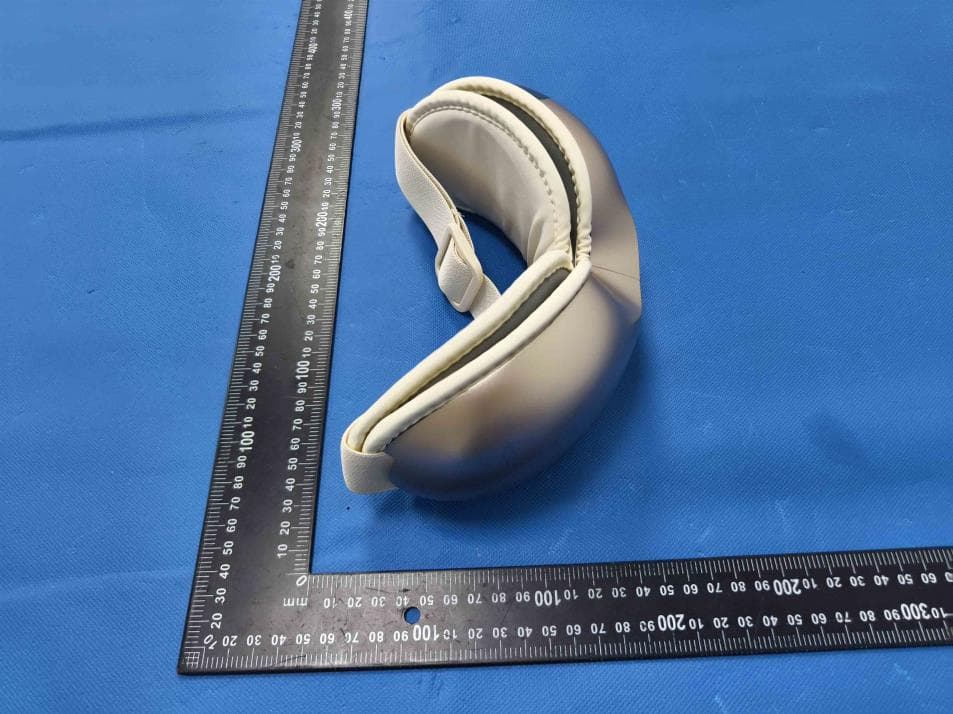

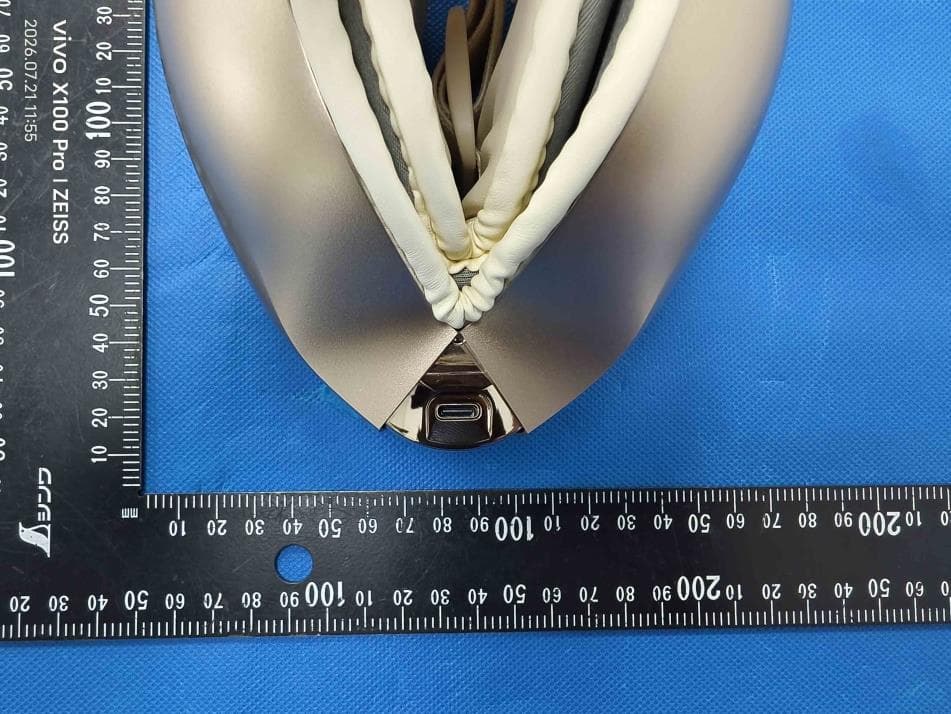

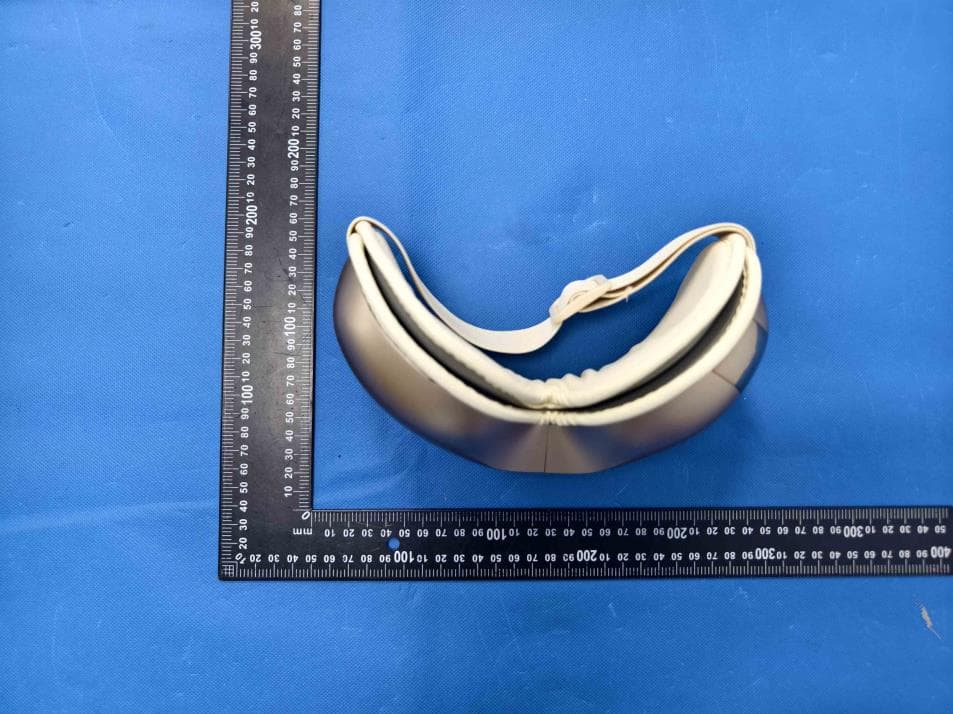

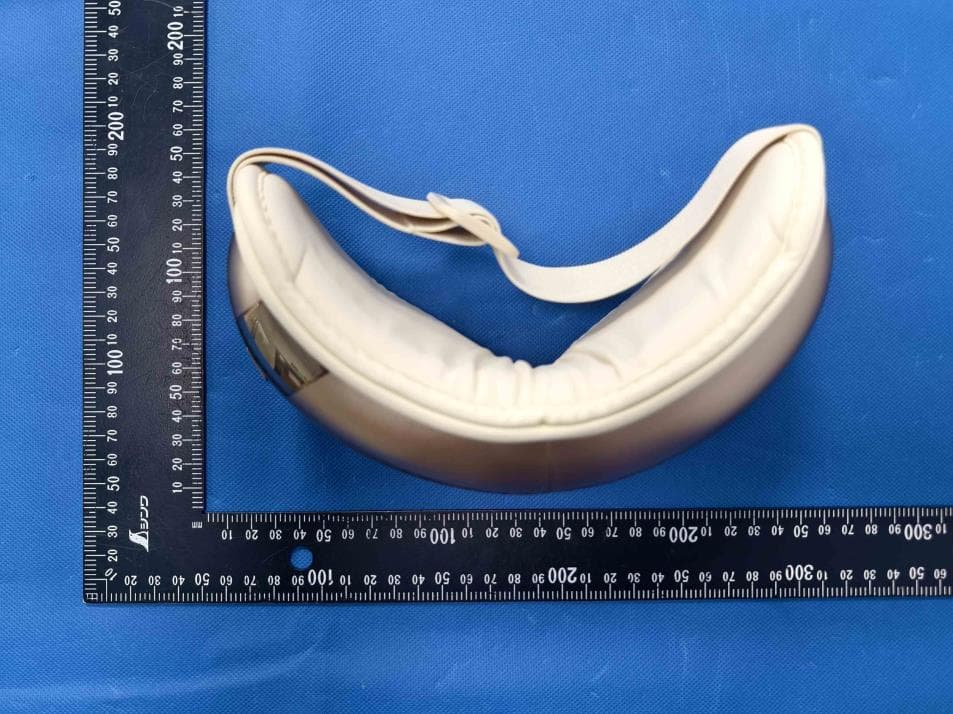

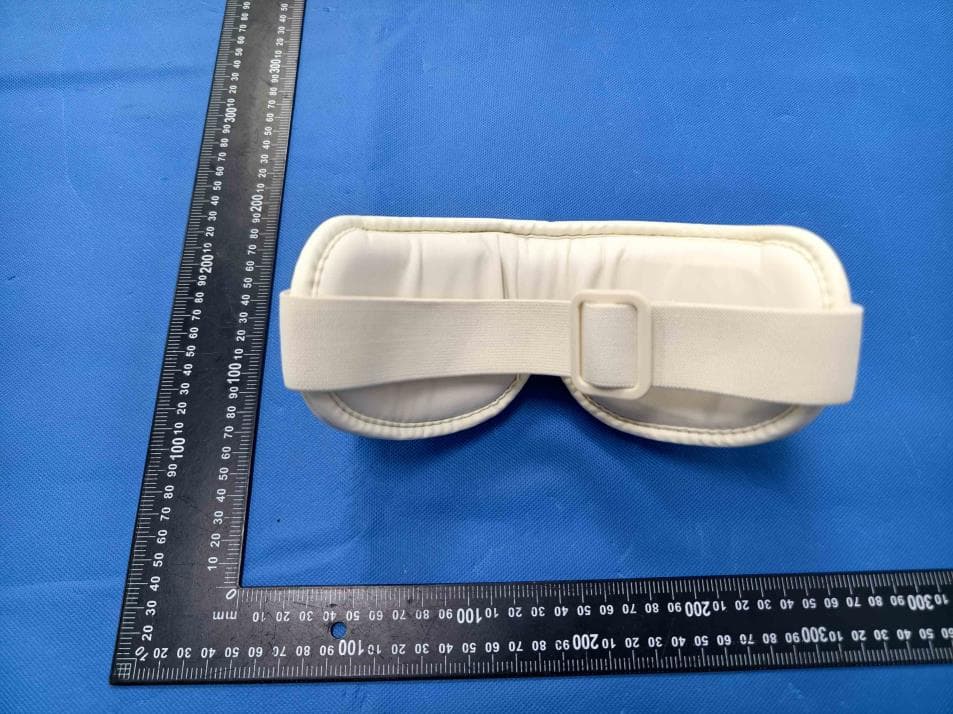

Report No.: BCTC2607684024E External Photos Report No.: BCTC2607684024E Report No.: BCTC2607684024E Report No.: BCTC2607684024E

Location Label FCC ID: 2BOG3-HEM-9

Report No.: BCTC2607684024E Internal Photos Report No.: BCTC2607684024E Report No.: BCTC2607684024E Report No.: BCTC2607684024E BT Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2BOG3-HEM-9 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093). Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Modulation Frequency Maximum Conducted Output Power(PK) (MHz) (dBm) 1-DH1 2402 2.32 1-DH1 2441 2.53 1-DH1 2480 1.91 2-DH1 2402 3.12 2-DH1 2441 3.32 2-DH1 2480 2.74 3-DH5 2402 3.46 3-DH5 2441 3.69 3-DH5 2480 3.06 max possible output power (PK, conducted)：4±1dBm 5dBm=3.16mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.402=0.980≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.441=0.987≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.48=0.995≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

No.：BCTC/KJ-RF-ICT-001 Page 1 of 82 Edition：B.1 TEST REPORT Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC2607684024E Applicant: Shenzhen Fanr Technology Co.,ltd Product Name: HubiCare Next Level Comfort Eye Massager Test Model: HEM-9 Tested Date: 2026-07-14 to 2026-07-28 Issued Date: 2026-07-29 Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 2 of 82 Edition：B.1 FCC ID: 2BOG3-HEM-9 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Technology Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: HubiCare Next Level Comfort Eye Massager Trademark: HubiCare Model/Type Reference: HEM-9 Prepared For: Shenzhen Fanr Technology Co.,ltd Address: 1st Floor, Building 8, No. 161 Xingye 1st Road, Phoenix Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong Province, P.R. China Manufacturer: Shenzhen Fanr Technology Co.,ltd Address: 1st Floor, Building 8, No. 161 Xingye 1st Road, Phoenix Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong Province, P.R. China Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: Room 101M, Unit 1, Building1, Pengyuan, No.18, Lilang Road, Shanglilang, Nanwan Subdistrict, Longgang District, Shenzhen, Guangdong, China. Sample Received Date: 2026-07-14 Sample Tested Date: 2026-07-14 to 2026-07-28 Report No.: BCTC2607684024E Test Standards 47 CFR Part 15 Subpart C (clause 15.247) ANSI C63.10-2020 + Cor.1-2023+C63.10a-2024 + Errata to C63.10a-2024 Test Results PASS Remark: This is Bluetooth Classic radio test report. Prepared by : Reviewer by : Approved by: Louis Zeng /Editor Mike Zheng / Supervisor Sewen Guo/Manager Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 3 of 82 Edition：B.1 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands of Operation ...... 26 8.1 Block Diagram Of Test Setup .............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test procedure .................................................................................................... 27 8.4 EUT operating Conditions ................................................................................... 27 8.5 Test Result .......................................................................................................... 28 9. Spurious RF Conducted Emissions ..................................................................... 29 9.1 Block Diagram Of Test Setup .............................................................................. 29 9.2 Limit .................................................................................................................... 29 9.3 Test…

Text truncated - open the document above for the full version.

Inverted FAntenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2450MHz 2500MH 2400MHz 2450MHz 2500MH -1.73- 0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68dB Polarization Horizontal and Vertical Horizontal and Vertical Omni-directional Impedance 0 Ohm Antenna Length 13.8mm Manufacture Huizhou huiqi electronics CO.,LTD Address Datangsha, Dapingtou Group, Shenhu Village, Longxi Subdistrict, Boluo County, Huizhou City, Guangdong Province Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div

Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 51 of 82 Edition：B.1 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 52 of 82 Edition：B.1 10.4 Test Result Condition Mode Frequency (MHz) -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 1.036 Pass NVNT 1-DH5 2441 1.041 Pass NVNT 1-DH5 2480 1.045 Pass NVNT 2-DH5 2402 1.32 Pass NVNT 2-DH5 2441 1.324 Pass NVNT 2-DH5 2480 1.324 Pass NVNT 3-DH5 2402 1.312 Pass NVNT 3-DH5 2441 1.302 Pass NVNT 3-DH5 2480 1.352 Pass Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 53 of 82 Edition：B.1 Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz -20dB Bandwidth NVNT 1-DH5 2441MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 54 of 82 Edition：B.1 -20dB Bandwidth NVNT 1-DH5 2480MHz -20dB Bandwidth NVNT 2-DH5 2402MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 55 of 82 Edition：B.1 -20dB Bandwidth NVNT 2-DH5 2441MHz -20dB Bandwidth NVNT 2-DH5 2480MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 56 of 82 Edition：B.1 Test Graphs -20dB Bandwidth NVNT 3-DH5 2402MHz -20dB Bandwidth NVNT 3-DH5 2441MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 57 of 82 Edition：B.1 -20dB Bandwidth NVNT 3-DH5 2480MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 58 of 82 Edition：B.1 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 2.32 21 Pass NVNT 1-DH5 2441 2.53 21 Pass NVNT 1-DH5 2480 1.91 21 Pass NVNT 2-DH5 2402 3.12 21 Pass NVNT 2-DH5 2441 3.32 21 Pass NVNT 2-DH5 2480 2.74 21 Pass NVNT 3-DH5 2402 3.46 21 Pass NVNT 3-DH5 2441 3.69 21 Pass NVNT 3-DH5 2480 3.06 21 Pass Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 59 of 82 Edition：B.1 Test Graphs Power NVNT 1-DH5 2402MHz Power NVNT 1-DH5 2441MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 60 of 82 Edition：B.1 Power NVNT 1-DH5 2480MHz Power NVNT 2-DH5 2402MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 61 of 82 Edition：B.1 Power NVNT 2-DH5 2441MHz Power NVNT 2-DH5 2480MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 62 of 82 Edition：B.1 Test Graphs Power NVNT 3-DH5 2402MHz Power NVNT 3-DH5 2441MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 63 of 82 Edition：B.1 Power NVNT 3-DH5 2480MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 64 of 82 Edition：B.1 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 2401.972 2402.977 1.005 0.691 Pass NVNT 1-DH5 2440.816 2441.815 0.999 0.694 Pass NVNT 1-DH5 2478.813 2479.815 1.002 0.697 Pass NVNT 2-DH5 2401.975 2402.974 0.999 0.88 Pass NVNT 2-DH5 2440.972 2442.145 1.173 0.883 Pass NVNT 2-DH5 2479.137 2480.142 1.005 0.883 Pass NVNT 3-DH5 2401.975 2402.971 0.996 0.875 Pass NVNT 3-DH5 2440.813 2441.818 1.005 0.868 Pass NVNT 3-DH5 2478.813 2479.812 0.999 0.901 Pass Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 65 of 82 Edition：B.1 Test Graphs CFS NVNT 1-DH5 2402MHz CFS NVNT 1-DH5 2441MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 66 of 82 Edition：B.1 CFS NVNT 1-DH5 2480MHz CFS NVNT 2-DH5 2402MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 67 of 82 Edition：B.1 CFS NVNT 2-DH5 2441MHz CFS NVNT 2-DH5 2480MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 68 of 82 Edition：B.1 Test Graphs CFS NVNT 3-DH5 2402MHz CFS NVNT 3-DH5 2441MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 69 of 82 Edition：B.1 CFS NVNT 3-DH5 2480MHz Report No.: BCTC2607684024E No.：BCTC/KJ-RF-ICT-001 Page 70 of 82 Edition：B.1 13. Number of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sw…
