2BOGU-DL30-VDeadbolt Smart Lock

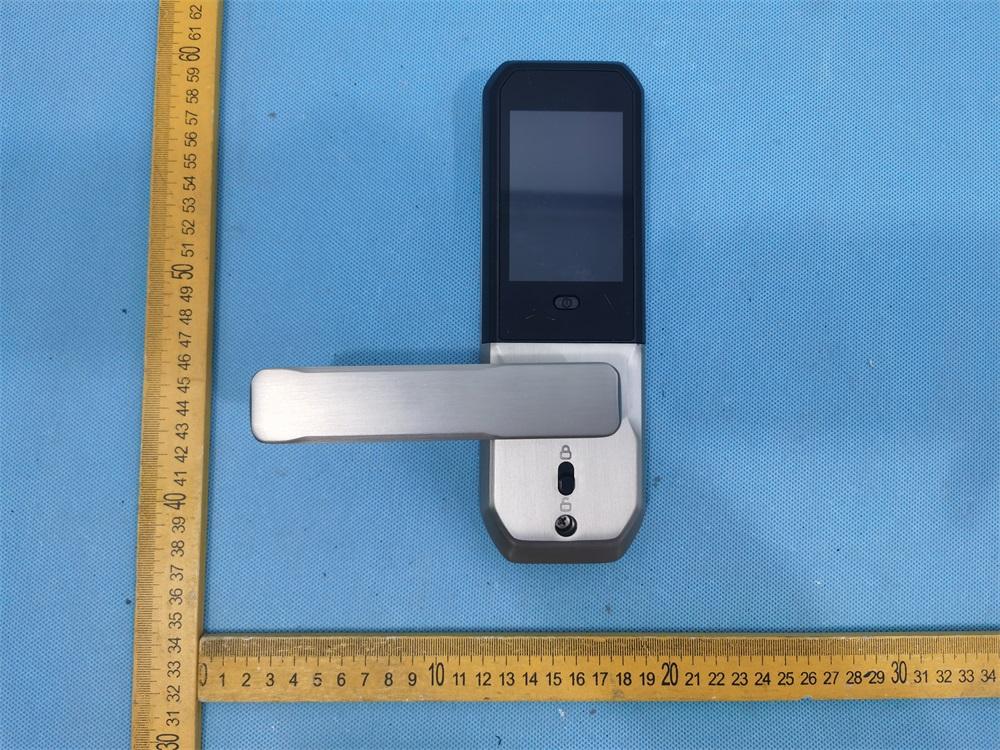

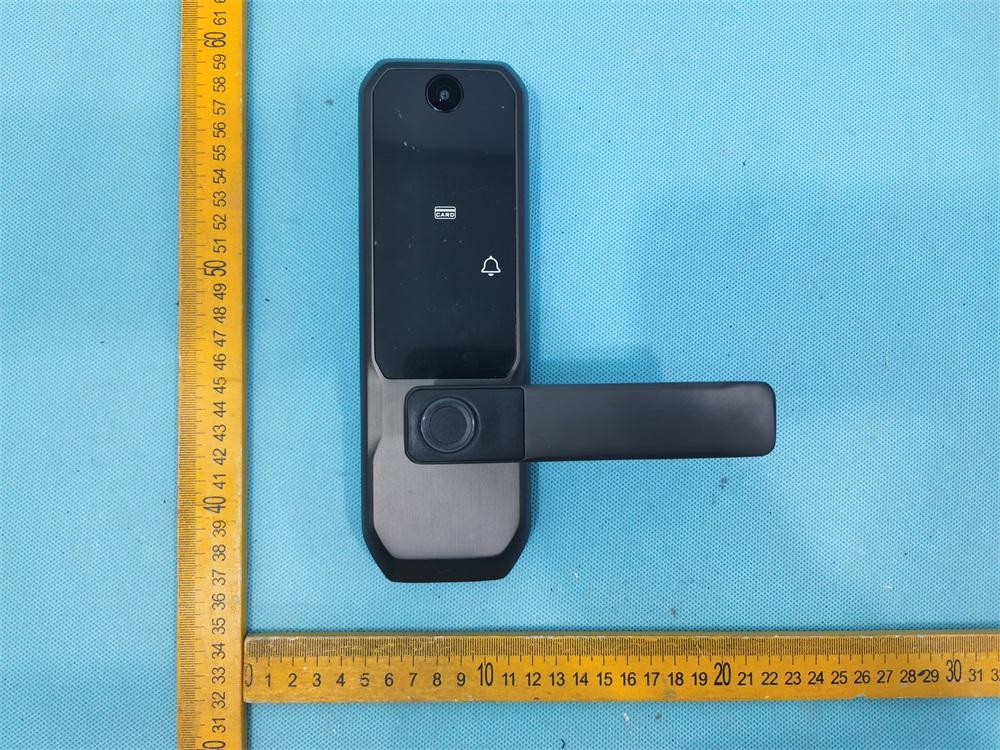

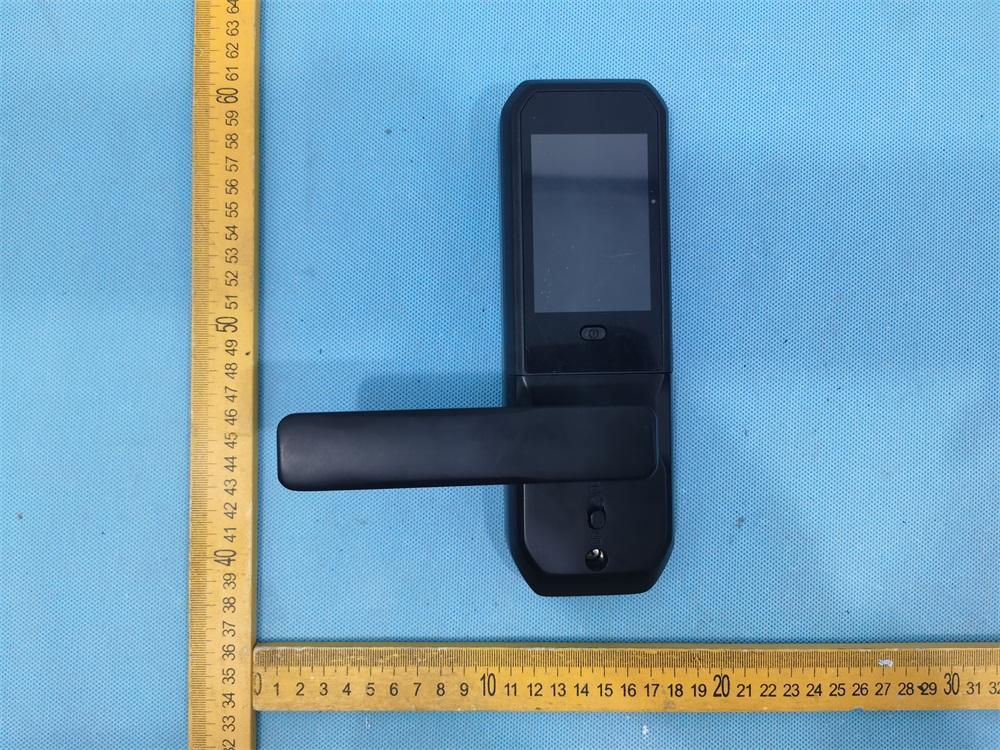

Enter the management menu 3. Add common user operations Installation Tutorial Function Explanation Product Instructions 1. Product layout2. Installation Steps and Product Technical Parameters 4. Precautions Key Pad Peephole Camera Card Swiping Area Doorbell /Confirm Button Back Key Fingerprint Sensor Front Handle Key Socket Emergency Charging Port Back Handle Deadbolt Switch Mounting Screw Holes Note: Keep the interiors of the front and rear panels clean during installation. 3.5-Inch Display 3.5-Inch Display Power Dutton Front Panel Front Panel Rear Panel Rear Panel Mounting screw 2 Reset Threading hole Rear mounting plate, rubber pad Battery Mounting screw 1 Square rod Lock tongue Mounting studs Thank you for choosing our smart door lock. Please read the instructions carefully before use, thank you! 1. Adjust the Latch Bolt Direction: Adjust the latch bolt on the lock body according to the door’s opening direction. 2. Install the Latch Bolt/Lock Body: Insert the latch bolt/lock body into the installation hole and tighten the screws. 3. Install the Front and Rear Panels: (1) Adjust the handle direction according to the door opening method. Install the mounting studs on the front panel and insert the square rod spring into the rear handle hole. (2) Insert the square rod into the latch bolt/lock body, pass the data cable through the wire hole and door interior, then insert the rod into the front panel’s square hole. Fit the front panel mounting studs into the latch bolt/lock body and press the front panel against the door surface. (3) Remove the battery cover. Loosen the two rear screws (Installation Screws 2), remove the rear mounting plate and rubber pad, pass the motherboard cable through the outlets, align the square rod hole, and fix the front panel by tightening two Installation Screws 1. (4) Connect the motherboard cable to the rear panel socket. Hide excess cable inside the door, align the rear lock with the mounting holes, and secure the rear panel using two Installation Screws 2. (5) Install the batteries and battery cover. Test the electronic and mechanical unlocking functions. If successful, register the electronic unlocking method for regular use. 5.Product Features 7. Menu Operation 8. Video Tutorial 1. Add an administrator 1. Door opening： Fingerprint, password, IC card, key, combo verification. Actual config varies. 2. Fingerprint： Advanced Swedish FPC sensor, 360° recognition, self - learning. More use, more sensitive. 3. Password： Touch - screen buttons. Add 1 - 12 random digits around correct one for privacy. 4. Double verification： Configurable. Combo of fingerprint, password, card. Two users needed post - setup. 5. User management： Admins have full rights. 10 admins allowed. Total storage for fingerprint/password/- card: 200. 6. Doorbell： "#" key is normal when screen on, doorbell when off. 7. Alarm： low - voltage, trial - error alarms. 8. Backup power： Use 5V power bank when battery dies. Replace battery soon. 1. After entering the configuration mode, input the fingerprint, password, or card you want to register; the system will automatically assign a key number. 2. The first set of keys is the administrator password, and the system default serial number is "001"; 3. The effective number of digital passwords is 6 - 8 digits; 4. Enter fingerprints 5 times in a row, passwords 2 times in a row, and card once; 5. After successful entry, you can continue to enter other "Administrator" keys. To return, press the "*" key. 1. After new lock installation, do recovery and initialization to clear installation - debugging fingerprint info. 2. The door - opening/closing handle is crucial. Don't hang things on it to keep it flexible. 3. When collecting fingerprints, enter from multiple angles with moderate pressure to avoid scratching the sensor. 4. Replace the battery at least every six months to prevent leakage damaging the smart lock. 5. This lock is powered by a lithium battery. When the first "Low battery, please recharge promptly" prompt appears, recharge it as soon as possible to avoid inconvenience caused by a depleted battery. 6. 5 incorrect inputs of fingerprint/card/password trigger an alarm, and the lock is disabled for 60 s. 6. Menu Structure 1. Add an administrator 2. Delete administrator operation 1. Enter the number and press the "#" key to confirm, for example: "001" + "#" 2. To ensure the normal operation of the system, the currently verified administrator information cannot be deleted; 3. After other numbers are deleted by the administrator, the system will automatically replace their numbers when they are entered again. Set the administrator Set the administrator 2.Delete the administrator 4. Delete single/all user operations 1. Delete Single User: Enter the corresponding number followed by the "#" key to confirm and delete the user information. For example: "11" + "#". Delete All Users: Press "#" to confirm, and all regular users will be deleted. 2. After a user is deleted, if the same user is registered again, the system will automatically reassign the previous number. (This setting can only be used to delete regular users and cannot delete administrative users.) FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance…

Text truncated - open the document above for the full version.

Manufacturer Shenzhen Yingjichuang Electronic Technology Co., Ltd. Address Building C,Hongyu Guangming Valley, No. 11, Yumagang Road, Ma Tian Subdistrict, Guangming District, Shenzhen City Model DL30-V Antenna type PCB antenna Antenna Gain 2.54dBi for 2.4G 1.Test equipment and conditions: 1.1.Network Analyzer 1.2.Communication test equipment 1.3.Test system 1.4.Matching circuit 2.Test Data: 2.1. Standing wave ratio 2.2.Efficiency 2.3.Directivity diagram 3.Antenna drawing:

FCC ID: 2BOGU-DL30-V _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BOGU-DL30-V _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 4 Fig. 5

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ............................................ : GTS20241227012-36-12 2BOGU-DL30-V Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Dec.15, 2025 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Zhisuojia Technology Co., LTD Address ............................................ : 807-2, Yongfeng Complex, Yongfeng Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Deadbolt Smart Lock Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Zhisuojia Technology Co., LTD Model/Type reference....................... : DL30-V Listed Models .................................. : N/A Operation Frequency ........................ : From 2412MHz to 2462MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 5.0V by adapter Result................................................ : PASS Report No.: GTS20241227012-36-12 Page 2 of 25 T E S T R E P O R T Test Report No. : GTS20241227012-36-12 Dec.15, 2025 ____________________________________________________________________________________ Date of issue Equipment under Test : Deadbolt Smart Lock Model /Type : DL30-V Listed model : N/A Applicant : Shenzhen Zhisuojia Technology Co., LTD Address : 807-2, Yongfeng Complex, Yongfeng Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Manufacturer : Shenzhen Zhisuojia Technology Co., LTD Address : 807-2, Yongfeng Complex, Yongfeng Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20241227012-36-12 Page 3 of 25 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 6 2.8. EUT Exercise Software .......................................................................................................................... 7 2.9. Special Accessories ............................................................................................................................... 7 2.10. External I/O Cable ................................................................................................................................ 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test Facility ...............................................................................................…

Text truncated - open the document above for the full version.

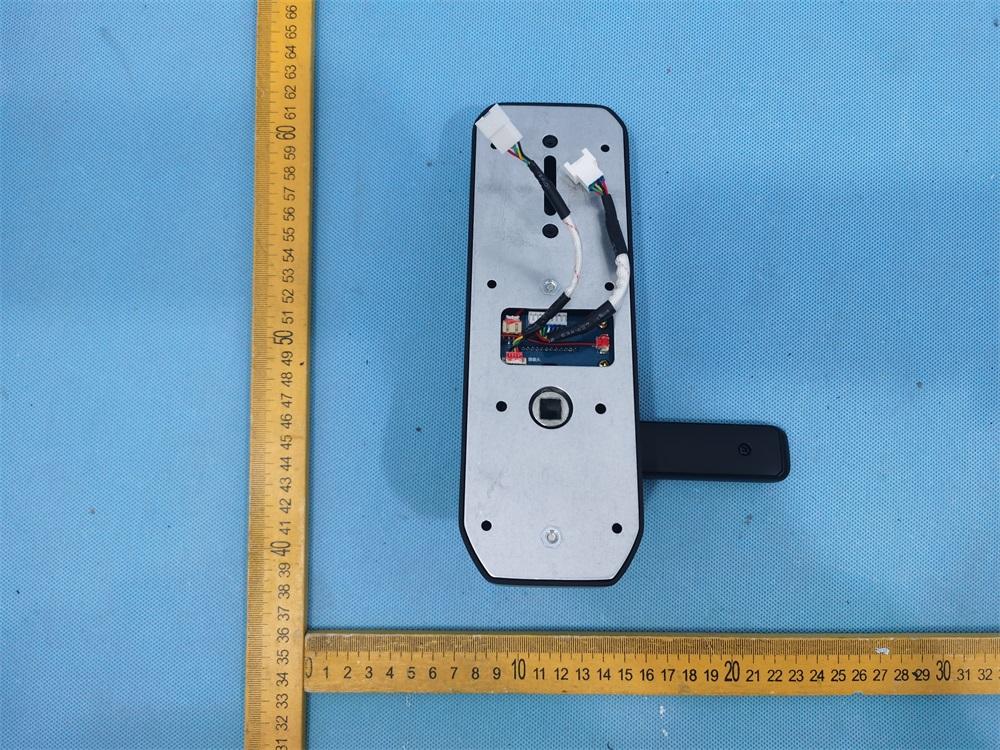

Report No.: GTS20241227012-36-11 Page 48 of 59 6.2. Internal photos of the EUT Fig. 43 Fig. 44 Report No.: GTS20241227012-36-11 Page 49 of 59 Fig. 45 Fig. 46 Report No.: GTS20241227012-36-11 Page 50 of 59 Fig. 47 Fig. 48 Report No.: GTS20241227012-36-11 Page 51 of 59 Fig. 49 Fig. 50 Report No.: GTS20241227012-36-11 Page 52 of 59 Fig. 51 Fig. 52 Report No.: GTS20241227012-36-11 Page 53 of 59 Fig. 53 Fig. 54 Report No.: GTS20241227012-36-11 Page 54 of 59 Fig. 55 Fig. 56 Report No.: GTS20241227012-36-11 Page 55 of 59 Fig. 57 Fig. 58 Antenna Report No.: GTS20241227012-36-11 Page 56 of 59 Fig. 59 Fig. 60 Report No.: GTS20241227012-36-11 Page 57 of 59 Fig. 61 Fig. 62 Report No.: GTS20241227012-36-11 Page 58 of 59 Fig. 63 Fig. 64 Report No.: GTS20241227012-36-11 Page 59 of 59 Fig. 65 .......................End of Report.........................

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : GTS20241227012-36-11 2BOGU-DL30-V Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Dec.15, 2025 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Zhisuojia Technology Co., LTD Address ............................................ : 807-2, Yongfeng Complex, Yongfeng Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Deadbolt Smart Lock Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Zhisuojia Technology Co., LTD Model/Type reference ...................... : DL30-V Listed Models .................................. : N/A Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 5.0V by adapter Result ............................................... : PASS Report No.: GTS20241227012-36-11 Page 2 of 59 T E S T R E P O R T Test Report No. : GTS20241227012-36-11 Dec.15, 2025 ____________________________________________________________________________________________ Date of issue Equipment under Test : Deadbolt Smart Lock Model /Type : DL30-V Listed model : N/A Applicant : Shenzhen Zhisuojia Technology Co., LTD Address : 807-2, Yongfeng Complex, Yongfeng Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Manufacturer : Shenzhen Zhisuojia Technology Co., LTD Address : 807-2, Yongfeng Complex, Yongfeng Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20241227012-36-11 Page 3 of 59 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. EUT Exercise Software .......................................................................................................................... 7 2.8. Special Accessories ............................................................................................................................... 7 2.9. External I/O Cable .................................................................................................................................. 7 2.10. Related Submittal(s) / Grant (s) ........................................................................................................... 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test Facility ..............................................................................................................…

Text truncated - open the document above for the full version.

FCCID:2BOGU-DL30V 25 Appendix B.6:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 3.20 3.20 --- PASS 30~1000 3.20 -59.18 ≤-16.8 PASS 1000~26500 3.20 -47.18 ≤-16.8 PASS 2437 Reference 3.75 3.75 --- PASS 30~1000 3.75 -58.7 ≤-16.25 PASS 1000~26500 3.75 -47.02 ≤-16.25 PASS 2462 Reference 4.22 4.22 --- PASS 30~1000 4.22 -58.79 ≤-15.78 PASS 1000~26500 4.22 -47.42 ≤-15.78 PASS 11G Ant1 2412 Reference -4.51 -4.51 --- PASS 30~1000 -4.51 -58.78 ≤-24.51 PASS 1000~26500 -4.51 -45.54 ≤-24.51 PASS 2437 Reference -2.62 -2.62 --- PASS 30~1000 -2.62 -58.76 ≤-22.62 PASS 1000~26500 -2.62 -47.71 ≤-22.62 PASS 2462 Reference -3.25 -3.25 --- PASS 30~1000 -3.25 -58.24 ≤-23.25 PASS 1000~26500 -3.25 -47.54 ≤-23.25 PASS 11N20SISO Ant1 2412 Reference -1.28 -1.28 --- PASS 30~1000 -1.28 -59.26 ≤-21.28 PASS 1000~26500 -1.28 -46.83 ≤-21.28 PASS 2437 Reference -0.57 -0.57 --- PASS 30~1000 -0.57 -58.52 ≤-20.57 PASS 1000~26500 -0.57 -47.41 ≤-20.57 PASS 2462 Reference -0.67 -0.67 --- PASS 30~1000 -0.67 -58.79 ≤-20.67 PASS 1000~26500 -0.67 -47.48 ≤-20.67 PASS 11N40SISO Ant1 2422 Reference -3.68 -3.68 --- PASS 30~1000 -3.68 -59.24 ≤-23.68 PASS 1000~26500 -3.68 -47.33 ≤-23.68 PASS 2437 Reference -3.34 -3.34 --- PASS 30~1000 -3.34 -59.62 ≤-23.34 PASS 1000~26500 -3.34 -47.36 ≤-23.34 PASS 2452 Reference -3.37 -3.37 --- PASS 30~1000 -3.37 -59.12 ≤-23.37 PASS 1000~26500 -3.37 -47.64 ≤-23.37 PASS FCCID:2BOGU-DL30V 26 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCCID:2BOGU-DL30V 27 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCCID:2BOGU-DL30V 28 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCCID:2BOGU-DL30V 29 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCCID:2BOGU-DL30V 30 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference FCCID:2BOGU-DL30V 31 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCCID:2BOGU-DL30V 32 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCCID:2BOGU-DL30V 33 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCCID:2BOGU-DL30V 34 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 FCCID:2BOGU-DL30V 35 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference FCCID:2BOGU-DL30V 36 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference FCCID:2BOGU-DL30V 37 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 FCCID:2BOGU-DL30V 38 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 FCCID:2BOGU-DL30V 39 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 FCCID:2BOGU-DL30V 40 11N40SISO_Ant1_2452_1000~26500 FCCID:2BOGU-DL30V 41 Appendix B.7: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11B Ant1 2412 1.68 1.71 98.25 0.08 0.60 2437 1.68 1.70 98.82 0.05 0.60 2462 1.68 1.70 98.82 0.05 0.60 11G Ant1 2412 1.39 1.41 98.58 0.06 0.72 2437 1.39 1.41 98.58 0.06 0.72 2462 1.39 1.41 98.58 0.06 0.72 11N20SISO Ant1 2412 100.00 100.00 100.00 0.00 0.01 2437 100.00 100.00 100.00 0.00 0.01 2462 100.00 100.00 100.00 0.00 0.01 11N40SISO Ant1 2422 100.00 100.00 100.00 0.00 0.01 2437 100.00 100.00 100.00 0.00 0.01 2452 100.00 100.00 100.00 0.00 0.01 FCCID:2BOGU-DL30V 42 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BOGU-DL30V 43 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BOGU-DL30V 44 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BOGU-DL30V 45 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BOGU-DL30V 46 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID:2BOGU-DL30V 47 Appendix B.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -48.85 ≤-41.20 46.35 ≤54 PASS AV 2389.960 -47.85 ≤-41.20 47.35 ≤54 PASS AV 2390.000 -47.85 ≤-41.20 47.35 ≤54 PASS Peak 2310.000 -45.81 ≤-21.20 49.39 ≤74 PASS Peak 2376.050 -39.36 ≤-21.20 55.84 ≤74 PASS Peak 2390.000 -48.91 ≤-21.20 46.29 ≤74 PASS High 2462 AV 2483.500 -46.88 ≤-41.20 48.32 ≤54 PASS AV 2483.560 -46.91 ≤-41.20 48.29 ≤54 PASS AV 2500.000 -47.48 ≤-41.20 47.72 ≤54 PASS Peak 2483.500 -42.89 ≤-21.20 52.31 ≤74 PASS Peak 2498.190 -40.09 ≤-21.20 55.11 ≤74 PASS Peak 2500.000 -42.91 ≤-21.20 52.29 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -48.77 ≤-41.20 46.43 ≤54 PASS AV 2389.830 -48.06 ≤-41.20 47.14 ≤54 PASS AV 2390.000 -48.06 ≤-41.20 47.14 ≤54 PASS Peak 2310.000 -44.3 ≤-21.20 50.90 ≤74 PASS Peak 2341.990 -40.73 ≤-21.20 54.47 ≤74 PASS Peak 2390.000 -44.36 ≤-21.20 50.84 ≤74 PASS High 2462 AV 2483.500 -46.7 ≤-41.20 48.50 ≤54 PASS AV 2483.560 -46.71 ≤-41.20 48.49 ≤54 PASS AV 2500.000 -47.5 ≤-41.20 47.70 ≤54 PASS Peak 2483.500 -45.11 ≤-21.20 50.09 ≤74 PASS Peak 2485.650 -39.62 ≤-21.20 55.58 ≤74 PASS Peak 2500.000 -45.97 ≤-21.20 49.23 ≤74 PASS 11N20SIS O Ant1 Low 2412 AV 2310.000 -48.71 ≤-41.20 46.49 ≤54 PASS AV 2389.960 -47.97 ≤-41.20 47.23 ≤54 PASS AV 2390.000 -47.97 ≤-41.20 47.23 ≤54 PASS Peak 2310.000 -48.08 ≤-21.20 47.12 ≤74 PASS Peak 2374.100 -39.77 ≤-21.20 55.43 ≤74 PASS Peak 2390.000 -45.6 ≤-21.20 49.60 ≤74 PASS High 2462 AV 2483.500 -46.38 ≤-41.20 48.82 ≤54 PASS AV 2483.560 -46.43 ≤-41.20 48.77 ≤54 PASS AV 2500.000 -47.5 ≤-41.20 47.70 ≤54 PASS Peak 2483.500 -45.1 ≤-21.20 50.10 ≤74 PASS Peak 2498.190 -37.67 ≤-21.20 57.53 ≤74 PASS Peak 2500.000 -44.43 ≤-21.20 50.77 ≤74 PASS FCCID:2BOGU-DL30V 48 11N40SIS O Ant1 Low 2422 AV 2310.000 -48.69 ≤-41.20 46.51 ≤54 PASS AV 2389.850 -47.19 ≤-41.20 48.01 ≤54 PASS AV 2390.000 -47.16 ≤-41.20 48.04 ≤54 PASS Peak 2310.000 -45.24 ≤-21.20 49.96 ≤74 PASS Peak 2388.350 -40.01 ≤-21.20 55.19 ≤74 PASS Peak 2390.000 -43.8 ≤-21.20 51.40 ≤74 PASS High 2452 AV 2483.500 -43.85 ≤-41.20 51.35 ≤54 PASS AV 2483.625 -43.89 ≤-41.20 51.31 ≤54 PASS AV 250…

Text truncated - open the document above for the full version.

FCCID:2BOGU-DL30V 1 Case No. : GTS20241227012-36-12 Ambient Condition: 20°C,18%RH, Test Date: 2025.11.26-2025.12.12Test Engineer:Evan ouyang Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.520 2407.840 2416.360 0.5 PASS 2437 8.640 2432.680 2441.320 0.5 PASS 2462 8.640 2457.680 2466.320 0.5 PASS 11G Ant1 2412 14.320 2405.080 2419.400 0.5 PASS 2437 15.000 2429.560 2444.560 0.5 PASS 2462 14.880 2454.520 2469.400 0.5 PASS 11N20SISO Ant1 2412 15.240 2404.880 2420.120 0.5 PASS 2437 15.360 2429.400 2444.760 0.5 PASS 2462 15.320 2454.400 2469.720 0.5 PASS 11N40SISO Ant1 2422 26.640 2409.600 2436.240 0.5 PASS 2437 28.480 2422.840 2451.320 0.5 PASS 2452 28.320 2438.000 2466.320 0.5 PASS FCCID:2BOGU-DL30V 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BOGU-DL30V 3 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BOGU-DL30V 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BOGU-DL30V 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BOGU-DL30V 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID:2BOGU-DL30V 7 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.892 2405.1860 2419.0780 --- --- 2437 13.890 2430.0620 2443.9520 --- --- 2462 13.819 2455.0933 2468.9123 --- --- 11G Ant1 2412 16.695 2403.7816 2420.4766 --- --- 2437 16.471 2428.7810 2445.2520 --- --- 2462 16.549 2453.7415 2470.2905 --- --- 11N20SISO Ant1 2412 17.991 2403.0961 2421.0871 --- --- 2437 17.809 2428.0254 2445.8344 --- --- 2462 17.977 2453.0183 2470.9953 --- --- 11N40SISO Ant1 2422 34.748 2404.8560 2439.6040 --- --- 2437 34.860 2419.7178 2454.5778 --- --- 2452 34.879 2434.6752 2469.5542 --- --- FCCID:2BOGU-DL30V 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BOGU-DL30V 9 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BOGU-DL30V 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BOGU-DL30V 11 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BOGU-DL30V 12 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID:2BOGU-DL30V 13 Appendix B.3: Maximum conducted output power Test Result -CHP TestMode Antenna Frequency[MHz] Peak power[dBm] Limit [dBm] Verdict 11B Ant1 2412 17.54 ≤30.00 PASS 2437 18.14 ≤30.00 PASS 2462 18.37 ≤30.00 PASS 11G Ant1 2412 15.92 ≤30.00 PASS 2437 16.92 ≤30.00 PASS 2462 17.28 ≤30.00 PASS 11N20SISO Ant1 2412 15.79 ≤30.00 PASS 2437 16.68 ≤30.00 PASS 2462 17.03 ≤30.00 PASS 11N40SISO Ant1 2422 15.42 ≤30.00 PASS 2437 15.90 ≤30.00 PASS 2452 16.13 ≤30.00 PASS FCCID:2BOGU-DL30V 14 Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -10.20 ≤8.00 PASS 2437 -9.87 ≤8.00 PASS 2462 -10.04 ≤8.00 PASS 11G Ant1 2412 -15.88 ≤8.00 PASS 2437 -15.09 ≤8.00 PASS 2462 -15.10 ≤8.00 PASS 11N20SISO Ant1 2412 -15.19 ≤8.00 PASS 2437 -14.04 ≤8.00 PASS 2462 -13.63 ≤8.00 PASS 11N40SISO Ant1 2422 -15.22 ≤8.00 PASS 2437 -14.67 ≤8.00 PASS 2452 -14.49 ≤8.00 PASS FCCID:2BOGU-DL30V 15 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BOGU-DL30V 16 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BOGU-DL30V 17 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BOGU-DL30V 18 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BOGU-DL30V 19 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID:2BOGU-DL30V 20 Appendix B.5:Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.40 -44.99 ≤-15.61 PASS High 2462 5.13 -47.61 ≤-14.87 PASS 11G Ant1 Low 2412 -1.34 -41.8 ≤-21.34 PASS High 2462 0.12 -47.79 ≤-19.88 PASS 11N20SISO Ant1 Low 2412 -1.08 -41.94 ≤-21.08 PASS High 2462 0.32 -47.05 ≤-19.68 PASS 11N40SISO Ant1 Low 2422 -3.60 -45.42 ≤-23.6 PASS High 2452 -2.99 -44.72 ≤-22.99 PASS FCCID:2BOGU-DL30V 21 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCCID:2BOGU-DL30V 22 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCCID:2BOGU-DL30V 23 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCCID:2BOGU-DL30V 24

FCCID:2BOGU-DL30-V 1 Case No. : GTS20241227012-36-11 Ambient Condition: 20 °C, 18 %RH According Standard: ■Part15C Test Date: 2025.11.26-2025.12.12Test Engineer: E…
