2BOLYLWKL85Remote Control Dinosaur

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

Shantou Lewu Information Technology Co., Ltd. Rev 2026-04-24 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 13-08-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) FCC ID: 2BOLYLWKL85 Part 2.911(d)(5)(i) Shantou Lewu Information Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment and does not contain anti-virus software or cybersecurity software prohibited from receiving an equipment authorization pursuant to 47 CFR 2.903, KDB 986446 D01 Covered Equipment Guidance, and FCC Covered List (www.fcc.gov/supplychain/coveredlist). Part 2.911(d)(5)(ii) Shantou Lewu Information Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Mingrui Wang

81,7('67$7(6'(6,*1$7('$*(17/(77(5 'DWH 72)HGHUDO&RPPXQLFDWLRQ&RPPLVVLRQ (TXLSPHQW$XWKRUL]DWLRQ%UDQFK 2DNODQG0LOOV5RDG &ROXPELD0,' $SSOLFDQW86GHVLJQDWHGDJHQW &RPSDQ\1DPH6KDQWRX/HZX,QIRUPDWLRQ 7HFKQRORJ\&R/WG &RPSDQ\1DPH3LFXV$GYLVRUV86//& &RQWDFW1DPH0LQJUXL:DQJ&RQWDFW1DPH,YDQ:DQJ $GGUHVV)1R1RUWK;LQQLQJ ;LQ[LQJ<LPD5RDG )HQJ[LDQJ6WUHHW&KHQJKDL 'LVWULFW 6KDQWRX*XDQJGRQJ&KLQD $GGUHVV629(5(,*1'567(% +2867217; 8QLWHG6WDWHV &LW\3URYLQFH=LS6KDQWRX*XDQJGRQJ&LW\3URYLQFH=LS  +2867217; 7HOHSKRQH7HOHSKRQH   (PDLO+(/,-(1<#/(,'($&1(PDLOLYDQZDQJ#SLFXVIL )51)51 $SSOLFDEOH(TXLSPHQW)&&,'%2/</:./ $771'LUHFWRURI&HUWLILFDWLRQ :H6KDQWRX/HZX,QIRUPDWLRQ7HFKQRORJ\&R/WG!DQG3LFXV$GYLVRUV86//&!XQGHUVWDQGDQG DFNQRZOHGJHWKHDSSOLFDQWVFRQVHQWDQGWKHGHVLJQDWHGDJHQW¶VREOLJDWLRQWRDFFHSWVHUYLFHRISURFHVVLQ WKH8QLWHG6WDWHVIRUPDWWHUVUHODWHGWRWKHDSSOLFDEOHHTXLSPHQWDQGDWWKHSK\VLFDO86DGGUHVVDQGH PDLORIWKHGHVLJQDWHGDJHQWOLVWHGDERYH :H6KDQWRX/HZX,QIRUPDWLRQ7HFKQRORJ\&R/WG!DQG3LFXV$GYLVRUV86//&!DFNQRZOHGJHWKH DSSOLFDQW¶VDFFHSWDQFHRILWVREOLJDWLRQWRPDLQWDLQDQDJHQWIRUVHUYLFHRISURFHVVLQWKH8QLWHG6WDWHVIRU QROHVVWKDQRQH\HDUDIWHUHLWKHUWKHJUDQWHHKDVSHUPDQHQWO\WHUPLQDWHGDOOPDUNHWLQJDQGLPSRUWDWLRQ RIWKHDSSOLFDEOHHTXLSPHQWZLWKLQWKH86RUWKHFRQFOXVLRQRIDQ\&RPPLVVLRQUHODWHGDGPLQLVWUDWLYH RUMXGLFLDOSURFHHGLQJLQYROYLQJWKHHTXLSPHQWZKLFKHYHULVODWHU $SSOLFDQW 6KDQWRX/HZX,QIRUPDWLRQ7HFKQRORJ\&R/WG 86GHVLJQDWHGDJHQW 3LFXV$GYLVRUV86//& 1DPH 3ULQWHG 0LQJUXL:DQJ1DPH 3ULQWHG ,YDQ:DQJ 7LWOH0DQDJHU7LWOH&(2 6LJQDWXUH6LJQDWXUH

Shantou Lewu Information Technology Co., Ltd. 4F, No.15 North, Xinning Xinxing Yima Road, Fengxiang Street, Chenghai District, Shantou, Guangdong, China Date: 2026/7/29 Dear Sir/Madam, We, Shantou Lewu Information Technology Co., Ltd., Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model name and appearance color are different for these model: FCC ID: 2BOLYLWKL85 Product name: Remote Control Dinosaur Model no.: D918, 918, D918PRO, D918LCD, H3, H3Mini, H3PRO, D520, D750, D850, D920, D925, D930, D980, P605, P605Mini, P605PRO, S530, S530Mini, S530PRO Sincerely, Name/Title： Mingrui Wang / Manager Company: Shantou Lewu Information Technology Co., Ltd. Address: 4F, No.15 North, Xinning Xinxing Yima Road, Fengxiang Street, Chenghai District, Shantou, Guangdong, China Phone: 15913913883 Fax: N/A E-Mail: [email protected]

Rev 11/20/07 Shantou Lewu Information Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Date: 13/08/2026 Confidentiality Request regarding application for certification of FCC ID: 2BOLYLWKL85 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name* Block Diagram, Schematics, Operational Description Block.pdf, SCH.pdf, Operation description- BT.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mingrui Wang

E:\2026年案件\8月\已提交\TZ0035260555-深圳市优检检测服务有限公司-乐悟 遥控恐龙 2.4GWIFI-918-FCC SDOC&CE RED&CE EMC&FCC ID\TCF\TCF\FCC POA Letter.docx Shantou Lewu Information Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 13/08/2026 SUBJECT: FCC Application for FCC ID: 2BOLYLWKL85 To Whom It May Concern: We, the undersigned, hereby authorize Max Zhang at Shenzhen Tongzhou Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Tongzhou Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Mingrui Wang

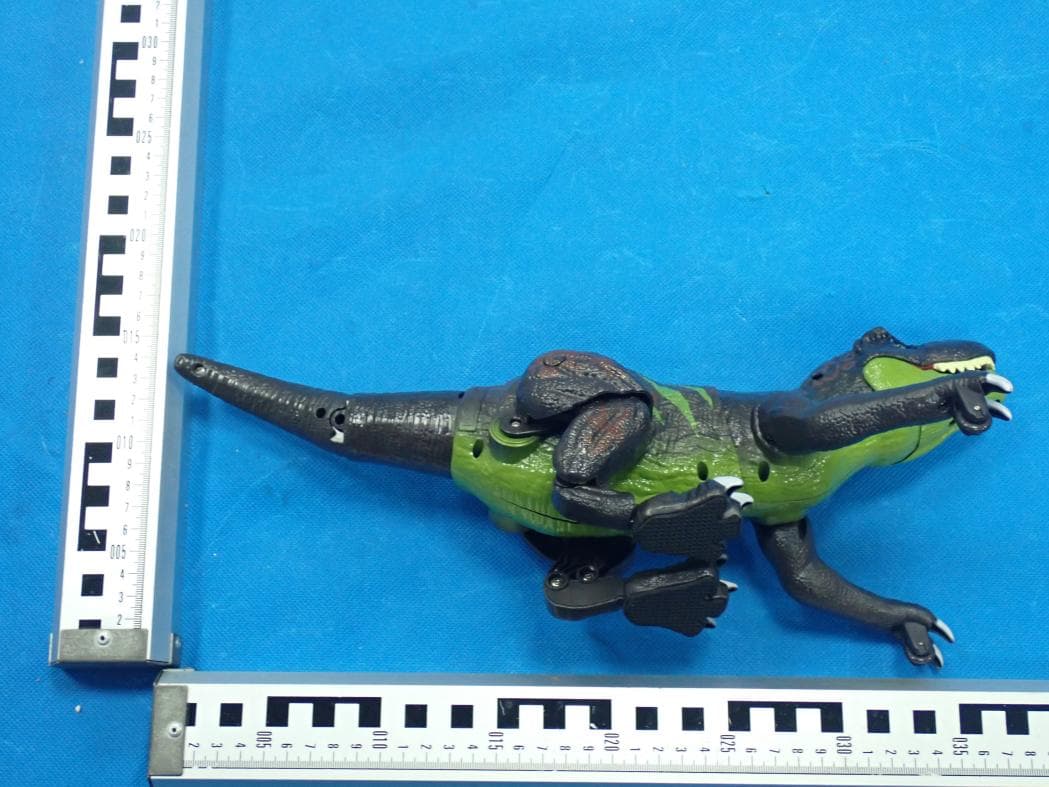

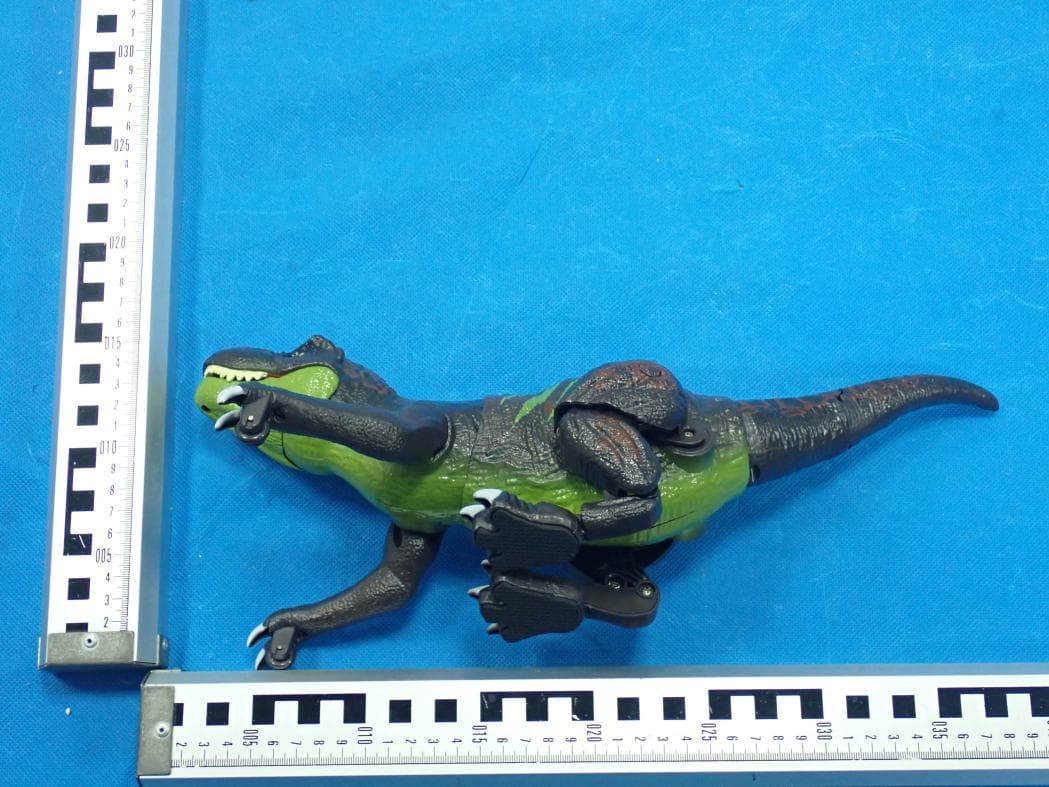

Report No.: TZ0035260555PH02 Page 1 of 3 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0035260555PH02 Page 2 of 3 External Photo 3 External Photo 4 Report No.: TZ0035260555PH02 Page 3 of 3 External Photo 5 External Photo 6

The size of the label is 15mm*10mm with White forecolor. The size of the logo is 5mm*5mm. FCC ID: 2BOLYLWKL85

Report No.: TZ0035260555PH03 Page 1 of 6 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.: TZ0035260555PH03 Page 2 of 6 Internal Photo 3 Internal Photo 4 SRD Receiver Antenna Report No.: TZ0035260555PH03 Page 3 of 6 Internal Photo 5 Internal Photo 6 Report No.: TZ0035260555PH03 Page 4 of 6 Internal Photo 7 Internal Photo 8 Report No.: TZ0035260555PH03 Page 5 of 6 Internal Photo 9 Internal Photo 10 WIFI 2.4G Antenna Report No.: TZ0035260555PH03 Page 6 of 6 Internal Photo 11 Internal Photo 12

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BOLYLWKL85 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BOLYLWKL85 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Conducted Power including Tune Up Calculation Value for 1g SAR Exemption Limit for 1g SAR Target Power [dBm] Tolerance ±[dB] [dBm] [mW] 11B Ant1 2412 7.37 7 1 8 6.31 1.96 3 11B Ant1 2437 8.28 8 1 9 7.94 2.48 3 11B Ant1 2462 8.35 8 1 9 7.94 2.49 3 11G Ant1 2412 6.63 6 1 7 5.01 1.56 3 11G Ant1 2437 9.16 8.5 1 9.5 8.91 2.78 3 11G Ant1 2462 9.14 8.5 1 9.5 8.91 2.80 3 11N20SISO Ant1 2412 9.19 8.5 1 9.5 8.91 2.77 3 11N20SISO Ant1 2437 6.99 6.5 1 7.5 5.62 1.76 3 11N20SISO Ant1 2462 6.68 6 1 7 5.01 1.57 3 Note: 1. Calculation Value = [(max. power of channel, mW) / (min. test separation distance, mm)] ·[√f(GHz)]. Conclusion: The SAR evaluation is not required.

Report No.: TZ0035260555FRF03 Page 1 of 35 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0035260555FRF03 Product Name : Remote Control Dinosaur Model/Type reference : D918, 918, D918PRO, D918LCD, H3, H3Mini, H3PRO, D520, D750, D850, D920, D925, D930, D980, P605, P605Mini, P605PRO, S530, S530Mini, S530PRO FCC ID : 2BOLYLWKL85 Prepared for : Shantou Lewu Information Technology Co., Ltd 4F, No.15 North, Xinning Xinxing Yima Road, Fengxiang Street, Chenghai District, Shantou, Guangdong, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor. 1-2023 Date of Test : 2026-06-01 ~ 2026-06-16 Date of Issue : 2026-06-17 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0035260555FRF03 Page 2 of 35 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-06-17 Valid Initial release Report No.: TZ0035260555FRF03 Page 3 of 35 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ............................................... 10 5. T E S T R E S U L T .................................................................... 11 5.1. On Time and Duty Cycle ....................................................................................................... 11 5.2. Maximum Conducted Output Power Measurement ........................................................... 12 5.3. Power Spectral Density Measurement ................................................................................ 13 5.4. 6 dB Spectrum Bandwidth and Occupied Channel Bandwidth Measurement ............... 14 5.5. Radiated Emissions Measurement ...................................................................................... 15 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 24 5.7. Power Line Conducted Emissions ...................................................................................... 25 5.8. Band-Edge Measurements for Radiated Emissions .......................................................... 28 5.9. Antenna Requirements ......................................................................................................... 33 6. L I S T O F M E A S U R I N G E Q U I P M E N T ......................................... 34 7. T E S T S E T U P P H O T O G R A P H S O F E U T ..................................... 35 8. E X T E R I O R P H O T O G R A P H S O F T H E E U T ................................…

Text truncated - open the document above for the full version.

1 铜管 天线规格承认书 Product Specifications for Approval 客户名称: 天线频段：2400-2500MHz 版本: A0 制作日期： 2024-03-30 编号：FS-801 结构： 郭林 射频： 陈金磊 审核: 罗志斌 批准: 黄上明 客户确认 客户审核： 客户批准: 2 INDEX. 1) 封面............................................................................................ 1 2) 目录............................................................................................ 2 3) 2D图纸...................................................................................... 3 4) 产品规格参数............................................................................ 4 5) 有源无源波形匹配测试报告.................................................5-9 6) 环境测试报告 ....................................................................10-11 修改记录 版本 日期 工程师 修改内容 A0 2024-03-30 许龙 3 4 产品特性规格表 一、产品基本特性： 产 品 类 型 ：铜管-WIFI-环剥-1.13线-单银线-黑色-L=105MM DESCRIPTION VALUE Frequency range（工作频段） 2400-2500MHz Impedance（特性阻抗） 50Ω V.S.W.R（电压驻波比）对比样品波形 Gain（增益） 2.84dBi Radiation（方向性） Omni-directional Polarization（线化方式） linear Vertical Admitted power（功率） 1W Connector（接头型号） / Operating temp（工作温度） -45°C~+85°C Storage temp（储存温度） -45°C~+85°C 5 1. Summary概要： This report to account for the measurement setup and result of the Antenna. The measurement setup includes s-parameter, The measured data for Antenna are presented and analysis. 这份报告用以说明量测的天线的结果，该测量设置包括S参数的 电压驻波比及反射系数， 为量测天线的数据表示及分析 2. S-Parameter Measurement S参数的量测： A. Reflection coefficient 反射系数: (a) Instrument（议器）：Network Analyzer (网络分析议). (b) Setup建立： (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. 议器的校正通过 OSL校准套件进行一个端口的校正. (2) Connect the antenna under test to the Network Analyzer. 连接待测天线至网络分析议. (3) Measure the S11(reflection coefficient) shown in Fig. 1. 测量S11如图一所示. (4) Generally, the S11 is less than –10dB to ensure the 90% VSWR 2.0:1 power into antenna and only less than 10% power back to system. 一般来说，S11小于-10dB VSWR小于2.0：1，以确保90％的功率转换成天线和只有 不到10％的功率反射回系统. Fig.1 Antenna measured in Network Analyzer图1天线测量网络分析仪 6 3. S-Parameter Measurement Result S参数的量测结果： S-Parameter test data S-参数量测数据： S-Parameter test image S-参数量测图片： Frequency MHz 工作频段 2400 2450 2500 V.S.W.R 驻波比 1.38 1.39 1.75 7 无源数值： 2D、3D 8 9 环境测试要求 序 测试项目 测试方法及条件 测试设备 测试结果 1 温湿测试 参考EIA 364-31 方法三，测试条件A 本测试程序的目的是，详细的标准试验方法中 所用的产品，它们由高湿度和热的影响，影响 材料的性能进行评价。 K.SON INS THS-A4L-150 合格 要求 : 温度: 85°C 湿度: 90~95% (R.H) 时间 : 72小时 2 低温测试 参考电子测试规范： 所测样品应放置于一个恒温环境中，其温度设 定在-45°C K.SON INS THS-A4L-150 合格 要求 : 时间 : 24小时 3 高温测试 参考电子测试规范： 所测样品应放置于一个恒温环境中，其温度设 定在85°C. K.SON INS THS-A4L-150 合格 要求 : 时间 : 24小时 4 冷热冲击 参考电子测试规范： 所测样品应放置于一个固定环境中，其温度设 定为-45~85°C. K.SON INS THS-A4L-150 合格 要求 : 8小时以上.(30分钟/次，12周期) 5 盐雾测试 参考飞胜电子测试规范： 所测样品应放置于一个固定环境中其要求下： NaCL浓度：40-60g/1Kg PH值：6.5-7.2 测试时间：24H 盐雾测试机 合格 1.镀金产品不准有锈斑脱皮 2.其它镀镍 镀锡 镀锌产品在同一轴或面不得 有超过二点以上锈点. 10 机械测试要求 序 测试项目 测试方法及条件 测试设备 测试结果 1 振动测试 测试条件A 本测试程序的目的是，详细的标准试验方法中 所用的产品，它们由运动或搬动，影响材料的 性能进行评价。 振动测试机 合格 要求 : 振动范围：10-55HZ 位移幅值：0.35mm 加速度幅值：50.0M/S 扫频循环次数：30次 2 跌落测试 参考电子测试规范： 所测样品应放置于一定的高度，其高度设定为 1M，按照6个面的方向自由跌落3次 跌落测试治具 合格 要求 : 跌落测试后产品机械特性正常 3 拉力测试 参考电子测试规范： 通过治具固定被测物件，使用一定的力向反方 向施力后，产品装配不可脱落. 拉力测试机 合格 要求： 1. 产品装配不可脱落. 2. 最小拉力：1.2KG 注：在研发及试产前电子执行以上机械及环境参数测试。

Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 1 of 44 Appendix Test Data for WLAN(2. 4G) (Conducted Measurement) Product Name: Remote Control Dinosaur Trade Mark: / Test Model: D918 FCC ID: 2BOLYLWKL85 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 12.120 2406.000 2418.120 0.5 PASS 11B Ant1 2437 11.120 2431.000 2442.120 0.5 PASS 11B Ant1 2462 11.160 2456.960 2468.120 0.5 PASS 11G Ant1 2412 16.440 2403.840 2420.280 0.5 PASS 11G Ant1 2437 16.400 2428.840 2445.240 0.5 PASS 11G Ant1 2462 16.600 2453.760 2470.360 0.5 PASS 11N20SISO Ant1 2412 17.640 2403.240 2420.880 0.5 PASS 11N20SISO Ant1 2437 16.360 2428.840 2445.200 0.5 PASS 11N20SISO Ant1 2462 16.400 2453.840 2470.240 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 2 of 44 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 3 of 44 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 4 of 44 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 5 of 44 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 6 of 44 11N20SISO-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 7 of 44 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Channel Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 16.148 2403.9637 2420.1117 --- --- 11B Ant1 2437 15.900 2429.0105 2444.9105 --- --- 11B Ant1 2462 16.043 2454.0826 2470.1256 --- --- 11G Ant1 2412 17.452 2403.2375 2420.6895 --- --- 11G Ant1 2437 17.217 2428.4398 2445.6568 --- --- 11G Ant1 2462 17.232 2453.4498 2470.6818 --- --- 11N20SISO Ant1 2412 18.133 2403.0358 2421.1688 --- --- 11N20SISO Ant1 2437 17.195 2428.3920 2445.5870 --- --- 11N20SISO Ant1 2462 17.250 2453.4834 2470.7334 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 8 of 44 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 9 of 44 11B-Ant1-2462 11G-Ant1-2412 Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 10 of 44 11G-Ant1-2437 11G-Ant1-2462 Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 11 of 44 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 12 of 44 11N20SISO-Ant1-2462 Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 13 of 44 Appendix C: Maximum Average conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Power [dBm] Conducted Limit [dBm] Verdict 11B Ant1 2412 7.37 ≤30.00 PASS 11B Ant1 2437 8.28 ≤30.00 PASS 11B Ant1 2462 8.35 ≤30.00 PASS 11G Ant1 2412 6.63 ≤30.00 PASS 11G Ant1 2437 9.16 ≤30.00 PASS 11G Ant1 2462 9.14 ≤30.00 PASS 11N20SISO Ant1 2412 9.19 ≤30.00 PASS 11N20SISO Ant1 2437 6.99 ≤30.00 PASS 11N20SISO Ant1 2462 6.68 ≤30.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 14 of 44 Appendix D: Maximum Average power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict 11B Ant1 2412 -20.78 ≤8.00 PASS 11B Ant1 2437 -21.65 ≤8.00 PASS 11B Ant1 2462 -22.03 ≤8.00 PASS 11G Ant1 2412 -26.33 ≤8.00 PASS 11G Ant1 2437 -22.46 ≤8.00 PASS 11G Ant1 2462 -22.99 ≤8.00 PASS 11N20SISO Ant1 2412 -24.10 ≤8.00 PASS 11N20SISO Ant1 2437 -25.27 ≤8.00 PASS 11N20SISO Ant1 2462 -26.18 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 15 of 44 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 16 of 44 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 17 of 44 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 18 of 44 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 19 of 44 11N20SISO-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 20 of 44 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency.[M Hz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 -3.10 -43.46 ≤-33.1 PASS 11B Ant1 High 2462 -1.56 -46.76 ≤-31.56 PASS 11G Ant1 Low 2412 -4.59 -36.07 ≤-34.59 PASS 11G Ant1 High 2462 -1.45 -42.87 ≤-31.45 PASS 11N20SIS O Ant1 Low 2412 -6.07 -48.68 ≤-36.07 PASS 11N20SIS O Ant1 High 2462 -4.41 -47.67 ≤-34.41 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 21 of 44 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 22 of 44 11G-Ant1-2412-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 23 of 44 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0035260555FRF03 Page 24 of 44 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [Mhz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 0~Reference -3.29 -3.29 --- PASS 11B Ant1 2412 30~1000 -3.29 -57.94 ≤-33.29 PASS 11B Ant1 2412 1000~26500 -3.29 -37.51 ≤-33.29 PASS 11B Ant1 2437 0~Reference -3.07 -3.07 --- PASS 11B Ant1 2437 30~1000 -3.07 -62.64 ≤-33.07 PASS 11B Ant1 2437 1000~26500 -3.07 -37.43 ≤-33.07 PASS 11B Ant1 2462 0~Reference -2.53 -2.53 --- PASS 11B Ant1 2462 30~…

Text truncated - open the document above for the full version.

Report No.: TZ0035260555PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0035260555PH01 Page 2 of 2 Conducted Emission RF Conducted Test
