2BOOH-VK-G2Smart bird feeder

�v"­ >< -rA, v0ki0v ＿ Facebook.comNakiav Twitter.comNakiav lnsta g ram.comNakiav www.vakiav.com VK-G2 �V'1- >< �At"- v0ki0v Smart Bird Feeder Model: VK-G2 ＠＠ User Manual This device complies with part 15 of the FCC rules.operation is subject to the following two conditions: 1)this device may not cause harmful interference and 2)this device must accept any interference received, including interference that may cause undesired operation; NOTE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However ,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the f o llowing measures; Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced for help. Pursuant to section 15.21 of the FCC rules, changes or modifications to a product by the user that are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device meets the FCC radio Frequency Emission Guidelines, Inf o rmation on the product is on file with the FCC and can be found by inputting such products FCC ID(which can be found on the device)into the FCC ID Search form available at「https://www.fcc.gov/oet/ea/fccid The party responsible for FCC compliance is: VAN IMAGE COL TD 92 CORPORATE PARK STE C 204 IRVINE, CA 92606 02 Smart Bird Feeder FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. Welcome Message & Product Introduction Welcome to the Vakiav family! Your VK-G2 smart bird feeder is designed to bring the beauty of birdwatching right to your home. With Al-powered bird recognition, in-time notification and eco-friendly solar charging, you can enjoy every feathered visitor with ease. SPECIFICATIONS Al Recognition Cloud storage Material of Connected Devices Battery Capacity Input Image Resolution Free Free 100M Plastic 3.7V 5200mAh Li-ion battery sv S M 2560*1440 Smart Bird Feeder 03 ＿ a Button description Roof 巨 i Wall Mount Camera Tray 忙 霍 今 庐 庐 庐 Signal Network Adapter User PWB Screw Transmitter Cable Manual 4*20 XS I[[]' 已 ， � 之 Charging Solar Solar Panel Suction Bird Pole Cable Panels Accessories Cups XS ScrewXS 04 Smart Bird Feeder Up-Power ON Down -Power OFF 曰Cameraindicator light description te e s_ su p tu t m。 ta c ta s g s g n gn n. 1 rg . nrg i a a ph a h c -C t­ h t - Lig 吵 Off L d t e n h Re g 9reLi . InG n h d e SIi re 0 G a FS 董 ·一 ．一 暑 I R outer Indicator Instructions y ty ． a a rm mr。 。 n n b a9 k. In rk r i wo n­ -ht t9 h n 9 ·_ e d re G e R X J 、 《 ` ( ｀ 一 曰 Smart Bird Feeder os CONTENTS 01 -How to pair your camera? 02 -How to install the product? 03 -FAQ Preparations before pairing 1、Connectto the router A: Plug the charging cable into the Signal Trasmitter B: Use the network cable to connect the Signal Transmitter to your router 2) Turn on the power switch of the camera -there will be birds chirping and red light flashing Smart Bird Feeder o, �Download the Vakiav App � Pairing successfully 口噩目 ＝ 0。penthe Vakiav App, register an account * If registration fails, please vis www.vakiav.com and contact customer suppo 厂 �Add Your Device in the app on the homepage,tap Add Device and follow the on-scree instructions. _瞿-- 。 •-•-• 霾 �=二::芒'::'.::二 ｀ 门 勹 o-o-• -� • Check ,,a,;oo t土� �．．元 * If pairing fails,check the FAQs section in this manual. If theissue persists, please contact customer 印pportat www.vakiav.com 苍 - � o Scan the OR code on the back of the camera or this OR code oa Smart Bird Feeder Sma『t Bird Feede『09 (How to Install the Bird Feeder ? 叶 Feeder Roof Slide the latch from left to right to secure the roof. 己 Tray Slide the latch from left to right to secure the tray. Ill - ird Feeder a) Outdoor Installation Secure the wall mount to a wooden board or wall using screws. then attach the bird feeder to the mounting bracket. b) Glass Installation Attach the suction cups to holes of the back panel. Press firmly to secure the feeder to the glass surface. c) mounted on bird pole Attach the metal bracket to the bird feeder and then to the bird pole. @(!)@ 10 Smart Bird Feeder Smart Bird Feeder 11 0 Choose a location with sunlight for most of the day. Adjust the angle for maximum exposure. Note: Conversion efficiency may vary by weather, season, and location, etc. ． ．． ＇， The Northern Hemisphere The Ideal Angle = The Local Latitude牛5 0 @ Mount the bracket using the template and screws provided. �Insert the solar panel into the bracket and make sure it is secure. 0 Loosen the adjustment knob, set the angle to face direct sunlight, then tighten the knob to lock the position. 12 Smart Bird Feeder The Southern Hemisphere 一会 ｀ ｀ 360 ° the Camera Open the silicone plu…

Text truncated - open the document above for the full version.

Covered Equipment Certification Attestation Letter 9/28/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BOOH-VK-G2 Shenzhen Fanying Zhilian Technology Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Fanying Zhilian Technology Co., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Fanying Zhilian Technology Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Pengbin Xu Title: Manager Company Name: Shenzhen Fanying Zhilian Technology Co., LTD Date: 9/28/2025

Shenzhen Fanying Zhilian Technology Co., LTD U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: September 28, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BOOH-VK-G2 Shenzhen Fanying Zhilian Technology Co., LTD(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Fanying Zhilian Technology Co., LTD FRN: 0036899706 Address: 13rd Floor Building 9, Shenzhen Bay Science and Technology Ecological Park, Nanshan District, Shenzhen China Signature: Contact Person: Pengbin Xu Tel: 15349260816 Email: [email protected]

DATE: September 28, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BOOH-VK-G2 Product Name: Smart bird feeder Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Pengbin Xu Title: Manager Company: Shenzhen Fanying Zhilian Technology Co., LTD

DATE: September 28, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Pengbin Xu Title: Manager Company: Shenzhen Fanying Zhilian Technology Co., LTD

DATE: September 28, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Fanying Zhilian Technology Co., LTD (13rd Floor Building 9, Shenzhen Bay Science and Technology Ecological Park, Nanshan District, Shenzhen China). <Signature> Name: Pengbin Xu Title: Manager Company: Shenzhen Fanying Zhilian Technology Co., LTD

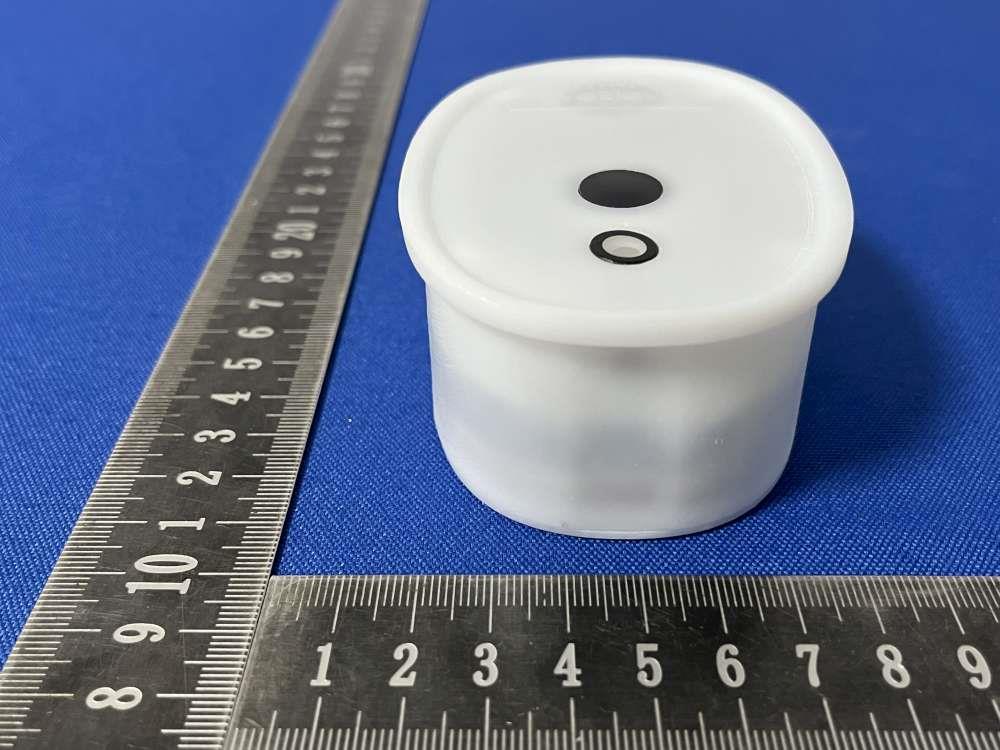

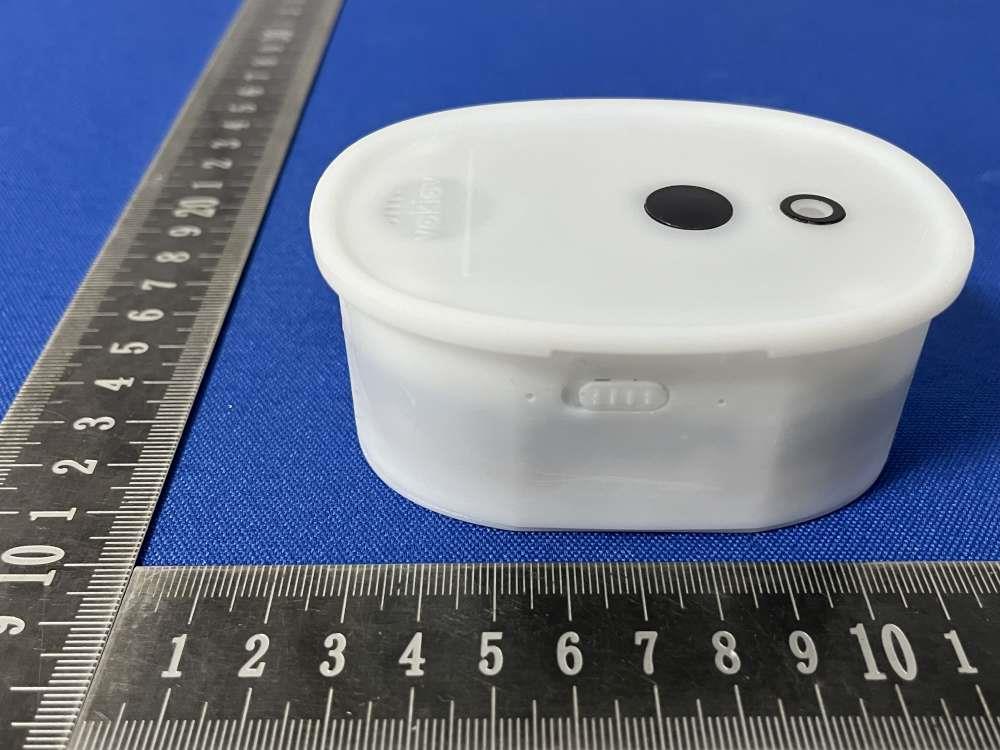

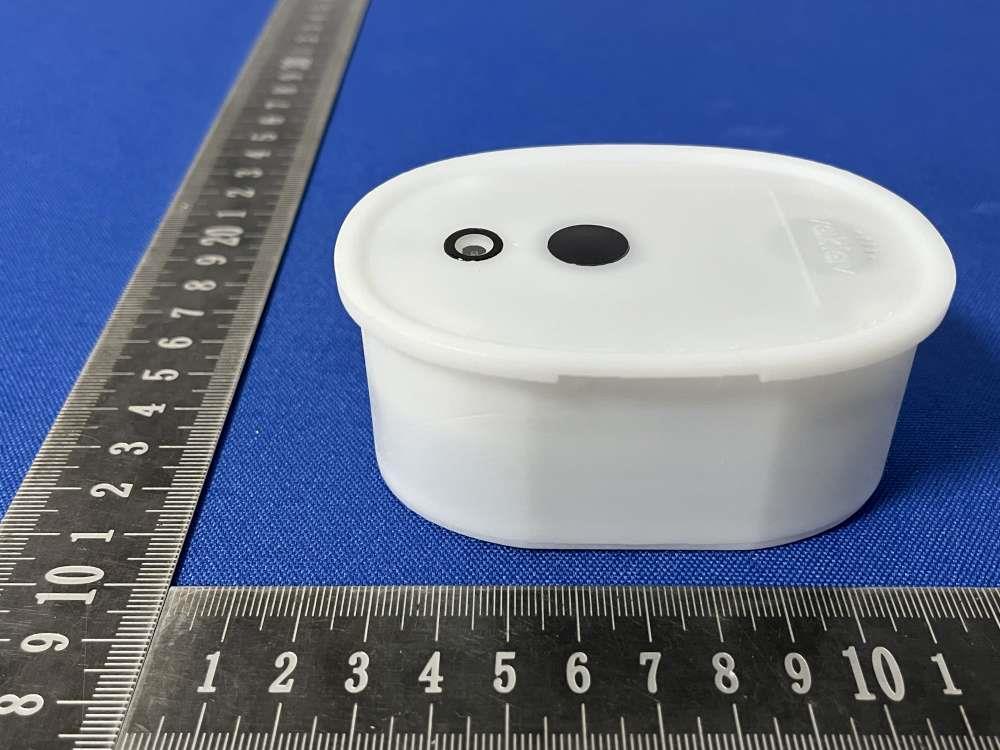

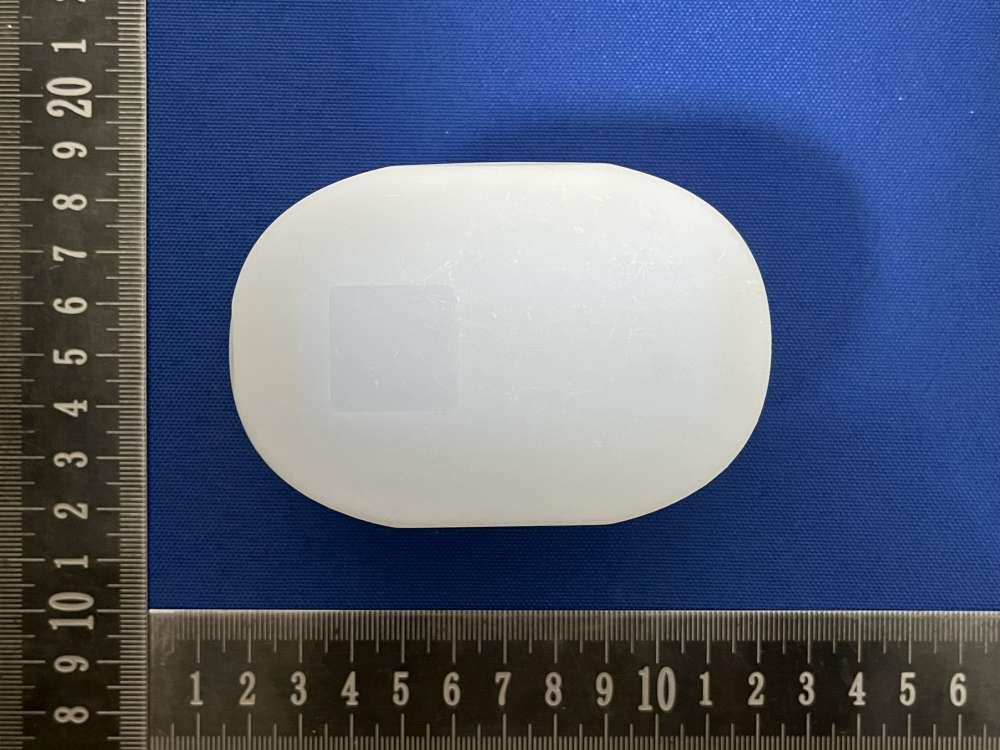

Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report Annex A. EUT External Photos Model: VK-G2 EUT View 1 EUT View 2 Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report EUT View 5 EUT View 6

Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report Annex B. EUT Internal Photos Model: VK-G2 EUT Internal View 1 EUT Internal View 2 Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report EUT Internal View 3 EUT Internal View 4 FPCB Antenna Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report EUT Internal View 5 EUT Internal View 6 Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report EUT Internal View 7

FCC ID: 2BOOH-VK-G2 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f2) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f2) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 802.11ah Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 924MHz 11.68 14.72 0.0036 1.0 PASS Remark: antenna gain= 0.91dBi

TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN0915-FPC08BX ProductName:Antenna Page1 SpecificationForApproval Date:2025.2.20 Version:1.0 客户名称 Customer：梵影 客户料号 CustomerP/N： 腾祥料号 TXP/N：AN0915-FPC08BX 规格描述 Description:915MHzFPC0.81mm黑色线L=50mm+IPEX（4代） TengxiangCheckedBy: 腾祥审核 CustomerApprovedBy: 客户审核 DRAWN 制作 路婷 TESTEDBY 检测 CHECKEDBY 审核 胡超 CHECKEDBY 审核 Q.C.DEPT. 品管 周志红 Q.C.DEPT. 品管 APPROVEDBY 核准 韦佳 APPROVEDBY 核准 NO.53ShatouShaChongRoad,ChangAnTown,Guangdongprovince,China 中国广东省东莞市长安镇沙头区沙涌路53号 TEL:86-769-81873082FAX:86-769-82663788 http://www.tenxiang.cn TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN0915-FPC08BX ProductName:Antenna Page2 Index: 1.Specification(规格) 2.CharacteristicsandReliabilityTest(产品特性和可靠性测试标准) 3.Antenna-SParameterTestData(样品测试数据) 4.Antenna-RadiationPatternTestData(辐射模式测试数据) 5.MechanicalandPackingDrawing(图纸包装规范) RevisionHistory（变更履历） RevisionDateChangeNotificationDescription 1.02025.2.20 初版 TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN0915-FPC08BX ProductName:Antenna Page 3 1. Specification SamplePhoto A. ElectricalCharacteristics Frequency频率900-930 MHz S.W.R.驻波比<= 2.0 AntennaGain增益0.91 dBi Polarization 极化方式Linear Impedance 阻抗50 Ohm B. Material& MechanicalCharacteristics CableType线材规格OD 0.81 mm,BIack ConnectorType连接器规格I-PEX C. Environmental StorageTemperature 存储温度 - 40 ̊C ~ +80 ̊C OperationTemperature 工作温度 - 40 ̊C ~ +80 ̊C TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN0915-FPC08BX ProductName:Antenna Page4 2.CharacteristicsandReliabilityTest TestItems 测试 项目 TestConditionandProcedure 测试方法 Requirements 要求Result 结果 1V.S.W.R. 电压驻波比 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest设置网络分析仪参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 2Insertion Loss插入损 失 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest设置网络分析仪参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 3Antenna Gain 天线增益 SetDUTonAntennaChamber;makeindividual calibrationtotest设置天线暗室参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 4Solderability 可焊性 GB/T2423.28-2005 Temp:260±5°C;Duration:5seconds温度260± 5°C;持续5秒 Tinevenlyonfull 上锡均匀饱满 PASS 5PullTest 拉力 Holdingwithindividualspecification;force appliedtoaxisofterminal.单独定义产品端子拉力 1.DirectiveDUTspecification 2.FrequencyTol.≤5% 符合待测物规范;频率偏移≤5% PASS 6Dimension 尺寸 Inspectionofdimension,color,material,package, surfaceprocess.检查尺寸,颜色,材料,包装,表面处理 DirectiveDUTspecification 符合待测物规范 PASS 7RoHSWithReferencetoIEC62321:2008withflowchart 参考IEC62321测试流程 DirectiveRoHS2015/863/EU 符合RoHS2015/863/EU标准 PASS TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN0915-FPC08BX ProductName:Antenna Page5 3.Antenna-SParameterTestData TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN0915-FPC08BX ProductName:Antenna Page6 4.Antenna-RadiationPatternTestData XZYZXY 900MHz 915MHz 930MHz 5.MechanicalDrawingSeeattachedfiles B C D AN0915-FPC08BX / Antenna 1/1 ±0.5±0.2±1 OD0.81 四代端子 Part Number Name CABLE-081-50BX-201510 Coaxial Cable 1 No. 2 1 Q'ty 1 Material Finish A SYY 2025.02.20 DES BY Note: 1.Mark is important dimension;"Cpk "Identify for process control(CpK 1.33). 2.Tolerance:Unmarked tolerance refer to the standard tolerance please. 3.Pay attention to the direction of the connector. APPROVER DATE SIGN DESCRIPTION SCALE: APP BY Tolerance X.XX X.X X° TITLE: PART NO.: CUSTOMER P/N: CHK BY RF BY UNITS: mm REVISION: HFREACHRoHS2.0 CONFIDENTIAL FPC Black Black 1 2 端子朝向如图所示 WJ 2025.02.20 HC 2025.02.20 YCX 2025.02.20 100pcs/ PE bag Revision : A Customer : ALL APPROVED BY CHECKED BY DESIGNED BY Name: Page: 1 of 1 Date: Part Number : 产品包装规范 PACKING CRITERION 8000pcs/Carton 3. SEALING 。 MEAS G W: KGS N W: KGS QTY: PCS ITEM NO: C/NO MADE IN CHINA SIDE FRONT 2.PACKING 1 . Enter PE bag。 2025.02.12 AN0915-FPC08BX Antenna

Report No: SSP25080380-1E FCC Test Report Page 1 of 45 FCC TEST REPORT FCC ID: 2BOOH-VK-G2 Report No. : SSP25080380-1E Applicant : Shenzhen Fanying Zhilian Technology Co., LTD Product Name : Smart bird feeder Model Name : VK-G2 Test Standard : FCC Part 15.247 Date of Issue : 2025-11-19 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25080380-1E FCC Test Report Page 2 of 45 Test Report Basic Information Applicant..................................: Shenzhen Fanying Zhilian Technology Co., LTD Address of Applicant...............: 13rd Floor Building 9, Shenzhen Bay Science and Technology Ecological Park, Nanshan District, Shenzhen China Manufacturer..........................: Shenzhen Fanying Zhilian Technology Co., LTD Address of Manufacturer........: 13rd Floor Building 9, Shenzhen Bay Science and Technology Ecological Park, Nanshan District, Shenzhen China Product Name.........................: Smart bird feeder Brand Name.............................: Vakiav Main Model..............................: VK-G2 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020/Cor 1-2023 Date of Test .............................: 2025-09-17 to 2025-11-17 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25080380-1E FCC Test Report Page 3 of 45 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ................................................................................…

Text truncated - open the document above for the full version.

Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP25080380-1E FCC ID: 2BOOH-VK-G2 Annex of Test Report Radiated Emission Test View Above 1GHz
