2BOST-TWDtwo way radio

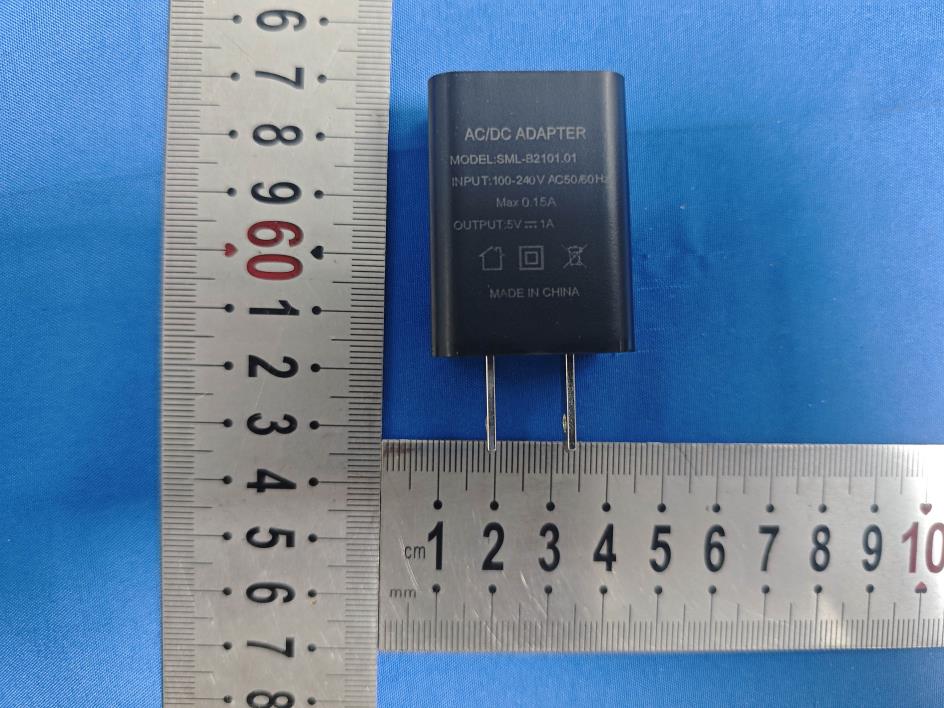

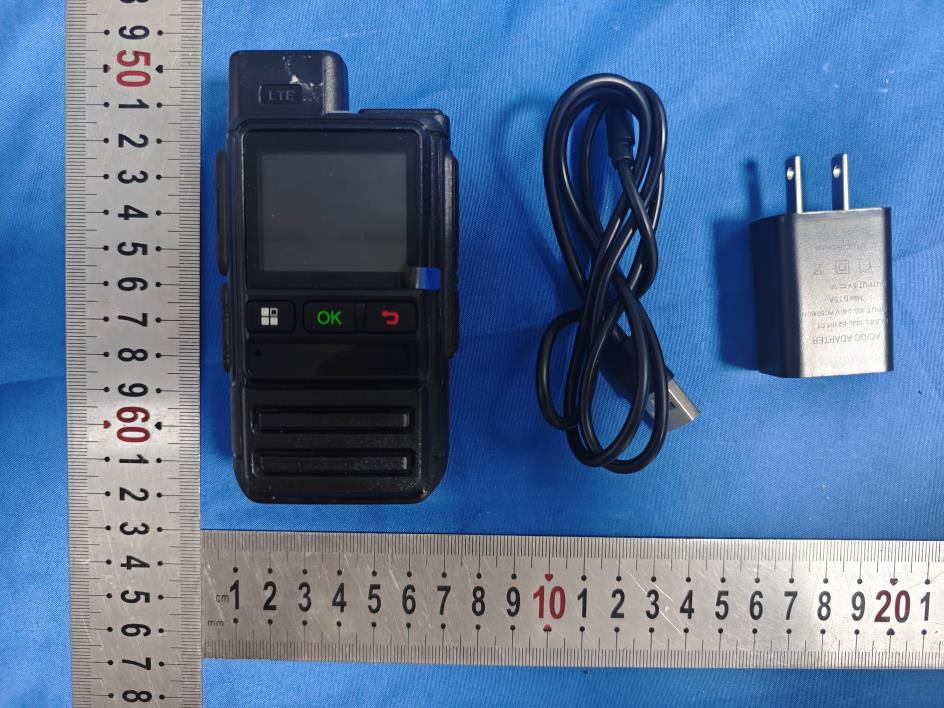

Radios Operation Manual Model:G0plus Introduction National call, colorful display screen, large-sized PTT key, time zone, priority speaker, monitor. Including private call, group call, friend group, remote update. A group can accommodate up to 10,000 users! With ultra-low call latency, high-definition voice, and strong signal transmission and reception capabilities, we are committed to helping company, security, property, municipal, logistics, shops, home use and other users achieve more effective work communication.. Content of the packaging • 1 Radio • 1 Li-Ion Battery • 1 Adapter • 1 Type-C Cable • 1 Belt Clip • 1 lanyard • 1 Owner’s Manual If any item is missing, please verify with your dealer. Product Features 1. Power On/Off key • Press and hold the Power key for 3 seconds to turn on the radio. • Press and hold the Power key for 3 seconds to turn off the radio. 2. PTT key • Press and hold the PTT key to initiate a call, and the red indicator light will remain on. • Release the PTT key to return to receiving state, and the green indicator light will remain on during the receiving process. 3. Vol + key • Short press Vol+ key to increase the volume. 4. Vol - key • Short press Vol- key to decrease and decrease the volume. 5. Menu keys 5.1 short press menu key to enter menu list，long press menu key to Activate/Close the keyboard lock. 5.2 Group select: Select a group to initiate group calls. 5.3 Member select: Select a member to initiate a private call. Note: If there is no operation within 30 seconds, the Single Call status will be automatically exited. Or either party can manually exit the Single Call by press the BACK button and return to the original group call status. 6. Radio settings: 1. Card management: When two SIM cards are installed, you can choose to use the specified SIM card. 2. Power save mode: Normal mode, Power save mode, Super power save mode (default). Note: When in a weak signal environment and with poor call quality, you can choose power save mode or normal mode. The call quality will be improved, but the machine also consumes more power. 3. Automatic screen shutdown: If there is no button operation within the set time, the radio will automatically shut down the screen. 4. Transmit prompt sound: After enabling this function, press and releas the PTT key will emit a "beep" prompt sound, which will improve the call experience. When this function is turned off, press the PTT key will result in no prompt sound. 5. Keypad sound: When this function is enabled, there will be a "beep" prompt sound when the button is pressed. When this function is turned off, there is no prompt sound when the button is pressed. 6. Keypad lock: When select menu to key lock, lock the keypad by long press the MENU key for 2 seconds, and the lock symbol will be displayed above the screen. When select automatic, the button will be automatically locked when the screen rest time is up (Note: The keypad lock function can only be used when the PTT key is available). 7. Single call exit time: refers to the maximum call time when enter the private call state. 7. Status Indications The top LED will help you to identify the current radio status. Status LED Indication Time Search Network Green light flashing fast Awaiting Green light flashing slowly 0.5S on, 3.5S off Transmitting Constant Red Receiving Constant Green Using earpiece（K type） Open the protective cover, insert the compatible earpiece, press the PTT key on the earpiece, and initiate a call. Release the PTT key to enter the receiving state. Battery charge To charge batteries in radio: 1. Insert the original adapter into the AC socket, and then insert the adapter cable into the C-shaped socket at the bottom of the radio. 2. The indicator light at the bottom of the radio turns red and will turn green when it completes charging. Installing SIM card Before using this radio, insert a valid SIM card into the radio. Basic Operation On/off radio When the radio is turned off, press and hold the Power key for 3 seconds to turn on the radio. After successfully logging into the network, there will be a voice prompt with a slow green light flashing. • To turn off the PoC radio, press and hold the Power key for 3 seconds. Adjust volume: When the radio is turned on, press the Vol+ key briefly to gradually increase the volume; Short press the Vol- key to gradually decrease the volume and adjust it to the appropriate level. Select a group (Group call) Short press menu key to enter the group list, press the key to browse the group: • Press the exit key to exit the group selection status, • Press the confirm key to confirm entry into the group. If you press the PTT key, you can initiate a call to the group (with a red light on), accompanied by a prompt sound and screen display. Select members (single call) Short press menu key to enter the member list, and press the key to browse members: • If you press the exit key, you can exit the member selection status • Press the confirm key to confirm the selection of the member. Now you can press the PTT key, a private call can be made to the member (with a red light on) accompanied by a prompt sound and screen display. Appendix A. – Solving guidance for problems Phenomena Solving guidance Equipment unresponsive • Low battery level: The battery may have been depleted, please replace the battery or charge it • SIM card malfunction: Check or renew/replace the SIM card • Poor battery contact: Reinstall the battery or clean the battery contact points Insufficient standby time • Battery performance degradation: replace the battery or buy one more battery for later use Charging fault • Battery performance degradation: replace the battery • Poor connection: Check the connect condition or replace the charging cable • Low battery voltage: Charge for about half an hour, then unplug and recharge again • Battery malfunction: replace the battery • Charger malfunction: replace the charger Unable to connect to the network • Signal too w…

Text truncated - open the document above for the full version.

Report Tel: 4008-707- 283 Web: http://www.ctb-lab.net Page 1 of 113 TEST REPORT Compiled by: Reviewed by: Approved by: Zhang Mao cheng Martin Feng Rita Xiao Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: two way radio FCC ID: 2BOST-TWD Trademark: Model Number: TWD25, TWD50, TWD100M, TWD125, TWD150, TWD200, TWD200M, TWD225, TWD250, TWD300, TWD300M, TWD325, TWD350, TWD400, TWD400M Prepared For: Two Way Direct, Inc. Address: 3262 Grey Hawk Court, Carlsbad, CA 92010, United States Manufacturer: Two Way Direct, Inc. Address: 3262 Grey Hawk Court, Carlsbad, CA 92010, United States Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Sep . 10, 202 5 Sample tested Date: Sep . 10, 202 5 to Nov . 12, 2025 Issue Date: Nov . 12, 2025 Report No.: CTB25091003701RH02 Test Standards FCC 47 CFR Part2(2.1093), FCC 47 CFR Part1( 1.1310) FCC 47 CFR Part1( 1.1307), ANSI/IEEE C95.1-2019 IEEE 1528-2013 & Published RF Exposure KDB Procedures Test Results PASS Remark: This is SAR test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB25091003701RH02 Report Tel: 4008-707- 283 Web: http://www.ctb-lab.net Page 2 of 113 Contents Page 1 COVER PAGE ......................................................................................................................................... 1 CONTENTS ....................................................................................................................................................................... 2 1. VERSION .................................................................................................................................................................. 4 2. PRODUCT INFORMATION AND TEST SETUP............................................................................................... 5 2.1 PRODUCT INFORMATION ................................................................................................................................... 5 3 EQUIPMENT USED DURING TEST ................................................................................................................... 7 3.1 EQUIPMENT LIST ............................................................................................................................................... 7 3.2 TEST EQUIPMENT CALIBRATION ....................................................................................................................... 8 4 SAR INTRODUCTION ........................................................................................................................................... 9 4.1 INTRODUCTION .................................................................................................................................................. 9 4.2 SAR DEFINITION ............................................................................................................................................... 9 5 SAR MEASUREMENT SETUP ........................................................................................................................... 10 5.1 SAR MEASUREMENT SETUP .................................................................................................................... 10 5.2 DASY5 E-FIELD PROBE SYSTEM .................................................................................................................... 11 5.3 PROBE SPECIFICATION ..................................................................................................................................... 11 5.4 ISOTROPIC E-FIELD PROBE .............................................................................................................................. 11 5.5 PHANTOMS ...................................................................................................................................................... 12 5.6 DEVICE HOLDER .............................................................................................................................................. 12 6 SAR TEST PROCEDURE .................................................................................................................................... 13 6.1 SCANNING PROCEDURE ................................................................................................................................... 13 6.2 EXTRAPOLATION ............................................................................................................................................. 16 6.3 EAR REFERENCE POINT ................................................................................................................................... 16 6.4 DEVICE REFERENCE POINTS ............................................................................................................................ 16 6.5 TEST CONFIGURATION – POSITIONING FOR CHEEK / TOUCH ......................................................................... 17 6.6 TEST CONFIGURATION – POSITIONING FOR EAR / 15° TILT ......................................................................... 18 6.7 TEST POSITION – BODY CONFIGURATIONS .................................................................................................... 18 7 EXPOSURE LIMIT ................................…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 1 Model: TWD25 Radiated Emission Below 1G Above 1G

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 1 Model: TWD25 Body (Front of face) Body (Wrist-worn) Front of Face 5mm separation 5mm separation 25mm separation

Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates S Schweizerischer Kalibrierdienst C s Service suisse d'etalonnage Servizio svizzero di taratura Swiss Calibration Service Accreditation No.: SCS 0108 Client CTB Certificate No: D750V3-1088 CALIBRATION CERTIFICATE Object D750V3 - SN:1088 Calibration procedure(s) QA CAL-05.v11 Calibration Procedure for SAR Validation Sources between 0.7-3 GHz Calibration date: September 11, 2025 - . This calibration certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature (22土3) ° C and humidity < 70%. Calibration Equipment used (M& TE critical for calibration) Primary Standards ID# Cal Date (Cert什icateNo.) Scheduled Calibration Power meter NAP SN: 104778 Apr-25 Power sensor NRP-291 SN: 103244 Apr-25 Power sensor NRP-Z91 SN: 103245 Apr-25 Reference 20 dB Attenuator SN: BH9394 (20k) Apr-25 Type-N mismatch combination SN: 310982 / 06327 Apr-25 Reference Probe EX3DV4 SN: 7349 Dec-24 DAE4 SN: 601 Dec-24 Secondary Standards ID# 01-Apr-24 (No. 217-03100/03101) 01-Apr-24 (No. 217-03100) 01-Apr-24(No. 217-03101) 31-Mar-24 (No. 217-03106) 3 1-Mar-24 (No. 217-03104) 31-Dec-23 (No. EX3-7349_Dec19) 27-Dec-23(No. DAE4-601_Dec19) Che ck Date (in house) Scheduled Check Power meter E4419B SN: 8839512475 Power sensor HP 8481A SN: US37292783 Power sensor HP 8481A SN: MY41092317 RF generator R&S SMT-06 SN. 100972 Network Analyzer Agilent E8358A _ SN: US41080477 30-0ct-24 (in house check Feb-21) 07-0ct-24 (in house check Oct-20) 07-0ct-24 (in house check Oct-20) 15-Jun-24 (in house check Oct-20) 31-Mar-24(in house check Oct-20) In house check: Oct-25 In house c heck. Oct-25 In house check: Oct-25 In house check. Oct-25 In house check: Oct-25 Name Function /己 Calibrated by: Jeffrey Katzman Laboratory Technician Approved by: Katja Pokovic Technical Manager /亥 乡 多 Issued: September 27, 2025 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: D750V3-1088 Page 1 of 6 Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORM x,y,z not applicable or not measured Calibration is Performed According to the Following Standards: S Schweizerischer Kalibrierdienst C s Service suisse d'etalonnage Servizio svizzero di taratura Swiss Calibration Service Accreditation No.: SCS 0108 a)IEC/IEEE 62209-1528, "Measurement Procedure for The Assessment of Specific Absorption Rate of Human Exposure to Radio Frequency Fields from Hand-held and Body-mounted Wireless Communication Devices- Part 1528: Human Models, Instrumentation and Procedures (Frequency range of 4 MHz to 10 GHz)", October 2020 b)KDB 865664, "SAR Measurement Requirements for 100 MHz to 6 GHz" Additional Documentation: c) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. • Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. • SAR measured: SAR measured at the stated antenna input power. • SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. • SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. The reported uncertainty of measurement is stated as the standard uncertainty of measurement multiplied by the coverage factor k=2, which for a normal distribution corresponds to a coverage probability of approximately 95%. Certificate No: 0750V3-1088 Page 2 of 6 Measurement Conditions DASY svste c 1ven on paqe 1 . DASY Version DASY5 V52.10.4 Extrapolation Advanced Extrapolation Phantom Modular Flat Phantom Distance Dipole Center - TSL 15 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 750 MHz士1MHz f ot · Head TSL parameters T Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 ° C 41.9 0.89 mho/m Measured Head TSL parameters (22.0士0.2) ° C 42.4土6% 0.90 mho/m士6% Head TSL temperature change during test < 0.5 ° C -------- SAR result with Head TSL SAR averaged over 1 cm 3 (1 g) of Head TSL SAR measured SAR for nominal Head TSL parameters Condition ，一，． ． 250 mW input power normalized to 1 W 2.12W/kg 8 . 4 8 W / k g 士 1 7 . 0 % ( k = 2 ) SAR averaged over 10 cm 3 (10 g) of Head TSL SAR measured SAR for nominal Head TSL parameters condition 250 mW input power normalized to 1 W 1.38 W/kg 5.5 2 W/kg :t 16.5 % (k=2) Certificate No: D750V3-1088 Page 3 of 6 Appendix (Additional assessments outside the scope of SCS 0108) Antenna Parameters with Head TSL Impedance, tra…

Text truncated - open the document above for the full version.

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 61 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: two way radio FCC ID: 2BOST-TWD Trademark: Model Number: TWD25, TWD50, TWD100M, TWD125, TWD150, TWD200, TWD200M, TWD225, TWD250, TWD300, TWD300M, TWD325, TWD350, TWD400, TWD400M Prepared For: Two Way Direct, Inc. Address: 3262 Grey Hawk Court, Carlsbad, CA 92010, United States Manufacturer: Two Way Direct, Inc. Address: 3262 Grey Hawk Court, Carlsbad, CA 92010, United States Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Sep. 10, 2025 Sample tested Date: Sep. 10, 2025 to Oct. 09, 2025 Issue Date: Oct. 09, 2025 Report No.: CTB25091003701RF01 Te s t Standards FCC Part 2, 22, 24E, 27 Test Results PASS Remark: This is LTE radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB25091003701RF01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 61 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 8 4.3 Support Equipment........................................................................................................................... 8 4.4 Test Mode ........................................................................................................................................ 8 4.5 Test Environment ........................................................................................................................... 13 5. TEST FACILITY AND TEST INSTRUMENT USED ..................................................................... 14 5.1 Test Facility .................................................................................................................................... 14 5.2 Test Instrument Used ..................................................................................................................... 14 6. RF EXPOSURE ............................................................................................................................ 16 6.1 Standard Applicable ....................................................................................................................... 16 6.2 Test Result ..................................................................................................................................... 16 7. RF OUTPUT POWER ................................................................................................................... 17 7.1 Standard Applicable ....................................................................................................................... 17 7.3 Summary of Test Results/Plots ...................................................................................................... 18 8. PEAK-TO-AVERAGE RATIO (PAR) OF TRANSMITTER ........................................................... 19 8.1 Standard Applicable ....................................................................................................................... 19 8.2 Test Procedure ............................................................................................................................... 19 8.3 Summary of Test Results ............................................................................................................... 19 9. EMISSION BANDWIDTH ............................................................................................................. 20 9.1 Standard Applicable ....................................................................................................................... 20 9.2 Test Procedure ............................................................................................................................... 20 9.3 Summary of Test Results/Plots ...................................................................................................... 20 10. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ............................................................ 21 10. 1 Standard Applicable ..................................................................................................................... 21 10.2 Test Procedure ............................................................................................................................. 22 10.3 Summary of Test Results/Plots ....................................................................................…

Text truncated - open the document above for the full version.

Report Band5 QAM16 BW=3MHz Channel=20635 RB Size=15 Position=#0 Band5 QPSK BW=5MHz Channel=20425 RB Size=25 Position=#0 Report Band5 QAM16 BW=5MHz Channel=20425 RB Size=25 Position=#0 Band5 QPSK BW=5MHz Channel=20625 RB Size=25 Position=#0 Report Band5 QAM16 BW=5MHz Channel=20625 RB Size=25 Position=#0 Band5 QPSK BW=10MHz Channel=20450 RB Size=50 Position=#0 Report Band5 QAM16 BW=10MHz Channel=20450 RB Size=27 Position=#0 Band5 QPSK BW=10MHz Channel=20600 RB Size=50 Position=#0 Report Band5 QAM16 BW=10MHz Channel=20600 RB Size=27 Position=#0 Band66 QPSK BW=1.4MHz Channel=131979 RB Size=6 Position=#0 Report Band66 QAM16 BW=1.4MHz Channel=131979 RB Size=6 Position=#0 Band66 QAM16 BW=1.4MHz Channel=132665 RB Size=6 Position=#0 Report Band66 QPSK BW=1.4MHz Channel=132665 RB Size=6 Position=#0 Band66 QPSK BW=3MHz Channel=131987 RB Size=15 Position=#0 Report Band66 QAM16 BW=3MHz Channel=131987 RB Size=15 Position=#0 Band66 QPSK BW=3MHz Channel=132657 RB Size=15 Position=#0 Report Band66 QAM16 BW=3MHz Channel=132657 RB Size=15 Position=#0 Band66 QPSK BW=5MHz Channel=131997 RB Size=25 Position=#0 Report Band66 QAM16 BW=5MHz Channel=131997 RB Size=25 Position=#0 Band66 QAM16 BW=5MHz Channel=132647 RB Size=25 Position=#0 Report Band66 QPSK BW=5MHz Channel=132647 RB Size=25 Position=#0 Band66 QPSK BW=10MHz Channel=132022 RB Size=50 Position=#0 Report Band66 QAM16 BW=10MHz Channel=132022 RB Size=27 Position=#0 Band66 QPSK BW=10MHz Channel=132622 RB Size=50 Position=#0 Report Band66 QAM16 BW=10MHz Channel=132622 RB Size=27 Position=#0 Band66 QAM16 BW=15MHz Channel=132047 RB Size=27 Position=#0 Report Band66 QPSK BW=15MHz Channel=132047 RB Size=75 Position=#0 Band66 QPSK BW=15MHz Channel=132597 RB Size=75 Position=#0 Report Band66 QAM16 BW=15MHz Channel=132597 RB Size=27 Position=#0 Band66 QPSK BW=20MHz Channel=132072 RB Size=100 Position=#0 Report Band66 QAM16 BW=20MHz Channel=132072 RB Size=27 Position=#0 Band66 QPSK BW=20MHz Channel=132572 RB Size=100 Position=#0 Report Band66 QAM16 BW=20MHz Channel=132572 RB Size=27 Position=#0 Band7 QAM16 BW=5MHz Channel=20775 RB Size=25 Position=#0 Report Band7 QPSK BW=5MHz Channel=20775 RB Size=25 Position=#0 Band7 QPSK BW=5MHz Channel=21425 RB Size=25 Position=#0 Report Band7 QAM16 BW=5MHz Channel=21425 RB Size=25 Position=#0 Band7 QAM16 BW=10MHz Channel=20800 RB Size=27 Position=#0 Report Band7 QPSK BW=10MHz Channel=20800 RB Size=50 Position=#0 Band7 QPSK BW=10MHz Channel=21400 RB Size=50 Position=#0 Report Band7 QAM16 BW=10MHz Channel=21400 RB Size=27 Position=#0 Band7 QAM16 BW=15MHz Channel=20825 RB Size=27 Position=#0 Report Band7 QPSK BW=15MHz Channel=20825 RB Size=75 Position=#0 Band7 QPSK BW=15MHz Channel=21375 RB Size=75 Position=#0 Report Band7 QAM16 BW=15MHz Channel=21375 RB Size=27 Position=#0 Band7 QPSK BW=20MHz Channel=20850 RB Size=100 Position=#0 Report Band7 QAM16 BW=20MHz Channel=20850 RB Size=27 Position=#0 Band7 QPSK BW=20MHz Channel=21350 RB Size=100 Position=#0 Report Band7 QAM16 BW=20MHz Channel=21350 RB Size=27 Position=#0 6 Out-of-band emissions Report Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict Band12 1.4 23017 6 #0 QPSK 25637.50 -31.99 -13 PASS Band12 1.4 23017 6 #0 QAM16 25797.50 -32.44 -13 PASS Band12 1.4 23173 6 #0 QPSK 25747.50 -32.36 -13 PASS Band12 1.4 23173 6 #0 QAM16 25763.75 -32.26 -13 PASS Band12 3 23025 15 #0 QPSK 25798.13 -31.88 -13 PASS Band12 3 23025 15 #0 QAM16 25774.38 -32.47 -13 PASS Band12 3 23165 15 #0 QPSK 25768.75 -32.01 -13 PASS Band12 3 23165 15 #0 QAM16 25777.50 -32.33 -13 PASS Band12 5 23035 25 #0 QPSK 25836.25 -31.69 -13 PASS Band12 5 23035 25 #0 QAM16 25761.88 -32.26 -13 PASS Band12 5 23155 25 #0 QPSK 25720.00 -32.56 -13 PASS Band12 5 23155 25 #0 QAM16 25675.63 -32.30 -13 PASS Band12 10 23060 50 #0 QPSK 25797.50 -31.94 -13 PASS Band12 10 23060 27 #0 QAM16 25692.50 -32.01 -13 PASS Band12 10 23130 50 #0 QPSK 25690.63 -32.32 -13 PASS Band12 10 23130 27 #0 QAM16 25385.63 -32.69 -13 PASS Band13 5 23205 25 #0 QPSK 1561.36 -40.63 -40 PASS Band13 5 23205 25 #0 QAM16 1562.24 -40.01 -40 PASS Band13 5 23255 25 #0 QPSK 1600.96 -48.10 -40 PASS Band13 5 23255 25 #0 QAM16 1574.19 -47.87 -40 PASS Band13 10 23230 50 #0 QPSK 1563.99 -41.05 -40 PASS Band13 10 23230 27 #0 QAM16 1597.02 -48.71 -40 PASS Band17 5 23755 25 #0 QPSK 25753.75 -32.04 -13 PASS Band17 5 23755 25 #0 QAM16 25741.88 -32.28 -13 PASS Band17 5 23825 25 #0 QPSK 25840.63 -32.10 -13 PASS Band17 5 23825 25 #0 QAM16 25611.25 -32.24 -13 PASS Band17 10 23780 50 #0 QPSK 25635.63 -32.09 -13 PASS Band17 10 23780 27 #0 QAM16 25818.13 -32.21 -13 PASS Band17 10 23800 50 #0 QPSK 25803.13 -32.11 -13 PASS Band17 10 23800 27 #0 QAM16 25450.00 -32.67 -13 PASS Band2 1.4 18607 6 #0 QPSK 25793.75 -30.97 -13 PASS Band2 1.4 18607 6 #0 QAM16 25447.50 -30.24 -13 PASS Band2 1.4 19193 6 #0 QPSK 25777.50 -31.04 -13 PASS Band2 1.4 19193 6 #0 QAM16 25687.50 -30.57 -13 PASS Band2 3 18615 15 #0 QPSK 25840.63 -31.10 -13 PASS Band2 3 18615 15 #0 QAM16 25424.38 -30.97 -13 PASS Band2 3 19185 15 #0 QPSK 25741.88 -30.86 -13 PASS Band2 3 19185 15 #0 QAM16 25705.00 -31.43 -13 PASS Band2 5 18625 25 #0 QPSK 25565.00 -30.54 -13 PASS Band2 5 18625 25 #0 QAM16 25777.50 -30.85 -13 PASS Band2 5 19175 25 #0 QPSK 25403.75 -31.03 -13 PASS Band2 5 19175 25 #0 QAM16 25726.88 -30.83 -13 PASS Report Band2 10 18650 50 #0 QPSK 25746.25 -31.15 -13 PASS Band2 10 18650 27 #0 QAM16 25740.63 -30.15 -13 PASS Band2 10 19150 50 #0 QPSK 25817.50 -31.31 -13 PASS Band2 10 19150 27 #0 QAM16 25805.63 -31.02 -13 PASS Band2 15 18675 75 #0 QPSK 25443.13 -30.45 -13 PASS Band2 15 18675 27 #0 QAM1…

Text truncated - open the document above for the full version.
