2BP3B-LAWK-CITYLAWK City Al Glasses

02 Operating Instructions Please connect the charger to activate the glasses Connect both temple arms magnetic charging port with the standard charging cable for charging After the glasses are activated by connecting to the charger, It will enter the Bluetooth pairing state automatically, and at the same time,the glasses will play the prompt tone repeatly. After long-pressing the touch area on either side until you hear the prompt sound, you can then conduct voice interaction. Attach the matching one-to-two magnetic charging heads to the ends of the temple arms on both sides simultaneously. Scan and download App Long touchwake up the AI assistant,and start to collect sounds Release your finger after long-pressing. End to collect sounds Charging Charging is completed Charging abnormal Please read the guide carefully before use and store it properly 01 Component Description Right sound outlet Left sound outlet Noise-canceling microphone Detachable sunglasses (Optional Configuration) Left touch area Temple detachment point Metal frame Left speaker Right touch area Left temple magnetic charging port Right temple magnetic charging port Right speaker 03 Product Specification Model: Lawk City Glasses Color: Frame: Gunmetal; Temple Arms: Glossy Black Glasses Material: Frame: Stainless Steel; Lenses: Resin; Temple Arms: PC Bluetooth Connection: BT 5.3 + BLE Speakers: Dual Speakers Microphones: Mic * 2 Touch Area: Supports bilateral touch operations. Wearing Detection: Supports wearing detection. Battery Type: Lithium-ion Polymer Battery Charging Interface: Magnetic Interface Charging Current: 5V-0.4A (The maximum power consumption requirement of this product will not exceed 5Vdc/1A) Product Dimensions: 149 * 167 * 56 mm Product Weight: Approximately 43g (including the weight of anti-blue light plano lenses) Removable Sunglasses: Magnetic(Optional Configuration) Standard Packaging List: Smart Glasses * 1, Magnetic Sunglasses * 1, Charging Cable * 1, Glasses Case * 1, Lens Cleaning Cloth * 1, User Guide * 1 First time of using Initial Pairing How to conduct voice interaction? How to charge? Call microphone Indicator light - slowly flashing in white Indicator light – steadily lit in white Indicator light – quickly flashing in red Smart AI Glasses User Guide 04Temple Arms Disassembly Align the temple arms with frame's assembly slot evenly， Insert or pull out directly to install and uninstall the temples. The operations for pairing required during the charging state and when wearing are different. Charging state You need to manually click the music playing software first. It doesn't support to make outgoing calls actively. Only answer, hang up and reject incoming calls are supported Double click Pick up/Hang up Long touchReject Press the touch area for 3 seconds on either side of the temple arm While wearing Press the touch area for 3 seconds on both side of the temple arm Double clickPlay/Pause Slide (right side)Increase/Decrease the volume Slide (left side)Previous/Next song How to enter the pairing state? How to play music? How to operate when there is an incoming call? FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. 195 mm 80 mm

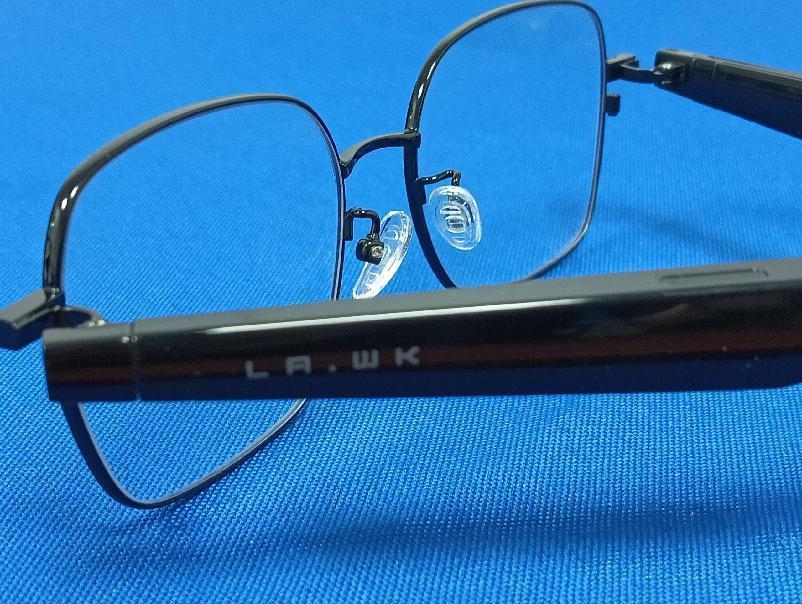

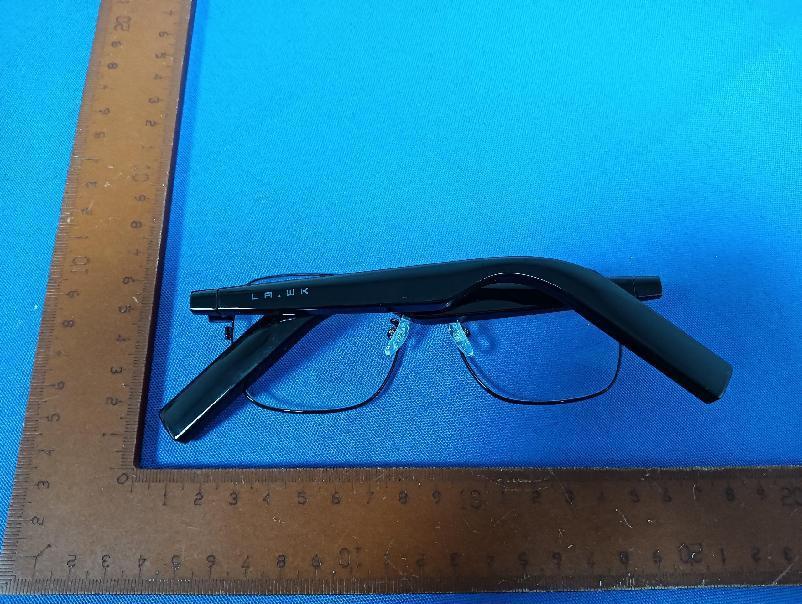

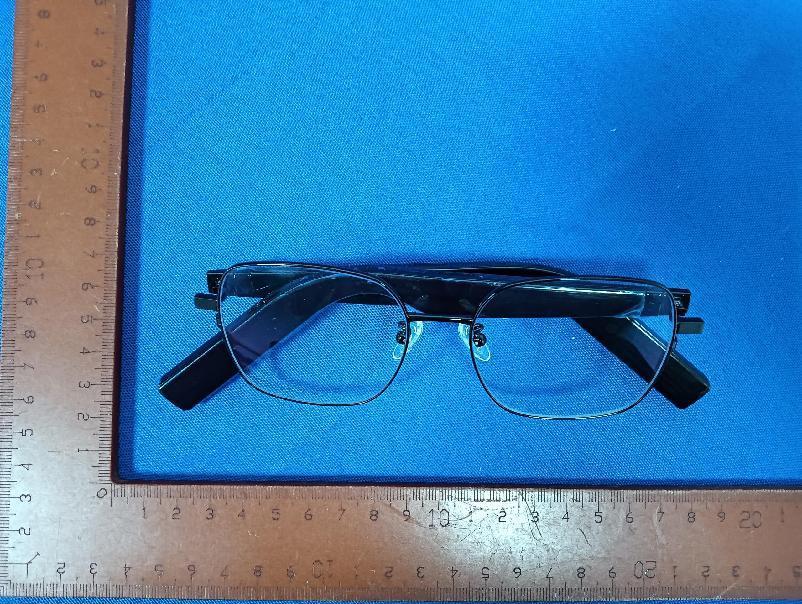

Page1of5FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of5FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of5FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of5FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.9 Fig.10

Page1of1FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com LABELANDLOCATION Material:Tagboard Gule:adhesivesticker Fontcolor:White Labelcolor:Black (Size:L1.0cmxW0.5cm) LabelLocation LAWKCityAlGlasses Model:LawkCity FCCID:2BP3B-LAWK-CITY

Page1of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com InternalPhotosoftheEUT Fig.1 Fig.2 Page2of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.9 Fig.10 Page6of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.11 Fig.12 Page7of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.13 Fig.14 Page8of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.15 Fig.16 Page9of9FCCID:2BP3B-LAWK-CITY GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.17 Fig.18 Antenna

Page 1 of 11 FCCID:2BP3B-LAWK-CITYReportNo.:LCSC09095009EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation For AnhuiLawakenTechnologyCo.,Ltd. LAWKCityAlGlasses TestModel:LawkCity Preparedfor:AnhuiLawakenTechnologyCo.,Ltd. Address:1201,A4Building,ChinaVision,No.99,LongchuanRoad,Feihe Town,BaoheDistrict,HefeiCity,AnhuiProvince,China. Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:September11,2025 Numberoftestedsamples:2 SampleNo.:C250915008-1,C250915008-2 Serialnumber:Prototype DateofTest:September11,2025~September25,2025 DateofReport:September26,2025 Page 2 of 11 FCCID:2BP3B-LAWK-CITYReportNo.:LCSC09095009EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation ReportReferenceNo......................:LCSC09095009EC DateofIssue.......................................:September26,2025 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure.............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:AnhuiLawakenTechnologyCo.,Ltd. Address................................................:1201,A4Building,ChinaVision,No.99,LongchuanRoad,Feihe Town,BaoheDistrict,HefeiCity,AnhuiProvince,China. TestSpecification Standard..............................................:FCCKDBpublication447498D01GeneralRFExposureGuidance v06 FCCCFR47part11.1310 FCCCFR47part22.1093 TestReportFormNo.......................:TRF-4-E-215A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:LAWKCityAlGlasses TradeMark..........................................:Lawaken TestModel...........................................:LawkCity Ratings.................................................:Input:DC5V,400mA Lefteye:DC3.87VbyRechargeableLi-ionBattery,122mAh Righteye:DC3.87VbyRechargeableLi-ionBattery,122mAh Result..................................................:PASS Compiledby:Supervisedby:Approvedby: LifengLe/FileadministratorsJustinZhu/TechniqueDirectorGavinLiang/Manager Page 3 of 11 FCCID:2BP3B-LAWK-CITYReportNo.:LCSC09095009EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation TestModel...............................:LawkCity EUT.........................................:LAWKCityAlGlasses Applicant...............................:AnhuiLawakenTechnologyCo.,Ltd. Address..................................:1201,A4Building,ChinaVision,No.99,LongchuanRoad,Feihe Town,BaoheDistrict,HefeiCity,AnhuiProvince,China. Telephone...............................:/ Fax..........................................:/ Manufacturer........................:AnhuiLawakenTechnologyCo.,Ltd. Address...................................:1201,A4Building,ChinaVision,No.99,LongchuanRoad,Feihe Town,BaoheDistrict,HefeiCity,AnhuiProvince,China. Telephone...............................: Fax..........................................: Factory...................................:RuitaiPrecision(Nanning)TechnologyCo.,Ltd Address...................................:ShenguanCollagenThinkTank3#Factory,9#Factory,13# Factory,No.13,GuokaiAvenueEast,JiangnanDistrict,Nanning City,GuangxiProvince Telephone...............................:/ Fax..........................................:/ TestResultPASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC09095009EC September26,2025 Dateofissue Page 4 of 11 FCCID:2BP3B-LAWK-CITYReportNo.:LCSC09095009EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000September26,2025InitialIssue--- Page 5 of 11 FCCID:2BP3B-LAWK-CITYReportNo.:LCSC09095009EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS DescriptionPage 1.PRODUCTINFORMATION....................................................................................................................................6 2.EVALUATIONMETHODANDLIMIT....................................................................................................................7 3.REFEREVALUATIONMETHOD..........................................................................................................................7 4.CONDUCTEDPOWERRESULTS.....................................................…

Text truncated - open the document above for the full version.

东莞市一佳电子通讯科技有限公司 Dongguan YiJia Electronics Communication Technology Co.,Ltd. 规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2024/01/08 编号 File No 24010802 版本 Revision 1.0 客户 CUSTOMER: 瑞声科技 客户料号 CUSTOMER NO: AZ003 品名 BTAntenna 品名 PART NAME: BT Antenna 供方料号 SUPPLIER NO: YJW05.041.002.302A 送样日期 Date: 送样数量Q‘TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A add: Yuanfu Industrial Zone, No. 59, M uyu Road, Shatou Community, Chang'an Town, Dongguan City 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（A t S ifi ti） 144 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 26 ~ 7 7 方向图（Radiation Pattern ） 38 ~ 10 8 无源测试（Active Test ） 111 9 天线匹配电路（Antenna Matching 1129 Circuit） 112 10 天线装配图（Antenna Profile） 313 ~ 15 11 材质证明（Material Certificate ） 3116 ~ 46 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 12 RoHS报告（RoHS Test Report ） **** 13N/AN/AN/A 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.5 Max Gain 29dBi Gain 2.9 dBi RadiationOmni-directional PolarizationLinear Physical Properties ConnectorNone Cable TypeNone Cable LengthNone Cable ColorNone add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% AgilentAgilent E5071B SS Parameter Test // BT Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive TestAntenna Passive Te s t Z Y Y Y X Z Y XX X Z Y Y X Z add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 X Passive Test For BTAntenna FreqEffiEffiGain (MHz)(%)(dB)(dBi) 2400 38.9-4.1 2.2 2410 38.2-4.2 2.2 2420 38.5-4.1 2.3 2430 38.5-4.1 2.3 2440 39.1-4.1 2.5 2450 41.1-3.9 2.8 2460 40.7-3.9 2.9 2470 41.4-3.8 2.9 2480 41.1-3.9 2.8 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2490 40.5-3.9 2.7 2500 40.7-3.9 2.8 Radiation Pattern For BTAntenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BTAntenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BTAntenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Active Test For BT Antenna Band Channel TRP EIRPTISEIS 0 8.5 13.0 -90.5 -96.1 Blue Tooth Band 0 39 8.5 13.1 -91.8 -96.5 78 8.6 13.4 -91.9 -96.7 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Antenna Matching Circuit add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 DeviceDevice add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna BT add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Ant R LTE div Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Ant L Material safety data (MSDS) 1、 Item and manufacturer information page: 1 / 2 Item name: FPC antenna electroplated nickel and gold (flexible printed circuit) Other names: FPC nickel gold coating Recommended use and restricted use: communication products Name of manufacturer or supplier: Dongguan Xiaoge Electronic Technology Co., Ltd Address of manufacturer or supplier: 1 / 2 / F, Sanxing Road, Fenghuang Middle Road, Shajiao community, Humen Town, Dongguan City Emergency contact / Fax: 2、 Hazard identification data Hazard classification: other dangerous substances, acute toxic substances, grade 4 (swallowing, skin, inhalation) Label content: Symbols: other dangerous objects, exclamation marks Warning: warning Hazard warning message: harmful if swallowed, harmful if inhaled Hazard prevention measures: put the container in a well ventilated place; avoid contact with skin and eyes; in case of accide nt or discomfort, consult medical treatment immediately Other hazards:- 3、 Component identification data mixture Chinese and English Name: nickel CAS no.7440-02-0 percentage 98.95% Gold CAS no.7440-57-5 percentage 1% Brightener CAS no.6155-57-3 percentage 0.05% Synonymous Name: gold finger nickel gold layer Case No Composition of hazardous substances (percentage of components) 4、 First aid measures First aid methods for different exposure routes: Inhalation: - irritates respiratory tract Skin contact: wash the contact area with soap and water Eye contact: flush with plenty of water for more than 15 minutes and seek medical assistance Ingestion: drink plenty of water and seek medical assistance The most important symptom and harmful effect: irritant. Protection of first-aid personnel: wear class C protective equipment to implement first aid in safe area Tips for doctors: patients should be given oxygen when inhaled.When swallowing, consider gastric lavage. 5、 Fire fighting measures Suitable extinguishing agent: Carbon dioxide, chemical powder, water mist, alcohol foam. Special hazards that may be encountered during fire fighting: When heated to dry, the salt will decompose to produce carbon monoxide and carbon dioxide. Special fire fighting procedures: 1.Spray water mist to cool containers exposed to fire.2. Spray water to wash away the leakage to avoid exposure. Special protective equipment for fire fighters: If necessary, wear a full body chemical protective respirator 6、 Physical and chemical properties page: 2 / 2 State of mattercoloursmellproportionmelting pointboiling point NI solid statesilvery whitetasteless 8.9 1453Temperature2732Temperature AU solid stateyellowtasteless 19.3 1064Temperature2807Temperature Brightenerliquid stateLight browntasteless 1.1NANA 7、Safe handling and storage methods management: Avoid contact with eyes, skin and clothing, wear personal protective equipment and do not inhale mist Storage: Store in a cool, dry place 8、 Waste disposal methods Waste disposal method: 1.According to the current laws and regulations. 2.According to the manufacturer's treatment, the waste to be treated should be treated first 3.In acc…

Text truncated - open the document above for the full version.

东莞市一佳电子通讯科技有限公司 Dongguan YiJia Electronics Communication Technology Co.,Ltd. 规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2024/01/08 编号 File No 24010801 版本 Revision 1.0 客户 CUSTOMER: 瑞声科技 客户料号 CUSTOMER NO: AZ003 品名 BTAntenna 品名 PART NAME: BT Antenna 供方料号 SUPPLIER NO: YJW05.041.002.301A 送样日期 Date: 送样数量Q‘TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A add: Yuanfu Industrial Zone, No. 59, Muyu Road, Shatou Community, Chang'an Town, Dongguan City 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面（Spec Cover） 11 2 承认书项目表（Spec Item ） 12 3 工程成品图（Drawing） 13 4 天线规格（A t S ifi ti） 144 天线规格（Antenna Specification） 14 5 S参数测试（S Parameter ） 15 6 无源测试（Passive Test ） 26 ~ 7 7 方向图（Radiation Pattern ） 38 ~ 10 8 无源测试（Active Test ） 111 9 天线匹配电路（Antenna Matching 1129 Circuit） 112 10 天线装配图（Antenna Profile） 313 ~ 15 11 材质证明（Material Certificate ） 3116 ~ 46 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 12 RoHS报告（RoHS Test Report ） **** 13N/AN/AN/A 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 09dBi Gain 0.9 dBi RadiationOmni-directional PolarizationLinear Physical Properties ConnectorNone Cable TypeNone Cable LengthNone Cable ColorNone add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% AgilentAgilent E5071B SS Parameter Test // BT Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive TestAntenna Passive Te s t Z Y Y Y X Z Y XX X Z Y Y X Z add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 X Passive Test For BTAntenna FreqEffiEffiGain (MHz)(%)(dB)(dBi) 2400 36.8 -4.3 -0.1 2410 37.2 -4.3 0.2 2420 37.4 -4.3 0.2 2430 36.3 -4.4 0.2 2440 35.6 -4.5 0.3 2450 38.3 -4.2 0.7 2460 38.5 -4.2 0.8 2470 38.8 -4.1 0.9 2480 37.1 -4.3 0.8 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2490 36.9 -4.3 0.7 2500 38.2 -4.2 0.8 Radiation Pattern For BTAntenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BTAntenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For BTAntenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Active Test For BT Antenna Band Channel TRP EIRPTISEIS 0 4.6 9.1 -88.6 -93.1 Blue Tooth Band 0 39 4.6 9.0 -88.2 -92.6 78 5.4 9.6 -88.5 -92.8 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Antenna Matching Circuit add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 DeviceDevice add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna BT add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Ant R LTE div Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 BT Ant L MATERIALSAFETYDATASHEET 物质安全资料表 1、CHEMICALPRODUCTANDCOMPANYIDENTIFICATION产品和公司资料 1.1PRODUCTMAME：Polyimidereinforcementplate 产品名称：Pi补强片 1.2PRODUCTUSE：FlexibleprintedcircuitBoards. 用途：用于挠性印制电路板． 1.3ProductModel产品型号 Model:HS2025、HS3025、HS4025、HS5025、HS6025、HS7025、HS8025、HS9025、HS10025 1.4公司名称及地址： 深圳市溢海通电子有限公司 NAMEofCOMPANYandADDRESS：ShenzhenYiHaiTongElectronicsCo.,ltd 广东省深圳市宝安区沙井后亭第二工业区57号福新大厦B栋602 BuildingB,FuxinChuangkeBuilding, No.57BaoanDistrict,Shenzhen,China ShajingHoutingSecondIndustrialZone, FORMOREINFORMATIONCALL：INCASEOFEMERGENCYCALL： 紧急联络电话：（Monday～Saturday,9:00am～6:00pm）（24Hours/Day,7Days/Week） 0755-332380800755-33238080 2 、 COMPOSITIONINFORMATIONONINGREDIENTS 组成成份资料 2.1Themainingredient 主要成分 Ingredientnamechemicalabstractnumberweightratio成分名称化学文摘号重量比 Polyimidefilm25038-81-730-50%聚酰亚胺薄膜25038-81-730～50% Remove10-25%ofthereleasefilm/paperwhenitisused离形膜/纸使用时撕掉10～25% Acrylates141-32-225-40%丙烯酸酯141-32-225～40% Acrylicacid79-10-710-20%丙烯酸79-10-710～20% 2.2hazardousingredients 危害物质成分 No.SGSTestReport:No.CANML1412085401,No.CANML1412085402 2.3MolecularStructure: 分子结构 3 、 HAZARDSIDENTIFICATION 危害性资料 3.1hazardclassfilledbyGB13690-92"Classificationofhazardouschemicalsusedandsigns" requirement.： 危险性类别按GB13690-92《常用危险化学品的分类及标志》规定填写。 Insolubleinwater,nomeltingpoint,solubleinacid,alkali. 不溶于水，无熔点，易溶于强酸、强碱。 3.2Anonflammablesheetmaterial，Fumesifdecomposedmayirritateeyes、noseandthroat.. 是一种难燃的片状材料。当分解时产生的气体会刺激眼睛、鼻和咽喉。 POTENTIALHEALTHHAZARDS： 3.3Abriefdescriptionoftheextentofenvironmentalharmwhenhazardscausedbycertain concentrationsofvariouschemicalandbiologicalharm. 环境危害简要描述化学品在一定浓度时对各种生物造成的危害及其造成危害的程度。 ProducesCO2andCOdecomposition. 分解时会产生CO2和CO。 3.4SKIN：Adhesivemaycausemoderateskinirritation. 皮肤：胶粘剂可能导致中等程度皮肤过敏。 3.5EYES：Adhesivemaycauseeyemoderateirritated，Fumesmayirritateeyes. 眼睛：胶粘剂可能导致中等程度眼睛过敏。 3.6INHALATION：Traceofchemicalsolventsmaydiffusedtoairintheprocessesofvarnish preparationand coatingproduction. 吸入物：在涂覆生产过程中，会有很少量化学溶剂挥发出来。 3.7INGESTION：Notdetermined. 摄食：没有参考值。 4、FIRSTAIDMEASURES首要援助措施 SKIN：Washingthecontaminatedclothinginflowingwater. 皮肤：脱下已污染衣服，用流动水冲洗。 EYE：Washingwithflowingwaterfor15minutes，consultthephysicianIfirritationpersists. 眼睛：用流动水冲洗15分钟，如过敏现象持续发生，请求助于医生。 INHALATION：Suchasdust,smoketomuchmovetofreshair.Ifcannotbreathe,give mouth-to-mouth resuscitationandCallphysician. 吸入：如粉末烟尘太多请转移到有新鲜空气的地方，如没有呼吸，请进行人工呼吸，并致电 医生。 INGESTION：Iflargeamountsareingested,consultphysician. 摄食：如摄入大量，请致电医生。 ADVICETOPHYSICIAN：Treatsymptomatically. 建议医生：处理出现的症状。 5、FIREFIGHTINGMEASURES火灾测试 FLAMMABLEPROPERTIES：N/A 易燃烧性：不适用 FLASHPOINT：N/A 闪点：不适用 FLASHPOINTMETHOD：N/A 闪点方式：不适用 AUTOIGNITIONTEMPERATURE：Notdetermined 自燃点温度：无规定 UPPERFLAMELIMIT（Volume%inair）：N/A 燃烧上限：不适用 LOWERFLAMELIMIT（Volume%inair）：N/A 燃烧下限：不适用 FLAMEPROPAGATIONRATE（Solids）：UL94V-0 燃烧等级：UL94V-0 OSHAFLAMMABILITYCLASS：N/A 燃烧级别：不适用 EXTINGUISHINGMEDIA：Water,CO2anddrychemical. 灭火介质：水、CO2及干化学品 SPECIALFIREFIGHTINGPRECAUTIONS/INSTRUCTIONS： 特别火灾指导： Firemenshouldwearproperprotectiveequipmentandpositivepressureself-contained breathingapparatus. 消防员须身穿保护装置及正压呼吸设施。 6、ACCIDENTALRELEASEMEASURES意外事故的…

Text truncated - open the document above for the full version.

Page 1 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for BT (Conducted Measurement) Product Name: LAWK City Al Glasses Test Model: Lawk City Environmental Conditions Temperature: 24.1C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: Suichao Lai Supervised by: Yan Chen Page 2 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 -20dB Bandwidth Left eye: Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Limit -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant1 0.957 N/A Pass NVNT 1-DH5 2441 Ant1 0.968 N/A Pass NVNT 1-DH5 2480 Ant1 0.976 N/A Pass NVNT 2-DH5 2402 Ant1 1.308 N/A Pass NVNT 2-DH5 2441 Ant1 1.284 N/A Pass NVNT 2-DH5 2480 Ant1 1.287 N/A Pass NVNT 3-DH5 2402 Ant1 1.3 N/A Pass NVNT 3-DH5 2441 Ant1 1.3 N/A Pass NVNT 3-DH5 2480 Ant1 1.288 N/A Pass Page 3 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2441MHz Ant1 Page 4 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -20dB Bandwidth NVNT 1-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2402MHz Ant1 Page 5 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 Page 6 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 Page 7 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 Page 8 of 119 FCC ID:2BP3B-LAWK-CITY Report No.: LCSC09095009EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Right eye: Condition Mode Freque…

Text truncated - open the document above for the full version.
