2BP4N-K1video walkie talkies

Video walkie-talkie Instructions for Use Appearance and function 1. Front camera 2. Display screen 3. Horn 4. Rear camera 5. Volume + (Adjust volume +) 6. Volume - (Adjust volume down) 7. Reset hole (Reset in case of system freeze) 8. Power switch 9. Intercom button (Short press in video/intercom mode for intercom, click on the picture and short press in the picture sending interface to send the picture) 10. Up key/Switch front and rear cameras: (Video intercom/Camera interface: Short press to switch front and rear cameras) Other interfaces serve as up keys. 11. Down Key/Back key: (Video intercom interface: Short press to switch between the other party's and your own camera images). Press and hold for 3 seconds as the back key, and other interfaces as the down key. 12. Power /OK button: Press and hold for 5 seconds to turn on or off the power, and press and hold for a short time to confirm. 13. Left button/Voice change button: (Video intercom/photo interface: Short press to switch between profile pictures/filters.) For the video intercom/voice intercom interface, press and hold for 3 seconds to switch the voice-changing mode. Other interfaces are used as left buttons. 14. Right-click/Delete key: (Video intercom/Photo interface: Short press to switch between profile pictures/filters.) Press and hold the picture interface for 3 seconds to pick out and delete the interface. Press the OK button to operate. Use the other interfaces as the left button. Power switch function When the product leaves the factory, the power disconnection switch is in the "off" position. As shown in the figure, pressing the button down will turn on the device, and pressing it up will turn it off. 3. Please fully charge the product before first use. 4. The power is on. The power is off. Function Introduction After turning on the power switch, you need to press and hold for 5 seconds to power on and enter the operation interface Chat interface: Press the left and right keys to select ：Video intercom: Select this interface, click OK to connect, and then enter the video intercom mode. You need to press the intercom button to speak. Local voice is transmitted through a one-way channel. Only when the speaker releases the intercom button can the other party press and hold the intercom button to send a voice message. ：Voice intercom: Select this interface, click OK to connect, and then enter the voice intercom mode. You need to press the intercom button to speak. Local voice is transmitted through a one-way channel. Only when the speaker releases the intercom button can the other party press and hold the intercom button to send a voice message. ：Voice sending: Select this interface. Press the intercom key to speak. Release it to send voice. ：Emoji sending: Select this interface, click on the emoji and press OK to send. ：Take a photo and send: Select this interface, enter the photo mode, press OK to take a photo and then press OK to send. ：Picture sending: Select this interface, enter the album mode, press OK to select the picture, and then press the intercom button to send. Chat record viewing: Press the up and down keys to select the desired one and then press OK to view. Photo interface: Enter the photo interface, briefly press the left and right keys to open filters/profile pictures, briefly press the up key to switch between front and rear cameras, and press the OK key to take a photo. Press and hold the down key for 3 seconds to return. Picture interface: Enter the picture interface. Press left or right to select pictures. Long press the right button to pop up the deletion interface. You can select the option to delete pictures and press the OK key to confirm. Press and hold the down key for 3 seconds to return. Setting mode Language: Font language can be selected. Brightness: The display screen brightness can be adjusted to 1/2/3/4/5 Automatic shutdown: The automatic shutdown time can be set: off, 1 minute, 3 minutes, 5 minutes, 10 minutes Screen saver mode: You can set the dark time of the display screen: off, 1 minute, 3 minutes, 5 minutes, 10 minutes Sound: Adjustable volume (also supports quick volume + volume - adjustment) 2.Charging indicator light Take the local charging cable, connect the charger, and the power indicator light "red" will light up. When fully charged, the charging indicator light will automatically go out. 2. Charger compatibility specification :5V/1A. 3. Product pairing and connection methods This product adopts wifi 2.4G transmission and connection mode. Each package contains two pre-paired walkie-talkies and cannot be connected to other devices for use. If multiple sets of products are purchased, they can only be connected one-to-one in the set and cannot be used simultaneously. When clicking to connect for video/voice intercom, the other machine needs to click OK to confirm the connection or hold down the key for a long time to disconnect. Product specification Display screen 1.28-inch Function Video intercom, voice intercom, taking photos, sending pictures/voice/emojis, voice change "Lens" Dual lenses Battery capacity 3.7V1000 mah "Language" Many countries USB interface Type-C Charging time Three to four hours Working temperature -20°C~60°C Storage temperature -30°C°C~70°C°C Charging voltage 5V/1A Product size 57*27*130MM FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a reside…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BP4N-K1 K1, K2, K5, K6, K8, K12, K16, JK200, JK300, JK500, JK600, JK800 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-11-19 Signature Date: 2025-11-19 Company Name: GLOCERTS TECHNOLOGY INC Shenzhen Wokanuo Technology Co., Ltd. FRN: 0036339737 0037136751 Contact Name: Huiying Fan Tong Wei Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 501, Building 1, No. 3 Huachang Road Langkou Community, Dalang Street, Longhua District, Shenzhen, Guangdong, China Phone: (626) 588-8039 +86-18928486196 Email: [email protected] [email protected]

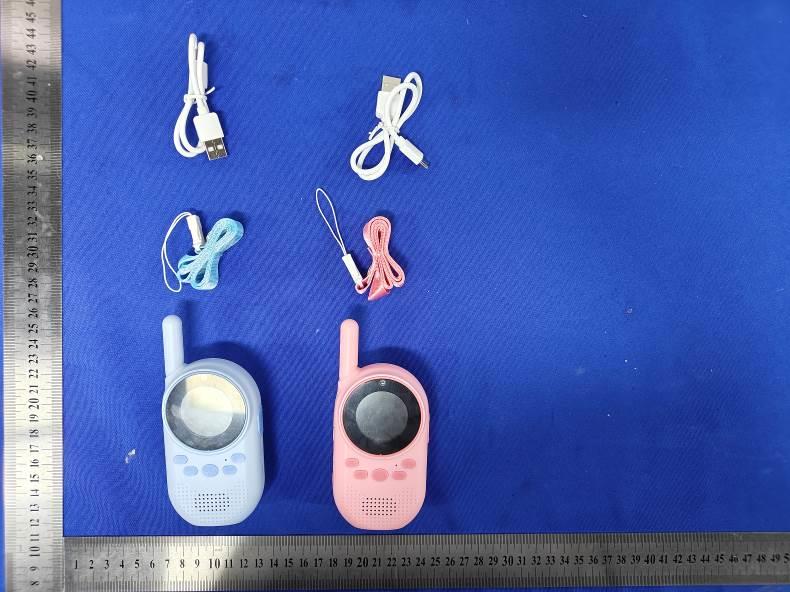

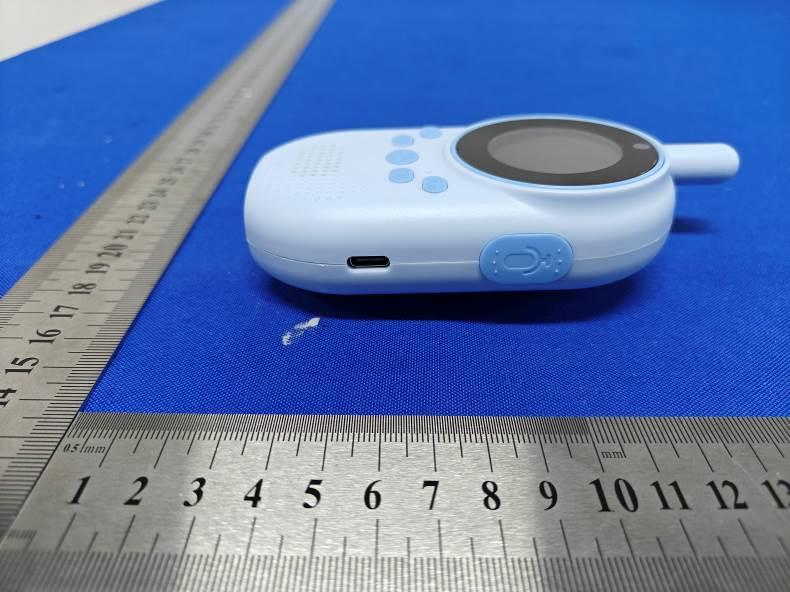

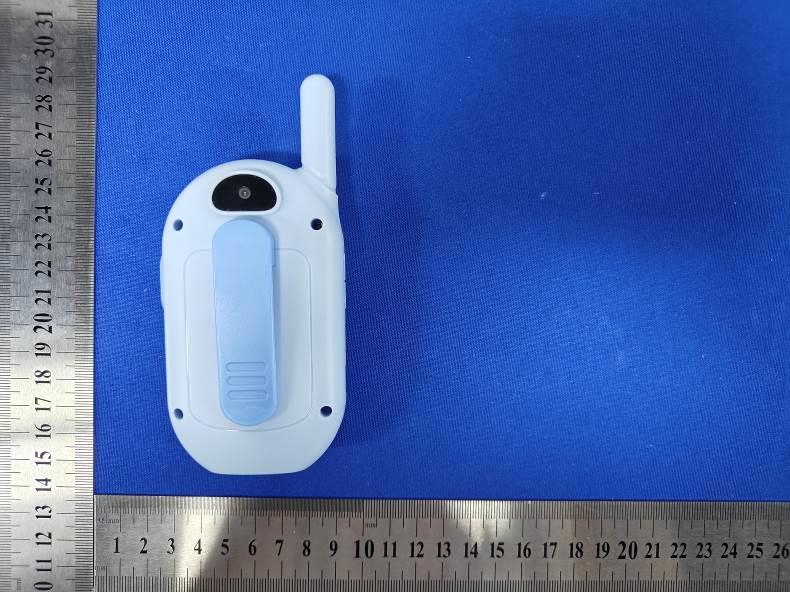

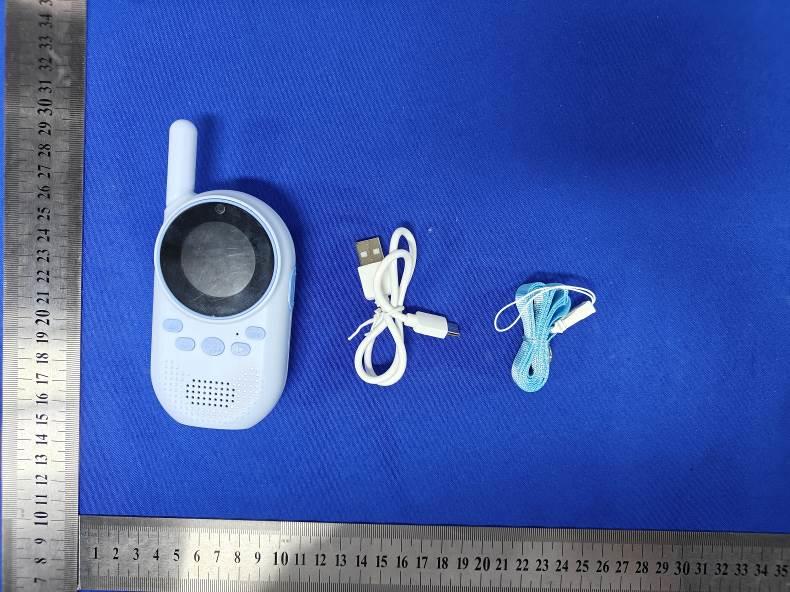

Page 1 of 3 FCC ID: 2BP4N-K1 External photos Page 2 of 3 FCC ID: 2BP4N-K1 Page 3 of 3 FCC ID: 2BP4N-K1

Label 1. The label is silk-screen on the sample FCC ID: 2BP4N-K1

Page 1 of 3 FCC ID: 2BP4N-K1 Internal photos ANT Page 2 of 3 FCC ID: 2BP4N-K1 Page 3 of 3 FCC ID: 2BP4N-K1

Page 1 of 7 Report No.: AiTSZ-251103022FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : video walkie talkies Brand Name : N/A Model : K1 Series Model : K2, K5, K6, K8, K12, K16, JK200, JK300, JK500, JK600, JK800 FCC ID : 2BP4N-K1 Applicant : Shenzhen Wokanuo Technology Co., Ltd. Address : 501, Building 1, No. 3 Huachang Road, Langkou Community, Dalang Street, Longhua District,Shenzhen,Guangdong,CN(China) Manufacturer : Shenzhen Wokanuo Technology Co., Ltd. Address : 501, Building 1, No. 3 Huachang Road, Langkou Community, Dalang Street, Longhua District,Shenzhen,Guangdong,CN(China) Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Nov.03, 2025 Date of Test : Nov.03 , 2025~ Nov.24, 2025 Issued Date : Nov.24, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-251103022FW2 Report Revise Record Report Version Issued Date Notes M0 Nov.24, 2025 Initial Release Page 3 of 7 Report No.: AiTSZ-251103022FW2 Contents 1 GENERAL INFORMATION ....................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................ 6 2.1 APPLICABLE STANDARD .................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-251103022FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: video walkie talkies Model/Type reference: K1 Serial Model: K2, K5, K6, K8, K12, K16, JK200, JK300, JK500, JK600, JK800 Model difference: All models are the same except for the model name and color Power Supply: Input: DC5V/1A DC 3.7V 3.7Wh 1000mAh from battery Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-251103022-1(Normal sample) AiTSZ-251103022-2(Engineer sample) 2.4G WIFI: Supported type: 802.11b/802.11g /802.11n(HT20) Modulation: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Operation frequency: 802.11b/802.11g/802.11n(H20): 2412MHz~2462MHz Channel number: 802.11b/802.11g/802.11n(H20): 11 Channel separation: 5MHz Antenna type: FPC antenna Antenna gain: 2.30dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 7 Report No.: AiTSZ-251103022FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio e…
