2BP5V-PL01pool thermometer

UserManual Model:PL-01 SmartPoolThermometerPL-01withSmart Gateway 1 WhatyouGet Gateway 1.WiFiParingButton 2.ResetButton Gateway1 PoolThermometer1 AAABattery(Include)2 UserManual1 ServiceCard1 Lanyard1 ButtonOperationStatus/Function WiFiParing Button LongPress (When connectingthe WiFi) Confirm connecting 2 PoolThermometer 1.LanyardHole 2.Connectedwith Gateway 3.Batterylevel 4.Temperature ResetButtonLongPressfor 10s Restorethe productto factorysetting LEDIndicatorGatewayStatus SolidblueHasconnectedtoWiFi SolidredEnterpairingmodeafter poweron. FlashedblueReadytoconnecttoWiFi Flashedblueandred alternately Readytopairwiththe ThermometerPL-01 3 SetUptheThermometerandGateway 1.PowerontheThermometerdevice Twistthepoolthermometercovercounterclockwiseto openit.Installthebatteriesandreplacethebatterycover. ButtonOperationFunction Singlepress °F/°Cswitching Longpressfor 5s Paring 4 Note:Ensurethelanyardholeisalignedverticallywith thescaleline. Otherwise,watermayenterthedeviceandcause damage. 2.Download“inercom”App ScantheQRcodeorsearchfor"inercom"intheApple AppStore(iOS)orGooglePlayStore(Android). AppleAppGooglePlay 3.ParingSteps a.Poweronthegateway.Aflashingredlightindicates 5 thegatewayispairingwiththewaterthermometer. b.Pressandholdthepairingbuttononthewater thermometer.Twocircleswillappearintheupperleft cornerofthescreen,indicatingthedevicesarepairing. c.Holdthewaterthermometerclosetothegateway.The buzzerwillbeepforabouttwoseconds. d.PressandholdtheWiFiconnectionbuttononthe gateway.Abeepindicatesthegatewayisinpairingmode (thebuttonclosesttotheplugistheconnectionbutton). e.Openthe“inercom”appandselectPL-01forpairing. Note:Makesureyour2.4GHzWi-Finetworkisfunctioning properlybeforepairingtheWi-FiGatewaytothe network. Specifications Model:PL-01 Material:ABS Power:2*AAABatteries DeviceOperatingTemp:-40°Fto150°F(-40°Cto 65°C) NetworkConnectivity:433MHz 6 Troubleshooting ProblemPossibleCauseSolution Gatewaycannot connecttoWiFi Gatewaydoes notsupport5GHz Wi-Fi. Connectthe gateway to2.4GHzWi-Fi. Wi-Ficontains special characters. ChangetheWi-Fi nameand password. Wi-Fiisoutof range. Keepthegateway androuterwithin 60m. Thethermometer doesn’twork./ Temperature displayed“----” Batterydoesn’t work. Pulloutthe insulationsheet beforeusingor reinstallthe battery. Batteryisdead.Replacethe battery. Gatewayis offline. Shortenthe distance betweenthe gatewayand router. 7 Theuppercover isnottightened. Waterhas enteredthe device. Purchaseanew Thermometer PL-01. Note: 1.Tightenthecoversecurely,ensuringthelanyardholeis alignedverticallywiththescaleline.Otherwise,water mayenterthedeviceandcausedamage. 2.Maintainthedevice'soperatingtemperaturebetween -40°Fto150°F. 3.Donotattempttoforciblydisassemblethedevice. CustomerService Ifyouhaveanyquestions,pleasefeelfreetocontactus. Youcanreachusviaemail,phone,orsocialmedia accounts. Email：[email protected] Website:www.sainlogic.com Phone:+1(888)513-9823(Mon-Fri：10a.m.-6p.m.EST) 8 Youtube: https://www.youtube.com/@sainlogicbrand Facebook: https://www.facebook.com/sainlogicweather Instagram: https://www.instagram.com/sainlogic_official/ Twitter: https://twitter.com/sainlogicbrand TikTok: https://www.tiktok.com/@sainlogic.official Warranty Sainlogicprovidesa1yearlimitedwarrantyagainst manufacturingdefectsinmaterialsandworkmanshipon thisproduct. Thislimitedwarrantybeginsonthedateoforiginal purchaseandisvalidonlyfortheproductpurchasedand onlyfortheoriginalpurchaserofthisproduct. Toobtainwarrantyservice,thepurchasermustcontact Sainlogictodeterminetheproblemandservice procedure. WarrantyservicecanonlybeperformedbySainlogic.The originaldatedbillofsalemustbepresentedtoSainlogic uponrequestasproofofpurchase. 9 FCCStatement 1.ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesired operation. 2.Changesormodificationsnotexpresslyapprovedby thepartyresponsibleforcompliancecouldvoidtheuser’s authoritytooperatetheequipment. NOTE:Thisequipmenthasbeentestedandfoundto complywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation. Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmful interferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation. Ifthisequipmentdoescauseharmfulinterferenceto 10 radioortelevisionreception,whichcanbedeterminedby turningtheequipmentoffandon,theuserisencouraged totrytocorrecttheinterferencebyoneormoreofthe following measures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentand receiver. Connecttheequipmentintoanoutletonacircuit differentfromthattowhichthereceiveris connected.  Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Dong Guan Zhen Ke Technology Co., LTD No.1 Helong Road, Chang'an Town, Dongguan City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/19 U.S. Agent Designation Dong Guan Zhen Ke Technology Co., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BP5V-PL01): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Dong Guan Zhen Ke Technology Co., LTD Dong Guan Zhen Ke Technology Co., LTD with the FRN [0037144128] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Zhi gang Wang Manager Dong Guan Zhen Ke Technology Co., LTD Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

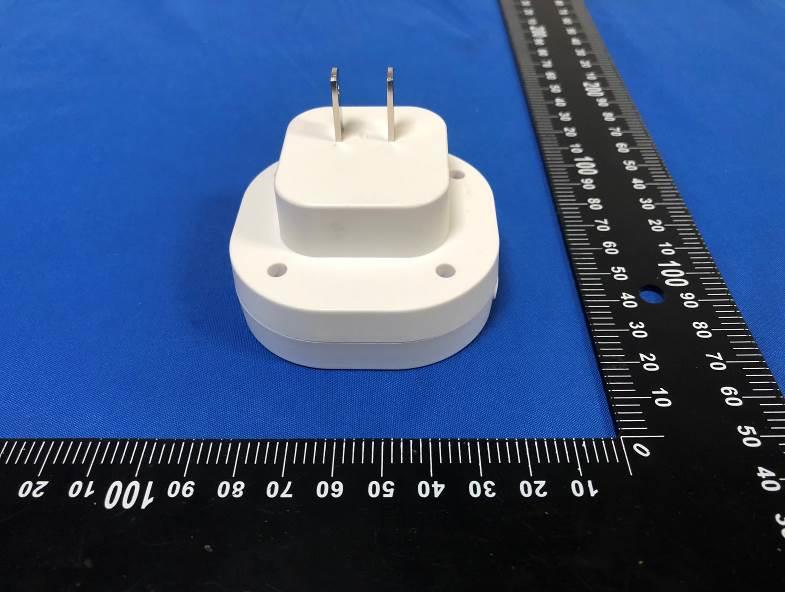

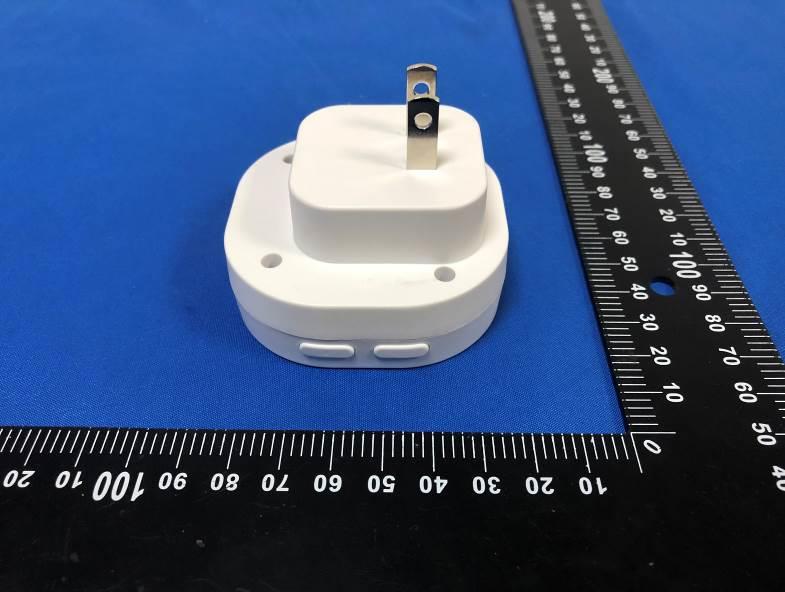

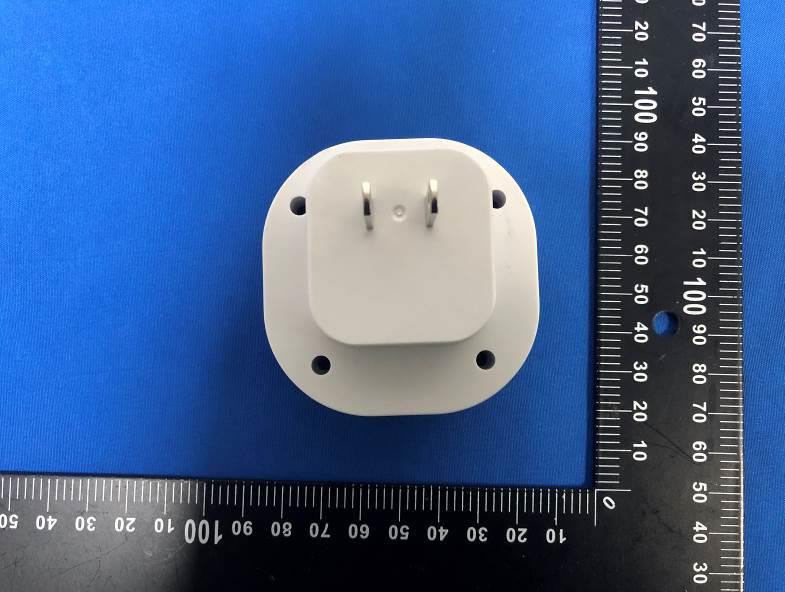

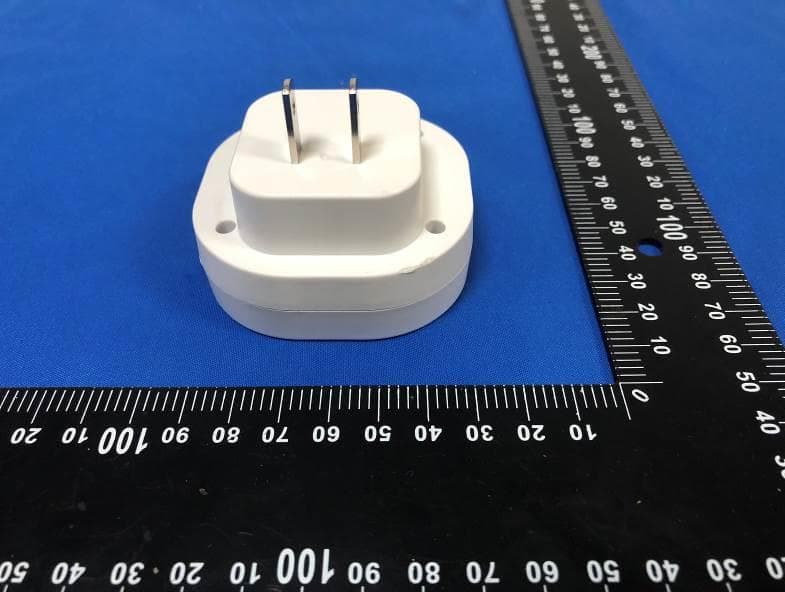

FCC ID:2BP5V-PL01 External Photos of the EUT FCC ID:2BP5V-PL01 FCC ID:2BP5V-PL01

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BP5V-PL01

FCC ID:2BP5V-PL01 Internal Photos of the EUT BT/WIFI ANT FCC ID:2BP5V-PL01 433MHz Receiving antenna

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA25102401904 2BP5V-PL01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 28, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Dong Guan Zhen Ke Technology Co., LTD Address............................................ : No.1 Helong Road, Chang'an Town, Dongguan City, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : pool thermometer Trade Mark ........................................ N/A Manufacturer .................................... : Dong Guan Zhen Ke Technology Co., LTD Model/Type reference ...................... : PL01 Listed Models ................................... : N/A Rating ............................................... : AC 120V, 50/60Hz Result ............................................... : PASS Report No.: CTA25102401904 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : pool thermometer Model /Type : PL01 Listed Models : N/A Applicant : Dong Guan Zhen Ke Technology Co., LTD Address : No.1 Helong Road, Chang'an Town, Dongguan City, China Manufacturer : Dong Guan Zhen Ke Technology Co., LTD Address : No.1 Helong Road, Chang'an Town, Dongguan City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25102401904 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result ........................................................................................... 9 4.6 Simultaneous Transmission for MPE Result ......................................................... 10 5 Conclusion ......................................................................................................................... 10 Report No.: CTA25102401904 Page 4 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–19…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model PL01 Frequency range 2400-2500MHz Manufacturer Dong Guan Zhen Ke Technology Co., LTD Address No.1 Helong Road, Chang'an Town, Dongguan City, China ANT Peak Gain 3.57 dBi 2. Antenna Photo: Length :15.48mm Width:4.64mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25102401902 2BP5V-PL01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 28, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Dong Guan Zhen Ke Technology Co., LTD Address ............................................ : No.1 Helong Road, Chang'an Town, Dongguan City, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : pool thermometer Trade Mark ....................................... : N/A Manufacturer .................................... : Dong Guan Zhen Ke Technology Co., LTD Model/Type reference ...................... : PL01 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : AC 120V, 50/60Hz Result ............................................... : PASS Report No.: CTA25102401902 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : pool thermometer Model /Type : PL01 Listed Models : N/A Applicant : Dong Guan Zhen Ke Technology Co., LTD Address : No.1 Helong Road, Chang'an Town, Dongguan City, China Manufacturer : Dong Guan Zhen Ke Technology Co., LTD Address : No.1 Helong Road, Chang'an Town, Dongguan City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25102401902 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .................................................................................................... 8 3.5 Statement of the measurement uncertainty ...................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BP5V-PL01 Company : Dong Guan Zhen Ke Technology Co., LTD EUT : pool thermometer Model Number : PL01 Report No. : CTA25102401902 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.936 2401.550 2402.486 --- --- 2441 0.966 2440.538 2441.504 --- --- 2480 0.954 2479.547 2480.501 --- --- 2DH5 Ant1 2402 1.281 2401.379 2402.660 --- --- 2441 1.278 2440.379 2441.657 --- --- 2480 1.275 2479.382 2480.657 --- --- 3DH5 Ant1 2402 1.323 2401.346 2402.669 --- --- 2441 1.317 2440.349 2441.666 --- --- 2480 1.281 2479.379 2480.660 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86700 2401.5764 2402.4434 --- --- 2441 0.86488 2440.5742 2441.4391 --- --- 2480 0.86597 2479.5748 2480.4408 --- --- 2DH5 Ant1 2402 1.1856 2401.4173 2402.6029 --- --- 2441 1.1888 2440.4161 2441.6049 --- --- 2480 1.1871 2479.4168 2480.6039 --- --- 3DH5 Ant1 2402 1.1899 2401.4155 2402.6054 --- --- 2441 1.1870 2440.4163 2441.6033 --- --- 2480 1.1894 2479.4161 2480.6055 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.03 ≤20.97 PASS 2441 -0.14 ≤20.97 PASS 2480 -0.09 ≤20.97 PASS 2DH5 Ant1 2402 -0.85 ≤20.97 PASS 2441 -0.94 ≤20.97 PASS 2480 -0.89 ≤20.97 PASS 3DH5 Ant1 2402 -0.85 ≤20.97 PASS 2441 -0.96 ≤20.97 PASS 2480 -0.92 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.032 ≥0.966 PASS 2DH5 Ant1 Hop 1.016 ≥0.854 PASS 3DH5 Ant1 Hop 1.128 ≥0.882 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 318 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.640 163 0.267 ≤0.4 PASS DH5 Ant1 Hop 2.890 113 0.327 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 317 0.124 ≤0.4 PASS 2DH3 Ant1 Hop 1.640 160 0.262 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 108 0.313 ≤0.4 PASS 3DH1 Ant1 Hop 0.390 315 0.123 ≤0.4 PASS 3DH3 Ant1 Hop 1.650 158 0.261 ≤0.4 PASS 3DH5 Ant1 Hop 2.900 104 0.302 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.38 -59.66 ≤-20.38 PASS High 2480 -0.74 -51.86 ≤-20.74 PASS Low Hop_2402 -4.19 -60.79 ≤-24.19 PASS High Hop_2480 -4.82 -64.66 ≤-24.82 PASS 2DH5 Ant1 Low 2402 -4.72 -59.37 ≤-24.72 PASS High 2480 -5.05 -61.6 ≤-25.05 PASS Low Hop_2402 -6.49 -62.21 ≤-26.49 PASS High Hop_2480 -6.47 -64.37 ≤-26.47 PASS 3DH5 Ant1 Low 2402 -4.60 -59.51 ≤-24.6 PASS High 2480 -3.72 -57.59 ≤-23.72 PASS Low Hop_2402 -4.62 -61.32 ≤-24.62 PASS High Hop_2480 -4.05 -63.74 ≤-24.05 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference 0.02 0.02 --- PASS 30~1000 0.02 -67.11 ≤-19.98 PASS 1000~26500 0.02 -41.76 ≤-19.98 PASS 2441 Reference -0.67 -0.67 --- PASS 30~1000 -0.67 -67.26 ≤-20.67 PASS 1000~26500 -0.67 -42.59 ≤-20.67 PASS 2480 Reference -0.94 -0.94 --- PASS 30~1000 -0.94 -65.95 ≤-20.94 PASS 1000~26500 -0.94 -45.3 ≤-20.94 PASS 2DH5 Ant1 2402 Reference -5.11 -5.11 --- PASS 30~1000 -5.11 -67.94 ≤-25.11 PASS 1000~26500 -5.11 -50.19 ≤-25.11 PASS 2441 Reference -4.43 -4.43 --- PASS 30~1000 -4.43 -68.17 ≤-24.43 PASS 1000~26500 -4.43 -47.16 ≤-24.43 PASS 2480 Reference -4.71 -4.71 --- PASS 30~1000 -4.71 -68.02 ≤-24.71 PASS 1000~26500 -4.71 -48.62 ≤-24.71 PASS 3DH5 Ant1 2402 Reference -4.42 -4.42 --- PASS 30~1000 -4.42 -67.58 ≤-24.42 PASS 1000~26500 -4.42 -49.96 ≤-24.42 PASS 2441 Reference -7.29 -7.29 --- PASS 30~1000 -7.29 -67.65 ≤-27.29 PASS 1000~26500 -7.29 -47.08 ≤-27.29 PASS 2480 Reference -5.17 -5.17 --- PASS 30~1000 -5.17 -66.99 ≤-25.17 PASS 1000~26500 -5.17 -46.52 ≤-25.17 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000

36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 3DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480

FCC ID:2BP5V-PL01 Test Setup Photos of the EUT FCC ID:2BP5V-PL01
