2BP8Q-D6scent diffuser

scent diffuser PRODUCT MANUAL D6 CAUTIONS To avoid casualties and property loss, please comply with the following. 1. Do not use in an unsafe or faulty outlet. 2. Do not install the device at a place where children can touch. 3. Do not install the device at a plug where device remains loose. 4. Do not tilt the device. 5. Keep the device away from fire and heat source, do not store flammable and explosive materials around the device. 6. Do not use device in high temperature or wet environment. 7. Do not use flammable, explosive, corrosive and other hazardous solvents in the device. INSTALLING 1. Important to have proper airflow when diffusing fragrance oils. Lack of airflow can lead to wet fallout which can damage varnish or painted surfaces. 2. Ensure the diffuser is plugged in securely. 3. Install the device in a space with adequate ventilation. 4. Do not block the atomizing port when the device is working. 5. Do not spill water or conductive, corrosive liquid on the inside or outside of device. 6. Unplug the diffuser in extreme weather. NECESSARY WHEN INSTALLING Note May cause personal injury or property damage. Prohibited WARNING May cause electric shock or fire hazard. Do not pour oil into lower cover. Always keep upright. Tilting machine will case damage. PRODUCT INFORMATION 2 1 1- Mist outlet 2- Night light 3- Upper shell 4- Lighting sensor 5- Touch control button 6- Lower cover 7- Atomizing pipe 8- Bottle 3 4 5 6 7 8 SPECIFICATIONS SIZE Voltage110-240V 65mm X 74.5mm X 205mm / 2.56”W X 2.93”L X 8.07”H Power3W Weight350g Capacity100ml Model No. D6 SET UP Unscrew the lower cover. Unscrew oil bottle and refill/change oil. Plug in socket and choose working level and time. See next page for operating instructions. Make sure that unit is always upright to avoid leakage. Rotate plug prongs if necessary. Screw the oil bottle in place and close lower cover. Note H2H 4H 8H MODE TIME M L CONTROL ON/OFF Press and hold for 2 seconds to turn the diffuser on or off. Press once to turn the ambient night light on or off. LIGHT SENSOR Control the night light with daylight or artificial light. It will automatically switch on the lighting when enough darkness is sensed by the sensor. It will automatically switch off the lighting when enough light is sensed by the sensor. If you want to keep the light on or off, you can press once to turn the ambient light on or off. If you want to set back to sensor control mode, just unplug and plug in again. INTENSITY SETTING H: Diffusing for 25 seconds and pausing for 60 seconds. M: Diffusing for 20 seconds and pausing for 120 seconds. L: Diffusing for 10 seconds and pausing for 240 seconds. WORKING TIME SETTING 2H: Indicates the diffuser will automatically turn off after 2 hours. 4H: Indicates the diffuser will automatically turn off after 4 hours. 8H: Indicates the diffuser will automatically turn off after 8 hours. If you don’t choose the working time, the diffuser will keep running. In order to save the lifespan of the pump, we do not recommend running this machine continuously. MODE TIME Cleaning steps Your scent diffuser should be cleaned every 1-2 months or when switching fragrance to ensure optimal performance. Before cleaning your machine, ensure that the machine is unplugged. 1.Unscrew the lower casing and unscrew the oil bottle. 2.Let the oil bottle soak in 99% rubbing alcohol for 15min. 3.Fill the oil bottle with 20ml of rubbing alcohol and let the machine run for 5min. 4.Unscrew the oil bottle, empty it, and let it air-dry for 15min. 5.Using a cotton swab clean the tight spots and corners of the diffuser to make sure that no spots are left dirty. Replacing the nozzle 1.To change the nozzle, unplug the diffuser, remove the bottle of oil, and carefully pull out the clear tube. Gently pull out the white nozzle by wiggling it gently using a pair of tweezers. 2.Replace it with a new nozzle and ensure the nozzle is pressed very firmly into the top of the diffuser. Storage 1.Always turn off or unplug the diffuser when not in use. 2.Remove the bottle of oil when storing or transporting the diffuser. 3.Store the diffuser in a dry and clean place. MACHINE CLEANING & MAINTENANCE TROUBLESHOOT • lf there is no diffusion or it is weak, replace a new nozzle and check. • Check if the power is ON or OFF. • Check oil level in bottle. • Is the machine in its ''not working period''? • Check if the air pump is damaged. If yes, please contact the seller for replacing it with a new pump. • Check if the gasket of the atomizing head is damaged. If yes, please replace it. • Please make sure the machine is in its vertical position. • Please make sure the oil does not exceed the MAX line. • Please check if the room is dark enough to be sensed by the sensor. • If it is turned off by power button, please unplug the diffuser and plug in again to set back to sensor control mode. No Diffusion ProblemSolution Diffusion is weak Oil is spilling in the lower cover Oil is overflowing Night light does not turn on • Check if the gasket is damaged or loose. Please adjust it or replace it with a new one. • Check if the atomizer nozzle is clogged with oil or impurities. Clean it with 99% rubbing alcohol or replace the atomizer nozzle. • Check if the oil container is loose. If yes, please screw it in fully. Before having the machine repaired, please try to diagnose the problem with the following: APP OPERATIONS AND SETTINGS iPhone: Android Phone: Note: You can download the “Smart Diffuser” App from the IOS Play Store for advanced control. Once downloaded, connect to the diffuser by Bluetooth. Through the app, you can create a more intense scenting schedule and adjust the intensity according to your preferences. You can also scan this QR code to download the Smart Diffuser App. (IOS only) You can download the “Scent Mate” App from the Google Play Store for advanced control. You can also scan this QR code to download the Scent Mate App. (Google Play only) Make sure that the location function of Bl…

Text truncated - open the document above for the full version.

Shenzhen Shengmu Technology Co., Ltd. Covered Equipment Certification Attestation Letter 1/6/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BP8Q-D6 Shenzhen Shengmu Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Shengmu Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Shengmu Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Jing Xiao Title: Manager Company: Shenzhen Shengmu Technology Co., Ltd. Date: 1/6/2026

Shenzhen Shengmu Technology Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 1/6/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BP8Q-D6 FRN of applicant: 0037160454 Per section 2.911(d)(7) of the FCC rules, [Shenzhen Shengmu Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Jing Xiao Title: Manager Company Name: Shenzhen Shengmu Technology Co., Ltd. Date: 1/6/2026 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 1/6/2026

Shenzhen Shengmu Technology Co., Ltd. 2026-01-06 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Shengmu Technology Co., Ltd. （No.806, Building 1, Baoxingzhihuicheng, No. 650, Zhoushi Road, Zhongwu Community, Hangcheng Street, Baoan District, Shenzhen City, China） <Signature>: Name: Jing Xiao Title: Manager Company: Shenzhen Shengmu Technology Co., Ltd.

Shenzhen Shengmu Technology Co., Ltd. 2026-01-06 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Jing Xiao Title: Manager Company: Shenzhen Shengmu Technology Co., Ltd.

Shenzhen Shengmu Technology Co., Ltd. 2026-01-06 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BP8Q-D6 Product Name: scent diffuser Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Jing Xiao Title: Manager Company: Shenzhen Shengmu Technology Co., Ltd.

Shenzhen Shengmu Technology Co., Ltd. FCC ID: 2BP8Q-D6 Product Similarity Declaration Applicant: Shenzhen Shengmu Technology Co., Ltd. Address: No.806, Building 1, Baoxingzhihuicheng, No. 650, Zhoushi Road, Zhongwu Community, Hangcheng Street, Baoan District, Shenzhen City, China Manufacturer: Shenzhen Shengmu Technology Co., Ltd. Address: No.806, Building 1, Baoxingzhihuicheng, No. 650, Zhoushi Road, Zhongwu Community, Hangcheng Street, Baoan District, Shenzhen City, China Product Name: scent diffuser Trade Mark: N/A Model Number: D6, S6, D5 We (Shenzhen Shengmu Technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), All models are the same as the samples except for the model name and appearance color. <Signature>: Name: Jing Xiao Title: Manager Company: Shenzhen Shengmu Technology Co., Ltd.

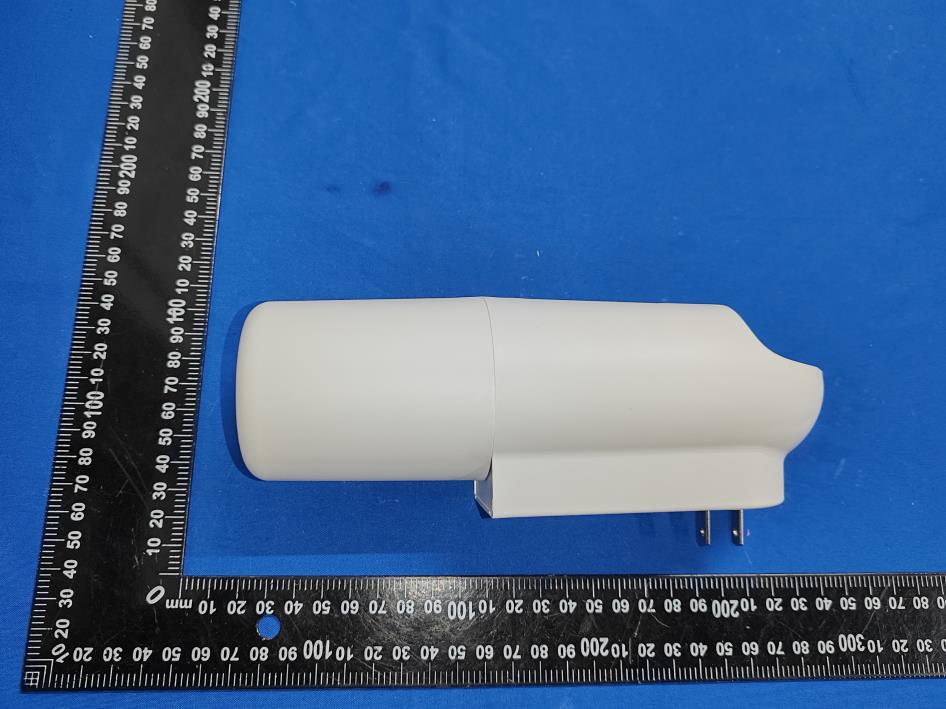

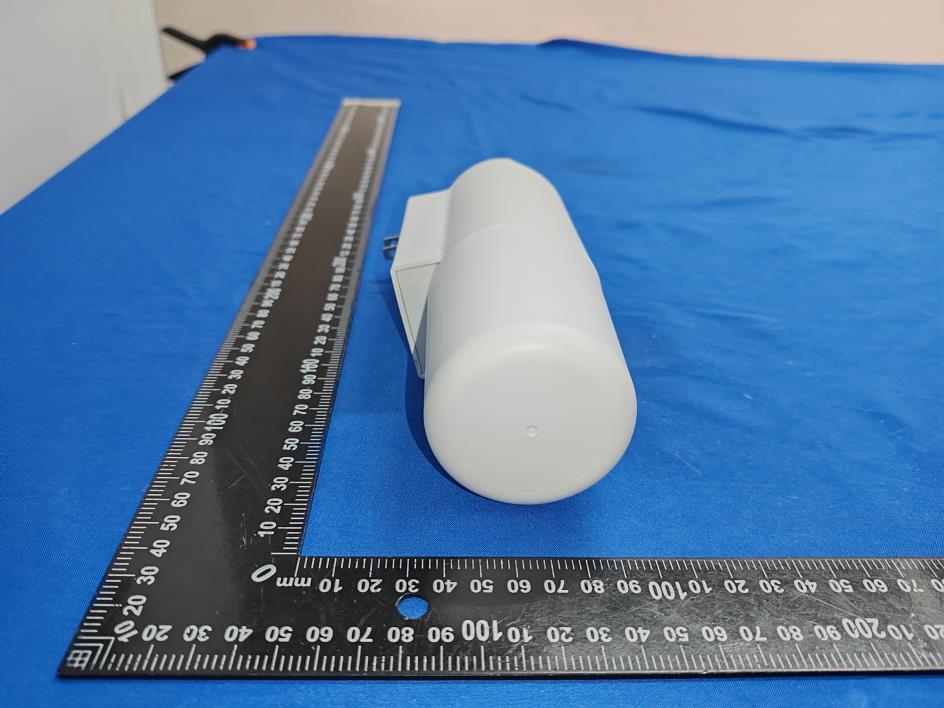

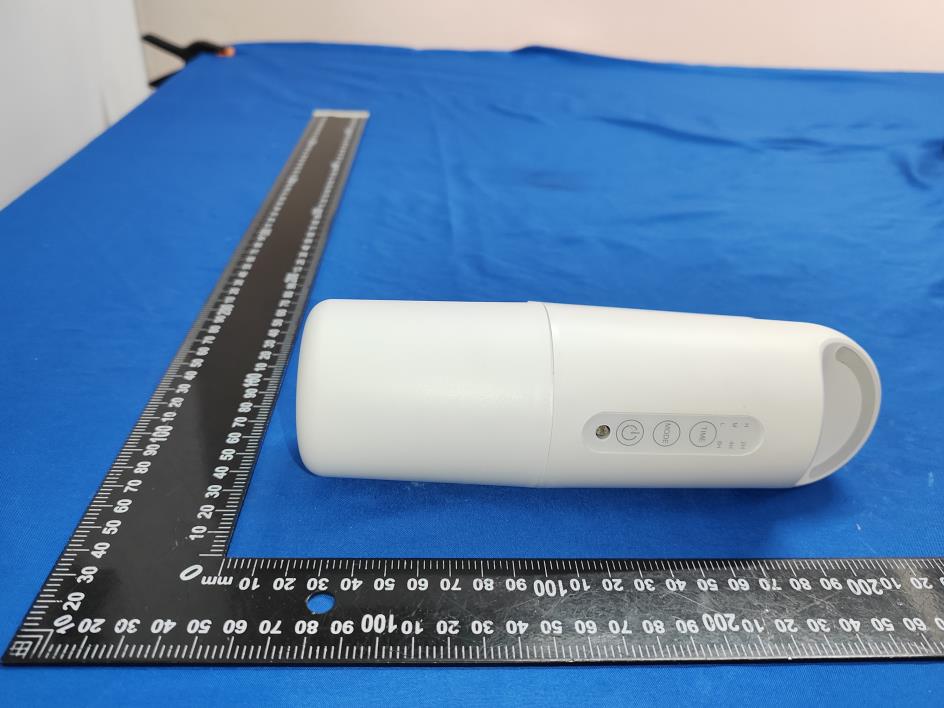

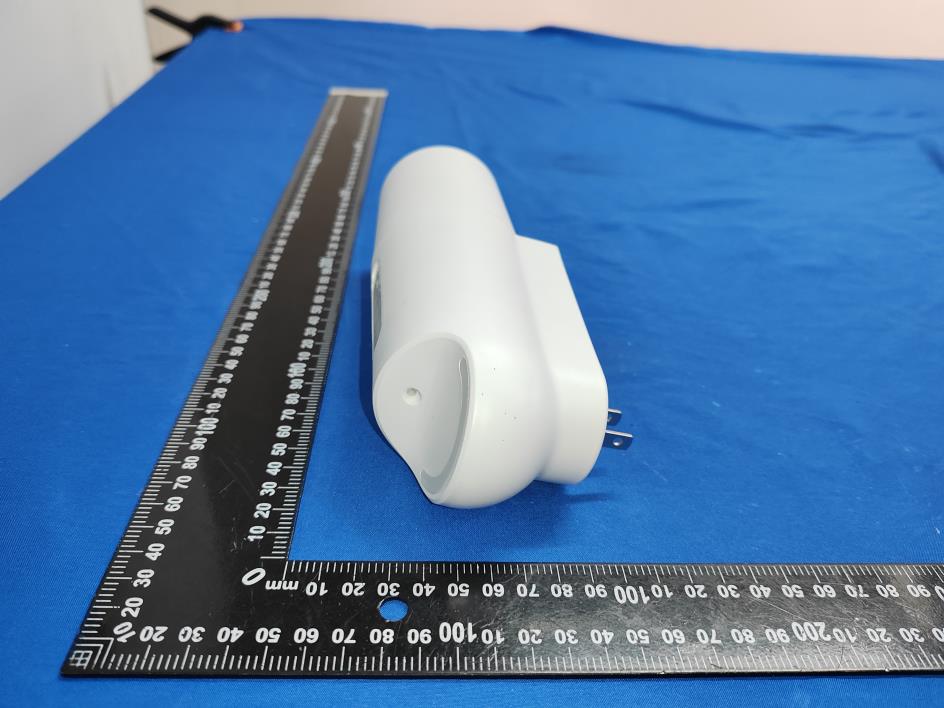

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 22*18mm Model.: D6 FCC ID: 2BP8Q-D6 Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ANT Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BP8Q-D6 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation For BT Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 3.79 2.39 0.0008 1.0 PASS Remark: antenna gain=2.338 dBi

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260106059R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 33 FCC Part 15C Test Report FCC ID: 2BP8Q-D6 Applicant: Shenzhen Shengmu Technology Co., Ltd. Address: No.806, Building 1, Baoxingzhihuicheng, No. 650, Zhoushi Road, Zhongwu Community, Hangcheng Street, Baoan District, Shenzhen City, China Manufacturer: Shenzhen Shengmu Technology Co., Ltd. Address: No.806, Building 1, Baoxingzhihuicheng, No. 650, Zhoushi Road, Zhongwu Community, Hangcheng Street, Baoan District, Shenzhen City, China Product Name: scent diffuser Trade Mark: N/A Model Number: D6, S6, D5 Date of Receipt: Jan. 06, 2026 Test Date: Jan. 06, 2026 - Jan. 16, 2026 Date of Report: Jan. 16, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-260106059R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260106059R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 33 Table of Contents Page 1. . SUMMARY OF TEST RESULTS 4 1.1. MEASUREMENT UNCERTAINTY 4 2. . GENERAL INFORMATION 5 2.1. GENERAL DESCRIPTION OF EUT 5 2.2. DESCRIPTION OF TEST MODES 6 2.3. BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4. DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5. TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6. EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3. . EMC EMISSION TEST 9 3.1. CONDUCTED EMISSION MEASUREMENT 9 3.1.1. POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2. TEST PROCEDURE 9 3.1.3. DEVIATION FROM TEST STANDARD 9 3.1.4. TEST SETUP 10 3.1.5. EUT OPERATING CONDITIONS 10 3.1.6. TEST RESULTS 11 3.2. RADIATED EMISSION MEASUREMENT 13 3.2.1. RADIATED EMISSION LIMITS 13 3.2.2. TEST PROCEDURE 14 3.2.3. DEVIATION FROM TEST STANDARD 14 3.2.4. TEST SETUP 14 3.2.5. EUT OPERATING CONDITIONS 15 3.2.6. TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7. TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8. TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 20 3.3.1 TEST REQUIREMENT: 20 3.3.2 TEST PROCEDURE 20 3.3.3 DEVIATION FROM TEST STANDARD 20 3.3.4 TEST SETUP 21 3.3.5 EUT OPERATING CONDITIONS 21 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 23 3.4.1 APPLICABLE STANDARD 23 3.4.2 TEST PROCEDURE 23 3.4.3 DEVIATION FROM STANDARD 23 3.4.4 TEST SETUP 23 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260106059R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 33 Table of Contents Page 3.4.5 EUT OPERATION CONDITIONS 23 3.4.6 TEST RESULTS 23 4. . PEAK OUTPUT POWER 26 4.1. APPLIED PROCEDURES / LIMIT 26 4.1.1. TEST PROCEDURE 26 4.1.2. DEVIATION FROM STANDARD 26 4.1.3. TEST SETUP 26 4.1.4. EUT OPERATION CONDITIONS 26 4.1.5. TEST RESULTS 27 5. . POWER SPECTRAL DENSITY TEST 29 5.1. APPLIED PROCEDURES / LIMIT 29 5.1.1. TEST PROCEDURE 29 5.1.2. DEVIATION FROM STANDARD 29 5.1.3. TEST SETUP 29 5.1.4. EUT OPERATION CONDITIONS 29 5.1.5. TEST RESULTS 29 6. . 6DB BANDWIDTH TEST 31 6.1. APPLIED PROCEDURES / LIMIT 31 6.1.1. TEST PROCEDURE 31 6.1.2. DEVIATION FROM STANDARD 31 6.1.3. TEST SETUP 31 6.1.4. EUT OPERATION CONDITIONS 31 6.1.5. TEST RESULTS 31 7. . ANTENNA REQUIREMENT 33 7.1. STANDARD REQUIREMENT 33 7.2. EUT ANTENNA 33 8. . TEST SEUUP PHOTO 33 9. . EUT PHOTO 33 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260106059R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 33 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(c) Radiated Spurious Emission PASS 15.205 Band Edge Emission PASS 15.247(b) Peak Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz 9 Power Spectral Density ±0.3dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260106059R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 33 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: scent diffuser Trade Mark: N/A Model Number: D6, S6, D5 Test Model: D6 Model Difference: All models are same as the samples except model name and appearance color, they have the same structure and circuit. Operation Frequency: 2402~2480MHz Channel numbers: 40 Channels Channel separation: 1MHz Data Rate: 1Mbps Modulation technology: GFSK Antenna Type: Internal Antenna Antenna gain: 2.338 dBi Power supply: AC 110-2…

Text truncated - open the document above for the full version.

2.4G-2.48G频段板载PIFA天线测试报告 2.4G-2.48GInvertedFAntennaSpecification SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.338 AverageGain（dBi）＞-5.5 VSWR＜3.2 Impedance（Ω）50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear ManufactureZHUHAIJIELITECHNOLOGYCO.,LTD Address: No.333KexingRoad,NanpingSciencePark,XiangzhouDistrict, Zhuhai TestequipmentHWA-TECH AntennaPhoto&Length(mm) 天线无源S参数： AntennapassiveS-parameters: 驻波比（ VSWR ）、回波损耗（ ReturnLoss ）及史密斯圆图（ Smith ） 天线效率及增益： Antennaefficiencyandgain ： Frequency（MHz）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24002.33859.39%-2.915-2.263 24101.60349.11%-3.883-3.088 24201.29546.04%-4.014-3.369 24300.38836.89%-4.91-4.331 24400.18734.00%-5.276-4.685 24500.0231.71%-5.431-4.988 24600.50734.88%-5.02-4.575 24700.29131.89%-5.323-4.963 24800.42932.89%-5.195-4.83 Average0.7839.64%-4.66-4.12 Peak2.33859.39%-2.915-2.263 天线2400MHz2D-ThetaPattern 天线2400MHz2D-PhiPattern 2400MHz3D-TotalPattern

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
