WIFI 11n 300M Repeater For Internal antenna wall mounted(MODEL:EX002/EX002A ) FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB.

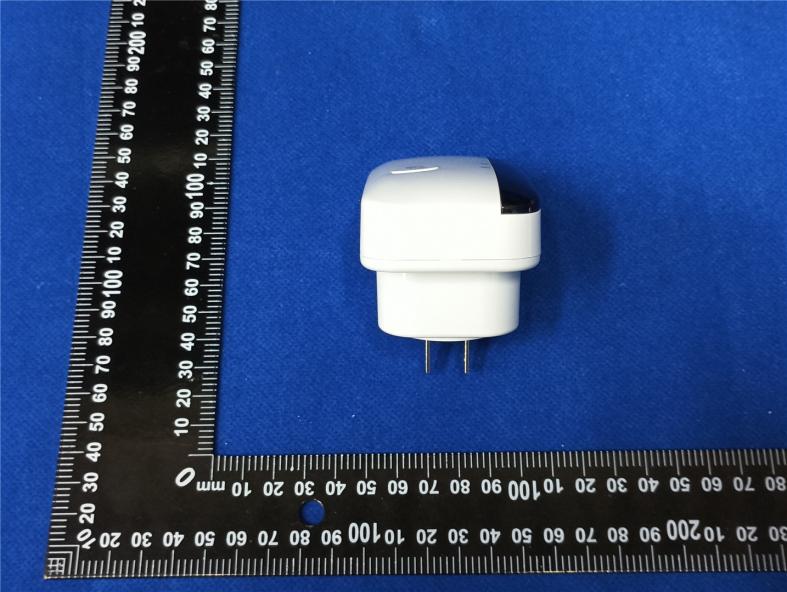

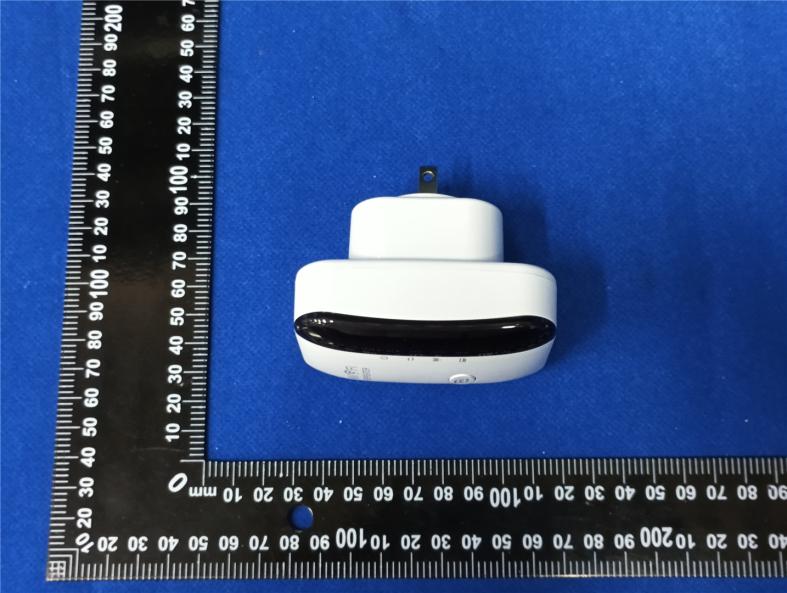

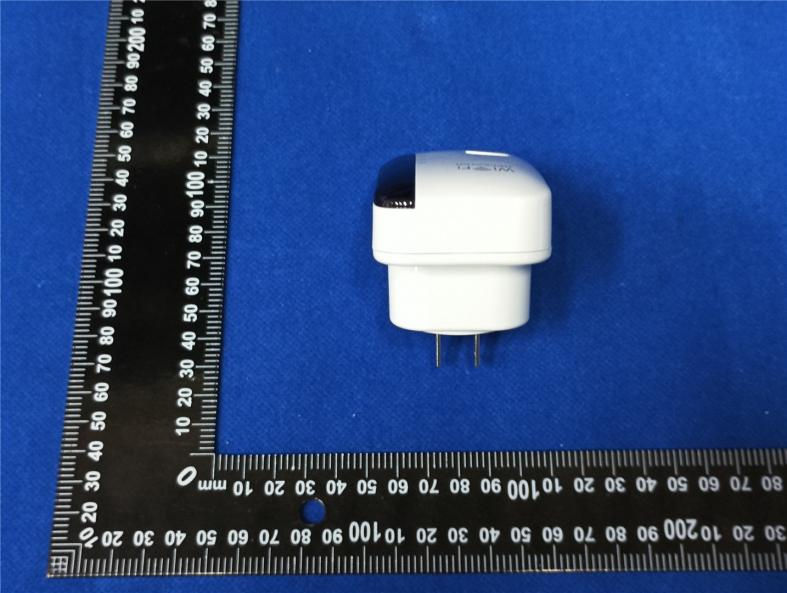

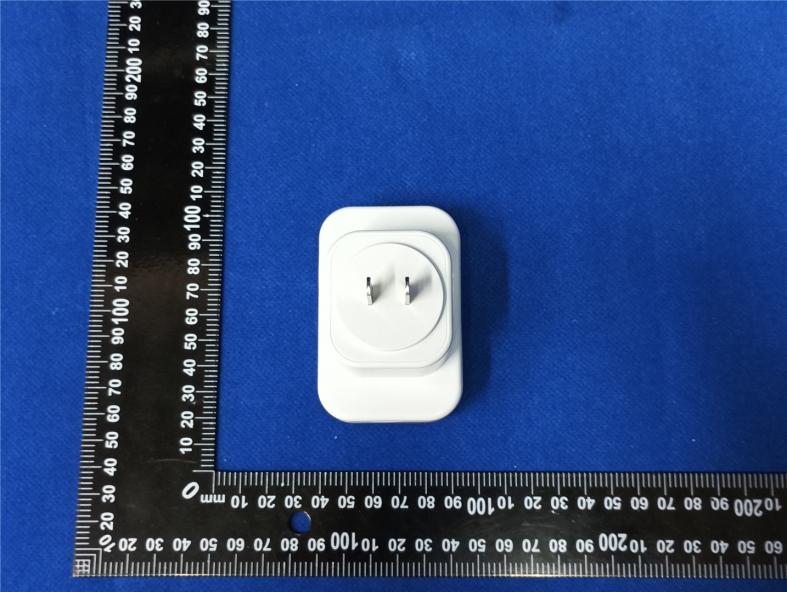

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: EX002 Model No.: EX002A EUT Constructional Details External Photo Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BPAY-EX002

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: EX002 Model No.: EX002A EUT Constructional Details Internal Photo Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Antenna Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT202505775F02 2BPAY-EX002 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jun. 06, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Lianying Zhida Technology Co., Ltd. Address............................................ : 3rd Floor, Building B, 115 Taoyuan Road, Taoyuan Community, Dalang Subdistrict, Longhua District, Shenzhen City, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : WIFI 11n 300M Repeater ( Internal antenna wall mounted) Manufacturer .................................... : Shenzhen Lianying Zhida Technology Co., Ltd. Trade Mark ........................................ LY Model/Type reference ...................... : EX002 Rating ............................................... : AC 110V-220V Result ............................................... : PASS Report No.: HTT202505775F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : WIFI 11n 300M Repeater ( Internal antenna wall mounted) Model /Type : EX002 Listed Models : EX002A Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Lianying Zhida Technology Co., Ltd. Address : 3rd Floor, Building B, 115 Taoyuan Road, Taoyuan Community, Dalang Subdistrict, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Lianying Zhida Technology Co., Ltd. Address : 3rd Floor, Building B, 115 Taoyuan Road, Taoyuan Community, Dalang Subdistrict, Longhua District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202505775F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 错误!未定义书签。 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT202505775F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT202505775F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : May. 30, 2025 Testing commenced on : May. 30, 2025 Testing concluded on : Jun. 06, 2025 2.2 Product Description Product Name: WIFI 11n 300M Repeater ( Internal antenna wall mounted) Model No.: EX002 Series model: EX002A Test sample(s) ID: HTT202505775-1(Engineer sample) HTT202505775-2(Normal sample) Channel numbers: 802.11b/802.11g /802.11n(HT20): 11 802.11n(HT40):7 Channel separation: 5MHz Modulation technology: 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n(H20)/802.11n(HT40): Orthogonal Frequency Division Multiplexing (OFDM) Antenna Type: PCB A…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model F030-000561 Frequency range 2400-2500MHz Manufacturer Shenzhen Xiongchuanglian Electronics Co., Ltd. Address No. 64 Baotong South Road, Xikeng community, Yuanshan Street, Longgang District, Shenzhen, China ANT Peak Gain 1.50 dBi 2. Antenna Photo: Unit: mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202505775F01 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 93 TEST Report Applicant: Shenzhen Lianying Zhida Technology Co., Ltd. Address of Applicant: 3rd Floor, Building B, 115 Taoyuan Road, Taoyuan Community, Dalang Subdistrict, Longhua District, Shenzhen City, China Manufacturer : Shenzhen Lianying Zhida Technology Co., Ltd. Address of Manufacturer : 3rd Floor, Building B, 115 Taoyuan Road, Taoyuan Community, Dalang Subdistrict, Longhua District, Shenzhen City, China Equipment Under Test (EUT) Product Name: WIFI 11n 300M Repeater ( Internal antenna wall mounted) Model No.: EX002 Series model: EX002A Trade Mark: LY FCC ID: 2BPAY-EX002 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: May. 30, 2025 Date of Test: May. 30, 2025 ~ Jun. 06, 2025 Date of report issued: Jun. 06, 2025 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 93 1. Version Version No. Date Description 00 Jun. 06, 2025 Original Tested/ Prepared By Date: Jun. 06, 2025 Project Engineer Check By: Date: Jun. 06, 2025 Reviewer Approved By : Date: Jun. 06, 2025 Authorized Signature Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 93 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 7 6. TEST RESULTS AND MEASUREMENT DATA ........................................................................................... 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED PEAK OUTPUT POWER ......................................................................................................... 12 6.3. CHANNEL BANDWIDTH .............................................................................................................................. 13 6.4. POWER SPECTRAL DENSITY ..................................................................................................................... 31 6.5. BAND EDGE ............................................................................................................................................. 48 6.5.1. Conducted Emission Method ......................................................................................................... 48 6.5.2. Radiated Emission Method ............................................................................................................ 60 6.6. SPURIOUS EMISSION ................................................................................................................................ 62 6.6.1. Conducted Emission Method ......................................................................................................... 62 6.6.2. Radiated Emission Method ............................................................................................................ 85 6.7. ANTENNA REQUIREMENT .......................................................................................................................... 92 7. TEST SETUP PHOTO .................................................................................................................................. 93 8. EUT CONSTRUCTIONAL DETAILS .........................…

Text truncated - open the document above for the full version.

Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 38 of 93 802.11g_MCH_2437MHz_Ant3 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant4 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 39 of 93 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant3 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant4 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 40 of 93 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant2 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant3 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 41 of 93 802.11n(HT20)_LCH_2412MHz_Ant4 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant2 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 42 of 93 802.11n(HT20)_MCH_2437MHz_Ant3 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant4 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 43 of 93 802.11n(HT20)_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant3 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant4 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 44 of 93 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant2 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant3 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 45 of 93 802.11n(HT40)_LCH_2422MHz_Ant4 (SISO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant2 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 46 of 93 802.11n(HT40)_MCH_2437MHz_Ant3 (SISO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant4 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 47 of 93 802.11n(HT40)_HCH_2452MHz_Ant2 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant3 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant4 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 48 of 93 6.5. Band Edge 6.5.1. Conducted Emission Method Test Requirement: FCC Part15 C Section 15.247 (d) Test Method: KDB558074 D01 15.247 Meas Guidance v05r02 Limit: In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Test setup: Test Instruments: Refer to section 6.0 for details Test mode: Refer to section 5.2 for details Test results: Pass Test environment: Temp.: 25 C Humid.: 52% Press.: 1012mbar Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 49 of 93 Test plot as follows: 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant3 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 50 of 93 802.11b_LCH_2412MHz_Ant4 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Gua…

Text truncated - open the document above for the full version.

Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 68 of 93 802.11n(HT40)_LCH_2422MHz_Ant4 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 69 of 93 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant3 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 70 of 93 802.11b_LCH_2412MHz_Ant4 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant2 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 71 of 93 802.11b_MCH_2437MHz_Ant3 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant4 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 72 of 93 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant3 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant4 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 73 of 93 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant2 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant3 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 74 of 93 802.11g_LCH_2412MHz_Ant4 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant2 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 75 of 93 802.11g_MCH_2437MHz_Ant3 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant4 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 76 of 93 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant3 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant4 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 77 of 93 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant2 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant3 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 78 of 93 802.11n(HT20)_LCH_2412MHz_Ant4 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant2 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 79 of 93 802.11n(HT20)_MCH_2437MHz_Ant3 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant4 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 80 of 93 802.11n(HT20)_HCH_2462MHz_Ant2 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant3 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant4 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 81 of 93 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant2 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant3 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 82 of 93 802.11n(HT40)_LCH_2422MHz_Ant4 (SISO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant2 (SISO)_NTNV Report No.: HTT202505775F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, B…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: EX002 Model No.: EX002A Test Setup Photo Radiated Emission Report No.: HTT202505775 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF TEST ------End------
