2BPCIBM-40A-RXBaby Monitor

Safety InstructionsWARNING STRANGULATION HAZARD-Children have STRANGLED in cords . K eep this cord out of the reach of children (more than 3 ft (1m) away). NEVER PLACE THE CAMERA OR CORD IN OR NEAR CRIB OR PLAYPEN. Secure the cord at least 3 ft away from crib or playpen. 01 02 CHOKING HAZARD-This product contains small parts which may cause choking. SHOCK WARNING-To prevent electric shock, NE VER use the transmitter or r eceiver near wat er, including near a bathtub, sink, laundry tub, wet basement, etc. CAUTION-Only insert a battery pack of the same type. Risk of expl osion if battery is replaced with an incorrect type. Use only the DC adapters provided.Adult assembly is required. Keep small parts away from children when you are assembling. This product is not a toy. Do not allow children to play with it.This product is NOT intended to replace proper adult supervision of children.You MUST check your child's activity regularly, as this product will not alert parents to silent activities of a child. Before using this product, read and follow all instructions and warnings contained in this booklet. Do not allow water damage to the camera un it, monitor unit, power adapter, or charging cable which cause overheat of the charging components. (ŲŦŲƭƵơĞƵŦŲȆĐŃóśƭľŃƙėƖóƙƭǔĐľóƙķŃŦķĐóďśĞơƭŲĐľóƙķĞƭľĞė ĞǍŃĐĞɔ¾ľ is may result in overheat of the charging port. Only use the charging cables provided in the box.(ŲŦŲƭƵơĞƵŦŲȆĐŃóśƭľ ird party power adapters, especially high wattage a dapters. This may r esult in overheat of the cable and/or charging port. Only use the adapter provided in the box. These devices, including Baby Camera and Baby Monitor, comply with P art 15 of the FCC rules. Operation is su bject to the following two conditions: These devices may not cause harmful interference.These devices must accept any int erference r eceived, including int erference that may cause undesired operation. Class B Digital Device. This equipment have been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to pro vide reasonable protection against harmful interference in a residential installation. This equipment g enerates, uses, and can ra diate r adio fr equency energy and, if not installed and used in accordance with the instructions, may ca use harmful interference to radio communications. However there is no guarantee that interference will not occur in a part icular installa tion. If this equip ment does cause harmful int erference to radio or television reception, which can be det ermined by tu rning the ĞƘƵŃƖŤĞŦƭŲȅóŦė on, the user is encouraged to try to correct the interference by one or more of the following measures. FCC Statements Warn user. The Federal Communications Commission warns the ƵơĞƙơƭľóƭĐľóŦķĞơŲƙŤŲėŃȊĐóƭŃŲŦơŲĶƭľĞƵŦŃ t not expressly approved by the party responsible for compliance could void the user’s a uthority to operate the equipment. Reorient or relocate the receiving antenna.Increase the distance between the equipment and receiver.!ŲŦŦĞĐƭƭľĞĞƘƵŃƖŤĞŦƭŃŦƭŲóŦŲƵƭśĞƭŲŦóĐŃƙĐƵŃƭėŃȅĞƙ ent from that to which the receiver is connected. Consult an experienced radio / TV technician for help. BME40P Baby Monitor BME40P User Manual 03 Product Overview 3 7 5 14 12 10 1 11 2 4 6 8 9 15 16 13 17 3 1 10 2 45 9 67 8 B o tt om 1. Me n u 2. PTZ(Default)/Volume & Brightness3 . Volume - / Left Butto n 4. Volume + / Right Butto n 7. OK / Switch Camer a 6 . Brightness - / Down Button 5. Brightness + / Up Button 9 . P o w e r B u tt o n 8. Ta lk Button 10. Micro p hone 11. V olu m e LED 12. Sc r ee n 1 3 . U S B- C P o rt 14. Spea k e r 1 5 . S t a n d 16. A ntenna 17. R eset 1. Lig h t Sensor 3. Microp h one 2. L e n s 4. S p eaker 5. A ntenna 7. U S B-C Por t 8. P o w e r LE D 9. WiFi ON / OFF Switc h 6. Tem p erature Sensor 1 0 . P a ir B u tt o n 04 05 Input Voltage: Operating Power: LCD Display: Power Adapter: Charging Cable:Full Charging Time: Duration(Standby Mode): Duration(Screen ON): Monitor Dimensions (L x W x H): 5V<1000mA4.3"TFT5V,1A80 in6 Hours20 Hours11 Hours5.91x3.15x0.71 in Monitor Unit 08 06 07 Menu Options Overview (Lower Screen Bar) Icon Description Option Camera OptionsAlarm SettingTemperature UnitVOX SensitivityScreen speaker outAlarm VolumeLullabyScreen Brightness Getting Started NOTE: Only use the enclosed camera Power Adapter. Menu OptionsStatus Indication Overview (Upper Screen Bar) Icon Description Option Camera SelectedNight VisionAlarm SettingLullabyCurrent CameraUnit TemperatureSignal Strength Indicator cam 1/cam 2/ cam 3/cam 4 scan 1/scan 2/scan 3/scan 4 Battery Power 5 levels ɦŲŦɚŲȅɧɦŲŦɚŲȅɧɦŲŦɚŲȅɧɦŲŦɚŲȅɧ34-97 F / 1-36 C 5 levels VOX Sensitivity / WiFi 5 levels Charging and Powering in the Baby MonitorTurn on the Camera UnitOnly use the USB-C adapter included in this package. Use the provided USB-C adapter to connect the wall outlet with the camera unit.Once the adapter is connected, the unit will turn on automati cally and the power LED will light up. Placement of the Baby MonitorThis camera can be pl aced on a tabletop or on the wall. Place the baby monitor in an airy place. Do not place on soft quilts or blankets or in the corners of cupboards, shelves, etc. Baby monitors and cameras with power cords should never be hung on or near the crib as it can cause strangulation hazard. Power cords should be kept no less than 3 ft away from the crib and the baby's reach at all times. Place the baby monitor away from heat sources such as radiators , chimneys, cookers and direct sunlight.Place the camera unit away from TV sets, microwave oven and radios. The intense radio signals generated by th ese elements could cause noise or even deteriorate sounds and images which appear on the monitor. If this occurs, move the camera to another location. Place the camera within 15 feet of the area being m onitored for best picture result. ±ƖĞĐŃȊĐóƭŃŲŦơ System GeneralModel …

Text truncated - open the document above for the full version.

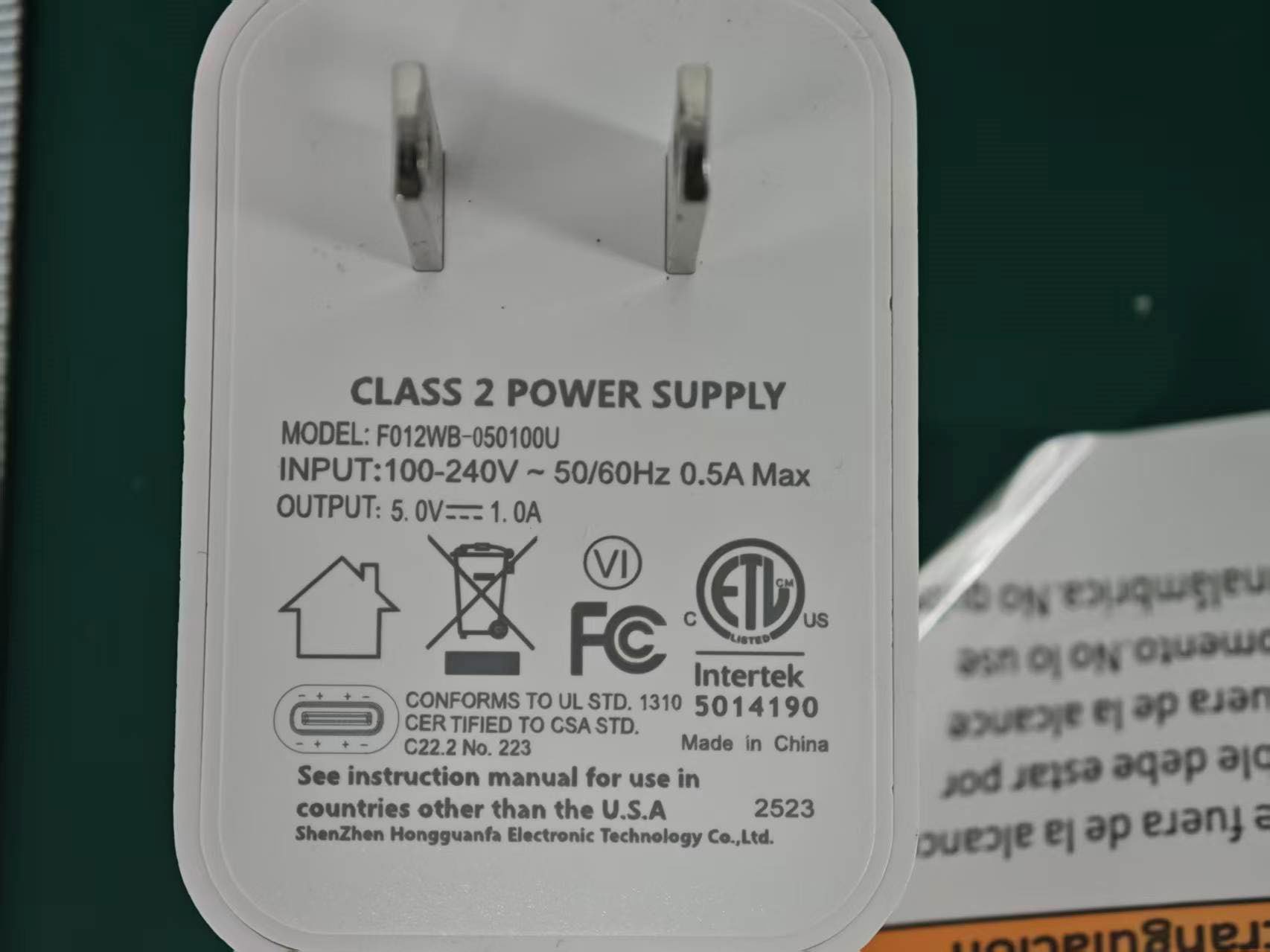

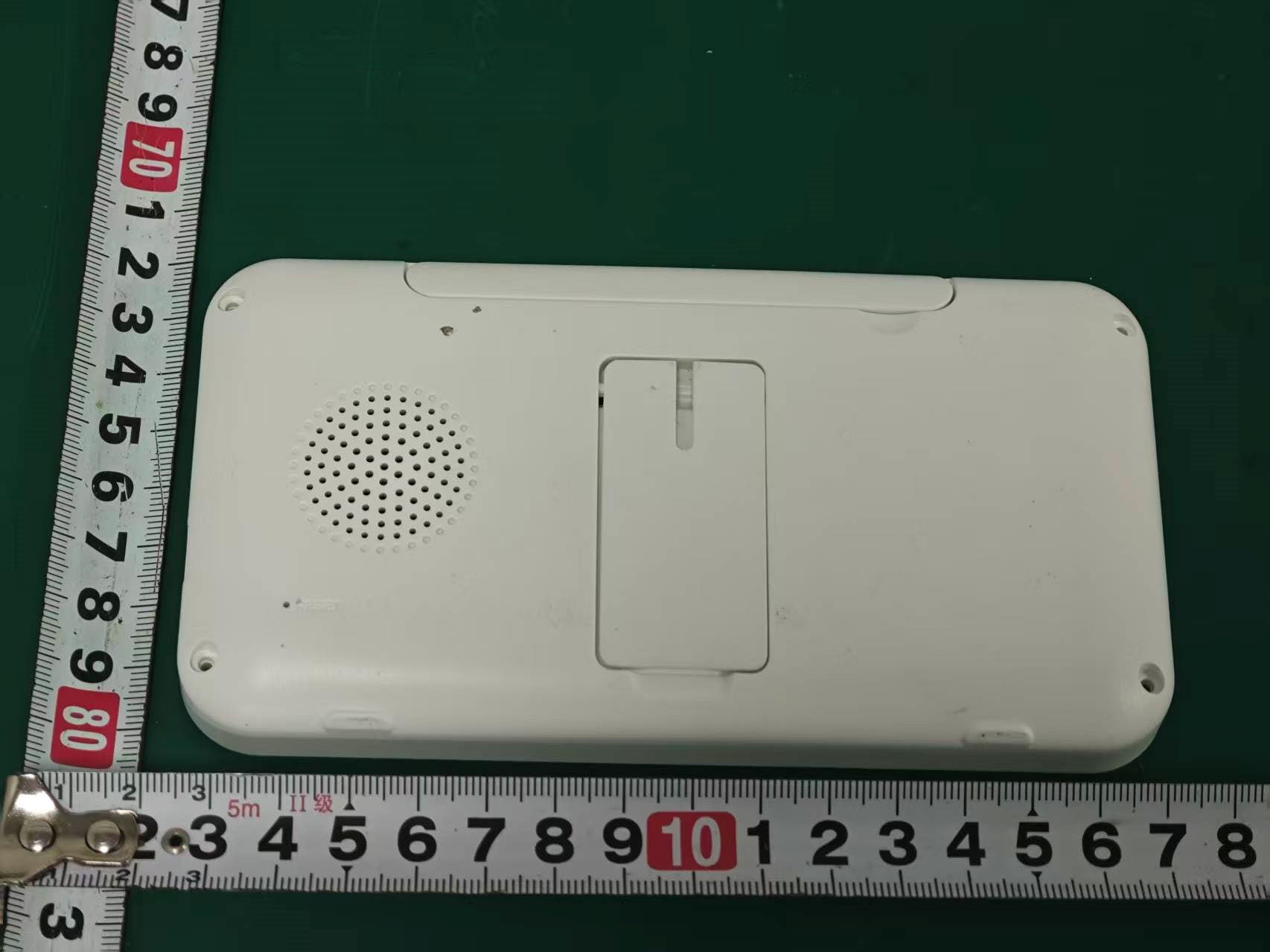

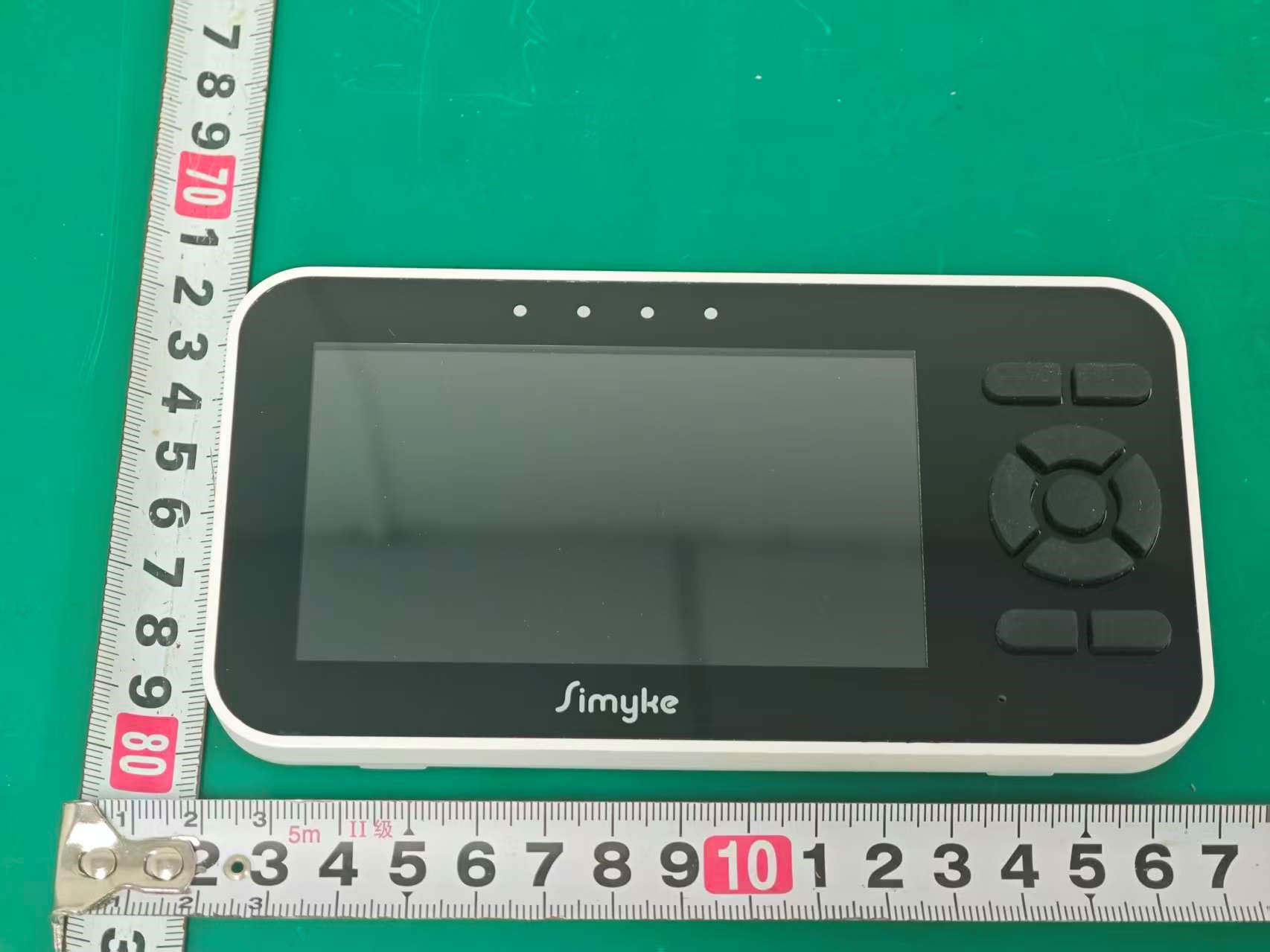

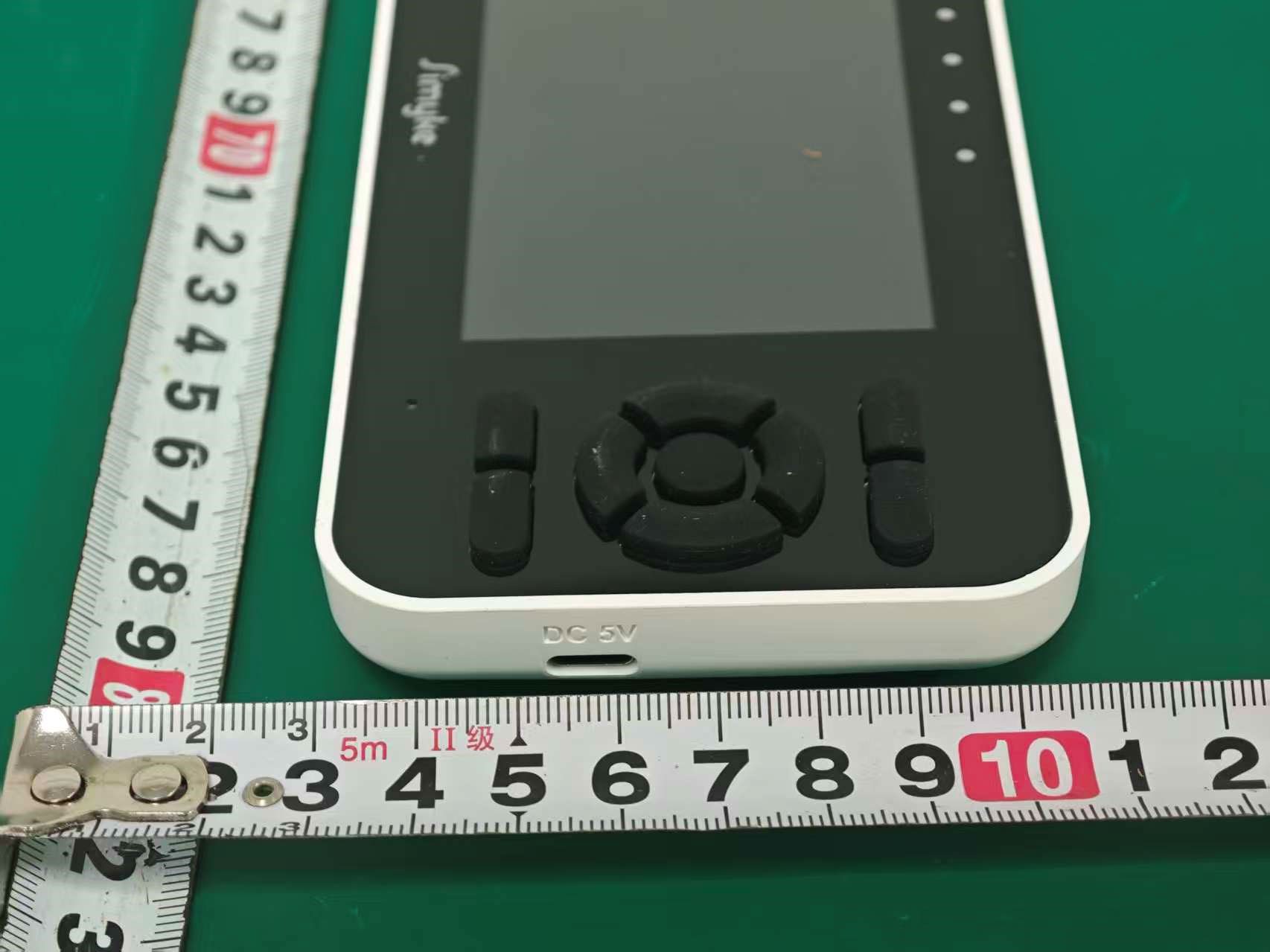

Internal Photos M/N: BM-40A-RX BT/WIFI Antenna Internal Photos M/N: BM-40A-RX Internal Photos M/N: BM-40A-RX Internal Photos M/N: BM-40A-RX

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz Conducted emission test:

东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 规 格 承 认 书 SPECIFICATION FOR APPROVAL 日 期 Date 2026/02/27 编 号 File No 26022701 版 本 Revision 1.0 客 户 CUSTOMER: 恩威视 客户料号 CUSTOMER NO: RC1518 品 名 PART NAME: 2.4G Antenna L=42mm MHF 供方料号 SUPPLIER NO: YJT01.182.036.101A 送样日期Date: 送样数量Q'TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认 SUPPLIER SIGNATURE APPROVALCHECKDESIGN ChenGuoqiangZhangLiqunLiaoGuangxi YJ-RD-F04-A 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 承认书项目表 NO. 内 容 （Contents） 页 数 （Number of Page） 页 码 （Page Code） 1承认书封面（Spec Cover）11 2承认书项目表（Spec Item ）12 3工程成品图 （Drawing）13 4天线规格（Antenna Specification）14 5S参数测试 （S Parameter ）15 6无源测试 （Passive Test ）26 ~ 7 7方向图（Radiation Pattern ）28 ~ 9 8匹配电路（Matching Network）110 9天线装配图（Antenna Profile）311 ~ 13 10材质证明（ Material Certificate ） 1 31 14 ~ 44 1RoHS报告（ RoHS Test Report ）**** 12N/AN/AN/A 13--- D C REV. E DESCRIPTION DATE B 8675 4 A 123 A 首次发行 2026-01-30 YJT01.182.036.101A NOPART NAMEDESCRIPTION 1 2 Q.TY 1 1 Mini Connector Au Plated 1代 2.4G Antenna L=42mm MHF 8675 4 123 B 31 ABS 757;Color:WhiteAntenna Cap Coaxial Cable O.D. 1.13mm Gray 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 4.1 dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector1-IPEX Cable TypeO.D.1.13mm Cable Length42mm Cable ColorGray Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Agilent E5071C S Parameter Test // 2.4G Antenna 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Z Y X Y X Z Antenna Passive Test 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Passive Test For 2.4G Antenna Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 65.4-1.82.4 2410 69.8-1.62.7 2420 67.4-1.73.0 2430 65.1-1.92.7 2440 63.1-2.02.6 2450 67.8-1.73.5 2460 68.4-1.73.8 2470 70.6-1.54.1 2480 71.1-1.53.9 2490 67.8-1.73.6 2500 68.8-1.63.4 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For 2.4G Antenna 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For 2.4G Antenna Phi 0° Phi 90° Theta 90° 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Matching Circuit 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 Device 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 2.4G Antenna 东莞市长安镇沙头社区木鱼路59号 Tel:0769-82586086 Fax:0769-82586086 同轴线注意摆放 江阴凯博通信科技有限公 NGBPC26000015821 司 环境有关物质材质证明书 CertificationoftheRawMaterialofEnvironmentSubstance 公司名称 CompanyName 江阴凯博通信科技有限公司 制造商名称 Manufacturer 江阴凯博通信科技有限公司 产品重量 ProductWeight 3.1g/m 产品料号 PartNo. 产品名 KB113/50-003D 称 ProductName 客户料 RF1.13银锡色 号 P/N. 填写人姓名/部门 Name/Dept. 联络电 /工程部 话 Telephone (0510-86070002) [email protected] 兹证明向贵公司销售的产品和半成品中，使用之原材料，包装材料以及生产工程中，不含有贵公司规定的相关禁止使用物质。 另，向贵公司报告成品、半成品中使用的原材料、包装材料以及生产工程中的添加剂成分如下所述： RoHS及其它环保物质填写 项次 Item 零件 名称 Material Name 原料厂 Vendor 材质 Substance 重量(g) Weight 组成成份 含百分 Substance Composition 比 (%)Substance Amount 化验报告NO. TestReportNo. 限用物质含量(单位：PPM) 铅 (Pb) 镉 (Cd) 汞 (Hg) 六价铬 (Cr+6) PBBPBDESONYPFOSPFOAPVC 卤素 (Cl、Br) 其它项目 Othersubstance 1. 导体 恒丰镀银铜线0.33 铜 N 10.46% SHAEC25028332819 DNDNDNDNDNDN/ANDN/AN/AN/A 银 0.19% 2. 绝缘 巨化FEP0.75FEP 24.19%NDNDNDNDNDNDN/AN/AN/AN/AND 3. 编织 镀锡铜 线1.2 铜 NDNDNDNDNDNDN/AN/AN/AN/AN/A 锡 4 0.39% . 护套 巨化FEP 0.82 FEP 21.16%N NGBPC26000015815 DNDNDNDNDNDN/AN/AN/AN/AND 见龙 FEFEP色P NDNDNDNDNDNDN/ANDNDN/AND 使用材料请贴图示于此栏，并标项次： 38.32% A2250642229101001 5.29% A2250269592101003E NGBPC26000015815 NGBPC26000015821 Page 1 of 7 MATERIALSAFETYDATASHEET 物质安全资料表 1、CHEMICALPRODUCTANDCOMPANYIDENTIFICATION： 产品和公司名称 PRODUCTNAME:CopperCladLaminate（FR-4） 产品名称：覆铜箔板（FR-4） PRODUCTUSE:Substrateforprintedcircuitry;MultilayerBoards 用途：用于印制印刷电路板；制作多层板 NAMEOFCOMPANYandADDRESS:GoldenmaxInternationalTechnology(zhuhai)Ltd. NO.8QinShiRoad,SanzaoTown,ZhuhaiCity Guangdong,China 公司名称及地址：金安国纪科技（珠海）有限公司 中国广东珠海三灶科技工业园琴石路 8 号 FORMOREINFORMATIONCALL: 紧急联络电话：86-0756-7638610 Fax:86-0756-7762356 E-mail：[email protected] 2、COMPOSITION/INFORMATIONONINGREDIENTS： 组成成分资料 INGREDIENTNAMECAS#WEIGHT% 成分名称化学文摘号重量比 ContinuousFilamentFiberGlass（65997-17-3）30-65 玻纤布 Copper（7440-50-8）9-30 铜箔 EpoxyResin （ 26265-08-7 ） 35-70 溴化环氧树脂 3、HAZARDSIDENTIFICATION： 危害性资料 Page 2 of 7 EMERGENCYOVERVIEW 紧急情况概述： Anonflammablesheetmaterial,Dustwhenmachinedorpunchedmaycauseskinoreye irritation.Fumesifdecomposedmayirritateeyes.noseandthroat. 是一种难燃的层压板，当使用或打孔时可能产生粉末，可能使皮肤或眼睛感到刺激。当分解 时产生的气体会刺激眼睛、鼻和咽喉。 POTENTIALHEALTHHAZARDS: 潜在危害： SKIN:Dustmaycausemoderateskinirritation. 皮肤：粉末将导致中等程度皮肤过敏。 EYES:Dustmaycausemoderateeyeirritation.Fumesmayirritationeyes. 眼睛：粉末将导致中等程度眼睛过敏。 INHALATION:Fibrousglassdustmaybereleasedfromthefiberglassclothsubstratewhen machined.ACGIHTLVis10mg/m3TWAforparticles<5micronsindiameter. 吸入物：当使用玻璃纤维布时玻璃纤维粉末可能会飞散出。对于直径<5微米的颗粒ACGIH TLV 是 10mg/m3 。 INGESTION:Notdetermined. 摄食：没有参考值。 DELAYEDEFFECTS:Ourproductisreinforcedwithcontinuousfilamentfiberglass.Dust generatedfromthecutting.grinding.machiningetc.wouldnotbeexpectedto producerespirableparticles.IARCconsiderscontinuousfilamentsas unclassifiableorprobablynon-carcinogenic. 慢性影响：我们的产品用的是加强型连续的玻璃纤维丝，当切割、打孔加工时不会产生可吸 入的颗粒。IARC没有把连续玻璃丝列入致癌物目录。 4、FIRSTAIDMEASURES： 急救措施 SKIN:Washinflowingwaterorshower.Removecontaminatedclothing. 皮肤：脱下已污染的衣服，用流动水冲洗。 EYE:Irrigatewithflowingwaterfor15minutes.Ifirritationpersistsconsultaphysician. 眼睛：用流动水冲洗15分钟，如过敏现象持续发生，请求助医生。 INHALATION:Ifovercomebydustorsmokemovetofreshair.Ifnotbreathinggivemouth-to- mouthresuscitation.Callphysician. 吸入：如粉末烟尘太多请转移到有新鲜空气的地方，如停止了呼吸，请进行人工呼吸并致电 医生。 Page 3 of 7 INGESTION:Iflargeamountsareingestedconsultphysician. 摄食：如吸入大量，请致电医生。 ADVICETOPHYSICIAN:Treatsymptomatically. 建议医生：处理出现的症状。 5 、 FIREFIGHTINGMEASURES ： 消防措施 FLAMMABLEPROPERTIES:n/a易燃性：不适用 FLASHPOINT:n/a 闪点：不适用 FLASHPOINTMETHOD:n/a闪点方式：不适用 UPPERFLAMELIMITE%:n/a燃烧上限：不适用 LOWERFLAMELIMITE%:n/a 燃烧下限：不适用 FLAMEPROPAGATIONRATE(solids):UL94V-0燃烧等级：UL94V-0 OSHAFLAMMABILITYCLASS:n/a燃烧级别：不适用 EXTINGUISHINGMEDIA:Water.CO2anddrychemical 灭火介质：水…

Text truncated - open the document above for the full version.

Page 1 of 48 Report No.ESTE-R2604244 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Guangdong Envision Technology Limited Baby Monitor Model Number: BM-40A-RX Additional Model: BME40P RX, EBE40P RX, ENVIE40P RX FCC ID: 2BPCIBM-40A-RX Applicant: Guangdong Envision Technology Limited Address: No.3 Building, 305 Kangle Nan Road, Houjie Town, Dongguan City, Guangdong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2604244 Date of Test: Mar. 06, 2026 to Apr. 20, 2026 Date of Report: Apr. 24, 2026 Page 2 of 48 Report No.ESTE-R2604244 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test Mode .......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 9 2.8. Duty Cycle .......................................................................................................................................... 9 2.9. Channel List ..................................................................................................................................... 10 2.10. Test Equipment List ...................................................................................................................... 11 3. 6DB BANDWIDTH ............................................................................................................................ 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. POWER SPECTRAL DENSITY .......................................................................................................... 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. CONDUCTED BAND EDGE .............................................................................................................. 16 6.1. Limit .....................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 25 Report No.ESTE-R2604244 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.678 2401.643 2402.321 0.5 PASS BLE_1M Ant1 2440 0.675 2439.643 2440.318 0.5 PASS BLE_1M Ant1 2480 0.678 2479.646 2480.324 0.5 PASS BLE_2M Ant1 2402 1.338 2401.310 2402.648 0.5 PASS BLE_2M Ant1 2440 1.344 2439.310 2440.654 0.5 PASS BLE_2M Ant1 2480 1.320 2479.310 2480.630 0.5 PASS Page 2 of 25 Report No.ESTE-R2604244 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 3 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 4 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2480-PASS Page 5 of 25 Report No.ESTE-R2604244 Appendix B: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -1.69 ≤30 PASS BLE_1M Ant1 2440 -2.51 ≤30 PASS BLE_1M Ant1 2480 -2.51 ≤30 PASS BLE_2M Ant1 2402 -3.46 ≤30 PASS BLE_2M Ant1 2440 -3.03 ≤30 PASS BLE_2M Ant1 2480 -2.44 ≤30 PASS Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 6 of 25 Report No.ESTE-R2604244 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 7 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 8 of 25 Report No.ESTE-R2604244 Page 9 of 25 Report No.ESTE-R2604244 Appendix C: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -17.19 ≤8.00 PASS BLE_1M Ant1 2440 -18.17 ≤8.00 PASS BLE_1M Ant1 2480 -18.01 ≤8.00 PASS BLE_2M Ant1 2402 -23.32 ≤8.00 PASS BLE_2M Ant1 2440 -22.67 ≤8.00 PASS BLE_2M Ant1 2480 -22.14 ≤8.00 PASS Page 10 of 25 Report No.ESTE-R2604244 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 11 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 12 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2480-PASS Page 13 of 25 Report No.ESTE-R2604244 Appendix D: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] BLE_1M Ant1 2402 2402.23 -2.99 BLE_1M Ant1 2440 2440.22 -3.99 BLE_1M Ant1 2480 2480.23 -4.08 BLE_2M Ant1 2402 2402.15 -7.28 BLE_2M Ant1 2440 2439.97 -6.70 BLE_2M Ant1 2480 2479.96 -6.18 Page 14 of 25 Report No.ESTE-R2604244 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 15 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 16 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2480-PASS Page 17 of 25 Report No.ESTE-R2604244 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -2.99 -39.77 ≤-22.99 PASS BLE_1M Ant1 High 2480 -4.08 -39.59 ≤-24.08 PASS BLE_2M Ant1 Low 2402 -7.28 -38.07 ≤-27.28 PASS BLE_2M Ant1 High 2480 -6.18 -38.74 ≤-26.18 PASS Page 18 of 25 Report No.ESTE-R2604244 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 19 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2480-PASS Page 20 of 25 Report No.ESTE-R2604244 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 30~26500 -2.99 -42.33 ≤-22.99 PASS BLE_1M Ant1 2440 30~26500 -3.99 -41.44 ≤-23.99 PASS BLE_1M Ant1 2480 30~26500 -4.08 -41.85 ≤-24.08 PASS BLE_2M Ant1 2402 30~26500 -7.28 -41.5 ≤-27.28 PASS BLE_2M Ant1 2440 30~26500 -6.70 -41.96 ≤-26.7 PASS BLE_2M Ant1 2480 30~26500 -6.18 -41.55 ≤-26.18 PASS Page 21 of 25 Report No.ESTE-R2604244 Test Graphs BLE_1M-Ant1-2402-30~26500-PASS BLE_1M-Ant1-2440-30~26500-PASS BLE_1M-Ant1-2480-30~26500-PASS Page 22 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2402-30~26500-PASS BLE_2M-Ant1-2440-30~26500-PASS Page 23 of 25 Report No.ESTE-R2604244 BLE_2M-Ant1-2480-30~26500-PASS Page 24 of 25 Report No.ESTE-R2604244 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2440 20.00 20.00 100.00 0.00 BLE_2M Ant1 2440 18.00 18.00 100.00 0.00 Page 25 of 25 Report No.ESTE-R2604244 Test Graphs NTNV-BLE_1M-Ant1-2440 NTNV-BLE_2M-Ant1-2440

Page 1 of 42 Report No. ESTE-R2604245 FCC PART 15C REPORT FOR CERTIFICATION On Behalf of Guangdong Envision Technology Limited Baby Monitor Model Number: BM-40A-RX Additional Model: BME40P RX, EBE40P RX, ENVIE40P RX FCC ID: 2BPCIBM-40A-RX Applicant: Guangdong Envision Technology Limited Address: No.3 Building, 305 Kangle Nan Road, Houjie Town, Dongguan City, Guangdong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2604245 Date of Test: Mar. 06, 2026 to Apr. 20, 2026 Date of Report: Apr. 24, 2026 Page 2 of 42 Report No. ESTE-R2604245 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 6 1.3. Information of RF Cable ................................................................................................................... 6 2. SUMMARY OF TEST ........................................................................................................................... 7 2.1. Summary of test result ..................................................................................................................... 7 2.2. Test Facilities ..................................................................................................................................... 8 2.3. Measurement uncertainty ................................................................................................................ 9 2.4. Assistant equipment used for test .................................................................................................. 9 2.5. Block Diagram ................................................................................................................................... 9 2.6. Test Mode ........................................................................................................................................ 10 2.7. Power Setting of Test Software .................................................................................................... 11 2.8. Duty Cycle ........................................................................................................................................ 11 2.9. Channel List ..................................................................................................................................... 12 2.10. Test Equipment List ...................................................................................................................... 13 3. 6DB BANDWIDTH............................................................................................................................ 15 3.1. Limit ................................................................................................................................................... 15 3.2. Test Setup ........................................................................................................................................ 15 3.3. Spectrum Analyzer Setting ............................................................................................................ 15 3.4. Test Procedure ................................................................................................................................ 15 3.5. Test Result ....................................................................................................................................... 15 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 16 4.1. Limit ................................................................................................................................................... 16 4.2. Test Setup ........................................................................................................................................ 16 4.3. Spectrum Analyzer Setting ............................................................................................................ 16 4.4. Test Procedure ................................................................................................................................ 16 4.5. Test Result ....................................................................................................................................... 16 5. POWER SPECTRAL DENSITY .......................................................................................................... 17 5.1. Limit ................................................................................................................................................... 17 5.2. Test Setup ........................................................................................................................................ 17 5.3. Spectrum Analyzer Setting ............................................................................................................ 17 5.4. Test Procedure ................................................................................................................................ 17 5.5. Test Result ....................................................................................................................................... 17 6. CONDUCTED BAND EDGE .............................................................................................................. 18 6.1. Limit ............................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 43 Report No.ESTE-R2604245 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.040 2407.960 2416.000 0.5 PASS 11B Ant1 2437 8.520 2432.960 2441.480 0.5 PASS 11B Ant1 2462 8.040 2457.960 2466.000 0.5 PASS 11G Ant1 2412 16.360 2403.800 2420.160 0.5 PASS 11G Ant1 2437 16.320 2428.840 2445.160 0.5 PASS 11G Ant1 2462 16.360 2453.800 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.840 2403.200 2421.040 0.5 PASS 11N20SISO Ant1 2437 12.840 2430.120 2442.960 0.5 PASS 11N20SISO Ant1 2462 17.880 2452.840 2470.720 0.5 PASS 11N40SISO Ant1 2422 32.480 2404.560 2437.040 0.5 PASS 11N40SISO Ant1 2437 32.400 2419.560 2451.960 0.5 PASS 11N40SISO Ant1 2452 27.440 2439.520 2466.960 0.5 PASS Page 2 of 43 Report No.ESTE-R2604245 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS Page 3 of 43 Report No.ESTE-R2604245 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS Page 4 of 43 Report No.ESTE-R2604245 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS Page 5 of 43 Report No.ESTE-R2604245 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS Page 6 of 43 Report No.ESTE-R2604245 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS Page 7 of 43 Report No.ESTE-R2604245 11N40SISO-Ant1-2452-PASS Page 8 of 43 Report No.ESTE-R2604245 Appendix B: Maximum conducted output power Test Result Peak TestMode Antenna Frequen cy[MHz] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 -1.14 ≤30.00 PASS 11B Ant1 2437 -0.99 ≤30.00 PASS 11B An…
