2BPFF-G13-1Carplay

Carplay Android Auto Please connect Bluetooth and WIFI Password 88888888 2in1 Insert the original car's Carplay USB interface About Use Step 1: Simply plug it into the original CarPlay interface and wait for the box interface to appear. Step 2: Turn on the Bluetooth and Wi-Fi on your phone. Step 3: Connect the Bluetooth and Wi-Fi of your phone to "SmartBox - XXXX". Step 4: Once successfully connected, a CarPlay window will pop up on your phone. Click "Use CarPlay" to enter the CarPlay interface. For Factory Wired Cars (2016+)/ IOS 10+/ Android 11+ FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2BPFF-G13-1G13-1,G15-1,G16-1,G16,G13,G15,G14 Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionof anyCommission-relatedproceedinginvolvingtheequipment. iv.Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,the granteeisobligatedtonotifytheFCCwithin30daysviathegrantingTCB. US-AmericanPointofContactApplicant/ApprovalHolder SignatureDate:2026-4-23SignatureDate:2026-4-23 CompanyName:GLOCERTSTECHNOLOGYINCShenzhenXinwang OptoelectronicDisplay TechnologyCo.,Ltd. FRN:00363397370037035011 ContactName:HuiyingFanJinHeNi Address:19784SUNKISSEDRIDGEDR, RIVERSIDE,CA92507UnitedStates Room502,Jintianbldg.,Kaitian STP,PinghuSD,Longgang District,Shenzhen,China Phone:(626)588-803915173508199 Email:[email protected]@qq.com

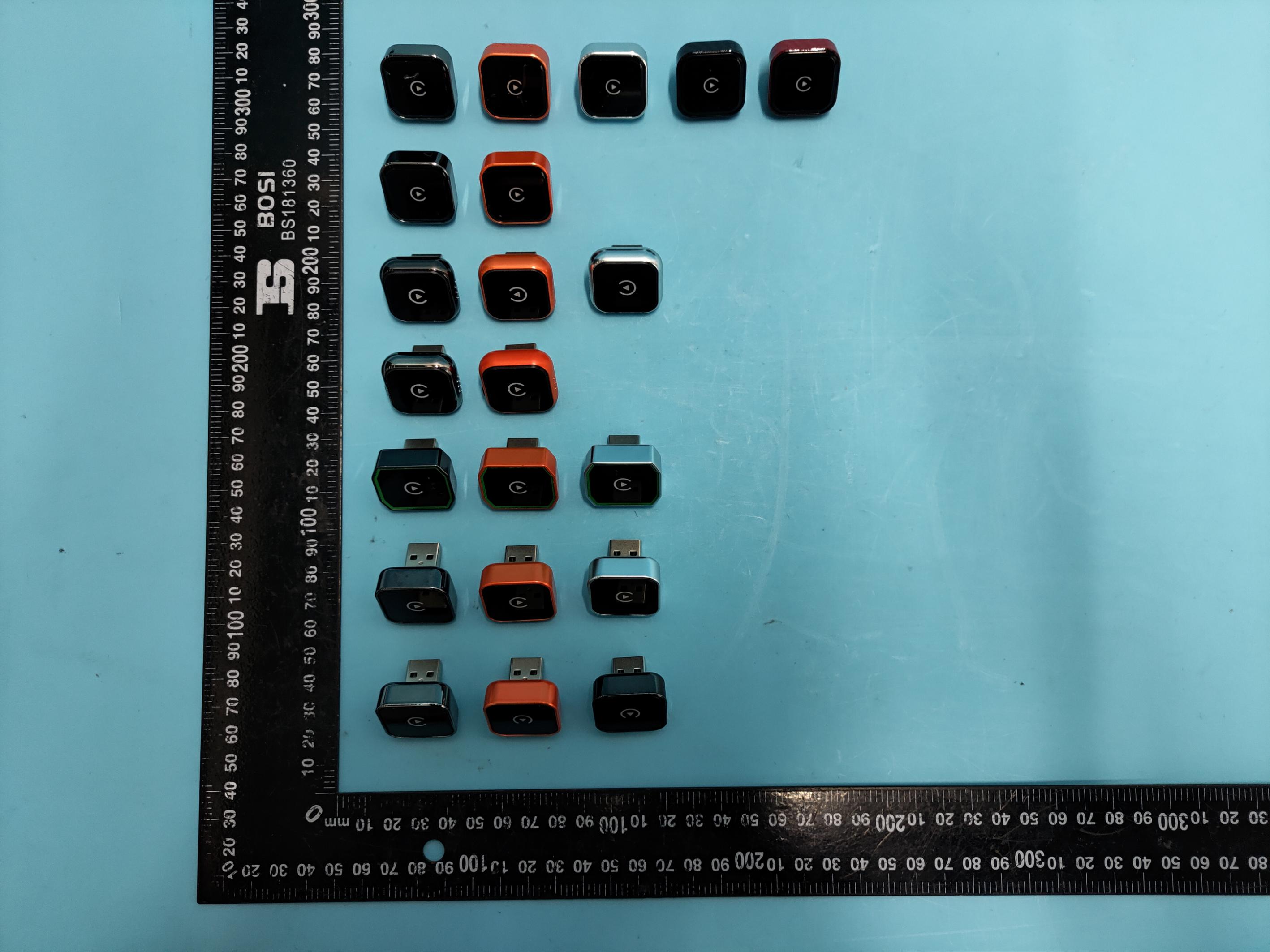

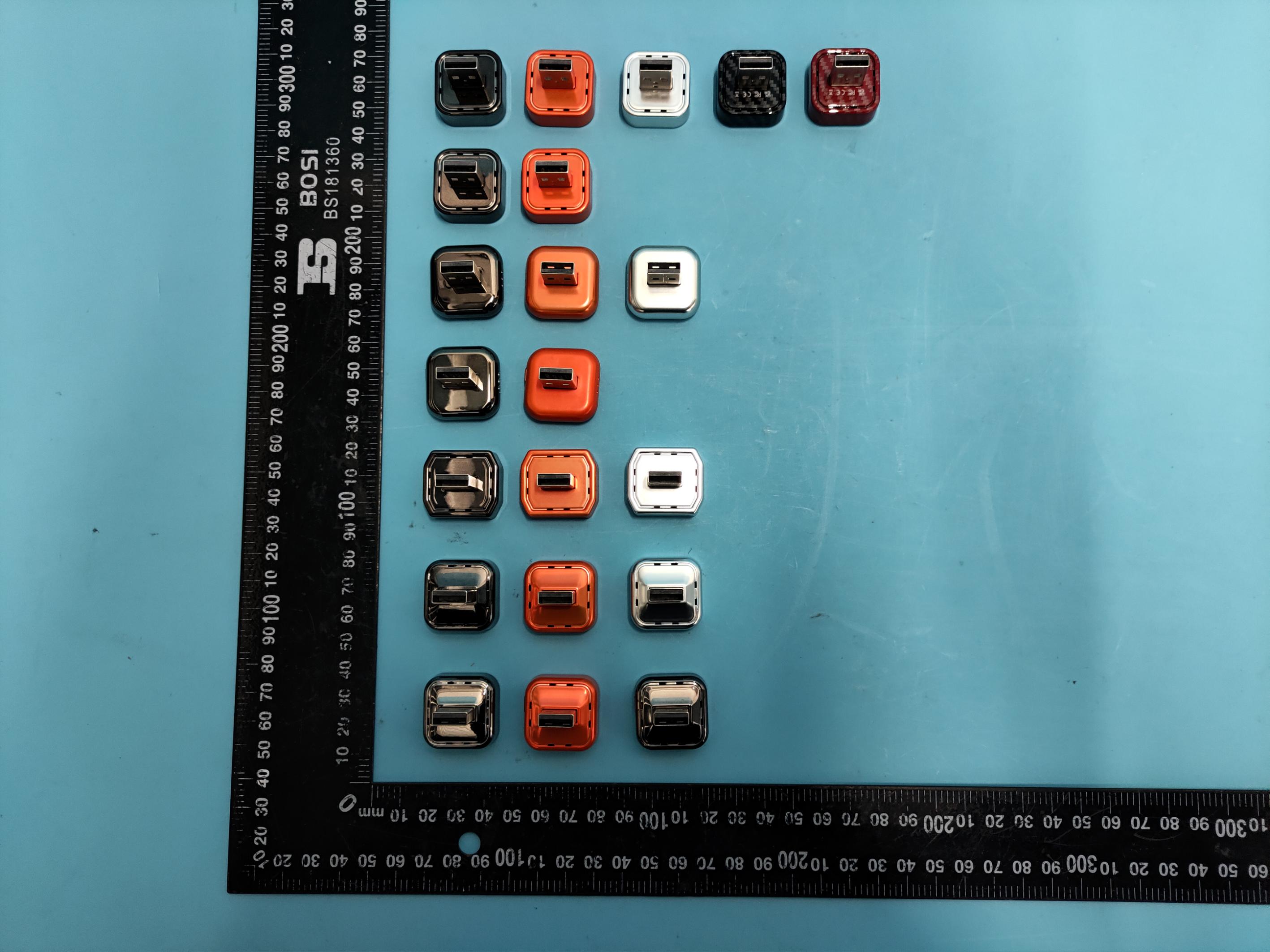

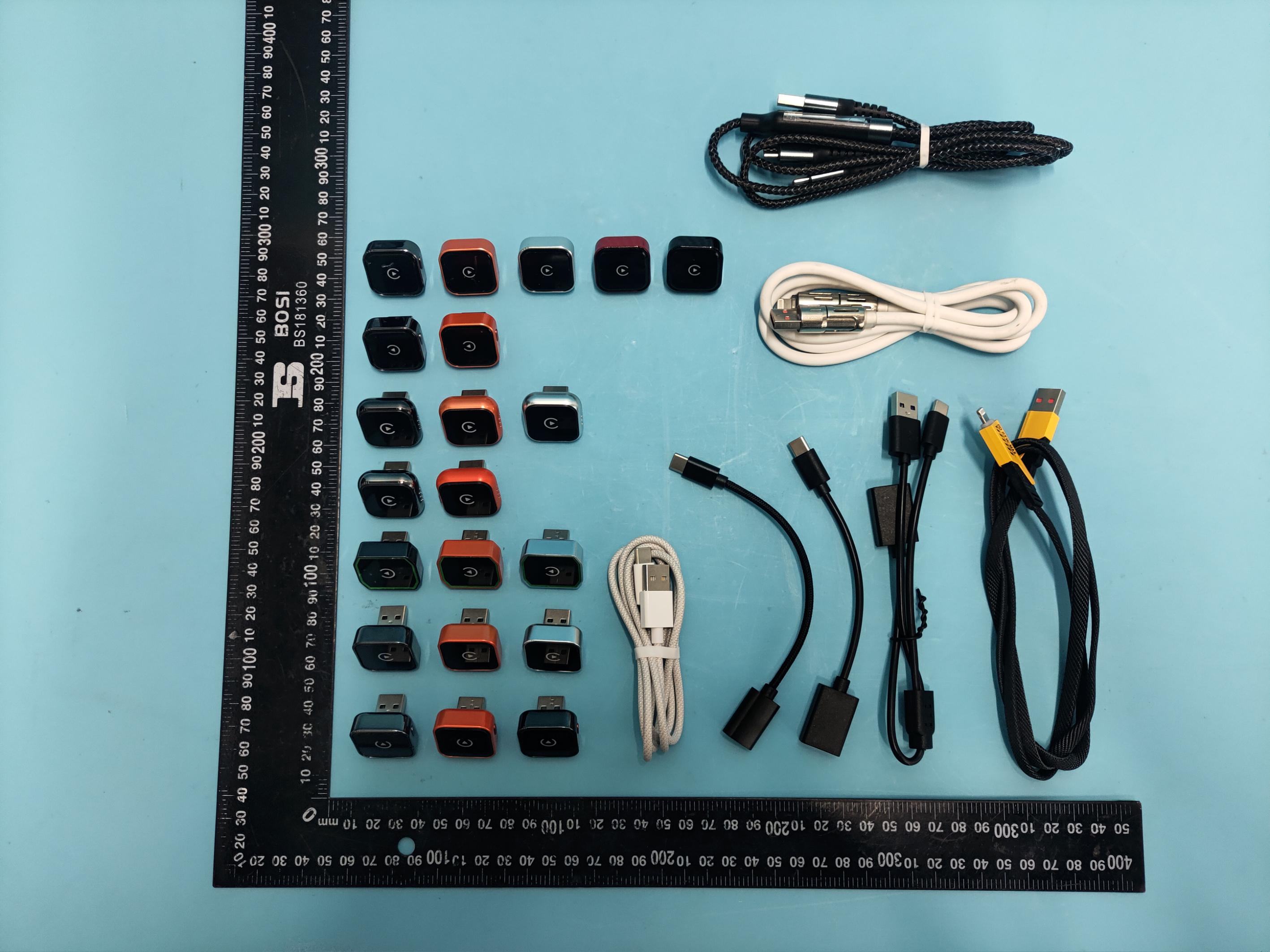

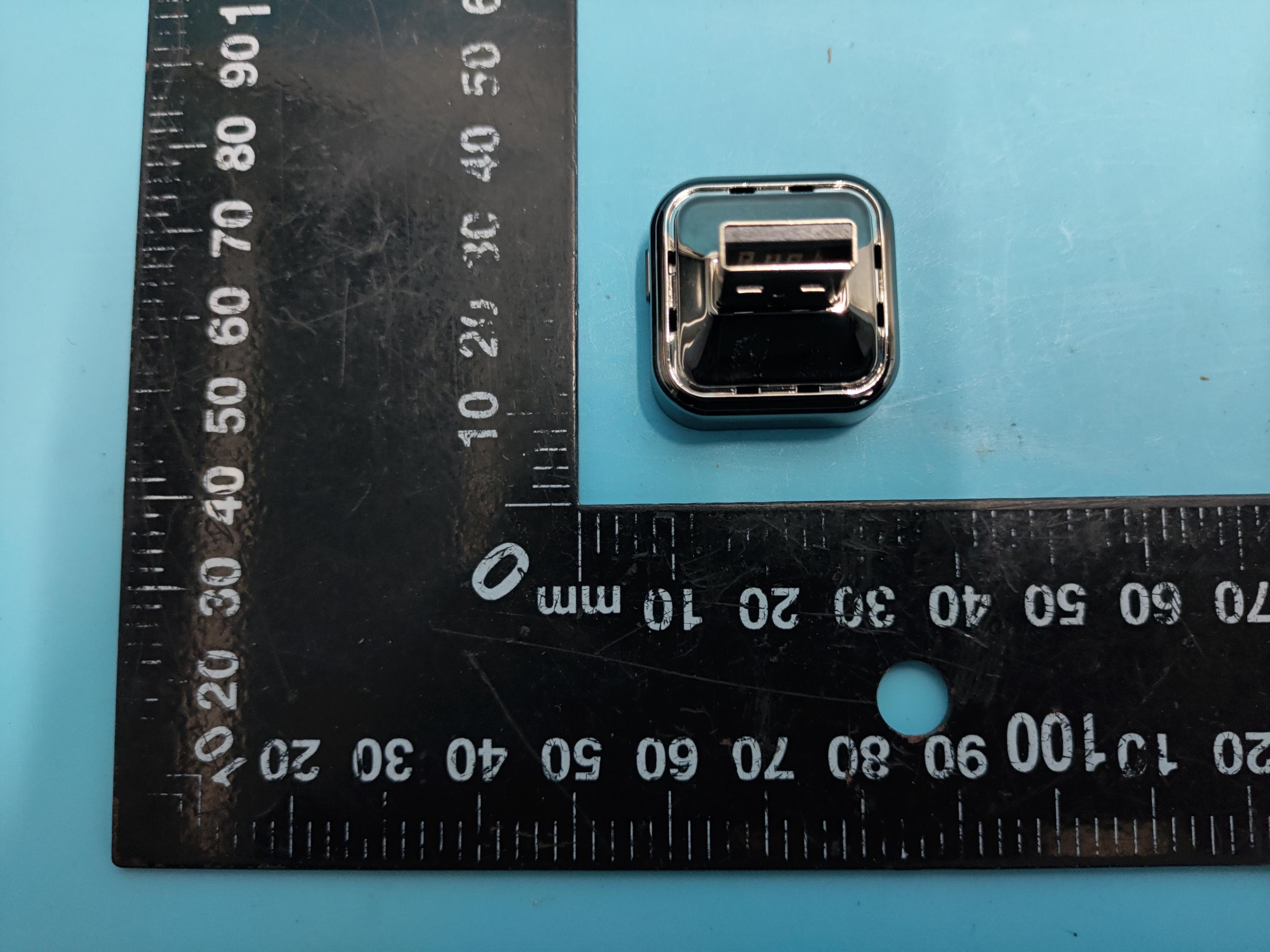

Page 1 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China External Photos Photo 1 Photo 2 Page 2 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 Page 3 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 Page 4 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 7 Photo 8 Page 5 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 9 ------End------

Label FCCID:2BPFF-G13-1

Page 1 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Internal Photos Photo 1 Photo 2 Page 2 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 Page 3 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 Page 4 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 7 Photo 8 Antenna Page 5 of 5FCC ID: 2BPFF-G13-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 9 Photo 10 ------End------

Page 1 of 9 Report No.: AiTDG-260318004W3 RF Exposure evaluation Product Name: Carplay Brand Name: N/A Model: G13-1 Series Model: G15-1, G16-1, G16, G13, G15, G14 FCCID: 2BPFF-G13-1 Applicant: Shenzhen Xinwang Optoelectronic Display Technology Co., Ltd. Address: Room 502, Jintian Building, Kaitian Science Park, Pinghu Community, Pinghu Subdistrict, Longgang District, Shenzhen City, China Manufacturer: Shenzhen Xinwang Optoelectronic Display Technology Co., Ltd. Address: Room 502, Jintian Building, Kaitian Science Park, Pinghu Community, Pinghu Subdistrict, Longgang District, Shenzhen City, China Standard(s): 47CFR §1.1310,47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: Mar. 18, 2026 Date of Test: Mar. 18, 2026~Apr. 07, 2026 Issued Date: Apr. 08, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by:Approved by: Aalen.YeAllen Wang Page 2 of 9 Report No.: AiTDG-260318004W3 ※Revision History※ REV.DESCRIPTIONISSUED DATEREMARK Rev.1.0Initial Test Report ReleaseApr. 08, 2026 Report No.: AiTDG-260318004W3 Page 3 of 9 Report No.: AiTDG-260318004W3 Contents 1 GENERAL INFORMATION.............................................................................................................................................4 1.1ENVIRONMENTAL CONDITIONS........................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT...................................................................................................................................... 4 1.3TESTFACILITY...............................................................................................................................................................5 1.4MEASUREMENT UNCERTAINTY........................................................................................................................................ 6 2 METHOD OF MEASUREMENT......................................................................................................................................7 2.1APPLICABLESTANDARD................................................................................................................................................. 7 2.2LIMIT..........................................................................................................................................................................7 2.3MPE CALCULATIONMETHOD.........................................................................................................................................8 2.4MANUFACTURINGTOLERANCE........................................................................................................................................8 2.5STANDALONEMPE RESULT............................................................................................................................................9 2.6CONCLUSION................................................................................................................................................................9 Page 4 of 9 Report No.: AiTDG-260318004W3 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature:25°C Relative Humidity:55 % Air Pressure:101 kPa 1.2 General Descriptionof EUT Product Name:Carplay Model/Type reference: G13-1 Serial Model:G15-1, G16-1, G16, G13, G15, G14 Power Supply:DC 5.0V from external circuit Hardware version.:N/A Software version.:N/A Test sample(s) ID:AiTDG-260318004-1 BT: Operation frequency:2402MHz-2480MHz Channel Number:79 Channels Channel separation:1MHz Modulation Technology: GFSK, π/4-DQPSK, 8-DPSK Antenna Type:PCB Antenna Antenna gain:4.29dBi 5G WIFI: Modulation:IEEE 802.11a/n: OFDM(64QAM, 16QAM, QPSK, BPSK) Operation frequency: BandMode Frequency Range(MHz) Number of channels U-NII Band III IEEE 802.11a 5745-58255 IEEE 802.11n/ 20MHz 5745-58255 IEEE 802.11n 40MHz 5755-57952 Antenna type:PCB Antenna Antenna gain:2.67dBi Remark:The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 9 Report No.: AiTDG-260318004W3 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC-Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. Page 6 of 9 Report No.: AiTDG-260318004W3 1.4 Measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated…

Text truncated - open the document above for the full version.

Page 1 of 36Report No.: AiTDG-260318004W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China TEST REPORT Client Information: Applicant:Shenzhen Xinwang Optoelectronic Display Technology Co., Ltd. Applicant add.: Room 502, Jintian Building, Kaitian Science Park, Pinghu Community, Pinghu Subdistrict, Longgang District, Shenzhen City, China Manufacturer:Shenzhen Xinwang Optoelectronic Display Technology Co., Ltd. Manufacturer add.: Room 502, Jintian Building, Kaitian Science Park, Pinghu Community, Pinghu Subdistrict, Longgang District, Shenzhen City, China Product Information: Product Name:Carplay Model No.:G13-1, G15-1, G16-1, G16, G13, G15, G14 Brand Name:N/A FCC ID: 2BPFF-G13-1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Mar. 18, 2026Date of Test: Mar. 18, 2026~Apr. 07, 2026 Date of Issue:Apr. 08, 2026Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by:Approved by: Aalen.YeAllen Wang Page 2 of 36Report No.: AiTDG-260318004W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1 Contents Page COVER PAGE 1 CONTENTS......................................................................................................................................................................2 2 TEST SUMMARY............................................................................................................................................................4 2.1Statement of the Measurement Uncertainty................................................................................ 4 2.2Measurement Uncertainty............................................................................................................ 4 3 TEST FACILITY..............................................................................................................................................................5 3.1Deviation from standard............................................................................................................... 5 3.2Abnormalities from standard conditions.......................................................................................5 3.3Test Location.................................................................................................................................5 4 GENERAL INFORMATION...........................................................................................................................................6 4.1Test frequencies............................................................................................................................7 4.2EUT Peripheral List.......................................................................................................................8 4.3Test Peripheral List.......................................................................................................................8 4.4TEST METHODOLOGY...............................................................................................................9 4.5Description of Test Modes..........................................................................................................10 5 EQUIPMENT USED DURING TEST.........................................................................................................................11 6 TEST RESULTS AND MEASUREMENT DATA.....................................................................................................13 6.1Antenna requirement..................................................................................................................13 6.2Peak Power Measurement.........................................................................................................14 6.3Frequency Separation and 20 dB Bandwidth............................................................................15 6.4Number of Hopping Frequency..................................................................................................17 6.5Time of Occupancy (Dwell Time)............................................................................................... 18 6.6Conducted Spurious Emissions and Band Edges Test............................................................. 20 6.7Restrict-band Band-edge Measurements..................................................................................22 6.8Radiated Emissions Measurement............................................................................................ 24 6.9Conducted Emissions.................................................................................................................34 6.10 Pseudorandom frequency hopping sequence...........................................................................35 7 TEST SETUP PHOTOGRAPHS OF EUT.................................................................................................................36 8 EXTERNAL PHOTO…

Text truncated - open the document above for the full version.

Manufacturer:Shenzhen Ning Yi Technology Co., Ltd Address: 1-2/F, Building 5, Fengmen'ao Industrial Zone, Gangtou Community, Bantian Subdistrict, Longgang District, Shenzhen City, China W44Antenna Test Report Customerliao yuan Project W44 Antenna BANDWiFi Product DescriptionPCB Product No Shenzhen Ning Yi Technology Co., Ltd Product Overview & Dimension 3 Shenzhen Ning Yi Technology Co., Ltd This report is to measure the performance of BT antenna for W1.The antennaoperating frequency at (2400-5850MHZ) , All test data are showed as below. Content 1.P r o d u c t O v e r v i e w & D i m e n s i o n 2 . Te s t s y s t e m 3 . A n t e n n a M a t c h i n g N e t w o r k 4.Te s t Re s u l t 4 . 1 S 1 1 Pa r a m e t e r 4 . 2 G a i n & E f f i c i e n c y 4 . 3 Te s t c o o r d i n a t e 4 . 4 2 D Pa t t e r n 4 . 5 OTA D a t a 4 . 6 W i F i B o o t m e a s u r e d 5 . A n t e n n a A s s e m b l y & e n v i r o n m e n t a l p r o c e s s i n g 4 Shenzhen Ning Yi Technology Co., Ltd 2.Test System Sequence Number Test Itemequipment S parameterVSWRAgilent 5071C & HP 8753 OTA TestTRP&TISCMW500 &CMW270 ETS& FT SG24 Gain & Efficiency Gain & Efficiency ETS&FT SG24 Agilent 5071C Test Result Sample status & coordinates Shenzhen Ning Yi Technology Co., Ltd WIFI2.4+5G Shenzhen Ning Yi Technology Co., Ltd 天线S11 OTA DATA-WIFI-2.4G/5G Shenzhen Ning Yi Technology Co., Ltd Frequency ID1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz)2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi)2.92 3.20 2.83 2.89 3.15 3.74 4.04 4.29 3.83 4.02 3.99 Efficiency (%)24.79 25.68 26.13 28.35 28.77 29.77 30.65 29.63 27.37 27.64 28.22 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 5150.0 5200.0 5250.0 5300.0 5350.0 5400.0 5450.0 5500.0 5550.0 5600.0 5650.0 5700.0 5750.0 5800.0 5850.0 0.60 0.57 0.60 0.67 0.66 0.31 0.50 1.18 1.91 2.23 1.76 2.67 2.61 2.42 2.31 23.32 24.39 26.96 25.75 27.13 28.18 29.81 29.20 34.32 38.25 35.10 38.69 32.04 21.14 27.85 OTA DATA-WIFI-2.4G, Shenzhen Ning Yi Technology Co., Ltd OTA DATA-WIFI-5G, Shenzhen Ning Yi Technology Co., Ltd Thanks for your comment! Shenzhen Ning Yi Technology Co., Ltd 1 2 0 2 B , B u i l d i n g C 6 , H e n g f e n g I n d u s t r i a l C i t y, X i x i a n g , B a o ' a n D i s t r i c t , S h e n z h e n Shenzhen Ning Yi Technology Co., Ltd

Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 1 of 61 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Carplay Trade Mark: N/A Test Model: G13-1 Environmental Conditions Temperature: 24.6  C Relative Humidity:52.4% ATM Pressure:100.0 kPa Test Engineer:Emiya Lin Supervised by:Simba Huang Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 2 of 61 Contents Page COVER PAGE 1 Duty Cycle........................................................................................................................................................................................ 3 1.1Test Result............................................................................................................................................................................3 1.2Test Graphs...........................................................................................................................................................................4 2 Maximum Conducted Peak Output Power........................................................................................................................................ 9 2.1Test Result............................................................................................................................................................................9 2.2Test Graphs.........................................................................................................................................................................10 3 20dB Bandwidth..............................................................................................................................................................................15 3.1Test Result..........................................................................................................................................................................15 3.2Test Graphs.........................................................................................................................................................................16 4 Carrier Frequency Separation.........................................................................................................................................................21 4.1Test Result..........................................................................................................................................................................21 4.2Test Graphs.........................................................................................................................................................................22 5 Hopping Channel Number...............................................................................................................................................................24 5.1Test Result..........................................................................................................................................................................24 5.2Test Graphs.........................................................................................................................................................................25 6 Dwell Time...................................................................................................................................................................................... 27 6.1Test Result..........................................................................................................................................................................27 6.2Test Graphs.........................................................................................................................................................................28 7 RF Conducted Spurious Emissions.................................................................................................................................................31 7.1Test Result..........................................................................................................................................................................31 7.2Test Graphs.........................................................................................................................................................................32 8 Band-edge for RF Conducted Emissions........................................................................................................................................41 8.1Test Result..........................................................................................................................................................................41 8.2Test Graphs.........................................................................................................................................................................42 9 Restrict-band band-edge measurements........................................................................................................................................54 9.1Test Result..........................................................................................................................................................................54 9.2Test Graphs.........................................................................................................................................................................56 Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 3 of 61 1 Duty Cycle 1.1 Test Result ModeFrequency (MHz)Duty Cycle (%)Correction Factor 1/T (kHz) 1-DH1240231.794.982.63 1-DH1244132.054.942.63 1-DH1248031.994.952.63 2-DH1240232.414.892.56 2-DH1244132.384.92.56 2-DH1248032.354.92.56 3-DH1240232.354.92.56 3-DH1244132.344.92.63 3-DH1248032.324.912.56 Guangdong Asia Hongke Test Technology Limited Report No.: …

Text truncated - open the document above for the full version.

Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 38 of 61 8DPSK_LCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 39 of 61 8DPSK_MCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 40 of 61 8DPSK_HCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 41 of 61 8 Band-edge for RF Conducted Emissions 8.1 Test Result Mode Channe l Carrier Frequency [MHz] Frequenc y Hopping Max Spurious Level [dBc] Limit [dBc] Verdict GFSK LCH2402 Off-59.76-20Pass On-60.83-20Pass HCH2480 Off-59.67-20Pass On-61.06-20Pass π/4DQPSK LCH2402 Off-59.29-20Pass On-60.27-20Pass HCH2480 Off-58.64-20Pass On-58.64-20Pass 8DPSK LCH2402 Off-58.44-20Pass On-59.59-20Pass HCH2480 Off-57.82-20Pass On-59.1-20Pass Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 42 of 61 8.2 Test Graphs Test Graphs Pref GFSK/LCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 43 of 61 Ref GFSK/LCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 44 of 61 Ref GFSK/HCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 45 of 61 Ref. GFSK/HCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 46 of 61 Ref π/4DQPSK/LCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 47 of 61 Ref π/4DQPSK/LCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 48 of 61 Ref π/4DQPSK/HCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 49 of 61 Ref π/4DQPSK/HCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 50 of 61 Ref 8DPSK/LCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 51 of 61 Ref 8DPSK/LCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 52 of 61 Ref 8DPSK/HCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 53 of 61 Ref 8DPSK/HCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260318004W1 FCC ID: 2BPFF-G13-1 Page 54 of 61 9 Restrict-band band-edge measurements 9.1 Test Result Test Mode HoppingFreq. Power [dBm] Gain Duty Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off2310.0-47.624.29-51.93PEAK74Pass Off2310.0-56.234.294.9848.3AV54Pass Off2343.696-45.024.29-54.53PEAK74Pass Off2339.76-53.724.294.9850.81AV54Pass Off2390.0-50.024.29-49.53PEAK74Pass Off2390.0-56.674.294.9847.86AV54Pass Off2483.5-48.914.29-50.64PEAK74Pass Off2483.5-56.364.294.9548.14AV54Pass Off2485.24-47.44.29-52.15PEAK74Pass Off2498.608-55.314.294.9549.19AV54Pass Off2500.0-49.474.29-50.08PEAK74Pass Off2500.0-55.834.294.9548.67AV54Pass π/4DQPSK Off2310.0-49.834.29-49.72PEAK74Pass Off2310.0-57.644.294.8946.8AV54Pass Off2343.696-44.854.29-54.7PEAK74Pass Off2340.912-53.64.294.8950.84AV54Pass Off2390.0-48.794.29-50.76PEAK74Pass Off2390.0-56.454.294.8947.99AV54Pass Off2483.5-48.224.29-51.33PEAK74Pass Off2483.5-55.594.294.948.86AV54Pass Off2488.984-47.744.29-51.81PEAK74Pass Off2500-55.114.294.949.34AV54Pass Off2500.0-49.654.29-49.9PEAK74Pass…
