Thermal Imaging Multifunctional Device VIPER 35 HUNTER/TAC INSTRUCTION MANUAL SAFETY INSTRUCTIONS Important Usage Instructions 1.Read Before Use: Carefully read this manual before using the device to ensure safe and proper operation. 2.Testing: Thoroughly test the device before use, especially if it has been in storage for an extended period. 3.Disassembly: Do not disassemble the device. Repairs should only be performed at authorized service centers. 4.Optical Surfaces: 1.Always keep the external optical surfaces clean. 2.Avoid touching the optical surfaces with bare hands. 3.Protect the device from sand and seawater, as they can damage the optical coatings. 5.Sunlight: Never point the device directly at the sun. 6.Image Performance: 1.Image quality depends on the environment and atmospheric conditions. 2.Contrast may vary based on the time of day. For instance, at sunset, temperature differences between objects are more pronounced, resulting in better contrast. 7.Storage: 1.Remove the battery if the device will be stored for a long period. 2.Store the battery in polyethylene bags to prevent contact with metal. 3.Recharge the battery every 2–3 months to maintain its condition. 8.Condensation: 1.Condensation may form on external optical surfaces in the following cases: 1.When moving the device between cold and warm environments. 2.If the device’s temperature differs significantly from the ambient temperature. 3.In high-humidity conditions. 2.Condensation typically disappears once the device’s temperature equalizes with the environment. Use the provided cleaning cloth to remove any moisture. Anti-fog sprays or the included rubber accessories can help prevent condensation. 3.Note: Condensation on the objective lens does not affect the device’s performance. 9.Cleaning: Clean lens surfaces gently with the provided cleaning cloth. Content 1. Delivery set 2. Device overview 3. Description of Controls 3.1 Three position toggle switch 3.2 Controls 4. Basic Operation 4.1 Power On/Off/Standby 4.2 Interface Display 4.3 Digital Zoom 4.4 AI SRF 4.5 Snapshot 4.6 NUC 4.7 Video Recording 4.8 Display Luminance Adjustment 4.9 Palette Mode 4.10 Switch Between Clip-on Mode and Observation Mode 5. MENU 5.1 Navigation 5.2 Image Settings 5.2.1 Brightness 5.2.2 Contrast 5.2.3 Scene 5.2.4 Weather 5.2.5 Filter 5.2.6 Palette 5.2.7 Reset Content 5.3 Features 5.3.1 Features 5.3.2 Auto BPR 5.3.3 MBPR 5.3.4 Leveler 5.3.5 Compass 5.3.6 Fast Switching Mode 5.3.7 Target Lock 5.3.8 Back 5.4 Media 5.5 Settings 5.5.1 NUC Type 5.5.2 Alignment 5.5.3 Bluetooth 5.5.4 WiFi 5.5.5 ICON BRIGHTNESS 5.5.6 Date & Time 5.5.7 Language 5.5.8 Info Box 5.5.9 Factory Reset 6. Battery Use 1 Delivery Set NDescriptionQTY. 1Thermal imaging multifunctional device Viper 35 Hunter1 2Transport Box1 3Accessories Box1 4Soft bag1 5Rechargeable battery 186501 6Protective rubber lens cap1 7USB cable1 8Focusing ring1 9Counter ring1 10Cleaning cloth1 11User manual1 12Warranty card1 NOTE: All images used in this instruction manual are for illustrative purpose only. Actual product may vary due to product enhancement. 2 Device Overview 3 Description of Controls 3.1 Three position toggle switch Toggle switchPostionStatus ONPower on SStandby OFFPower off 3.2 Controls BUTTONSSHORT PRESSLONG PRESS Observation ModeClip-on Mode Snapshot Digital zoom AI SRF ( only SRF is ON) NUC activatingVideo recording on/off OK Change between four values of the diplay luminanceFast access to palette mode menu OK + Switch between clip-on and observation mode (only available when fast switching mode is on) 4. Basic Operation 4.1 Power On/Off/Standby Move the toggle switch to the desired position for ON, S (Standby) and OFF settings. NOTE: When the toggle switch is in the Standby position, the device will remain powered on if the tilt range is within 45° to either side and 60° upwards or downwards. The device will automatically enter Standby mode if the tilt exceeds 45° to either side or 60° upwards or downwards. 4.2 Interface Display After powering on, the basic OSD is displayed. Pressing any button will switch to the full OSD. If no operation is performed within 3 seconds under full OSD, the full OSD will automatically revert to the basic OSD. Basic OSD in Clip-on Mode Full OSD in clip-on Mode Basic OSD in Observation Mode Full OSD in Observation Mode ATTENTION! When the device is powered on, the basic OSD is displayed in both clip-on mode and observation mode. Pressing any button will trigger the full OSD, which will remain on-screen for 3 seconds before disappearing automatically. NOTE When entering Observation Mode, the will be displayed in the center of the screen for 15 seconds. After 15 seconds, it will automatically move to the top-right corner of the screen. 4.3 Digital Zoom (Only available in Observation mode) Short press the Up button in Observation mode to zoom in or zoom out between 1x/2x/3x/4x. The current digital zoom is shown on the righ side of the screen. 4.4 AI SRF (Only available in Clip-on mode) The AI SRF function uses algorithm to automatically calculate the distance to an object of known size helping users quickly estimate the approximate distance to the animal. when AI SFR is activated in main menu, short press the Up button to turn on the AI SRF function in Clip- on mode. Align the lower horizontal bar with the base of object, the upper horizontal bar will automatically align and calcuate the distances for the four reference objects automatically. Users select the corresponding distance based on the size of object. Press and hold the OK button to exit AI SRF function. 4.5 Snapshot Long press the Up button to take a photo, the capture icon appears on the screen for 1s before disappearing. IMPORTANT! Users can select 4 silhouettes to be displayed on the screen from 18 predefined silhouettes. 4.6 NUC Short press the Down button to do non-uniformity correction. 4.7 Video Recording Long press the Down button to start a video recording. A recording timer display…

Text truncated - open the document above for the full version.

Nitehog Bulgaria JSC 6 Lavski Rid Str., Sofia, 1680 Bulgaria Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/08/28 U.S. Agent Designation Nitehog Bulgaria JSC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BPJF-VIPERGEN2650): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Nitehog Bulgaria JSC with the FRN [0037043700] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Xiansheng Jin Manager Nitehog Bulgaria JSC Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

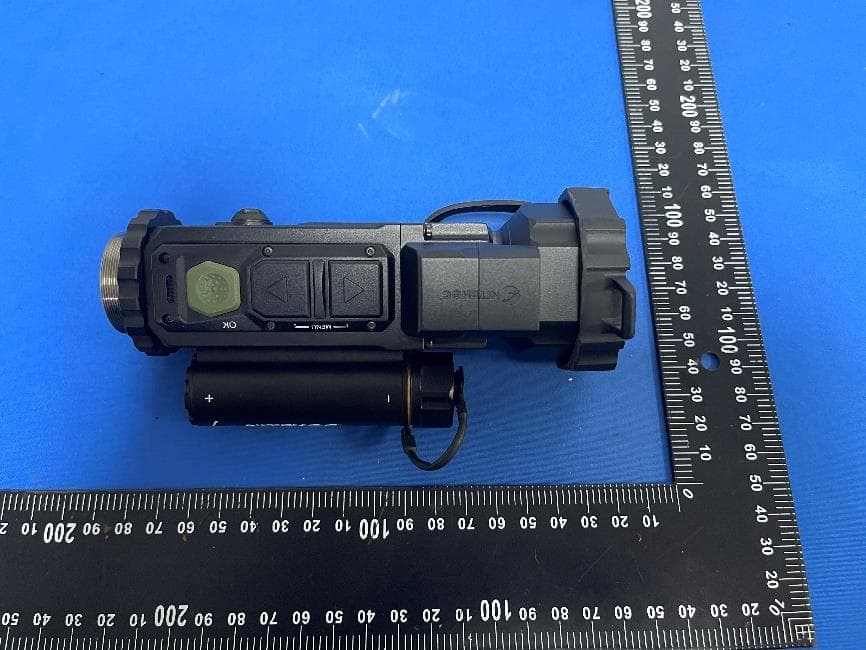

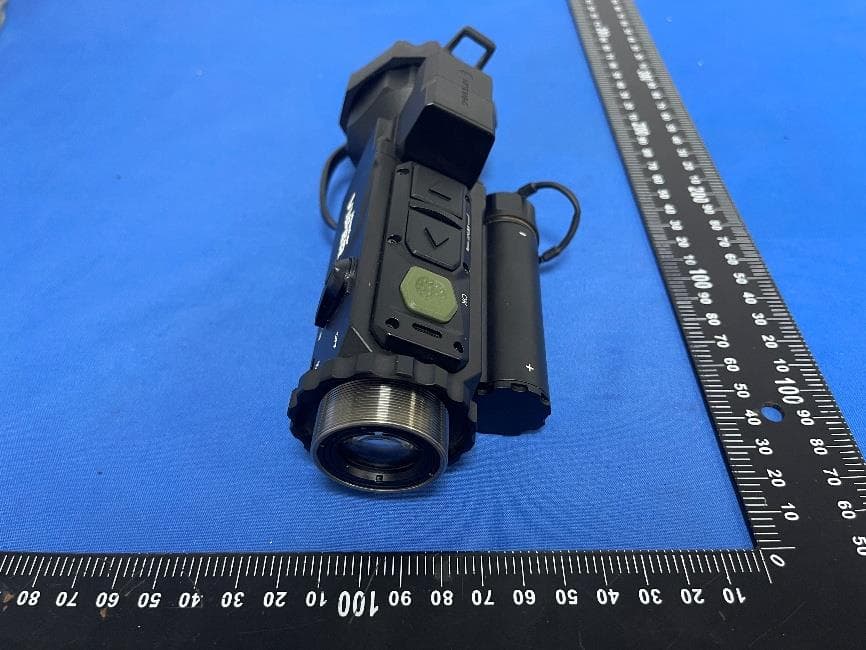

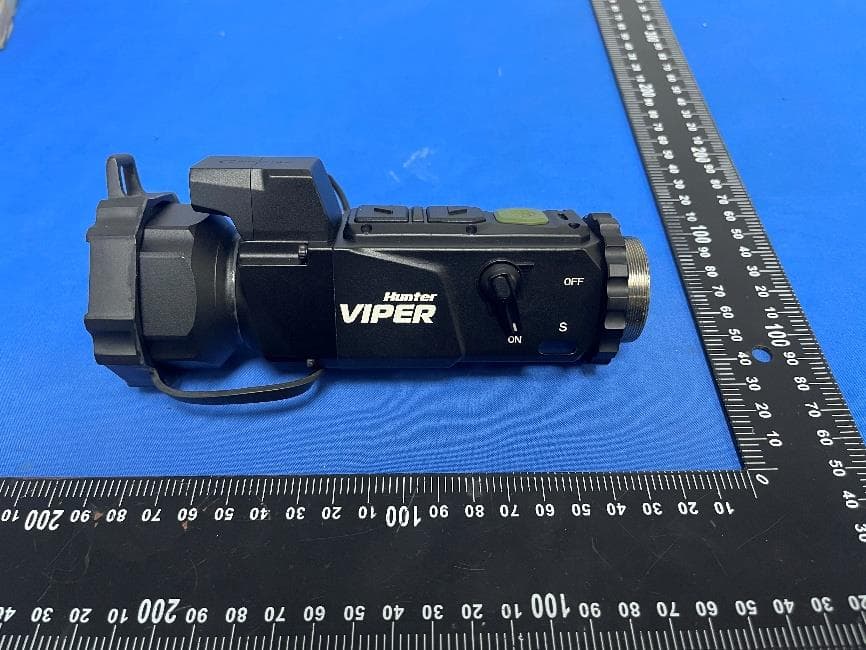

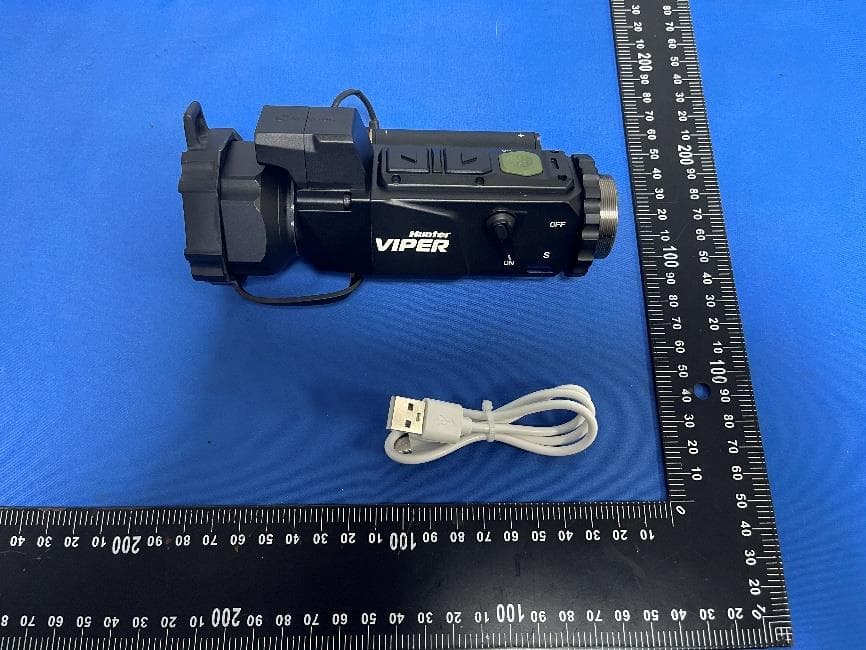

FCC ID:2BPJF-VIPERGEN2650 External Photos of the EUT FCC ID:2BPJF-VIPERGEN2650 FCC ID:2BPJF-VIPERGEN2650

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BPJF-VIPERGEN2650

FCC ID:2BPJF-VIPERGEN2650 Internal Photos of the EUT FCC ID:2BPJF-VIPERGEN2650 ANT FCC ID:2BPJF-VIPERGEN2650 FCC ID:2BPJF-VIPERGEN2650 FCC ID:2BPJF-VIPERGEN2650

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26081200704 2BPJF-VIPERGEN2650 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 22, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Nitehog Bulgaria JSC Address............................................ : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Thermal Imaging Camera Trade Mark ....................................... : Manufacturer .................................... : Nitehog Bulgaria JSC Model/Type reference ...................... : VIPER GEN2 650LRF Listed Models ................................... : N/A Rating ............................................... : Input: 5V 1.0A Battery: 3.7V 800mAh 8.14Wh Result ............................................... : PASS Report No.: CTA26081200704 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Thermal Imaging Camera Model /Type : VIPER GEN2 650LRF Listed Models : N/A Applicant : Nitehog Bulgaria JSC Address : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Manufacturer : Nitehog Bulgaria JSC Address : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081200704 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks .................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................ 6 2.4 Modifications ........................................................................................................... 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory ................................................................................. 7 3.2 Test Facility ............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................ 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ........................................................................................................... 8 4.2 Conducted Power Results ...................................................................................... 9 4.3 Manufacturing tolerance ......................................................................................... 9 4.4 Evaluation Result .................................................................................................. 10 4.5 Simultaneous Transmission for SAR Exclusion ................................................... 10 5 Conclusion ......................................................................................................................... 10 Report No.: CTA26081200704 Page 4 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exp…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PIFA antenna Model VIPER GEN2 650LRF Frequency range 2400-2500MHz Manufacturer Nitehog Bulgaria JSC Address 6 Lavski Rid Str., Sofia, 1680 Bulgaria ANT Peak Gain 1.26 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26081200701 2BPJF-VIPERGEN2650 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Aug. 22, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Nitehog Bulgaria JSC Address ...........................................: 6 Lavski Rid Str., Sofia, 1680 Bulgaria Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Thermal Imaging Camera Trade Mark ......................................: Manufacturer ...................................: Nitehog Bulgaria JSC Model/Type reference .....................: VIPER GEN2 650LRF Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 5V 1.0A Battery: 3.7V 800mAh 8.14Wh Result ..............................................: PASS Report No.: CTA26081200701 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Thermal Imaging Camera Model /Type : VIPER GEN2 650LRF Applicant : Nitehog Bulgaria JSC Address : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Manufacturer : Nitehog Bulgaria JSC Address : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081200701 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .................................................................................................... 8 3.5 Statement of the measurement uncertainty ...................................................................................... 8 3.6 Equipments Used during the Test ..................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26081200703 2BPJF-VIPERGEN2650 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 22, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Nitehog Bulgaria JSC Address ............................................ : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Thermal Imaging Camera Trade Mark ....................................... : Manufacturer .................................... : Nitehog Bulgaria JSC Model/Type reference ...................... : VIPER GEN2 650LRF Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 5V 1.0A Battery: 3.7V 800mAh 8.14Wh Result ............................................... : PASS Report No.: CTA26081200703 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Thermal Imaging Camera Model /Type : VIPER GEN2 650LRF Listed Models : N/A Applicant : Nitehog Bulgaria JSC Address : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Manufacturer : Nitehog Bulgaria JSC Address : 6 Lavski Rid Str., Sofia, 1680 Bulgaria Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081200703 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Description ................................................................................................................................. 8 3.5 Statement of the meas…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BPJF-VIPERGEN2650 Company : Nitehog Bulgaria JSC EUT : Thermal Imaging Camera Model Number : VIPER GEN2 650LRF Report No. : CTA26081200703 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.160 2456.960 2467.120 0.5 PASS 11G Ant1 2412 15.920 2404.040 2419.960 0.5 PASS 2437 15.880 2429.080 2444.960 0.5 PASS 2462 15.800 2454.200 2470.000 0.5 PASS 11N20SISO Ant1 2412 16.960 2403.560 2420.520 0.5 PASS 2437 17.040 2428.640 2445.680 0.5 PASS 2462 16.600 2453.720 2470.320 0.5 PASS 11N40SISO Ant1 2422 35.680 2404.400 2440.080 0.5 PASS 2437 35.120 2419.960 2455.080 0.5 PASS 2452 35.680 2434.480 2470.160 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.480 2405.2684 2418.7484 --- --- 2437 13.460 2430.2953 2443.7553 --- --- 2462 13.454 2455.3064 2468.7604 --- --- 11G Ant1 2412 16.867 2403.6005 2420.4675 --- --- 2437 16.798 2428.6427 2445.4407 --- --- 2462 16.844 2453.6441 2470.4881 --- --- 11N20SISO Ant1 2412 17.818 2403.1396 2420.9576 --- --- 2437 17.969 2428.0285 2445.9975 --- --- 2462 17.846 2453.1158 2470.9618 --- --- 11N40SISO Ant1 2422 36.115 2404.0864 2440.2014 --- --- 2437 36.057 2419.1440 2455.2010 --- --- 2452 36.135 2434.1047 2470.2397 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 7.78 ≤30.00 PASS 2437 8.14 ≤30.00 PASS 2462 7.98 ≤30.00 PASS 11G Ant1 2412 7.49 ≤30.00 PASS 2437 7.82 ≤30.00 PASS 2462 7.97 ≤30.00 PASS 11N20SISO Ant1 2412 7.43 ≤30.00 PASS 2437 7.56 ≤30.00 PASS 2462 7.70 ≤30.00 PASS 11N40SISO Ant1 2422 6.83 ≤30.00 PASS 2437 6.98 ≤30.00 PASS 2452 7.12 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -19.27 ≤8.00 PASS 2437 -18.20 ≤8.00 PASS 2462 -18.96 ≤8.00 PASS 11G Ant1 2412 -24.16 ≤8.00 PASS 2437 -23.47 ≤8.00 PASS 2462 -24.21 ≤8.00 PASS 11N20SISO Ant1 2412 -23.43 ≤8.00 PASS 2437 -22.98 ≤8.00 PASS 2462 -23.32 ≤8.00 PASS 11N40SISO Ant1 2422 -26.49 ≤8.00 PASS 2437 -25.83 ≤8.00 PASS 2452 -26.32 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -5.43 -57.06 ≤-25.43 PASS High 2462 -4.87 -57.84 …
