2BPTP-W07W08ARC Bluetooth Audio Transmitter

ARC Bluetooth Audio Transmitter User Manual 1 Product Introduction This product connects TV audio to Bluetooth headphones or Bluetooth speaker systems via the ARC interface. It features a display screen for visual operation, making it easy to connect devices. It is ideal for home theaters, appliance stores, and other similar settings. Product Features - Supports ARC functionality - Bluetooth transmitter function - Supports simultaneous connection of two Bluetooth headphones or speakers - Real-time display of working status - Supports 24bit/48KHz audio sampling rate transmission - Supports CEC: volume control via TV remote - External antenna for extended transmission range Specifications - Input Interface: ARC - Bluetooth Version: 5.2 - Input Audio Format: PCM - Bluetooth Audio Codecs: AAC, aptX, aptX-AD, aptX-HD, aptX-LL - Power Interface: Type-C - Power Supply & Consumption: DC 5V / 70mA - Housing Material: Plastic - Color: Black - Operating Temperature: -40~+85°C 2 - Storage Temperature: -60~+95°C - Operating Humidity: 30~75% RH (non-condensing) - Storage Humidity: 40~85% RH (non-condensing) - Product Dimensions: 11.6 × 3.5 × 1.3 cm - Weight: 32g Package Contents - ARC Bluetooth Transmitter × 1 - User Manual × 1 - USB Power Cable × 1 - HDMI Extension Cable × 1 Physical Interface Diagram ① ARC Plug: Connect to the TV's ARC port (Do not 3 connect to speaker systems) ② Bluetooth 1 Device Search Button: - Long press (2+ seconds): Enter Bluetooth 1 pairing mode - Short press: Select Bluetooth device from list and press Button ③ to confirm *Note: After connecting, this button is inactive. To pair a new device, hold the button “②&④” for 3+ seconds to clear existing connections.* ③ Confirm Button: Short press to connect selected Bluetooth device ④ Bluetooth 2 Device Search Button: - Long press (2+ seconds): Enter Bluetooth 2 pairing mode - Short press: Select Bluetooth device from list and press Button ③ to confirm *Note: Same behavior as Button ②* ⑤ Power Interface: Connect to power adapter or USB port ⑥ Bluetooth Antenna ⑦ Display Screen 4 Display Screen Overview Standby Screen: Long press Button ② for Bluetooth 1 pairing; Button ④ for Bluetooth 2 pairing Searching Screen: Waiting for Bluetooth devices to appear Device List Screen: Use Buttons ② and ④ to select, and Button ③ to confirm Connected Devices Screen: Indicates two Bluetooth devices are connected Audio Transmission Screen: Top-left shows codec (SBC, aptX, etc.) currently in use Volume Icon: Min volume 00; Max volume 15; controlled via TV remote 5 Disconnection Screen: Device name is grey; check device power or range Usage Diagram 1. Connect the transmitter to a power adapter using the USB power cable. 2. On the standby screen, long press Button ② to enter Bluetooth 1 pairing mode. 3. Select the desired Bluetooth device and press Button ③ to connect the first headphone. 4. Long press Button ④ to enter Bluetooth 2 pairing mode. 5. Select the desired Bluetooth device and press Button ③ to connect the second headphone. 6. Connect the product to a TV that supports ARC. 6 Common Issues and Solutions NO. Troubleshooting Cause and Solution 1 Display not working Check if USB cable is properly connected to power adapter 2 Bluetooth connection failure - Ensure antenna is tightened - Check if Bluetooth headphones are powered on - Ensure Bluetooth headphones are in pairing mode - Confirm headphones are within connection range 3 No audio - Verify TV supports ARC - Confirm transmitter is connected to the TV's ARC port - Ensure TV audio output is set to ARC - Make sure CEC is enabled - Check that audio format is set to PCM/LPCM - Check volume level 7 Note: Before using this product, please ensure that the TV’s audio output is set to ARC and the audio format is set to PCM/LPCM. Incorrect settings may result in no sound output. Refer to the TV user manual or contact the TV manufacturer for setup instructions. 4 Unable to control volume via TV remote - Aim the remote at the TV, not at the transmitter or other devices - Check the remote’s battery FCCRequirement Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser ’ sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,andcan radiateradiofrequencyenergy,andifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. –Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BPTP-W07W08 W07, W08 We, Applicant Company Name: Shenzhen AOEYOO Technology Co., Ltd Address: Room 301, Building A, Shunxing Industrial Zone, No.10 Zhongxing Road, Ma'antang Community, Bantian Street Longgang District, Shenzhen 518000, China Phone: +86-755-26648642 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2025-08-22 Signature Date Name / Title: Junli Yu / Manager Company: Shenzhen AOEYOO Technology Co., Ltd Address: Room 301, Building A, Shunxing Industrial Zone, No.10 Zhongxing Road, Ma'antang Community, Bantian Street Longgang District, Shenzhen 518000, China Phone: +86-755-26648642 Fax: N/A E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BPTP-W07W08 W07, W08 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Huaxia Testing Technology Co., Ltd Contact Name: Yoyo Zhou Address: 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Phone: +86-755-26648642 Email: [email protected] Signature: Date: 2025-08-22

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BPTP-W07W08 W07, W08 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2025-08-22 Signature Date Name / Title: Junli Yu / Manager Company: Shenzhen AOEYOO Technology Co., Ltd Address: Room 301, Building A, Shunxing Industrial Zone, No.10 Zhongxing Road, Ma'antang Community, Bantian Street Longgang District, Shenzhen 518000, China Phone: +86-755-26648642 Fax: N/A E-Mail: [email protected]

ShenzhenAOEYOOTechnologyCo.,Ltd ModelConfirmationLetter We,ShenzhenAOEYOOTechnologyCo.,Ltdcertifytheproduct: ARCBluetoothAudioTransmitter ModelNo.:W07,W08 FCCID:2BPTP-W07W08 Theirelectricalcircuitdesign,layout,componentsusedandinternalwiringareidentical, Onlytheappearancetheproductsaredifferent Signiture: GranteeContact:JunliYu CompanyName:ShenzhenAOEYOOTechnologyCo.,Ltd Date:August22,2025

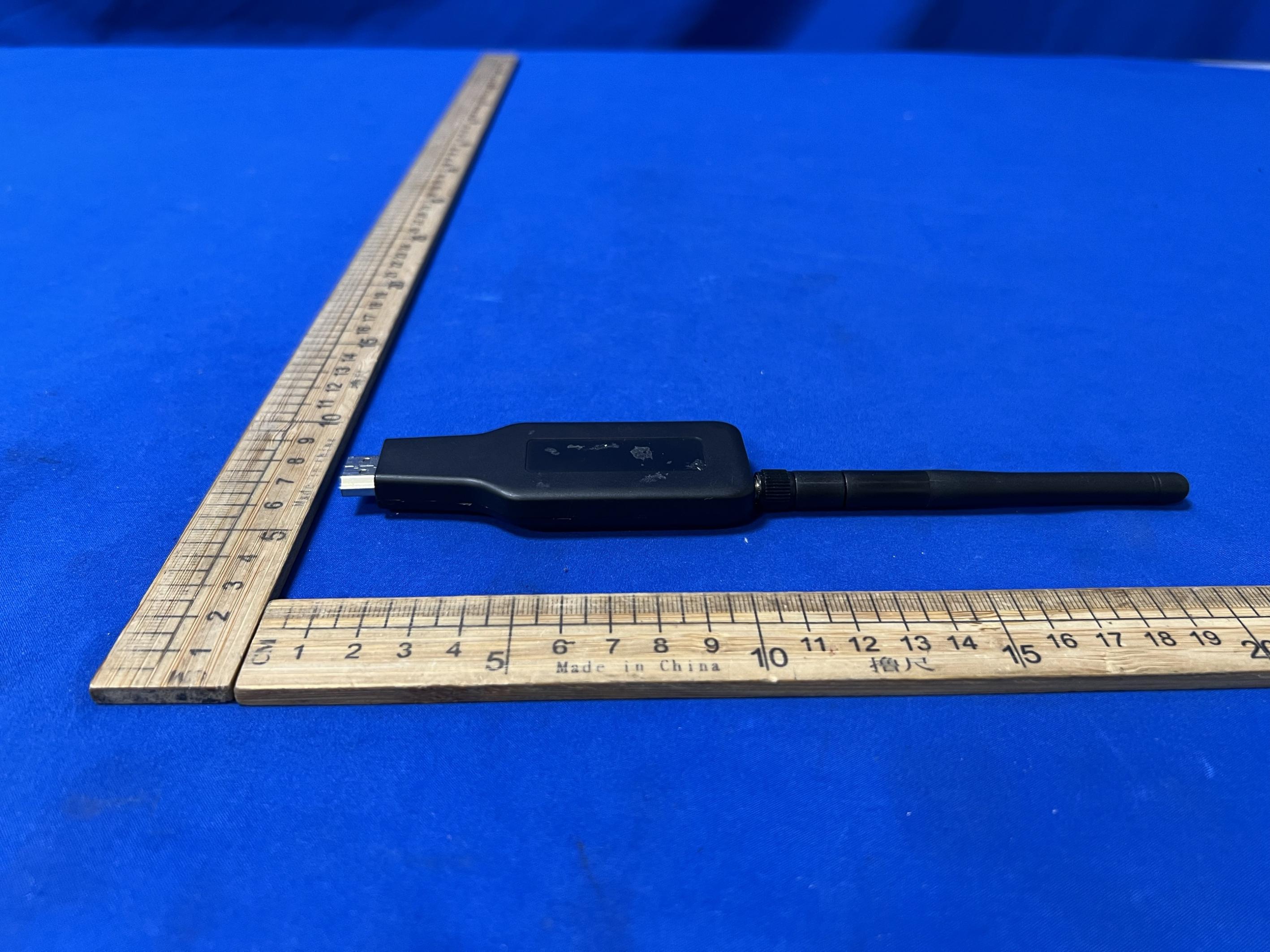

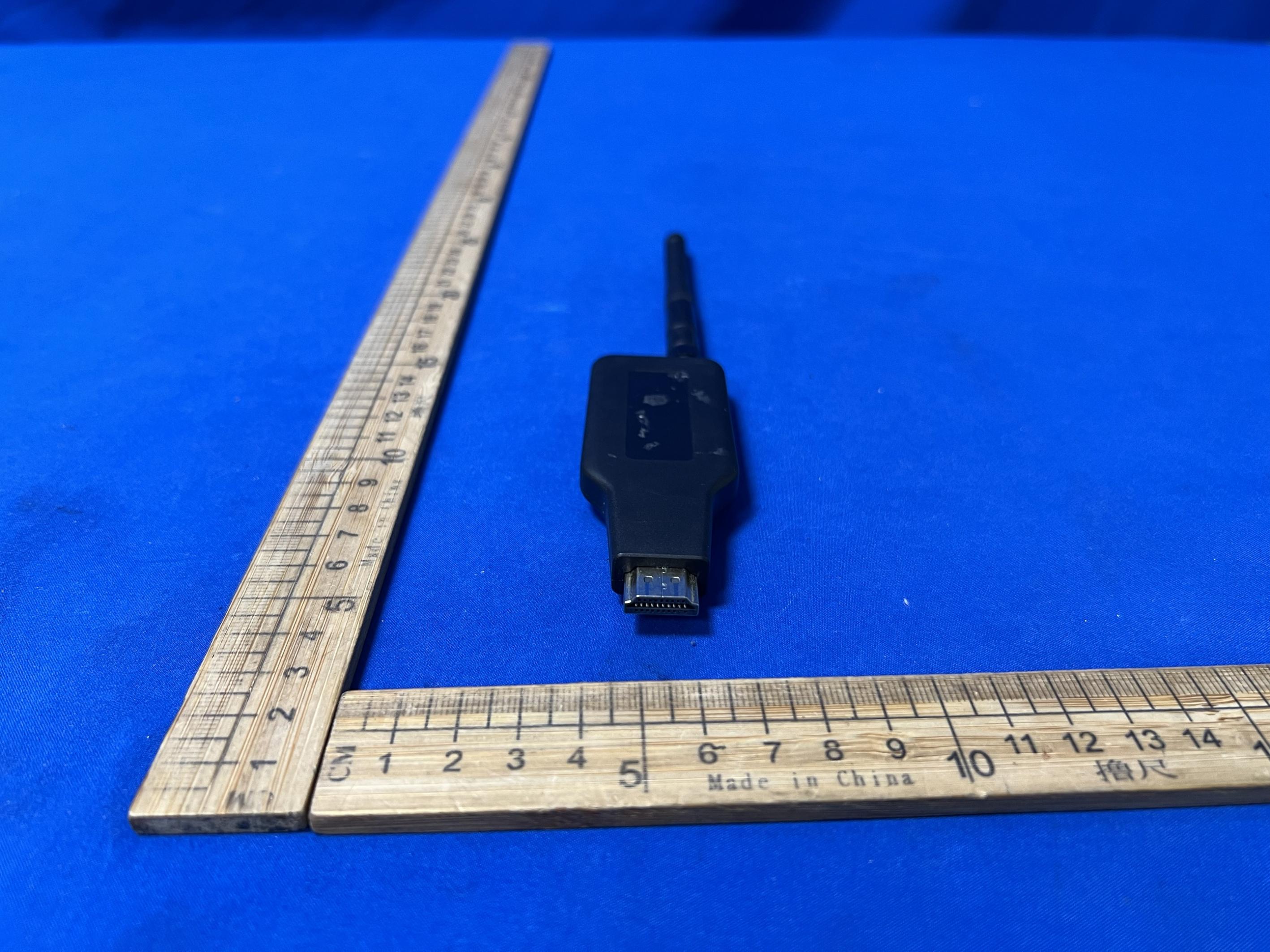

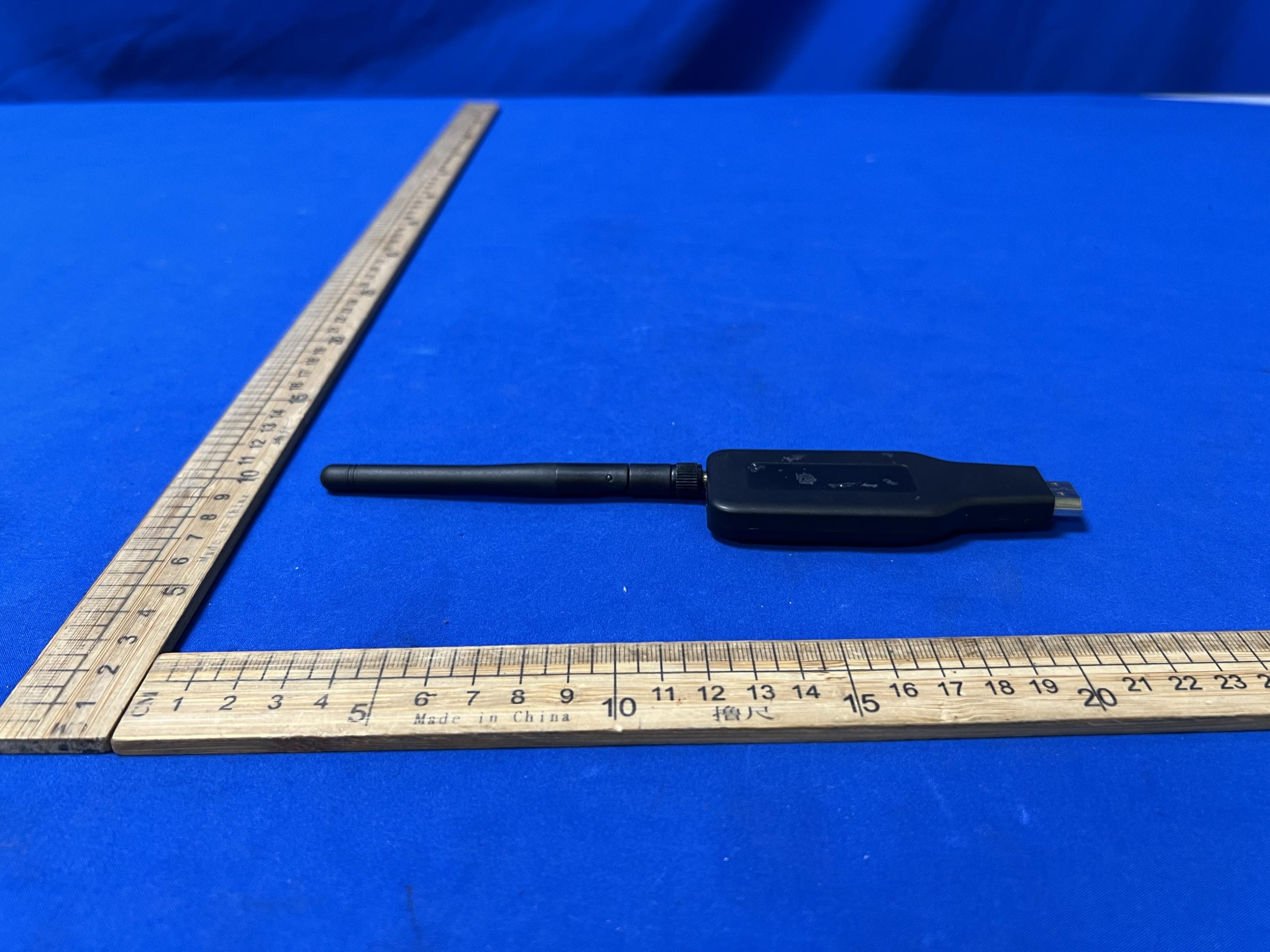

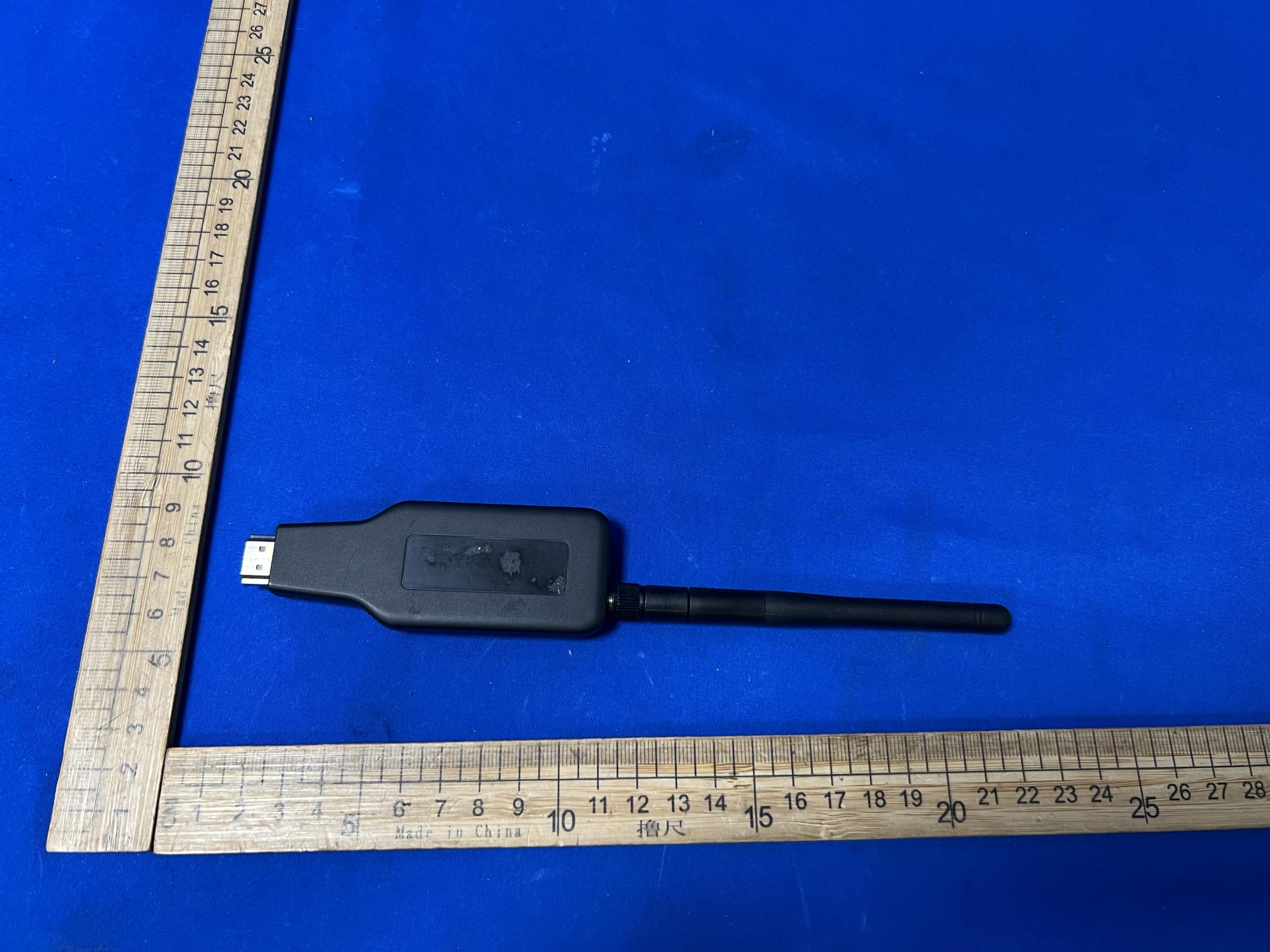

Externalphotos FCC ID: 2BPTP-W07W08
