2BQ6C-TW23Wireless Magnetic Power Bank with Earbuds

ShenZhen Transtyle Electronics Co., Ltd Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Feb. 3, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID:2BQ6C-TW23 ShenZhen Transtyle Electronics Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Russell Li Title: Manager Address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Tel.: +86-0755 29080071 Email: [email protected]

1 | P a g e ShenZhen Transtyle Electronics Co., Ltd Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Attestation Statements To: Federal Communications Commission Date: Feb. 3, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: [2BQ6C-TW23] Product Name: [Wireless Magnetic Power Bank with Earbuds] This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature: Printed Name: Russell Li Title: Manager Address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Tel.: +86-0755 29080071 Email: [email protected] 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

ShenZhen Transtyle Electronics Co., Ltd Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: Feb. 3, 26 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID:2BQ6C-TW23 [ShenZhen Transtyle Electronics Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, [MIRAMONT SOLUTIONS LLC] (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. [MIRAMONT SOLUTIONS LLC] ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: MIRAMONT SOLUTIONS LLC FRN: 0036313369 Address:19 GEORGETOWN, IRVINE, CA92612 United States Signature: Contact Person: Wenyi Wang Tel: 951 401 3633 Email: [email protected] Applicant Company Name: ShenZhen Transtyle Electronics Co., Ltd FRN: 0037323847 Address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Signature: Contact Person: Russell Li Tel: +86-0755 29080071 Email: [email protected]

ShenZhen Transtyle Electronics Co., Ltd Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. 2/3/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID:2BQ6C-TW23 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Pursuant to DA 04-1705, the applicant also requests temporary confidential treatment of the exhibits outlined below for a period of (up to 180) days from the date of equipment authorization and prior to marketing in the United States to prevent the premature release of any sensitive information. Applicant is aware of their responsibility to notify DERYCOM in the event information regarding the product or the product is made available to the public before the requested period has expired. ⎯ User Manual ⎯ Internal Photos ⎯ Test Setup Photos Sincerely, (Signature) Printed Name: Russell Li Title: Manager Address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Tel.: +86-0755 29080071 Email: [email protected]

ShenZhen Transtyle Electronics Co., Ltd Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Date: Feb. 3, 26 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID:2BQ6C-TW23 I, the undersigned, hereby authorize (Shenzhen DL Testing Technology Co., Ltd.) to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by (Shenzhen DL Testing Technology Co., Ltd.) shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with (ShenZhen Transtyle Electronics Co., Ltd). We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Applicant Signature: Printed Name: Russell Li Title: Manager Address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Tel.: +86-0755 29080071 Email: [email protected]

Shenzhen Transtyle Electronics Co., Ltd Model Difference Product description: Wireless Magnetic Power Bank with Earbuds Model name: TW23, Power Bank Buds, pbudbl, pbudwh, pbudgm, pbudrg, pbudbu, pbudte, pbudpu, CW20, CW24, CW25, CW26 Trade Name: N/A FCC ID:2BQ6C-TW23 All the model are the same circuit and RF module, except model names and appearance color. Regards Sincerely Client’s signature: Client’s name / title: Russell Li / Manager Contact information / address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China.

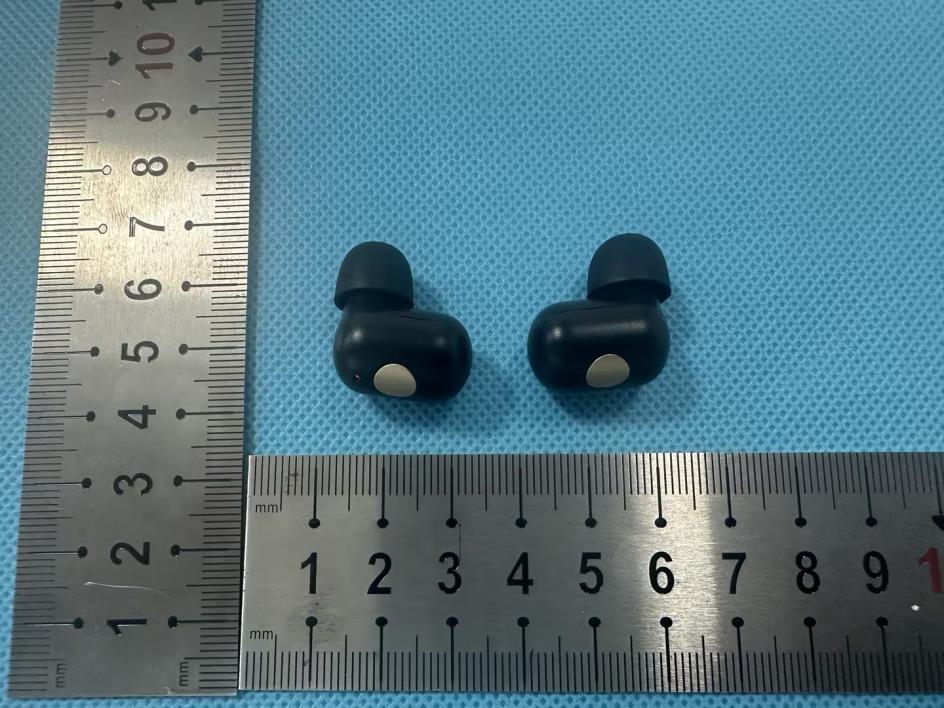

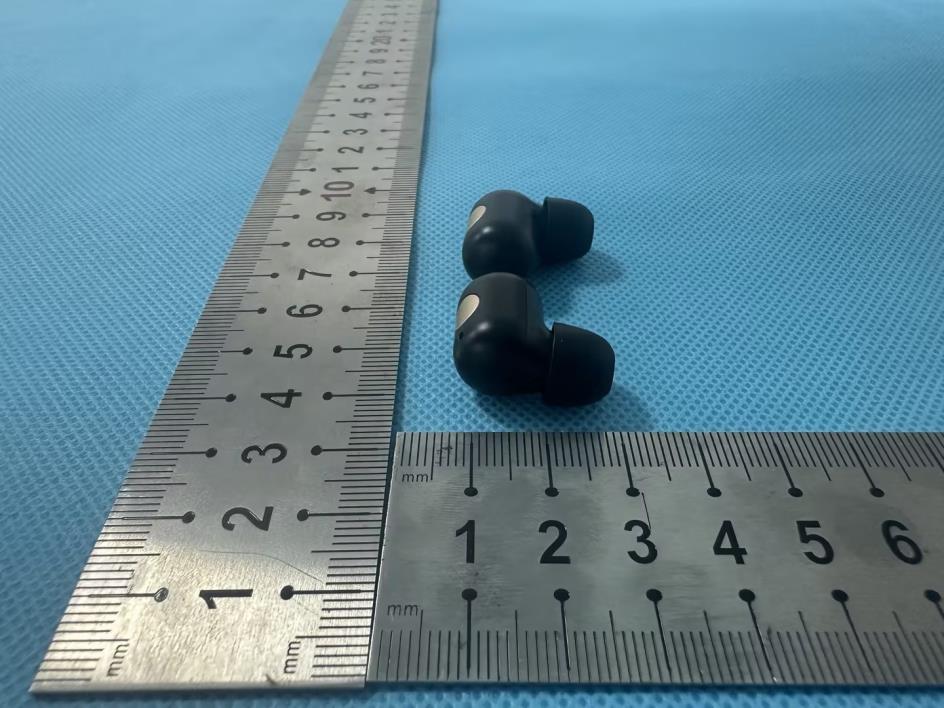

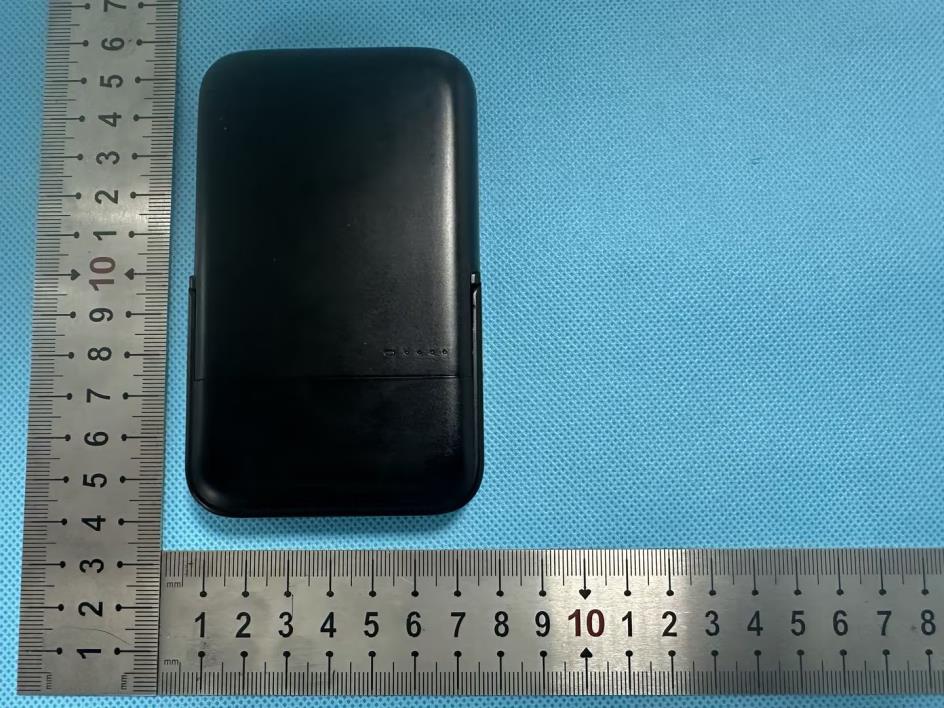

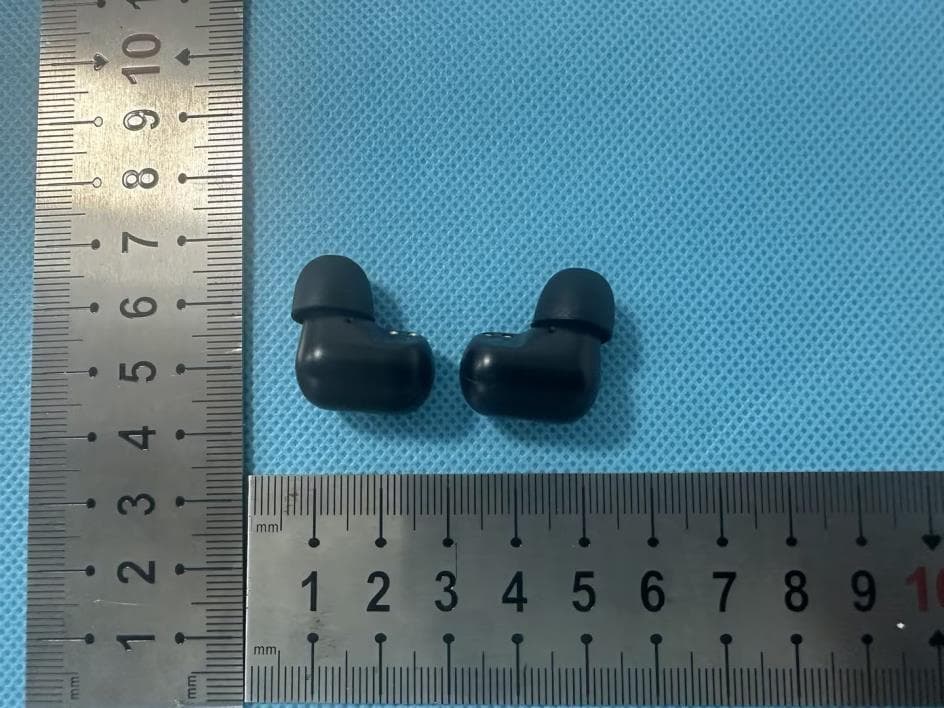

FCC ID:2BQ6C-TW23 EUT PHOTO(External Photos) FCC ID:2BQ6C-TW23 FCC ID:2BQ6C-TW23 FCC ID:2BQ6C-TW23

Label & label location FCC ID:2BQ6C-TW23 Note: As the product is too small to be silk-screened with the FCC ID, the FCC ID is reflected in the instruction manual and external packing. Instruction manual Label location External packing Label location

FCC ID:2BQ6C-TW23 RF Exposure Evaluation According to WS-1 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For BDR: Mode Power(dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Frequency (MHz) Min. distance (mm) Calc. thresholds limit GFSK 6.72 6±1 7 5.01 2402 5 1.55 3.0 GFSK 6.38 6±1 7 5.01 2441 5 1.57 3.0 GFSK 4.82 4±1 5 3.16 2480 5 1.00 3.0 π/4-DQPSK 8.37 8±1 9 7.94 2402 5 2.48 3.0 π/4-DQPSK 8.17 8±1 9 7.94 2441 5 2.48 3.0 π/4-DQPSK 6.58 6±1 7 1.00 2480 5 1.58 3.0 8-DPSK 8.72 8±1 9 0.63 2402 5 2.48 3.0 8-DPSK 8.48 8±1 9 0.79 2441 5 2.48 3.0 8-DPSK 6.96 6±1 7 1.26 2480 5 1.58 3.0 Result: No Standalone SAR test is required.

2.4GHz 1608 Chip Antenna: RANT1608F245X08 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT1608F245 (A)(B)(C)(D) ElectricalSpecificatio X (E) 08 (F) n DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=08 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 1.60±0.10 W 0.80 ± 0.10 T 0.80 ± 0.10 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.4GHz 1608 Chip Antenna: RANT1608F245X01 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ELECTRICALCHARACTERISTICSS11 Radiation ElectricalCharacteristics Freque ncy EfficPercenGain 2400-1.6472.27%2.38 2450-1.3375.34%2.7 2500-1.5972.98%2.59 2.4GHz 1608 Chip Antenna: RANT1608F245X08 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 _ 2.4GHz 1608 Chip Antenna: RANT1608F245X08 Reliability Table TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 3216 Chip Antenna: RANT1608F245X08 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 1NewDatashee2020/03/03t 2Add2Dradiationcharacteristi2021/02/19c

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 73 FCC Part 15C Test Report FCC ID:2BQ6C-TW23 Applicant: Shenzhen Transtyle Electronics Co., Ltd Address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. Manufacturer: Shenzhen Transtyle Electronics Co., Ltd Address: Room 801, Building 3, Hongzhi Technology Building No. 386 Huanguan Middle Road.Guanhu Street, Longhua District, Shenzhen City, China. EUT: Wireless Magnetic Power Bank with Earbuds Trade Mark: N/A Model Number: TW23, Power Bank Buds, pbudbl, pbudwh, pbudgm, pbudrg, pbudbu, pbudte, pbudpu, CW20, CW24, CW25, CW26 Date of Receipt: Dec. 11, 2025 Test Date: Dec. 11, 2025 to Feb. 10, 2026 Date of Report: Feb. 10, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road Baolong Industrial Zone, Baolong Street, Longgang Shenzhen, Guangdong, China. Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-251216005R Prepared (Test Engineer): Dimon Tan Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 73 Table of Contents Page TABLE OF CONTENTS .................................................... 2 1. VERSION .............................................................. 4 2. TEST SUMMARY ........................................................ 5 2.1 TEST FACILITY ......................................................... 6 2.2 MEASUREMENT UNCERTAINTY.......................................... 6 3. GENERAL INFORMATION ............................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................ 7 3.2 Test Setup Configuration .................................................. 9 3.3 Support Equipment ....................................................... 9 3.4 Test Mode .............................................................. 9 4. EMC EMISSION TEST .................................................. 11 4.1 Conducted emissions .................................................... 11 4.1.1 POWER LINE CONDUCTED EMISSION Limits ........................... 11 4.1.2 TEST PROCEDURE ................................................... 11 4.1.3 DEVIATION FROM TEST STANDARD ................................... 11 4.1.4 TEST SETUP ......................................................... 12 4.1.5 EUT OPERATING CONDITIONS ........................................ 12 4.1.6 Test Result ........................................................... 13 4.2 Radiated emissions ..................................................... 15 4.2.1 Radiated Emission Limits ............................................... 15 4.2.2 TEST PROCEDURE ................................................... 15 4.2.3 DEVIATION FROM TEST STANDARD ................................... 16 4.2.4 TEST SETUP ......................................................... 16 4.2.5 EUT OPERATING CONDITIONS ........................................ 17 4.2.6 TEST RESULTS ...................................................... 17 5. RADIATED BAND EMISSION MEASUREMENT ............................ 34 5.1 Test Requirement: ...................................................... 34 5.2 TEST PROCEDURE .................................................... 34 5.3 DEVIATION FROM TEST STANDARD .................................... 35 5.4 TEST SETUP .......................................................... 35 5.5 EUT OPERATING CONDITIONS ......................................... 35 5.6 TEST RESULT ......................................................... 36 6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION .................... 38 6.1 Limit ................................................................... 38 6.2 Test Setup ............................................................. 38 6.3 Test procedure ......................................................... 38 6.4 DEVIATION FROM STANDARD .......................................... 38 6.5 Test Result ............................................................. 39 7. 20DB OCCUPIED BANDWIDTH .......................................... 46 7.1 Test Setup ............................................................. 46 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 73 7.2 Limit ................................................................... 46 7.3 Test procedure ......................................................... 46 7.4 DEVIATION FROM STANDARD .......................................... 46 7.5 Test Result ............................................................. 47 8. MAXIMUM PEAK OUTPUT POWER ...................................... 51 8.1 Block Diagram Of Test Setup ............................................. 51 8.2 Limit ................................................................... 51 8.3 Test procedure ......................................................... 51 8.4 DEVIATION FROM STANDARD .......................................... 51 8.5 Test Result ............................................................. 52 9. HOPPING CHANNEL SEPARATION ...................................... 56 9.1 Test Setup ............................................................. 56 9.2 Test procedure ......................................................... 56 9.3 DEVIATION FROM STANDARD .......................................... 56…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 48 of 73 GFSK - 1-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 49 of 73 π/4-DQPSK - 2-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 50 of 73 8-DPSK - 3-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 51 of 73 8. Maximum Peak Output Power Test Requirement: FCC Part15 C Section 15.247 (b)(1) Test Method: ANSI C63.10:2020 Limit: GFSK & π/4-DQPSK & 8-DPSK: 21 dBm 8.1 Block Diagram Of Test Setup 8.2 Limit For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. For all other frequency hopping systems in the 2400-2483.5 MHz band: 0.125 watts. For FHSs operating in the band 2400-2483.5 MHz, the maximum peak conducted output power shall not exceed 1.0 W if the hopset uses 75 or more hopping channels; the maximum peak conducted output power shall not exceed 0.125 W if the hopset uses less than 75 hopping channels. The e.i.r.p. shall not exceed 4 W. 8.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW =6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 8.4 DEVIATION FROM STANDARD No deviation. EUT RF Test System Spectrum Analyzer Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 52 of 73 8.5 Test Result Modulation Packet Test Channel Peak Output Power (dBm) Limit (dBm) Result GFSK 1-DH1 Lowest 6.72 21.00 Pass Middle 6.38 Highest 4.82 π/4-DQPSK 2-DH1 Lowest 8.37 21.00 Pass Middle 8.17 Highest 6.58 8-DPSK 3-DH1 Lowest 8.72 21.00 Pass Middle 8.48 Highest 6.96 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 53 of 73 GFSK - 1-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 54 of 73 π/4-DQPSK - 2-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 55 of 73 8-DPSK - 3-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 56 of 73 9. HOPPING CHANNEL SEPARATION Test Requirement: FCC Part15 C Section 15.247 (a)(1) Test Method: ANSI C63.10:2020 Receiver setup: RBW=30KHz, VBW=100KHz, detector=Peak Limit: GFSK & π/4-DQPSK & 8DSK: 0.025MHz or 2/3 of the 20dB bandwidth (whichever is greater) 9.1 Test Setup 9.2 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 9.3 DEVIATION FROM STANDARD No deviation. EUT RF Test System Spectrum Analyzer Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 57 of 73 9.4 Test Result Modulation Packet Test Channel Separation (MHz) Limit (MHz) Result GFSK 1-DH1 Low 1.004 0.584 PASS Middle 0.994 0.601 PASS High 0.998 0.600 PASS π/4-DQPSK 2-DH1 Low 1.000 0.859 PASS Middle 1.000 0.857 PASS High 1.008 0.835 PASS 8-DPSK 3-DH1 Low 0.998 0.814 PASS Middle 0.998 0.814 PASS High 1.000 0.815 PASS Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 58 of 73 GFSK - 1-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 59 of 73 π/4-DQPSK - 2-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 60 of 73 8-DPSK - 3-DH1 Test plots Low Channel Middle Channel High Channel Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251216005R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 61 of 73 10.NUMBER OF HOPPING FREQUENCY Test Requirement: FCC Part15 C Section 15.247 (a)(1)(iii) Test Method: ANSI C63.10:2020 Receiver setup: RBW=100kHz, VBW=300kHz, Frequency range=2400MHz-2483.5MHz, Detector=Peak Limit: 15 Channels 10.1 Test Setup 10.2 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sec…
