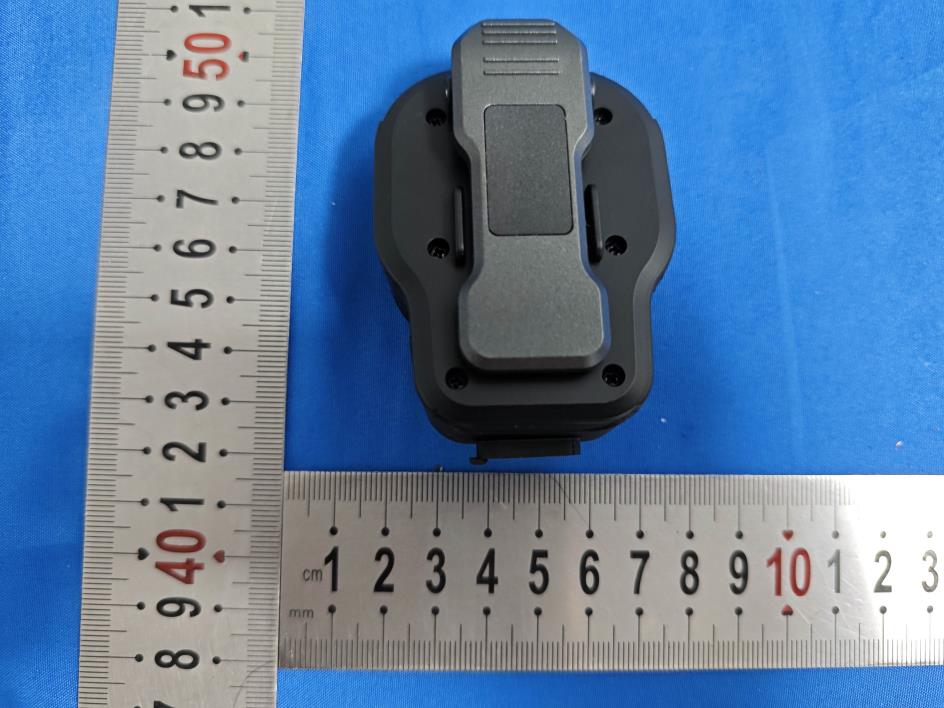

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: J19 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

Model NO: J19 FCC ID:2BQ6U-J19 Input:DC5V 500mA Capacity:600mAh 2.22Wh MADE IN CHINA Dongguan Zichen Electronics Co., Ltd.

Shenzhen CTB Testing Co., Ltd. FCC ID:2BQ6U-J19 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. EDR: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -3.648 0.43 -3±1 -2.00 0.63 <5 0.19558 3.00 YES 2.441 -3.62 0.43 -3±1 -2.00 0.63 <5 0.19716 3.00 YES 2.480 -4.575 0.35 -4±1 -3.00 0.50 <5 0.15785 3.00 YES 2.402 -2.902 0.51 -2±1 -1.00 0.79 <5 0.24622 3.00 YES 2.441 -2.918 0.51 -2±1 -1.00 0.79 <5 0.24821 3.00 YES 2.480 -3.843 0.41 -3±1 -2.00 0.63 <5 0.19873 3.00 YES 2.402 -2.624 0.55 -2±1 -1.00 0.79 <5 0.24622 3.00 YES 2.441 -2.618 0.55 -2±1 -1.00 0.79 <5 0.24821 3.00 YES 2.480 -3.576 0.44 -3±1 -2.00 0.63 <5 0.19873 3.00 YES GFSK π /4DQPSK 8DQPSK BLE:1M Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -3.881 0.41-3±1-2.000.63<50.195583.00YES 2.44 -3.786 0.42-3±1-2.000.63<50.197123.00YES 2.480 -3.56 0.44-3±1-2.000.63<50.198733.00YES GFSK BLE:2M Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -3.789 0.42-3±1-2.000.63<50.195583.00YES 2.44 -3.657 0.43-3±1-2.000.63<50.197123.00YES 2.480 -3.36 0.46-3±1-2.000.63<50.198733.00YES GFSK Conclusion: For the max result : 0.24821≤ FCC Limit 3.0 for 1g SAR.

Product specification Quick Reference Date ITEM Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Efficiency (dB) 70% Gain (dBi) 1.4 Input Impendence(ohm) 50 Polarization Type Vertical & Horizontal VSW < 2 Antenna Gain Frequency (MHz) Efficiency (dB) Efficiency (%) Gain (dBi) 2402 -1.53 70.34 1.31 2405 -1.52 70.51 1.33 2410 -1.49 71.01 1.33 2415 -1.50 70.82 1.32 2420 -1.46 71.47 1.41 2425 -1.45 71.57 1.37 2430 -1.43 71.89 1.39 2435 -1.44 71.70 1.34 2440 -1.40 72.38 1.47 2441 -1.40 72.44 1.51 2445 -1.40 72.42 1.44 2450 -1.41 72.27 1.50 2455 -1.45 71.60 1.53 2460 -1.44 71.82 1.51 2465 -1.50 70.76 1.54 2470 -1.56 69.76 1.48 2475 -1.59 69.35 1.46 2480 -1.67 68.13 1.47 3D radiation pattern diagram The Environment of Antenna Radiation Pattern

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 41 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Wireless Speaker FCC ID: 2BQ6U-J19 Trademark: N/A Model Number: J19, J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16, J17, J18, J20 Prepared For: Dongguan Zichen Electronics Co., Ltd Address: Room 301, Building 1, No. 265 Tai'an Road (Humen Section), Humen Town, Dongguan City, Guangdong Province Manufacturer: Dongguan Zichen Electronics Co., Ltd Address: Room 301, Building 1, No. 265 Tai'an Road (Humen Section), Humen Town, Dongguan City, Guangdong Province Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Sep. 11, 2025 Sample tested Date: Sep. 11, 2025 to Sep. 27, 2025 Issue Date: Sep. 27, 2025 Report No.: CTB25091111901RF01 Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2020 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB25091111901RF01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 41 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 11 6.1 Block Diagram Of Test Setup ......................................................................................................... 11 6.2 Limit ................................................................................................................................................ 11 6.3 Test procedure ............................................................................................................................... 11 6.4 Test Result ..................................................................................................................................... 13 7. RADIATED SPURIOUS EMISSION ............................................................................................. 15 7.1 Block Diagram Of Test Setup ......................................................................................................... 15 7.2 Limit ................................................................................................................................................ 15 7.3 Test procedure ............................................................................................................................... 16 7.4 Test Result ..................................................................................................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 24 8.1 Block Diagram Of Test Setup ......................................................................................................... 24 8.2 Limit ................................................................................................................................................ 24 8.3 Test procedure ............................................................................................................................... 24 8. 4 Test Result ..................................................................................................................................... 25 9. COUDUCTED OUTPUT POWER ......................…
