ThankyouandcongratulationsonyourchoiceofourBluetoothSpeaker.Beforeusingthisspeaker,pleasetakeafew minutestoreadthismanual. ①Volumedown②ON/OFF ③Volumeup④Backbutton ⑤SetAlarmMode⑥Forwardbutton ⑦SoundModeSwitching BasicFunctions Button1: ▸Shortpress:Decreasevolume Button2: ▸Shortpress:Play/Pausemusic ▸Longpress:Poweron/off Button3: ▸Shortpress:Increasevolume Button4:a.Duringplayback:Shortpresstoswitchtoprevioustrack b.InFMmode:Shortpresstoadjustradiochannel(down/back) c.Inalarmmode:Shortpresstoselectalarm(ALM-1/2/3) d.Inclockmode:Shortpresstoadjustvalues(e.g.,decreasehours/minutes) Button5: ▸Shortpress:Stopalarm(whenringing)andforalarmsettings ▸Longpress:Entertimesetupandsavesettings Button6:a.Duringplayback:Shortpresstoswitchtonexttrack b.InFMmode:Shortpresstoadjustradiochannel(up/forward) c.Inalarmmode:Shortpresstoselectalarm.(ALM-1/2/3) d.Inclockmode:Shortpresstoadjustvalues(e.g.,increasehours/minutes) Button7: ▸Shortpress:a.NormalUse:Switchmode(cyclesthroughWireless/FM/TFCard/USB/ALM) b.Inclockmode:Switchsettingitem(e.g.,fromhour→minute) c.Whenalarmrings:Presstostopthealarm ▸Longpress:Entertimesetupandsavesettings Specifications Bluetoothversion:5.1 Transmissiondistance:10m Speakerdrivers:fullrangespeaker×1pcs, Speakeroutput:10W Chargingvoltage:DC5V Battery:3.7V-1200mAh Customizedbuilt-inmetaldiaphragm *Transmissiondistanceistestedinopenspacewithoutinterference. *Theabovedataisbasedonlaboratoryenvironmentandtestresults;forreferenceonly. ImportantSafetyInformation Readallsafetyinformationbelowbeforeusingyourdevice: ·Useonlyauthorizedaccessorieswhicharecompatiblewithyourdevice. ·Thisdevice'soperatingtemperaturerangeiso°Cto40°C.Usingthisdeviceinanenvironmentoutsideofthistemperaturerange maydamagethedevice. ·Afterchargingiscomplete,disconnecttheadapterfromboththedeviceandthepoweroutlet.Donotchargethedevice formorethan12hours. ·Thebatterymustberecycledordisposedofseparatelyfromhouseholdwaste.Mishandlingthebatterymaycausefireor explosion.Disposeoforrecyclethedevice,itsbattery,andaccessoriesaccordingtoyourlocalregulations. ·Donotdisassemble,hit,crush,orburnthebattery.Ifthebatteryappearsdeformedordamaged,stopusingitimmediately. ●Donotshortcircuitthebattery,asthismaycauseoverheating,burns,orotherinjury. ·Donotplacethebatteryinahigh-temperatureenvironment. ·Donotdisassemble,hit,orcrushthebattery,asthismaycausethebatterytoleak,overheat,orexplode. ·Donotburnthebattery,asthismaycausefireorexplosion. ·Usershallnotremoveoralterthebattery.Removalorrepairofthebatteryshallonlybedone. ·Keepyourdevicedry. ·Donottrytorepairthedeviceyourself.Ifanypartofthedevicedoesnotworkproperly,contactcustomersupportorbring yourdevicetoanauthorizedrepaircenter. ·Connectotherdevicesaccordingtotheirinstructionmanuals.Donotconnectincompatibledevicestothisdevice. RoHScompliance-EuropeanUnion OurproductssoldintheEuropeanUnion,meettherequirementsofDirective2011/65/EUanditssubsequentamendments directive(EU)2015/863ontherestrictionoftheuseofcertainhazardoussubstancesinelectricalandelectronicequipment SimplifiedEUDeclarationofConformity Hereby,wedeclaresthatourspeakerisincompliancewiththecouncilRadioEquipmentDirective(RED)2014/53/EU. Note ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergy,andifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry tocorrecttheinterferencebyoneormoreofthefollowingmeasures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. –Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthorityto operatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. MADEINCHINA

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BQEB-CHJ668 CHJ668 We, Applicant Company Name: Shenzhen Cheng Hong Jia Technology Co., Ltd. Address: Floor 4, No.2, Lane 1, Haibin New Village, Bao yuan Raod, Gushu Community, XixiangStreet, Baoan Dist, Shenzhen 518101, China Phone: +86-13410868322 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2025-12-29 Signature Date Name / Title: Peixuan Yang / Quality leader Company: Shenzhen Cheng Hong Jia Technology Co., Ltd. Address: Floor 4, No.2, Lane 1, Haibin New Village, Bao yuan Raod, Gushu Community, XixiangStreet, Baoan Dist, Shenzhen 518101, China Phone: +86-13410868322 Fax: N/A E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BQEB-CHJ668 CHJ668 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Huaxia Testing Technology Co., Ltd Contact Name: Yoyo Zhou Address: 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Phone: +86-755-26648642 Email: [email protected] Signature: Date: 2025-12-30

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BQEB-CHJ668 CHJ668 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2025-12-29 Signature Date Name / Title: Peixuan Yang / Quality leader Company: Shenzhen Cheng Hong Jia Technology Co., Ltd. Address: Floor 4, No.2, Lane 1, Haibin New Village, Bao yuan Raod, Gushu Community, XixiangStreet, Baoan Dist, Shenzhen 518101, China Phone: +86-13410868322 Fax: N/A E-Mail: [email protected]

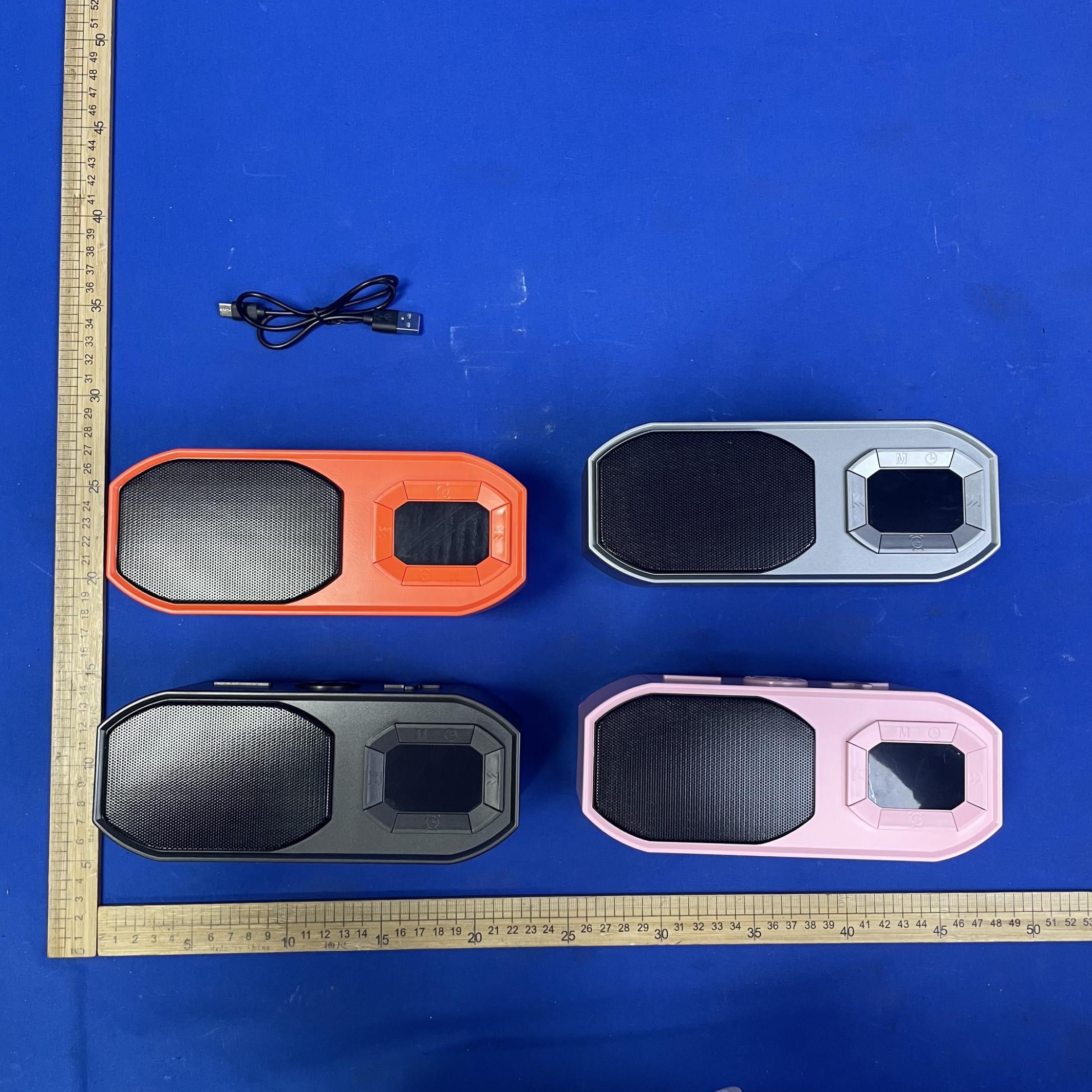

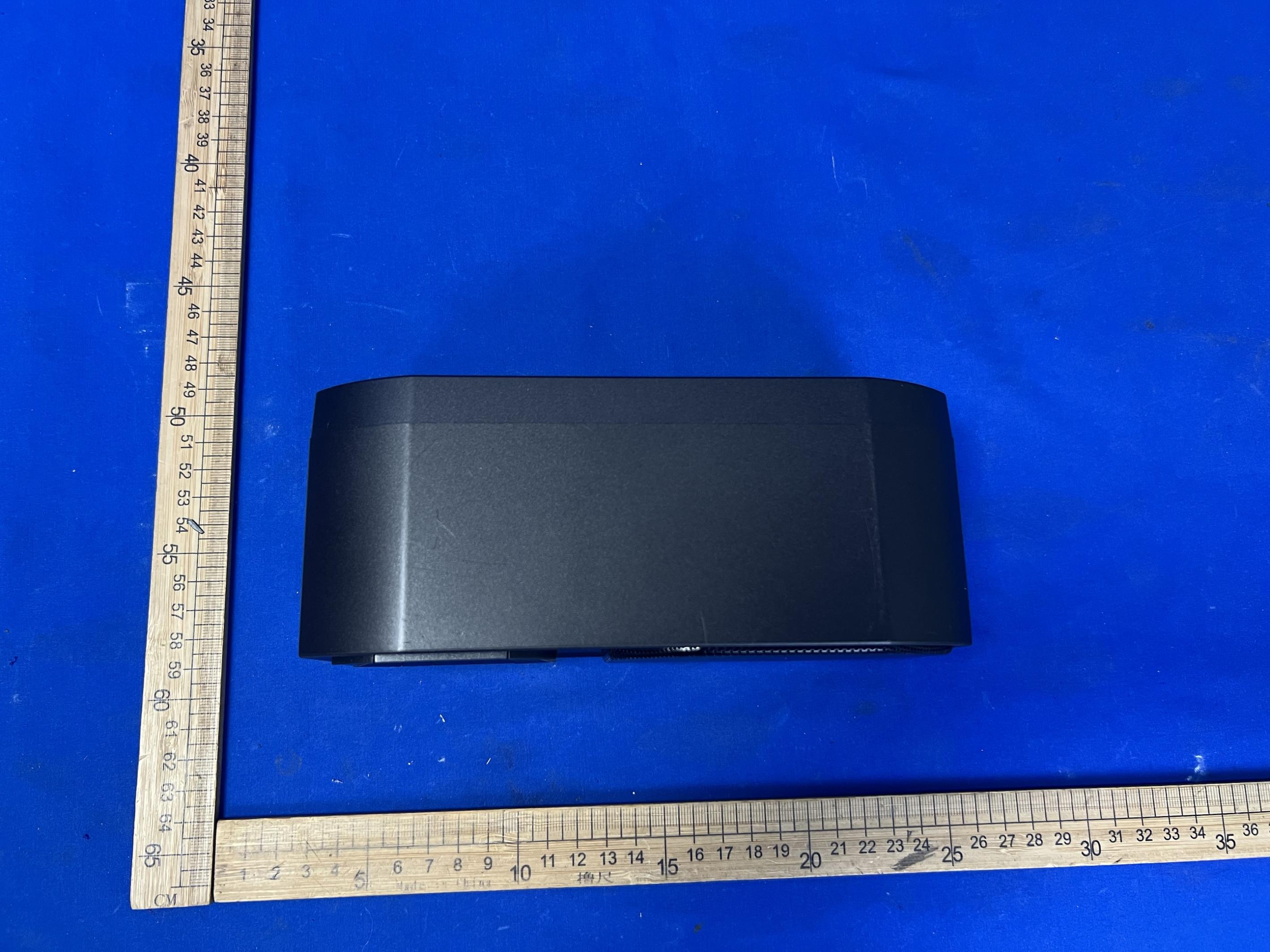

Externalphotos FCC ID: 2BQEB-CHJ668

Product：WirelessSpeaker ModelNo.:CHJ668 FCCID:2BQEB-CHJ668 Size：10*15mm

Internalphotos FCC ID: 2BQEB-CHJ668 ANT

ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20251202851E-02 Applicant: ShenzhenChengHongJiaTechnologyCo.,Ltd. AddressofApplicant: Floor4,No.2,Lane1,HaibinNewVillage,BaoyuanRaod,GushuCommunity, XixiangStreet,BaoanDist,Shenzhen EquipmentUnderTest(EUT): EUTName:WirelessSpeaker ModelNo.:CHJ668 TestModelNo.:CHJ668 BrandName:N/A FCCID:2BQEB-CHJ668 Standards: 47CFRPart1.1307 47CFRPart2.1093 KDB447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2025-12-09 DateofTest: 2025-12-09to2025-12-18 DateofIssue:2025-12-30 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-02 Page:2of7 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20251202851E-02Rev.01 Initialreport 2025-12-30 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-02 Page:3of7 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBT......................................................................................................................................4 4SAREVALUATION...........................................................................................................................................................5 4.1RFEXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................5 4.1.1StandardRequirement......................................................................................................................................5 4.1.2Limits....................................................................................................................................................................5 4.1.3EUTRFExposure..............................................................................................................................................7 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-02 Page:4of7 3GeneralInformation 3.1ClientInformation Applicant: ShenzhenChengHongJiaTechnologyCo.,Ltd. AddressofApplicant: Floor4,No.2,Lane1,HaibinNewVillage,BaoyuanRaod,GushuCommunity, XixiangStreet,BaoanDist,Shenzhen Manufacturer: ShenzhenChengHongJiaTechnologyCo.,Ltd. AddressofManufacturer: Floor4,No.2,Lane1,HaibinNewVillage,BaoyuanRaod,GushuCommunity, XixiangStreet,BaoanDist,Shenzhen Factory: ShenzhenChengHongJiaTechnologyCo.,Ltd. AddressofFactory: Floor4,No.2,Lane1,HaibinNewVillage,BaoyuanRaod,Gushu Community,XixiangStreet,BaoanDist,Shenzhen 3.2GeneralDescriptionofEUT ProductName: WirelessSpeaker ModelNo.: CHJ668 TestModelNo.: CHJ668 TradeMark: N/A SoftwareVersion: CHJ668V1.1 HardwareVersion: CHJ668V1.1 PowerSupply: Li-ionbatteryDC3.7V1200mAh,ChargebyDC5Vforadapter 3.3GeneralDescriptionofBT OperationFrequency:2402MHz~2480MHz ModulationType:GFSK,π/4DQPSK,8DPSK TransferRate:1Mbps/2Mbps/3Mbps NumberofChannel:79 ProductType:MobilePortableFixLocation AntennaType: PCBantenna AntennaGain: -0.58dBi ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-02 Page:5of7 4SAREvaluation 4.1RFExposureComplianceRequirement 4.1.1StandardRequirement 447498D04InterimGeneralRFExposureGuidancev01 3.2.SARTestReductionGuidance SARtestreductionprocedures[Glossary]allowusingaparticularsetoftestdataasrepresentative ofother,similar,testconditions.Thismaybeappliedfordatawithindifferenttestpositions(e.g.body, head,extremity),wirelessmodes(e.g.Wi-Fi,cellular),andfrequencybands.Thistestreductionprocess providesfortheuseoftestdataforonespecificchannel,whilereferencingtothosedatafordemonstrating complianceinotherrequiredchannelsforeachtestpositionofanexposurecondition,withintheoperating modeofafrequencyband.Thisislimitedspecificallytowhenthereported1-gor10-gSARforthemid- bandorhighestoutputpowerchannelmeetsanyofthefollowingconditions. 4.1.2Limits SAR-basedthresholdsarederivedbasedonfrequency,power,andseparationdistanceoftheRF source.Theformuladefinesthethresholdsingeneralforeitheravailablemaximumtimeaveragedpoweror maximumtime-averagedERP,whicheverisgreater. IftheERPofadeviceisnoteasilydetermined,suchasforaportabledevicewithasmallform factor,theapplicantmayusetheavailablemaximumtime-averagedpowerexclusivelyifthe deviceantennaorradiatingstructuredoesnotexceedanelectricallengthofλ/4. Asfordeviceswithantennasoflengthgreaterthanλ/4wherethegainisnotwelldefined,but alwayslessthanthatofahalf-wavedipole(lengthλ/2),theavailablemaximumtime-averaged…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G PCB ANT Horizontal Vertical 2400MHz 2450MHz2500MHz2400MHz2450MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 15.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address: No. 333, Kexing Road, Xiangzhou District, Zhuhai City Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20251202851E-01 Applicant: ShenzhenChengHongJiaTechnologyCo.,Ltd. AddressofApplicant: Floor4,No.2,Lane1,HaibinNewVillage,BaoyuanRaod,GushuCommunity, XixiangStreet,BaoanDist,Shenzhen EquipmentUnderTest(EUT): Product: WirelessSpeaker ModelNo.: CHJ668 TestModelNo.:CHJ668 BrandName: N/A FCCID:2BQEB-CHJ668 Standards:47CFRPart15,SubpartC KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10:2020 DateofReceipt:2025-12-09 DateofTest: 2025-12-09to2025-12-18 DateofIssue:2025-12-30 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:2of79 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20251202851E-01Rev.01 Initialreport 2025-12-30 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:3of79 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement47CFRPart15.203/PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10-2020PASS ConductedPeakOutput Power 47CFRPart15.247ANSIC63.10-2020PASS 20dBOccupiedBandwidth47CFRPart15.247ANSIC63.10-2020PASS CarrierFrequencies Separation 47CFRPart15.247ANSIC63.10-2020PASS HoppingChannelNumber47CFRPart15.247ANSIC63.10-2020PASS DwellTime47CFRPart15.247ANSIC63.10-2020PASS PseudorandomFrequency HoppingSequence 47CFRPart15.247ANSIC63.10-2020PASS Band-edgeforRF ConductedEmissions 47CFRPart15.247ANSIC63.10-2020PASS RFConductedSpurious Emissions 47CFRPart15.247ANSIC63.10-2020PASS RadiatedSpurious emissions 47CFRPart15.209ANSIC63.10-2020PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15.205/15.209ANSIC63.10-2020PASS Remark: Thetestedsample(s)andthesampleinformationareprovidedbytheclient. Tx:InthiswholereportTx(ortx)meansTransmitter. Rx:InthiswholereportRx(orrx)meansReceiver. RF:InthiswholereportRFmeansRadiatedFrequency. CH:InthiswholereportCHmeanschannel. Volt:InthiswholereportVoltmeansVoltage. Temp:InthiswholereportTempmeansTemperature. Humid:InthiswholereportHumidmeanshumidity. Press:InthiswholereportPressmeansPressure. N/A:Inthiswholereportnotapplication ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:4of79 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6TESTCONFIGURATION................................................................................................................................................8 4.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.8TESTLOCATION........................................................................................................................................................10 4.9TESTFACILITY..........................................................................................................................................................10 4.10ABNORMALITIESFROMSTANDARDCONDITIONS....................................................................................................10 4.11OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.12EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.........................................................................................................................17 5.420DBOCCUPI…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:51of79 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:52of79 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:53of79 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:54of79 5.9SpuriousRFConductedEmissions TestRequirement:47CFRPart15CSection15.247(d) TestMethod:ANSIC63.10:2020 TestSetup: Remark:Offset=cableloss+attenuationfactor. Limit:Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumintentionalradiatorisoperating,theradiofrequencypowerthatis producedbytheintentionalradiatorshallbeatleast20dBbelowthatinthe 100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthe desiredpower,basedoneitheranRFconductedoraradiated measurement. ExploratoryTestMode:Non-hoppingtransmittingwithallkindofmodulationandallkindofdatatype FinalTestMode:ThroughPre-scan,findtheDH5ofdatatypeistheworstcaseofGFSK modulationtype,2-DH5ofdatatypeistheworstcaseofπ/4DQPSK modulationtype,3-DH5ofdatatypeistheworstcaseof8DPSKmodulation type. TestResults:Pass ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:55of79 DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:56of79 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:57of79 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:58of79 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:59of79 Remark: Pretest9kHzto25GHz,findthehighestpointwhentesting,soonlytheworstdatawereshowninthetest report.PerFCCPart15.33(a)and15.31(o),Theamplitudeofspuriousemissionsfromintentionalradiators whichareattenuatedmorethan20dBbelowthepermissiblevalueneednotbereportedunlessspecifically requiredelsewhereinthispart. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:60of79 5.10 OtherrequirementsFrequencyHoppingSpreadSpectrumSystem TestRequirement:47CFRPart15CSection15.247(a)(1),(h)requirement: Thesystemshallhoptochannelfrequenciesthatareselectedatthesystemhopping ratefromaPseudorandomorderedlistofhoppingfrequencies.Eachfrequencymustbeusedequally ontheaveragebyeachtransmitter.Thesystemreceiversshallhaveinputbandwidthsthatmatchthe hoppingchannelbandwidthsoftheircorrespondingtransmittersandshallshiftfrequenciesin synchronizationwiththetransmittedsignals. Frequencyhoppingspreadspectrumsystemsarenotrequiredtoemployallavailablehopping channelsduringeachtransmission.However,thesystem,consistingofboththetransmitterandthe receiver,mustbedesignedtocomplywithalloftheregulationsinthissectionshouldthe transmitterbepresentedwithacontinuousdata(orinformation)stream.Inaddition,asystem employingshorttransmissionburstsmustcomplywiththedefinitionofafrequencyhoppingsystem andmustdistributeitstransmissionsovertheminimumnumberofhoppingchannelsspecifiedin thissection. Theincorporationofintelligencewithinafrequencyhoppingspreadspectrumsystemthatpermits thesystemtorecognizeotheruserswithinthespectrumbandsothatitindividuallyand independentlychoosesandadaptsitshopsetstoavoidhoppingonoccupiedchannelsispermitted. Thecoordinationoffrequencyhoppingsystemsinanyothermannerfortheexpresspurposeof avoidingthesimultaneousoccupancyofindividualhoppingfrequenciesbymultipletransmittersis notpermitted. Complianceforsection15.247(a)(1) AccordingtoBluetoothCoreSpecification,thepseudorandomsequencemaybegeneratedinanine- stageshiftregisterwhose5thand9thstage outputsareaddedinamodulo-twoadditionstage.Andtheresultisfedbacktotheinputofthefirst stage.ThesequencebeginswiththefirstONEof9consecutiveONEs;i.e.theshiftregisterisinitialized withnineones. •Numberofshiftregisterstages:9 •Lengthofpseudo-randomsequence:2 9 -1=511bits •Longestsequenceofzeros:8(non-invertedsignal) AnexampleofPseudorandomFrequencyHoppingSequenceasfollow: Eachfrequencyusedequallyontheaveragebyeachtransmitter. AccordingtoBluetoothCoreSpecification,BluetoothreceiversaredesignedtohaveinputandIF bandwidthsthatmatchthehoppingchannelbandwidthsofanyBluetoothtransmittersandshift frequenciesinsynchronizationwiththetransmittedsignals. Complianceforsection15.247(g) AccordingtoBluetoothCoreSpecification,theBluetoothsystemtransmitsthepacketwiththe pseudorandomhoppingfrequencywithacontinuousdataandtheshortbursttransmissionfromthe Bluetoothsystemisalsotransmittedunderthefrequencyhoppingsystemwiththepseudorandom hoppingfrequencysystem. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:61of79 Complianceforsection15.247(h) AccordingtoBluetoothCorespecification,theBluetoothsystemincorporateswithanadaptive systemtodetectotheruserwithinthespectrumbandsothatitindividuallyandindependentlyto avoidhoppingontheoccupiedchannels. AccordingtotheBluetoothCorespecification,theBluetoothsystemisdesignednothavetheability tocoordinatedwithotherFHSSSysteminanefforttoavoidthesimultaneousoccupancyofindividual hoppingfrequenciesbymultipletransmitter. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202851E-01 Page:62of79 5.11 RadiatedSpuriousEmission&Restrictedbands TestRequirement:47CFRPart15CSection15.209and15.205 TestMethod:ANSIC63.10:2020 TestSite:MeasurementDistance:3m(Semi-AnechoicChamber) ReceiverSetup: FrequencyDetectorRBWVBWRemark 0.009MHz-0.090MHzPeak10kHz30kHzPeak 0.009MHz-0.090MHzAverage10kHz30kHzAverage 0.090MHz-0.110MHzQuasi-peak10kHz30kHzQuasi-peak 0.110MHz-0.490MHzPeak10kHz30kHzPeak 0.110MHz-0.490MHzAverage10kHz30kHzAverage 0.490MHz-30MHzQuasi-peak10kHz30kHzQuasi-peak 30MHz-1GHzPeak120kHz300kHzPeak Above1GHz Peak1MHz3MHzPeak Peak1MHz10HzAverage Limit: Frequency Fi…

Text truncated - open the document above for the full version.

Setupphotos 1Photographs-EUTTestSetup 1.1RadiatedEmission 9KHz~30MHz: 30MHz~1GHz: FCC ID: 2BQEB-CHJ668 Above1GHz: 1.2ConductedEmission 1.3RFConductedmeasurement
