HARDWARE INTERCOM USER MANUAL 1.Appearance and Key Function 1.SOS Key 2.PTT Key 3.Poc key 4. Volume key 5. Camera key 6. Channel knob 7.Front camera 8.Speaker 9. Home key 10.Menu key 11.Intercom antenna 12.Receiver 13.Indicator light 14.Screen 15.TP 16.Back key 17.M6 port 18.Charger port 19.Power key 20.Video record key 21.Lanyard hole 22.Rear camera 23.Flash light 24.Battery cover buckle 25.Back clip Quick guide 1、Turn on the intercom function: Click the [DMR Intercom] application on the standby desktop of the intercom 2、Turn off the intercom function: In the intercom application --- setting menu, select exit 3、Switch channel: Scheme one:In the intercom APP interface, standby desktop or lock screen interface, rotate the buttons left and right; Scheme two:On the main interface of the intercom app, swipe the channel display bar on the screen left and right to switch channels. 4、Volume adjustment: Slide the volume setting bar in the intercom application---setting menu interface; 5、Intercom call: On any interface, long press [PTT key] to initiate an intercom call; When the screen of the intercom APP is on, tap the intercom icon in the middle of the screen to initiate an intercom call. DMR intercom settings 一、DMR intercom function setting: 1、Local ID: Click to edit the ID number of the local intercom. 2、Power: High power and low power options are available. 3、Volume: The volume of the receiving intercom can be adjusted. 4、MIC gain: adjustable MIC input gain size. 5、Power saving mode: After power saving is turned on, the power consumption will be reduced during standby. 6、Relay offline: support relay function. 7、Contact: Long press the contact to edit and delete. Click the add icon in the upper right corner of the contact interface to add a new contact. 8、Group: Long press the group to edit and delete. Click the add icon in the upper right corner of the group interface to add a new group. 2.Digital channel settings Click on the DMR intercom application interface to modify related parameters: 1、Transmission frequency: Set the transmission frequency. 2,Receiving frequency: Set the receiving frequency Note: Only when the transmitting frequency of the transmitter is the same as the receiving frequency of the receiver can talk to each other. 3、Call type: Individual call, group call, and all call can be selected. ① Individual call: The transmitter calls the designated "transmitting contact". ② Group call: group call, the receiver's "group call receiving list" must include the transmitter's "group call transmitting ID" before it can be received Note: The sending group number is any ID in the other party's group list. ③ All calls: unlimited calls, only the receiver's receiving frequency, color code, encryption and other settings are consistent. 4、Transmission group: Set the group call transmission ID of the transmitter. 5、Receiving group: Set the receiver's group call receiving list. 6、Channel mode: direct mode, true dual time slot. 7、Color code: Two intercoms can communicate with each other when the color code is the same. 8、Encryption: Encrypt the communication data, the sound cannot be restored normally if the key is not correct. 9、Click on the digital channel interface to send information to the corresponding ID/view the received information. Only individual calls and group calls are supported. Examples of digital intercom settings: DMR app main interface: Channel setting interface: 三、Analog channel setting: 1、Transmission frequency: Set the transmission frequency. 2、Receiving frequency: Set the receiving frequency. Note: Only when the transmitting frequency of the transmitter is the same as the receiving frequency of the receiver can talk to each other. 3、Bandwidth setting: Broadband and narrowband can be selected. 4、Receiving subtone type: Carrier, CTCSS, forward CDCSS, and directional CDCSS can be selected. 5、Transmission subtone type: can choose carrier, CTCSS, forward CDCSS, direction CDCSS. Note: The CTCSS/CDCSS value of the transmitter must be consistent with the CTCSS/CDCSS of the receiver. 6、Squelch level: 0~9 can be set, the higher the level, the faster the squelch. 7、Monitor switch: Forcibly turn on the speaker regardless of whether there is a signal. 8、Example: Set the analog intercom of two walkie-talkies as follows: A Transmitter (mute CTCSS [transmit mute value: 38; receive mute value: 66], transmit frequency [450.025], receive frequency [452.025]) B Receiver (mute CTCSS [transmit mute value: 66; receive mute value: 38], transmit frequency [452.025], receive frequency [450.025]) Note: When setting the mute and transmitting/receiving frequency, the receiver must be consistent with the transmitter before intercom. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation …
Text truncated - open the document above for the full version.
LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2BQFO-CJ-1UVCJ-1UV Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionof anyCommission-relatedproceedinginvolvingtheequipment. iv.Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,the granteeisobligatedtonotifytheFCCwithin30daysviathegrantingTCB. US-AmericanPointofContactApplicant/ApprovalHolder Signature:Signature: SignatureDate:2025-9-18SignatureDate:2025-9-18 CompanyName:ComJoTLLCComJoTLLC FRN:00371858730037185873 ContactName:JosephHumbergerJosephHumberger Address:915StLouisSt,NewOrleans, Louisiana70112UnitedStates 915StLouisSt,NewOrleans, Louisiana70112UnitedStates Phone:(877)277-2477(877)277-2477 Email:[email protected]@comjot.com
Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BQFO-CJ-1UV CJ-1UV We, Applicant Company Name: ComJoT LLC Address: 915 St Louis St, New Orleans, Louisiana 70112, United States Phone: +1-877-277-2477 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2025-09-18 Signature Date Name / Title: Joseph Humberger / CTO Company: ComJoT LLC Address: 915 St Louis St, New Orleans, Louisiana 70112, United States Phone: +1-877-277-2477 Fax: +1-877-277-2477 E-Mail: [email protected]
Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BQFO-CJ-1UV CJ-1UV Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software The memory used does not allow the running the cybersecurity and/or anti-virus software The storage capacity does not allow the running the cybersecurity and/or anti-virus software The operating system used is not capable of running the cybersecurity and/or anti-virus software No inherent compliance Based on software bill of material Compliance Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Ling Zhu Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2025-08-29
Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BQFO-CJ-1UV CJ-1UV For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2025-09-18 Signature Date Name / Title: Joseph Humberger / CTO Company: ComJoT LLC Address: 915 St Louis St, New Orleans, Louisiana 70112, United States Phone: +1-877-277-2477 Fax: +1-877-277-2477 E-Mail: [email protected]
Page1of4FCCID:2BQFO-CJ-1UV ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2BQFO-CJ-1UV ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2BQFO-CJ-1UV ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2BQFO-CJ-1UV ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 PMRAntenna
Page1of1FCCCID:2BQFO-CJ-1UV ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L5.0cmxW2.0cm) LabelLocation POCradio/4GNetworkintercom Model:CJ-1UV FCCID:2BQFO-CJ-1UV

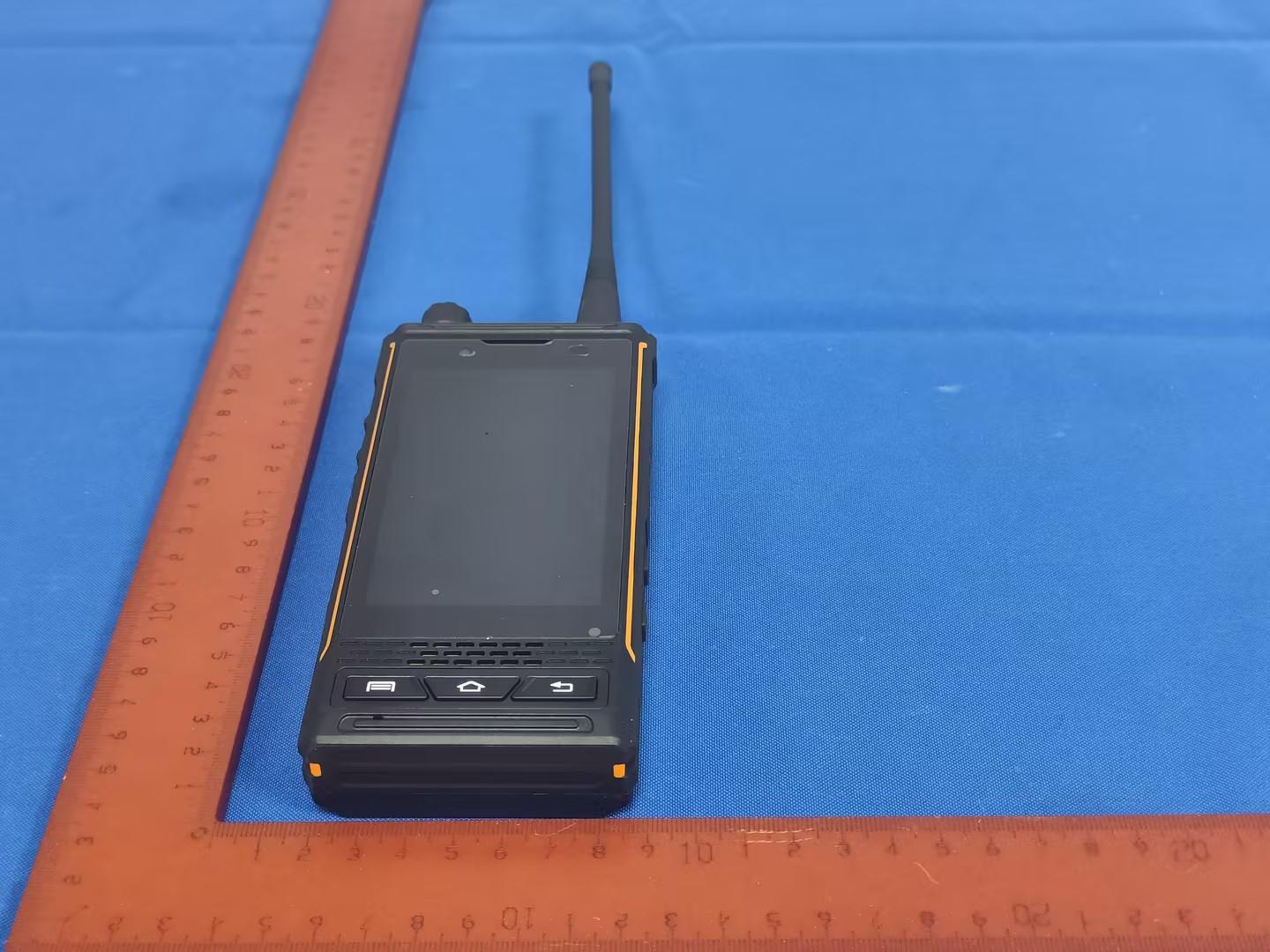

Page 1 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 NFC antenna Page 3 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Bluetooth/WIFI Antenna LTE Diversity Antenna Page 5 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10 GSM/WCDMA/LTE Antenna Page 6 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 11 Fig. 12 Page 7 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 13 Fig. 14 Page 8 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 15 Fig. 16 Page 9 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 17 Fig. 18 Page 10 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 19 Fig. 20 Page 11 of 11 FCC ID: 2BQFO-CJ-1UV Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 21
Page 1 of 255 Report No.: AiTSZ-250903048FW1 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name: POC radio/4G Network intercom Model No.: CJ-1UV Serial Model: N/A Brand Name: ComJoTRadios Report No.: AiTSZ-250903048FW1 FCC ID: 2BQFO-CJ-1UV Prepared for ComJoT LLC 915 St Louis St, New Orleans, LA, 70112, United States Prepared by Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 2 of 255 Report No.: AiTSZ-250903048FW1 TEST RESULT CERTIFICATION Applicant’s name ................. : ComJoT LLC Address ................................. : 915 St Louis St, New Orleans, LA, 70112, United States Manufacturer's Name .......... : Shenzhen Anysecu Technology Co., Ltd. Address ................................. : Room2413, Bld.2B, COFCO Xiangyun, Longcheng, Longgang, Shenzhen, Guangdong, China Product description Product name ........................ : POC radio/4G Network intercom Trademark ........................... : ComJoTRadios Model and/or type reference : CJ-1UV Serial Model........................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Guangdong Asia Hongke Test Technology Limited. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01.Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. : AiTSZ-250903048-1 Date of Test Date (s) of performance of tests ............. : Jul. 28, 2025 ~ Aug. 15, 2025 Date of Issue .......................................... : Sep. 10, 2025 Test Result.............................................. : Pass Reviewed by: Approved by: Ken Zou Jack Li Page 3 of 255 Report No.: AiTSZ-250903048FW1 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Sep. 10, 2025 Jack Li Page 4 of 255 Report No.: AiTSZ-250903048FW1 TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 8 1.4. Test specification(s) .............................................................................. 10 1.5. Ambient Condition ............................................................................... 10 2. SAR Measurement System ............................................................................... 11 2.1. SATIMO SAR Measurement Set-up Diagram ......................................... 11 2.2. Robot ................................................................................................... 12 2.3. Probe ................................................................................................... 13 2.3.1. E-Field Probe Calibration ................................................................ 13 2.4. Phantoms ............................................................................................. 14 2.5. Technical Data ...................................................................................... 15 2.6. Device Holder ...................................................................................... 16 2.7. Test Equipment List .............................................................................. 18 3. SAR Measurement Procedures ........................................................................ 20 3.1. Power Reference.................................................................................. 20 3.2. Area scan & Zoom scan ........................................................................ 20 3.3. Description of interpolation/extrapolation scheme ............................. 22 3.4. Volumetric Scan ................................................................................... 22 3.5. Power Drift .......................................................................................... 22 4. System Verification Procedure ......................................................................... 23 4.1. Tissue Verification ................................................................................ 23 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 24 4.2. System Verification Procedure ............................................................. 25 4.2.1. System Verification Results ............................................................ 26 5. SAR measurement variabilit ............................................................................. 27 6. SAR Measurement Uncertainty ........................................................................ 28 7. RF Exposure Positions ...................................................................................... 31 7.1. Ear and handset reference point ...........................................…
