2BQHB-CM-501Wireless Controller

1.Product Introduction and Application Scope Working Voltage operating current quiescent current Continuous running time Input voltage/current Charging time transmission distance battery capacity standby time 2.Product Parameters DC3.7V <140mA <20uA > 8H DC5V / 550mA About 2 hours ≥10M 1000mAh 90 days after fully charged 3.Packaging List Game controller X1 Manual X1 Type-C USB cable X1 Standard buttons: Home, , , ↑, ↓, ←, →, x, , , , L1,L2,L3, R1, R2,R3 ,TOUCH, Programming keys M1/M2; 1. The controller supports any software version of the PS5 host; 2. Bluetooth ; 3. The online distance of the controller can be controlled within 10M; 4. Equipped with 3D acceleration sensor and gyroscope sensor functions, forming a 6-axis sensor function; 5. Equipped with RGB LED color channel indicators for easy differentiation of different users and roles; 6. The Bluetooth connection method is consistent with the original controller method; 7. Supports USB lithium battery charging; 8. Supports 3.5mm TRRS stereo jack to connect headphones and microphone; 9. Support dual point capacitive sensing touch panel; 10. Supports wired connection to the host and wired audio function; 11. Support speaker function; ◆ Using standard PS5 features, it can work on PC through driver, Windows 7 and above, and Android 5.0 Drive free upper system ◆ This solution supports PC USB online upgrade of product programs, thereby supporting the latest upgrade system of PS5 host Can there be a suburban shelter Prevent the problem of product malfunction caused by upgrading the host system. 4.Controller concept Type-C USB R2 keyL2 key L1 key R1 key left stick Right stick 5.Feature Introduction 6.PS5 platform features X/O/ / key D-pad Indicator light R3 key L3 key (Press down the joystick) Home key OPTIONS key 7.PS5 host connection method 8. PC computer connection 10Trigger and 3D joystick calibration. 9.Other device connections 12RGB lighting effects. SHARE key Touch key (touchpad press down) 3.5mm headphone jack M2 key M1 key 11Programming function. ◆ Programmable buttons: Cross buttons (↑, ↓, ←, →), X, , , ,L1 \ R1 \L2 \ R2 \ L3 \ R3, Left joystick, right joystick; Support recording key press time ◆ Operation method: 1.Press the (Touch+M1) or (Touch+M2) keys simultaneously for 3 seconds, and the channel 13Reset function. Reset Operation instructions Wireless GamePad (Press down the joystick) □ ◆ The controller is in PS5 working mode Any function in the game, including basic digital and analog buttons, can be fully implemented on the PS5 console, As well as six axis SENSOR function and LED color display function, it can also support specific games Vibration holding function; This controller not only supports Bluetooth wireless function when connected to the host, but also supports wired and wireless communication Host connection, users can play games while charging, enjoying the game; ◆ Sensor verification Users can manually calibrate the sensor if they notice any abnormal phenomena during use: when the handle is connected, Place the desktop horizontally, press and hold the key+ key for 3 seconds, and the channel light on the handle will flash to indicate that the calibration is successful after stopping flashing. ◆ Color LED indicator If the controller fails to communicate with the PS5 host within 15 seconds of searching, the controller will enter sleep mode; In online mode, there are no buttons for about 10 minutes and the 3D joystick does not move significantly, resulting in low labor consumption for the joystick Status; ---The sleep time without operation can be set on the host. When shutting down and charging, it will display in the form of a breathing light, The color is orange, and the lights turn off when filled. 1.When the controller has not been connected to the current PS5 host or has been connected to other hosts, it needs to be connected to the current host When connecting, first use a USB cable to establish wired communication with the PS5 host. Automatic program during communication process Perform code matching, press the Home button, and the controller can be wirelessly connected via Bluetooth. 2.When connecting to USB, press the Home button and the LED light will display a constant color, indicating that the host is connected 3. A typical PS host supports multiple Bluetooth devices and wired connections to the host, and the controller is perfect Support PS5/PS4 series games 4. When different controllers are connected to the host, the LED lights display different colors to distinguish different users; PS5： (1P: Blue 2P: Red 3P: Green 4P: Pink) 1. Connect the controller to the computer using a USB cable, and the computer will automatically install drivers. The controller supports PS5 wired audio There are two modes: frequency and X-input. After USB wired connection, it defaults to PS5 wired audio, which can be long pressed + Press the key for 3 seconds to switch to X-input mode; ◆ Wired connection 2. When the controller is turned off, first press and hold the SHARE key, then press the Home key combination ( + Home), and hold for 3 seconds, The indicator light flashes and the handle enters pairing mode. Release the button at this time; 2. PC display name: 3. If the device name "DualSines Wireless Controller" appears in the Bluetooth search list, click on it Connect the devices; After a successful connection, the indicator light on the controller stays on, indicating that the controller has been successfully connected. At this point, the controller It can be used on the computer now. PS5 wired: DualSines Wireless Controller - blue light display X-input: Xbox 360 Controller for Windows； ---The light displays green ◆ Bluetooth connection 1. When using a laptop or desktop computer, you need to first turn on Bluetooth to search for the device interface (desktop computers without Bluetooth) Need a Bluetooth receiver); ◆ When the controller is turned off, first press and hold the SHARE key, then press the Home key combination (…

Text truncated - open the document above for the full version.

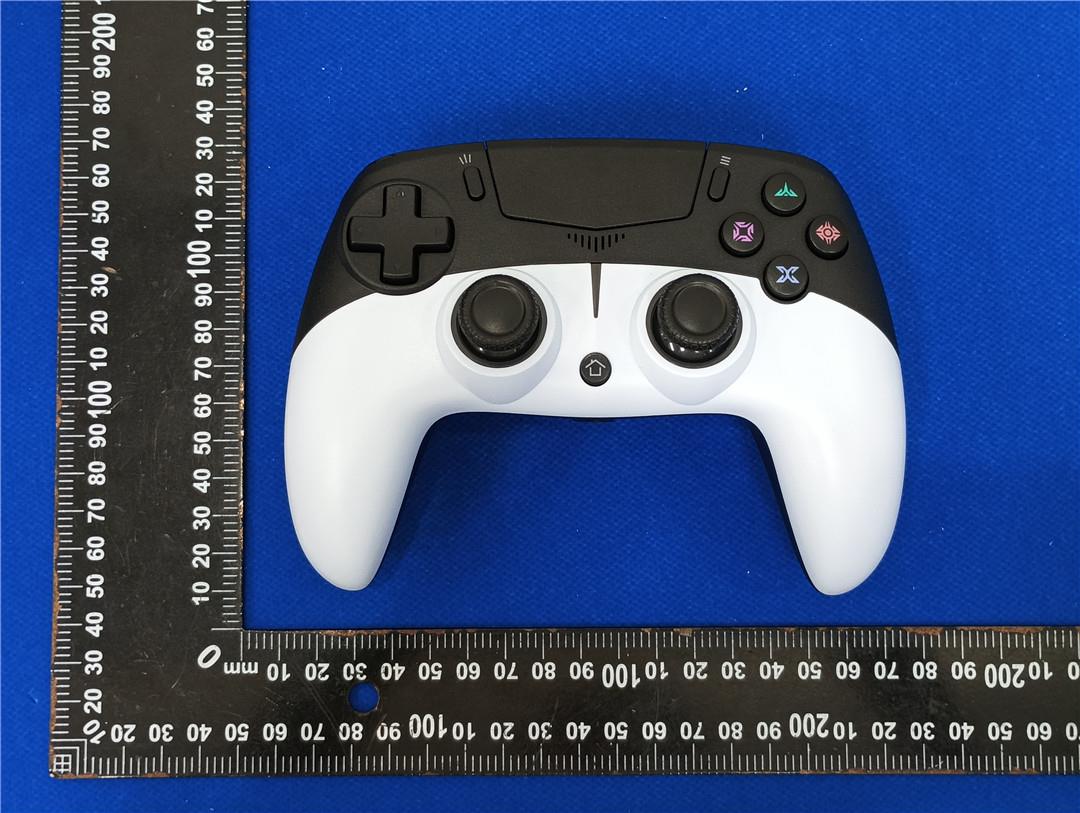

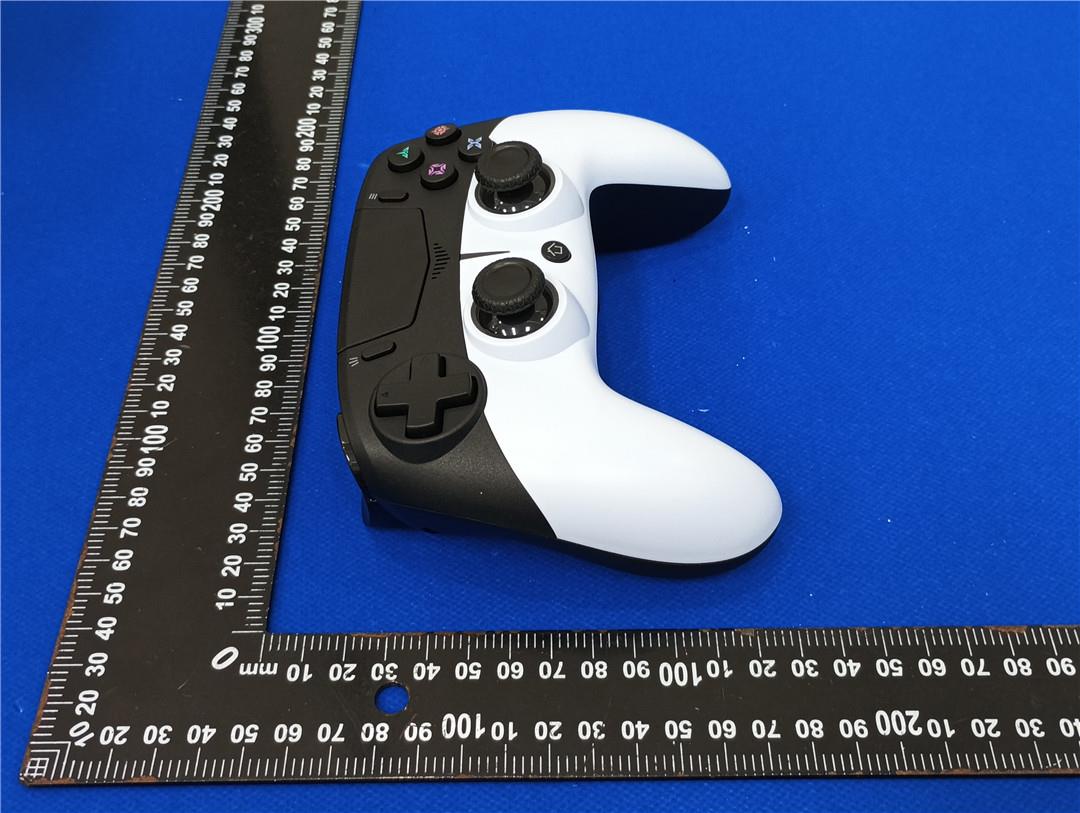

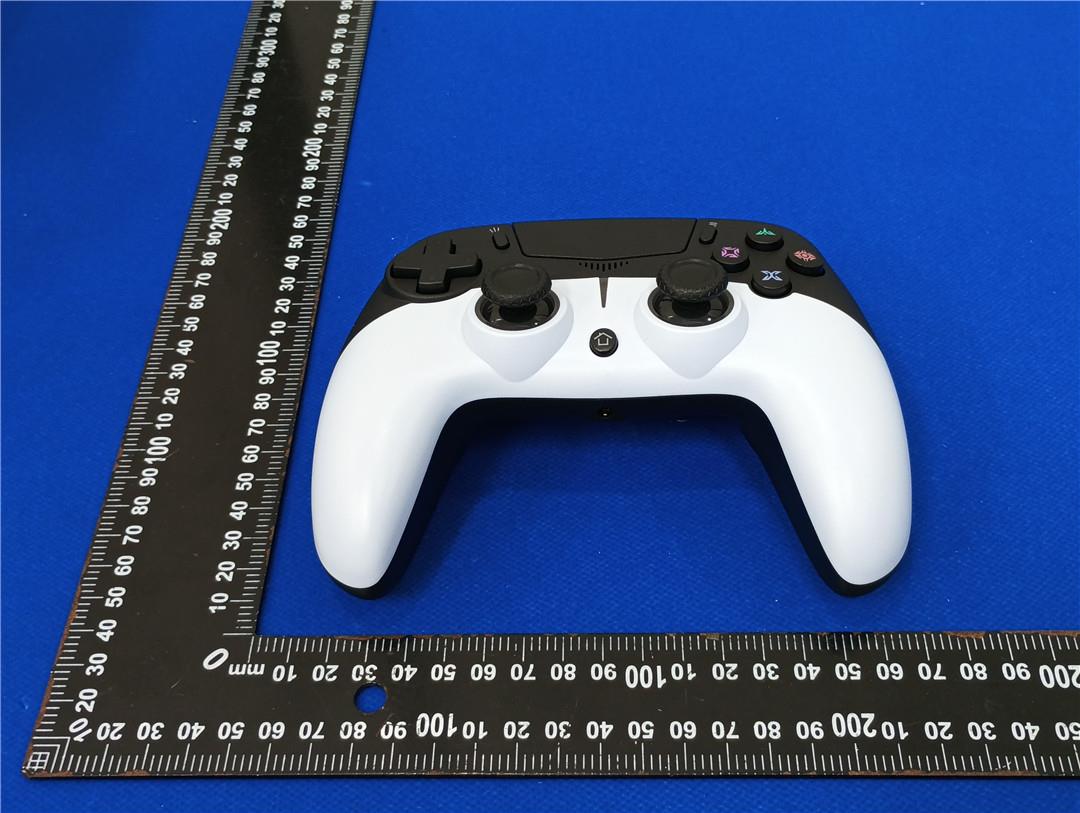

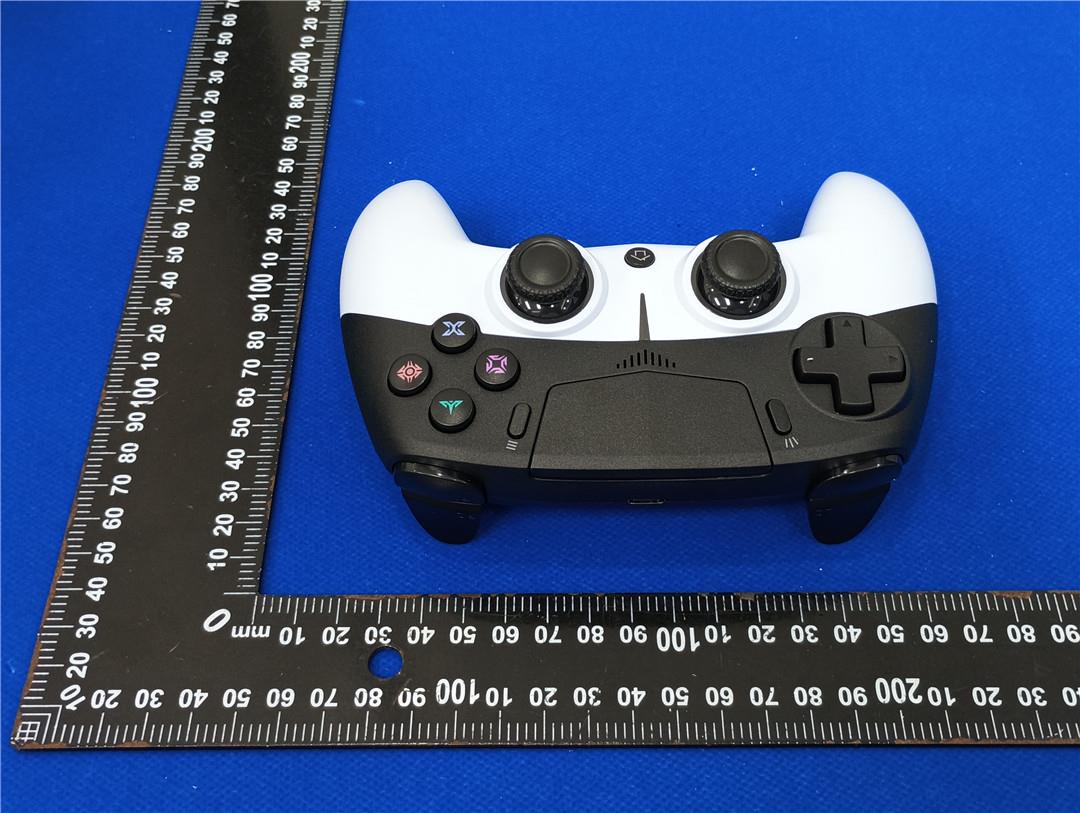

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless Controller Model No.: CM-501 EUT Constructional Details External Photo Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BQHB-CM-501

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless Controller Model No.: CM-501 EUT Constructional Details Internal Photo Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------ ANTENNA

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 9 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202605233F03 2BQHB-CM-501 Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : May. 14, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Dongguan Bolaiyuan Electronic Technology Co., LTD Address ............................................ : No. 76, Dashan Road, Dashan Village, Dalingshan Town, Dongguan City, Guangdong Province Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Controller Manufacturer .................................... : Dongguan Bolaiyuan Electronic Technology Co., LTD Trade Mark ........................................ N/A Model/Type reference ...................... : CM-501 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202605233F03 Page 2 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 9 T E S T R E P O R T Equipment under Test : Wireless Controller Model /Type : CM-501 Listed Models : CM-001 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Dongguan Bolaiyuan Electronic Technology Co., LTD Address : No. 76, Dashan Road, Dashan Village, Dalingshan Town, Dongguan City, Guangdong Province Manufacturer : Dongguan Bolaiyuan Electronic Technology Co., LTD Address : No. 76, Dashan Road, Dashan Village, Dalingshan Town, Dongguan City, Guangdong Province Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202605233F03 Page 3 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 9 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 9 4.5 Simultaneous Transmission for SAR Exclusion 9 5 C O N C L U S I O N 9 Report No.: HTT202605233F03 Page 4 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 9 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202605233F03 Page 5 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 9 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : May. 07, 2026 Testing commenced on : May. 07, 2026 Testing concluded on : May. 14, 2026 2.2 Product Description Product Description: Wireless Controller Model/Type reference: CM-501 Power supply: DC 3.7V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab) Model: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT202605233-1# (Engineer sample) HTT202605233-2# (Normal sample) Hardware version: / Software version: / Bluetooth BLE Supported type: Bluetooth low Energy Modulation: GFSK Operation frequency: 2402MHz to 2480MHz Channel number: 40 Channel…

Text truncated - open the document above for the full version.

1 Appendix RF Test Data for BLE Company: : Dongguan Bolaiyuan Electronic Technology Co., LTD EUT : Wireless Controller FCC ID: : 2BQHB-CM-501 Model Number : CM-501 Report No. : HTT202605233F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.143 2.500 85.72 0.67 0.03 2440 2.143 2.499 85.75 0.67 0.00 2480 2.144 2.500 85.76 0.67 0.03 2M SISO 2402 1.090 1.250 87.20 0.59 0.03 2440 1.090 1.250 87.20 0.59 0.03 2480 1.074 1.250 85.92 0.66 0.03 3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 4 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 5 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.061 / Pass 2440 1 1.060 / Pass 2480 1 1.061 / Pass 2M SISO 2402 1 2.068 / Pass 2440 1 2.069 / Pass 2480 1 2.064 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.721 >=0.5 Pass 2440 1 0.721 >=0.5 Pass 2480 1 0.716 >=0.5 Pass 2M SISO 2402 1 1.185 >=0.5 Pass 2440 1 1.266 >=0.5 Pass 2480 1 1.187 >=0.5 Pass 7 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 8 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 9 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 10 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 11 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 12 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -0.01 <=30 Pass 2440 -0.24 <=30 Pass 2480 -0.37 <=30 Pass 2M SISO 2402 -0.07 <=30 Pass 2440 -0.31 <=30 Pass 2480 -0.42 <=30 Pass 14 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit(dBm/3kHz) 1M SISO 2402 -0.97dBm/100kHz <=8 Pass 2440 -1.23dBm/100kHz <=8 Pass 2480 -1.32dBm/100kHz <=8 Pass 2M SISO 2402 -1.40dBm/100kHz <=8 Pass 2440 -1.64dBm/100kHz <=8 Pass 2480 -1.75dBm/100kHz <=8 Pass 15 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 16 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 17 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 18 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -0.96 2440 1 -1.21 2480 1 -1.32 2M SISO 2402 1 -1.34 2440 1 -1.70 2480 1 -1.70 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -0.96 -20.96 Pass 2440 1 -1.21 -21.21 Pass 2480 1 -1.32 -21.32 Pass 2M SISO 2402 1 -1.34 -21.34 Pass 2440 1 -1.70 -21.70 Pass 2480 1 -1.70 -21.70 Pass 19 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 20 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 21 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 22 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV 23 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV 24 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 25 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV 26 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : HTT202605233F01 2BQHB-CM-501 Compiled by ( position+printed name+signature) : File administrators Heber He Supervised by ( position+printed name+signature) : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) : RF Manager Kevin Yang Date of issue ...................................: May. 14, 2026 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ..........................................: 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name...........................: Dongguan Bolaiyuan Electronic Technology Co., LTD Address ...........................................: No. 76, Dashan Road, Dashan Village, Dalingshan Town, Dongguan City, Guangdong Province Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Wireless Controller Trade Mark ......................................: N/A Manufacturer ...................................: Dongguan Bolaiyuan Electronic Technology Co., LTD Model/Type reference .....................: CM-501 Listed Models ..................................: CM-001 Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 3.7V From Battery and DC 5V From External Circuit Result ..............................................: PASS Report No.: HTT202605233F01 Page 2 of 34 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Wireless Controller Model /Type : CM-501 Listed Models : CM-001 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Dongguan Bolaiyuan Electronic Technology Co., LTD Address : No. 76, Dashan Road, Dashan Village, Dalingshan Town, Dongguan City, Guangdong Province Manufacturer : Dongguan Bolaiyuan Electronic Technology Co., LTD Address : No. 76, Dashan Road, Dashan Village, Dalingshan Town, Dongguan City, Guangdong Province Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202605233F01 Page 3 of 34 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ............................................................…

Text truncated - open the document above for the full version.

Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 1/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna specification Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 2/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna model: MP341 V1.0 APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions 2.Specifications number Item Specifications 1 Working Central Frequency 2441 MHz 2 Band Width (2402-2480)MHz 3 Gain 0dBi 4 VSWR ≤2.0 5 Antenna type PCB antenna 6 Azimuth Beam width Omni‐directional 7 Impedance 50ohm 8 Modulation mode GFSK ‣Company Name Shenzhen Innosystem Technology Ltd ‣Company address F2 Building 3 Shenzhen Software Park Technology Middle 2 Rd Gao Xin Science & Technology Park North, S.Z Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 3/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 3.simulation parameter ① VSWR Mkr1: 2397MHz 1.47 Mkr2: 2450MHz 1.51 Mkr3: 2482 MHz 1.59 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 4/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ②Smith Char Mkr1: 2397MHz 73.4 Mkr2: 2450MHz 62.7 Mkr3: 2482MHz 66.8 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 5/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ③Return Loss Mkr1: 2397MHz -15 Mkr2: 2450MHz -18 Mkr3: 2482 MHz -16 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 6/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ④Smith Char Mkr1: 2400MHz 1.234 Mkr2: 2500MHz 1.051Mkr3: 2600MHz 1.322 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 7/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑤Return Loss Mkr1: 2400MHz -19.59 Mkr2: 2450MHz -27.70Mkr3: 2500MHz -31.97 Mkr4: 2550MHz -21.83 ` Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 8/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑥Phase Mkr1: 2400MHz -54.89 Mkr2: 2500MHz -82.03 Mkr3: 2600MHz -102.6 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 9/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 4. Radiation Pattems XY-plane XZ-plane YZ-plane Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 10/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved.  3DRadiation pattern

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Wireless Controller Model No.: CM-501 Test Setup Photo Radiated Emission Report No.: HTT202605233 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF Test ------End------
