2BQVXWSAP73OWI-FI7 Outdoor AP

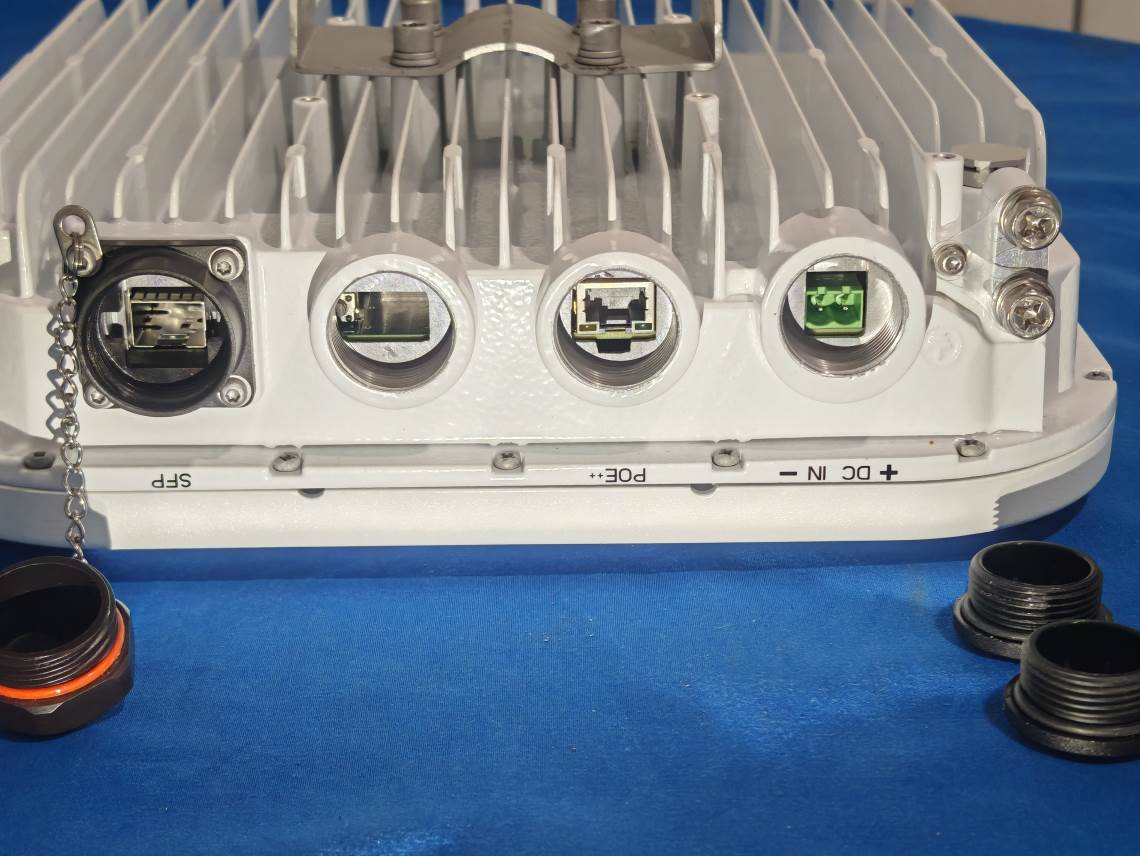

1 WIFI7 WS-AP73O User Guide 1 Thank you for choosing Westala WIFI7 Outdoor AP. To achieve better experience, read this manual before using the WIFI7 Outdoor AP. 1. Product Overview The WiFi 7 Outdoor AP (WS-AP73O) is a high-performance wireless access point supporting the latest IEEE 802.11be (WiFi 7) standard. It delivers ultra-fast speeds (up to 10 Gbps), reduced latency, and enhanced multi-device connectivity for home and enterprise networks. Key Features: l Two-band operation (2.4GHz, 5GHz) l 320MHz channel bandwidth & 4096-QAM for higher throughput l 2×2 MU-MIMO & Multi-Link Operation (MLO) l WPA3 encryption & OFDMA for efficient traffic management l Seamless roaming with 802.11k/v/r protocols l 10 Gigbit SFP+ WAN port l 2.5 GE WAN port with PoE in 2.Main Technical Indexes Operating temperature: -5°C to 45°C Relative humidity: 5% ~ 95% Power supply: 1. Size: 271mm x 270mm x 80mm 0.2# :(NB GOJDGPQF ORS;MM$2@ TR0 0.2# QFB MSJD6PQF@ TR0 2 Weight: About 3000g 3.Installation Guide 3.1 Physical Setup 1. Mounting: Attach the AP to a wall or ceiling using the included bracket. 2. Power Options: l PoE+: Connect the Ethernet cable to a PoE+ switch (recommended). l Power Adapter: Plug the adapter into a power outlet if PoE is unavailable. 3.2 Network Configuration 1. Initial Connection: l Connect the AP to your router via Ethernet. l Wait for the status LED to turn solid green(indicating a successful connection). 2. Web Interface Setup: l Open a browser and enter http://192.168.30.1 (default IP). l Log in with default credentials: o Username: admin o Password: admin l Follow the on-screen wizard to configure SSID, security, and band settings. 3 4.Product Introduction 1.1. Interface Description 1.2. Indicator 5. Troubleshooting Issue Solution Interface Function Remark Reset Button Reset key, long press for about 7 seconds to restore factory settings Restoring the factory settings will clear all the parameters set by the user. Please operate with caution. WAN Port 1 RJ-45 port 10/100/1000 auto-sensing, auto-MDX, 802.3at PoE 1 SFP+ optical port, support 1GE/10GE, LC Connector The priority SFP+ port is WAN Pass through 1 RJ-45 in/out Ethernet transparent transmission LED Indicators system Two LED lights, one red and one green Indicator Status Description FIT AP Red light 3s Disconnected to the AC Green light 3s Connected to the AC Green 1s flash During the upgrade process Green stays on During the system boot process FAT AP Red stays on WAN port link down Green light 3s WAN port link up Green 1s flash During the upgrade process Green stays on During the system boot process 4 No power Check PoE/Power adapter connection Slow speeds Verify 160/320MHz channel width Intermittent connection Update firmware or adjust channel selection 6.Package Contents l 1× WiFi 7 Outdoor AP l 1× Mounting bracket l 1× Warranty 5 Appendix: Regulatory Compliance FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Ÿ Reorient or relocate the receiving antenna. Ÿ Increase the separation between the equipment and receiver. Ÿ Connect the equipment into an outlet on a c ircuit different from that to which the receiver is connected. Ÿ Consult the dealer or an experienc ed radio/TV technician for help. Warning: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 25cm between the radiator & your body.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502W25149E-RF-00B Report Template Version: FCC-WiFi5-Outdoor AP-V2.0 Page 244 of 245 EXHIBIT C - RF EXPOSURE EVALUATION Maximum Permissible Exposure (MPE) Applicable Standard According to subpart §1.1310,15.247(i) and 15.407(f) systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502W25149E-RF-00B Report Template Version: FCC-WiFi5-Outdoor AP-V2.0 Page 245 of 245 Calculated Data: Mode Frequency (MHz) Antenna Gain ▲ Conducted output power including Tune- up Tolerance ▲ Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) 2.4G WiFi 2412-2462 8.08 6.43 29.0 794.3325.00 0.651 1.0 5G WiFi 5150-5250 9.01 7.96 14.5 28.18 25.00 0.029 1.0 5250-5350 8.58 7.21 19.5 89.13 25.00 0.082 1.0 5470-5725 8.80 7.59 18.5 70.79 25.00 0.068 1.0 5725-5850 9.34 8.59 23.5 223.8725.00 0.245 1.0 Note: The Antenna Gain and Conducted output power including Tune-up Tolerance provided by manufacturer. The antenna gain was the maximum directional gain(in Beamforming mode). 2.4G WiFi and 5G WiFi can transmit simultaneously: =S 2.4G WiFi /S limit-2.4G WiFi + S 5G WiFi /S limit-5G WiFi =0.651/1+0.245/1 =0.896 < 1.0 Result: The device meet FCC MPE at 25 cm distance ***** END OF REPORT *****t

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502W25149E-RF-00C-TSP Page 1 / 1 TEST SETUP PHOTOGRAPHS *****END *****

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502W25149E-RF-00B-TSP Page 1 / 5 TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502W25149E-RF-00B-TSP Page 2 / 5 Radiated Emission 9k-30MHz Parallel View Radiated Emission 9k-30MHz Perpendicular View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502W25149E-RF-00B-TSP Page 3 / 5 Radiated Emission 9k-30MHz Ground-parallel View Radiated Emission 30M-1GHz View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502W25149E-RF-00B-TSP Page 4 / 5 Radiated Emission 1-18 GHz View Radiated Emission 18-26.5 GHz View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502W25149E-RF-00B-TSP Page 5 / 5 Radiated Emission 26.5-40 GHz View *****END *****
