2BQWU-S2XEXXM0SConsumer Camera

Hangzhou Huacheng Software Technology Co., Ltd. 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-26-2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BQWU-S2XEXXM0S [Hangzhou Huacheng Software Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Hangzhou Huacheng Software Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) Alex Xu Hangzhou Huacheng Software Technology Co., Ltd. 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-26-2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BQWU-S2XEXXM0S [Hangzhou Huacheng Software Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) Alex Xu

Hangzhou Huacheng Software Technology Co., Ltd. 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-26-2025 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BQWU-S2XEXXM0S Applicant FRN: 0037281912 [Hangzhou Huacheng Software Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, [FCC US Agent, LLC] is our designated U.S. agent for service of process for the above referenced FCC ID. [Hangzhou Huacheng Software Technology Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [FCC US Agent, LLC] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: FCC US Agent, LLC U.S. Agent FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Tel.: 708-571-3148 Email: [email protected] Sincerely, Hangzhou Huacheng Software Technology Co., Ltd. FCC US Agent, LLC Alex Xu Tim Payne

Hangzhou Huacheng Software Technology Co., Ltd. 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BQWU-S2XEXXM0S Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description PCB BOM Block Diagram Schematics Operational Description PCB BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Internal Photos Setup photos Manual Internal Photos Setup photos Manual Number of days: 180 days Sincerely, (signature) Printed Name: Alex Xu Date: 8/26/2025

Declaration of Differences We, Hangzhou Huacheng Network Technology Co.,Ltd., Declare that the products （CONSUMER CAMERA）of models as the table below share the same OS, Motherboard, wireless module components etc.; The main difference between them is the CMOS IMAGE SENSOR which does not impact the RF functionality. Remark：A CMOS Image Sensor (CIS) is a key component in cameras that captures light and converts it into electrical signals for digital image formation . It offers advantages like lower power consumption, higher integration (combining photodiodes, amplifiers, and AD converters on a single chip), and lower cost compared to alternatives like CCD sensors . Widely used in smartphones and digital cameras, CIS technology enables high-speed imaging and supports features like automatic exposure control and noise reduction Model list： model difference IPC-S2XEP-6M0S CMOS Image Sensor -HC230407-X002 IPC-S2XEN-6M0S CMOS Image Sensor -HC230407-X002 IPC-S2XEP-8M0S CMOS Image Sensor - DH210801- F168/CMOS Image Sensor - DH210801- F168 IPC-S2XEN-8M0S CMOS Image Sensor - DH210801- F168/CMOS Image Sensor - DH210801- F168 IPC-S2XEP-10M0S CMOS Image Sensor -HC241008-X001 IPC-S2XEN-10M0S CMOS Image Sensor -HC241008-X001 IPC-S2XEP-6M0S-imou CMOS Image Sensor -HC230407-X002 IPC-S2XEN-6M0S-imou CMOS Image Sensor -HC230407-X002 IPC-S2XEP-6M0S-V- imou CMOS Image Sensor -HC230407-X002 IPC-S2XEP-8M0S-imou CMOS Image Sensor - DH210801- F168/CMOS Image Sensor - DH210801- F168 IPC-S2XEN-8M0S-imou CMOS Image Sensor - DH210801- F168/CMOS Image Sensor - DH210801- F168 IPC-S2XEP-8M0S-V- imou CMOS Image Sensor - DH210801- F168/CMOS Image Sensor - DH210801- F168 IPC-S2XEP-10M0S-imou CMOS Image Sensor -HC241008-X001 IPC-S2XEN-10M0S- imou CMOS Image Sensor -HC241008-X001 IPC-S2XEP-10M0S-V- imou CMOS Image Sensor -HC241008-X001 Sincerely, Signature: Name: Alex.xu Email: hao.xu19 @imou.com Company：Hangzhou Huacheng Network Technology Co.,Ltd. Address：13th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China (Zhejiang) Pilot Free Trade Zone Date：2025/8/27

Hangzhou Huacheng Software Technology Co., Ltd. 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 08-26-2025 SUBJECT: FCC Application for FCC ID: 2BQWU-S2XEXXM0S To Whom It May Concern: We, the undersigned, hereby authorize Hong Yan at TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Hong Yan on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Printed Name: Alex Xu Signature:

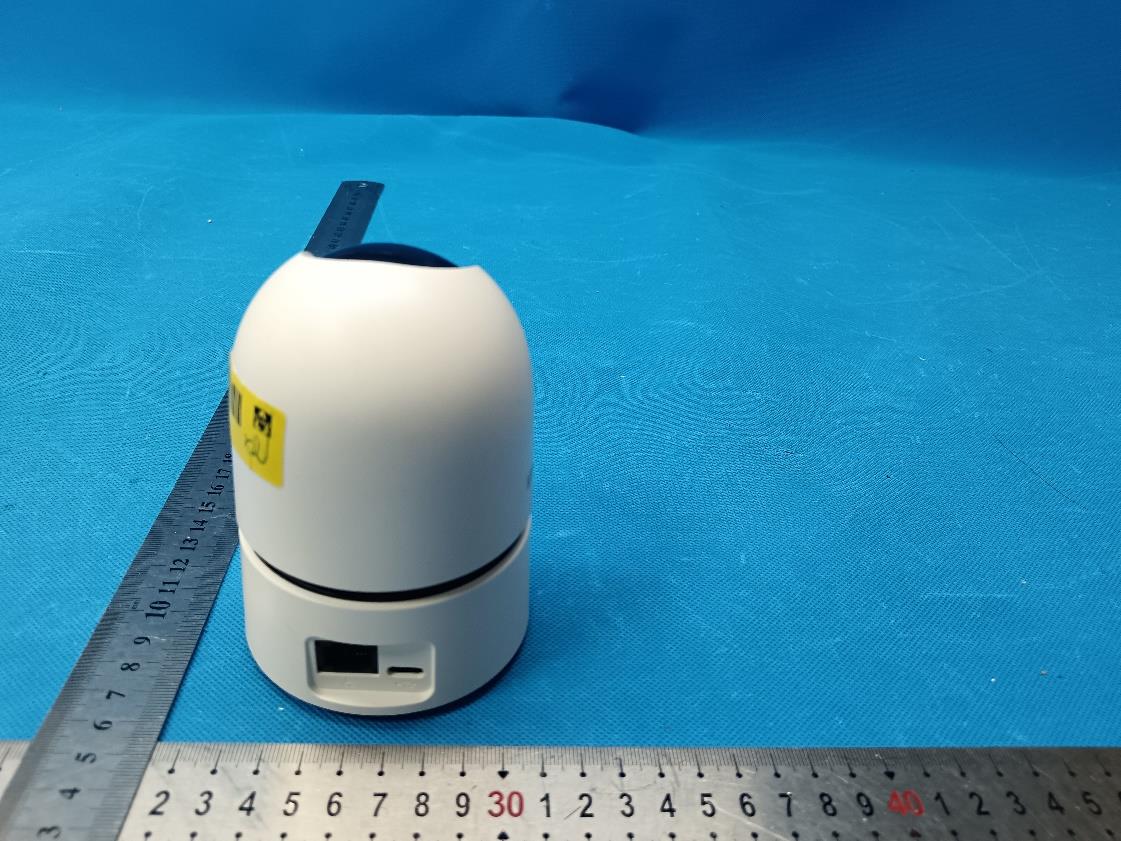

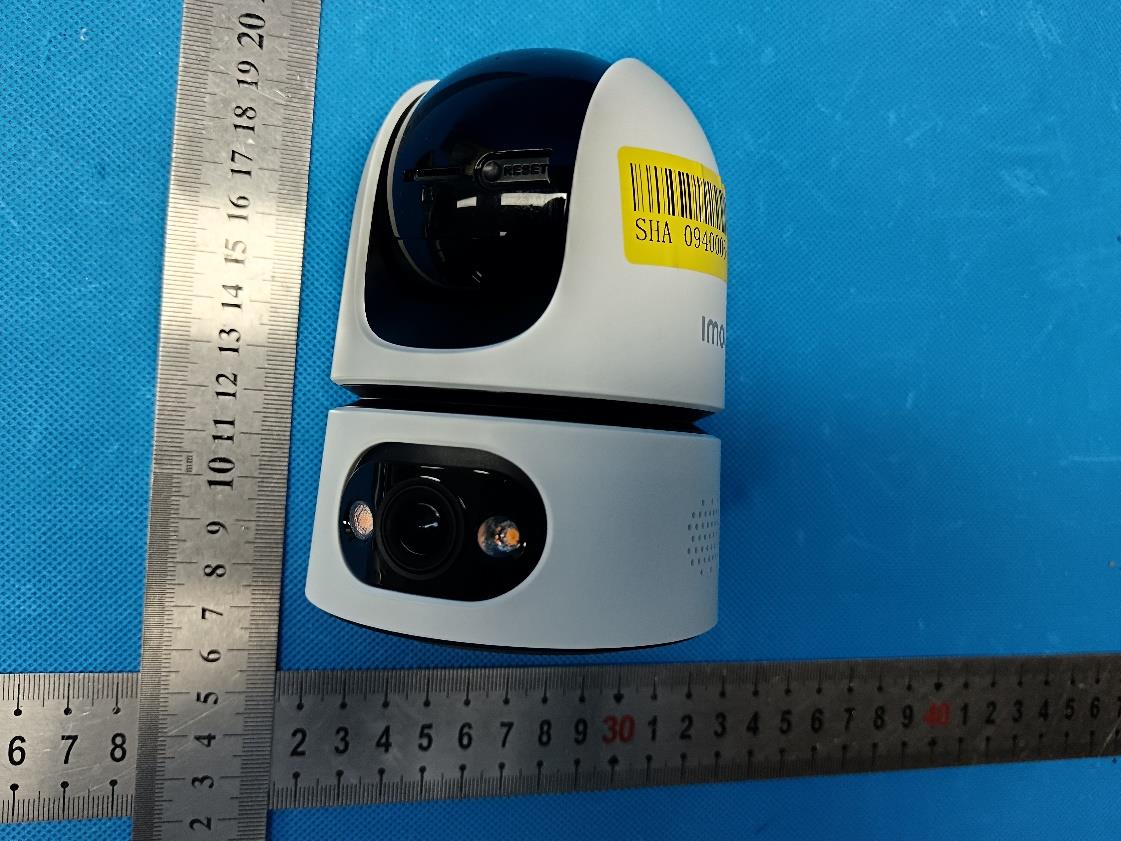

External Photos Documentation Manufacturer: Hangzhou Huacheng Software Technology Co., Ltd. Page 1 of 4 Product: Consumer Camera FCC ID: 2BQWU-S2XEXXM0S Model: IPC-S2XEN-8M0S External Photos Documentation Manufacturer: Hangzhou Huacheng Software Technology Co., Ltd. Page 2 of 4 Product: Consumer Camera FCC ID: 2BQWU-S2XEXXM0S Model: IPC-S2XEN-8M0S External Photos Documentation Manufacturer: Hangzhou Huacheng Software Technology Co., Ltd. Page 3 of 4 Product: Consumer Camera FCC ID: 2BQWU-S2XEXXM0S Model: IPC-S2XEN-8M0S External Photos Documentation Manufacturer: Hangzhou Huacheng Software Technology Co., Ltd. Page 4 of 4 Product: Consumer Camera FCC ID: 2BQWU-S2XEXXM0S Model: IPC-S2XEN-8M0S

Label Dimension: 32mm*23mm QR Code Dimension: 12mm*12mm

CONSUMER CAMERA 3.6mm 5V ,1.5A S/N: MADE IN CHINA 526D4BCYSF03034 IPC-S2XEN-8M0S Hangzhou Huacheng Software Technology Co., Ltd. FCC ID:2BQWU-S2XEXXM0S SAFETY CODE:ADMIN123

Report No: 709502506326-00D EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 3 Rev. 23.00 MPE Calculation Applicant: Hangzhou Huacheng Software Technology Co., Ltd. Address: 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Product: Consumer Camera FCC ID: 2BQWU-S2XEXXM0S Model No.: IPC-S2XEP-6M0S, IPC-S2XEN-6M0S, IPC-S2XEP-8M0S, IPC-S2XEN-8M0S, IPC-S2XEP-10M0S, IPC-S2XEN-10M0S, IPC-S2XEP-6M0S-imou, IPC-S2XEN-6M0S-imou, IPC-S2XEP-6M0S-V-imou, IPC-S2XEP-8M0S-imou, IPC-S2XEN-8M0S-imou, IPC-S2XEP-8M0S-V-imou, IPC-S2XEP-10M0S-imou, IPC-S2XEN-10M0S-imou, IPC-S2XEP-10M0S-V-imou Reference RF report # 709502506326-00B, 709502506326-00C According to subpart 15.247(i) and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1,500 / / f/1500 30 1,500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); Report No: 709502506326-00D EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 3 Rev. 23.00 P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: BT FPC antenna for 2.4G Wi-Fi Maximum peak output power at antenna input terminal (dBm): 25.11 Maximum peak output power at antenna input terminal (mW): 324.34 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 1.29 Maximum Antenna Gain (numeric): 1.3459 The worst case is power density at predication frequency at 20 cm (mW/cm 2 ): 0.08684 MPE limit for general population exposure at prediction frequency (mW/cm 2 ): 1.00 The max power density 0.08684 (mW/cm2) < 1 (mW/cm2) Calculated Data: BT FPC antenna for 5G Wi-Fi Maximum peak output power at antenna input terminal (dBm): 16.81 Maximum peak output power at antenna input terminal (mW): 47.97 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 2.86 Maximum Antenna Gain (numeric): 1.9320 The worst case is power density at predication frequency at 20 cm (mW/cm 2 ): 0.01844 MPE limit for general population exposure at prediction frequency (mW/cm 2 ): 1.00 The max power density 0.01844 (mW/cm2) < 1 (mW/cm2) Wi-Fi 2.4G antenna and Wi-Fi 5G antenna can't transmit simultaneously. Result: Compliant Report No: 709502506326-00D EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 3 Rev. 23.00 - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by: Tested by: _____________________ _____________________ ______________________ Hui TONG Wenqiang LU Doujun XU EMC Section Manager EMC Project Engineer EMC Test Engineer Date: 2025-08-27 Date: 2025-08-27 Date: 2025-08-27 -------------------------------------------------------End of Test Report-------------------------------------------------------

DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 1 /13 Antennaspecifications SPECIFICATIONFORAPPROVAL PRODUCTNAME:2.4/5.8GHzembeddedmetalantenna UBP/N:UB01NJ1D1510A-DHREV:B Versionrevisionhistory ： editionRevisersdateAmendmentrecord V-AWanBinJuly25,2024firstdraft V-BWanBinAugust15,2024Correctthenumberofpackages修正包装数量 MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKEDBY: WanBin APPROVEDBY:XiongWenqiang DATE:2025/08/19 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 2 /13 catalogue 1.Specifications................................................................................................................................................3 2.Product2Ddiagram......................................................................................................................................4 3. Matchingcircuits ..........................................................................................................................................5 4.Performancetestreport................................................................................................................................6 4.1Teststeps.........................................................................................................................................6 4.2Equipmentlist .................................................................................................................................6 4.3Testconfigurationdiagram..............................................................................................................6 4.4Passivetest ......................................................................................................................................7 5.Reliabilitytestreport................................................................................................................................12 6.Packaging..................................................................................................................................................13 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 3 /13 1.Specifications Productmainparameters Productmodel frequencyrange2.4G/5.8GAntenna2400-2500MHz;5150-5850MHz AntennatypePIFA ProcessingStamping Dimensions14*12.1*3.1*0.4mm materialSUS430 characteristicimpedance 50Ω polarizationlinear voltagestanding-waveratioLessthan3 axialratioN/A Efficiency47.1~54.83%(2400-2500MHz);48.19~60.12%(5150-5850MHz) Peakgain1.29dBi(2400-2500MHz);2.86dBi(5150-5850MHz) RadiationPatternOmni-directional Active/passivepassive HousingmaterialN/A ContactmethodDIP cabletypeN/A cablelossN/A powercapacity1W workingtemperature -20~70°C Storagetemperature -20~50°C waterproofratingN/A WindresistanceratingN/A SaltsprayratingN/A DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 4 /13 2.Product2Ddiagram DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 5 /13 3.Matchingcircuits Systemmatchingcircuitcomponents positionValueTolerance 1-- 2 0Ω - 3-- 3 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 6 /13 4.Performancetestreport 4.1Teststeps nameparametermethodStandardnumber Mobile communication antenna voltage standing-waveratio Generaltechnical specificationsfor mobile communication antennas GB/T9410-2008 peakgain Radiationpattern antennaperformanceradiationgain IEEEantenna standardtestprocess ANSI/IEEEStd 149-1979 4.2Equipmentlist devicenamemanufacturermodelserialnumber Calibration date effective data NetworkAnalyzerAgilentE5071CMY463159962023.08.252024.08.24 RadioCommunication Tester ROHDE&SCHWARZ CMW500 0002K50-100 844 2023.08.252024.08.24 4.3Testconfigurationdiagram DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 7 /13 4.4Passivetest 4.4.1Chambercoordinatesystem DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,B…

Text truncated - open the document above for the full version.

Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 102 Rev. 23.00 FCC - TEST REPORT Report Number : 709502506326-00C Date of Issue: August 27, 2025 Model : IPC-S2XEP-6M0S, IPC-S2XEN-6M0S, IPC-S2XEP-8M0S, IPC-S2XEN-8M0S, IPC-S2XEP-10M0S, IPC-S2XEN-10M0S, IPC-S2XEP-6M0S-imou, IPC-S2XEN-6M0S-imou, IPC-S2XEP-6M0S-V-imou, IPC-S2XEP-8M0S-imou, IPC-S2XEN-8M0S-imou, IPC-S2XEP-8M0S-V-imou, IPC-S2XEP-10M0S-imou, IPC-S2XEN-10M0S-imou, IPC-S2XEP-10M0S-V-imou Product Type : Consumer Camera FCC ID : 2BQWU-S2XEXXM0S Applicant : Hangzhou Huacheng Software Technology Co., Ltd. Address : 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Manufacturer : Hangzhou Huacheng Software Technology Co., Ltd. Address : 15th Floor, Building 3, No. 582, Liye Road, Changhe Street, Binjiang District, Hangzhou, China Test Result : ◼ Positive  Negative Total pages including Appendices : 102 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 102 Rev. 23.00 1 Table of Contents 1 Table of Contents ................................................................................................................... 2 2 Report Modification Record ................................................................................................... 3 3 Details about the Test Laboratory .......................................................................................... 3 4 Description of the Equipment under Test ............................................................................... 4 5 Summary of Test Standards ................................................................................................... 7 6 Summary of Test Results ....................................................................................................... 8 7 General Remarks ................................................................................................................... 9 8 Test Setups .......................................................................................................................... 10 9 Systems test configuration ................................................................................................... 13 10 Technical Requirement ....................................................................................................... 14 10.1 Conducted Emission .................................................................................................... 14 10.2 Emission bandwidth ..................................................................................................... 17 10.3 Maximum conducted output power .............................................................................. 19 10.4 Maximum power spectral density ................................................................................ 20 10.5 Frequencies Stability ................................................................................................... 21 10.6 Spurious radiated emissions for transmitter ................................................................ 22 11 Test Equipment List ............................................................................................................ 99 12 System Measurement Uncertainty .................................................................................... 100 13 Photographs of Test Set-ups ............................................................................................ 101 14 Photographs of EUT ......................................................................................................... 102 Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 102 Rev. 23.00 2 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 709502506326-00C First Issue 08/25/2025 3 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.16 Lane, 1951 Du Hui Road, Shanghai 201108, P.R. China Telephone: +86 21 6141 0123 Fax: +86 21 6140 8600 FCC Registration No.: 820234 FCC Designation Number: CN1183 ISED CAB identifier CN010…

Text truncated - open the document above for the full version.

Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 50 of 102 Rev. 23.00 Frequency: 802.11ax20 5200MHz Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1332.031250 36.74 --- 74.00 37.26 200.0 H 323.0 -18.0 2449.781250 36.26 --- 68.20 31.94 350.0 H 191.0 -11.6 3491.031250 40.09 --- 68.20 28.11 200.0 H 250.0 -7.2 6504.812500 42.86 --- 68.20 25.34 150.0 H 240.0 -0.6 10210.812500 47.62 --- 68.20 20.58 250.0 H 177.0 2.9 17132.468750 49.88 --- 68.20 18.32 150.0 H 265.0 6.3 Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1332.031250 32.35 --- 74.00 41.65 300.0 V 305.0 -18.0 1887.187500 35.65 --- 68.20 32.55 250.0 V 174.0 -13.9 3483.062500 38.68 --- 68.20 29.52 150.0 V 352.0 -7.2 6624.875000 42.96 --- 68.20 25.24 100.0 V 221.0 -0.4 10492.375000 47.05 --- 68.20 21.15 250.0 V 47.0 3.1 17063.406250 49.52 --- 68.20 18.68 220.0 V 251.0 6.2 Level in dBuV/m Level in dBuV/m Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 51 of 102 Rev. 23.00 Frequency: 802.11ax20 5240MHz Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1332.562500 35.74 --- 74.00 38.26 300.0 H 215.0 -18.0 1931.812500 39.65 --- 68.20 28.55 250.0 H 254.0 -13.4 3433.125000 39.04 --- 68.20 29.16 150.0 H 263.0 -7.3 6599.375000 43.14 --- 68.20 25.06 200.0 H 255.0 -0.4 10392.500000 47.52 --- 68.20 20.68 150.0 H 239.0 3.1 17092.625000 49.34 --- 68.20 18.86 200.0 H 95.0 6.3 Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Height (cm) Pol Azimuth (deg) Corr. (dB/m) Margin - PK+ (dB) Limit - PK+ (dBuV/m) Margin - RMS (dB) Limit - RMS (dBuV/m) 5350.000000 41.5 31.9 250.0 H 146.0 -2.6 32.50 74.00 22.10 54.00 5399.600000 42.6 33.2 200.0 H 239.0 -2.4 31.40 74.00 20.80 54.00 Level in dBuV/m Level in dBuV/m Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 52 of 102 Rev. 23.00 Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1332.031250 33.05 --- 74.00 40.95 240.0 V 172.0 -18.0 2537.968750 35.79 --- 68.20 32.41 150.0 V 275.0 -11.0 3429.406250 38.68 --- 68.20 29.52 210.0 V 129.0 -7.3 5502.343750 42.83 --- 68.20 25.37 150.0 V 24.0 -2.1 10156.625000 48.05 --- 68.20 20.15 100.0 V 280.0 2.9 17179.750000 48.71 --- 68.20 19.49 200.0 V 172.0 6.4 Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Height (cm) Pol Azimuth (deg) Corr. (dB/m) Margin - PK+ (dB) Limit - PK+ (dBuV/m) Margin - RMS (dB) Limit - RMS (dBuV/m) 5350.000000 41.3 31.8 250.0 V 239.0 -2.6 32.70 74.00 22.20 54.00 5388.100000 43.8 32.2 150.0 V 328.0 -2.5 30.16 74.00 21.80 54.00 Level in dBuV/m Level in dBuV/m Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 53 of 102 Rev. 23.00 Frequency: 802.11n40 5190MHz Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1332.031250 36.24 --- 74.00 37.76 300.0 H 309.0 -18.0 1920.656250 35.65 --- 68.20 32.55 250.0 H 76.0 -13.5 3551.593750 39.82 --- 68.20 28.38 200.0 H 159.0 -6.9 6550.500000 43.31 --- 68.20 24.89 150.0 H 132.0 -0.5 10366.468750 47.74 --- 68.20 20.46 100.0 H 213.0 3.1 17154.250000 49.15 --- 68.20 19.05 300.0 H 22.0 6.3 Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Height (cm) Pol Azimuth (deg) Corr. (dB/m) Margin - PK+ (dB) Limit - PK+ (dBuV/m) Margin - RMS (dB) Limit - RMS (dBuV/m) 5144.914286 53.3 40.9 200.0 H 146.0 -3.0 20.72 74.00 13.10 54.00 5150.000000 55.4 41.6 150.0 H 317.0 -3.0 18.60 74.00 12.40 54.00 Level in dBuV/m Level in dBuV/m Report Number: 709502506326-00C EMC_SHA_F_R_02.07E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 54 of 102 Rev. 23.00 Critical_Freqs Frequency (MHz) MaxPeak (dBuV/m) Average (dBuV/m) Limit (dBuV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1332.562500 32.88 --- 74.00 41.12 140.0 V 332.0 -18.0 2504.500000 35.72 --- 68.20 32.48 220.0 V 138.0 -11.2 3530.875000 38.43 --- 68.20 29.77 250.0 V 138.0 -7.0 7784.593750 47.24 --- 68.20 20.96 300.0 V 143.0 …
