2BQXWPHIWH001Temp Monitor Lite

P&H Casters
Temp Monitor Lite - FCC ID 2BQXWPHIWH001 - P&H Casters
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 04, 2025
Application Purpose
Original Equipment
Equipment Note
Temp Monitor Lite
Frequency Range
2402.00000000 - 2480.00000000
Company
P&H Casters
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WN3054LD0T Product Specification 1.1 Electrical parameters Product model WN3054LDOT Master chip solution IN100 Bluetooth antenna category PCB Antenna Broadcasting technology BLE Sensor None Power amplifier chip (PA) BHWM253 Crystal oscillator 32.768Khz , 26Mhz NFC None Button A reset button Buzzer None LED None Battery CR2032 3V lithium coin cell Storage Environment 25±5°C , 65±20%RH 1.2 Product function Bluetooth radio The device will broadcast Bluetooth with 1Mbps broadcast frame and 8min broadcast interval, and the corresponding broadcast can be scanned by using nRF connect APP. Connectivity Device is not connectable; it advertises only. Startup & Shutdown Automatically starts broadcasting once the battery is inserted. Turn off the device, remove the battery and cut off the power supply. The device cannot be turned on or off by pressing buttons or through software configuration. Button A reset button, used to restore power and reset the device when it malfunctions. Broadcast frame information When the device is powered on, the broadcast information includes broadcast frame name, device UUID, RSSI, battery level, etc. Burn debugging The debugging and burning device can be done through the serial port burning tool at VBAT VDDQ TXD RXD GND test points. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Attestation Statements

P&H Casters U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: P&H Casters Address: 807 W Haris Rd, Arlington, TX 76001,United States FRN:0037288974 Contact Name:Mr Devin G Ewart Tel.:(817)468-3850 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2025.9.23 Signed by (Printed Name/Title): Mr Devin G Ewart / Executive Marketing Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: P&H Casters Grantee Code: 2BQXW FCC ID: 2BQXWPHIWH001 Contact Name: Mr Devin G Ewart Street Address:807 W Haris Rd, Arlington, TX 76001,United States Telephone No: (817)468-3850 Email: [email protected] FRN: 0037288974 Applicant Signature: Date: 2025/09/23 Signed by (Printed Name/Title): Mr Devin G Ewart / Executive Marketing Manager

Attestation Statements

P&H Casters 2025/09/23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2BQXWPHIWH001 [P&H Casters] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Name: Mr Devin G Ewart P&H Casters 2025/09/23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2BQXWPHIWH001 [P&H Casters] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Name: Mr Devin G Ewart

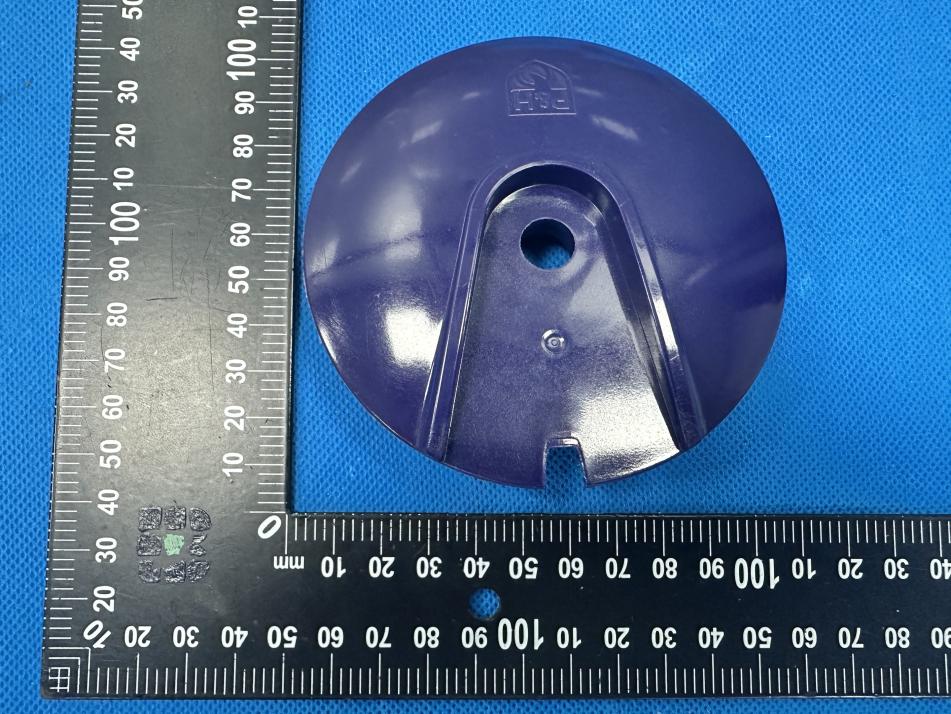

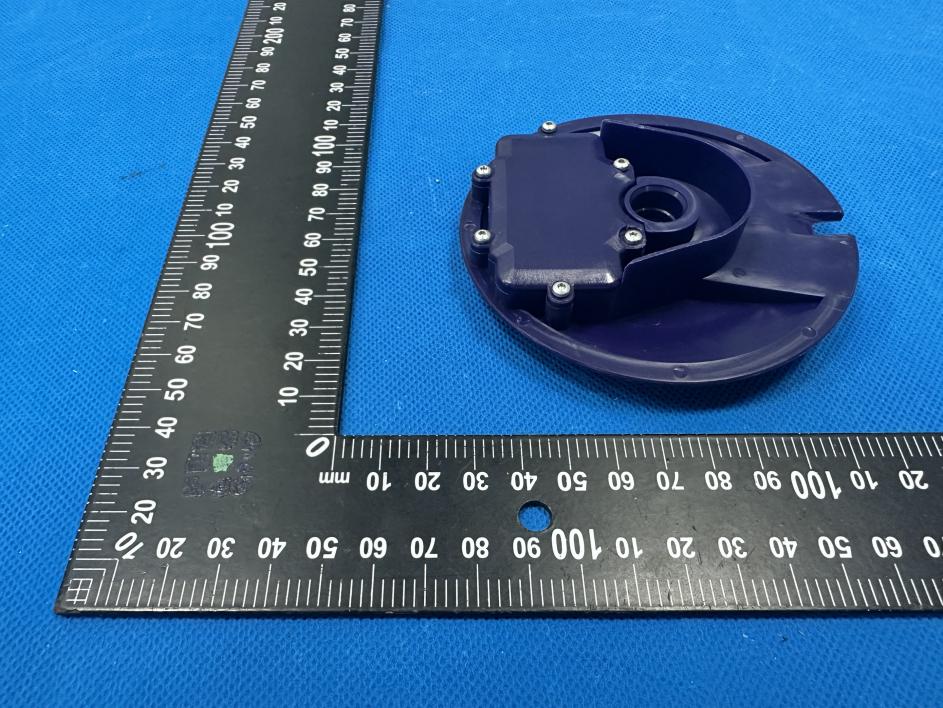

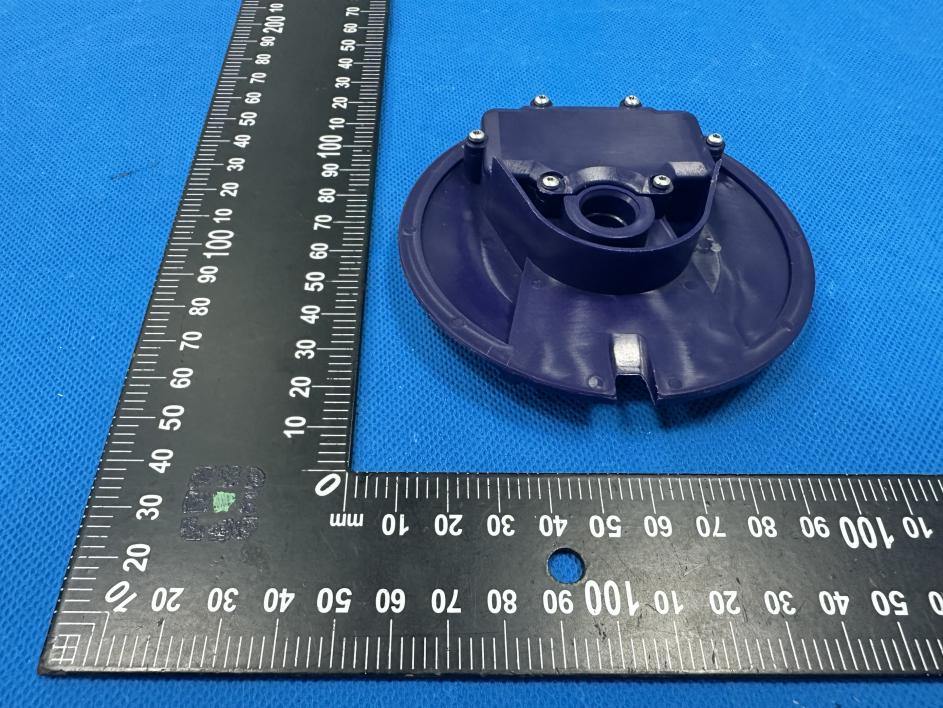

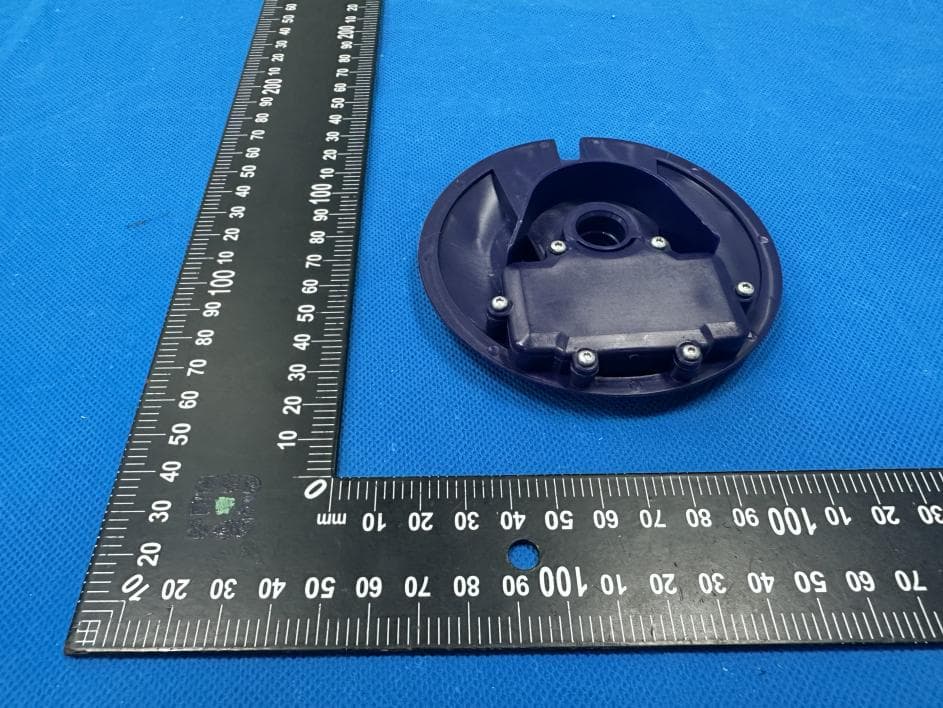

External Photos

External Photos

ID Label/Location Info

iWheel Model: WN3054LDOT FCC ID2BQXWPHIWH001 P&H Casters 部品料号 NO. 年.月.日 版本 变 更 记 录 签 名 未标公差 ±0.1 ±0.12 ±0.2 ±0.4 ±0.5 L≦4 4<L≦16 16<L≦63 63<L≦250 250>L 表面处理 材 质 颜 色 1 2 3 单位: mm 比例:1/1 结 构 年.月.日 V006 Y-YB-CR-065 密级:绝密 部品名称 版 本 部品规格书 认证 生效日期 美 工/硬件 供应商 审 核 NPI

Internal Photos

Internal Photos BLE Ant

RF Exposure Info

FCC ID: 2BQXWPHIWH001 RF exposure evaluation According to§15.247(i), §1.1307 and KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. For mobile devices that are not exempt per Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] at distances from 20 cm to 40 cm and in 0.3 GHz to 6 GHz, evaluation of compliance with the exposure limits in §1.1310 is necessary if the ERP of the device is greater than ERP20cm in Formula (B.1) [repeated from §2.1091(c)(1); also in §1.1307(b)(1)(i)(B)]. According to FCC Part 2.1091 and § 1.1307(b)(3)(i)(C) , this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 , the simple calculation as below: BLE Antenna Gain: 3.74dBi Conducted Transmit Power Max: =8.94dBm =7.83mW EIRP=8.94dBm +3.74dBi=12.68dBm ERP=12.68-2.15dB=10.53dBm The maximun output power specified is:10.53dBm (11.30mW) The MPE limit is 19.2R 2 (768mW) for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1307(b)(3)(i)(C). As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons.

Test Report

ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 1st ProjectNoWN3054LD0TPCBVersionLD025Fd_V1.0 TesterZHUWANLIDate2025-07-03 AuditingDate ApprovalDate AntennaTestReport ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 2nd Contents 一、ProjectInformation............................................................................................................3rd 二、TechnicalSpecification.......................................................................................................4th 三、Theshapeandsizeoftheantenna....................................................................................5th 四、Theresultofthetest..........................................................................................................5th 1.VSWR&Returnloss&Smith.........................................................................................5th 2.AntennaTestingEnvironment........................................................................................6th 3.GainandEfficiency.........................................................................................................7th 4.3DRadiationPattern......................................................................................................8th 5.2DRadiationPattern......................................................................................................9th ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 3rd 一、ProjectInformation 1.AntennaCoding : ANT-BBNCNC25016 2.AntennaType : PIFA 3.ModeloftheDUT : WN3054LD0T 4.TestData : 2025-07-03 5.Productpicture : Product appearance PCBboardand antenna ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 4th 二、TechnicalSpecification ElectricalSpecifications FrequencyRange2400-2480MHz PeakGain3.74dBi Efficiency81.5% ReturnLoss ≥ 18dB ( MAX ) VSWR ≤ 2.0 ( MAX ) Bandwidth(S11≤-10dB)600MHz InputImpedance 50Ω RadiationdirectionOmni PolarizationTypeLinear LightningProtectionDCgrounding PowerCapacity 1000mW ( 30dBm ) MechanicalSpecifications AntennaSize21.9x7mm CoreRadiatorCopper SubstratematerialFR4 Substratethickness0.8mm SubstrateSize(mm)48.5x26mm CoaxialwireNotrequired ConnectTypeNotrequired ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 5th 三、Theshapeandsizeoftheantenna Unit:mm 四、Theresultofthetest 1.VSWR&Returnloss&Smith Frequency(MHz)ReturnLoss(dB)VSWR 240220.01.22 244018.81.25 248018.21.27 Bandwidth(S11≤-9.8dB)600 ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 6th 2.AntennaTestingEnvironment (1).TestEquipment:SY-24M,Agilent-E5071C (2).TestEngineer:ZHUWANLI (3).TestEnvironment:Themicrowaveunreflectedchamber Insidethemicrowaveanechoicchamber Productcoordinateaxisposition ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 7th 3.GainandEfficiency 频率(MHz)增益(dBi)效率(%) 24003.7381.51 24023.7381.10 24043.7380.81 24063.7480.61 24083.7380.26 24103.7279.90 24123.7079.48 24143.6879.16 24163.7079.02 24183.6678.61 24203.6077.86 24223.5677.46 24243.5477.17 24263.5877.02 24283.5676.78 24303.5276.34 24323.4976.17 24343.5175.93 24363.5075.54 24383.5275.63 24403.5575.79 24423.5576.25 24443.5376.37 24463.4575.80 24483.4476.04 24503.4576.74 24523.4776.86 24543.5077.15 24563.4876.89 24583.4876.70 24603.4676.29 24623.4575.91 24643.4676.11 24663.4776.36 24683.4876.81 24703.4576.62 24723.4476.84 24743.4376.88 24763.4176.78 24783.4377.29 24803.4577.95 24823.4678.33 24843.4778.59 24863.4378.54 24883.4578.94 24903.4779.52 24923.4879.80 24943.4779.96 24963.4379.80 24983.4179.56 25003.4279.47 ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 8th 4.3DRadiationPattern 2402MHz 2440MHz 2480MHz ShenzhenMinewTechnologiesCo.,Ltd.V001Y-YB-CR-150 Confidentialitylevel:Secret 9th 5.2DRadiationPattern E1,XZ-Face,phi=0°;(E1,theta=0~360°,phi=0°) E2,YZ-Face,phi=90°;(E2,theta=0~360°,phi=90°) H,XY-Face,theta=90°;(H,phi=0~360°,theta=90°)

Test Report

No.:BCTC/RF-ICT-005 Page: 1 of 41 Edition:C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2507328981E Applicant: P&H Casters Product Name: iWheel Test Model: WN3054LDOT Tested Date: 2025-07-16 to 2025-08-04 Issued Date: 2025-11-28 Report No.: BCTC2507328981E No.:BCTC/RF-ICT-005 Page: 2 of 41 Edition:C.0 FCC ID:2BQXWPHIWH001 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: iWheel Trademark: N/A Model/Type Reference: WN3054LDOT Prepared For: P&H Casters Address: 807 W Haris Rd, Arlington, TX, 76001 Manufacturer: Shenzhen Minew Technologies Co., Ltd. Address: 2nd to 4th Floors, Building 3, Instrument World Industrial Park, No.306 Guiyue Road, Guanlan Pitouxia Community, Longhua District, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2025-07-16 Sample Tested Date: 2025-07-16 to 2025-08-04 Report No.: BCTC2507328981E Test Standards: FCC Part15.247 ANSI C63.10-2020 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2507328981E No.:BCTC/RF-ICT-005 Page: 3 of 41 Edition:C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 14 7.1 Block Diagram Of Test Setup .............................................................................. 14 7.2 Limit .................................................................................................................... 15 7.3 Test procedure .................................................................................................... 16 7.4 EUT operating Conditions ................................................................................... 17 7.5 Test Result .......................................................................................................... 17 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 21 8.1 Block Diagram Of Test Setup .............................................................................. 21 8.2 Limit .................................................................................................................... 21 8.3 Test Procedure ................................................................................................... 22 8.4 EUT Operating Conditions .................................................................................. 23 8.5 Test Result .......................................................................................................... 23 9. Power Spectral Density Test ............................................................................... 24 9.1 Block Diagram Of Test Setup .............................................................................. 24 9.2 Limit .................................................................................................................... 24 9.3 Test procedure .................................................................................................... 24 9.4 EUT Operating Conditions .................................................................................. 24 9.5 Test Result ........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

TEST SETUP PHOTOGRAPHS Radiated Measurement Photos ----------------The end----------------

Contact Information

Applicant

Devin G Ewart(Executive Marketing Manager)
[email protected]Fax: 8174682850

Test Firm

Shenzhen BCTC Testing Co., Ltd.Sally He
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz8.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter device.
