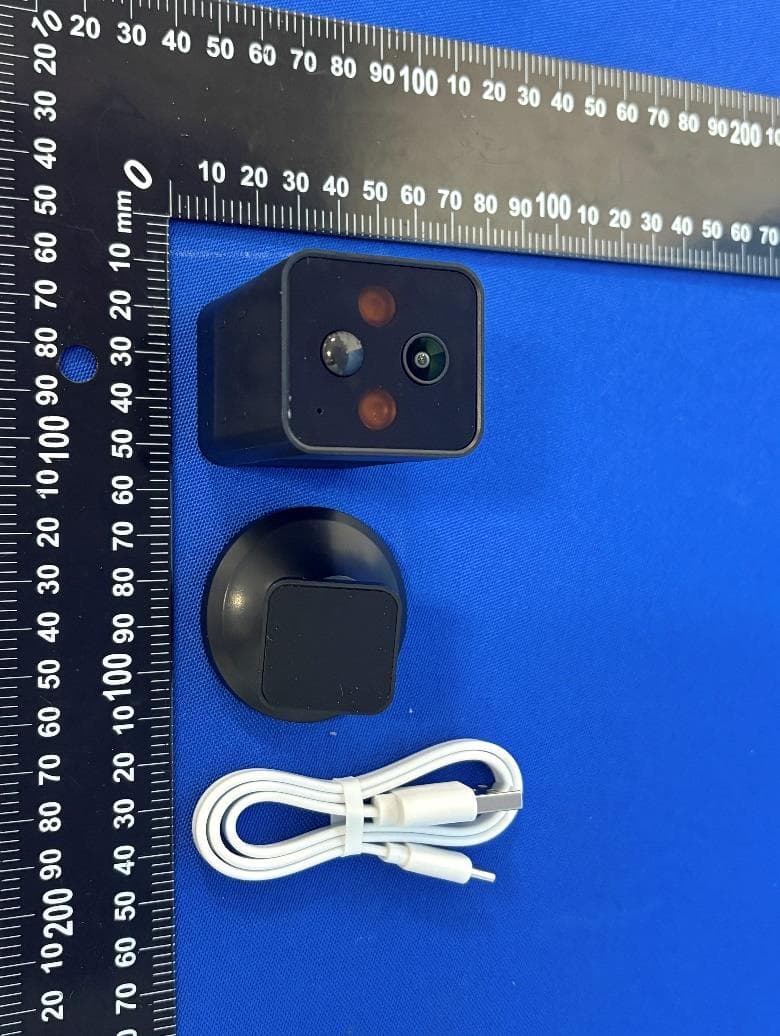

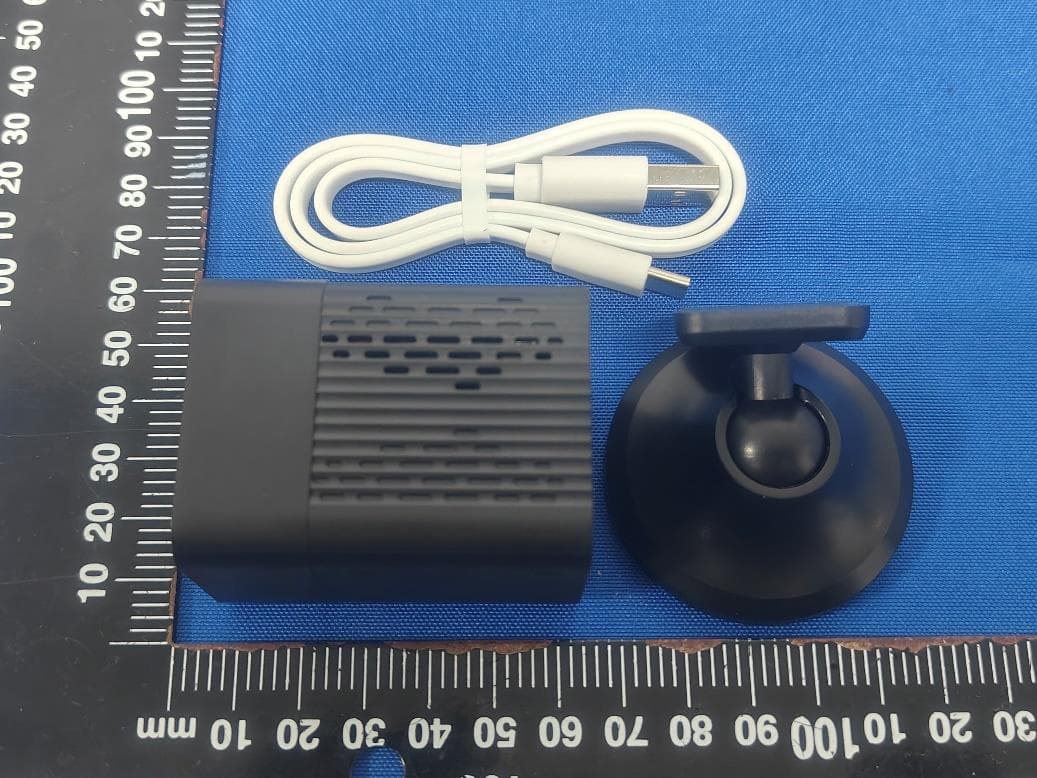

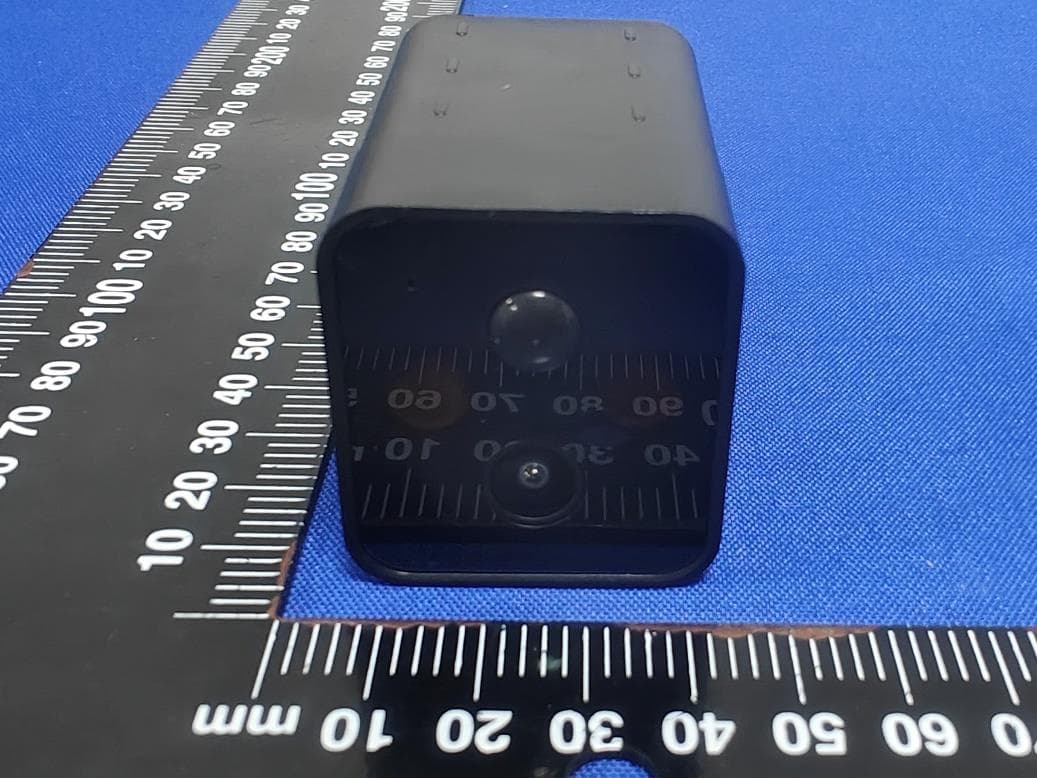

2BR3K-SECCAM-GP01Security Camera

HK EKO ELECTRONICS LIMITED

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Aug 11, 2026
Application Purpose: Original Equipment
Equipment Note: Security Camera
Frequency Range: 700.50000000 - 714.50000000
Company: HK EKO ELECTRONICS LIMITED
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Test Report

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPORT FCC Part 27 Report Reference No. .....................: FCC ID. .............................................: CTA26071602006 2BR3K-SECCAM-GP01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue ..................................... : Aug. 04, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : HK EKO ELECTRONICS LIMITED Address ............................................ : FLAT/RM 1 14/F HENLEY INDUSTRIAL CENTRE, 9-15 BUTE STREET, MONG KOK KL, HONGKONG, China Test specification ........................... : Standard ........................................... : FCC CFR Title 47 Part 2, Part 27 ANSI/TIA-603-E-2016 KDB 971168 D01 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ......................: Security Camera Trade Mark ....................................... : N/A Manufacturer .................................. : HK EKO ELECTRONICS LIMITED Model/Type reference ....................... : GP01 Listed Models ............................. : GP02, GP03, GP05, GP06, GP07, GP08, GP09 Ratings ............................................. : Input: 5.0V Battery: 3.7V 3000mAh 11.1Wh Modulation ....................................... : QPSK, 16QAM Frequency ......................................... : E-UTRA Band 66 Result................................................ : PASS Report No.: CTA26071602006 Page 2 of 22 TEST REPORT Equipment under Test : Security Camera Model /Type : GP01 Listed Models : GP02, GP03, GP05, GP06, GP07, GP08, GP09 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. So the tests were performed on model GP01 and the test results for the main test model can cover the listed models. Applicant : HK EKO ELECTRONICS LIMITED Address : FLAT/RM 1 14/F HENLEY INDUSTRIAL CENTRE, 9-15 BUTE STREET, MONG KOK KL, HONGKONG, China Manufacturer : HK EKO ELECTRONICS LIMITED Address : FLAT/RM 1 14/F HENLEY INDUSTRIAL CENTRE, 9-15 BUTE STREET, MONG KOK KL, HONGKONG, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 4. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26071602006 Page 3 of 22 Contents 1 SUMMARY ................................................................................................................................. 4 1.1 TEST STANDARDS ......................................................................................................... 4 1.2 Test Description ................................................................................................................ 4 1.3 Address of the test laboratory ........................................................................................... 5 1.4 Test Facility ...................................................................................................................... 5 1.5 Statement of the measurement uncertainty ...................................................................... 5 2 GENERAL INFORMATION ......................................................................................................... 6 2.1 Environmental conditions ................................................................................................. 6 2.2 General Description of EUT .............................................................................................. 6 2.3 Description of Test Modes and Test Frequency ................................................................ 7 2.4 Equipments Used during the Test ..................................................................................... 8 2.5 Related Submittal(s) / Grant (s) ...................................................................................... 10 2.6 Modifications .................................................................................................................. 10 3 TEST CONDITIONS AND RESULTS ........................................................................................ 11 3.1 Output Power ................................................................................................................. 11 3.2 Peak-to-Average Ratio (PAR) ......................................................................................... 14 3.3 Occupied Bandwidth and Emission Bandwidth ............................................................... 15 3.4 Band Edge compliance .................................................................................................. 16 3.5 Spurious Emission .......................................................................................................... 17 3.6 Frequency Stability under Temperature & Voltage Variations .......................................... 20 4 Test Setup Photos of the EUT ......................................…

Text truncated - open the document above for the full version.

Test Report

1 FCC Appendix RF Test Data for LTE band 66 Company : HK EKO ELECTRONICS LIMITED EUT : Security Camera Model Number : GP01 Report No. : CTA26071602006 FCC ID : 2BR3K-SECCAM-GP01 Reviewed By : Eric Wang 2 Appendix A: Conducted power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band66 1.4MHz QPSK 131979 1RB#0 21.74 PASS Band66 1.4MHz QPSK 131979 1RB#2 21.77 PASS Band66 1.4MHz QPSK 131979 1RB#5 21.75 PASS Band66 1.4MHz QPSK 131979 3RB#0 21.54 PASS Band66 1.4MHz QPSK 131979 3RB#1 21.50 PASS Band66 1.4MHz QPSK 131979 3RB#3 21.63 PASS Band66 1.4MHz QPSK 131979 6RB#0 20.63 PASS Band66 1.4MHz QPSK 132322 1RB#0 20.74 PASS Band66 1.4MHz QPSK 132322 1RB#2 20.67 PASS Band66 1.4MHz QPSK 132322 1RB#5 20.65 PASS Band66 1.4MHz QPSK 132322 3RB#0 20.56 PASS Band66 1.4MHz QPSK 132322 3RB#1 20.56 PASS Band66 1.4MHz QPSK 132322 3RB#3 20.55 PASS Band66 1.4MHz QPSK 132322 6RB#0 19.49 PASS Band66 1.4MHz QPSK 132665 1RB#0 20.89 PASS Band66 1.4MHz QPSK 132665 1RB#2 20.37 PASS Band66 1.4MHz QPSK 132665 1RB#5 20.20 PASS Band66 1.4MHz QPSK 132665 3RB#0 20.26 PASS Band66 1.4MHz QPSK 132665 3RB#1 20.23 PASS Band66 1.4MHz QPSK 132665 3RB#3 20.04 PASS Band66 1.4MHz QPSK 132665 6RB#0 19.36 PASS Band66 1.4MHz 16QAM 131979 1RB#0 20.73 PASS Band66 1.4MHz 16QAM 131979 1RB#2 20.72 PASS Band66 1.4MHz 16QAM 131979 1RB#5 20.75 PASS Band66 1.4MHz 16QAM 131979 3RB#0 20.47 PASS Band66 1.4MHz 16QAM 131979 3RB#1 20.55 PASS Band66 1.4MHz 16QAM 131979 3RB#3 20.56 PASS Band66 1.4MHz 16QAM 131979 6RB#0 19.68 PASS Band66 1.4MHz 16QAM 132322 1RB#0 19.69 PASS Band66 1.4MHz 16QAM 132322 1RB#2 19.66 PASS Band66 1.4MHz 16QAM 132322 1RB#5 19.60 PASS Band66 1.4MHz 16QAM 132322 3RB#0 19.55 PASS 3 Band66 1.4MHz 16QAM 132322 3RB#1 19.54 PASS Band66 1.4MHz 16QAM 132322 3RB#3 19.68 PASS Band66 1.4MHz 16QAM 132322 6RB#0 18.58 PASS Band66 1.4MHz 16QAM 132665 1RB#0 19.94 PASS Band66 1.4MHz 16QAM 132665 1RB#2 19.69 PASS Band66 1.4MHz 16QAM 132665 1RB#5 19.60 PASS Band66 1.4MHz 16QAM 132665 3RB#0 19.46 PASS Band66 1.4MHz 16QAM 132665 3RB#1 19.41 PASS Band66 1.4MHz 16QAM 132665 3RB#3 19.26 PASS Band66 1.4MHz 16QAM 132665 6RB#0 18.42 PASS Band66 3MHz QPSK 131987 1RB#0 21.32 PASS Band66 3MHz QPSK 131987 1RB#8 21.63 PASS Band66 3MHz QPSK 131987 1RB#14 21.44 PASS Band66 3MHz QPSK 131987 8RB#0 20.54 PASS Band66 3MHz QPSK 131987 8RB#4 20.57 PASS Band66 3MHz QPSK 131987 8RB#7 20.65 PASS Band66 3MHz QPSK 131987 15RB#0 20.64 PASS Band66 3MHz QPSK 132322 1RB#0 20.53 PASS Band66 3MHz QPSK 132322 1RB#8 20.67 PASS Band66 3MHz QPSK 132322 1RB#14 20.44 PASS Band66 3MHz QPSK 132322 8RB#0 19.50 PASS Band66 3MHz QPSK 132322 8RB#4 19.55 PASS Band66 3MHz QPSK 132322 8RB#7 19.56 PASS Band66 3MHz QPSK 132322 15RB#0 19.54 PASS Band66 3MHz QPSK 132657 1RB#0 21.09 PASS Band66 3MHz QPSK 132657 1RB#8 20.57 PASS Band66 3MHz QPSK 132657 1RB#14 20.04 PASS Band66 3MHz QPSK 132657 8RB#0 19.79 PASS Band66 3MHz QPSK 132657 8RB#4 19.82 PASS Band66 3MHz QPSK 132657 8RB#7 19.52 PASS Band66 3MHz QPSK 132657 15RB#0 19.62 PASS Band66 3MHz 16QAM 131987 1RB#0 20.68 PASS Band66 3MHz 16QAM 131987 1RB#8 20.92 PASS Band66 3MHz 16QAM 131987 1RB#14 20.75 PASS Band66 3MHz 16QAM 131987 8RB#0 19.70 PASS Band66 3MHz 16QAM 131987 8RB#4 19.71 PASS Band66 3MHz 16QAM 131987 8RB#7 19.80 PASS 4 Band66 3MHz 16QAM 131987 15RB#0 19.64 PASS Band66 3MHz 16QAM 132322 1RB#0 19.47 PASS Band66 3MHz 16QAM 132322 1RB#8 19.63 PASS Band66 3MHz 16QAM 132322 1RB#14 19.40 PASS Band66 3MHz 16QAM 132322 8RB#0 18.52 PASS Band66 3MHz 16QAM 132322 8RB#4 18.54 PASS Band66 3MHz 16QAM 132322 8RB#7 18.55 PASS Band66 3MHz 16QAM 132322 15RB#0 18.53 PASS Band66 3MHz 16QAM 132657 1RB#0 20.04 PASS Band66 3MHz 16QAM 132657 1RB#8 19.73 PASS Band66 3MHz 16QAM 132657 1RB#14 19.33 PASS Band66 3MHz 16QAM 132657 8RB#0 18.87 PASS Band66 3MHz 16QAM 132657 8RB#4 18.84 PASS Band66 3MHz 16QAM 132657 8RB#7 18.57 PASS Band66 3MHz 16QAM 132657 15RB#0 18.57 PASS Band66 5MHz QPSK 131997 1RB#0 21.93 PASS Band66 5MHz QPSK 131997 1RB#12 21.89 PASS Band66 5MHz QPSK 131997 1RB#24 22.12 PASS Band66 5MHz QPSK 131997 12RB#0 20.74 PASS Band66 5MHz QPSK 131997 12RB#6 20.75 PASS Band66 5MHz QPSK 131997 12RB#13 20.93 PASS Band66 5MHz QPSK 131997 25RB#0 20.89 PASS Band66 5MHz QPSK 132322 1RB#0 20.93 PASS Band66 5MHz QPSK 132322 1RB#12 20.72 PASS Band66 5MHz QPSK 132322 1RB#24 21.01 PASS Band66 5MHz QPSK 132322 12RB#0 19.70 PASS Band66 5MHz QPSK 132322 12RB#6 19.75 PASS Band66 5MHz QPSK 132322 12RB#13 19.77 PASS Band66 5MHz QPSK 132322 25RB#0 19.77 PASS Band66 5MHz QPSK 132647 1RB#0 22.00 PASS Band66 5MHz QPSK 132647 1RB#12 20.77 PASS Band66 5MHz QPSK 132647 1RB#24 20.53 PASS Band66 5MHz QPSK 132647 12RB#0 20.16 PASS Band66 5MHz QPSK 132647 12RB#6 20.21 PASS Band66 5MHz QPSK 132647 12RB#13 19.69 PASS Band66 5MHz QPSK 132647 25RB#0 19.97 PASS Band66 5MHz 16QAM 131997 1RB#0 20.89 PASS 5 Band66 5MHz 16QAM 131997 1RB#12 20.81 PASS Band66 5MHz 16QAM 131997 1RB#24 21.09 PASS Band66 5MHz 16QAM 131997 12RB#0 19.91 PASS Band66 5MHz 16QAM 131997 12RB#6 19.91 PASS Band66 5MHz 16QAM 131997 12RB#13 20.11 PASS Band66 5MHz 16QAM 131997 25RB#0 19.93 PASS Band66 5MHz 16QAM 132322 1RB#0 20.13 PASS Band66 5MHz 16QAM 132322 1RB#12 20.03 PASS Band66 5MHz 16QAM 132322 1RB#24 20.21 PASS Band66 5MHz 16QAM 132322 12RB#0 18.86 PASS Band66 5MHz 16QAM 132322 12RB#6 18.88 PASS Band66 5MHz 16QAM 132322 12RB#13 18.89 PASS Band66 5MHz 16QAM 132322 25RB#0 18.79 PASS Band66 5MHz 16QAM 132647 1RB#0 20.84 PASS Band66 5MHz 16QAM 132647 1RB#12 20.05 PASS Band66 5MHz 16QAM 132647 1RB#24 19.71 PASS Band66 5MHz 16QAM 132647 12RB#0 19.28 PASS Band66 5MHz 16QAM 132647 12RB#6 19.27 PASS Band66 5MHz 16QAM 132647 12RB#13 18.76 PASS Band66 5MHz 16QAM 132647 25RB#0 19.01 PASS Band66 10MHz QPSK 132022 1RB#0 22.73 PASS Band66 10MHz QPSK 132022 1RB#24 22.72 PASS Band66 10MHz QPSK 132022 1RB#49 23.10 PASS Band66 10MHz QPSK 132022 25RB#0 21.77 PASS Band66 10MHz QPSK 132022 25RB#12 21.75 PASS Band66 10MHz QPSK 132022 25RB#25 22.04 PASS Band66 10MHz QPSK 132022 50RB#0 21.85 PAS…

Text truncated - open the document above for the full version.

Test Report

26 Band66-15MHz-QPSK-132597-75RB#0 Band66-20MHz-QPSK-132072-1RB#0 Band66-20MHz-QPSK-132072-100RB#0 27 Band66-20MHz-QPSK-132322-1RB#0 Band66-20MHz-QPSK-132322-100RB#0 Band66-20MHz-QPSK-132572-1RB#0 28 Band66-20MHz-QPSK-132572-100RB#0 29 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band66 1.4MHz QPSK 131979 6RB#0 1.0911 1.268 PASS Band66 1.4MHz QPSK 132322 6RB#0 1.0897 1.247 PASS Band66 1.4MHz QPSK 132665 6RB#0 1.0918 1.276 PASS Band66 1.4MHz 16QAM 131979 6RB#0 1.0913 1.292 PASS Band66 1.4MHz 16QAM 132322 6RB#0 1.0924 1.309 PASS Band66 1.4MHz 16QAM 132665 6RB#0 1.0919 1.310 PASS Band66 3MHz QPSK 131987 15RB#0 2.6990 3.033 PASS Band66 3MHz QPSK 132322 15RB#0 2.7027 2.986 PASS Band66 3MHz QPSK 132657 15RB#0 2.6960 2.998 PASS Band66 3MHz 16QAM 131987 15RB#0 2.7014 3.006 PASS Band66 3MHz 16QAM 132322 15RB#0 2.6929 3.014 PASS Band66 3MHz 16QAM 132657 15RB#0 2.6910 2.999 PASS Band66 5MHz QPSK 131997 25RB#0 4.5114 5.158 PASS Band66 5MHz QPSK 132322 25RB#0 4.4987 5.109 PASS Band66 5MHz QPSK 132647 25RB#0 4.5060 5.132 PASS Band66 5MHz 16QAM 131997 25RB#0 4.4991 5.119 PASS Band66 5MHz 16QAM 132322 25RB#0 4.5021 5.187 PASS Band66 5MHz 16QAM 132647 25RB#0 4.5018 5.011 PASS Band66 10MHz QPSK 132022 50RB#0 8.9979 9.670 PASS Band66 10MHz QPSK 132322 50RB#0 8.9838 9.731 PASS Band66 10MHz QPSK 132622 50RB#0 8.9791 9.678 PASS Band66 15MHz QPSK 132047 75RB#0 13.500 14.39 PASS Band66 15MHz QPSK 132322 75RB#0 13.496 14.40 PASS Band66 15MHz QPSK 132597 75RB#0 13.487 14.32 PASS Band66 20MHz QPSK 132072 100RB#0 17.974 19.20 PASS Band66 20MHz QPSK 132322 100RB#0 17.989 19.06 PASS Band66 20MHz QPSK 132572 100RB#0 17.953 19.06 PASS 30 Test Graphs Band66-1.4MHz-QPSK-131979-6RB#0 Band66-1.4MHz-QPSK-132322-6RB#0 31 Band66-1.4MHz-QPSK-132665-6RB#0 Band66-1.4MHz-16QAM-131979-6RB#0 Band66-1.4MHz-16QAM-132322-6RB#0 32 Band66-1.4MHz-16QAM-132665-6RB#0 Band66-3MHz-QPSK-131987-15RB#0 Band66-3MHz-QPSK-132322-15RB#0 33 Band66-3MHz-QPSK-132657-15RB#0 Band66-3MHz-16QAM-131987-15RB#0 Band66-3MHz-16QAM-132322-15RB#0 34 Band66-3MHz-16QAM-132657-15RB#0 Band66-5MHz-QPSK-131997-25RB#0 Band66-5MHz-QPSK-132322-25RB#0 35 Band66-5MHz-QPSK-132647-25RB#0 Band66-5MHz-16QAM-131997-25RB#0 Band66-5MHz-16QAM-132322-25RB#0 36 Band66-5MHz-16QAM-132647-25RB#0 Band66-10MHz-QPSK-132022-50RB#0 Band66-10MHz-QPSK-132322-50RB#0 37 Band66-10MHz-QPSK-132622-50RB#0 Band66-15MHz-QPSK-132047-75RB#0 Band66-15MHz-QPSK-132322-75RB#0 38 Band66-15MHz-QPSK-132597-75RB#0 Band66-20MHz-QPSK-132072-100RB#0 Band66-20MHz-QPSK-132322-100RB#0 39 Band66-20MHz-QPSK-132572-100RB#0 40 Appendix D: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Limit (dBm) Verdict Band66 1.4MHz QPSK 131979 6RB#0 -25.00 -13 PASS Band66 1.4MHz QPSK 132665 6RB#0 -27.82 -13 PASS Band66 1.4MHz 16QAM 131979 6RB#0 -27.32 -13 PASS Band66 1.4MHz 16QAM 132665 6RB#0 -29.02 -13 PASS Band66 3MHz QPSK 131987 15RB#0 -22.34 -13 PASS Band66 3MHz QPSK 132657 15RB#0 -23.97 -13 PASS Band66 3MHz 16QAM 131987 15RB#0 -22.76 -13 PASS Band66 3MHz 16QAM 132657 15RB#0 -25.60 -13 PASS Band66 5MHz QPSK 131997 25RB#0 -22.31 -13 PASS Band66 5MHz QPSK 132647 25RB#0 -24.03 -13 PASS Band66 5MHz 16QAM 131997 25RB#0 -23.69 -13 PASS Band66 5MHz 16QAM 132647 25RB#0 -23.55 -13 PASS Band66 10MHz QPSK 132022 50RB#0 -25.35 -13 PASS Band66 10MHz QPSK 132622 50RB#0 -26.93 -13 PASS Band66 15MHz QPSK 132047 75RB#0 -26.74 -13 PASS Band66 15MHz QPSK 132597 75RB#0 -26.08 -13 PASS Band66 20MHz QPSK 132072 100RB#0 -28.78 -13 PASS Band66 20MHz QPSK 132572 100RB#0 -29.11 -13 PASS Test Graphs Band66-1.4MHz-QPSK-131979-6RB#0 41 Band66-1.4MHz-QPSK-132665-6RB#0 Band66-1.4MHz-16QAM-131979-6RB#0 Band66-1.4MHz-16QAM-132665-6RB#0 42 Band66-3MHz-QPSK-131987-15RB#0 Band66-3MHz-QPSK-132657-15RB#0 Band66-3MHz-16QAM-131987-15RB#0 43 Band66-3MHz-16QAM-132657-15RB#0 Band66-5MHz-QPSK-131997-25RB#0 Band66-5MHz-QPSK-132647-25RB#0 44 Band66-5MHz-16QAM-131997-25RB#0 Band66-5MHz-16QAM-132647-25RB#0 Band66-10MHz-QPSK-132022-50RB#0 45 Band66-10MHz-QPSK-132622-50RB#0 Band66-15MHz-QPSK-132047-75RB#0 Band66-15MHz-QPSK-132597-75RB#0 46 Band66-20MHz-QPSK-132072-100RB#0 Band66-20MHz-QPSK-132572-100RB#0 47 Appendix E: Conducted Spurious Emission Test Result Band Bandwidth Modulation Channel RB Configuration Frequency Range Result (dBm) Limit (dBm) Verdict Band66 1.4MHz QPSK 131979 1RB#0 Range1:30~1000MHz -52.19 -13 PASS Band66 1.4MHz QPSK 131979 1RB#0 Range2:1000~20000MHz -15.49 -13 PASS Band66 1.4MHz QPSK 132322 1RB#0 Range1:30~1000MHz -51.51 -13 PASS Band66 1.4MHz QPSK 132322 1RB#0 Range2:1000~20000MHz -16.55 -13 PASS Band66 1.4MHz QPSK 132665 1RB#0 Range1:30~1000MHz -51.49 -13 PASS Band66 1.4MHz QPSK 132665 1RB#0 Range2:1000~20000MHz -15.05 -13 PASS Band66 1.4MHz 16QAM 131979 1RB#0 Range1:30~1000MHz -51.89 -13 PASS Band66 1.4MHz 16QAM 131979 1RB#0 Range2:1000~20000MHz -15.07 -13 PASS Band66 1.4MHz 16QAM 132322 1RB#0 Range1:30~1000MHz -51.76 -13 PASS Band66 1.4MHz 16QAM 132322 1RB#0 Range2:1000~20000MHz -16.82 -13 PASS Band66 1.4MHz 16QAM 132665 1RB#0 Range1:30~1000MHz -51.68 -13 PASS Band66 1.4MHz 16QAM 132665 1RB#0 Range2:1000~20000MHz -17.22 -13 PASS Band66 3MHz QPSK 131987 1RB#0 Range1:30~1000MHz -51.21 -13 PASS Band66 3MHz QPSK 131987 1RB#0 Range2:1000~20000MHz -16.5 -13 PASS Band66 3MHz QPSK 132322 1RB#0 Range1:30~1000MHz -51.88 -13 PASS Band66 3MHz QPSK 132322 1RB#0 Range2:1000~20000MHz -17.05 -13 PASS Band66 3MHz QPSK 132657 1RB#0 Range1:30~1000MHz -51.7 -13 PASS Band66 3MHz QPSK 132657 1RB#0 Range2:1000~20000MHz -15.65 -13 PASS Band66 3MHz 16QAM 131987 1RB#0 Range1:30~1000MHz -52.16 -13 PASS Band66 3MHz 16QAM 131987 1RB#0 Range2:1000~20000MHz -16.95 -13 PASS Band66 3MHz 16QAM 132322 1RB#0 Range1:30~1000MHz -52.15 -13 PASS Band66 3MHz 16QAM 132322 1RB#0 Range2:1000~20000MHz -16.69 -13 PASS Band66 3MHz 16QAM 132657 1RB#0 Range1:30~1000MHz -51.24 -13 PASS Band66 3MHz 16QAM 132657 1RB#0 Range2:1000~20000MHz -16.96…

Text truncated - open the document above for the full version.

Test Report

49 Band66-1.4MHz-QPSK-131979-1RB#0-Range2:1000~20000MHz Band66-1.4MHz-QPSK-132322-1RB#0-Range1:30~1000MHz Band66-1.4MHz-QPSK-132322-1RB#0-Range2:1000~20000MHz 50 Band66-1.4MHz-QPSK-132665-1RB#0-Range1:30~1000MHz Band66-1.4MHz-QPSK-132665-1RB#0-Range2:1000~20000MHz Band66-1.4MHz-16QAM-131979-1RB#0-Range1:30~1000MHz 51 Band66-1.4MHz-16QAM-131979-1RB#0-Range2:1000~20000MHz Band66-1.4MHz-16QAM-132322-1RB#0-Range1:30~1000MHz Band66-1.4MHz-16QAM-132322-1RB#0-Range2:1000~20000MHz 52 Band66-1.4MHz-16QAM-132665-1RB#0-Range1:30~1000MHz Band66-1.4MHz-16QAM-132665-1RB#0-Range2:1000~20000MHz Band66-3MHz-QPSK-131987-1RB#0-Range1:30~1000MHz 53 Band66-3MHz-QPSK-131987-1RB#0-Range2:1000~20000MHz Band66-3MHz-QPSK-132322-1RB#0-Range1:30~1000MHz Band66-3MHz-QPSK-132322-1RB#0-Range2:1000~20000MHz 54 Band66-3MHz-QPSK-132657-1RB#0-Range1:30~1000MHz Band66-3MHz-QPSK-132657-1RB#0-Range2:1000~20000MHz Band66-3MHz-16QAM-131987-1RB#0-Range1:30~1000MHz 55 Band66-3MHz-16QAM-131987-1RB#0-Range2:1000~20000MHz Band66-3MHz-16QAM-132322-1RB#0-Range1:30~1000MHz Band66-3MHz-16QAM-132322-1RB#0-Range2:1000~20000MHz 56 Band66-3MHz-16QAM-132657-1RB#0-Range1:30~1000MHz Band66-3MHz-16QAM-132657-1RB#0-Range2:1000~20000MHz Band66-5MHz-QPSK-131997-1RB#0-Range1:30~1000MHz 57 Band66-5MHz-QPSK-131997-1RB#0-Range2:1000~20000MHz Band66-5MHz-QPSK-132322-1RB#0-Range1:30~1000MHz Band66-5MHz-QPSK-132322-1RB#0-Range2:1000~20000MHz 58 Band66-5MHz-QPSK-132647-1RB#0-Range1:30~1000MHz Band66-5MHz-QPSK-132647-1RB#0-Range2:1000~20000MHz Band66-5MHz-16QAM-131997-1RB#0-Range1:30~1000MHz 59 Band66-5MHz-16QAM-131997-1RB#0-Range2:1000~20000MHz Band66-5MHz-16QAM-132322-1RB#0-Range1:30~1000MHz Band66-5MHz-16QAM-132322-1RB#0-Range2:1000~20000MHz 60 Band66-5MHz-16QAM-132647-1RB#0-Range1:30~1000MHz Band66-5MHz-16QAM-132647-1RB#0-Range2:1000~20000MHz Band66-10MHz-QPSK-132022-1RB#0-Range1:30~1000MHz 61 Band66-10MHz-QPSK-132022-1RB#0-Range2:1000~20000MHz Band66-10MHz-QPSK-132322-1RB#0-Range1:30~1000MHz Band66-10MHz-QPSK-132322-1RB#0-Range2:1000~20000MHz 62 Band66-10MHz-QPSK-132622-1RB#0-Range1:30~1000MHz Band66-10MHz-QPSK-132622-1RB#0-Range2:1000~20000MHz Band66-15MHz-QPSK-132047-1RB#0-Range1:30~1000MHz 63 Band66-15MHz-QPSK-132047-1RB#0-Range2:1000~20000MHz Band66-15MHz-QPSK-132322-1RB#0-Range1:30~1000MHz Band66-15MHz-QPSK-132322-1RB#0-Range2:1000~20000MHz 64 Band66-15MHz-QPSK-132597-1RB#0-Range1:30~1000MHz Band66-15MHz-QPSK-132597-1RB#0-Range2:1000~20000MHz Band66-20MHz-QPSK-132072-1RB#0-Range1:30~1000MHz 65 Band66-20MHz-QPSK-132072-1RB#0-Range2:1000~20000MHz Band66-20MHz-QPSK-132322-1RB#0-Range1:30~1000MHz Band66-20MHz-QPSK-132322-1RB#0-Range2:1000~20000MHz 66 Band66-20MHz-QPSK-132572-1RB#0-Range1:30~1000MHz Band66-20MHz-QPSK-132572-1RB#0-Range2:1000~20000MHz 67 Appendix F: Frequency Stability Test Result Voltage Band Bandwidt h Modulatio n Channe l RB Configure Voltag e [Vdc] Tempe rature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict Band6 6 1.4MHz QPSK 13197 9 6RB#0 VL NT -7.45 -0.004331 ±2.5 PASS Band6 6 1.4MHz QPSK 13197 9 6RB#0 VN NT -15.38 -0.008942 ±2.5 PASS Band6 6 1.4MHz QPSK 13197 9 6RB#0 VH NT -7.57 -0.004401 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 VL NT 3.16 0.001811 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 VN NT -14.19 -0.008132 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 VH NT 6.56 0.003759 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 VL NT 7.56 0.004271 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 VN NT -18.89 -0.010672 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 VH NT 5.43 0.003068 ±2.5 PASS Band6 6 1.4MHz 16QAM 13197 9 6RB#0 VL NT -4.89 -0.002843 ±2.5 PASS Band6 6 1.4MHz 16QAM 13197 9 6RB#0 VN NT -9.85 -0.005727 ±2.5 PASS Band6 6 1.4MHz 16QAM 13197 9 6RB#0 VH NT 6.47 0.003762 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 VL NT -11.62 -0.006659 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 VN NT -10.38 -0.005948 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 VH NT -13.82 -0.007920 ±2.5 PASS Band6 6 1.4MHz 16QAM 13266 5 6RB#0 VL NT 3.16 0.001811 ±2.5 PASS Band6 6 1.4MHz 16QAM 13266 5 6RB#0 VN NT -9.45 -0.005339 ±2.5 PASS Band61.4MHz 16QAM 132666RB#0 VH NT -4.89 -0.002843 ±2.5 PASS 68 6 5 Temperature Band Bandwidt h Modulatio n Channe l RB Configure Voltag e [Vdc] Tempe rature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict Band6 6 1.4MHz QPSK 13197 9 6RB#0 NV -30 -2.25 -0.001308 ±2.5 PASS Band6 6 1.4MHz QPSK 13197 9 6RB#0 NV -20 9.23 0.005366 ±2.5 PASS Band6 6 1.4MHz QPSK 13197 9 6RB#0 NV 0 -9.99 -0.005808 ±2.5 PASS Band6 6 1.4MHz QPSK 13197 9 6RB#0 NV 10 -8.98 -0.005221 ±2.5 PASS Band6 6 1.4MHz QPSK 13197 9 6RB#0 NV 20 5.72 0.003326 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 NV -30 6.19 0.003547 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 NV -20 6.92 0.003966 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 NV 0 5.08 0.002911 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 NV 10 8.93 0.005117 ±2.5 PASS Band6 6 1.4MHz QPSK 13232 2 6RB#0 NV 20 8.13 0.004659 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 NV -30 7.20 0.004068 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 NV -20 10.48 0.005921 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 NV 0 5.15 0.002910 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 NV 10 6.58 0.003718 ±2.5 PASS Band6 6 1.4MHz QPSK 13266 5 6RB#0 NV 20 9.11 0.005147 ±2.5 PASS Band6 6 1.4MHz 16QAM 13197 9 6RB#0 NV -30 -7.54 -0.004384 ±2.5 PASS Band6 6 1.4MHz 16QAM 13197 9 6RB#0 NV -20 -11.84 -0.006884 ±2.5 PASS Band6 6 1.4MHz 16QAM 13197 9 6RB#0 NV 0 -4.70 -0.002733 ±2.5 PASS Band61.4MHz 16QAM 131976RB#0 NV 10 -7.72 -0.004488 ±2.5 PASS 69 6 9 Band6 6 1.4MHz 16QAM 13197 9 6RB#0 NV 20 -5.99 -0.003483 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 NV -30 -12.02 -0.006888 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 NV -20 -15.54 -0.008905 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 NV 0 -10.47 -0.006000 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 NV 10 -14.56 -0.008344 ±2.5 PASS Band6 6 1.4MHz 16QAM 13232 2 6RB#0 NV 20 -12.52 -0.007175 ±2.5 PASS Band6 6 1.4MHz 16QAM 13266 5 6RB#0 NV -30 -4.89 -0.002843 ±2.5 PASS Band6 6 1.4MHz 16QA…

Text truncated - open the document above for the full version.

Test Report

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT FCC Part 24 Subpart E Report Reference No. .....................: FCC ID. .............................................: CTA26071602001 2BR3K-SECCAM-GP01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue ..................................... : Aug. 04, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : HK EKO ELECTRONICS LIMITED Address ............................................ : FLAT/RM 1 14/F HENLEY INDUSTRIAL CENTRE, 9-15 BUTE STREET, MONG KOK KL, HONGKONG, China Test specification ........................... : Standard ........................................... : FCC CFR Title 47 Part 2, Part 24E ANSI/TIA-603-E-2016 KDB 971168 D01 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ......................: Security Camera Trade Mark ....................................... : N/A Manufacturer ................................... : HK EKO ELECTRONICS LIMITED Model/Type reference ....................... : GP01 Listed Models ............................. : GP02, GP03, GP05, GP06, GP07, GP08, GP09 Ratings ............................................. : Input: 5.0V Battery: 3.7V 3000mAh 11.1Wh Modulation ....................................... : QPSK, 16QAM Frequency ......................................... : E-UTRA Band 2 Result................................................ : PASS Report No.: CTA26071602001 Page 2 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT Equipment under Test : Security Camera Model /Type : GP01 Listed Models : GP02, GP03, GP05, GP06, GP07, GP08, GP09 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. So the tests were performed on model GP01 and the test results for the main test model can cover the listed models. Applicant : HK EKO ELECTRONICS LIMITED Address : FLAT/RM 1 14/F HENLEY INDUSTRIAL CENTRE, 9-15 BUTE STREET, MONG KOK KL, HONGKONG, China Manufacturer : HK EKO ELECTRONICS LIMITED Address : FLAT/RM 1 14/F HENLEY INDUSTRIAL CENTRE, 9-15 BUTE STREET, MONG KOK KL, HONGKONG, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 4. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26071602001 Page 3 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 SUMMARY ................................................................................................................................. 4 TEST STANDARDS ......................................................................................................... 4 Test Description ................................................................................................................ 4 Address of the test laboratory ........................................................................................... 5 Test Facility ...................................................................................................................... 5 Statement of the measurement uncertainty ...................................................................... 5 2 GENERAL INFORMATION ......................................................................................................... 6 Environmental conditions ................................................................................................. 6 General Description of EUT .............................................................................................. 6 Description of Test Modes and Test Frequency ................................................................ 7 Equipments Used during the Test ..................................................................................... 8 Related Submittal(s) / Grant (s) ...................................................................................... 10 Modifications .................................................................................................................. 10 3 TEST CONDITIONS AND RESULTS ........................................................................................ 11 Output Power ................................................................................................................. 11 Peak-to-Average Ratio (PAR) …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Lily Liu(Manager)

[email protected]Fax: N/A

Technical Contact

FCC US Agent, LLCTim Payne

[email protected]

3722 lllinois Avenue · Saint Charles, Illinois, 60174 · United States

Test Firm

SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.Eric Wang

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.86 GHz - 1.90 GHz	153.10 mW	13M5G7D	0.006942ppm
2	24E	1.86 GHz - 1.90 GHz	135.20 mW	18M0G7D	0.006942ppm
3	24E	1.85 GHz - 1.91 GHz	121.10 mW	1M09W7D	0.010766ppm
4	24E	1.85 GHz - 1.91 GHz	120.50 mW	4M51W7D	0.010766ppm
5	27	1.71 GHz - 1.75 GHz	168.70 mW	1M09G7D	0.010529ppm
6	27	1.72 GHz - 1.75 GHz	143.50 mW	18M0G7D	0.010529ppm
7	27	1.71 GHz - 1.75 GHz	134.60 mW	2M70W7D	0.008381ppm
8	27	1.71 GHz - 1.75 GHz	121.30 mW	4M50W7D	0.008381ppm
9	22H	824.7 MHz - 848.3 MHz	128.20 mW	1M09G7D	0.005347ppm
1	22H	829 MHz - 844 MHz	116.70 mW	9M00G7D	0.005347ppm
11	22H	824.7 MHz - 848.3 MHz	100.90 mW	1M09W7D	0.00416ppm
12	22H	826.5 MHz - 846.5 MHz	98.20 mW	4M51W7D	0.00416ppm
13	27	700.5 MHz - 714.5 MHz	96.40 mW	2M68G7D	0.012568ppm
14	27	704 MHz - 711 MHz	92.70 mW	9M02G7D	0.012568ppm
15	27	700.5 MHz - 714.5 MHz	72.10 mW	2M69W7D	0.005402ppm
16	27	701.5 MHz - 713.5 MHz	70.80 mW	4M51W7D	0.005402ppm
17	27	779.5 MHz - 784.5 MHz	86.30 mW	4M51G7D	0.010738ppm
18	27	782 MHz - 782 MHz	70.60 mW	8M97G7D	0.010738ppm
19	27	779.5 MHz - 784.5 MHz	67.10 mW	4M51W7D	0.006565ppm
2	27	1.72 GHz - 1.77 GHz	297.20 mW	18M0G7D	0.010672ppm
21	27	1.71 GHz - 1.78 GHz	232.30 mW	4M50W7D	0.00792ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for frequencies below 1GHz and EIRP for frequencies above 1GHz. The antenna used with this transmitter must be installed to provide a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-users must be provided with operating procedures for satisfying RF exposure compliance. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.

Other Applications from HK EKO ELECTRONICS LIMITED

2BR3K-GPSTRACK-G05

GPS Tracker

Aug 10, 2026

Equipment Class

PCB - PCS Licensed Transmitter

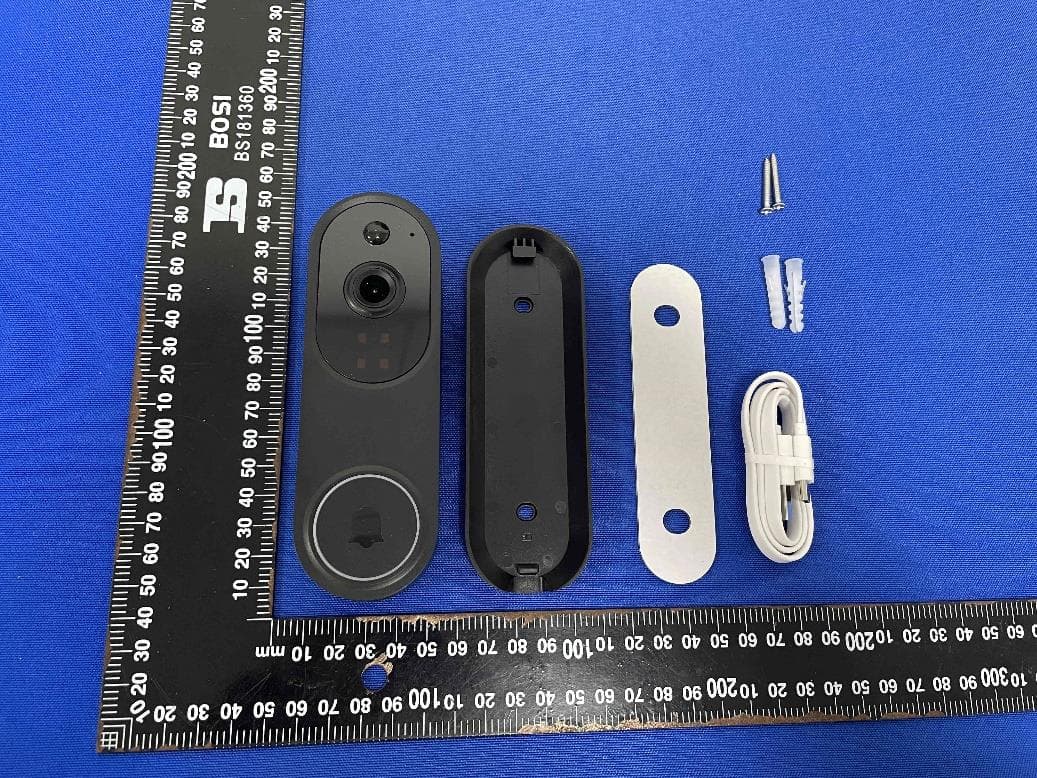

2BR3K-DBCAM-M52-1

Doorbell Camera

May 27, 2026

Equipment Class

DTS - Digital Transmission System

2BR3K-STATION-G60A

Base Station

Feb 11, 2026

Equipment Class

DTS - Digital Transmission System

2BR3K-DOORBELL-M21

Doorbell Camera

Dec 31, 2025

Equipment Class

DTS - Digital Transmission System

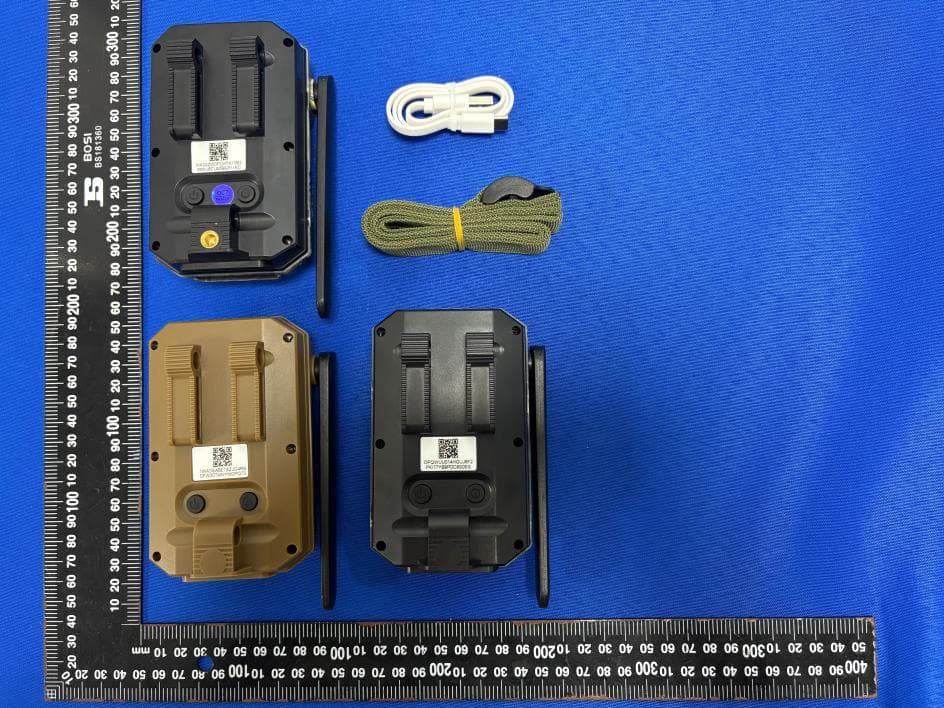

2BR3K-SECCAM-Q82-4G
