2BR56-W001PD25W charger

【封面】 Three-in-one Wireless Charger Welcome Guide Model: W001 E-mail: [email protected] 【P1】 Package Contents AC Wall Charger *1 User Manual *1 Certificate *1 Wall Charger Features * Technology: Maximum compatibility with connected mobile devices. * Dual Port Fast Charging: Equipped with Max 20W USB-C and Max 18W USB-A ports, enough power for charging smartphone and tablet. * Apple Watch & Earphone Wireless Charging: Support Apple Watch & Earphone wireless portable charging * Compatible Conversion Plug Product Diagram USB-C 20W(PD 3.0) USB-A 18W(QC 3.0) Apple Watch & Earphone Wireless Charger 2.5W AC Wall Charger Input Compatible Conversion Plug 【P2】 Simultaneous Charging for Three Devices When use port charging for two devices and wireless charging for Apple watch or Earphone same time, the total output of the USB-A and USB-C ports is 15W, and the Apple Watch or Earphone wireless charging is 2.5W. 【P3】 Specifications Input AC(100-240V) Output USB A(QC2.0/3.0):5V-3A/9V=2A/12V-1.5A USB C(PD2.0/3.0):5V=3A/9V2.22A/12V-1.67A/20V-1A Apple Watch & Earphone Wireless Charge:2.5W Total Output USB A+USB C 5V=3A Size 54.8*43.0*30mm/2.15"*1.69"*1.18" Weight 70g/2.46oz Product Care & Use *When you want to use wall charger to charge your phone quickly, please make sure your cable supports 18W or 20W fast charge, because ordinary cable only supports 15W output. *Keep away from liquids, fire and extreme heat. *Do not disassemble by yourself. 【P4】 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

* theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. SC5093810 U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 9/19/2025 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:2BR56-W001 FRNofapplicant:0037493186 Persection2.911(d)(7)oftheFCCrules,[Weipusheng(Shenzhen)TechnologyCo.,Ltd.](“the applicant”)certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothe followingU.S.agent*forserviceofprocess: CompanyName:GlobalProductServicesandConsultationLLC FCCRegistrationNumber(FRN):0033406703 PhysicalU.S.CompanyAddress:328WPalmAve.,Monrovia,CA91016,UnitedStates ContactPerson:MichaelChan AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferentfromApplicant): Signed: Printedname:YanXuanChen Title:GeneralManager CompanyName:Weipusheng(Shenzhen) TechnologyCo.,Ltd. Address:Room402,BuildingC1,No.11,North Zone,ShangxueTechnologyCity,Xinxue Community,BantianStreet,LonggangDistrict, ShenzhenCity,GuangdongProvince,China Signed: Printedname:MichaelChan Title:TechnicalDirector CompanyName:GlobalProductServicesand ConsultationLLC Date:9/19/2025 Date:9/17/2025

Weipusheng (Shenzhen) Technology Co., Ltd. 2025-09-17 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BR56-W001) [Weipusheng (Shenzhen) Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, YanXuan Chen General Manager Weipusheng (Shenzhen) Technology Co., Ltd. Room 402, Building C1, No. 11, North Zone, Shangxue Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China Weipusheng (Shenzhen) Technology Co., Ltd. 2025-09-17 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BR56-W001) [Weipusheng (Shenzhen) Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, YanXuan Chen General Manager Weipusheng (Shenzhen) Technology Co., Ltd. Room 402, Building C1, No. 11, North Zone, Shangxue Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China

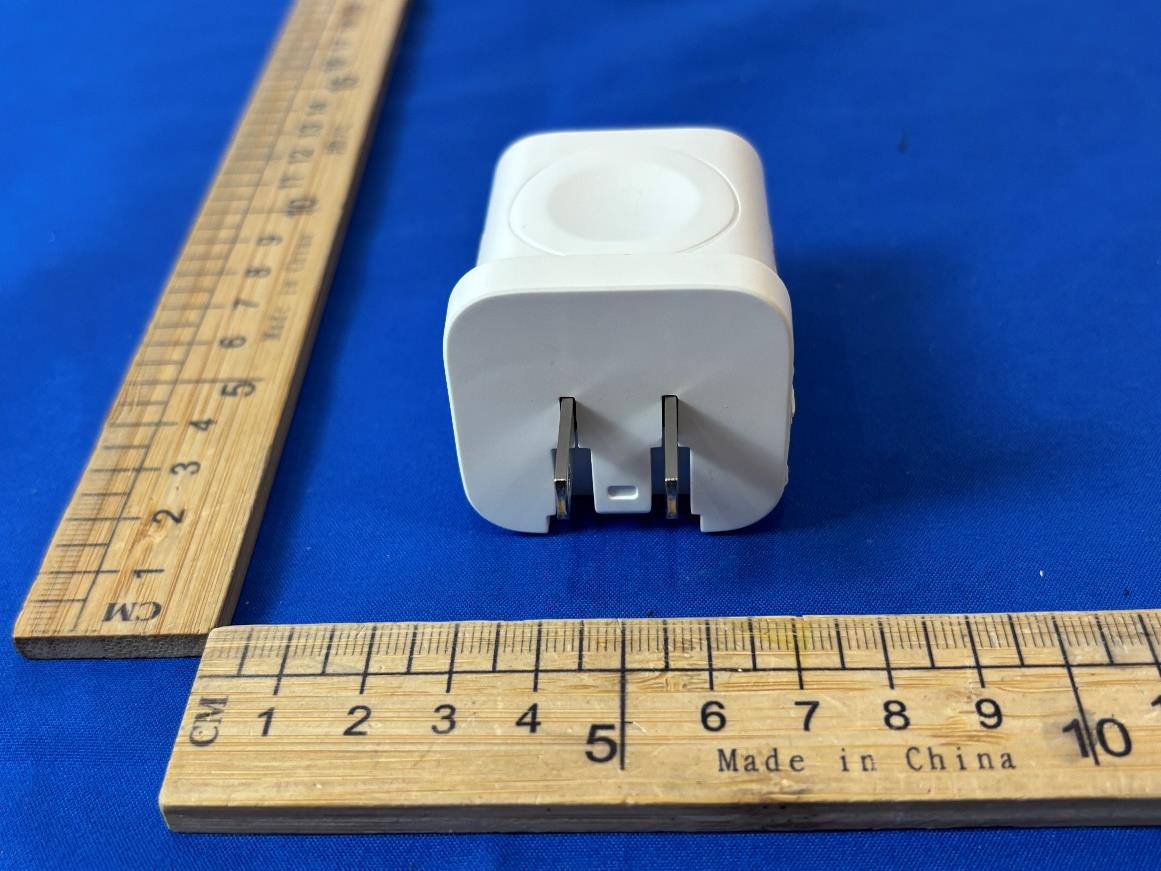

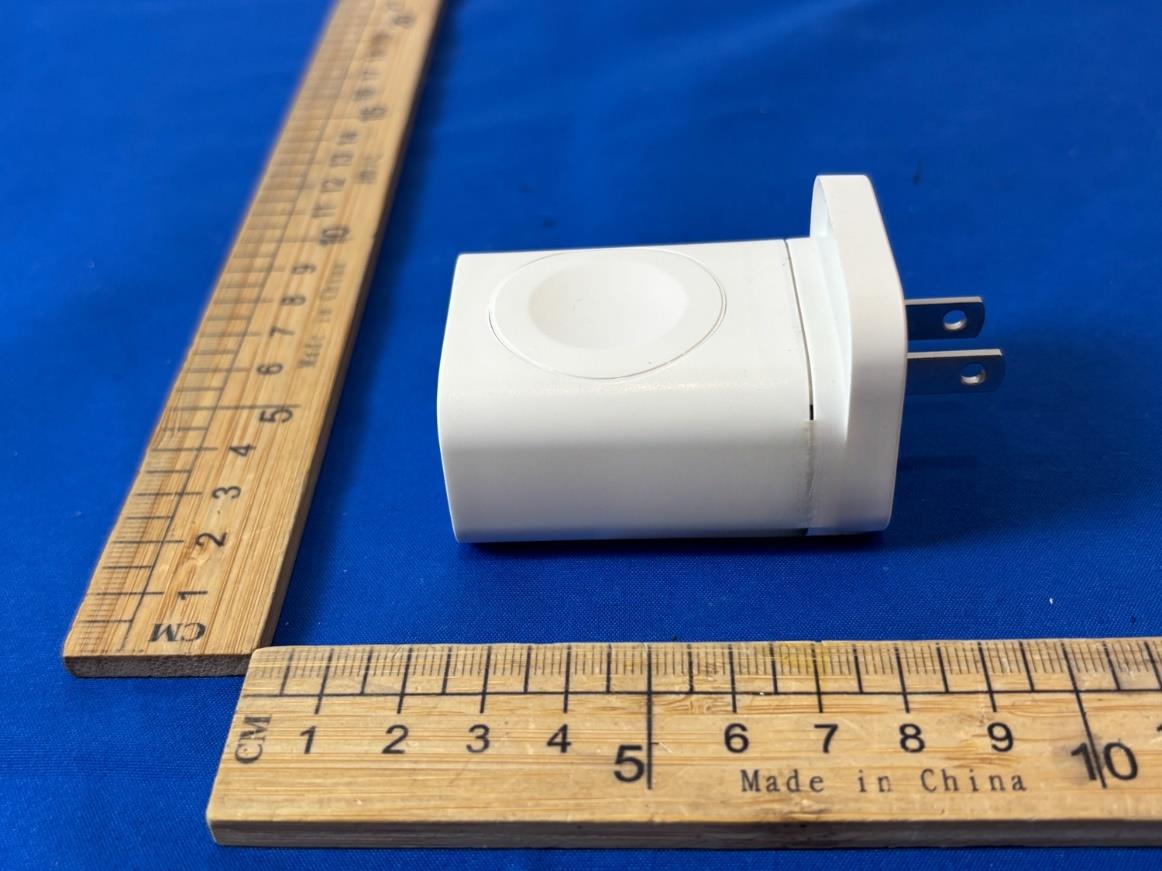

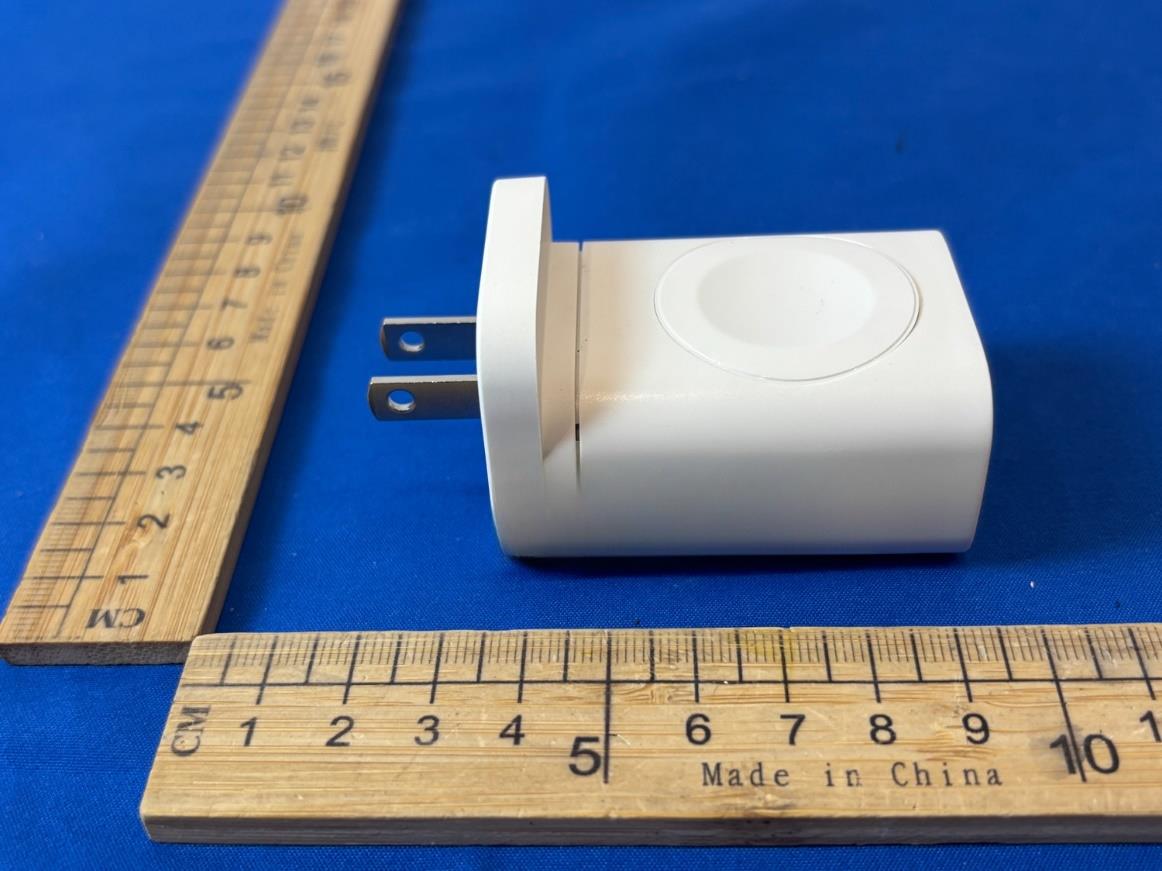

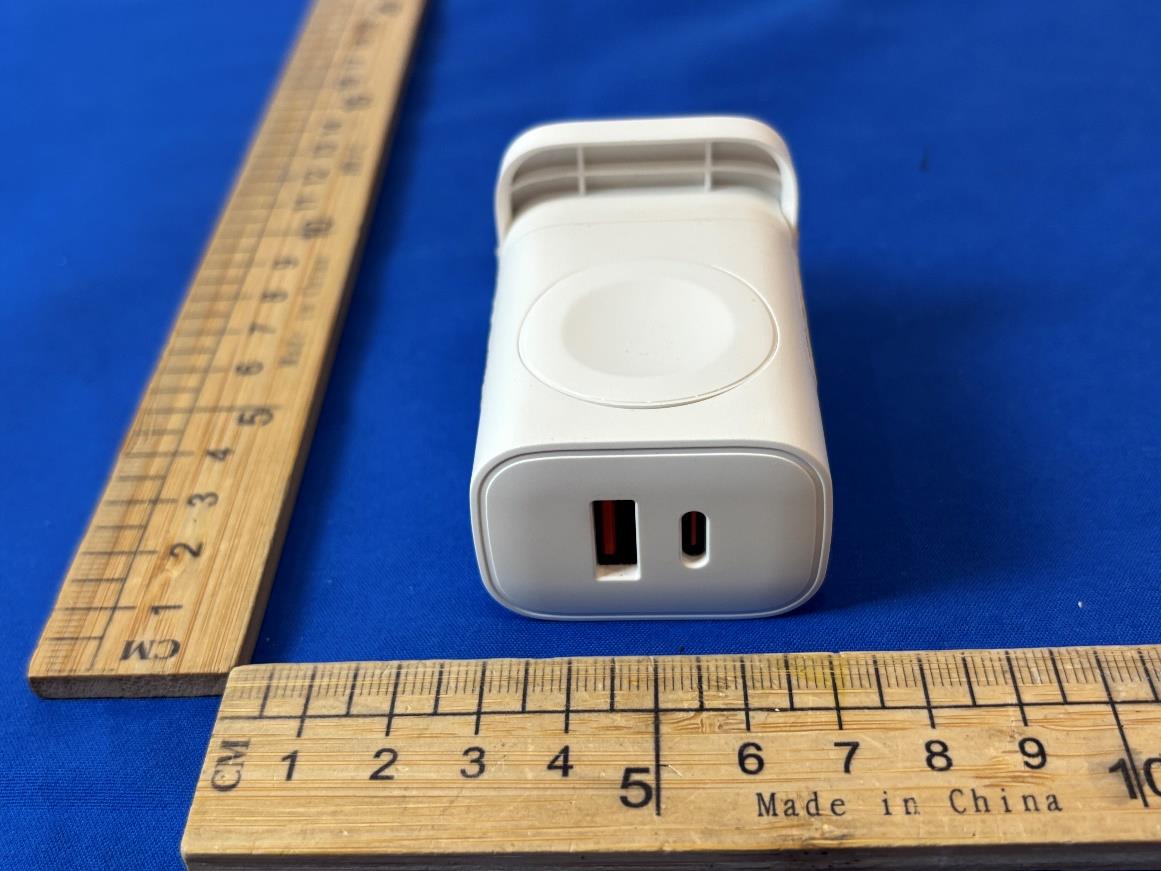

External Photographs View of EUT-1 View of EUT-2 Page 2 of 3 View of EUT-3 View of EUT-4 Page 3 of 3 View of EUT-5 View of EUT-6

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 7 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 7 Internal View of EUT-5 Internal View of EUT-6 Antenna Page 4 of 7 Internal View of EUT-7 Internal View of EUT-8 Page 5 of 7 Internal View of EUT-9 Internal View of EUT-10 Page 6 of 7 Internal View of EUT-11 Internal View of EUT-12 Page 7 of 7 Internal View of EUT-13

EUT Specification FCC ID: 2BR56-W001 Characteristics Description Product Name PD25W charger Model number W001 Series Model W002 Power Supply 120V / 60Hz Operating Frequency Range 110-205KHz for Earphone charging 300-350KHz for Watch charging Modulation Technique ASK Antenna Type Coil Antenna Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation SAR Evaluation 2 / 7 Applicable Standard: FCC Part 1(1.1310), Part 2(2.1093) and KDB 680106 D01 Wireless Power Transfer v04 Applicable Requirement: Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR ß2.1091. Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFRß2.1093). The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when a person is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. The phrase fully aware in the context of applying these exposure limits means that an exposed person has received written and/or verbal information fully explaining the potential for RF exposure resulting from his or her employment. With the exception oftransient persons, this phrase also means that an exposed person has received appropriate training 3 / 7 regarding work practices relating to controlling or mitigating his or her exposure. Such training is not required for transient persons, but they must receive written and/or verbal information and notification (for example, using signs) concerning their exposure potential and appropriate means available to mitigate their exposure. The phrase exercise control means that an exposed person is allowed to and knows how to reduce or avoid exposure by administrative or engineering controls and work practices, such as use of personal protective equipment or time averaging of exposure. General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Licensees and applicants are responsible for compliance with both the occupational/controlled exposure limits and the general population/uncontrolled exposure limits as they apply to transmitters under their jurisdiction. Licensees and applicants should be aware that the occupational/controlled exposure limits apply especially in situations where workers may have access to areas in very close proximity to antennas and access to the general public may be restricted. In lieu of evaluation with the general population/uncontrolled exposure limits, amateur licensees authorized under part 97 of this chapter and members of his or her immediate household may be evaluated with respect to the occupational/controlled exposure limits in this section, provided appropriate training and information has been provided to the amateur licensee and members of his/her household. Other nearby persons who are not members of the amateur licensee's household must be evaluated with respect to the general population/uncontrolled exposure limits. 4 / 7 Test Setup Block Test Procedure 1.Connect the EUT and equipment as above diagram of test configuration. 2.EUT was placed on a table, and the measure probe was placed at a measurement distance of 20cm from the EUT to the center of the probe. 3.Power on the measuring probe, the EUT was set at the maximum field strength emission state. 4.The EUT was put in different directions (Left, Right, Front, Rear, Top and Bottom) toward to the measure probe. The distance from the top of the EUT to the probe is 20CM, and the distance from other directions is 20cm.Measure the value of field strength. 5.Record the worst data of the different directions. Measuring Device And Test Equipment Used Equipment Manufacturer Model No. Serial No. Last Cal. Due Date  E&H-Field Probe(9kHz-30M Hz) Narda EHP-200A 180ZX11012 2024/09/14 2025/09/13 5 / 7 Description of Support Device Earphone ： Manufacturer: momax M/N: X5 S/N: N/A Watch ： Manufacturer: Apple In…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For PD25W charger MODEL NUMBER: W001, W002 REPORT NUMBER: E04A25081100F00101 ISSUE DATE: September 11, 2025 FCC ID: 2BR56-W001 Prepared for Weipusheng (Shenzhen) Technology Co., Ltd. Room 402, Building C1, No. 11, North Zone, Shangxue Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25080438F00101 Page 2 of 35 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 11, 2025 Initial Issue REPORT NO.: E04A25080438F00101 Page 3 of 35 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Limit/Requirement Result Antenna Requirement FCC Part 15.203 Pass AC Power Line Conducted Emission FCC Part 15.207 Pass 20dB Bandwidth FCC Part 15.215 Pass Radiated Emission FCC Part 15.205/15.209 Pass Note: 1. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25080438F00101 Page 4 of 35 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. TEST MODE ............................................................................................................. 8 5.3. SUPPORT UNITS FOR SYSTEM TEST ................................................................... 8 5.4. SETUP DIAGRAM .................................................................................................... 9 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 10 7. RADIATED TEST RESULTS ............................................................................................... 11 7.1. Radiated Spurious Emission ................................................................................... 15 8. AC POWER LINE CONDUCTED EMISSION ...................................................................... 27 9. 20DB BANDWIDTH ............................................................................................................. 32 10. ANTENNA REQUIREMENT ................................................................................... 35 REPORT NO.: E04A25080438F00101 Page 5 of 35 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Weipusheng (Shenzhen) Technology Co., Ltd. Address: Room 402, Building C1, No. 11, North Zone, Shangxue Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China Manufacturer Information Company Name: Weipusheng (Shenzhen) Technology Co., Ltd. Address: Room 402, Building C1, No. 11, North Zone, Shangxue Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China EUT Information Product Description: PD25W charger Model: W001 Series Model: W002 Brand: / Sample Received Date: September 4, 2025 Sample Status: Normal Sample ID: A25081100 001 Date of Tested: September 4, 2025 to September 9, 2025 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 FCC PART 15 SUBPART C Pass Prepared By: Checked By: Ellie Yang Alan He Project Engineer Laboratory Leader Approved By: Shawn Wen Laboratory Manager REPORT NO.: E04A25080438F00101 Page 6 of 35 TRF No.: 04-E001-0B Global Testing , Great Quality. 2. TEST METHODOLOGY All tests were performed in accordance with the standard CFR 47 FCC PART 15 SUBPART C 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 6947.01) Guangdong Global Testing Technology Co., Ltd. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1343) Guangdong Global Testing Technology Co., Ltd. has been recognized to perform compliance testing on equipment subject to Supplier's Declaration of Conformity (SDoC) and Certification rules ISED (Company No.: 30714) Guangdong Global Testing Technology Co., Ltd. has been registered and fully described in a report filed with ISED. The Company Number is 30714 and the test lab Conformity Assessment Body Identifier (CABID) is CN0148. Note: All tests measurement facilities use to collect the measurement data are located at Room 101-105, 203-210, Building 1, No.2, Keji 8 Roa…

Text truncated - open the document above for the full version.

Setup Photographs Conducted emissions Page 2 of 4 Radiated emissions below 1GHz Page 3 of 4 Page 4 of 4 RF Exposure Evaluation
