2BR6TTCPA117Router

https://skymirr.com SkyMirr5G CPE TCPA117 Guide Document Thank you for choosing SkyMirr TCPA117 “Use indoor only” https://skymirr.com Contents Access the Web UI 1 Status Overview (Carrier Network, Signal, Local Network, Data Plan) 2 4G/5G Network (Carrier Network and Signal & Band information) 3 4 5 6 Data Plan (Dynamic DNS Setting, Bandwidth Monitor, Adblock, UPnP Setting) System (Interface Setting, Wireless Setting, Routing, DHCP and DNS, Firewall, HyFi Setting) Local Network 7 Regulatory Information (FCCComplianceInformation) https://skymirr.com 1. Access the Web UI ❑DeviceWebPage URL ➢https://192.168.1.1 https://skymirr.com 1. Access the Web UI ❑Login ID/PW ➢Username : admin ➢Password : last 8 digits of the MAC address https://skymirr.com 2. Status Overview ❑Status Overview ➢Displays Carrier Network, Signal, Local Network, Data Plan https://skymirr.com 2. Status Overview ❑Carrier Network ➢Uptime: Shows how long the device has been powered on or running since the last reboot. ➢APN (Access Point Name): The network access configuration used by the SIM card. ➢IMEI: A unique identifier for the router’s modem hardware. ➢ICCID: The SIM card’s unique identifier. ➢MDN: The CPE number assigned to the SIM card. ➢Status Indicator: A green dot means the device is connected to the carrier network. ❑Signal ➢Signal Strength: Displays the received radio signal in dBm (e.g., -86 dBm). ➢Signal Quality: Overall quality of the mobile connection (e.g., Good). ➢Band: The LTE and 5G NR frequency bands currently in use. ➢Strength Bars: A graphical indicator of signal reception. https://skymirr.com 2. Status Overview ❑Local Network ➢Wi-Fi Name (SSID): The wireless network name broadcast by the router. ➢Wi-Fi Password: The password required to connect devices. ➢Devices Connected: Number of devices currently connected via Wi-Fi. ➢WAN/LAN Icons: Show the status of the internet (WAN) and local network (LAN) ports. ❑Data Plan ➢Data Limit: The maximum available data allowance (e.g., 300 GB). ➢Used Data: The amount of data consumed so far. ➢Reset Day: The day of the month when the data counter resets. ➢Usage Indicator: A circular gauge showing the percentage of used data. https://skymirr.com 2. Status Overview ❑Bottom Menu (Navigation) ➢English: Language selection for the Web UI. ➢User Manual: (Planned) Opens the router’s user manual or help guide. ➢Advanced Settings: (Planned) Provides access to advanced configuration options. ➢Reboot: Restarts the router. ➢Logout: Safely logs the current user out of the Web UI. https://skymirr.com 3. 4G/5G Network ❑4G/5G Network ➢Displays Carrier Network and Signal & Band information https://skymirr.com 4. Local Network ❑Local Network ➢Displays the Wi-Fi & LAN and Device information https://skymirr.com 4. Local Network ❑Local Network ➢LAN Settings ✓WAN Connection : 5G/LTE only / WAN only / Failover & Load Balance (Optional) ✓Displays client information and IP address of primary and guest. https://skymirr.com 4. Local Network ❑Local Network ➢Wi-Fi Settings ✓Displays the Wi-Fi information ✓To change the Wi-Fi SSID and Password https://skymirr.com 4. Local Network ❑Local Network ➢Administrative Control ✓To block the applications and the Web site. ✓Exempted user groups https://skymirr.com 4. Local Network ❑Local Network ➢Firewall ✓To enable the Firewall control and set the time line. ✓MAC address and URL filtering https://skymirr.com 5. Data Plan ❑Data Plan ➢Summary the data management https://skymirr.com 5. Data Plan ❑Data Plan ➢Bandwidth Control ➢Group Data Allotment ➢Group Speed Limit https://skymirr.com 5. Data Plan ❑Data Plan ➢Primary Device List ➢Displays the Primary Wi-Fi Devices https://skymirr.com 5. Data Plan ❑Data Plan ➢Guest Device List ➢Displays the Quest Wi-Fi Devices https://skymirr.com 6. System ❑System ➢Displays the Device name and H/W & S/W version ➢To update Firmware with factory reset https://skymirr.com Regulatory Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. https://skymirr.com Regulatory Information However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution •Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. •This device is restricted to indoor use only. •This device is prohibited from being operated on oil platforms, cars, trains, boats, and aircraft, except it can be operated in large aircraft while flying above 10,000 feet in the 5.925–6.425 GHz band. •Transmitters in the 5.925–7.125 GHz band are prohibited from operating to control or communicate with unmanned aircraft systems. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limi…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 18, 2025 FCC ID: 2BR6TTCPA117 RE: Covered listed Attestation Part 2.911(d)(5)(i) Filing SkyMirr Inc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. SkyMirr Inc (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). RE: Attestation Statements Part 2.911(d)(5)(ii) Filing SkyMirr Inc (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) published on September 03, 2024 by Public Safety and Homeland Security Bureau (PSHSB) per Section 1.50002 of the Commission’s rules, as an entity producing “covered” equipment. Sincerely, Applicant : SkyMirr Inc Address : 930 S. Harbor City Blvd Suite 403, Melbourne, Florida 32901, United States Signature : _________________________________ Name and Job Title : Kerry Greer, CSO E-mail : [email protected] Tel. : 1-321-482-1811

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 18, 2025 Ref: Covered listed Attestation Part 2.911(d)(7) Filing Grantee Code: 2BR6T FRN: 0037333416 SkyMirr Inc (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. The applicant as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC Grantee Code. The service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. The applicant acknowledges that they will maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the following agent information changes. Designated U.S. Agent Information: FRN: 0037333416 Company Name: SkyMirr Inc Address: 930 S. Harbor City Blvd Suite 403, Melbourne, Florida 32901, United States Contact Person: Kerry Greer, CSO Tel.: 1-321-482-1811 Email: [email protected] Sincerely, Applicant SkyMirr Inc Kerry Greer, CSO Signature:

Request for Confidentiality Date: September 18, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 FCC ID: 2BR6TTCPA117 Permanent Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematic Diagram 3. Operational Description 4. Software Security For U-NII Devices The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant : SkyMirr Inc Address : 930 S. Harbor City Blvd Suite 403, Melbourne, Florida 32901, United States Signature : _________________________________ Name and Job Title : Kerry Greer, CSO E-mail : [email protected] Tel. : 1-321-482-1811

Agent Authorization Letter Date: September 18, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2BR6TTCPA117 Product Name: Router To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : VP e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : SkyMirr Inc Address : 930 S. Harbor City Blvd Suite 403, Melbourne, Florida 32901, United States Signature : _________________________________ Name and Job Title : Kerry Greer, CSO E-mail : [email protected] Tel. : 1-321-482-1811

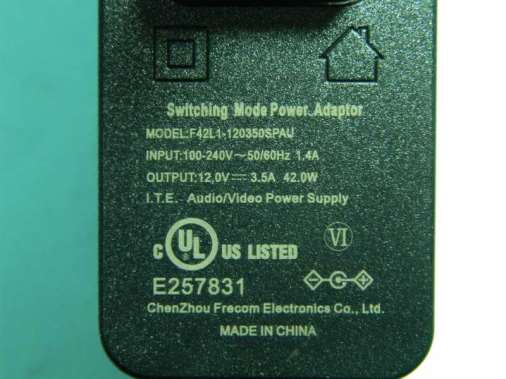

PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 1 of 28 Report Template No.: SE Ver 1.0_EP Issued Date : 09/Oct/2025 Report Version : 1 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 2 of 28 Report Template No.: SE Ver 1.0_EP Issued Date : 09/Oct/2025 Report Version : 1 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 3 of 28 Report Template No.: SE Ver 1.0_EP Issued Date : 09/Oct/2025 Report Version : 1 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 4 of 28 Report Template No.: SE Ver 1.0_EP Issued Date : 09/Oct/2025 Report Version : 1 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 5 of 28 Report Template No.: SE Ver 1.0_EP Issued Date : 09/Oct/2025 Report Version : 1 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 27 of 28 Report Template No.: SE Ver 1.0_EP Issued Date : 09/Oct/2025 Report Version : 1 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 28 of 28 Report Template No.: SE Ver 1.0_EP Issued Date : 09/Oct/2025 Report Version : 1 ______________THE END______________ RJ45 Cable

FCC Technical Document Templates Label Location The product label (include FCC ID) is permanently affixed on the bottom surface of the device, and it is visible to the user.

PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 6 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 7 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 8 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 9 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 10 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 11 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 12 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 13 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 14 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 15 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 16 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 17 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 18 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 19 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 20 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 Ant. (2.4G+ 5G+6G) Ant. (2.4G+ 5G+6G) PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 21 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 Ant. (2.4G+ 5G+6G) Ant. (2.4G+ 5G+6G) PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 22 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 Ant. (LTE+NR(NSA)) Ant. (LTE+NR(NSA)) PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 23 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 Ant. (LTE+NR(NSA)) Ant. (LTE+NR(NSA)) PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 24 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 Ant. (LTE+NR(NSA)) Ant. (LTE+NR(NSA)) PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 25 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 Ant. (2.4G+ 5G+6G) Ant. (2.4G+ 5G+6G) PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 26 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 Ant. (2.4G+ 5G+6G) WWAN (Port 3) WWAN (Port 2) WWAN (Port 1) WWAN (Port 0) WIFI (Port 4) WIFI (Port 2) WIFI (Port 1) WIFI (Port 3) PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 27 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 28 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 29 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 30 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 31 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 AC Adapter PHOTOGRAPHS OF EUT EP551215 Sporton International Inc. Page No. : 32 of 32 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 19, 2025 Report Version : 02 ______________THE END______________ RJ45 Cable

Radio Exposure Evaluation Report Report No. : FA551215 TEL : 886-3-327-3456 Page Number : 1 of 19 FAX : 886-3-327-0973 Issued Date : Dec. 02, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 03 FCC ID: 2BR6TTCPA117 Radio Exposure Evaluation Report Contains FCC ID : XMR2023RM520NGL FCC ID : 2BR6TTCPA117 Equipment : Router Brand Name : SkyMirr Model Name : TCPA117 Applicant : SkyMirr Inc 930 S. Harbor City Blvd Suite 403 Melbourne, FL 32901 Manufacturer : SkyMirr Inc 930 S. Harbor City Blvd Suite 403 Melbourne, FL 32901 Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Jun. 03, 2025, and testing was started from Sep. 08, 2025 and completed on Sep. 10, 2025. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA551215 TEL : 886-3-327-3456 Page Number : 2 of 19 FAX : 886-3-327-0973 Issued Date : Dec. 02, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 03 FCC ID: 2BR6TTCPA117 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ........................................................................................................................... 10 1.3 Testing Location ................................................................................................................................... 10 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................. 11 2.1 Limit of Maximum Permissible Exposure ............................................................................................. 11 2.2 RF Exposure Exempt Measurement .................................................................................................... 12 2.3 Multiple RF Sources Exposure ............................................................................................................. 13 2.4 MPE Calculation Method ...................................................................................................................... 14 2.5 Calculated Result and Limit .................................................................................................................. 15 Photographs of EUT V02 Radio Exposure Evaluation Report Report No. : FA551215 TEL : 886-3-327-3456 Page Number : 3 of 19 FAX : 886-3-327-0973 Issued Date : Dec. 02, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 03 FCC ID: 2BR6TTCPA117 History of this test report Report No. Version Description Issued Date FA551215 01 Initial issue of report Oct. 20, 2025 FA551215 02 Co-location RF Exposure Evaluation was evaluated and update photographs of EUT. (This report is the latest version replacing for the report issued on Oct. 20, 2025.) Nov. 19, 2025 FA551215 03 Revised typo. (This report is the latest version replacing for the report issued on Nov. 19, 2025.) Dec. 02, 2025 Radio Exposure Evaluation Report Report No. : FA551215 TEL : 886-3-327-3456 Page Number : 4 of 19 FAX : 886-3-327-0973 Issued Date : Dec. 02, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 03 FCC ID: 2BR6TTCPA117 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None Reviewed by: Daniel Hsu Report Producer: Michelle Tsai Radio Exposure Evaluation Report Report No. : FA551215 TEL : 886-3-327-3456 Page Number : 5 of 19 FAX : 886-3-327-0973 Issued Date : Dec. 02, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 03 FCC ID: 2BR6TTCPA117 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM) 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM) 6GHz WLAN 5925-6425 6525-6875 6875-7125 5955-6415 6535-6865 6875-7115 802.11a: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM) Note: The WWAN transmitter is certified under separate FCC ID XMR2023RM520NGL.…

Text truncated - open the document above for the full version.

1 SkyMirr Antenna Under Test (AUT) Report Model Name : TAEP149 Tested Device with TAEP149 : TCPA117 (CPE) Manufacturer : SkyMirr Inc. Test Location : SkyMirr laboratory in Korea Report Date : 10/22/2025 2 1. Antenna information and test data 1) Antenna information 2) Manufacturer information 3) Test data ① Efficiency ② Peak Gain ③ S-parameter ④ Radiation pattern 2. Test equipment 1) Antenna Anechoic chamber information 2) Test equipment (including calibration information) 3. Operation information 1) Measurement information 2) Device set up for antenna performance measurement 3) Anechoic chamber configuration Appendix Antenna Chamber appearance Antenna deployment in the unit and port information Contents 6Ghz band (6E)5Ghz band2.4Ghz band Frequency [MHz] 7115688366516419618759555855582558055750550052205150247824422401 59.5 63.2 60.1 62.8 59.6 68.4 62.1 60.0 58.6 58.5 59.0 64.7 65.4 76.0 69.4 68.2 Port1 63.8 64.7 64.4 66.2 63.8 70.7 66.3 64.5 62.0 65.0 62.3 61.6 62.1 78.8 74.3 73.7 Port2 52.5 56.2 53.1 55.8 52.6 61.4 50.5 48.7 49.0 53.9 56.2 54.5 56.8 71.0 64.8 65.0 Port3 56.0 56.8 56.5 58.4 55.9 62.8 58.1 61.7 62.8 61.6 68.1 62.1 61.9 79.4 74.2 73.4 Port4 6Ghz band (6E)5Ghz band2.4Ghz band Frequency [MHz] 7115688366516419618759555855582558055750550052205150247824422401 4.18 3.44 2.42 2.69 2.34 2.95 2.94 2.73 2.54 2.44 3.05 3.63 3.38 2.86 2.54 2.18 Port1 3.62 3.52 2.76 2.46 3.03 3.78 2.57 2.39 2.41 2.68 3.18 3.72 2.67 2.82 2.48 2.59 Port2 3.78 3.19 2.34 2.53 2.55 2.88 2.33 2.08 2.14 2.69 2.99 3.59 2.44 2.64 2.11 2.09 Port3 3.84 3.27 2.44 2.60 2.69 2.92 2.37 2.44 2.49 2.81 3.02 3.71 2.78 2.77 2.63 2.60 Port4 1. Antenna information and test data 3) Test data ② Peak Gain PorarizationSupportConnectorTypeModel namleBrandPort Linear2.4G +5GMHF1 (UFL)FPC with RF cableTAEP149SkyMirr Inc.1 Linear2.4G +5GMHF1 (UFL)FPC with RF cableTAEP149SkyMirr Inc.2 Linear2.4G +6GMHF1 (UFL)FPC with RF cableTAEP149SkyMirr Inc.3 Linear2.4G +6GMHF1 (UFL)FPC with RF cableTAEP149SkyMirr Inc.4 1) Antenna information 2) Manufacturer information SkyMirr Inc.Company 930 S harbor City Blvd. Suite 403, Melbourne, FL 32901Address ① Efficiency ① Operation Frequency : 2400 ~ 2500Mhz, 5100 ~ 7150Mhz ② Antenna Characteristic Impedance : 50 ohm 3 ③ S-parameter SWRISOLATION 3 ④ Radiation pattern 4 2. Test instrument Reamrk Calibration Serial No.ModelManufacturerName Due date Date of Cal. 2026/07/182025/07/18MY47102813E5071CKeysight Network Analyzer 2) Test Equipment (including calibration information) 1) Antenna Anechoic Chamber Information ReamrkSize (W x L x H)ManufacturerName Positioner, Horn Antenna2600 x 3800 x 2500mmAplustechAnechoic Chamber (1) Test personnel : DongGu Lee (3) Test software being used : Passive (ver.2.7.3A) provided by Aplustech (2) Test Place : SkyMirr laboratary in Korea (#726A, Deokcheo-ro 152 beongil 25,Manan-gu, Anyang-si, Gyeonggi-do, South Korea) 3. Operation information 1) Measurement Information 2) Device set up for antenna performance measurement X Y Z 5 6 LAN cable RF cable Serial cable •Anechoic Chamber diagram for antenna measurement Φ axis θ axis 3) Anechoic chamber configuration •Positioner in Anechoic Chamber •Source antenna with switch 7 ※ Appendix 1. Anechoic Chamber appearance • Size : 2600(w) x 3800(l) x 2500(h)mm • Chamber inside structure 8 2. Antenna deployment in the unit and port information •TCPA117 (CPE) with TAEP149 inside •Antenna deployment and port information

FCC Radio Test Report Report No. : FR551215AN TEL : 886-3-3273456 Page Number : 1 of 25 FAX : 886-3-3270973 Issued Date : Nov. 19, 2025 Report Template No.: HE1-D1 Ver4.6 Report Version : 02 FCC ID: 2BR6TTCPA117 FCC Radio Test Report Contains FCC ID : XMR2023RM520NGL FCC ID : 2BR6TTCPA117 Equipment : Router Brand Name : SkyMirr Model Name : TCPA117 Applicant : SkyMirr Inc 930 S. Harbor City Blvd Suite 403 Melbourne, FL 32901 Manufacturer : SkyMirr Inc 930 S. Harbor City Blvd Suite 403 Melbourne, FL 32901 Standard : 47 CFR FCC Part 15.407 The product was received on Jun. 03, 2025, and testing was started from Sep. 06, 2025 and completed on Nov. 12, 2025. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. : FR551215AN TEL : 886-3-3273456 Page Number : 2 of 25 FAX : 886-3-3270973 Issued Date : Nov. 19, 2025 Report Template No.: HE1-D1 Ver4.6 Report Version : 02 FCC ID: 2BR6TTCPA117 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 Test Channel Mode ................................................................…

Text truncated - open the document above for the full version.
